lolx..curi curi tengok ya najmods

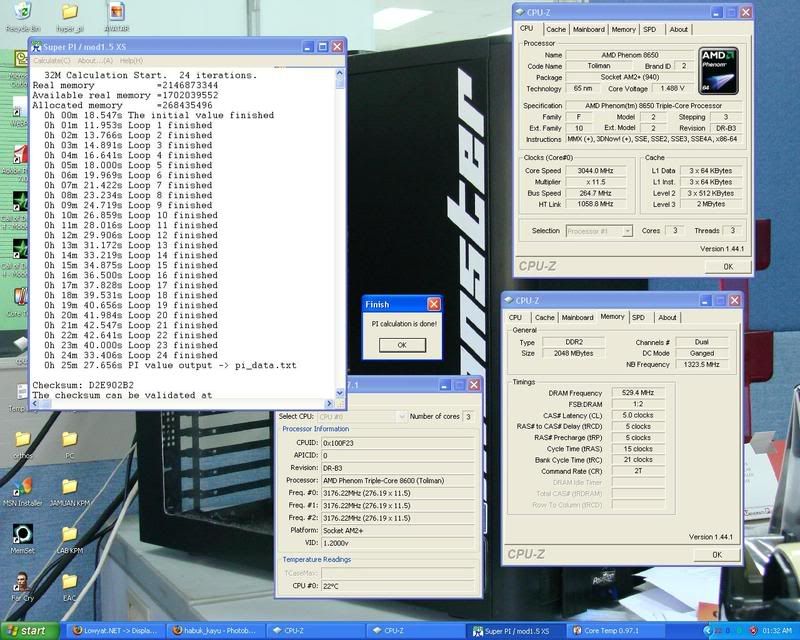

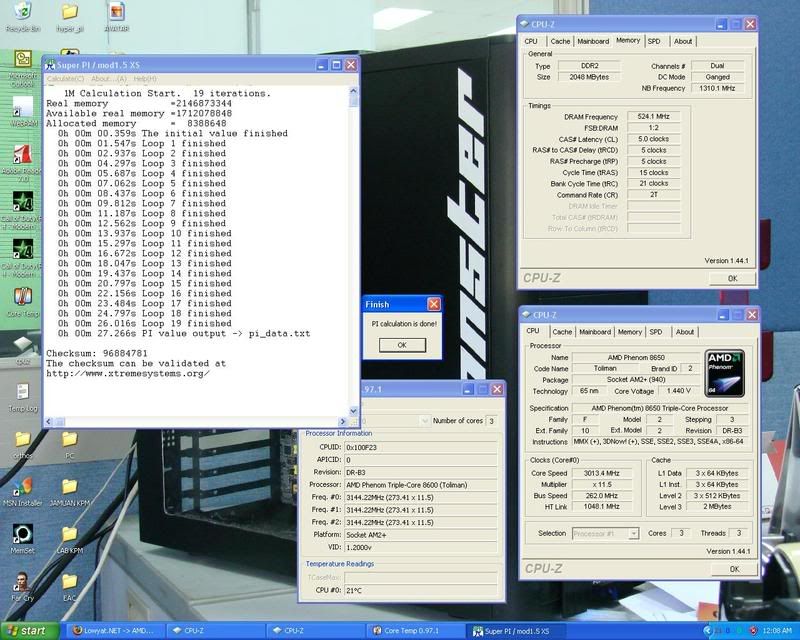

mr_habuk spi1m 3.0ghz is 27.xx..then sannylyk be 3.3 is also 27.xx but with 3.3..hmm..eventhough the ram speed is different, i think it shudnt differ much..
so tri core is good..how much u bought mr_habuk??

lolz why limit the HT Link to 1000MHz?
No point to buy am2+ proc and mobo in this way
Don't blindly apply am2 oc method to am2+ oc
Observe and think before you apply, oc wise

but ive seen one thing..this time got fsb:dram frequency..

yalor...me also just notice it. try push to the maxx. usually mobo with 590 chipset and above got no prob with higher HT...

do u mean 590 nvidia chipset?max 1500 only..

yup...at least higher than 1000....

http://forum.lowyat.net/index.php?act=Atta...=post&id=398927

i also realize...here some reference....even i just use B2...the HTLink & NB i try go as far as possible..

yes.. as Tony from XtremeSystem Quotes

plus, K10 has totally independent clock control over CPU-NB and CPU core. In the DFI bios you will see the following under CPU features.

CPU DID
CPU FID

CPU DID = multiplier divider
CPU FID = actual multi in HEX

I mapped some common values out for CPU muti.
HEX Multi
00 = 08
01 = 08.5
02 = 09
03 = 09.5
04 = 10
05 = 10.5
06 = 11
07 = 11.5
08 = 12
09 = 12.5
0A = 13
0B = 13.5
0C = 14 ETC

Now we have a CPU DID also, this can be 1,2,4,8,16

things get good from 11 onwards using the 2 4 8 or 16 dividers and ODD ratio's

setting 06 FID and 2 DID will give 5.5, setting 01 FID and DID2 will give 8.25 so yes you can have quarter multipliers also.

Remember DID1 will give FID/1=FID with no adjustment...2 4 8 16 give the special ratio's

Moving to NB FID and DID

NB DID is either 1 or 2


Hex NB Multi
00 = 4
01 = 5
02 = 6
03 = 7
04 = 8
05 = 9
06 = 10
07 = 11
08 = 12
09 = 13
0A = 14
0B = 15
0C = 16
0D = 17 ETC

Again we can DID or divide by 1 or 2...so 07HEX with DID2 will give 5.5 for the NB Multi

So how does this translate, well remember HTT is 200 by default so 01HEX=5X
5X200HTT=1000MHZ
02HEX=6X so 6x200 for 1.2GHZ etc

CPU NB and Link Multipliers are unlocked on ALL CPU's, there are rules though.

HT link speed can NOT exceed NB clock speed, but HT link can be lower than NB core clock.

NB Clock is what decreases L3 cache latency and so improves performance.

Overall HTT speed is dependent on many things, NB core clock, HT link and CPU multi, different configs give differing results..we just need to reasrch the best for now.

copied from Tony post in XtremeSystem
http://www.xtremesystems.org/forums/showthread.php?t=167977

i think these refer to those who uses DFI UT 790FX.. seems that the BIOS is quite.... difficult....

This post has been edited by casperito: Apr 29 2008, 07:16 AM

i was actually skipping #1 in Tony list..as i still can't understand what he's telling..

i think wat he means is by setting up the DID and FID combination will make out the multiplier for the proc... i think la...
i onli have the mobo... if onli i can get the proc maybe i can figure out the actual function of the DID and FID....
even the NB also need to set up by combination... haiz...
ohh.. math... i hate math...

for example..

CPU FID HEX 08 = 12
CPU DID 01 = 1 so NO change to CPU FID as 12/1=12

CPU core speed 250HTT x 12 for 3000MHZ

its quite simple actually if u read it over....and over... and over.... and over again...
and i sacrifice my sleep for this...

the #1 step is Find the max NB core clock the CPU will run (this is the CPU NB)

i think he's talking about the HTT link or something like that...
try to look at the pic that he posted in the XS tread...

hmm.. current best batch for X4 9850 BE JAAFB AA 0810 BPMW @ 3.12ghz @ 1.32v on AIR.. nice...

This post has been edited by casperito: Apr 29 2008, 09:34 AM

i wish all the am2+ setting listed on a table
playing with that number will consume alot of time and boring...
coz no much time to spend..

Arhhhh...i hate Math..

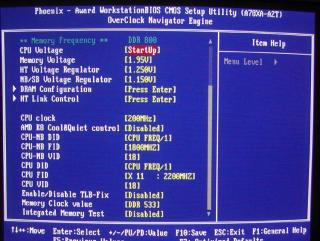

New bios setting with bundle phenom proc


Is very challenge when can to OC ...i love it kekehehe

so bro digs oso got new phenom..

Wahh.. bro u also got new phenom alredy arrr...

@digwell
What model is that?

P/S: Anyone interested in my 3800 F3? PM me. Special price for AM2's fellows.

-pWs-

hahahaha

pWs poison already...

his on intel.. syuh² hahaha..

Heard that tricore not bad wor. Anyone hav it and oc??
