wrong thread bro, here all hardcore E2XXX kakis only left, like me

i'm using e5200 oced to 3ghz for my daily use, stock vcore with xigamtek 1283 cooler. but temp keep 41c another 1 is 48c is it normal ? how to make it lower temp

E5200 temp sensor is abit kuku. With your cooling setup there shudnt be any heat probs, unless you forgot to apply thermalpaste

Else you should activate EIST/speedstep to further control temps

mine, overclock without thermalpaste, use stock HSF dont give any probelm as long as you control your temp.. Bro, normal for core 0 & 1 hv difference temp...You detect temp using what software??

but i hope i wan make it till 3x c

Like i said.....E5200 temp sensor is abit kuku on some procs. As long as you have followed all the proper steps (seat HSF properly, apply just enough thermalpaste, lock HSF properly) & your HSF feels cool to touch....its alrite

hai guys

i'm noob in this field..and need to learn to gain my experience about intel overclocking

for beginner i'm tried OC my cheapo E2140 M0 stepping @3.28Ghz vcore 1.45V

my question is how far this proc can be achieve?what i know after discuss with somebody...he told me G0 stepping is better for overclocking...

btw..i'm just changed from AMD to Intel...

thanks...



This post has been edited by nidzamputra: May 13 2009, 09:42 AM

If I remember correctly, I manage to hit around 3.48Ghz on my M0 previously with a substantial amount of voltage to get it stable. It's also done on a cheap Gigabyte DS3L motherboard

i'm just beginner...need to learn...hehehehe

Hmm....it depends how much volts u willing to pump & whats your procs FSB wall. Usually E21XX procs have FSB wall around 400, so you're quite near your limit ald i guess

i pust my FSB 405 @ 1.42v stable OCCT passed..when i push to 410 @ 1.44v OCCT failed...

so i running my current speed with 405 FSB @ 3.24GHz

test for the max your pc can post at, then back down about 5FSB n stress test. U might hv to play with mch voltages abit

ok bro..thanks for suggestion...

will play with NB voltage later...

To all da E2xxx seniors n veteran... Bad news... my proc has juz pass away 2weeks ago... Canot use anymore... confirm proc kong edi... So unfortunately I m planning 2 get a E5200... Still loyal wit Pentium Dual Core... Even I can afford a Quad Core these days... But da spirit of Pentium Dual Core is still in me...

Sadly, I m out frm da Team E2OC cuz i m gonna use a E5xxx series. But 4rom time 2 time I m still gonna visit dis thread. A lot of memories... E2180 @ 3.6ghz 1.55v I still remember vignesh, big block, joe star, clawhammer, kuchingfight n many more sifoos...

u want my E2160? Its sitting arnd now that i got my Q6600. Make me an offer i cant refuse bro

400-410 almost the wall for e2xxx M0.

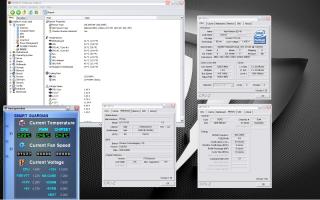

btw, here is my old e2160 @ 3.4ghz.


Attached thumbnail(s)

Its ok bro... I know ur E2160 GO is very tempting... But I've set my mind on da E5200.... U r still using da IP-35E??? Dun sell if possible... very rare n super board...

Yea both collecting dust. Im thinking of keeping both as antique, n use the IP35-E to play OC

i new here... i have a e2160 M0... i not understand about vcore.... can teach?

vCore = Voltage for processor.

-pWs-
