And i see nowaday ppl normally put downlight under the L box , is that the trend ? Last time normally ppl will put inside 4 Way


Downlight under L box




Downlight inside the L box





Which one will look better actually?





And

normally ppl do L box for master room upper our bed ? Or do it opposite our bed

just like this pic

For me, i do the Downlight inside the L box because i no plan always turn on the T5 light through.
Normally just turn on the led downlight only. If wan romantic, just on warm white T5 light through, off downlight.
If my downlight put under L box, center of the living hall not enough bright.


For my master room, i put the light through on top my bed and air con opposite my bed.
Air con there no light through so set more height. Somemore air con is not recommend to set on top of bed, worry leaking.
Just my 2cent


This post has been edited by silver88: Oct 25 2014, 02:28 PM

plain board = flat normal
L box = normal box to cover some pipe without light (the "L" i think is the shape)
Light box = maybe is the downlight under the L box
Light Through = got two type i think
1) Normal Light Through = T5 inside the L box. This type the light is shine to inside. image below

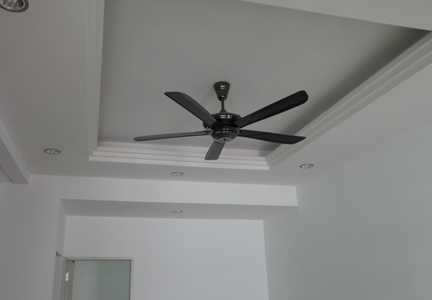

2) Dropped/Secondary Ceiling light through = The whole flat ceiling lower and left some space around like 4inch from wall to put T5 light.
Light shine to outside/wall for this type. image below


If any wrong please correct me

May I know the price for:
Man hole with aluminum ?
Man hole without aluminum ?
Thanks

really thx for the explain , i think i might put the downlight inside L box , open it when off the T5 light

The downlight inside L box it is mean u set under the L box.
But if u just turn on the downlight under L box, off the light through and ur room is big, maybe the center will not enough bright.
In that case u need to ask ur main con or ur designer to use more powerful downlight or put more downlight.

Hi all, need to ask a question. my house is under Renovation now and I'm doing the 3 "longkang" type of Plaster Ceiling (sorry dunno the exact name of this design, my Contactor calls it longkang hehee). I saw pic on the net and told Contactor I wanted the same design.

When I went to view the progress, the boards are up but the t5 lights are visible! are the lights supposed to be visible? Anyone who did this design pls advise... Are the any way to rectify this?

Nope. Patutnya tak nampak

Hi all, need to ask a question. my house is under Renovation now and I'm doing the 3 "longkang" type of Plaster Ceiling (sorry dunno the exact name of this design, my Contactor calls it longkang hehee). I saw pic on the net and told Contactor I wanted the same design.

When I went to view the progress, the boards are up but the t5 lights are visible! are the lights supposed to be visible? Anyone who did this design pls advise... Are the any way to rectify this?

Not suppose to be visible. Ask your contractor why visible

Contractor said memang like that, he did for other bungaloW and college also like that and very nice. D. U know how to rectify this since its done now? If put an acrylic board to cove. The lightings?

take pics with lights on and off

Aaaaaaaaaand now this tread is in /k.

like this page for renovation...
https://www.facebook.com/khalidson.ds

Hi anyone here can give review how the finished product of PVC ceiling looks like compared to plaster.

thankk you

normally when the contractor quote a price for L box, do they count the whole sqft of the ceiling or just the L box alone?

Hi,
i'm planning for plaster ceiling light box.
What is the thinnest plaster ceiling drop with light box possible?

is it possible to be done in under 15cm?

do you have any downlight?

please take min about 50mm + downlight lenght for wiring purposes. if you dun have downlight or LED down light then u can do with 150mm

else to short to do the downlight.

yeah, planning for LED downlight.
so can be done under 150mm with light box? thanks..!

yeah should be. remember next time you only able to select in certain size or range.

yeah example not like those light bulb led might not suitable.

but this should be ok
