QUOTE(niakulah @ Aug 1 2020, 06:22 PM)
Spent an afternoon modding and for once nothing went wrong lol.

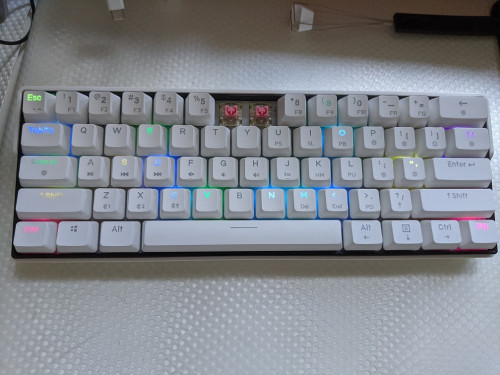

First goal was to get the Navy on Lock duty.
[attachmentid=10547148]
Curious thing I discovered is that the center "pin" of Kailh box navies don't go in very far.
[attachmentid=10547149]
The Kailh is the switch that hasn't been soldered. And as you can see from the clean holes, my desoldering iron is working like magic once again. I think for some reason it doesn't like the KPrepublic PCBs? No problem desoldering my IKBC with either lead free solder or my generic 63/37 solder. Curiouser and curiouser.
Second goal was to undo my band aid mods. Some keys were sticking and slow to return.
[attachmentid=10547153]
Interestingly not long ago, Taeha Types said in a Twitch stream that he no longer does this mod. Maybe his clients also had the same issues?
And while my stabs were out, I wanted to add some cloth tape on the ends of the wire. I thought I had cloth tape at home but it turns out I didn't. So I used PTFE tape instead. It's not "secured" in any way. I hope I don't regret it in a few weeks....
[attachmentid=10547174]
[attachmentid=10547179]
[attachmentid=10547180]
And lastly, this is how I got around to removing my spacebar stab with the foam in place.
[attachmentid=10547181]
[attachmentid=10547182]
about stabilizer band-aid mod, i use ptfe tape instead of lubed fabric band-aid, because i want a clean, not mushy, feel when i bottom out.
for wire tip band-aid mod, it's better to test the outcomes first. this is because if the tap is too thick it will cause mushiness. i am still experimenting with heat shrink mod. a shorter (5mm) tube will get rid of mushiness, but somehow ticking sound comes back. will adjust the location of shrinks on the tips to see if it helps.
glad to see more people are modifying their boards. it's really worth the efforts
