Nice

My friend and one company at Ampang Point (Load Balance TM & TIME) are still working fine,

I still improving my PON Stick, make sure working fine and max performance on TM NGN/NGBB

Here VLAN FwdOp that you can override the default OLT assignment

Forward operation	Received frame: Tagged	Received frame: Untagged
0x00	Bridging (a) (no investigation)	Bridging (a)
0x01	Discarding ©	Bridging (a)
0x02	Bridging (a) (no investigation)	Discarding ©
0x03	Action (h) (VID investigation)	Bridging (a)
0x04	Action (h) (VID investigation)	Discarding ©
0x05	Action (g) (VID investigation)	Bridging (a)
0x06	Action (g) (VID investigation)	Discarding ©
0x07	Action (h) (user priority investigation)	Bridging (a)
0x08	Action (h) (user priority investigation)	Discarding ©
0x09	Action (g) (user priority investigation)	Bridging (a)
0x0A	Action (g) (user priority investigation)	Discarding ©
0x0B	Action (h) (TCI investigation)	Bridging (a)
0x0C	Action (h) (TCI investigation)	Discarding ©
0x0D	Action (g) (TCI investigation)	Bridging (a)
0x0E	Action (g) (TCI investigation)	Discarding ©
0x0F	Action (h) (VID investigation)	Bridging (a)
0x10	Action (h) (VID investigation)	Discarding ©
0x11	Action (h) (user priority investigation)	Bridging (a)
0x12	Action (h) (user priority investigation)	Discarding ©
0x13	Action (h) (TCI investigation)	Bridging (a)
0x14	Action (h) (TCI investigation)	Discarding ©
0x15	Bridging (a) (no investigation)	Discarding ©
0x16	Action (j) (VID investigation)	Bridging (a)
0x17	Action (j) (VID investigation)	Discarding ©
0x18	Action (j) (user priority investigation)	Bridging (a)
0x19	Action (j) (user priority investigation)	Discarding ©
0x1A	Action (j) (TCI investigation)	Bridging (a)
0x1B	Action (j) (TCI investigation)	Discarding ©
0x1C	Action (h) (VID investigation)	Bridging (a)
0x1D	Action (h) (VID investigation)	Discarding ©
0x1E	Action (h) (user priority investigation)	Bridging (a)
0x1F	Action (h) (user priority investigation)	Discarding ©
0x20	Action (h) (TCI investigation)	Bridging (a)
0x21	Action (h) (TCI investigation)	Discarding ©

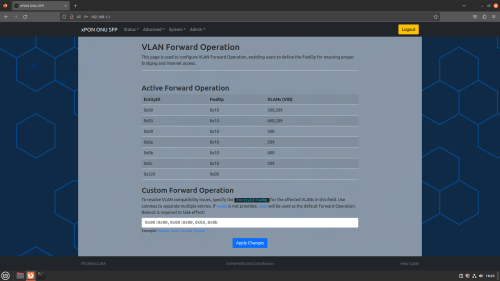

With my PON Stick, you can override via WebGUI here:


This ensure maximum compatibility among OLT, common value FwdOp is 0x02 (Bridge the tagged frame and Ignore untagged frame)

This post has been edited by Anime4000: Oct 29 2023, 06:53 PM

I just bought the stick that you use, and it cost me RM647.57
that maybank charged

Keep us updated with the results , pay came in and I'm debating whether to spend on GPON stick or not yet

Hahaha blame the currency 😂😂😂. When I bought cost less than RM450

sure, I comparing the performance between my PON Stick and Euro one, also that PON will tested on Allo Cyberjaya, I will be visiting Pendakwah Teknologi and test Allo Cyberjaya, check very tight ecosystem of Calix OLT.

Odd, Allo Penang using Huawei, I guess the Cyberjaya was trial run and Calix was bad OLT.

note that, branded OLT is stupid especially the Licensing

License locked with Quota, how many ONT can connect
License locked max speed allow
License between same brand ecosystem (cheap) vs Universal (expensive)

TM choose maximum Licence level, Internet still expensive, besides blame TM, blame Huawei, Nokia, ZTE for such stupid licence.

I know this as xPON hacking community told, I not sure exactly with TM, especially European equipment (Nokia), darn expensive 🤣

I hope this stick better than currently I use, if not... this becomes most expensive experiment I ever done for now.



of course I will be test, Europe vs my PON Stick

as I have been test, my PON Stick works with TIME business

This post has been edited by Anime4000: Nov 1 2023, 02:14 AM

Anyone wants to be the white mouse?

https://www.mi.com/xiaomi-routers/10000

Looks like the SFP+ supports HiSGMII standard, and the whole thing only costs about RM1150

This post has been edited by yenchenje: Nov 1 2023, 07:34 PM

thing will be in Chinese only WebGUI ?

I saw it for sale on AliExpress as well so I wouldn’t be surprised if there’s a English GUI version

Impressive hardware, not sure about the software side. China using 5.2 and 5.8GHz, can use in Malaysia?

it would be good if have English UI,
my past experience with TP-LINK XDR, tired holding phone running Google Lense 🤣

previous experience with TP-LINK XDR, most client devices can connect

Should be fine, I don’t see this mentioning that but

From a quick Google, apparently the web UI is in Chinese but the phone app can be in English. Not the best but hey, for the price you pay, it’s damn impressive imho

Can even run simple docker on it

Is in the spec page. I saw 4x4 notice no 6GHz. Someone mentioned before that 6GHz not available in China.

Ya 6GHz not certified in China. Would’ve been nice to get it in this router but AX is good enough I guess

You’ll probably have even better AP equipment if you’re spending on a router this grade

Btw, what stick did you bought from Poland? I want to guess Mikrotik but coming from Poland instead of Latvia.

Very expensive PON Stick to experiment!

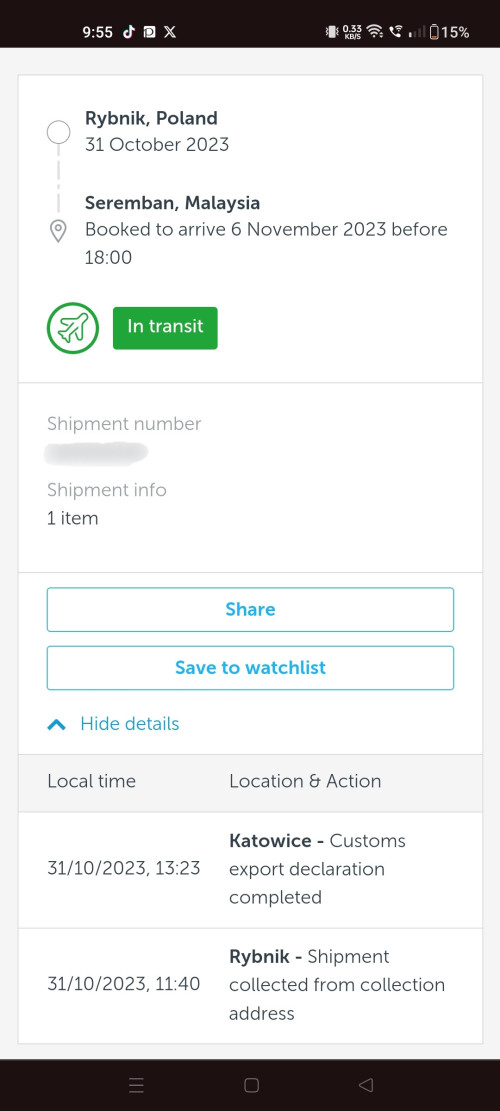

My PON Stick from Poland is arrived, hope this darn expensive stick is worth!




Quick test, 2.5Gbps mode didn't work... lol...

welp, time to troubleshoot

This post has been edited by Anime4000: Nov 2 2023, 07:42 PM

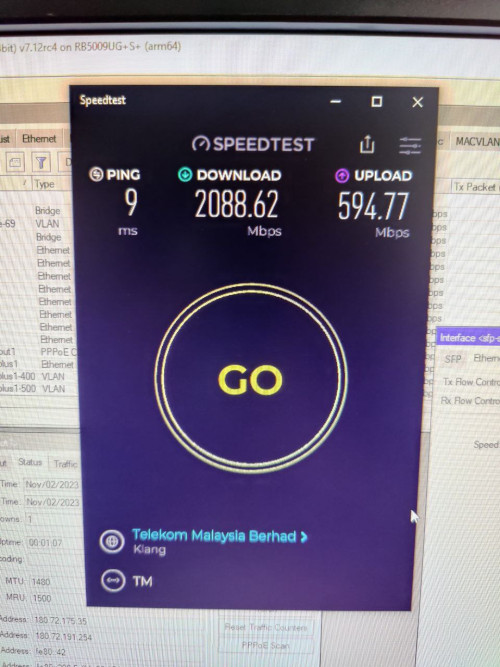

I managed to sync at 2.5G, but upload speed is so low like Intel-Lantiq PON Stick

even set Traffic Management id 0



...

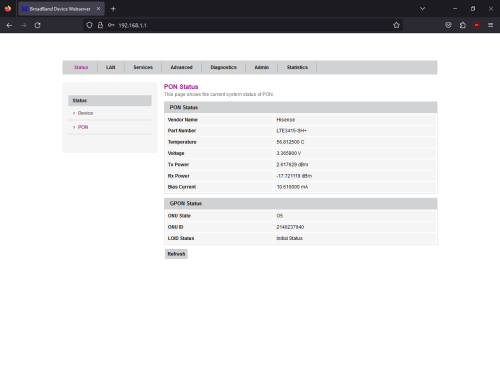

Here WebGUI of PON Stick

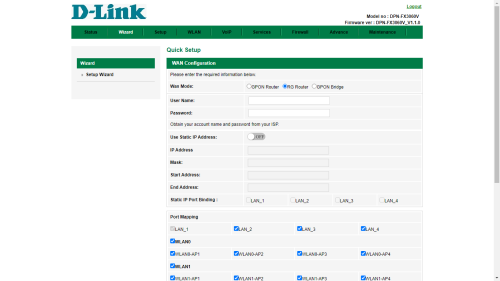

Now D-Link ONR WebGUI


see how the layout very similar

...

in mean time, we trying to ask TM to allow my PON Stick on the OLT,
this mean TM OLT authenticated without needing to clone OMCI, just SN and PLOAM Password

Interesting, so D-Link ONR might be a Hisense rebrand then

Also do we still need to spoof right now to use PON Stick on OLT? Cuz I want to buy a stick now cuz one of my ONR died and if it dies again it means I won't have internet till technician comes

D-Link and Hisense using newer SDK (Luna 3)

beside higher SDK, I need to solve upload issue on this expensive stick

...

as for now, yeah, need to spoof the info. need send my modified PON stick to TM to validate
