Some B-die DR benching, not the best kit though but mobo is strong...

11900K ES SP76
M13E BIOS 0901
G.Skill Trident Z Royal F4-4000C17D-32GTRSB

CPU - stock
2x16GB 3866 CL14-15-15-34-2T @1.55V
VCCSA/VCCIO - 1.50/1.45V
TXP 4, PPD 0


CPU - stock
2x16GB 4400 CL17-17-17-37-1T @1.50V
VCCSA/VCCIO - 1.35/1.42V
TXP auto, PPD auto


Credits to @cstkl1 for the OC profiles, I just added 50mV to his rare kit.

This post has been edited by owikh84: May 22 2021, 10:26 PM

For some reason I am not able to OC my Micron E-die SR at all on this Intel platform.
On Ryzen this particular 2x8GB kit could do 5000 C18 stable.

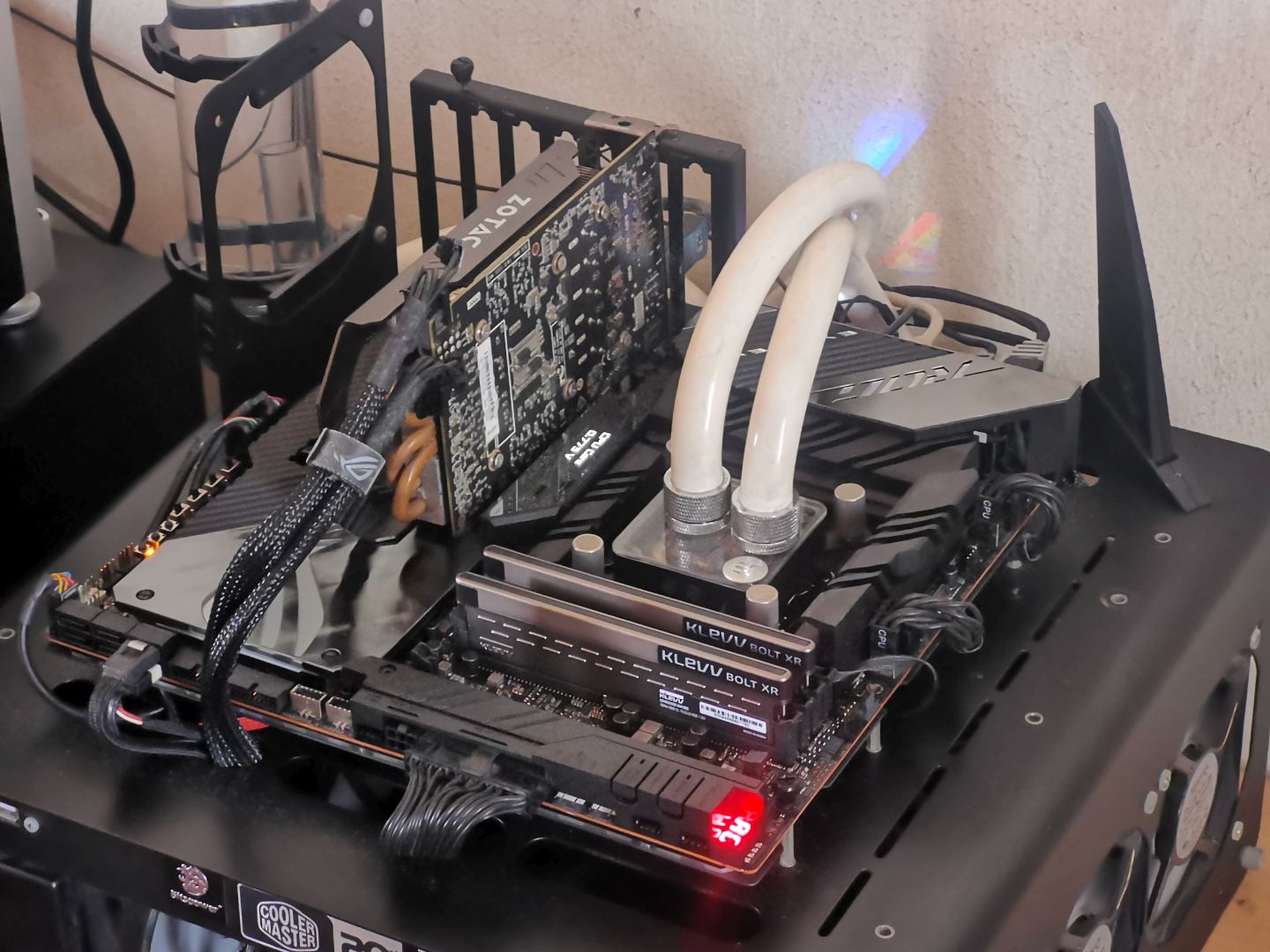

On the other hand, DJR SR OC was fun...


11900K ES SP76
M13E BIOS 0707
KLEVV Bolt XR 3600C18 2x8GB

CPU - stock
2x8GB 5066 CL20-28-28-48-1T @1.60V
VCCSA/VCCIO - 1.35/1.50V


Bonus but with rubbish voltages, subs and efficiency...

CPU - stock
2x8GB 5600 CL24-32-32-52-1T @1.90V
VCCSA/VCCIO - 1.50/1.50V

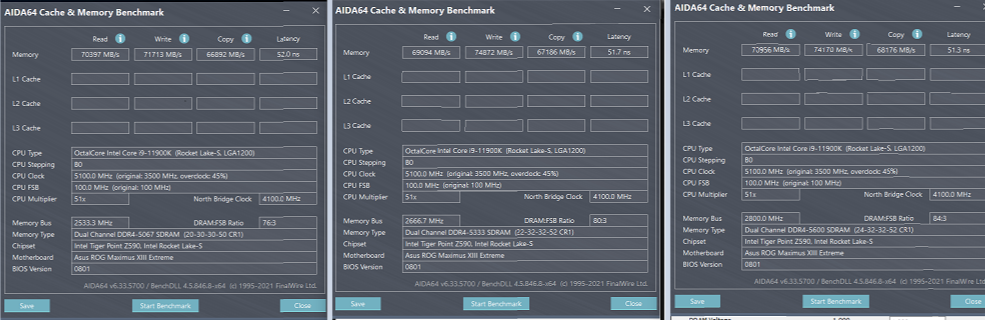

These are the AIDA64 scores that you will obtain when loading the XMP profiles right out of the box without manual tweaking...

5066C20 vs 5333C22 vs 5600C24:


This post has been edited by owikh84: May 25 2021, 08:34 AM

G.Skill TridentZ Royal Elite...

2x8GB 3600 C14-14-14-34 (1.45V)
GOLD/SILVER: RM1,309/RM1,299

2x16GB 3600 C14-14-14-34 (1.45V)
GOLD/SILVER: RM2009/RM1,999

ETA EARLY JUNE 2021

11900K ES SP76
M13E BIOS 0901
KLEVV Bolt XR 3600C18 2x8GB

CPU - stock
2x8GB 5066 CL20-27-27-31-1T @1.60V
VCCSA/VCCIO - 1.50/1.50V

1080P gaming comparison of 11900K (8C/16T) vs 109000 (10C/20T) vs 5900X (12C/24T)

Battlefield V: 1920x1080, Ultra, DX12

CPU	Min FPS	Avg FPS
11900K @ 5.1 GHz All-Core	182	196
10900K @ 5.1 GHz All-Core	170	195
10900K @ 5.3 GHz TVB	178	197
5900X @ 4.6 GHz All-Core	184	197
5900X @ 4.775/4.55 GHz CCX	185	197
5900X @ PBO +200 MHz	181	196
5900X @ CO -30/25 +200 MHz	186	197

Metro Exodus: 1920x1080, Extreme, DX12

CPU	Min FPS	Avg FPS
11900K @ 5.1 GHz All-Core	11	73
10900K @ 5.1 GHz All-Core	9	74
10900K @ 5.3 GHz TVB	9	74
5900X @ 4.6 GHz All-Core	9	73
5900X @ 4.775/4.55 GHz CCX	11	73
5900X @ PBO +200 MHz	11	73
5900X @ CO -30/25 +200 MHz	10	73

Horizon Zero Dawn: 1920x1080, Ultimate, DX11

CPU	Min FPS	Avg FPS
11900K @ 5.1 GHz All-Core	49	153
10900K @ 5.1 GHz All-Core	50	155
10900K @ 5.3 GHz TVB	49	154
5900X @ 4.6 GHz All-Core	64	154
5900X @ 4.775/4.55 GHz CCX	64	153
5900X @ PBO +200 MHz	66	153
5900X @ CO -30/25 +200 MHz	65	153

Shadow of the Tomb Raider: 1920x1080, Ultra, SMAAx4, DX12

CPU	Min FPS	Avg FPS
11900K @ 5.1 GHz All-Core	120	163
10900K @ 5.1 GHz All-Core	118	161
10900K @ 5.3 GHz TVB	121	164
5900X @ 4.6 GHz All-Core	123	165
5900X @ 4.775/4.55 GHz CCX	122	164
5900X @ PBO +200 MHz	122	165
5900X @ CO -30/25 +200 MHz	123	165

Grand Theft Auto V: 1920x1080, Very High, MSAAx4, DX11

CPU	Min FPS	Avg FPS
11900K @ 5.1 GHz All-Core	2	182
10900K @ 5.1 GHz All-Core	6	182
10900K @ 5.3 GHz TVB	6	182
5900X @ 4.6 GHz All-Core	4	179
5900X @ 4.775/4.55 GHz CCX	5	181
5900X @ PBO +200 MHz	3	180
5900X @ CO -30/25 +200 MHz	4	180

Watch Dogs: Legion: 1920x1080, Ultra, DX12

CPU	Min FPS	Avg FPS
11900K @ 5.1 GHz All-Core	63	111
10900K @ 5.1 GHz All-Core	77	111
10900K @ 5.3 GHz TVB	79	110
5900X @ 4.6 GHz All-Core	73	110
5900X @ 4.775/4.55 GHz CCX	72	110
5900X @ PBO +200 MHz	69	109
5900X @ CO -30/25 +200 MHz	69	110

11900K PC specs:
11900K @ 5.1 GHz All-Core: vCore auto | LLC2 | SVID Trained | C-state off
Maximus XIII EXTREME, BIOS 0901
2x16GB TridentZ Royal 4000C17 B-die @ 3866 14-15-15-34-2T (Gear 1)
TUF 3080 BIOS V2, OC +150/1100 | driver 461.81 | Rebar off
Custom WC: by EK-Supremacy EVO RGB + 2x RX360 + 12x GT + 1x D5
AX1200i
Dimastech EasyDual V2.5

10900K PC specs:
10900K @ 5.1 GHz All-Core: vCore auto | LLC6 | SVID Trained | C-state off
Maximus XII FORMULA, BIOS 2005
2x16GB TridentZ Royal 4000C17 B-die @ 3800 14-15-15-28-2T
TUF 3080 BIOS V2, OC +150/1100 | driver 461.81 | Rebar off
Custom WC: by EK-Supremacy EVO RGB + 2x RX360 + 12x GT + 1x D5
AX1200i
Dimastech EasyDual V2.5

5900X PC specs:
5900X @ 4.5 GHz All-Core: vCore BIOS set 1.35v | LLC auto | C-state off
5900X @ @ CO -30/25 +200 MHz: PBO Mobo | CO - ve 25,25,25,25,25,25,30,30,30,25,30,25 | OCOV +200MHz| C-state off
ROG Strix B550-I, BIOS 2007
2x16GB TridentZ Royal 4000C17 B-die @ 3800 14-15-15-28-1T (IF 1900 1:1)
Custom WC: by EK-Supremacy EVO RGB + 2x RX360 + 12x GT + 1x D5
AX1200i
Dimastech EasyDual V2.5

This post has been edited by owikh84: Jun 1 2021, 11:00 PM

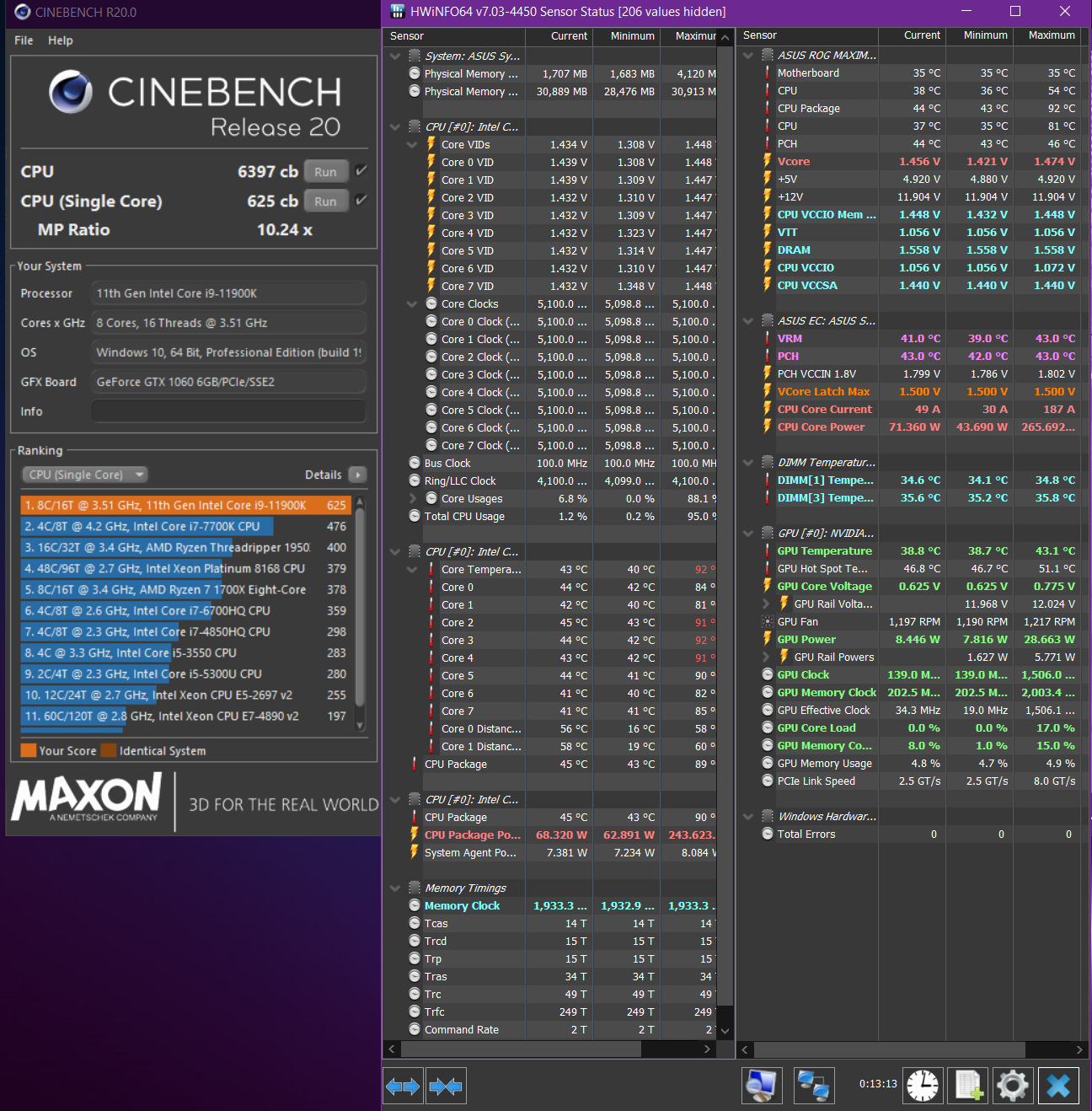

Cinebench R20

CPU	MC (cb)	SC (cb)
11900K @ 5.1 GHz All-Core	6397	625
10900K @ 5.1 GHz All-Core	6636	533
10900K @ 5.3 GHz TVB	6647	546
5900X @ 4.6 GHz All-Core	9182	596
5900X @ 4.775/4.55 GHz CCX	9283	616
5900X @ PBO +200 MHz	8619	624
5900X @ CO -30/25 +200 MHz	9076	639

Cinebench R23

CPU	MC (pts)	SC (pts)
11900K @ 5.1 GHz All-Core	16563	1631
10900K @ 5.1 GHz All-Core	17161	1372
10900K @ 5.3 GHz TVB	17119	1405
5900X @ 4.6 GHz All-Core	23605	1529
5900X @ 4.775/4.55 GHz CCX	23971	1580
5900X @ PBO +200 MHz	22210	1603
5900X @ CO -30/25 +200 MHz	23215	1642

Blender v2.92 - BMW27

CPU	Result (s)
11900K @ 5.1 GHz All-Core	145
10900K @ 5.1 GHz All-Core	129
10900K @ 5.3 GHz TVB	130
5900X @ 4.6 GHz All-Core	107
5900X @ 4.775/4.55 GHz CCX	105
5900X @ PBO +200 MHz	114
5900X @ CO -30/25 +200 MHz	107

x264 FHD Benchmark v1.01

CPU	Encode Rate (FPS)
11900K @ 5.1 GHz All-Core	75.21
10900K @ 5.1 GHz All-Core	75.70
10900K @ 5.3 GHz TVB	75.38
5900X @ 4.6 GHz All-Core	88.99
5900X @ 4.775/4.55 GHz CCX	89.83
5900X @ PBO +200 MHz	84.43
5900X @ CO -30/25 +200 MHz	86.85

x265 HD Benchmark v0.1.4

CPU	Encode Rate (FPS)
11900K @ 5.1 GHz All-Core	48.36
10900K @ 5.1 GHz All-Core	48.86
10900K @ 5.3 GHz TVB	47.47
5900X @ 4.6 GHz All-Core	59.66
5900X @ 4.775/4.55 GHz CCX	62.12
5900X @ PBO +200 MHz	58.17
5900X @ CO -30/25 +200 MHz	60.11

PugetBench for Photoshop 2021

CPU	Overall Score
11900K @ 5.1 GHz All-Core	1307
10900K @ 5.1 GHz All-Core	1186
10900K @ 5.3 GHz TVB	1196
5900X @ 4.6 GHz All-Core	1325
5900X @ 4.775/4.55 GHz CCX	1338
5900X @ PBO +200 MHz	1316
5900X @ CO -30/25 +200 MHz	1338

PugetBench for Premiere Pro 2021

CPU	Overall Score
11900K @ 5.1 GHz All-Core	847
10900K @ 5.1 GHz All-Core	718
10900K @ 5.3 GHz TVB	714
5900X @ 4.6 GHz All-Core	798
5900X @ 4.775/4.55 GHz CCX	795
5900X @ PBO +200 MHz	785
5900X @ CO -30/25 +200 MHz	789

Geekbench 4 Pro

CPU	MC	SC
11900K @ 5.1 GHz All-Core	42230	7948
10900K @ 5.1 GHz All-Core	44458	6770
10900K @ 5.3 GHz TVB	44772	6923
5900X @ 4.6 GHz All-Core	56489	7171
5900X @ 4.775/4.55 GHz CCX	57714	7351
5900X @ PBO +200 MHz	55022	7419
5900X @ CO -30/25 +200 MHz	56390	7515

WinRAR v6.00

CPU	MC (KB/s)	SC (KB/s)
11900K @ 5.1 GHz All-Core	33182	3185
10900K @ 5.1 GHz All-Core	40281	3261
10900K @ 5.3 GHz TVB	40669	3315
5900X @ 4.6 GHz All-Core	50577	3974
5900X @ 4.775/4.55 GHz CCX	50224	4061
5900X @ PBO +200 MHz	48411	4106
5900X @ CO -30/25 +200 MHz	50228	4128

POV-Ray v3.7

CPU	MC (PPS)	SC (PPS)
11900K @ 5.1 GHz All-Core	5035	605.96
10900K @ 5.1 GHz All-Core	5770.41	537.49
10900K @ 5.3 GHz TVB	5775.88	558.96
5900X @ 4.6 GHz All-Core	8004.40	582.01
5900X @ 4.775/4.55 GHz CCX	8084.63	605.83
5900X @ PBO +200 MHz	7567.01	611.20
5900X @ CO -30/25 +200 MHz	7942.55	623.97

SiSoft Sandra 2021

CPU	Proc Arithmetric (GOPs)	Cryptography (GB/s)	Memory BW (GB/s)	Memory Latency (ns)
11900K @ 5.1 GHz All-Core	333.30	30.00	53.88	23.3
10900K @ 5.1 GHz All-Core	403.00	20.42	45.15	20.5
10900K @ 5.3 GHz TVB	400.17	19.73	45.11	20.4
5900X @ 4.6 GHz All-Core	446.82	31.30	49.67	57.0
5900X @ 4.775/4.55 GHz CCX	453.00	31.47	49.67	56.8
5900X @ PBO +200 MHz	421.73	30.53	49.83	58.8
5900X @ CO -30/25 +200 MHz	439.63	31.00	49.69	58.4

3DMark - Time Spy

CPU	CPU Score
11900K @ 5.1 GHz All-Core	15025
10900K @ 5.1 GHz All-Core	15604
10900K @ 5.3 GHz TVB	15789
5900X @ 4.6 GHz All-Core	16148
5900X @ 4.775/4.55 GHz CCX	16373
5900X @ PBO +200 MHz	15410
5900X @ CO -30/25 +200 MHz	16094

3DMark - Fire Strike

CPU	Physics Score
11900K @ 5.1 GHz All-Core	30776
10900K @ 5.1 GHz All-Core	30638
10900K @ 5.3 GHz TVB	31347
5900X @ 4.6 GHz All-Core	37697
5900X @ 4.775/4.55 GHz CCX	38224
5900X @ PBO +200 MHz	35630
5900X @ CO -30/25 +200 MHz	36484

11900K PC specs:
11900K @ 5.1 GHz All-Core: vCore auto | LLC2 | SVID Trained | C-state off
Maximus XIII EXTREME, BIOS 0901
2x16GB TridentZ Royal 4000C17 B-die @ 3866 14-15-15-34-2T (Gear 1)
TUF 3080 BIOS V2, OC +150/1100 | driver 461.81 | Rebar off
Custom WC: by EK-Supremacy EVO RGB + 2x RX360 + 12x GT + 1x D5
AX1200i
Dimastech EasyDual V2.5

10900K PC specs:
10900K @ 5.1 GHz All-Core: vCore auto | LLC6 | SVID Trained | C-state off
Maximus XII FORMULA, BIOS 2005
2x16GB TridentZ Royal 4000C17 B-die @ 3800 14-15-15-28-2T
TUF 3080 BIOS V2, OC +150/1100 | driver 461.81 | Rebar off
Custom WC: by EK-Supremacy EVO RGB + 2x RX360 + 12x GT + 1x D5
AX1200i
Dimastech EasyDual V2.5

5900X PC specs:
1) 5900X @ 4.5 GHz All-Core: vCore BIOS set 1.35v | LLC auto | C-state off
2) 5900X @ @ CO -30/25 +200 MHz: PBO Mobo | CO - ve 25,25,25,25,25,25,30,30,30,25,30,25 | OCOV +200MHz| C-state off
ROG Strix B550-I, BIOS 2007
2x16GB TridentZ Royal 4000C17 B-die @ 3800 14-15-15-28-1T (IF 1900 1:1)
Custom WC: by EK-Supremacy EVO RGB + 2x RX360 + 12x GT + 1x D5
AX1200i
Dimastech EasyDual V2.5

This post has been edited by owikh84: Jun 6 2021, 02:19 PM

NICE DUDE...

Thanks for your guidance bro.
M13E is strong, just need a better 11900K and B-die to go higher.

First taste of Bdie

Stable? VDIMM, VCCSA, VCCIO?

400% should be good enough.

vdimm 1.48v, vccsa 1.35v vccio 1.3v
My CPU IMC wasnt a really good one. So dont think I will push anymore. (also kinda lazy haha)
cheapest Bdie in the market from amazon (now out of stock also seems Bdie very rare or very expensive now), 270USD shipped 3200c14 2X16 tridentz rgb.

but it looks like the RGB very not in sync.... is there a way to set it properly?



This post has been edited by Bonchi: Jun 4 2021, 08:20 PM

This is my 4133C17 @ 1.40v with 2x16GB TridentZ Royal 4KC17:


You might also want to play around with MSI's Memory Try It! feature, as a starting point for optimizing your RAM OC.


Source: https://www.msi.com/blog/Boost-Gaming-Perfo...560-Motherboard

So far RGB from my TridentZ RGB (except one stick below) and Royal kits has been syncing correctly with ASUS Aura software.
Previously got one TridentZ RGB stick that stuck at red colour permanently, I RMA'ed it after that.

I think mine is quite optimized already with the voltage capped as it is (I actually just used my DJR profile that I spent alot of time on tuning and modify to fit this Bdie and dropped the primary). this MSI UNIFY ITX board have very low read and copy for some reason. Can see same pattern on other user's with the same board. Looks like im one of the very few here that is using this board.
Sauce So I guess can say avoid this board but I dont know how gaygay and ass's Z490i performs. I got this because this was the only z490 itx left in whole LYN.

My ring multiplier is only at 46X so I suppose can drop some latency and some extra read if I increase but I think i'll leave it as it is. It looks like the performance is down to different board and cpu bin and dimm bin... my previous 10400F can handle 4133mhz with sa/io 1.2v/1.1v but well, I got this 10600K for RM700 so im not complaining. . Wanted to get the 3600C14.... but RM1.8K++ fuhhhh. I think i'll just settle with this $270 3200c14. Already achieved the speed and timing I wanted.

MSI memory tweak it only sets the speed, primary and voltage. It's quite useless if you already know what you're doing.

ahh.. i meant to make them sync without using any bloatware running in the background. Doesnt seem like it's possible after researching.

This post has been edited by Bonchi: Jun 4 2021, 10:48 PM

further optimization to drop voltage because felt previous one was quite high, decided to drop to 4000c16. Now SA/IO/DIMM 1.28/1.28/1.45v. Gaming performance not affected.

finally broke the 40ns wall


This post has been edited by Bonchi: Jun 6 2021, 11:22 AM

Nice try but I'd recommend rechecking your RTL/IOL and tRDWR.
RTL should be no more than 2 apart and IOL should be no more than 1 apart.
tRDWR should be straight values eg. 12-12-12-12 or 11-11-11-11 etc.
You may try auto tRDWR first and check the RTL/IOL if it can fulfil the rule above.
Bad RTL/IOL can also be caused by incorrect vDIMM/SA/IO, either too low or too high.
Also, tWR can still be possibly reduced down to 8, try notch by notch method until stability is achieved.

thanks for advice. my tRDWR was 12-12-12-12 but the mobo changed to those values on its own. TWR is 8 but the mobo changes it to 10. RTL/IOL is auto.
im slowly dropping my SA/IO at the moment. currently at 1.25... since already gotten a 400% stable baseline.

edit: when i enable PPD=0 trdwr_dd = auto, the RTL/IOL seems to behave better. VSA/IO/DIMM 1.2/1.2/1.44. will be running memtest now.

is it ok to have ppd=0?



This post has been edited by Bonchi: Jun 6 2021, 01:40 PM

In most cases, setting PPD = 0 will reduce latency by 2-3ns.
I'm using TXP 4 and PPD 0, so far so good.

This post has been edited by owikh84: Jun 6 2021, 01:50 PM

Yeah, i read it's something about idle states. Somehow when i ppd=1, the RTL/IOL becomes messy. Right now it looks perfect, just that ppd is 0. Well, got an extra 20fps on F1 2020 from DJR@4133c18. Cant complain. This tridentz is meant to be a cosmetic upgrade over the klevv bolt XR haha.

Currently memtest passed 100% already. Thanks for the advice.

Edit: error at 120% need to up SA/IO


Done 600% memtest. Now end up with 1.3 SA/1.25 IO/1.45 Dimm.

This post has been edited by Bonchi: Jun 6 2021, 10:06 PM

Well done bro

I really dont understand this mobo... this morning try to push abit. end up SA/IO/VDIMM 1.3/1.3/1.45, I got it to 4266c17 but cant get to boot at 4133c17 at 1.35/1.3/1.48.
although not below 40ns anymore but gain alot more bandwidth and gaming benchmark scores improvement over 4000c16.

This post has been edited by Bonchi: Jun 7 2021, 02:43 PM
