 Smart Home, Let's discuss

views

alucard89
post Feb 28 2023, 05:30 PM

Look at all my stars!!
*******
Senior Member
4,454 posts

Joined: Apr 2006
QUOTE(Oltromen Ripot @ Feb 27 2023, 10:58 AM)
Hi, yeah.

I refused to continue with refund altogether.
He wanted to refund a single 1 unit out of 9, but at the same time he blamed me for not checking that my residence voltage fall between 95V-245V. He wants to nitpick that he already have the range in his description, so I also nitpick that his description had me fooled into believing the zigbee wall sockets is rated 16A but actually it printed only 13A.

Yes, my fault for only paying attention to amperage; but hey, which of us actually surveyed the (range of) voltage before buying appliances? Who would have thought the wall socket is so sensitive that itself turned off for good, while the zigbee round plugs otherwise worked happily. I have a dozen 20A zigbee round plugs that I use to force-reset key networking devices from afar and they worked over 250V without complaint.
*
It’s all down to seller’s attitude.
Once damaged some 2 way switches from a shop because accidently wired different live cables.
But the seller was ok to replace them foc
alucard89
post Mar 8 2023, 01:26 PM

Look at all my stars!!
*******
Senior Member
4,454 posts

Joined: Apr 2006
QUOTE(loonsave @ Mar 8 2023, 01:03 PM)
My current house wall switch come with neutral wire. But I am moving to a condo where all wall switch don't come with neutral wire in next few months.

Is is possible I get a Aqara wall switch (no neutral) to replace my current house wall switch? As I just want to try it out, and bring it to my condo later.
*
Your current house already using smart switches requiring neutral wire?
If you don't plan to pull neutral wire for the new house, you could just re-use those switch again with this trick

» Click to show Spoiler - click again to hide... «


alucard89
post Mar 8 2023, 02:29 PM

Look at all my stars!!
*******
Senior Member
4,454 posts

Joined: Apr 2006
QUOTE(epicure @ Mar 8 2023, 01:59 PM)
Question 1 :-

I have the Daikin airconditioners that have wifi built in. The type that uses the Daikin Go app. The app brings the aircon units to Google Home and alexa.

Does anyone know how to bring them into Homekit? I have tried so many Homebridge plugins.. but non of them work for the wifi adapter that we have here in malaysia. The ones that are overseas, the wifi adapter name starts with B, and ours here starts with A, specifically the AWM61A01.

And since i dont have (and dont intend to use) home assistant due to no extra raspberry Pi available (and also HA spooks me, haha), what other methods or plugins can i use to bring these Daikin units into Homekit?
Question 2:-

I have a Vivos Alarm system. Comes with the alarm panel, network interface module to use the vivos app remotely and the several sensors and siren connected via cables.

Does anyone know if this alarm system can be linked to Google Home or Homekit? This brand vivos is a malaysian brand... their app is pretty barebones. Would be nice to be able to integrate into either google home or homekit for automations.
My Homekit setup is pretty complete.. Aqara (natively), Sony TV (natively), Do Home (natively) , Sonoff + Ewelink (via homebridge), Tuya (via homebridge), xiaomi (via homebridge) , imou + Dahua (via homebridge), samsung (via homebridge).

All thats left is my Daikin Aircons... and my Vivos alarm system.

Any idea guys?
*
1. seems like nobody's making an integration for the cheaper wifi adapter sweat.gif and the overseas adapter way too expensive
You can use something like this, flash with esphome or tasmota then use the homebridge plugin


This guy hooked up the esp to the ir receiver of the ac, so if someone was using physical remote you'd still get the current status of the ac

There's also iot dongle compatible for midea and others, but don't see daikin in the list
https://community.home-assistant.io/t/midea...acturers/320784

2. Maybe you can check out konnected if supports your alarm system

alucard89
post Mar 8 2023, 02:42 PM

Look at all my stars!!
*******
Senior Member
4,454 posts

Joined: Apr 2006
QUOTE(loonsave @ Mar 8 2023, 02:36 PM)
No, my house don't have any smart switch yet. And I don't plan to pull neutral wire for the new house.
But I would like to try out smart switch now. Just wonder if I can get a no neutral aqara smart switch and install it in my current house or not.
*
Yes you can, for cheaper option there’s also the tuya zigbee switches
alucard89
post Mar 8 2023, 02:53 PM

Look at all my stars!!
*******
Senior Member
4,454 posts

Joined: Apr 2006
QUOTE(loonsave @ Mar 8 2023, 02:44 PM)
Mean I can just don't connect the current neutral wire?
I bought an Aqara M2 hub during 3.3. And currently looking to get Aqara E1 wall switch as this is the cheapest Aqara switch I found.
*
As long as you get the non neutral version
alucard89
post Mar 8 2023, 03:00 PM

Look at all my stars!!
*******
Senior Member
4,454 posts

Joined: Apr 2006
QUOTE(epicure @ Mar 8 2023, 02:42 PM)
yeah.. no one locally has done it yet..
Thats pretty cool that even though IR, it can still have the current status of the AC. but i think i may not have time to tinker.. life being a big part of it. Oh well..

Yeah i did stumble upon konnected, but it seems like there are two options, basically either replace the actual panel, or add a panel onto the existing panel. Ill look into it further..

thanks!
*
That's what I did for my ac's at home since they're all older models with no wifi support, never thought about hooking up the ir receiver to the ac pcb buntil i saw that video.
No need to power the esp from another plug or ac status not in sync because someone using the remote

I do have like a really old alarm system, but I abandon it anyway since I've already installed all the aqara sensors when i started.

alucard89
post Mar 8 2023, 03:02 PM

Look at all my stars!!
*******
Senior Member
4,454 posts

Joined: Apr 2006
QUOTE(loonsave @ Mar 8 2023, 02:56 PM)
I know this sound stupid, I need to use insulating tape to insulate the neutral wire, right?
*
Better to be safe,
Btw, did you do a renovation to pull all the neutral wires or has it always come with the house?
alucard89
post Mar 9 2023, 05:45 PM

Look at all my stars!!
*******
Senior Member
4,454 posts

Joined: Apr 2006
QUOTE(loonsave @ Mar 9 2023, 03:26 PM)
It look like this, that's why I thought it is neutral wire.

user posted image
*
What type of switch is that? Got more angles?
alucard89
post Mar 9 2023, 05:46 PM

Look at all my stars!!
*******
Senior Member
4,454 posts

Joined: Apr 2006
QUOTE(jasperng @ Mar 9 2023, 03:05 PM)
looking to convert my new house to use smart home system. can advise where can i start with ?  What brands are recommended interm of value for money and support if needed ?
*
Tuya, they’ve got their hands on pretty much any smart device out there and inexpensive
alucard89
post Mar 13 2023, 11:43 PM

Look at all my stars!!
*******
Senior Member
4,454 posts

Joined: Apr 2006
QUOTE(gruddzr @ Mar 13 2023, 11:37 PM)

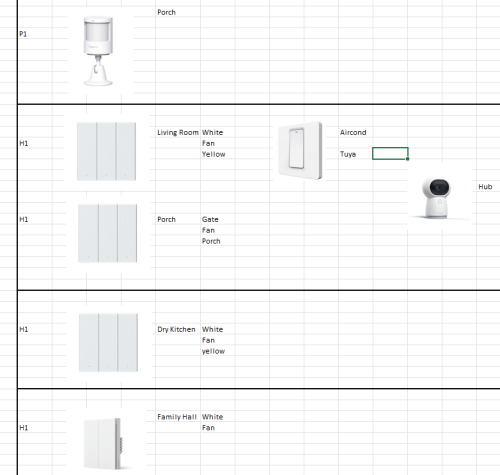

user posted image

i am planning to use the Aqara system

question now is for the 20A switch Tuya, can that one be connected to Aqara Hub or i need to add another zigbee hub ?
*
Presently no, at least until tuya add thread/matter support (probably another year or so)

For the 20a
Use any aqara switch + contactor -> ac/water heater

Like Max does
alucard89
post Mar 14 2023, 11:11 AM

Look at all my stars!!
*******
Senior Member
4,454 posts

Joined: Apr 2006
QUOTE(loonsave @ Mar 14 2023, 09:55 AM)
How to tell which models need 'bypass' capacitor? I am looking at Aqara E1 2 gang switch (No neutral).
*
The zigbee E1 (no neutral) don’t need capacitors
It’s usually the wifi type that requires it

No neutral version generally doesn’t act as zigbee repeaters compared to neutral one (there was an exception for a specific tuya switch posted a few pages back)
alucard89
post Mar 21 2023, 08:08 PM

Look at all my stars!!
*******
Senior Member
4,454 posts

Joined: Apr 2006
Anyone got the aqara fp2?
Saw some feedback/comments on taobao but no one’s mentioning about fan detection
alucard89
post Mar 24 2023, 05:36 PM

Look at all my stars!!
*******
Senior Member
4,454 posts

Joined: Apr 2006
QUOTE(epicure @ Mar 24 2023, 02:10 PM)
FP2 seems interesting. Saw lots of reddit threads on this. Pity its wired to a wall socket. I’m considering to get a mmwave sensor much like the FP1 and FP2, but from tuya, cos i saw one thats ceiling mountable, would look much neater, like a downlight. Not sure on the performance of it though. Pretty affordable at around RM160-ish without shipping.
*
Using the no neutral hack posted earlier, i'm able to tap into existing live/neutral cable for the light bulbs to power those devices that require cable.
This way, I can hide those devices in the ceiling.
Still doubtful to use mmwave sensors in rooms with fans though, unless you cover it with some aluminium foil
alucard89
post Mar 24 2023, 05:38 PM

Look at all my stars!!
*******
Senior Member
4,454 posts

Joined: Apr 2006
QUOTE(epicure @ Mar 24 2023, 02:16 PM)
Pardon me ya.. do you guys have a wiring diagram and also a photo of the contactor that you (and Max) mentioned? Im curious to see how it works and looks like. Thanks
*
Should be similar to how this guy installed the contactor for his smart switch, just that you hide in the ceiling or somewhere else

https://lesterchan.net/blog/2016/07/14/usin...e-water-heater/


alucard89
post Mar 31 2023, 12:33 AM

Look at all my stars!!
*******
Senior Member
4,454 posts

Joined: Apr 2006
QUOTE(zero721 @ Mar 31 2023, 12:24 AM)
Hi guys. Any idea how to link the cassette aircond into Home Assistant and HomeKit? My cassette aircond is Acson brand, and non Wi-Fi version. If use those IR control, it will send signal to turn on and off aircond, but can’t know the status.
*
Connect esp ir remote to the ir receiver of your ac.
Flash tasmota-ir firmware on it, install tasmota-irhvac hacs on ha
The status gets updated even when the physical remote is used instead

I tried esphome, but it didn’t detect my mitsubishi ac so i switched to tasmota



This post has been edited by alucard89: Mar 31 2023, 12:34 AM
alucard89
post Mar 31 2023, 05:49 AM

Look at all my stars!!
*******
Senior Member
4,454 posts

Joined: Apr 2006
So this rgb wall switch is quite interesting
Something xzibit would be proud
“Yo dawg we heard you like rgbs and smart switch so we put rgbs IN your switch”

I can see my son having fun with this
Even got haptic feedback & speaker also

Gonna wait to see how devs gonna configure it for custom firmware


alucard89
post Mar 31 2023, 02:03 PM

Look at all my stars!!
*******
Senior Member
4,454 posts

Joined: Apr 2006
QUOTE(zero721 @ Mar 31 2023, 01:32 PM)
Wow this is so complicated 😂
*
Don’t see how it’s complicated much
You just hook up the 5V, gnd & data pin of the ir receiver from the ac’s pcb to the esp. That’s it really

user posted image

Otherwise you just place the esp ir remote right next to the ac so it detects remote when pointed to it.
alucard89
post Apr 1 2023, 05:40 AM

Look at all my stars!!
*******
Senior Member
4,454 posts

Joined: Apr 2006
QUOTE(lankorn @ Apr 1 2023, 03:29 AM)
You already bought this switch?Where you bought it?
*
Not yet, just impression from the review
You can buy from the official Itead site, shopee/lazada coming later
alucard89
post Apr 1 2023, 02:21 PM

Look at all my stars!!
*******
Senior Member
4,454 posts

Joined: Apr 2006
QUOTE(epicure @ Apr 1 2023, 01:43 PM)
Quick question.. I’m planning to not buy the Zigbee smart wall embedded sockets for fear that my box may be too congested or any fitment issues. Therefore looking at getting those zigbee smart wall plugs instead.

Question: Are all Tuya branded zigbee wall plugs zigbee extenders? I.e. they extend the mesh network of the zigbee network?
*
If it's powered (not battery) then it's zigbee repeaters (bulbs, plugs etc)
alucard89
post Apr 1 2023, 05:50 PM

Look at all my stars!!
*******
Senior Member
4,454 posts

Joined: Apr 2006
QUOTE(epicure @ Apr 1 2023, 03:09 PM)
So basically if it has live & neutral right ?

Cos my non neutral light switches aren't repeaters

Ok I'll snag a couple of them to improve the mesh network to my further switches which keep dropping off
*
Your non neutral light switches got neutral input?
You can use the no neutral hack i posted a few pages back and they can act repeaters
Tested on my zigbee switches
