Hi, do you mean Sonoff RF need the neutral wire when it's install to my LED light?
Do you think it can connect to my LED ceiling light as below?
Thanks.

Thanks for the explanation. I don't need sonoff gadget at wall switch location
I am newbie on this wiring stuff and I heard they said Malaysian power plug lack of 1 type of wire causing the Xiaomi Aqara smart switch (the cheaper one that require neutral) can't be used.
That's why I worry our ceiling light point also the same. haha.

Thanks!
Summarize what I learn so far: **Updated
Power Plug (wall socket): comes with Live, Neutral and Ground wire
Wall Switch: 99% don't have Neutral wire, comes with Live wire
Ceiling Light/Fan Point: come with Live and Neutral wire. (This is the one that I plan to install my Sonoff RF there)

Hi guys, i have an idea for a smart home automation concept and i would like to ask you about it.

I always fancied the game Portal 2 because mainly of the character 'Wheatley'.



It is a hanging talking robot that runs on a rail mounted on the ceiling.

The idea is to replicate a smart home automation system but with 'Wheatley'. (instead of a table top round bluetooth speaker like Alexa)

It will be intergrated with:
- Mobility capability to travel on the rail to you when you call it.
- Speech recognition to give it more natural command conversation.
- Facial recognition to recognize the occupants, master, and spot strangers and intruders. It will also look at you in your direction if you engage with it.
- Ability to control all your home devices.
- Send notifications to your phone
- Take out the trash (LOL)

So far, i think i am capable of building this first. However, just wanna get some feedback on what you guys think?

Is it a project you all will be interested in?

Hi, aqara switches, with neutral and without neutral. What is the advantage of the 1 with neutral line over the 1 without?

Speaking of switches that requires neutral or not.
Anyone with sonoff wall switches getting light flickers or just the intermittent on/off lights after using it for some time (2-3 months)?  Like for mine, I just looped in N from nearby wall outlet.

this is what i have read and wanted to confirm, meaning to say without N it will flicker at low wattage.

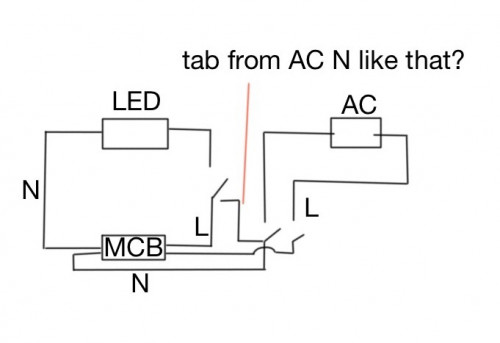

so i can basically do like this right?



if i do like this, up to how many Sonoff switch i tab to the 1 common N line

Quick one sifu sifu sekalian.

Sonoff powr2. Just to confirm that it's completely safe using it on a 2hp aircond, running for long hours? (8 hours to 12 hours)

And secondly, let's say if I have an IR blaster. Eg. Rm3 mini, which I would like to use to  control aircond. But if I have 2 of the same brand aircond (but different hp) at the location, would out be able to differentiate both the aircond? Or both the aircond will pickup the signal sent from the ir blaster? Assuming that both is on standby power

Lastly, sonoff website says powr2 is 16a. But look at the pictures online and also from some online shops it's 15a.

Anyone who has it can confirm?

Guys

Anyone tried using the Aqara Single Gang with Neutral line for their Heater or Aircond?
While I could not find the tolerance level for the amperage, it does mentioned that it would be able to support up to 2500watt.

Looking at Daikin 2.5hp inverter FTKG60QV1W model, the spec sheets stating that it's maximum amp is at 8.2amp, and 2000watt.
However not sure if the switch can handle this kind of load at long hours.

Anyone?

why u wan smart curtains when there are smartglass...

hi all, i will be shifting to my new house next month. thinking to automate all those lamps, ac, fan to be a smart home.

which one do i need to do first. keen to use xiomi product.

all i has in head is using
Yeelight LED Ceiling Light
Yeelight Crystal Ceiling Light Pro

please advice. thanks

physical switches yes (wired, neutral or non-neutral version), works like a normal push button switch. wireless switches, no. sensors all those no.
i installed mine when there's no internet for all, used one phone as a wifi provider, and another to control to test.

My mistake is i didnt provide any power point for my cameras, so gotta pull another set to where i want my cameras to be.

Prefer wired than wireless. Some area wifi are not strong and a bit dodgy.

What do you mean by that? Care to elaborate.

Ah, ok. Understood. Not familiar with POE.

hmm, what brands of CCTV with POE is considered reliable, and can get in msia?

ya thanks! cos from what you said, easier to pull LAN cable compared to electrical cable. but gotta hide my router, later thief pull that out gone liao everything

Real POE only used 2 pairs for both data+power, only POE+ uses all 4 pairs.

Quick question. Sonoff sifu..

Sonoff basic cuts off live line or neutral line or both?

Wiring for t5 lighting. As my wireman edi pulled the cables. I just got my sonoff and ask if he could connect it. So need to know which line it cuts, because he already has the normal loop

Sorry.. After looking at schematics.. Based on my non electrical knowledge.. When it's off. It routes the live to neutral. Correct me if I'm wrong.
