Anyone knows whats the side setback for MBPJ corner house?

So I applied mbsj permit and renovated accordingly.

Get cidb contractor to sign G form.

After that get back Draughtsman /architect to check and endorse.

What is my next step?
What kind of document would I receive, and how to validate it?
Any website?

Thanks

So I applied mbsj permit and renovated accordingly.

Get cidb contractor to sign G form.

After that get back Draughtsman /architect to check and endorse.

What is my next step?
What kind of document would I receive, and how to validate it?
Any website?

Thanks

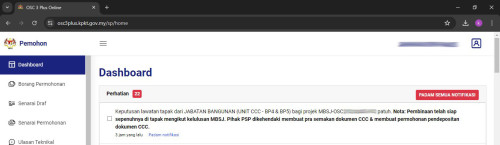

something like this.. need to wait for them to issue out confirmation

Hi, I'm in MBSJ area, seller did two extensions, first one long time ago was ground floor all the way to back (got permit), but more recently did a 5 foot extension in front without permit.

Now as the new buyer I wish to extend the first floor all the way to the back as well, and add 5 foot extension in front for first floor. I believe need to pay a saman at MBSJ and submit plans? Is there any benefit or potential problem for me to ask seller to self report and pay saman first?

Dear all,

I recently purchased a subsale intermediate terrace house in KL where the previous owner did extension without DBKL permit.

Does anyone have any idea what documentation or process is required by DBKL to legalize the old renovation? as I also intend to do some minor renovation which I will apply under permit kerja kecil, however it requires CCC/CF which I don't have.

Any advise would be appreciated.

do i need permit to put awning all the way to the autogate? will mbsj/usj area reject ?

Hi all. I am based in KL and thinking to renovate by relocating the car porch pillar towards the edge of the wall. Is this consider "kerja-kerja kecil" or "besar".

If "besar", any idea how much would be the charges? (E.g. hire architect for drawing, dbkl charges...etc)

Thanks in advance for your help & advice.

Answered. Thx.

How to get the approval of building plans and work permits

1. Owner must finalize the design of renovation before hire someone to do a submission
2. If contractor volunteer to do the submission, ask them which architect/building draughtman they use and LAM Registered No.
3. If necessary, owner must hire an engineer to do some calculation, report and structure drawing. (depends on Local Authorities)
4. Owner must prepare some documents for submission such as cukai taksiran, S&P, existing CF etc.
5. Consultation fees :-

RM2500-RM3000 includes architecture endorsement, site survey, building plan drawing, documentation and traveling.

Owner must prepare some cash around RM1000-RM2000 for deposit, processing fees, tong RORO (construction waste bin) depends on scale of renovation. Deposit will be returned when construction is completed. But for DBKL, no deposit required. Just pay RM100 for renovation less than 1000sqft (CODE B2)

6. Approval/Work Permit usually takes about 7-30days depends on ‘Piagam Pelanggan’ from Local Authorities.

Additional Info:-

Basic building setback for terrace :-
a) front - 20' clear from wall to boundary (main gate)
b) back - can extend to end of boundary
c) side (corner lot) - 10' clear from wall to boundary
d) side (end lot) - 5' clear from wall to boundary

The different thing between architect and building draughtsman (BD) is , BD are limited to specifying area only and the fees therefore a bit cheaper than architect.

Do not pay to enforcement if they ask for ‘kawtim’. Report to Local Authorities if happen.

Do not start work before get an approval/work permit. If not, you will be fined as much as 10x depends on your processing fees.

Do not trust contractor if they can ‘kawtim’ with Local Authorities. Some of them didn’t do a submission and if caught, owner will be responsible.

Architect is the person who will be responsible for the probability of future. They knows about UBBL and buildings.

Just pay a little bit for pleasure in the future...

Sharing is caring…

Hi,  anybody have the list of architect for DBKL so I can engage them to draw and submit my house plan ?

Would like to know what is the norm in engaging architect for design. Set my expectation right.
I am experiencing challenges in finding any for design ideas for my renovation.
The ones i spoke to are reserving any input until payment is confirmed.
How would I know if they are good if I dont get some ideas?
Not asking for any drawing plan or sketch, at least some verbal suggestions.
