Continue:

Overall look...


Rear of the case and mobo tray...


Close view of HDD area..

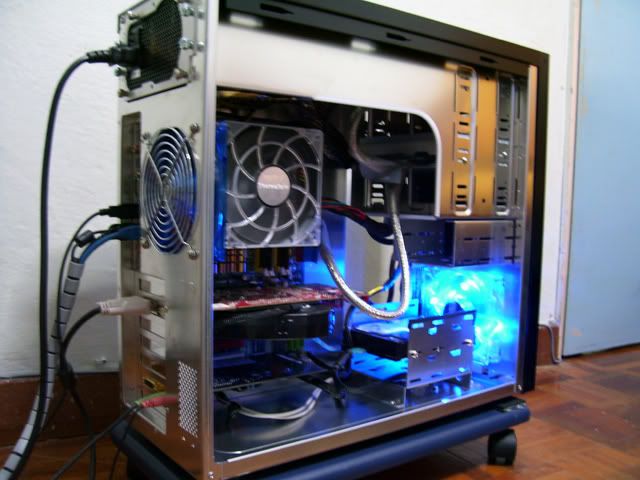

From side rear....

Enjoy it and comment is welcomed ...

To:mADmAN

Hopefully this help you inspire a bit more... i am really running out of juice for now...

much better than previously dude

right now me thinking of changing muh black IDE ribbon cables to the white ones so that itll blend in with the alu better... but got 2 problems..

1/ lazy to do
2/ cant even find my white ribbon cables

Same here.... but i thought off using black sleeve for sleeving the normal ide cable so that is matches others.... but so far really lazy to do also ..... somemore the coolermaster ide cable look nice but too long

i dont think u should sleeve ribbon cables ler... if u really wan black rounded cables then just go get the CM black rounded cables...i have them and used to use them in my previous case... theyre actually very easy to work with. even did some form of 'folding.routing' with them...

for all u know if u sleeve ribbon cables ull probably end up with DFI-like cables..

as for ur current IDE cable why not just route it into ur bottom CDROM slot instead of it hanging there? that slot looks empty to me.

That's the intention to keep it clean as well within the drive bay ... i would try to not spent any single cent for the time being ..... will try out any possible method .... spent around Rm8XX during the 3 days trip ....

too bad it is kind of exessively long so i hang it there first .... will try out other way loh .....stay tune ....

some UV test shots of the rig the CCFLs arent placed properly coz was just testing it out... havent had the chance to really do up muh UV for this rig

full view


view of the top half HSF and rams...yep..torment and agony are still around


bottom half view...


and finally full view again but from front angle

do give comments boys and girls.....

Wah! Eye pain lar!

Ure rig is like radioactive biohazard now man.

waw another TRON rig btw madman, wat hsf r u using for ya gc eiyh? zalman?

This post has been edited by r4ydc24: Sep 20 2006, 09:45 AM

and thats only the test shot with TWO tubes man... wonder what itll be like with 4 tubes when im done

its the Zalman Fatal1ty FS-V7

Update and upgraded my rig ....with NEW.... Conroe E6600 + Gigabyte DS3 + Lian Li front bezel (Got it from ATE RM35 each)

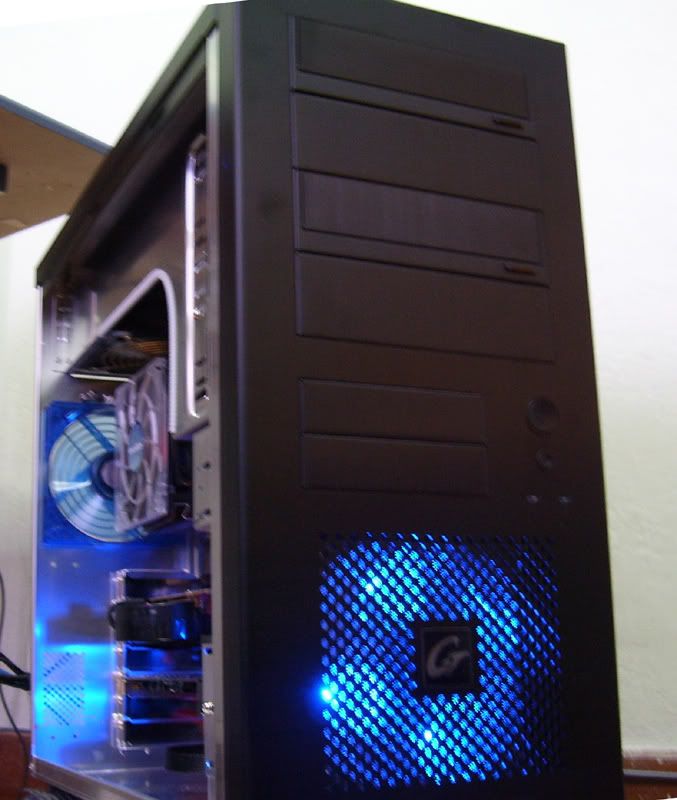

From view with lian li bezel.... (thanks to uncle Ianho for the recommendation)

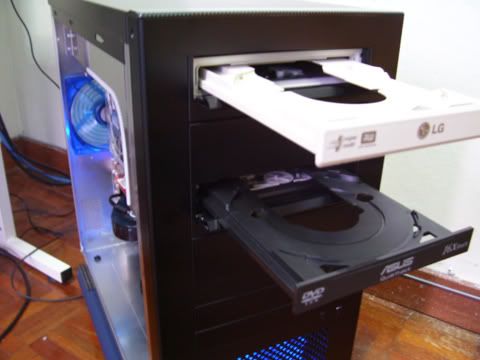

Tray Eject without problem at all.....

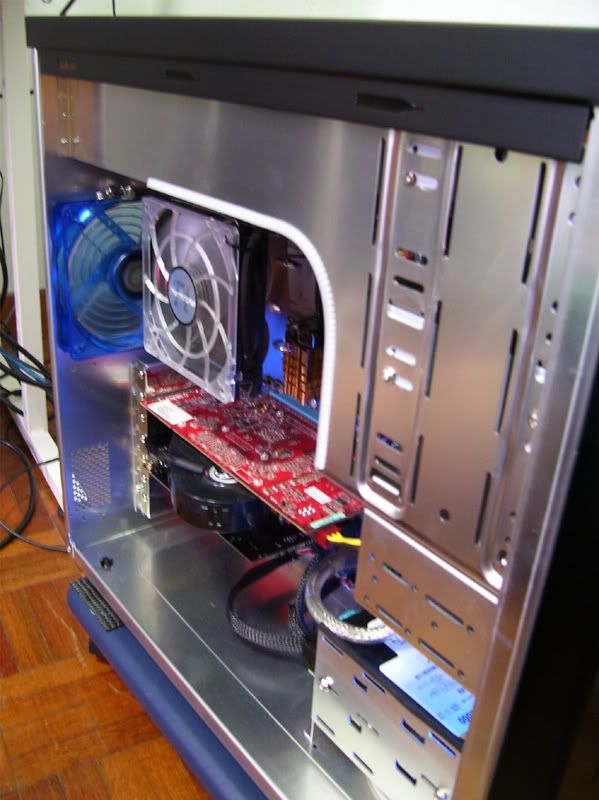

Side View...

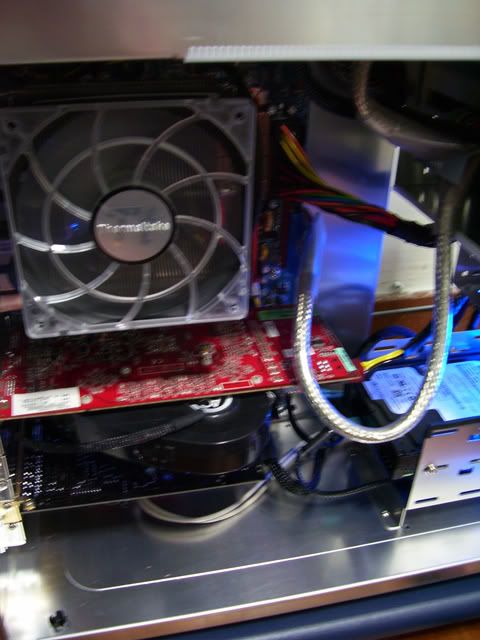

Redo the power cable for rom drives...reduced some of the cables....

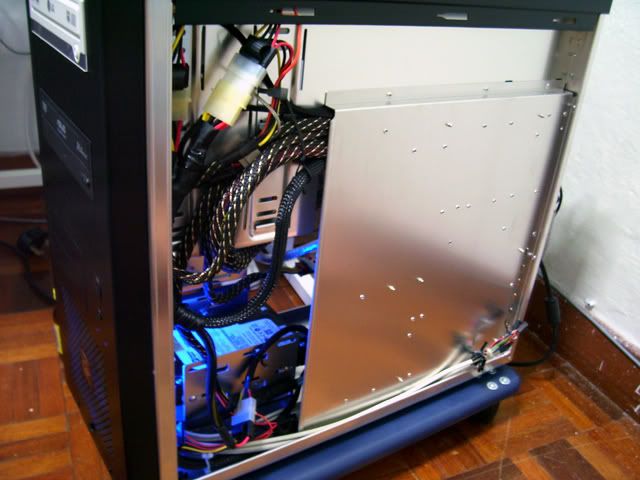

Rear side....clean for the optical drives areas.....what i like the most.....


To:mADmAN...u got to have the front bezel ...it really match well.....
all the best to your UV rig as well...

i dont prefer too much of bling bling ..s.o everything is simple as it is ....

damn....the front bezel looks good man.... hhhmmmmm to or not to
aiyah...wait til end of next month...this month pokai..somemore going US on the 3rd...cant really spend

ur cable management looks much better now too...

EDIT: just did the vibration thingy same way as u did... it works damn well man..now the only thing making noise would be the fans

sadly with the pads on the hdd wont fit at the bottom bay of the HDD cage. had to transfer it to the top to make sure it gets adequate cooling... cant use the centre bay as thats a dead zone for the fan with my filter on.

looks like its time to buy me some CM UV Silent fans to further reduce the noise.

This post has been edited by mADmAN: Sep 24 2006, 05:54 PM

Har! C I told u fellas to go buy the Drive cover. It's really nice. Now Doom so happy with it.

basket bola mADmAN!!!! do u hav to make the thingy so nice n clean ishhh...make me feel so dem jeles wei :P:P... and btw...i won't say u da man

Minor update ....





COMMENT WELCOMED

WOW KILLER PC! i envy u man

*slurp* some jig n drill will love to taste that case....

Really take time, effort and MONEY to get this rig out....

So much struggling with hardware selection as well.... .AM2, P4 D, others....

Getting the case from Singapore was tough .. .custom (lucky didnt being charged with tax)

Cable management take even more effort ... (thanks to the comment given by forumer here)...

Drilling would be nice but i am just so sayang the case..... everyday wipe of the dust and finger print....

everyday with more cable management idea... ..

MUCH better now.....

and im glad u finally did something about the cables snaking around on ur case floor

EDIT: y arent u using the IDE connector next to the 24pin connector?? wouldnt it be easier to route ur ide cable behind the cdrom bay if u used that one?

This post has been edited by mADmAN: Sep 27 2006, 02:54 PM

that is not the IDE cable connector.. that's the floppy cable connector... this is the problem of having 965P chipset .... officially the south bridge do not support IDE connector .. all are replaced with Sata connector (this mobo support 10 USB and 6 Sata II)...

somemore the placement of the adiditonal IDE connector by gigabyte was meant for those that still using Pata for HDD instead of Optical drive....as u can see it is a bit lame as the number of Sata optical drive still limited in the market .......

i am trying to find any long IDE cable that i can route it for longer distance so that not so visible.....
