yea. ori is 5-speed, but can modify to 6-speed (i didnt mentioned it is a new modification, my bad). Bee Hock has 1 in his shop. but I pull till 4th gear 10krpm ady no balls to go further.

wah, 21hp. what's your setup, mind to share?

This post has been edited by charge-n-go: Jan 7 2015, 06:04 PM

Check the gears ratio, they are only close ratio.
6-speed gearbox is needed if the tuned engine has narrow powerband bike.
You'll need to run dyno on every gear, to decide if you need it.

Example narrow vs wide powerband, why RGV and 125z need 6-speed:
125z - hp: 17.5ps/8000rpm - torque: 16.1 kgf-m/7500rpm
RGV - hp: 15.5ps/8000rpm - torque: 15.0Nm/7000rpm
LC - hp: 11.33ps/8500rpm - torque: 11.65Nm/5500rpm

This post has been edited by alexei: Jan 9 2015, 09:44 AM

use cnc block if want jack rod with bigger piston pin. resleeve block cant tahan. mine jammed two times alrdy

This post has been edited by crappy123: Jan 8 2015, 07:42 PM


Attached thumbnail(s)

@Alexei, thanks for the info dude.
I did a quick calculation based on 80/90 tyre. With standard sprocket 39-15, seems to be going quite fast at 11000rpm shift point.

@Crappy123
thanks for the sharing dude.


Attached image(s)

Hmm.. really need dyno to check the powerband.
From butt feel, the 175cc engine should have very wide powerband. 4th gear also can accelerate uphill at 4krpm. 4 speed enough ady i think.

btw, I did a quick test again today (with NOB1 SSS exhaust meant for 135cc).

1km @135km/h
400m @ 113km/h

looks pretty good. My custom pipe for this engine/cylinder head combo is coming within 1 - 2 days, don't know how much better it will perform

This post has been edited by charge-n-go: Jan 10 2015, 11:33 AM

charge-n-goFrom the looks of it, SSS has low torque boost, compared to other NOB1 pipes...

@Alexei

yes, the downpipe diameter is small, about 25mm OD. Compare to standard LC pipe, 3mm bigger only. Based on some formula (can google "primary pipe diameter calculation"). It helps the standard 135cc Diasil to push higher, but once using 175cc, exhaust gas is too much for it to handle, not to mention the increased valve size + pnp head.

The newer pipe design has 29mm OD and 150mm shorter muffler (about 2/3 of original muffler size). Also have a trumpet 29mm --> 37mm going into the muffler.

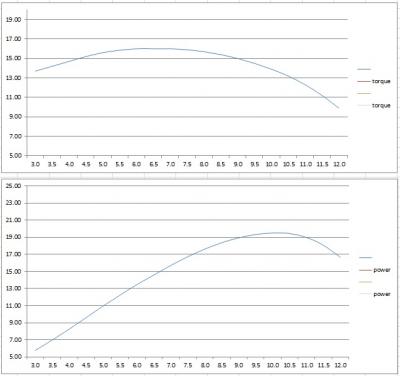

I plotted a torque curve based on butt dyno. Not so smooth of course, just a description of power/torque characteristic now.


Attached thumbnail(s)

Look forward to your updates.

This post has been edited by alexei: Jan 15 2015, 04:16 PM

alexeiscary to use stopwatch with 3rd and 4th gear, speed is too fast

thanks a lot for the calculation.

The FMF powerbomb concept really works well, I tried on Kelisa and most of the exhaust on my friend's car over this 3 years. I call it bazooka system (car needs a longer version compare to bike). After getting the custom pipe, I can self-customize again at the car exhaust shop i used to go

I didnt measure the UMA racing cam. Tried a hi-speed 330 cam before, very high-rev (power comes after 7000rpm), So I am guessing UMA is about 250/290, since the power curve is pretty close to standard (225/275) with better top rpm pull.

stroke (58.7mm) 2.311023622
bore (62mm) 2.440944882
valvEX (19mm) 0.748031496
cam (BBDC) : 45
cam (ABDC) : 65
cam open : 185



This post has been edited by charge-n-go: Jan 15 2015, 03:17 PM

btw alexei, just noticed a stupid mistake. It is a trumpet going into carburetor, not exhaust, LOL. sorry for the confusion.

Check PM.

Going to get LC135 ES soon, but i survey around got a deal
D/P = 1120
mthly = 368 x 24mth
its almost like 10k i am paying in the end,

can you guys recommend shop around cheras kajang Selangor area
got cheap deal?

thanks in advance

kasi D/p up sikit ... baru monthly tak banyak ....

pay RM3000 ok mou?
become monthly 200++
haha, anyway, going to ask again tomorrow.
as per my understanding, all those RM1000++ D/P is from Aeon,
thats why so expensive.

by the way, any one used a LCv2 5s black gold with Gold RB 522 rim?
thinking of the out come should be nice, but i googled, no luck

aeon memang % tinggi la bang ....

1 question from this noobie ya~
how many kms do u change ur chain...??

Whenever it is loose.

If taken care very well, can last up to 20,000 km.
My case, 8000 km need to change.

i see,cuz mine stock chain until now almost clocking 14k km edi~
scare scare putus then jia lat liao lor~

i replaced whole set when spocket became 'durian'

Changing rims.. wanna feel wider rim (2.5" rim)..

Before...


During...


After...




Now can leper2 cornering..
