Still dead. Proceeding with removing cpu.

Update still dead. Was told that my cpu might be dead.

This post has been edited by cstkl1: Jun 15 2013, 08:17 AM

Holy cow, so fast!
So it is the 0017 causing the death or something?
Get another CPU or mobo to test?
The debug code could be "7B" also.
Swap the CMOS battery and see.

This post has been edited by owikh84: Jun 15 2013, 09:48 AM

I think you have your CPU killed by excessive VCCIN bro.
I heard loud_silence and Dumo killed their good chips with 2.0v+ under LN2 and regular air/water.
But your situation is worse, cause you are running it on air and torture it with stress tool.

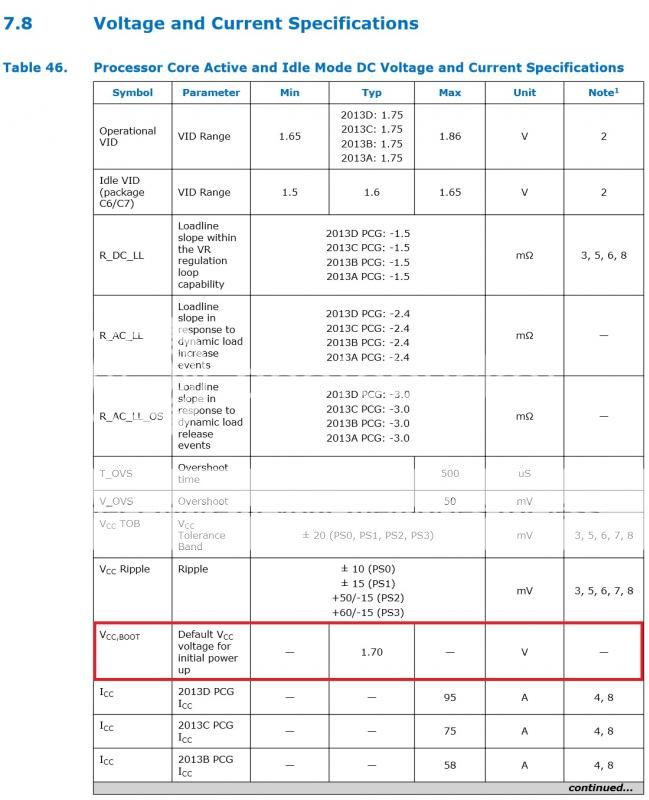

If you want to refer to Intel Datasheet for Haswell, the VCCIN is 1.7v default without limit. But i will play anything higher than 1.8v afaik the highest VCCIN I put was 1.75v then slowly playing with auto as recommended by ASUS.

Some new BIOS's......

***ASROCK***
AsRock Z87 OC Formula
http://picx.xfastest.com/nickshih/bios/Z87OCF11D.rar
http://picx.xfastest.com/nickshih/asrock/Z87OCF121.rar

AsRock Z87 OC Formula A
http://picx.xfastest.com/nickshih/asrock/Z87OCFa121.rar

AsRock Z87 OC Formula M
http://picx.xfastest.com/nickshih/asrock/Z87MOCF11B.rar
http://picx.xfastest.com/nickshih/asrock/Z87MOCF112.rar

ASRock OC Tools
http://picx.xfastest.com/nickshih/asrock/Z87OCFtool0612.rar

***ASUS***
ASUS Maximus VI Extreme
http://www.mediafire.com/download/l65fog9c...-ASUS-0021a.rar

Gene
http://www.mediafire.com/download/2l6a1u93...E-ASUS-0037.rar

Hero
http://www.mediafire.com/download/6or22j02...O-ASUS-0020.rar

***GIGABYTE***
GA-Z87X-OC Force - F6d
GA-Z87X-OC - F5m
G1.Sniper 5 - F6d
G1.Sniper M5 - F6b
GA-Z87X-UD5H - F6g
GA-Z87X-UD4H - F6e
GA-Z87X-UD3H - F6g
GA-Z87X-D3H - F6b
GA-Z87MX-D3H - F3
GA-Z87M-D3H - F7a
GA-Z87-D3HP - F4
GA-Z87-HD3 - F5c
GA-Z87N-WiFi - F3a

GIGABYTE Tweak Launcher 2.0
http://www.mediafire.com/download/on6gdwc3...jl3/GTL_2.0.rar
Z87 OC Button
http://www.mediafire.com/?qrm5swumu7teep7

This post has been edited by stasio: Jun 15 2013, 01:37 PM

MSI Z87 Platform OC Setting Reference Table



Gigabyte Z87 OC Guide coming soon......

This post has been edited by stasio: Jun 15 2013, 01:51 PM

Vccin missing but i still think it was the bios. But hmm owikh taught me something about the recommended loadline, gonna try it

Praying to gods of oc for my new proc not to sux

Took a leap of faith n got a gaygay z87 oc
Praying to gods of oc for gaygay to finally be good.

This post has been edited by cstkl1: Jun 15 2013, 02:07 PM

Don't worry, GB OC doing well,as already prooved on a few presentations and owners posts.





http://valid.canardpc.com/show_oc.php?id=2830882

Nice. 2nd proc after one dead is better than previous on vcore on intial test.

Btw i meant as the board ok as pls dont burn my one of a kind psc dom gt.

This post has been edited by cstkl1: Jun 15 2013, 04:27 PM

Where you will RMA CPU?.........in the case I need,huh.......
What is the batch of second one?

Same batch. Just playing with serial.

So far can tell u its all random. Batches dont bother
Just boot n c ure vid. If 1.05v. Not so good
Best are all 0.9xx.

This post has been edited by cstkl1: Jun 15 2013, 05:08 PM

OK,let me know if you need different BIOS for GB OC.
Your came with F3 (read that is god for PSC)?

This post has been edited by stasio: Jun 15 2013, 05:21 PM

Testing later at nite or tommorow. Trying to get to know my new proc.

3000MHz 12-14-14-25-2T @ 1.65v



RAM clock looks good for 24/7 and priming but CPU clock is nono.

This post has been edited by owikh84: Jun 17 2013, 12:14 AM

Today I start overclocking! Have to read up on how to overclock first

Not aiming for extreme OC. 4.2 - 4.4 Ghz at around 1.15 - 1.20v possible?

Today I start overclocking! Have to read up on how to overclock first

Not aiming for extreme OC. 4.2 - 4.4 Ghz at around 1.15 - 1.20v possible?

Will post up some pics when I get back from overseas, but now I have tested 4 retail CPU's under cold (1 on Asus M6E and the others on MSI MPower)

Have to say the results are really disappointing so far - Haswell will be an okay upgrade from older platforms, but I think I would stick to Ivybridge for now.

Moderate overclocks on air / water should be okay, and the ram clocking definitely much more fun - just a shame about the top speeds.....

1 CPU max 5500 4c/8t, 2 max 5700, best one 5800

Top speed for quick 2d benching only 6g so far - 2 cores at -110 temps

This post has been edited by bob(nz): Jun 17 2013, 09:46 AM

Anybody using non K series Haswell?
Reading arround that Intel limit memory to 2133,no gear ratio,etc....
BCLK ratios, mem dividers, are all cut, DISABLED even if they are naturaly supported.
Only advantage is VT-d, Intel® TSX-NI,compared with K series.

not sure ure board can do this but set cpu voltage and cpu cache ring voltage manual.
the rest leave it at offset mode.

this way u get the full c-states.
its pretty awesome watching ure proc at idle at 0.00v. lol

killed any??

no chance to test the gaygay yesterday as the proc i put it kindda sux on voltage/imc everything imaginable. vcore at 1.2v 4.2ghz barely passed.

This post has been edited by cstkl1: Jun 17 2013, 10:37 AM

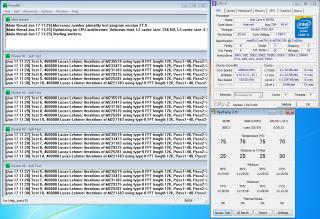

I set to 1.200v and 44 CPU ratio. Able to boot but BSOD on prime95 (code 124)

Now set to 1.200v at 43 CPU ratio and stressing. Vcore on CPU-z 1.198v
Temp 70-75'c with open side casing
CPU voltage to Adaptive (Read on the internet that adaptive voltage is the best as it will idle at stock speed and voltage)

The funny thing is, on boot up, it runs at 3.4Ghz. On stress, goes up to 4.3Ghz. After stopping stress testing, only then will the CPU drop to 800mhz at 0.703v

This post has been edited by kmarc: Jun 17 2013, 11:19 AM

So far so good. Temp at 76'c max



In bios, I just change minimal settings:

1) Set CPU ratio - All cores
2) All core ratio - 43
3) CPU adaptive voltage 1.200v
4) DRAM voltage to manual - 1.6v stock for my rams
