kekekek yeah hard to move tray like madman mention..but mine last time modular psu so can oni unplug connector at psu

My new rig...but really lousy cable management compare with urs all...

Guys i wanna ask something

Is there anyone / any shop thats sells extension 6pin cable that conects to the mobo ?

@ltcbomd
Bot bad, BTX mod it and it would become even brilliant....

@karthyhu
It's a bit hard to source for that extension cable ...

pls comment on my cable management on dunno-what-casing


At first, this is how it looks like


Then after some adjustment, still not quite satisfy


Finally, the best setup done so far, satisfied

Thanks for the idea and comments so much guys..

You guys rocks...!!

Anyway, like mADmAN said, it really destroy the purpose of the removable mobo tray if i were to route it that way. Besides, i need it to go through so many device (Asus PCIE X1 sound card, GC, Audigy 2 Sound Card) in order for it to reach the bottom and that is going to be a hassle whenever you need to take out the mobo tray..

Well, that being said, my Sata cables (as seen in the pictures) are already blocking the removable mobo tray thingy..So, i need to sacrifice one or another..LOL..

Any idea where i can find extension cables for the 8pin connector?

-----

Edited :

Nicely done there afosz. Especially on the sata cables. At first, its really bad when twisted that way..Now, its great looking

This post has been edited by akachester: Jan 20 2008, 06:59 PM

thanks. spiral sata thingy is the basic idea of cable management yet i didn't know. copy from my friend then later switch the hdd front-to-back, better. but a bit difficult. need to plug in sata n power cable 1st, then only put both hdd into the bay

anyway, yours aren't bad either. btw, those cables cannot go through behind mobo tray? im sure you still not satisfy with that

This post has been edited by afosz: Jan 20 2008, 07:13 PM

No. I am not sure how to explain this but the other side of the mobo tray leave no place to route any cables or i will not be able to close the side panel. The only place i could think off now and will make it looks better - between the PCI cards and mobo.

Well, i like spiral sata cables. It make things look neater IF you are unable to hide it. But if you are able to hide it, it will look much better...

Not 6pin sry.... Its 8pin.


@Doom

Posible to custom make 1 ?

yup..possible to DIY

if u see my cables i didnt bother using the holes near the sata ports.... as i want my mobo tray to be easily removable. but then again the sata cables are easy to remove so no big deal. easier to remove then routing the cables between the PCIe and mobo.

extension cable... i strongly suggest u take a trip to jalan pasar (i know ur young...so bring thy daddy). they would have all u need there (except cable sleeves). once u have all the parts, either make it ur own (usually involves crimping the pins with the cables) else, if ur not competent with a soldering iron, find someone who is. some of the shops in Japan Pasar might even be able to make it for u on the spot. so make sure u have all ur measurements ready.

u need the male and female molex, male and female pins for the molex and of course the necessary cables. heatshrinks...not sure.

also, u could try and ask some of the bulkers for the Silverstone PP04 though im sure the price will be more than a trip to Jalan Pasar

btw, u already have the A2 soundcard. why are u using the Asus PCIe soundcard??

Making me jealous again is it

My Cable Management with my C5 really suxx. Too many cables with too many hardwares.

Nicely done here, same as the pics you sent me

Bila dah dapat CM690, confirm lagi cun. Bila la aku nak tukar casing gak ni

This is what I did last time for graphic card

Cost me less than RM5 to get it complete .. .



So just try to get the right connector, pin, wires and it could be done with a crimp ... btw .. could get industrial heat shrink at the shop as well .. very cheap only ..

LOL, I was thinking of posting here too. Need some comment. But then again, better wait for new CM690. Then, CM690 got no stock at Garage Sales, so decided to post some pic with current casing

Wow..Thanks for the tips there. So, people at Jln Pasar will know about those stuff if i were to ask them? Been there once before but it was over-crowded that time so i did not ask much. Well, i bought the PP04 before (I think cost roughly RM25) but it was not really that long. I bought it for my cousin who have a tough time routing the wires for TJ06 which at the same situation, have the PSU at the top while running BTX style.

Guess i need to check out that place for once and see what stuff they have there Another thing is, my electronical skills or whatever they call it are as well as dead since i leave school though..LOL...

Regarding the sound card, well, i did not really use the Asus PCIe sound card. Its just that it felt "wasted" if i were to not install it. Guess for routing cable purposes, i need to take it off..LOL...

LOL..Now you make me wish you were back here to make some for me.. Nice job there...

wish u could make me 1 now. and the silverstone PP04 now cost RM55 (lehteck)

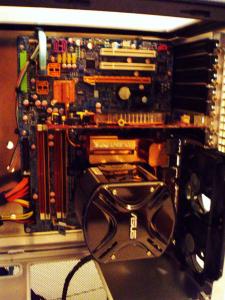

my lovely tj-07, I still have to buy a powerful graphics card ( perhaps next month ) which right now I still dont need to ( only playing gunbound, LOL )







btw guys, how can I lap the mobo;s silent pipe? what iam supposed to buy? thanks for the advice

tj07 damn really cun case.. any1 wanna let their? or perhaps trade with my pc-a10?

@ anggajaya

how good is the asus heatsink ? i do hope it performs as good as its looks !!

This post has been edited by blessedvillain: Jan 21 2008, 01:07 PM

hahaha trade ape..buy new one lar..huhuwait my tj in action later

@angga
nice bro..wonder its urs oredi when saw in yang by ianho
