Anyone can help me with this ? (idea and commet)





im considering of creating hole at the mb tray beside the psu to let the cables goes through it then comes out from other place that needed

This post has been edited by Doom: Mar 25 2006, 01:07 PM

Sleeve some of ur cables and try to mount it to the case rather hanging around

as for the IDE cable maybe u could get some of those coolermaster IDE cable looks better with the wrapping ....

same goes for the sata cable.....and for ur switches cable can sleeve it to black or blue to match ur water cooling

That should be the famous and most wanted Lian-Li V1000 Plus

Price is around RM800+ depend on the dealer and whether he has the side panel exchange with manufcaturer produced one for another RM200+

Damn nice, clean, clear and high-end......

comments plz...

[/quote]

I think what you can do if u are scared of sleeving using those sleeving kit .... maybe u could just heatshrink it...

it is much cheaper then sleeving kit as well...all u need to do just fit through the cables and get a hair dryer to shrink it to the size of ur cables....done !!

for better result keep ur zip tie so that after the heatshrink shrinked it would not move around ...

as for the sata cable u could route from bottom instead of going through the gap between two HDDs...it is better for airflow as well...

same goes for the rear exhaust fan power connector and the gc power connector if u could get longer cable....

as for the IDE cables if u dont want it to be so obvious u could actually fold it in zip zap manner and hold it with some tapes...the best is u could also just heat shrink it for better holding....

That's why it is easier to heat shrink them sleeve since u dont need to remove the molex connector ..... while heat shrink only need to get the desired size only ...

getting black heat shrink is easy men , any size but only one color....

Did you have ur mobo tray drilled with holes so that the 4 pin mobo cable and others case speaker, power and reset swithces wires comes from the back of mobo.....

what about the 4 pin cable how did u managed to route it ? ....

open hole at the optical drive bay ??

anyhow ...very clean rig u have there

if there is no drilling and hole...... i guess i know how did your Shaolin KF works now....ehehehe ,.....

waiting for my new cooler set to arrive then will do proper cable management ....

thanks for the inspiration.......

just curious why it is so yellowish .... is there any UV CCFL inside to light those uv stuffs men ???

anyway nice job with the cables....

btw the IDE cables if can get those yellow color or sleeve it become yellow will do evebn better ....

This post has been edited by Doom: Jun 9 2006, 08:00 PM

It is quite nice but just feel that the grey cables that connects to ur mobo is a bit in the way...

why dont shift the PCI plate to lower level so that is does not overlap with other cables...sleeve it blue if u can

This post has been edited by Doom: Jun 9 2006, 08:06 PM

Here is mine...recently changed my old Bigwater SE that does not seems to be perform so well as those highend air cooling solution....

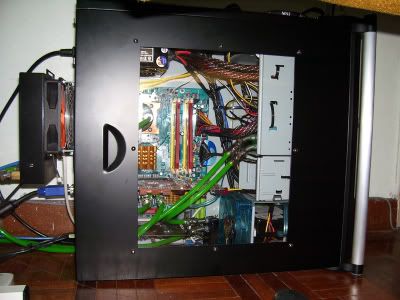

Before:

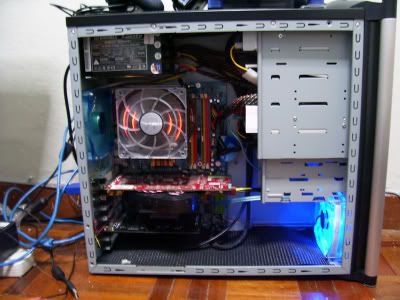

After:

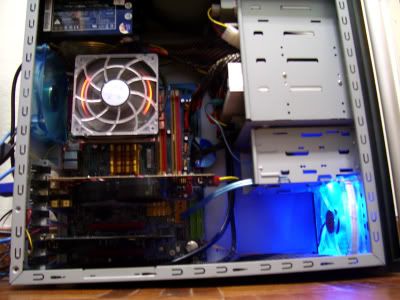

Present:


and



.....hehe... that's the best can be done now...!!!

any suggestion... still not satisfy with the cable management yet... not stealth at all

no problem as long as u fit it properly and the alignment of ur mobo to the tray is perfect... nth wrong would happens...

previously i had bad alignmnet of mobo and the tray which causes the gc and sound card having difficulty in slot in and take out with out much force...

so be cautious of the alignment when screwing it down...

Should be nice enough since the cables are not long enough for better routing and there isnt much space for routing as well..

those wires can be better with some UV sleeve

i though they located same as All IT Hypermall on 3rd floor ?

they have shifted to second floor ?

totally outrages men .... the new 7950X2 X2 somemore ....

what in the world is that machine for ... really gaming or just to showcase

anyhow it makes everyone jelous.....

Is this case really good for cable management ?

I feel that it is kind of cramp becoz the placement of the PSU at the bottom...

those wires are just obvious regardless where u try to hide it ....

Acutally the origin of your problem is the numbers of HDD drive and the optical drive you own....

unless u have lessen drive else it is hard to achieve nice cable management...

I think the issue is u use two colors for your cables, so it make it a bit of contrasting and resulted non standard look....

so the suggestion is to make it the same colors and tie those that can be hold together with zip tie or anyway of your choices

besides it is consider good enough ...

To: lolhalol

Maybe you can use a better materials such as zip tie to hold your CCFL wires rather than using tapes men....

others are alright .... but feel like u have a bit more wires than usual....maybe u dont need so many UV CCFL ... especialy those that short ... it is not so bright after all..

nice job anyway !!

This post has been edited by Doom: Sep 14 2006, 10:25 PM

Could you snapshot from other angle such as your drive bay....

it is hard to comment base on one side only...

overall you have so many wires that is kind of visible ...

TO: DualShock

I think you could improve by having the sata cable have bettter routing instead of looping it ... unless u are doing UV decoration...maybe u could cable tie together and route from the same direction.

for your CPN9500 cooler, the cable could be fold and tie with zip tie... or you could have it sleeved which will be troublesome.... and a bit tricky..depend on skill ..

as for the top area around PSU to drive bay ... you could try to get some colored acrylic board and cover it so your PSU cables are not visible..

lastly is the casing fan cable....if possible use extension and try to route to behind of the mobo and back to your molex connector.... can try out custom made extension ..very cheap but need a bit of soldering skill..

sorry cant help you with that coz i am working of the techqniue as well...

with those fixed it should be nice ...

will be looking forward to your modification men .
