300-350 around there...

wah 2nd Phenom II 955BE also range RM250 - RM300..

Guys can help me on overclocking AMD Athlon 64 x2 4600 (Brisbane)?
I'm stuck at 225Mhz (CPU base clock). I even tried overvolting it from 1.35V to 1.37V but at Prime 95 it just crash the whole thingy.
I have a Hyper 212 Evo with Dual Fan setup and the temp (Full Load) only hits 50 Celcius w/o OC.

This post has been edited by LBYuan: Dec 12 2011, 06:15 PM

show all the clock and voltage?
and ram using?

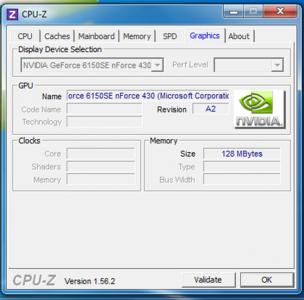

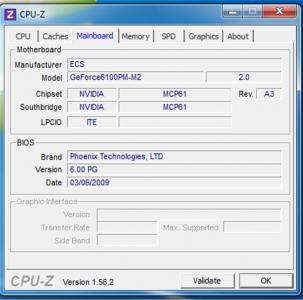

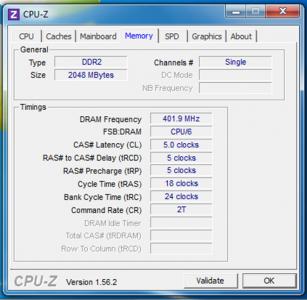

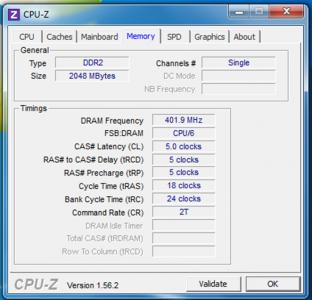

Well here it is:

@LBYuan

once u increase the HTT, not only the cpu speed will increase, HT link and ram speed also will increase together

So try to lower down the multiplier of HT link and ram divider 1st. and increase the htt back

and OC even its easy, you still need to have some knowledge. 1.7v is too much already. even 1.5v i wont recommend for long run.

Sorry for the voltage typo
Btw I reduced HTT from auto to x3 but it crashes also
Is it my mobo and processor doesn't support OC?

dont confuse HTT with HT link

HTT = bclck
HT link = hyperstransport that connects the components of the mainboard

already reduce the ram divider?
just noticed your mainboard is nvidia 61. my nvdia 61 chipset cant go above 215Mhz HTT

no offence but to oc with ecs low end board is not really a good choice to start with. am no expert so what i do is always follow what d expert use (ofkos of what i can afford lah). back then ta690g was a hit, so i got myself one & still happy with my choice.

That means the mobo and processor gg lor
RAM divider is locked. So can't see it.

This post has been edited by LBYuan: Dec 13 2011, 10:52 AM

actually what matter most is d board. pop a lemon chip onto a decent board, u mite still be able to squeeze some MHz outta it, pop a decent chip onto a crappy board & u get close to nothing...

A mobo that locks everthing ==

totally true
remember the DFI squeeze more mhz for me... but no more already.......

guys, what should i do..

i just manage to OC till 2.415Ghz, more than that system will not boot..

Do i miss something...




Attached thumbnail(s)

vcore?

anything else is right on place already i think

lol,what happen to my cpu?i didnt do anything

obviously it was a bug in software, else u mite just get yaself a diamond chip...

This post has been edited by ah_khoo: Dec 21 2011, 03:24 PM

Demmmmm i want to buy if really can go 8ghz on air.. hahahaha

come, start folding with the 7ghz cpu.

oc my friend 8150 some few days ago... end up with 4.4 stable... with fan cooling... over that 4.4 needs water cooling.... else very hot.... lol
