i've made a report asking technician come... hopefully can help abit...

artline : very obvious is miscapped case lor...and remember to print a screenshot of ur whole router page, and forward it to tmnet for rebate...dont be like me last time want to claim but forgot to print screen..no proof to show that they miscapped me .

hi there,

comment bout my line, pls...have been getting disconnected frequently for the past week. not sure why. worse of all, i can't send e-mail with attachment (100kB to 1MB or more) in it. is it due to my phone line or my modem problem? i'm using Aztech DSL305L. it's been 3 years now.

Downstream Upstream
SNR Margin 39.4 27.0 dB
Line Attenuation 46.8 22.0 dB
Errored Seconds 0 1
Loss of Signal 0 0
Loss of Frame 0 0
CRC Errors 0 1
Data Rate 512 256 kbps
Latency INTERLEAVED INTERLEAVED

sry, can't upload screenshot , as i said.. i can't upload a single sh*t....

side note : i'm using Belkin wireless router for a laptop and desktop. do i have to set the DNS (202.188.0.133 & 202.188.1.5) inside the router? what else do i need to set? thx for ya help.

My line very frequently gets disconnected. What could be the prob? I've checked and it shows that Local line attenuation is 35.5 dB and remote line attenuation is 15.0 dB

Could the high attenuation be the prob? Getting very frustrated with the connection!

What can be done to rectify this problem?

Hi guys, i'm using Aztech DSL600E, how am i going to check the parameter?

need some help...sometimes, when i'm turn off my modem and then on it back, it can't login..actually i've set my modem(kasda) to be autodial and the problem is that my connection is not totally disconnected when i first turn it off. when calling TMNET, they will reset/kill the connection and then i just can reconnect immediately...is there any other way rather than calling TMNET to kill my previous connection....

stupid techinical went to the exchange resetted 4 me, the problem still there, at least 5 times dc a day... i did another complaint to them asking the technician to come over to my house. yet again... hopefully the so called "technicial" knows what's he's doin...

osxchd: what exactly did the technician do?

those having frequent dc problems, please refer to my first post on the ping test..that way u'll knw where the fault lies....

edu: just wait for abt 5 mins.that should kill ur connection...

SnoWFisH: can explain more??when should i wait for abt 5 mins??

This the time needed by the access server to reset your session login. Though sometimes it will do it very quickly.

this is what those tmnet ppl called hang session, it happens once in a while, there are no ways on your side can do about it, it's up to the ppl in tmnet to delete your session.

me oso..how.?

im geeting dc like once every 15 mins and getting really pissed now.. anyone know whats the cause...

Can anyone help me with this..i just apply a 1mb but this is the output i recieve from the modem..kinda bothers me abit


This post has been edited by [W]ee[D]: Sep 30 2005, 06:54 PM


Attached thumbnail(s)

[W]ee[D]: miscapped case, go call telekom and tell them they miscapped ur line . REMEMBER TO TELL THEM THAT U KNOW ITS MISCAPPED FROM THE ROUTER CONFIGURATION PAGE. if not, they won't bother correcting it.

those having Aztech DSL600E, sorry i cant help u with it cuz i nvr use it before.if anyone use it before and know how to obtain parameters and information please post it together with pictures....if permitted i will merge it together with the first post.

after bunch of complains, the technician from tm finally came yesterday...

due the the cable connected to my house is exposed to "everything" the quality was affected. the technician tried to hide the cables under my house roof and all went better, there's no disconnection till now (hopefully will last). attached before and after service photos for reference.

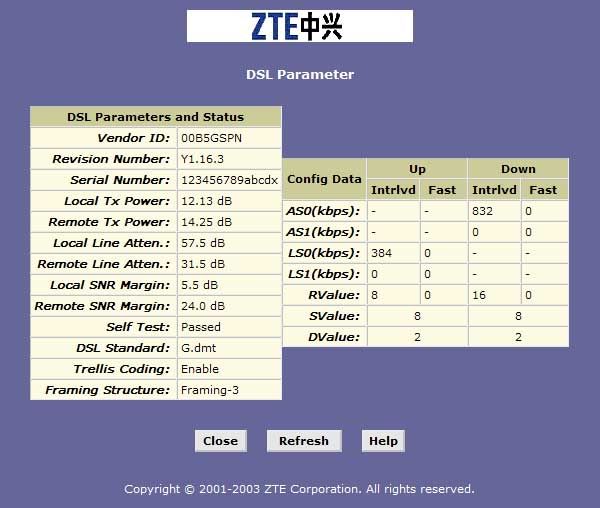

before

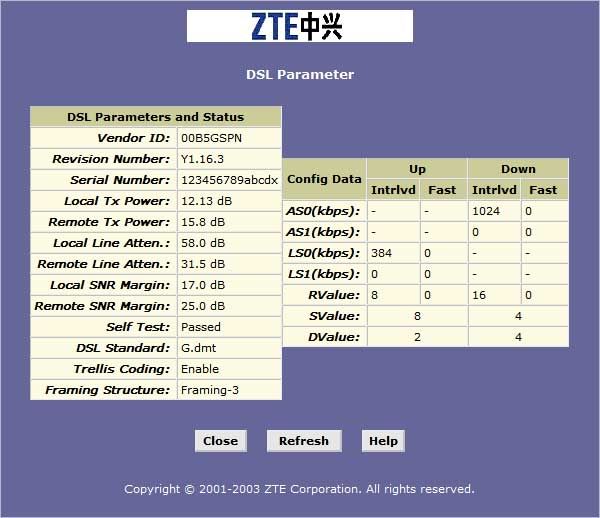

after


PS: THANKS SnoWFisH 4 the tips he posted

This post has been edited by osxchd: Oct 4 2005, 04:49 PM

How about mine???
I can't get online pass 2 weeks which keep on DC. After complaining so many times those lazy techician finally came over my house and fix it for me. WHat's bugging me is that i still get DC sometimes(3-2days once). Here my ADSL stats.
Currently using Aztech 300e DSL bridge modem. My SNR is quite low...
SHould i change the telephone cable which located out side(The cable which attach the roof) ??Is 100 the phone No. to ask those wire man to fix it for me>?

osxchd : hehheeh good to hear...ur SNR went up by tonnes ^^. i share the same experience too, the technician came onli to find that my telephone cable was real BLACK and after i touch it half the cable crumbled to ashes ><.

stevenlys : 2-3 days dc once is quite random,but ur snr is still pretty low, and ur having a lot of crc error. try running the ping test so isolate the problem. CRC errors are quite remote and hard to isolate as they can happen anywhere along the data path.

I try the ping the few of the Ip you gave and i got no problem with it. The time for it is about 80-200ms. Got any other method to solve the CRC error? Cause everytime i ping it the CRC error will increase.
How about the SNR problem? Should i call 100 for those contrator to check my line??
Sorry for asking so many noobs question...
Currently live in USJ

after u log in to modem page.. click status n select modem status..
