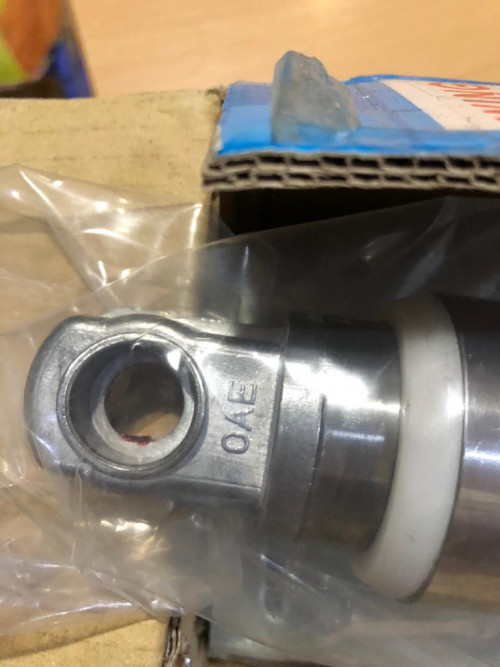

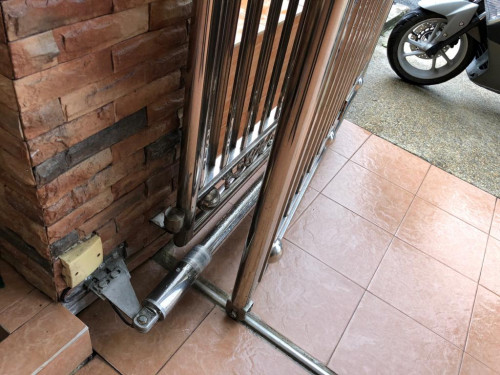

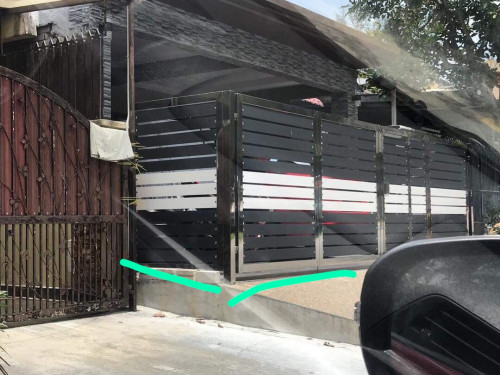

Hi guys anyone familiar with OAE Autogate? At first im consider DC Moto, however due to Extension Gate i made he said better use OAE, which more strong to hold. My gate 20ft ( folding type).
Stainless Stell + Aluminum RM7500. Autogate system RM1500 OAE. Not include wiring fees

Any suggestion?

Bro how with your autogate now? ist okay?
im looking for MAG also, hope can share feedback

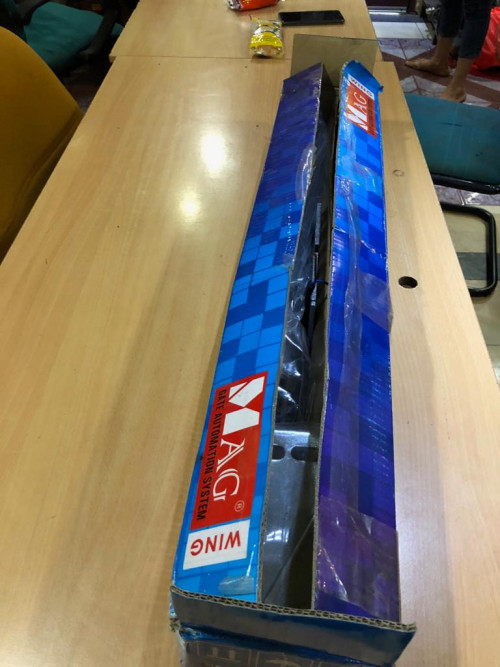

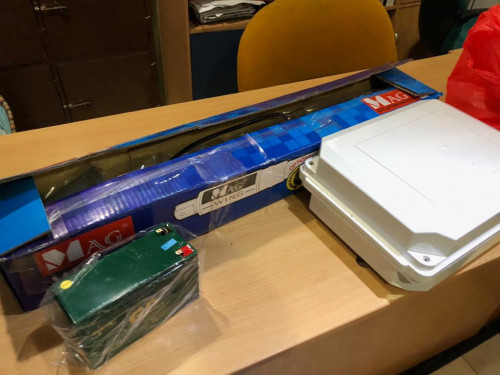

OAE is a good brand and their arm are very solid. They OEM for a lot of brand like the one picture u add which is MAG from Magnet. The problem is more on the board it self which hv to manual adjust the speed which sometime set too high on the speed which case the the motor not to slow down when reach the end of opening. Which the motor will bang at the end case the wall of the hinge to crack or give way and sometime the arm would band or brake the joint.

I am looking at 18ft folding gate, the vendor said better use DC moto for 18ft as it is more durable and long lasting.
is what he said true? or any other stronger arm can work?

thanks.

do anyone know how much to pull armor cable for the autogate?
conceal included.

At less make sure the the folding is install properly without any problem like uneven rail that cause the gate to hv a lot of pressure when opening near to the pillar. Test it out first b4 install the autogate system. Mostly all the system are the same 12v motor main function to open and close ur gate. Different is more on outlook design, feature, extra optional add on, key release in case motor or board got problem and easy to make self adjustment when gate misaligned. When looking for a system make sure the brand hv own factory in Malaysia so not much problem getting spare parts later on. In Malaysia market a lot of brand so choose wisely and of cause get a experience installer to install it. Now days any TOM, DICK and HARRY are dealing with it so all the best choosing. A lot got cheap installer to handle installation and find solution advice when got problem because the cheap installer will not entertain them. Well that is how life is now days.

Anyway all the best.

Armour cable wiring conceal will cost from RM800/-RM1K++ depend on wire type got SIRIM or not.

hi does anyone tried armygrade autogate before? i'm thinking whether want to choose Armygrade or DC moto? anyone can recommend which is better choice.

Btw is armour cable is a must for autogate wiring? need to install armour cable from DB box to gate?

if you had the tool and knowledge why you cannot do it your self.
me doing wholesale business..some minor repair in my shop house and my lorry , forklift we repair our self

Armygrade autogate is another OEM from Dnor manufacture so it will be the same quality but with a more durable brand. So when compare to DC Moto of cause will lose out to the feature and outlook. Armygrade (Dnor OEM) is more on more simple open one side or both side and close. For DC Moto nicer outlook, easier to adjust misalign gate with it's adjustable stopper, board automatic control speed to prevent over pressure on motor for long lasting and etc.

For wiring if u need to conceal armour cable will better and long lasting compare to normal wire. If no need to conceal then normal 1.5mm wire in PVC pipe will be good enough. If use DC Moto then just get power wire connect to nearest power socket because the system come with indoor wireless push button.

This post has been edited by dblcss: Feb 17 2020, 01:31 PM

now got 16th anniversary promo for trackless gate

https://www.mydelux.com.my/

from 6.9k for 10ft x 5ft... is it ok?

all depend on 2 things the arm installation and board setting.
you can do something with the arm to prevent over extend
also you can adjust the board to slow down before fully open.
unless you have those board which dont have adjustment

should i go with ArmyGrade or DC moto 925 ? which wan better in the long run ? can't decide which is better...thanks!

Armygrade autogate is another OEM from Dnor manufacture so it will be the same quality but with a more durable brand. So when compare to DC Moto of cause will lose out to the feature and outlook. Armygrade (Dnor OEM) is more on more simple open one side or both side and close. For DC Moto nicer outlook, easier to adjust misalign gate with it's adjustable stopper, board automatic control speed to prevent over pressure on motor for long lasting and etc.

Is 16 feet gate width good enough for 2 cars to park straight in? As opposed to a smaller gate where the other car need to park diagonally. My new house width is 22 feet

my contractor advise at least 18ft. the car can get out even by opening one door only

hi, anyone know whats the diff between aluminium T5 and T6?

there are diff brand of autogate some use T5 and some use T6,

not sure which is better.

Mechanical Properties differences. Hardness, tensile strength, and etc.

In short, toughness. T6>T5

Thanks for the feedback. How about Fagolli Aluminum Gate quality, seems like they using screw method for the frames? Delux all use welding method. Just worry over time the frame will become loose

Fagolli Aluminium gate system use screw method to the frame for my side opinion is better in case any damage cause to the frame can be change easily without dismantle the whole gate to be sent back to factory and cost u a bomb. They use a lot of screw to hold the pcs together so won't easily get loose. We had installed a few of this Fagolli system as can see in our facebook dblcss.klg so far no complain from customer about the quality of the product and our personal installation service.

My OAE 333a autogate couldn't open. Prior to this, one side was opening intermittently slower. When my installer opened the box, we saw burned red (power) cable but black OK. Installer just removed the board, regulator, battery, stop work and said its wiring problem. I called a wiring contractor, he tested cable, ELCB and verify cable no problem. I tested the board with another battery and it lighted up on/off but not stable. I'm confused - is burned cable a result of faulty board/regulator? The pic will show that the burned marks occurred prior to the joint/extension of 2 wires. Would appreciate any help. Many thanks.
