Author's Note: The full review can be found here. My review blog for my other reviews: jwtechreviews.com



Thank you Atcetera Solutions for providing this Xiaomi 70Mai Pro for review.

Official product page: Xiaomi 70Mai Pro (English) | Xiaomi 70Mai Pro (Chinese)


Technical Specs:
• Processor: HiSilicon chip
• Sensor: Sony IMX335
• Viewing angle: 140° wide angle, F1.8 Aperture, 6G Glass Lens
• De-fog function
• Resolution: 2592×1944 30fps, 2560×1440 30fps, 1920×1080 30fps, 1280×720 30fps
• Supports 16GB-64GB class 10 or higher microSD card
• Built-in WiFi
• Built-in 500mAh battery
• ADAS (requires GPS module)
• Parking mode
• E-dog (requires GPS module & only available in China)

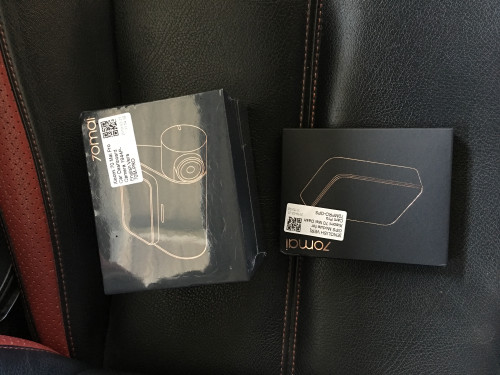

The box





Open box



Contents

• Xiaomi 70Mai Pro
• Tape mount
• USB car charger
• 90° angled micro USB cable 3.5m
• Pry tool
• Electrostatic film x2
• Manual in Chinese


Xiaomi 70Mai Pro





Tape mount





USB car charger


The red USB port is for the 70Mai Pro.


90° angled micro USB cable 3.5m



Pry tool




Electrostatic film



Manual in Chinese





The translated menu in 70Mai Pro









Test setup

Will be using Kingston 32GB Micro SDHC for the recordings


70Mai dashcam app






Initial firmware out of the box is version 1.0.1 released on 2018.08.09

You’ll need to use the Chinese version of the 70Mai app in order to add the 70Mai Pro as the Google Play Store version can only add the 70Mai dashcam. You can scan the QR codes here (click here) for the Chinese version 70Mai app.



Videos
Recorded in 2592×1944 30fps using H.265 with an overall bit rate of 19.6 Mb/s.















Recorded in 2560×1440 30fps using H.265 with an overall bit rate of 22.4 Mb/s.














Final thoughts
The first impression I got when I saw the 70Mai Pro is this looks like a Thinkware dashcam.

The 70Mai Pro is a good camera which records with good quality. The 1944p is in 4:3 aspect ratio seems a bit weird for modern dashcams but you can record more vertically though.

You'll need to change to H.265 encoding in order to record in 1440p & 1944p.

Unable to try out the de-fog features as the weather didn’t permit to test this.

This post has been edited by blurjoey: Oct 3 2018, 11:55 AM

Wow good review bro.
How much and where to buy?
And how long 32GB can record?

Lazada, shopee is selling the chinese version...

In their 70mai english page is selling the english version in Indiegogo with special discount and with the GPS module.

32GB can record about 3-4 hours video.

This post has been edited by blurjoey: Oct 3 2018, 11:29 AM

Thanks a lot for the info bro

nice review bro.
maybe can compare with viofo A119V2
TQ

Both also got good videos...

Only thing to think about is the capacitor or lithium battery

yes xiaomi still using battery

Yes they are

Thanks for the review

I think it's USD69 with GPS module on indiegogo now.

Yup USD69 with GPS module. Got another with 32GB and GPS module.

The one with extra memory no more stock... probably just very limited units offered.

how does the parking mode works? where does it draws power from?
isnt the ciggie lighter charger turn off when we take out the key?

Found in taobao, 70mai have a hardwire kit which can be used on the 70mai Pro and others 70mai dashcams...

Also the built-in 500mAh battery can be used for parking mode temporary...

Available locally:
Shopee

That's a 2-wires hardwire kit. It's more for powering the dashcam without parking mode.

Here are the 3-wires hardwire kit for 70mai Pro in Tmall

https://detail.tmall.com/item.htm?spm=a230r...s=1&abbucket=20

Thanks boss! I thought they were the same.

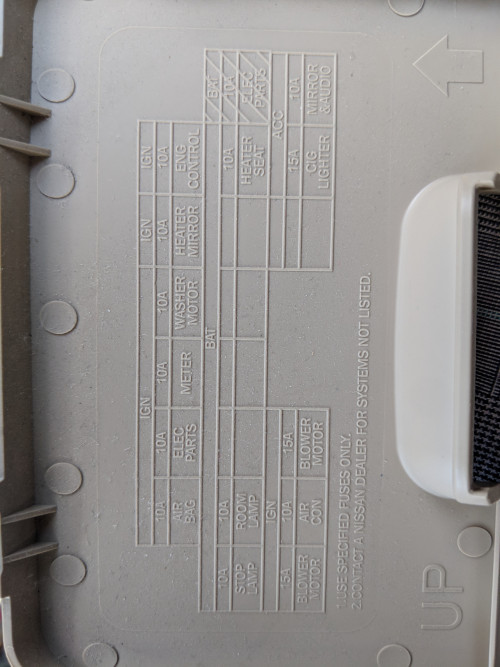

So these cables just needs to be tapped into the fuse box right? Afraid will void warranty if cut cable etc.

This post has been edited by absolut: Oct 4 2018, 10:53 AM

Yes using fuse taps. No need to cut any wires.

Actually wat is the gps module and e dog for? And does the parking monitoring works?

The ADAS and e-dog requires the GPS module.

e-dog will notify you when you drive too fast and where got speed trap but only for in China.

Thanks for this ngreat and detailed review. I've gained much more and much better information than anywhere else!))

This post has been edited by DmitryRogov: Oct 5 2018, 09:56 PM

Thanks for the review bro.
Appreciate your hardwork.
Btw, do you know how the 24/7 recording works?
I plan to upgrade my current non-pro version to this pro version.
Do you think the upgrade worth it?

any 60fps video recorded?

I think this 70Mai dashcam is a super budget dashcam below RM200 (US$50) price range with Sony IMX323 sensor. The video quality is crisp and clear.

I don't have the chance to try out the voice command yet as if not mistaken have to be in Mandarin. Will test later when have time.

It's triggered by the g-sensor.

It can run off the 500mAh battery but may only last about 15-30 minutes of recording.

There is a 70mai hardwire kit available for the parking mode.

Maybe use the 70mai dashcam as a rear dashcam?

All resolutions are in 30fps only.

I did't see the option for voice command in the app, manual or the website.

Hi bro, is it a good buy ? if compare with mijia dash cam which one is better ?

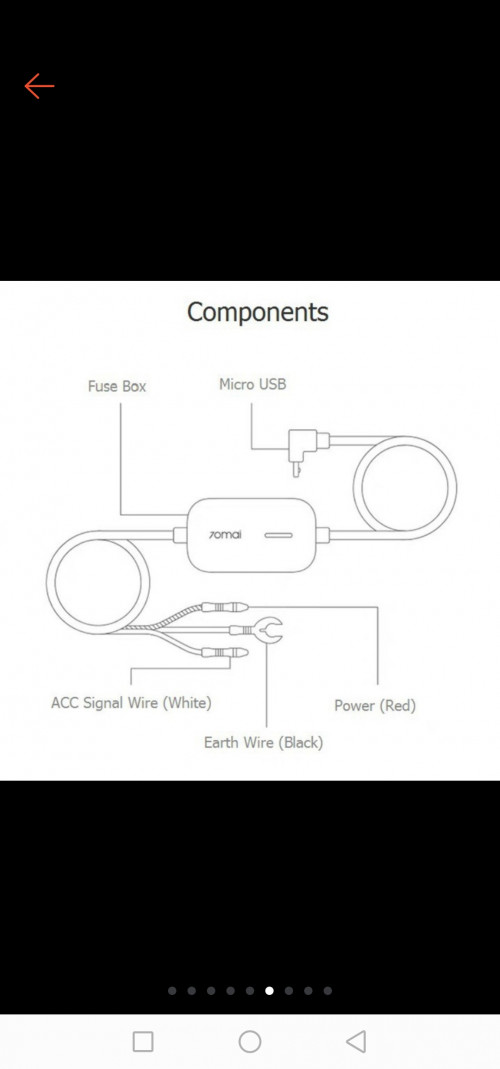

Hi, the Third one is the ground wire.
May i know why it got something to do with power differential, are we talking about more than 12v? Just my noob curiosity.

Hi, the battery reliable under the hot weather ?

Both are actually from the same manufacturer. 70mai is under Mijia.

Hardwire is to power the dashcam when engine is off for parking mode (BATT) then power on when engine is on (ACC) for normal recording. This is 3 wires hardwire kit function.

I usually won't recommend getting a lithium battery dashcam in hot countries. Always go for supercapacitor dashcams.

Better quality lithium batteries have better durability and maybe can last about 1.5 - 2 years or so. But will also fail.

I usually won't recommend getting a lithium battery dashcam in hot countries. Always go for supercapacitor dashcams.

Better quality lithium batteries have better durability and maybe can last about 1.5 - 2 years or so. But will also fail.

[/quote]

So you don't recommend this dashcam to be use in Malaysia?

The 70mai Pro is good but only if it was using a capacitor...

This post has been edited by blurjoey: Oct 16 2018, 10:53 AM

What happen if the battery fail?

Can't charge anymore. Can't save the settings and last video file.

Like all lithium battery, it might get bloated or leaking or worst case scenario - explodes.

Noted.

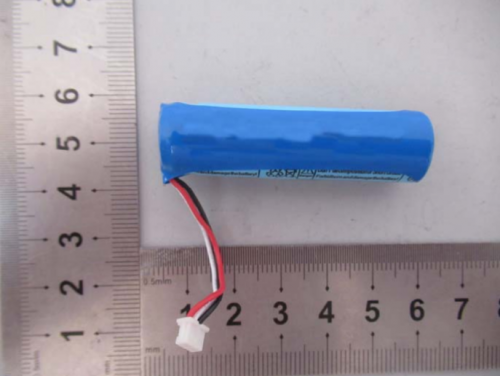

Do you anyone replace the battery woth capacitor ?

For older dashcams, I saw someone replaced the battery with capacitor but not all can do that.

Noted.
Thanks for the info
I still need think whether this cam or others capacitor cam

Thanks again

Hi All, been using this for 2 weeks now.
The parking mode as tested works well and I got voice prompted when switch on car of there is new video for parking mode. (tested with high sensitivity G sensor). Bought it from Lazada around RM 249, the video downloaded can easily be play with sound inside video which Mai 70 video can't hear anything after downloaded.

For those who are interested with it, 11street is having shocking deals at RM193 now.

@blurjoey

Bro, can you do a review comparing the pro vs non-pro version?
It would be great if we can see the video quality side by side.

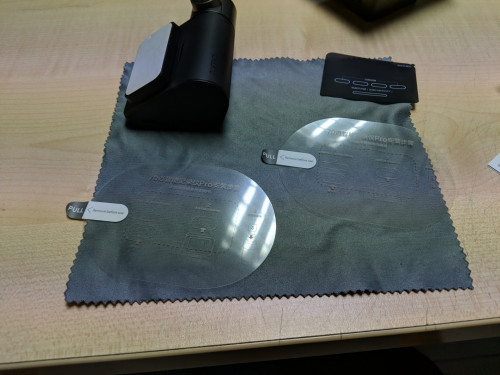

What is the electrostatic film for?

Let me see if I can find back the 70mai or not

You stick the electrostatic film on the windscreen then stick the 70mai Pro on it to prevent damaging your tint/windscreen.

english interface or chinese interface bro?

base on first page image, interface is chinese.
maybe due to import from china.

Mine is China version. There is an international version with English interface available.

yea thats why trying my luck asking our friend here if he is using the english version as myself doesnt read chinese

anyway thanks bro

I've translated the chinese interface in the 1st post

I also can't read chinese...

Do u think the international version with GPS worth it?

Hi, may you help me check this two sdcard is suitable for 70mai pro ?

Sandisk
Samsung

If both also support, as your experience which one is better?

Thank you

This post has been edited by ccsang: Nov 8 2018, 10:17 AM

I see its quite cheap on their crowd source page

Thank you 😊

Haven't tried the new Sandisk Ultra A1 yet.

All these while been using Samsung Evo Plus.

Hey lazada is selling for 209 but china version...

Can we flash it to English firmware?

Anyone using gps module in malaysia

I've check some review, look like samsung evo plus write is more better than sandisk ultra A1 (8xMB vs 2xMB) , tomorrow is 11.11, have some discounts... haven't know want to buy which one

Scared will be the same it will be like the 70mai dashcam, chinese version has 64GB flash memory and international has 128GB flash memory. Until now the english firmware can't be flashed into the chinese version.

You won't go wrong with Evo Plus. Ultra A1 maybe I'll get a 64GB to test and see in a dashcam.

Can you teach how to set up parking mode..? means you didnt use hardwire kit right..?

Just have to enable parking surveillance on the 70mai Pro or in the app. The internal 500mAh lithium-ion battery can run for a while. I estimate about 30 minutes+-.

Means after we turned off the engine, the dash cam is still on until the battery flat? or it will go to a standby mode..? if it is go to standby mood, should be more than 30 minutes right?

It will go into standby mode until the g sensor triggers then will record for 20 or 30 seconds.

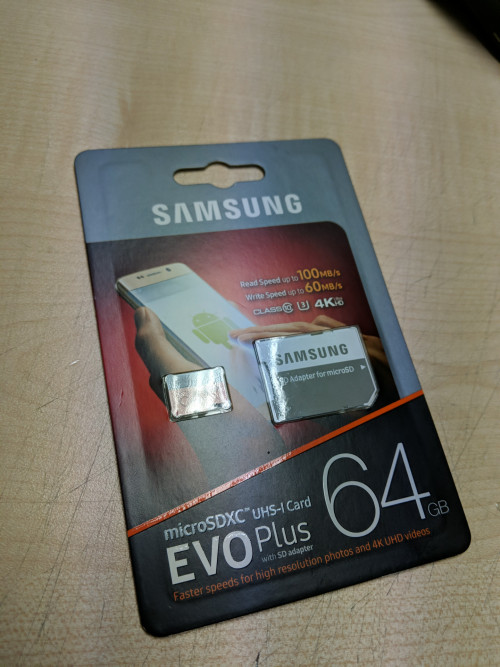

Hi, I already bought Samsung evo plus 64gb, it's come with 10 year warranty, May I know that how to proof that my purchase date because item from lazada don't have receipt, or I need to register my on samsung?

This post has been edited by ccsang: Nov 15 2018, 11:25 AM

You can ask Lazada for the receipt via Lazada Chat and they will email to you.

But do take note that Samsung and other cards manufacturer will void the warranty when these cards are used in dashcam or IP cams.

Only those High Endurance cards won't void but more expensive.

I don't said i use on dashcam, but it's possible to detect by service center this card is used in dashcam/ip cam or just normal used?

Not sure as never claim warranty before for my cards. As I roughly expect them to die in about 2-3 years time used in dashcams.

Hi guys,

Never used dashcam before so i need some enlightenment. What is the difference between the two cables in terms of usage and functionality?

https://shopee.com.my/Xiaomi-70Mai-Car-Buck...5554.1288244971
https://item.jd.com/31512999784.html


70Mai pro does not have parking mode so we dont need the 3 wire cable is it? Just the 2 wire from shopee suffice?

Lithium battery aside , how is this compared to the /k favorite Viofo?

2 wires to power the dashcam when engine starts only.

3 wires does what 2 wires do and also power the dashcam when engine off for parking mode.


The video of the 70mai Pro is nice and clear as it's newer specs.

The parking mode pull from battery not good isn't it since it will put a tax on car battery? Correct me if I'm wrong on this

Finally, may i know how much is it? where can buy?

Depends on the dashcam for any voltage cutoff, etc. Another is to use iron phosphate battery to power the dashcam for parking mode. But not cheap. Safer than lithium ion powerbanks.

You can find it in Lazada, Shopee, etc.

Thanks man for your kind reply. Btw u reckon the 2 wire cables is sufficient for 70mai pro? Because the GPS add-on will enable recording when collision happen during parking if I'm not mistaken. I didn't see it states always on recording available for 70mai pro

any way to change the language to English? Both on the dashcam menu and app?

GPS is more for the ADAS like lane departure, front vehicle collision warning, etc.

3 wires hardwire is needed for the parking mode.


Buy the international version. Or get the English firmware and see can flash into the Chinese version or not? But be careful as might brick it.

where to get international version?

Aliexpress

https://www.aliexpress.com/wholesale?catId=...hText=70mai+pro

bro i have a few questions

1) i have sandisk ultra class10 uhs1 64gb, can i use it to record in 2k & 4k resolution?

2) 64gb can record how long in 2k & 4k resolution?

3) im more prefer to 2k resolution as the aspect ratio 16:9, but can my sandisk ultra able to record smoothly and peace of mind?

Sandisk Ultra can't record 4K in true 4K cams. Will get error as the write speed is too slow. Sandisk Extreme series can as the write speed is faster.

I don't have a dashcam that can record in 4K so I can't answer that.

I don't use Sandisk Ultra cards as they fail very fast used in dashcams. I'm mostly using Samsung Evo Plus cards. No issues.

2K videos maybe can record about 4-5 hours in a 64GB card.

Hi, I had just got mine and is setting it up. Mine is the Chinese version, but the app is in English. Now, I can't read much Mandarin. Can I check with you that all the settings on the dashcam are available on the app itself? That means, there is no need for me to change the firmware to English and can just use it from the app, yes? Probably the only disadvantage to this is that the dashcam voice will still be in Mandarin.

App follow your phone default language. But do have a few in Chinese.

I have pictures of translation of the dashcam's menu in the first post if you didn't go through my review

I follow the app's setup instructions. It also show which button to click to enable WiFi and some sort. Btw, are the wifi password common for all devices?

Yes, it's best to change it asap

Please share if anyone managed to flash the Chinese version to an English firmware. Thanks!

This post has been edited by coo|dude: Nov 28 2018, 03:54 PM

bro, one more question

i bought a chinese version on 11street

now im thinking of getting the gps module since its only addon around rm60 on lazada

do u think the gps module works in malaysia?
does the gps module has english or chinese version like the dashcam itself or gps module compatible for any version?

Mind sharing the purchase link of the GPS module?

Hi all, i’m currently using the 70mai Pro English version with GPS module

in the 70mai apps there is a setting for P/N
do you all know what is it for ?

Guys, i have the international version with gps module. But i keep getting calibrating failed for the ADAS. Do anyone face the same issue ?

This post has been edited by tkboon: Dec 1 2018, 09:22 AM

tkboon

https://help.70mai.asia/299.html

Needs to be center and the lens angle needs to be able to view the hood.

Not the perfect ADAS but better than Yi dashcam ADAS I suppose.

Not sure about the P/N option as mine is Chinese version

it is small enough to fit in the middle of the MYVI with the big auto braking module system?

Finally managed to calibrate it successfully via alot of trial and error. But after calibrated it successfully, if I use it for the subsequent times, sometimes I need to drive like 15-30 mins before the ADAS starts working.

This post has been edited by tkboon: Dec 1 2018, 10:38 PM

I just guess myself it might means

P = PAL
N = NTSC

is the gps module worth to buy?
