 Blotter Spot Test Oil Analysis:VOA Helix HX7 5W30, 16,286 km blotter Shell Helix Ultra 5W40

views

TSzeng
post Apr 8 2020, 03:04 PM

Regular
******
Senior Member
1,810 posts

Joined: May 2008
Attached Image
Attached Image
Attached Image
Attached Image

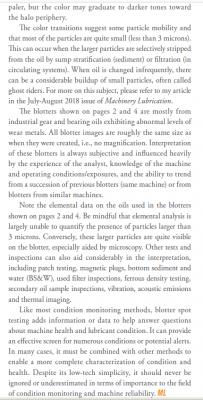

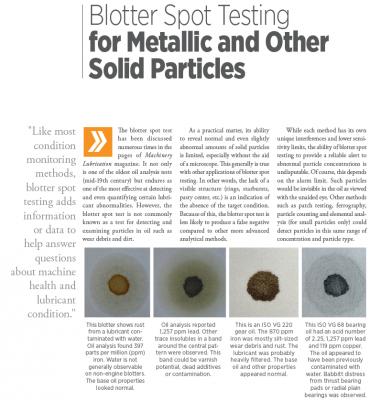

Edit: Arranged in a proper sequence, out of a complete article from Jan-Feb 2019 edition of Machinery Lubrication magazine .

This post has been edited by zeng: Apr 11 2020, 10:41 AM
Thrust
post May 1 2020, 10:54 AM

Power To The People!!!
*******
Senior Member
3,760 posts

Joined: Oct 2005

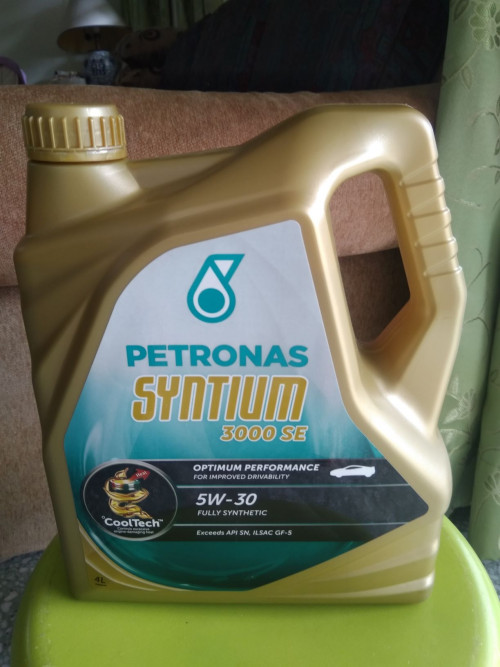

I just bought this Petronas Syntium 3000 SE Fully Synthetic oil to try out.

Plan to change it when I am free. Hope this is good stuff.

user posted image
TSzeng
post May 2 2020, 02:07 PM

Regular
******
Senior Member
1,810 posts

Joined: May 2008
QUOTE(Thrust @ May 1 2020, 10:54 AM)
I just bought this Petronas Syntium 3000 SE Fully Synthetic oil to try out.

Plan to change it when I am free. Hope this is good stuff.

user posted image
*
According to this 2016 data sheet :

Attached Image

This SE has a TBN of 7.2 .

Based on its claimed SN spec, it is a bit low'ish . But ....................

Could it be a ACEA C2 mid-SaPS oil ?

This post has been edited by zeng: May 2 2020, 02:09 PM
Thrust
post May 2 2020, 03:28 PM

Power To The People!!!
*******
Senior Member
3,760 posts

Joined: Oct 2005


QUOTE(zeng @ May 2 2020, 02:07 PM)
According to this 2016 data sheet :

Attached Image

This SE has a TBN of 7.2 .

Based on its claimed SN spec, it is a bit low'ish . But ....................

Could it be a ACEA C2 mid-SaPS oil ?
*
I duno wor.. Just want to test this engine oil out. tongue.gif
Thrust
post May 9 2020, 11:12 AM

Power To The People!!!
*******
Senior Member
3,760 posts

Joined: Oct 2005


Out of curiosity, I weigh and compared the engine oil bottle with it's content.

Nissan 5W30 Fully Synthetic bought @ RM125; vs
Petronas Syntium 3000 SE 5W30 Fully Syntetic bought @ RM145.

The difference in weight is quite obvious with the Petronas oil weighs about 800gram - 1kg more. Could it be more additives are added into the Petronas oil?

TSzeng
post May 10 2020, 06:53 PM

Regular
******
Senior Member
1,810 posts

Joined: May 2008
QUOTE(Thrust @ May 9 2020, 11:12 AM)
Out of curiosity, I weigh and compared the engine oil bottle with it's content.

Nissan 5W30 Fully Synthetic bought @ RM125; vs
Petronas Syntium 3000 SE 5W30 Fully Syntetic bought @ RM145.

The difference in weight is quite obvious with the Petronas oil weighs about 800gram - 1kg more. Could it be more additives are added into the Petronas oil?
*
800 - 1000 grams difference ? That's very surprising for a 4 Litre pack IMO .
SN/SM additive package in itself is very basic compared to ACEA A5B5 or A3B4 specs .
However this Petronas 5W30 carry no ACEA specs, though all its EU counterparts carries ACEA .
chemistry
post May 12 2020, 03:55 PM

Look at all my stars!!
*******
Senior Member
3,065 posts

Joined: Mar 2009
From: N.Sembilan


QUOTE(Thrust @ May 9 2020, 11:12 AM)
Out of curiosity, I weigh and compared the engine oil bottle with it's content.

Nissan 5W30 Fully Synthetic bought @ RM125; vs
Petronas Syntium 3000 SE 5W30 Fully Syntetic bought @ RM145.

The difference in weight is quite obvious with the Petronas oil weighs about 800gram - 1kg more. Could it be more additives are added into the Petronas oil?
*
0.8-1.0 kg difference is very significant.
Even after taking into consideration the difference of oil density and actual volume, the biggest difference I could calculate is 0.3-0.4 kg. Another factor is bottle weight, but still can't make up the gap.
cheehoong91
post May 12 2020, 04:48 PM

Casual
***
Junior Member
435 posts

Joined: Sep 2009
Hi.. Im just wondering anyone of you used mobil 1 5w50 before? Will it be too heavy for a 9years altis 2.0L?
TSzeng
post May 12 2020, 07:06 PM

Regular
******
Senior Member
1,810 posts

Joined: May 2008
QUOTE(cheehoong91 @ May 12 2020, 04:48 PM)
Hi.. Im just wondering anyone of you used mobil 1 5w50 before? Will it be too heavy for a 9years altis 2.0L?
*
Yes, I bought some online at promotion price for like RM79 for this fully synthetic .
My relative used it in a 20 yo(?) Corona and 7/8 yo Kancil .
For the same price, I would opt for a fully synthetic 0W30 or 5W40 instead .
If I had it at hand, I won't hesitate to use it in Altis .
cheehoong91
post May 12 2020, 07:59 PM

Casual
***
Junior Member
435 posts

Joined: Sep 2009
QUOTE(zeng @ May 12 2020, 07:06 PM)
Yes, I bought some online at promotion price for like RM79 for this fully synthetic .
My relative used it in a 20 yo(?) Corona and 7/8 yo Kancil .
For the same price, I would opt for a fully synthetic 0W30 or 5W40 instead .
If I had it at hand, I won't hesitate to use it in Altis .
*
What! You bought less than rm100 for a bottle for this brand? Where did you buy it? The cheapest I get after voucher discount also need 100++
dopamine
post May 12 2020, 08:45 PM

Casual
***
Junior Member
450 posts

Joined: Dec 2006


hi guys, when is the most suitable time to take the EO sample for blotter test? during engine cold in morning? or after driving few hours?
TSzeng
post May 13 2020, 10:58 AM

Regular
******
Senior Member
1,810 posts

Joined: May 2008
QUOTE(dopamine @ May 12 2020, 08:45 PM)
hi guys, when is the most suitable time to take the EO sample for blotter test? during engine cold in morning? or after driving few hours?
*
After driving for hours while the engine oil is still hot or warm .But for most of us who don't travel outstation often , that's challenging and quite tough to sustain this practice .
I started off with 1.5 hour outstation travel habit but now settle at 25 - 30 minutes driving after work arriving home . Pick your 'sweet spot' , but generally do sampling after the longer hour traveling the better .
Yes, not first thing in the morning , or cold engine oil for more 'realistic' results .

Edit: Whatever time interval is selected , try to be consistent afterwards for realistic comparison of blotters .
Btw, I took blotter spot samples 10 - 20 minutes after engine shut down before it gets cold .

This post has been edited by zeng: May 13 2020, 11:03 AM
dopamine
post May 13 2020, 01:14 PM

Casual
***
Junior Member
450 posts

Joined: Dec 2006


QUOTE(zeng @ May 13 2020, 10:58 AM)
After driving for hours while the engine oil is still hot or warm .But for most of us who don't travel outstation often , that's challenging and quite tough to sustain this practice .
I started off with 1.5 hour outstation travel habit but now settle at 25 - 30 minutes driving after work arriving home . Pick your 'sweet spot' , but generally do sampling after the longer hour traveling the better .
Yes, not first thing in the morning , or cold engine oil for more 'realistic' results .

Edit: Whatever time interval is selected , try to be consistent afterwards for realistic comparison of blotters .
Btw, I took blotter spot samples 10 - 20 minutes after engine shut down before it gets cold .
*
Thanks and appreciate for your explanation
cempedaklife
post May 13 2020, 02:18 PM

Master Decoy
*******
Senior Member
4,350 posts

Joined: Oct 2010
From: KL


QUOTE(zeng @ May 13 2020, 10:58 AM)
After driving for hours while the engine oil is still hot or warm .But for most of us who don't travel outstation often , that's challenging and quite tough to sustain this practice .
I started off with 1.5 hour outstation travel habit but now settle at 25 - 30 minutes driving after work arriving home . Pick your 'sweet spot' , but generally do sampling after the longer hour traveling the better .
Yes, not first thing in the morning , or cold engine oil for more 'realistic' results .

Edit: Whatever time interval is selected , try to be consistent afterwards for realistic comparison of blotters .
Btw, I took blotter spot samples 10 - 20 minutes after engine shut down before it gets cold .
*
Just wondering how to test results differ if we were to test after a short drive. Would the result shows better than the actual circumstances, or worse? If you get what i mean.
TSzeng
post May 14 2020, 11:16 AM

Regular
******
Senior Member
1,810 posts

Joined: May 2008
QUOTE(cempedaklife @ May 13 2020, 02:18 PM)
Just wondering how to test results differ if we were to test after a short drive. Would the result shows better than the actual circumstances, or worse? If you get what i mean.
*
Blotter test engine oil condition after a short drive, of say 10 minutes and less, could likely demonstrates false positive in fuel dilution phenomenon in a perfectly normal and properly tuned engine giving rise to misinterpretation .

Besides, I'm not aware of occassions of engine gets destroyed (and require overhaul) typically after such short drive .

Having said that ,after each and every engine start, if one never drive and shut down engine beyond 10 minutes , then blotter test after short drive makes perfect sense ...... if that is the typical driving condition IMO .

This post has been edited by zeng: May 14 2020, 11:17 AM
cempedaklife
post May 14 2020, 11:37 AM

Master Decoy
*******
Senior Member
4,350 posts

Joined: Oct 2010
From: KL


QUOTE(zeng @ May 14 2020, 11:16 AM)
Blotter test engine oil condition after a short drive, of say 10 minutes and less, could likely demonstrates false positive in fuel dilution phenomenon in a perfectly normal and properly tuned engine giving rise to misinterpretation .

Besides, I'm not aware of occassions of engine gets destroyed (and require overhaul) typically after such short drive .

Having said that ,after each and every engine start, if one never drive and shut down engine beyond 10 minutes , then blotter test after short drive makes perfect sense ...... if that is the typical driving condition IMO .
*
"false positive in fuel dilution".

positive as in bad thing?
like positive in HIV testing, or demam denggi?

sorry have to be sure i understand. laugh.gif
TSzeng
post May 15 2020, 11:21 AM

Regular
******
Senior Member
1,810 posts

Joined: May 2008
QUOTE(cempedaklife @ May 14 2020, 11:37 AM)
"false positive in fuel dilution".

positive as in bad thing?
like positive in HIV testing, or demam denggi?

sorry have to be sure i understand.  laugh.gif
*
Oops ............
By 'false positive in fuel dilution' I meant to say arriving at false and misleading conclusion/assessment/trouble shooting/solutions or whatever eventually not tackling or solving an issue or problem , if any exists .
TSzeng
post May 15 2020, 11:27 AM

Regular
******
Senior Member
1,810 posts

Joined: May 2008
QUOTE(chemistry @ May 12 2020, 03:55 PM)
0.8-1.0 kg difference is very significant.
Even after taking into consideration the difference of oil density and actual volume, the biggest difference I could calculate is 0.3-0.4 kg. Another factor is bottle weight, but still can't make up the gap.
*
Yeah, agree with your assessment on the 800 - 1000 gm difference in weight as given by Thrust .
Petronas data sheet shows an oil density of 0.8542 kg/Litre .
Nissan oil data not available . However I would speculate it as being lighter at around 0.840 kg/Litre .

This post has been edited by zeng: May 15 2020, 11:34 AM
TSzeng
post May 15 2020, 02:12 PM

Regular
******
Senior Member
1,810 posts

Joined: May 2008
QUOTE(90Boyz @ Aug 15 2019, 07:48 PM)
user posted image
*
QUOTE(zeng @ Aug 16 2019, 09:58 AM)
Thanks for uploading this 'precious' image showing HX8 X 5W30 as MB 229.5 approved, consistent with Shell Msia web claims.
Would be watching for changes of 'other' Shell sites.
.... and periodic MB approval listing updates, to reconcile variations
*
Latest update from Mercedes as of today :
Shell Helix HX8 5W30 has still no MB 229.5 approval yet .

This post has been edited by zeng: May 15 2020, 02:15 PM
dopamine
post May 15 2020, 08:18 PM

Casual
***
Junior Member
450 posts

Joined: Dec 2006


Hi bro Zeng, here is the sample taken after 12 hours.

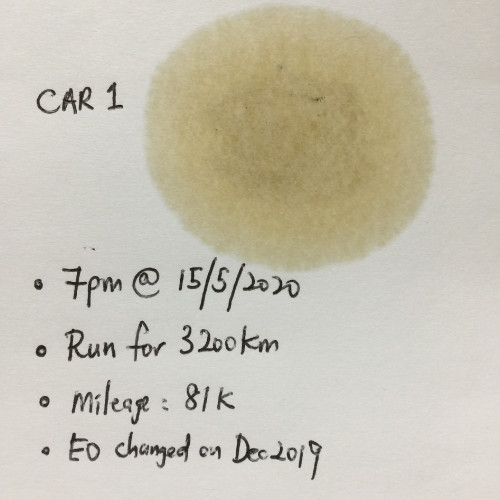

Car 1: sample taken after 30 mins rested for 1.5 hour driving

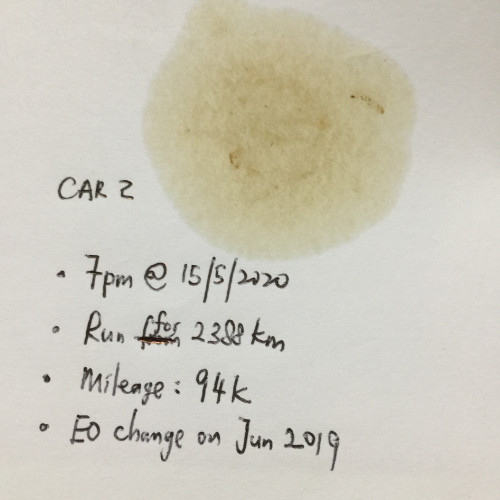

Car 2: sample taken after 30 mins rested for 20 mins driving

user posted image
user posted image

This post has been edited by dopamine: May 16 2020, 08:48 AM
