 Blotter Spot Test Oil Analysis:VOA Helix HX7 5W30, 16,286 km blotter Shell Helix Ultra 5W40

views

abubin
post Feb 17 2020, 12:41 PM

10k Club
********
All Stars
10,429 posts

Joined: Jan 2003



QUOTE(cempedaklife @ Feb 17 2020, 12:34 PM)
hx8 x better i guess. i no expect.
but hx8 is only SL spec.
*
Any promo currently at hypermarkets fot hx8 x? Want to get 2 bottles.
cempedaklife
post Feb 17 2020, 01:22 PM

Master Decoy
*******
Senior Member
4,350 posts

Joined: Oct 2010
From: KL


QUOTE(abubin @ Feb 17 2020, 12:41 PM)
Any promo currently at hypermarkets fot hx8 x? Want to get 2 bottles.
*
hypermarkets only have hx8 la laugh.gif
but i dunno got promo or not now. nowadays the promo always run together with shell helix ultra 5w40.
same price punya.
TSzeng
post Feb 17 2020, 04:53 PM

Regular
******
Senior Member
1,810 posts

Joined: May 2008
QUOTE(wkc5657 @ Feb 17 2020, 11:13 AM)
https://pictr.com/images/2020/02/14/5evzK9.jpg
repost here.

daikor zeng, tolong...
*
Sure , your pleasure .

The Centre Zone of about say, 8 mm has not heavily darkened and became opaque, hence it has not formed yet from the agglomeration and coagulation of combustion products .

The Perimeter Ring of about say, 10 mm annulus ring surrounding the Centre Zone has not formed or visible with darkened colour.

Both the above shows no trace of agglomeration and coagulation of combustion products in this Urania LS mid-SaPS HDEO at 5000 km .

The complete circle of Outer Diameter 20 mm of light grayish colour indicating quite an even distribution of all the dirts and contaminants of combustion .

Exterior to the above 20 mm OD circle shows light yellow colour and looking transparent, indicating very low level of contaminants and dirts in the used oil .

Overall, this blotter spot indicates the detergency and dispersancy properties of this 5000 km used oil is still in tip top condition . IMHO it is still serviceable for another several thousands of km .

Btw, this mid-SaPS Petronas Urania LS 15W40 has a very powerful specs in CJ4/ E9 etc .

Attached Image

Note:May I know the (petrol) engine type in use here and its current odometer readings ?

This post has been edited by zeng: Feb 17 2020, 05:01 PM
OvenBaked
post Feb 17 2020, 05:15 PM

Hurricane
*****
Senior Member
726 posts

Joined: Nov 2014
From: Southern Uganda



QUOTE(wkc5657 @ Feb 17 2020, 11:13 AM)
repost here.

daikor zeng, tolong...
*
thanks for reposting here

QUOTE(zeng @ Feb 17 2020, 04:53 PM)
Sure , your pleasure .

The Centre Zone of about say, 8 mm has not heavily darkened and became opaque, hence it has not formed yet from the agglomeration and coagulation of combustion products .

The Perimeter Ring of about say, 10 mm  annulus ring surrounding the Centre Zone has not formed or visible with darkened colour.

Both the above shows no trace of agglomeration and coagulation of combustion products in this Urania LS mid-SaPS HDEO at 5000 km  .

The complete circle of Outer Diameter 20 mm of light grayish colour indicating quite an even distribution of all the dirts and contaminants of combustion .

Exterior to the above 20 mm OD circle shows light yellow colour and looking transparent,  indicating very low level of contaminants and dirts in the used oil .

Overall, this blotter spot indicates the detergency and dispersancy properties of this 5000 km used oil is still in tip top condition . IMHO it is still serviceable for another several thousands of km .

Btw, this mid-SaPS Petronas Urania LS 15W40 has a very powerful specs in CJ4/ E9 etc .

Attached Image

Note:May I know the (petrol) engine type in use here and its current odometer readings ?
*
Engine campro vvt, petronas ron95, current odometer 60k

This post has been edited by OvenBaked: Feb 17 2020, 05:16 PM
TSzeng
post Feb 17 2020, 10:26 PM

Regular
******
Senior Member
1,810 posts

Joined: May 2008
QUOTE(OvenBaked @ Feb 17 2020, 05:15 PM)
Engine campro vvt, petronas ron95, current odometer 60k
*
Thank you, for your feedback .

This post has been edited by zeng: Feb 17 2020, 10:26 PM
OvenBaked
post Feb 18 2020, 01:54 AM

Hurricane
*****
Senior Member
726 posts

Joined: Nov 2014
From: Southern Uganda



QUOTE(zeng @ Feb 17 2020, 10:26 PM)
Thank you, for your feedback .
*
What your comment on normal car using hdeo?
btw i use this car for street race,little modified here and there, sometime redline till rev limit, gearbox manual
TSzeng
post Feb 18 2020, 11:11 AM

Regular
******
Senior Member
1,810 posts

Joined: May 2008
QUOTE(OvenBaked @ Feb 18 2020, 01:54 AM)
What your comment on normal car using hdeo?
btw i use this car for street race,little modified here and there, sometime redline till rev limit, gearbox manual
*
I have been using HDEO 15W40 in my wira and Avanza for many many years .
HDEO's are fine for non-Euro petrol engines, IMO .
CJ4 HDEO's is smart selection in your 'harsh' context , and you appear to be well informed .

Note:Lately I switched to readily available semisyn and fullsyn 'PCMO' Euro oils for its frequent promotional price .

This post has been edited by zeng: Feb 18 2020, 11:14 AM
SUSSKY233
post Feb 18 2020, 01:33 PM

u x sukak u keluar
*****
Senior Member
875 posts

Joined: Jul 2008
From: :hehe:

QUOTE(zeng @ Feb 17 2020, 04:53 PM)
Sure , your pleasure .

The Centre Zone of about say, 8 mm has not heavily darkened and became opaque, hence it has not formed yet from the agglomeration and coagulation of combustion products .

The Perimeter Ring of about say, 10 mm  annulus ring surrounding the Centre Zone has not formed or visible with darkened colour.

Both the above shows no trace of agglomeration and coagulation of combustion products in this Urania LS mid-SaPS HDEO at 5000 km  .

The complete circle of Outer Diameter 20 mm of light grayish colour indicating quite an even distribution of all the dirts and contaminants of combustion .

Exterior to the above 20 mm OD circle shows light yellow colour and looking transparent,  indicating very low level of contaminants and dirts in the used oil .

Overall, this blotter spot indicates the detergency and dispersancy properties of this 5000 km used oil is still in tip top condition . IMHO it is still serviceable for another several thousands of km .

Btw, this mid-SaPS Petronas Urania LS 15W40 has a very powerful specs in CJ4/ E9 etc .

Attached Image

Note:May I know the (petrol) engine type in use here and its current odometer readings ?
*
zeng, what is the km interval for this oil? interested to try this out !

TSzeng
post Feb 18 2020, 07:08 PM

Regular
******
Senior Member
1,810 posts

Joined: May 2008
QUOTE(SKY233 @ Feb 18 2020, 01:33 PM)
zeng, what is the km interval for this oil? interested to try this out !
*
Before semisyn and fullsyn, I have been on Petronas Supremo CI4 15W40 for several years at up to 9000 km .
This 3000 LS is mid SaPS in CJ4, which is slightly higher spec'ed than my previous CI4 .
Personally, I have no qualms going for 10,000 km oci or more and comfortable about it .
Your comfort level may vary though .
Thrust
post Feb 18 2020, 08:11 PM

Power To The People!!!
*******
Senior Member
3,760 posts

Joined: Oct 2005


QUOTE(zeng @ Feb 18 2020, 07:08 PM)
Before semisyn and fullsyn, I have been on Petronas Supremo CI4 15W40 for several years at up to 9000 km .
This 3000 LS is mid SaPS in CJ4, which is slightly higher spec'ed than my previous CI4 .
Personally, I have no qualms going for 10,000 km oci or more and comfortable about it .
Your comfort level may vary though .
*
Any comments on the Syntium Fully Synthetic 3000 series 5W30 oil?
TSzeng
post Feb 19 2020, 12:58 PM

Regular
******
Senior Member
1,810 posts

Joined: May 2008
QUOTE(Thrust @ Feb 18 2020, 08:11 PM)
Any comments on the Syntium Fully Synthetic 3000 series 5W30 oil?
*
If you mean the local Petronas version of Syntium 3000 series 5W30 , it has stronger spec (than SN/SM) in Dexos 1 Gen 2 .
GM approves this oil up to 10,000 miles (16,000 km) oil change intervals in States .

If you mean this imported Petronas Syntium 3000 FR 5W30 , it has stronger spec (than SN/SM) in Ford 913D specification .
Ford US too approves this oil for up to 10,000 miles (16,000 km) oil change intervals .

In Asian/US engines, use these 2 oils with peace of mind even with above stipulated oci .

Attached Image

This post has been edited by zeng: Feb 19 2020, 12:59 PM
Thrust
post Feb 19 2020, 01:54 PM

Power To The People!!!
*******
Senior Member
3,760 posts

Joined: Oct 2005


QUOTE(zeng @ Feb 19 2020, 12:58 PM)
If you mean the local Petronas version of Syntium 3000 series 5W30 , it has stronger spec (than SN/SM) in Dexos 1 Gen 2 .
GM approves this oil up to 10,000 miles (16,000 km) oil change intervals in States .

If you mean this  imported Petronas Syntium 3000 FR 5W30 , it has stronger spec (than SN/SM) in Ford 913D specification .
Ford US too approves this oil for up to 10,000 miles (16,000 km) oil change intervals .

In Asian/US engines, use these 2 oils with peace of mind even with above stipulated oci .

Attached Image
*
Thanks for the information.. Guess I'll be switching over to Petronas Syntium for my next oil change.
90Boyz
post Feb 24 2020, 09:08 AM

UTMB !!
*******
Senior Member
3,730 posts

Joined: Dec 2004
From: Wangsa Maju

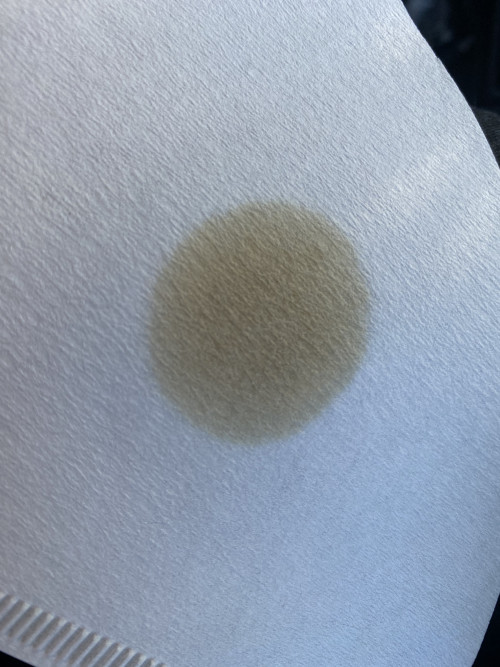

user posted image

Honda City Gm2 year 2009
Current Odo : 121,181
Date: 22/02/2020
Blotter time : 11:00am (picture after 44hrs)
oil age : 11,933km
Engine oil used :Shell Helix HX8 X 5w30

Got my oil change after finished the blotter spot test.
current oil was Amsoil Signature 5w30
will update the oil after 3000km

This post has been edited by 90Boyz: Feb 24 2020, 10:17 AM
TSzeng
post Feb 24 2020, 12:43 PM

Regular
******
Senior Member
1,810 posts

Joined: May 2008
QUOTE(90Boyz @ Feb 24 2020, 09:08 AM)
user posted image

Honda City Gm2 year 2009
Current Odo : 121,181
Date: 22/02/2020
Blotter time : 11:00am (picture after 44hrs)
oil age : 11,933km
Engine oil used :Shell Helix HX8 X 5w30

Got my oil change after finished the blotter spot test.
current oil was Amsoil Signature 5w30
will update the oil after 3000km
*
Hi 90Boyz,

Thanks for sharing .

There is no sign of fuel dilution problem , as seen from the absence of outermost translucent zone/annulus .

There is also absence of darkened centre zone (of about 8 mm diameter) and absence of perimeter zone (of about 10 mm outer diameter OD) ,which are good news, probably due to a very low level of combustion contaminants and still-high performance levels of detergency and dispersancy of the used oils .

The very slight grayish and light colour of the Diffusion zone indicates very low level of dirt/contaminants after 11,933 km usage , with very high level of residual detergency/dispersancy capabilities of the used oil .

I would speculate the internal cleanliness of this 2009 Honda City engine is very clean and /or this HX8 5W30 is performing in top shape/form ,or both .

IMHO, this 11,933 km used oil is still serviceable and fit for continuing service .

Yes, I'm aware you'd replace the oil with Amsoil which is another good (but expensive) engine oil .
90Boyz
post Feb 24 2020, 04:28 PM

UTMB !!
*******
Senior Member
3,730 posts

Joined: Dec 2004
From: Wangsa Maju



QUOTE(zeng @ Feb 24 2020, 12:43 PM)
Hi 90Boyz,

Thanks for sharing .

There is no sign of fuel dilution problem , as seen from the absence of outermost translucent zone/annulus .

There is also absence of darkened centre zone (of about 8 mm diameter) and absence of perimeter zone (of about 10 mm outer diameter OD) ,which are good news, probably due to a very low level of combustion contaminants and still-high performance levels of detergency and dispersancy of the used oils .

The very slight grayish and light colour of the Diffusion zone indicates very low level of dirt/contaminants after 11,933 km usage , with very high level of residual detergency/dispersancy capabilities of the used oil .

I would  speculate the internal cleanliness of this 2009 Honda City engine is very clean and /or this HX8 5W30 is performing in top shape/form ,or both .

IMHO, this 11,933 km used oil is still serviceable and fit for continuing service .

Yes, I'm aware you'd replace the oil with Amsoil which is another good (but expensive) engine oil .
*
Thanks bro Zeng for the details
wanted to try on Amsoil for quite some times with alot of review in website nor with the youtube channel.
so far initial impression was very smooth and quiet engine for now.
let's see how it goes along the way
TSzeng
post Feb 25 2020, 03:46 PM

Regular
******
Senior Member
1,810 posts

Joined: May 2008
QUOTE(90Boyz @ Feb 24 2020, 04:28 PM)
Thanks bro Zeng for the details
wanted to try on Amsoil for quite some times with alot of review in website nor with the youtube channel.
so far initial impression was very smooth and quiet engine for now.
let's see how it goes along the way
*
Amsoil Signature 5W30 has a substantial and high amount of Molybdenum and Boron additives .
That probably helps with the bold above .
therain01
post Mar 19 2020, 02:51 PM

Getting Started
**
Junior Member
256 posts

Joined: Jun 2011
zeng

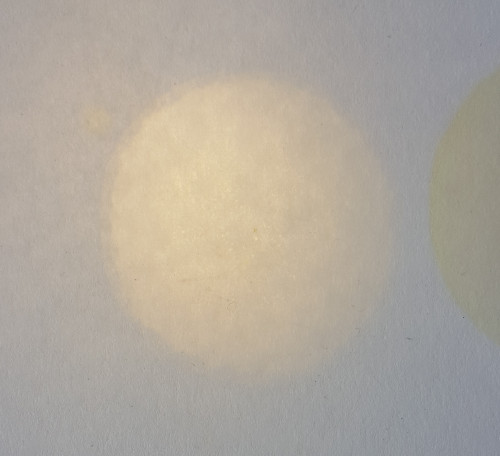

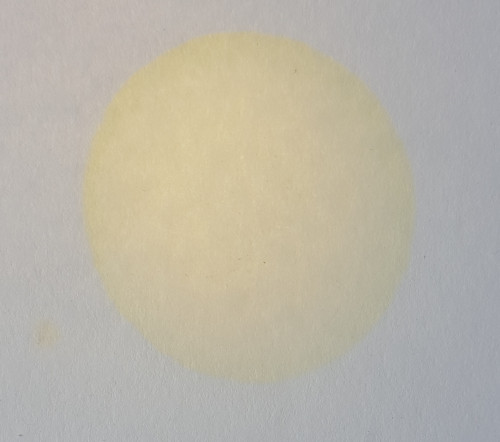

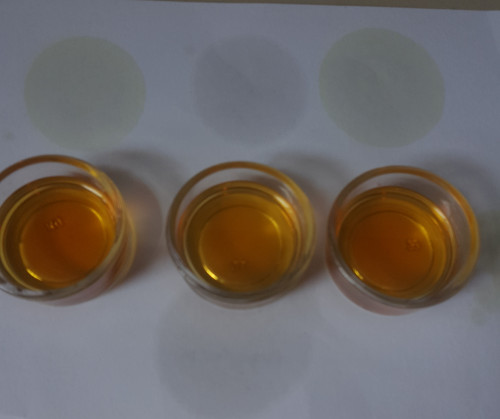

Can I know if you are able to tell how will a new oil perform by watching blotter test before it's even used in the engine?

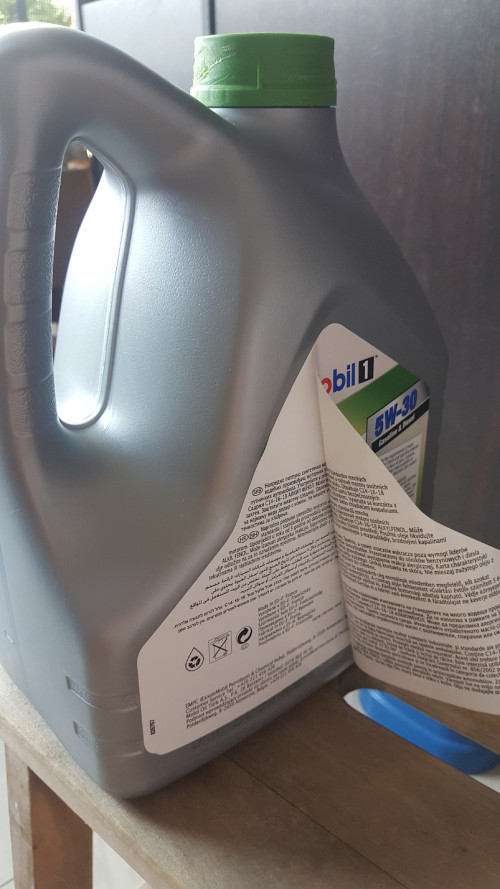

I bought a mobil 1 esp 5w30 from shoppee seller name 88autogarage, but the oil is so much different from original oil in terms of color, viscosity feeling, and smell. I put them side by side for for 24 hours to check if it is due to original oil is old and oxodized. The stink smell of the oil from shopper seller seems reduce a bit after 24 hrs but I will keep there for monitoring purpose.

When asking the shopper seller, he says the oil from Europe so different batch would have different and suggest me to do lab test.

user posted image
user posted image

user posted image
user posted image
TSzeng
post Mar 20 2020, 01:04 PM

Regular
******
Senior Member
1,810 posts

Joined: May 2008
Hi,
Sorry, I'm incapable to tell its performance from virgin oil blotter spot which is form of qualitative test .

However this Long Life oil has super duper specifications and OEM approvals in VW 50400 50700 MB 229.52 ACEA C3 etc , if genuine .

The approvals carry with it OEM approved oil change interval up to 30,000 km in respective OEM applications .

https://www.bobistheoilguy.com/forums/ubbth...-507-oil#UNREAD

This post has been edited by zeng: Mar 20 2020, 01:15 PM
tanalvis
post Mar 20 2020, 06:07 PM

Casual
***
Junior Member
472 posts

Joined: Aug 2009


QUOTE(zeng @ Mar 20 2020, 01:04 PM)
Hi,
Sorry, I'm incapable to tell its performance from virgin oil blotter spot which is form of qualitative test .

However this Long Life oil has super duper specifications and OEM approvals  in VW 50400 50700  MB 229.52 ACEA C3 etc , if genuine .

The approvals carry with it OEM approved oil change interval up to 30,000 km in respective OEM applications .

https://www.bobistheoilguy.com/forums/ubbth...-507-oil#UNREAD
*
Yo, mr zeng.
Toyota Vios 2008 2nd gen (dugong)
Current odo: 160,125 km
Date: 20/3/20
Blotter time: after ard 50 hours
Oil age: 1,020 km
Engine oil: shell helix ultra 5w40

Attached Image

This post has been edited by tanalvis: Mar 20 2020, 06:38 PM
TSzeng
post Mar 21 2020, 11:16 AM

Regular
******
Senior Member
1,810 posts

Joined: May 2008
QUOTE(tanalvis @ Mar 20 2020, 06:07 PM)
Toyota Vios 2008 2nd gen (dugong)
Current odo: 160,125 km
Date: 20/3/20
Blotter time: after ard 50 hours
Oil age: 1,020 km
Engine oil: shell helix ultra 5w40

Attached Image
*
Hi mate,

There is absence of darkened centre zone (typically of about 8-9 mm diameter) and darkened perimeter ring surrounding it , which is good news in itself .

The diffusion zone is very lightly gray indicating very low levels of combustion contaminants/dirt within the used oil .

It also indicates high capacity in detergency/dispersancy properties .

However, the translucent outermost zone indicates there is sign of duel dilution which requires monitoring in this 1020 km used oil .

Anyway this Helix Ultra 5W40 has very high specs in MB 229.5 VW 50200 50500 A3B4 and it has plenty of life to go on in your Vios , IMHO .

48 Pages « < 27 28 29 30 31 > » Top


Change to:
| Lo-Fi Version
0.0239sec    0.74    6 queries    GZIP Disabled
Time is now: 5th December 2025 - 07:43 PM
