Here are some screenies of my wc setup.


Close Shot


Water Temp sensor


Ugly pump+reservior:blush:


This post has been edited by hollowbean: Jun 2 2005, 03:28 PM

My Home Mand watercooling kit . Closeloop system, no reservoir

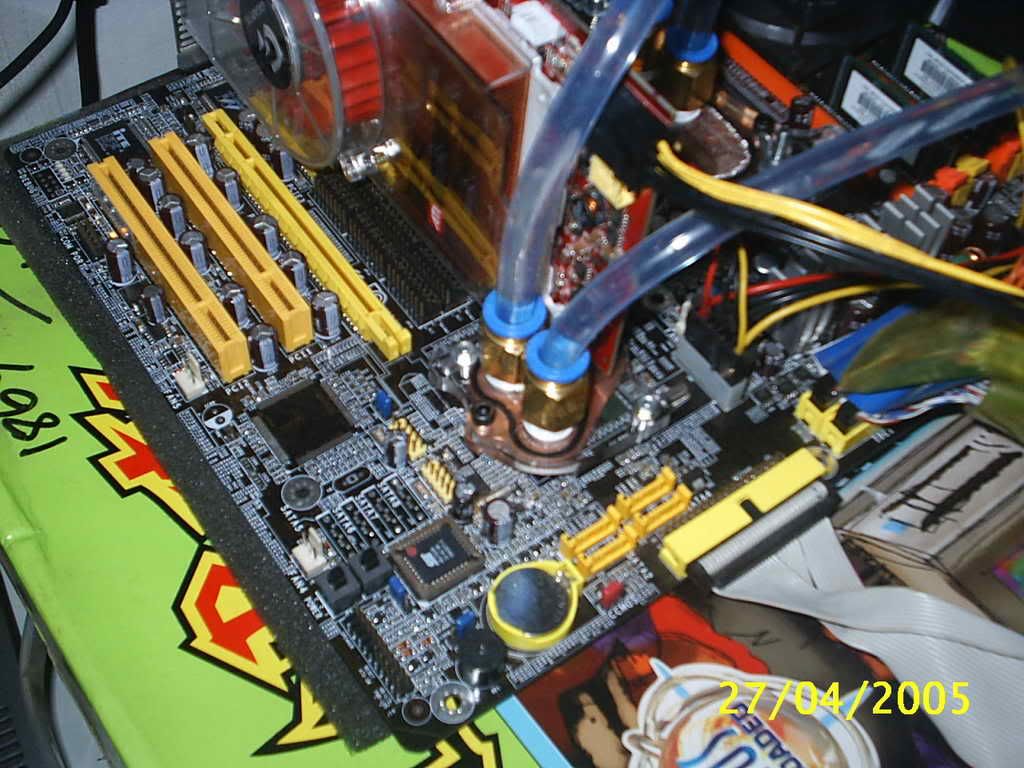

Chipset waterblock for DFI NF4

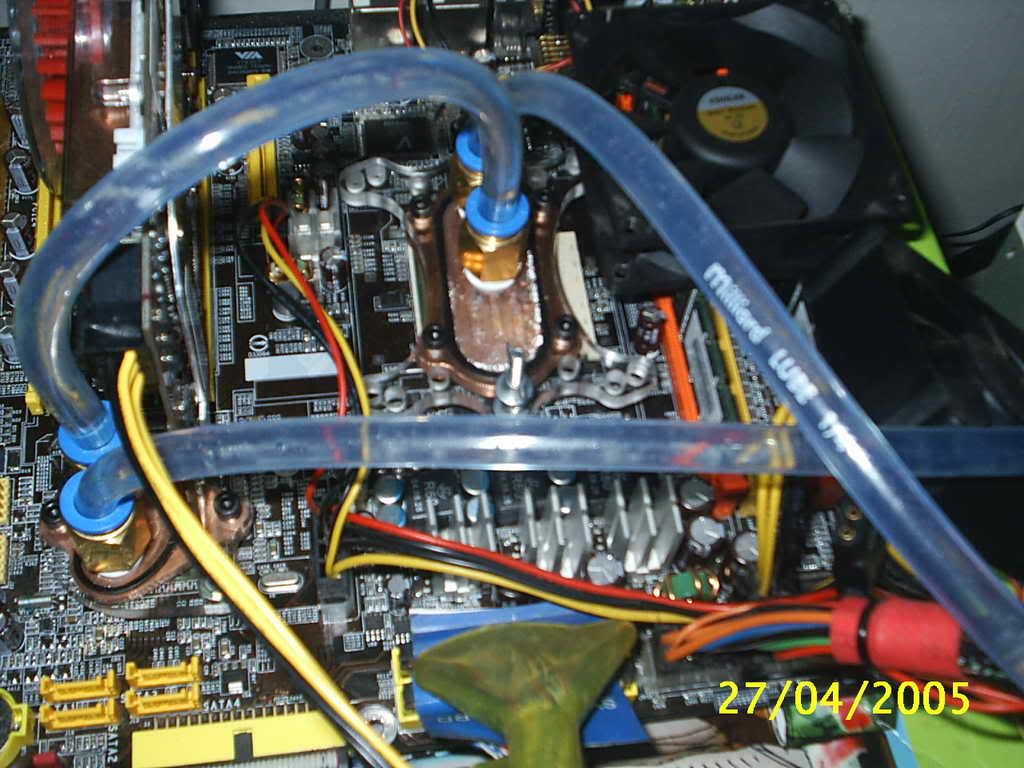

CPU Waterblock and chipset

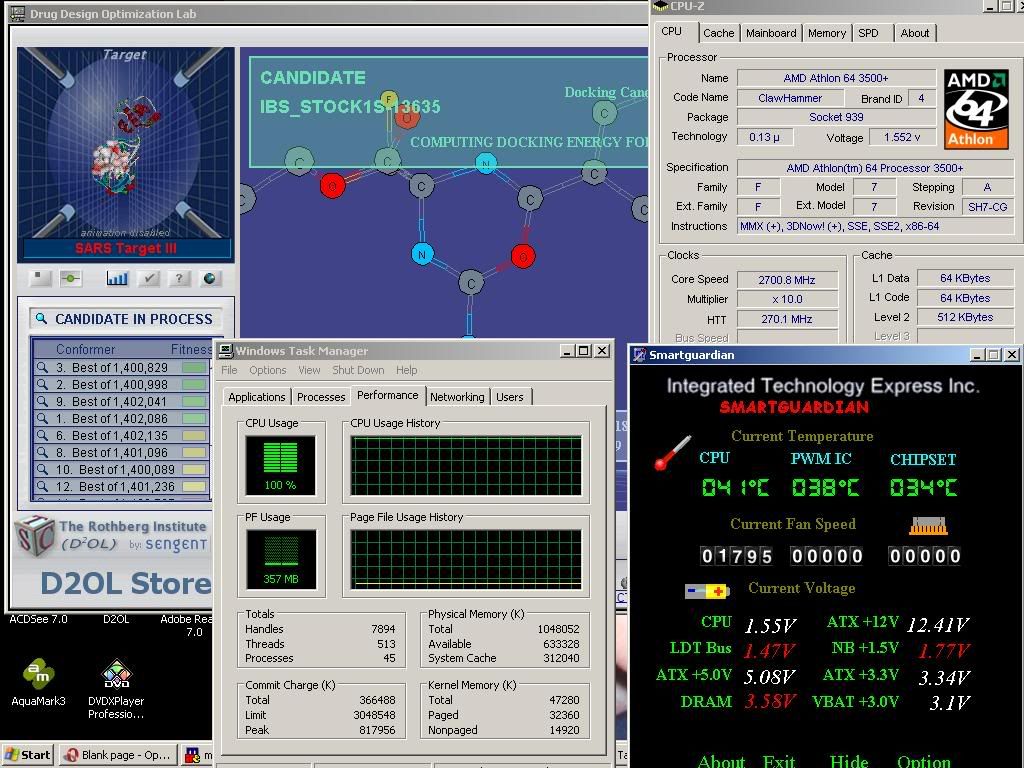

Performance at Full Load Stressing

my new setup

Gigabyte 3D galaxy LCS cooler





This post has been edited by ray99mond: Jul 10 2005, 01:46 AM

Testing da water cooling...


sadky...i didt play UV...jus onli the light


Finish testing...install'ing...


Start run'ing


Zoom 2X


Zoom 4X

Not sure if I qualify to post here. The WorkRig is now watercooled -sort-of...

Swapped out Thermalright XP-120 for the CoolerMaster Aquagate Mini. Was impressed by the simplicity of the design. No reservoir is a plus to me...

Installation time of less than an hour. If they had a simpler mobo mounting mechanism it was have been faster. Temps are a cool 40C idle and 50C max load with a FX-53. This one is a keeper!

More pics in the sig for those interested...



This post has been edited by MacDaNife: Jul 19 2005, 01:16 PM

another aquagate mini here...eventhough not look really like at wc kits..



edited : pics removed coz irrelevant to the thread

This post has been edited by moderno: Sep 6 2005, 12:27 AM

Water setup for Super Pi run,

This post has been edited by Coop: Aug 30 2005, 01:36 PM

testing Alphacool Cora 662 XP passive cooling system based on the NexXxos XP waterblock....



This post has been edited by Liquid3D: Oct 8 2005, 10:51 AM


Attached thumbnail(s)

Here's mine. Corsair Cool kit using Coolermaster Thermal Conductivity Fluid for the cool blue looks. Unfortunately the blue fluid is not UV reactive. It's better than the green coolants though, doesn't leave a white gooey residue on the hoses.



Using the Rad Box bracket so I don't hafta mount the radiator in or on the casing. It's oredi very cramped inside the case.





Everything inside a bigger case. Previous case was just too small.

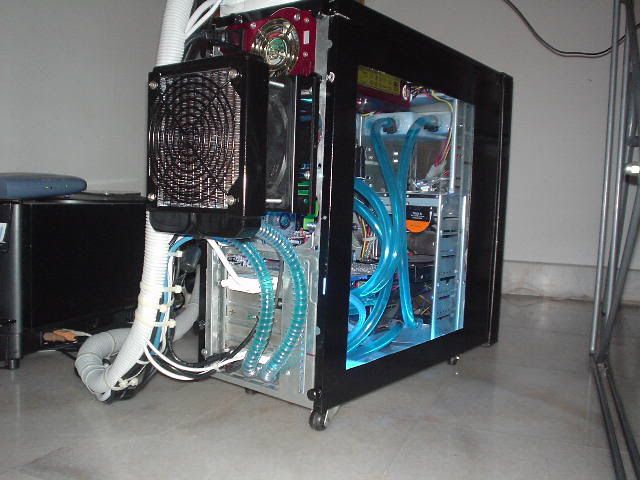

Top mount radiator.









This post has been edited by ianho: Jul 19 2006, 02:36 PM

, i oso wanna show one of my w/cooling rig lar, my P4 2.4A presscHOTT.

CPU: swiftes MCW6002
RAD: Bulkhy's customs 1/2" rad + 120mm NMB 0.35A, 75 cfm
Pump: ye good ol'nirox P2800
Res: Arcylic 5 1/4" Bay res
Line/tube: DD clearflex thick thong tube.

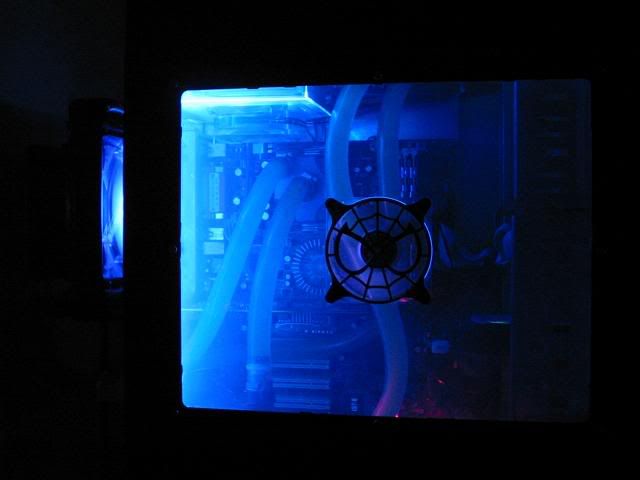

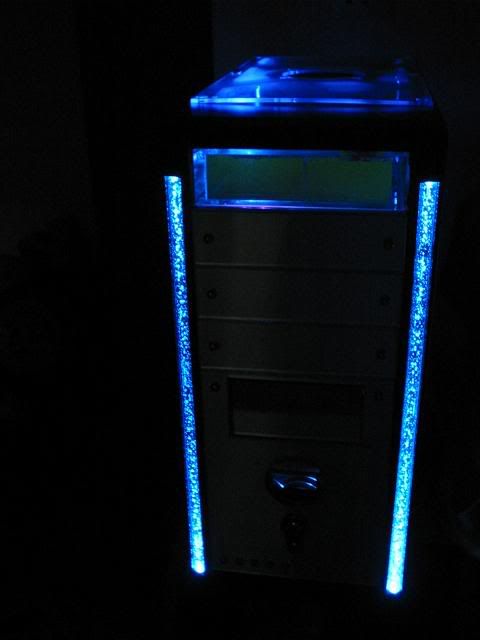

oh.. a bit of UV in a iCute case.






boley larrr

Edit: add more pics





p.s. friendly reminder, this thread is for showing pics oni, please proceed to the w/cooling discussion thread for question, comments etc.

This post has been edited by amok: Nov 23 2005, 12:11 AM

my asetek waterchill

This is my setup:

With XP-120 (before)


After: Side view 1


Side view 2


With a 'cacat' T-line (for maintenance)


Front view


Cable management?


Whole system

Just assembled the Gigabyte 3D Galaxy WC Kit this afternoon,
here is the pic :




waiting the Corsair 2x1GB XMS3500LL PRO RAM
will post up more pics.


*how to take nice pic ?
my camera seem cannot capture nice pic ...
Im using Canon Ixus 40.

got my stuff from metalzone...

and this is what i did during the weekends

the front of my old trusty pc71

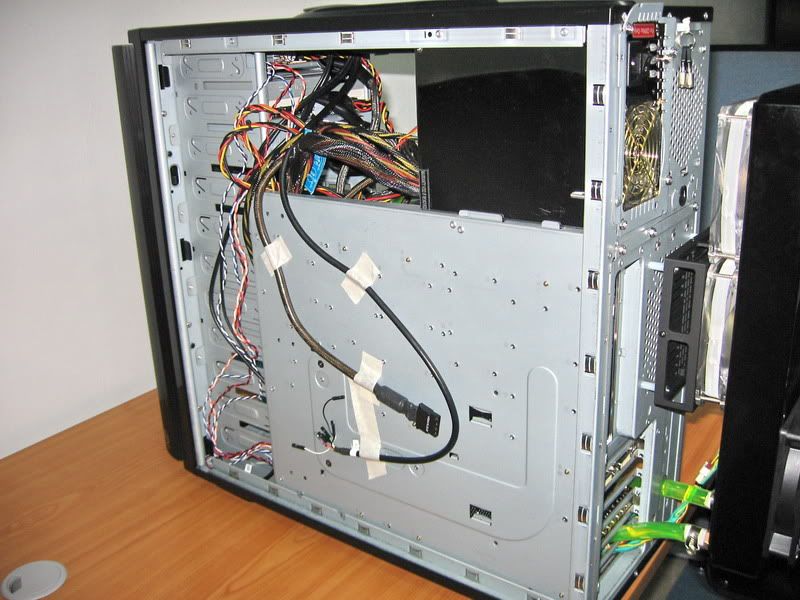

hot air exhaust


cpu, gpu and chipset cooled by dangerden blocks


aquadrive 2 takes care of my raptor150


theres alot of heat dump...so i got my BIX2 a little brother ... BIM2


i guess it wouldnt be fair if my eheim 1250 doesnt get a partner too..


so there you have it, my revamped wc system


now my fortron psu is the only noise bugging me..

My recent built Water cooling spec as below:I will post pic later

cool-trek vostok (RM480)
http://www.cool-trek.com/index.asp

P4 531 3.0Ghz@3.802Ghz (253.6Mhz X15)@1.56Vcore(original 1.3875V)Power Rating:140+W(original 68+W)because add too much voltage....
ASUS P5ND2-SLI mobo
Corsair value select DDR2 533Mhz 4-4-4-12-16-1T@678Mhz 4-4-4-9-9-1T at 2.1V
Albatron 6600GT
2XWestern Digital 80GB SATA2 in striping RAID config
1XMaxtor Diamond Max 10 SATA 160GB
1X "SHIT" I-cute 480W PSU Will change to Acbel I power gold 500W in two weeks

cooling result:
Ambient 32+C
Idle :39-41C(original 55-60C)
Full load:53-57C(original ???>75C,sure fail in full load)

all up..just need some bling bling..
thanks..



















wiring still a bit messy.. u dunwan to see wats behind the motherboard tray. is like a map..lol.
sorry for the photo quality.. only hv a camera phone..

Here's my WC setup. most of the parts are cap ayam brand and second hand stuff.

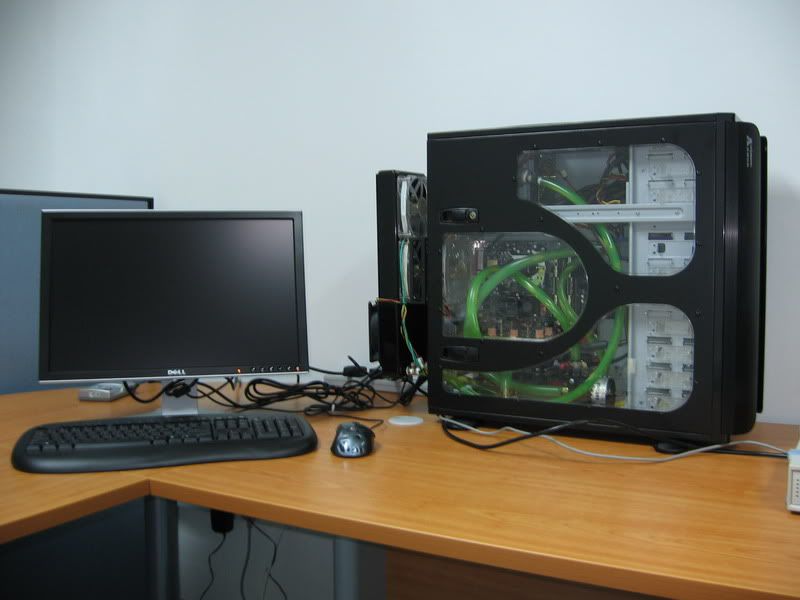

The whole setup pic.


Only the tube (cap ayam brand) and WB inside the casing

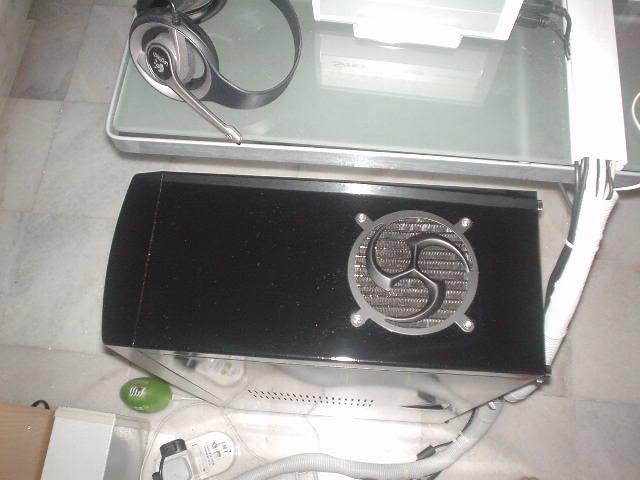

Wats inside my external WC box


Water pump: Cap ayam brand
Radiator: 2nd car Heator COre
tubing:cap ayam tubing
Reservoir: biscuit container
Fan shroud: old Aluminium cake mould
Fan 12 cm size: panaflo(push) n vantec(pull)
Water block: Swiftech WB 2nd hand
