Warning : DO NOT post anything other than pictures/configurations of YOUR watercooling setup, screenies, etc. Please keep this thread clean and neat. To discuss about watercooling and results, click here. Thanks.

Overclockers United is getting a little stale so lets just spice things up shall we? Lets just post pictures of our watercooling setup along with screenies!



I'll start with my setup, a 24/7 folding@home AMD system.

AMD AthlonXP 1800+ DLT3C NIUHB 0334WPMW @ 2.54GHz @ 1.85v
Kingston HyperX PC3200 @ 242FSB 1:1 Dual Channel 2-2-2-11-1T @ 3.25vdimm
DFI NFII Ultra Infinity w/ Oskar Wu's 04/1/21 bios, 1.8vdd
Antec TruePower 480W

DangerDen RBX Lucite Top, 1/2" Fittings
Double Heatercore, 1/2" Fittings
Evercool 120mm fans x 4, Push n' Pull Config.
Nirox P3800 Pump
bulkhy's Custom Made Cylindrical Acrylic Reservoir
aleck's "Super Oil Tubings"
Distilled water. No additional coolant, yet.

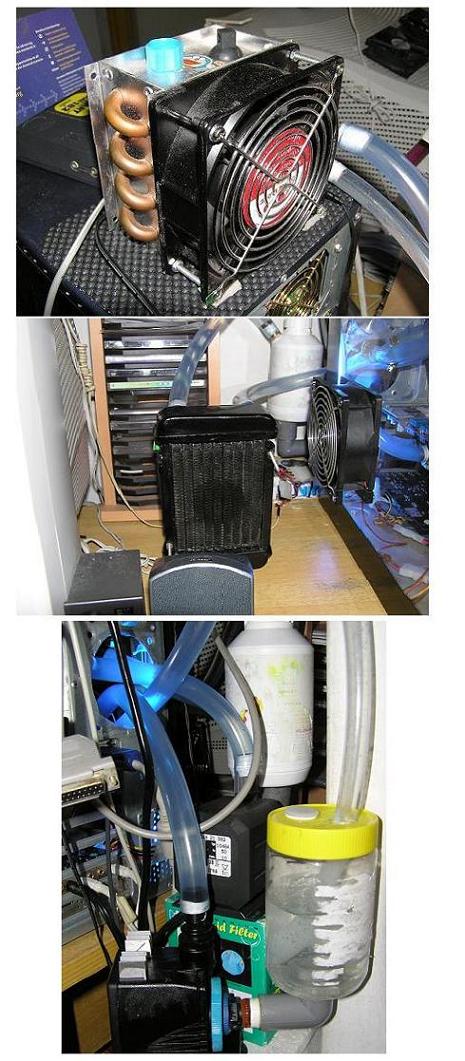

First off is the Heatercore,


and comes the reservoir,


along with pics of the crudely sealed Nirox pump,


and of course, a shot of the entire wc system. Pretty simple loop w/o the GPU block.


The acrylic reservoir's shining glow is an effect of a Sunbeam's UV LaserLED passing through them. Quite pretty, but the heatercore's still without any fan shrouds No pics of the RBX block as it's available all over the net.

Finally, here's a temperature screenie of the system running full-load folding@home (project 859) for >4 hours.


At an ambient temperature of 32c±, the watercooling setup records an average load of 44c±, an increase of 12c± above ambient, with a 80w± processor, comes an amazing 0.15c/w± efficiency. Pretty "cool" I'd say. But of course, they are nothing more than guesstimates as I do not know the actual cpu temperatures and the wattages produced on the waterblock itself. IIRC 2.2GHz @ default 1.5v does 35c idle and 37c/38c± full load. Will post up screenies of them later.

In the meantime, do post up pictures / screenshots / config of your own watercooling setup as well.

Edited : Changed the image storage provider. UploadIt.org expires
Again, please post your questions & thoughts about watercooling here. Thanks.

This post has been edited by vbNooB: Jun 3 2004, 11:51 AM

i'm using Thermaltake Aquarius 2 kit.

Pics will come later..

Idle temps 39 - 41 degs depending on room temp

Load temps 48 - 50 degs.

Room temp range from 28 to 31 degs. No Air Con.

specs are as in my signature below

- D-Tek White Water CPU Block
- Hydor L20 Pump
- Innovatek Fass-O-Matic Reservoir
- Black Ice Extreme Radiator
- CoolingWorks Shroud
- Enermax 120mm Fan
- ClearFlex tubings

XP1700+ @ 2.3GHz, 1.68v
35c load, never idle







.. will update the link in my siggy later

This post has been edited by overfloe: Apr 22 2004, 05:40 AM

My first WC setup: (courtesy of bulkhy):
block ~ DDM3
pump ~ nirox P2800 (leaking all over so i used epoxy to fix it)
rad ~ custom made by bulkhy
res ~ custom made by bulkhy (very nice acrylic)
tubing ~ bought from hardware shop. RM0.60 a feet. aleck please send me better one.

Comment: ~ The temp slightly better than SP94/Tornado and I can sleep better now with the pc running 24/7. This WC setup meant for my next Mobile Barton setup. But with this result, I think I shud have one more set.

Here's my screenies after 25 hours 2 instances of prime at 3.5GHz. I am shooting for 3.6GHz stable.


Attached thumbnail(s)

My econo Water Cooled Rig :

Denger Dan Maze 4
Nirox 2800
Ace Hardware Tubing 3/8 ID
Bulkhy's Reservoir
Alu Radiator from potong kereta. 120mm x160mm
Sanyo Denki 120x120mm Dan 2600 rpm 80+ cfm
Diy Rad shroud, cut from tupperware.
9:1 Distilled Water/Prestone Automotive Coolant

Epox 8RDA3G + Amd Barton 2500 @2.2Ghz fsb 200x11
Corsair TwinX PC3200 2x256mb
Thermaltake Butterfly 480w PSU
Icute Casing

Folding 24/7

Temp : Full load 42C @ ambient 32C

This post has been edited by ShuttleXPC: Oct 19 2005, 10:52 PM


Attached thumbnail(s)

My humble Aquarius II
Specs are in sig.



This post has been edited by MetalZone: Apr 24 2004, 11:12 AM

AMD 2400+ XP-Mobile Barton FQQ4C 0402 MPM (avg quality/stepping)

2400+ @ 2.588GHz (246 x 10.5) @ 2.0vcore (actual 1.95v)
Kingston HyperX PC3200 @ 246FSB 1:1 Dual Channel 2-2-2-11-1T @ 3.25vdimm
DFI NFII Ultra Infinity w/ Oskar Wu's 04/1/21 bios, 1.9vdd
Antec TruePower 480W

DangerDen RBX Lucite Top, 1/2" Fittings
Double Heatercore, 1/2" Fittings
Evercool 120mm fans x 4, Push n' Pull Config.
Nirox P3800 Pump
bulkhy's Custom Made Cylindrical Acrylic Reservoir
aleck's "Super Oil Tubings"
Distilled water. No additional coolant.

Repositioned the heatercore to a better spot, added a little extra cooling aiming at the casing/motherboard and PCI exhaust blower to combat the heat generated from my new 9800SE-256bit, and voila! Mobile/Barton DOES run cooler than a Throughbred

43c on load, 36c idle @ 32c ambient.
Sandra2004 reports 158W @ 2.0vcore.




Attached thumbnail(s)

This is my 2nd water cooling rig I just built for my son.

Danger Den Maze 4 Waterblock
Nirox P2800 Pump
Bulkhy's Radiator
DIY Reservoir
Aleck's Tube

The system configuration

AXP 2000+ running at stock speed and voltage
Abit NF7 v2
2 x 128Mbyte PC2100 DDR
1 x 256Mbyte PC2100 DDR
Maxtor 40Gbyte 7200rpm
Ati Rage Ultra 16Mbyte
Sony DVD Rom
AeroPower+ 350W PSU
Chieftec DG-01BD-U Office Series Case Black

This is not an overclocking rig just for a normal usage as I got my old DDM4 block.

This post has been edited by tot31: Apr 30 2004, 03:04 PM


Attached thumbnail(s)

Naked glorry:

AMD Athlon XP 2400+ Mobile Barton
ABIT NF7 Rev2.0
256MB X 2 Twinmos module w/ BH-5
ATi RADEON 9800SE -> PRO (To be cooled soon)
Enlight 420W

WC Configuration:
Aleck's jet impingement water block
DDM Chipset/GPU Block
Custom made condensor with 4 X 12cm 89CFM fans
2 X Nirox P2800 Pump
Bulkhy's arcrylic reservoir



This post has been edited by XTREME: Jul 23 2004, 03:40 PM

Here is my 1st watercooling system since August 2003

Cascade Waterblock
Eheim 1048 Pump
Custom Made Radiator 3 passes, 3 rows with 120mm fan and shroud
DIY Reservoir
Eheim Tube



Idle Temperature



This post has been edited by tot31: May 5 2004, 12:28 AM

Eheim 1048
Danger Den Maze 3
Black Ice Radiator

AMD Thunderbird 1.2 GHz
256 MB Kingmax TinyBGA PC133
IWill KK266 (Survived a water spill and didnt let me to upgrade to a NF7, long live IWill though)
128 MB Gainward GeForce4 Ti4200 (Minor drop of water on the card while running, shut down then wipe it off and run it again, still alive and kicking)

This post has been edited by louyeh: May 5 2004, 01:34 AM

My watercooling setup

This post has been edited by llk: Jun 6 2004, 10:10 PM


Attached thumbnail(s)

Setup:
Dangerden Maze 3
Black Ice Micro (built around 80mm fan)
Eheim 1048 pump
Bulkhy's custome made reservoir
Tygon tubing, Blue UV dye, water wetter


This post has been edited by sapik78: May 26 2004, 08:07 PM


Attached thumbnail(s)

This post has been edited by sapik78: Jul 10 2004, 10:44 AM

my temporary watercooling setup

1/4" tubing system
pump + reservoir - estimated rating at 150 liter per hour
radiator - 4 pass 4 rows + cooled by NMB fan at full speed
waterblock - i think using spiral design, but donno what material for the block.

performance = slk700 + smartfan2
but still cool when water meets electric rite??

the whole setup


Attached thumbnail(s)

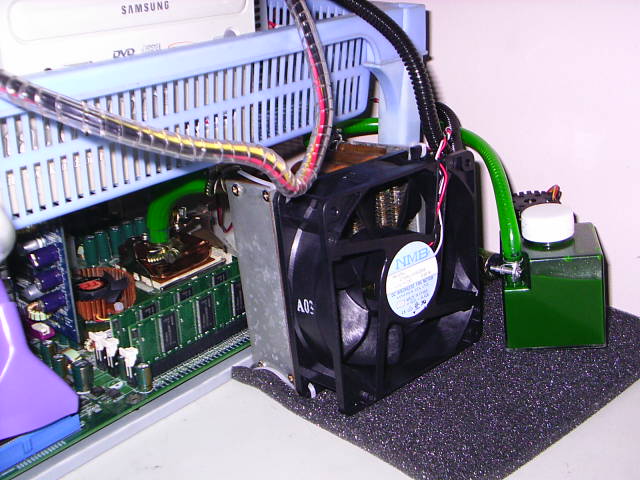

a close shot to the watercooling kit

introducing...
waterblock - radiator - pump+reservoir


Attached thumbnail(s)

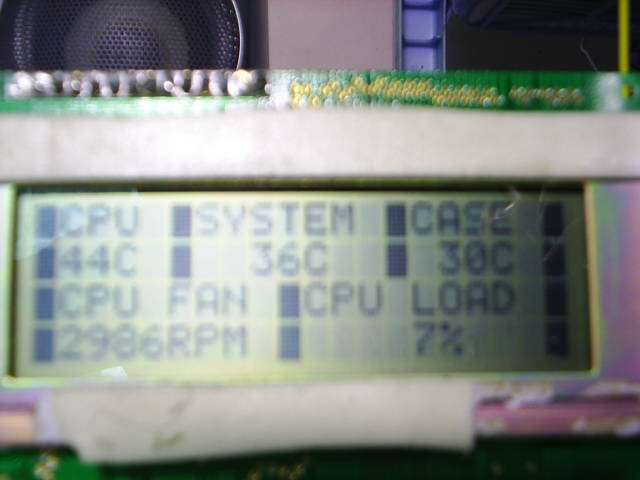

idle, XP1700 at default.
CPU FAN = RPM for the rotor of the pump



Attached thumbnail(s)

2nd WC Rig:
Thermaltake Aquarius II + GPU Block(not installed yet)

Specs: tbred 1700 b @ 1.833Mhz
DDR400 Dual Channel D43 RAM
Abit Geforce Ti4200
Albatron Km18G Matx Nf2 Mobo
Maxtor Diamondmax Plus 9 200GB
Seasonic Active PFC 200W
NEC 2510 DVD Burner(haven installed)

mbm5 screenie below


Attached thumbnail(s)

This post has been edited by XTREME: Aug 23 2004, 04:33 AM

Here is mine......
Overall view...


The crazy huge double heatcore...


Close up on the DangerDen RBX block...


The pump and custom res...


Top view....
