my "official" watercooling setup after the "temporary" one
perhaps the first "watercooled pc" in UIA

very very space saving


the whole system


oopss .. casing not yet finish modified...


This post has been edited by hmspower: Jun 26 2004, 01:32 AM

Here is my rig setup.
1800+ AMD XP Unlock.
8RGA+ Rev 0.6
512x2 OCZ 3700 EL PC3700 Rev1.0
Antec TruePower 480Watt

The water-cooling setup. Sorry didn't manage to capture the res/pump picture

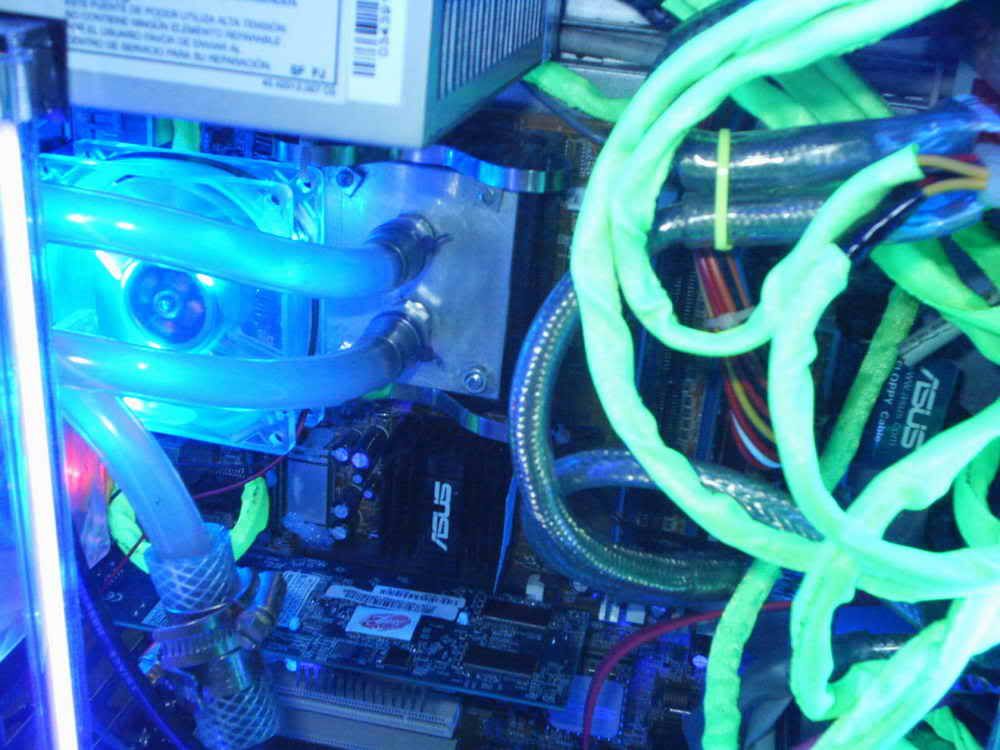

The waterblock, with moded barb.

Bulkhy's homemade radiator with 2x120mm fan with push-pull effect cooling.

The res/pump, with moded barb as well.

There you go, my really humble rig now... eheheh. Hope you guys enjoy it

Cheap casing. homemade PSU wire sleeving ,side panel also DIY radiator bracket also homemade . Truely poorman's mod. Old calender, it's 2002.

This post has been edited by Lemon: Oct 14 2004, 08:32 AM

Side view of rig with my PC with my homemade water cooler


This post has been edited by Lemon: Sep 27 2004, 07:09 PM

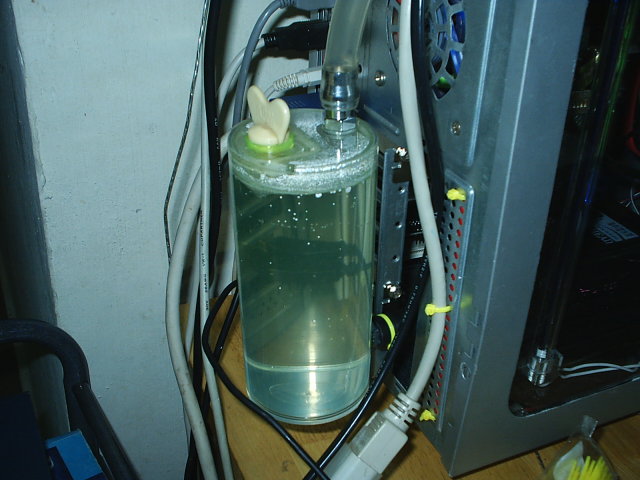

The homemade reservior

This post has been edited by Lemon: Aug 28 2004, 12:48 AM


Attached thumbnail(s)

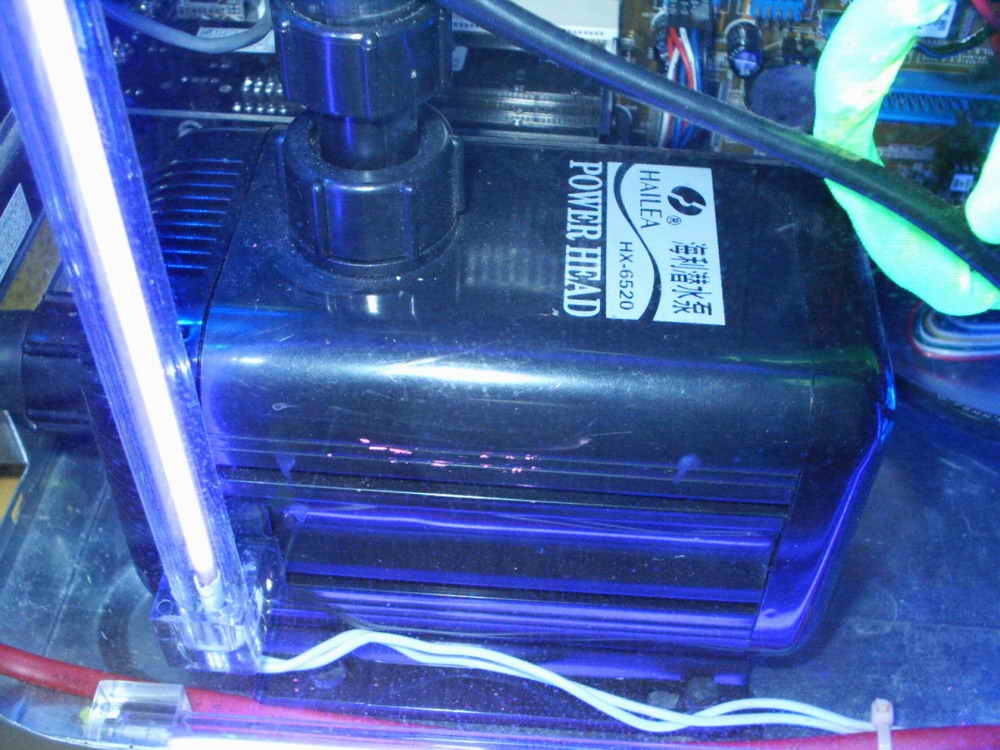

Da pump...

This post has been edited by Lemon: Aug 27 2004, 10:44 PM


Attached thumbnail(s)

My homemade water block... tested with high pressure tyre pump and test it on fire using camping gas, of course with water running. mount it on P4 bracket by using costom made stainless steel clips not screws.


This post has been edited by Lemon: Oct 16 2004, 07:22 PM

Back view of my rig



This post has been edited by Lemon: Oct 16 2004, 07:22 PM

This is my watercooling setup:

W/block: Jet Impingement Water block by aleck
Rad: Bulkhy's custom made
Res: Car brake fluid container
Tubing: Alech's tygon tube
Pump: Nirox P2800
Fan: 2x120mm NMB fan

So here u go.. the water block..


Attached thumbnail(s)

the radiator..


Attached thumbnail(s)

the reservoir.. brake fluid container..


Attached thumbnail(s)

the pump showing off...


Attached thumbnail(s)

close up on the w/block..

This post has been edited by cnine: Jul 7 2004, 11:08 PM


Attached thumbnail(s)

overall look..

System:

- Lian Li PC6070A - Abit AI7
- P4 3.0C @ 3.54Ghz - 236fsb 1.6V
- 2x512MB Mushkin PC3200 Black Special 222


Temp:

Idle - no idle
Load - 49C

Btw, im not really satisfied wif my temp tho. Its kinda high. Im xpecting my temp to be lower than dis, below than 45C. Do Abit mobos really report high temp than it is? My temp b4 water cooled is around 62-64C w/out sidepanel n 68-70C wif sidepanel. IM still happy wif the setup. Managed to hit 236fsb at the moment, was at 226fsb. Mayb hav to get better radiator n pump? Any suggestion do pm me. Ok thanks.

This post has been edited by cnine: Jul 8 2004, 01:49 AM


Attached thumbnail(s)

New setup:
Danger den Maze 4 (AMD)
Black ICE Xtreme 2 Radiator (2x120mm)
Danger Den Single (5 1/4) Bay Reservoir
Eheim 1048 pump
Aleck's Tygon Tubing 1/2"
(Water wetter, blue UV dye, distilled water)


A close up on the Rad.. (Xrossfire's handywork)




This post has been edited by sapik78: Jul 23 2004, 03:38 PM
