Skylake/Kaby/Coffee/Comet/Rocket Lake OC V1, Show off your OC here

views

TSowikh84

post

Sep 4 2015, 10:22 PM, updated 5y ago

Show posts by this member only | Post #1

i7 Clan

Elite
8,711 posts

Joined: Nov 2007
From: Butterworth, PG / Machang, Kelantan

user posted image

Image credits: Intel NEW!

This is a thread to show off overclocking of your Skylake, Kaby Lake, Coffee Lake, Comet Lake and Rocket Lake CPU!
Please share your benchmark, stability, overclocking tips & guides etc...

============================================================================

Introductions:

[url=https://benchlife.info/wp-content/uploads/2021/01/Intel-Z590-Chipset-Block-Diagram.jpg%5b/img]</a>
Image Credits: <a href='https://benchlife.info/intel-500-series-chipset-z590-h570-h510-b560-specifications-summary/intel-z590-chipset-block-diagram/' target='_blank'>Benchlife[/url] NEW!

Z590 VRM List: NEW!
[OCN] Z490/Z590 VRM Discussion Thread

Z490 VRM List:

» Click to show Spoiler - click again to hide... «

Z390 VRM List:

» Click to show Spoiler - click again to hide... «

============================================================================

Monitoring Tools:

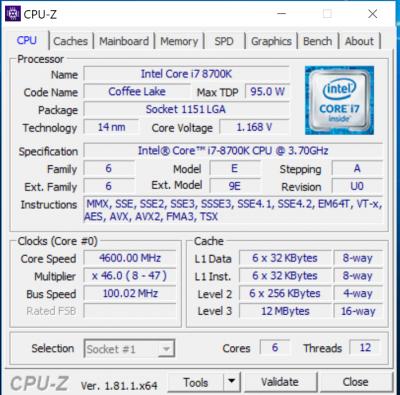

CPU-Z
RealTemp 3.70
RealTemp TI
CoreTemp
HWiNFO
HWMonitor RECOMMENDED for Temperature & Voltage Monitoring!
Speccy
MemTweakIt

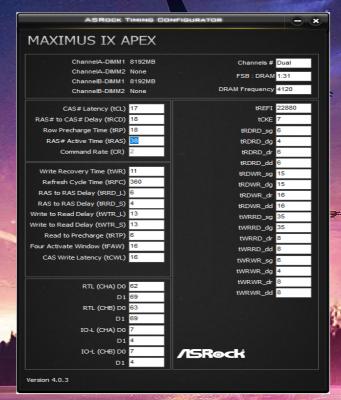

ASRock Timing Configurator
Thaiphoon Burner - for checking RAM ICs in OS
ASUS TurboV Core
ASUS OC Tool

Stability/Stressing Tools:
LinX 0.6.5 (11.3.0.004)
Prime95 RECOMMENDED for CPU OC Stability!
Linpack
OCCT
Linpack Xtreme
RunMemTestPro 4.0 RECOMMENDED for RAM OC Stability!
Realbench v2.43
Realbench v2.56

Benchmarking Tools:
SuperPI Mod XS 1.5
HyperPI 0.99 Beta
AIDA64
Cinebench R15
Cinebench R15 Extreme Edition
Cinebench R20 NEW!!
Cinebench 11.5
wprime 2.09
pifast
maxxmem
AquaMark 3.1

===========================================================================

OC Tips & Guides

Z590: NEW!
[HWBot] ASUS Z590 OC Guide
[OCN] ASRock Z590 OC Guide

Z490:

» Click to show Spoiler - click again to hide... «

Z390:

» Click to show Spoiler - click again to hide... «

Z370:

» Click to show Spoiler - click again to hide... «

Z270:

» Click to show Spoiler - click again to hide... «

Z170:

» Click to show Spoiler - click again to hide... «

DRAM OC Guide: NEW!
[MemTestHelper] DDR4 OC Guide.md
cstkl1's 4266C17-RKL-BDIE-DR:

Attached File

4266C17_RKL_BDIE_DR.pdf ( 1.33mb ) Number of downloads: 1898

cstkl1's 4800C19-RKL-DJR:

Attached File

4800C19_RKL_DJR.pdf ( 1.01mb ) Number of downloads: 1847

cstkl1's How to reduce IOL and basically RTL/IOL guide:

Attached File

cstkl1_How_to_reduce_IOL_and_basically_RTLIOL_guide.pdf ( 160.1k ) Number of downloads: 1658

===========================================================================

Latest News & Updates:

[HH] Intel Expands 9th Gen Core Portfolio With New Desktop CPUs Including Core i9-9900KF
[Anand] Playing Chicken: Kentucky Fried Intel Core i9-9900KFC Processor Listed
[Intel] Intel Delivers World's Fastest Gaming Processor NEW!
[VC] Intel 6C/12T Rocket Lake-S (11th Gen) CPU Spotted NEW!
[WCCFTech] Intel I225-V 2.5GbE Networking Affecting Z490, New B3 Rev Expected 2H 2020 NEW!

===========================================================================

Intel Core i7-10900K & Core i7-10700K Reviews: NEW!

» Click to show Spoiler - click again to hide... «

Intel Core i7-9900K & Core i7-9700K Reviews:

» Click to show Spoiler - click again to hide... «

Intel Core i7-8700K & Core i7-8600K Reviews:

» Click to show Spoiler - click again to hide... «

Intel Core i7-6700K & Core i5-6600K Reviews:

» Click to show Spoiler - click again to hide... «

===========================================================================

Z490 Motherboard Reviews: NEW!

» Click to show Spoiler - click again to hide... «

===========================================================================

DDR4 Reviews:

G.Skill
[OCer] G.Skill Ripjaws V DDR4 3600MHz C17 2x4GB
[Proclockers] G.Skill Ripjaws V DDR4 3000MHz C15 4x4GB
[Hexus] G.Skill Trident Z 16GB DDR4-3000
[OCD] G.Skill Ripjaws V 3000MHz C15 2x4GB
[OCX] G.Skill Trident Z Royal DDR4-4000C17D-16GTRS
[OCX] G.Skill DDR4-4600 C18 TridentZ RGB
[OCX] G.Skill FlareX DDR4-3200 C14-14-14-34

Corsair
[OCD] Corsair Vengeance LPX DDR4 2800MHz C16 2x4GB
[Hexus] Corsair Vengeance LPX 3200MHz C16 DDR4 4x4GB
[OC3D] Corsair Dominator Platinum RGB Series DDR4 Memory
[TH] Corsair Dominator Platinum RGB 32GB DDR4-3600 C16 Review: Bright Lights, Speed City

Team Group
[Clock'Em'Up] T-FORCE XTREEM DDR4-4500CL18 16GB

===========================================================================

Z490 RAM Compatibility (QVL): NEW!

» Click to show Spoiler - click again to hide... «

===========================================================================

Corsair RAM IC:

» Click to show Spoiler - click again to hide... «

G.Skill RAM IC:

» Click to show Spoiler - click again to hide... «

=============================================================================

BSOD Codes for OverClocking

BSOD code	Message	Action
0x124	WHEA_UNCORRECTABLE_ERROR	Add/remove Vcore or IMC voltage (usually Vcore, once it was IMC)
0x101	CLOCK_WATCHDOG_TIMEOUT	Add Vcore
0x50	PAGE_FAULT_IN_NONPAGED_AREA	RAM timings/Frequency, add RAM or IMC voltage
0x1E	KMODE_EXCEPTION_NOT_HANDLED	Add Vcore
0x3B	SYSTEM_SERVICE_EXCEPTION	Add Vcore
0xD1	DRIVER_IRQL_NOT_LESS_OR_EQUAL	Add IMC voltage
0x9C	MACHINE_CHECK_EXCEPTION	IMC most likely, but increasing Vcore has helped in some instances
0x109	CRITICAL_STRUCTURE_CORRUPTION	Add RAM voltage
0x0A	IRQL_NOT_LESS_OR_EQUAL	Add IMC voltage
0x1A	MEMORY_MANAGEMENT	It usually means a bad stick of RAM. Test with Memtest or whatever you prefer. Try raising RAM voltage. Can also mean more juice for the IMC
0x7E	SYSTEM_THREAD_EXCEPTION_NOT_HANDLED	Should do sfc /scannow

Source: kignt @ OCN

» Click to show Spoiler - click again to hide... «

General Qcode / Q-code / Post Code table for ASUS motherboards

» Click to show Spoiler - click again to hide... «

This post has been edited by owikh84: Jun 6 2021, 04:50 PM

Like

TSowikh84	Sep 4 2015, 10:23 PM Show posts by this member only \| Post #2
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	## to be listed below, you must post: Option 1) a screenshot of CPU-Z consisted of CPU & motherboard/RAM tabs or any other software that indicate the hardware being used, plus one stable run of Cinebench R20 or any stability test Option 2) a CPU-Z validation URL Username \| CPU \| Highest OC \| Motherboard \| Cooling LYN Rocket Lake Owners: 1) owikh84 \| i9 11900K \| 5.1GHz \| ASUS ROG Maximus XIII Extreme \| Custom WC 2) LYN Comet Lake Owners: 1) owikh84 \| i9 10900K \| 5.2 GHz \| ASUS ROG Maximus XII Formula \| Custom WC owikh84 \| i9 10900K \| 5.2 GHz \| GIGABYTE Z490 AORUS Master \| Custom WC 2) cstkl1 \| i9 10900K \| 5.3 GHz \| ASUS ROG Maximus XII Extreme \| Custom WC 3) fezrul \| i7 10700K \| 5.2 GHz \| ROG STRIX Z490-G GAMING (WI-FI) \| Cooler? LYN Coffee Lake Owners: 1) ALeUNe \| i7 8700K \| 5.0 GHz \| MSI Z370M GAMING PRO AC \| Corsair AIO 280MM 2) owikh84 \| i5 8600K \| 5.0 GHz \| ASUS ROG Maximus X Apex \| Custom WC owikh84 \| i7 8700K \| 5.0 GHz \| ASUS ROG Maximus X Apex \| Custom WC owikh84 \| i7 8700K \| 5.3 GHz \| ASUS ROG Maximus X Hero \| Custom WC owikh84 \| i7 8700K \| 5.0 GHz \| ASUS TUF Z370-Pro Gaming \| Custom WC owikh84 \| i7 8700K \| 5.0 GHz \| ASUS ROG Maximus X Formula \| Custom WC owikh84 \| i9 9900K \| 5.0 GHz \| ASUS ROG Maximus XI Gene \| Custom WC owikh84 \| i9 9900K \| 5.0 GHz \| MSI MPG Z390i Gaming Edge AC \| Custom WC owikh84 \| i9 9900KS \| 5.2 GHz \| ASUS ROG Maximus XI Gene \| Custom WC owikh84 \| i9 9900KS \| 5.0 GHz \| ASUS ROG Maximus XI Formula \| Custom WC 3) keyo \| i7 8700K \| 5.0 GHz \| ASUS TUF Z370-PLUS Gaming \| Custom WC keyo \| i3 8350K \| 4.9GHz \| ASRock Z370 Fatal1ty Gaming K6 \| Custom WC keyo \| i7 8700K \| 5.1GHz \| ASRock Z370 Fatal1ty Gaming K6 \| Custom WC keyo \| i9 9900K \| 5.0GHz \| GIGABYTE Z390 AORUS PRO WIFI-CF \| Custom WC 4) koopa \| Intel Core i7 8700K \| 5.0 GHz \| ASUS ROG MAXIMUS X Hero \| NZXT Kraken X52 AIO 5) Silverfire \| 9700K \| 4.9GHz \| GIGABYTE Z390 AORUS Elite \| NZXT Kraken X62 AIO 6) wongtheboy92 \| 8700K \| 5.0 GHz \| ASRock Z370 Gaming-ITX/ac \| CM Hyper 212 EVO 7) Diademz \| 8700K \| 5.0GHz \| GIGABYTE AORUS Z390 PRO WIFI \| Cooling? 8) wongtheboy92 \| 8700K \| 4.9 GHz \| ASUS ROG Strix Z390-E GAMING \| Cooling? ======================================================================================= LYN Kaby Lake Owners: 1) owikh84 \| i7 7700K \| 5.0 GHz \| ASRock Z170 OC Formula \| Custom WC 2) keyo \| i7 7700K \| 5.1 GHz \| ASUS Z170M-PLUS \| Custom WC 3) ah_khoo \| Pentium G4560 \| 3.6GHz \| GIGABYTE Z170X-UD3-CF \| Cooling? 4) bulibulizaimon \| Intel Core i7 7700K \| 5.2 GHz \| Asus Strix Z270E \| NZXT Kraken X52 push pull ============================================================================== LYN Skylake Owners: 1) goldfries \| i7 6700K \| 4.6GHz @ 1.35v \| ASRock Z170 Extreme4 \| DeepCool Assassin II 2) terence_nwb \| i7 6700K \| 4.8GHz @ 1.404v \| ASUS Maximus VIII Gene \| Corsair Hydro H100i 3) owikh84 \| i5 6600K \| 4.5GHz @ 1.376v \| ASUS Maximus VIII Ranger \| Custom WC owikh84 \| i7 6700K \| 5.0GHz @ 1.536v \| GIGABYTE Z170X-Gaming G1 \| Custom WC owikh84 \| i7 6700K \| 5.0GHz \| ASUS Maximus VIII Extreme \| Custom WC owikh84 \| i7 6700K \| 5.0GHz \| ASRock Z170 OC Formula \| Custom WC owikh84 \| i7 6700K \| 5.0GHz \| ASUS Z170 Pro Gaming \| Custom WC owikh84 \| i7 6700K \| 5.0GHz \| ASUS Z170i Pro Gaming \| Custom WC 4) emy_xvidia \| i7 6700K \| 4.6MHz @1.31V \| Asus Maximus VIII Hero \| Corsair H110i GT 5) junkieG \| i7 6700K \| 4.8GHz \| ASUS Maximus VIII Gene \| Corsair H110 GT 6) lucidlts \| i5 6600K \| 4.9GHz \| GIGABYTE Z170X-Gaming 7 \| Corsair H100i 7) ScivanShimitar \| i7 6700K \| 4.6GHz \| GIGABYTE Z170XP-SLI \| Cooling? 8) LeCat \| i7 6700K \| 4.6GHz \| ASUS Z170 Pro Gaming \| Swiftech H220-X 9) arffrhn \| i5 6600K \| 4.6GHz @ 1.32v \| Aorus Z270X Gaming 5 \| ID Cooling 240L 10) ah_khoo \| i3 6300 \| 4.5GHz @ 1.39v \| GIGABYTE Z170X-UD3-CF \| Air (GeminII M4 LP) 11) Skylinestar \| i5 6500 \| 4.257GHz \| ASRock Z170 Gaming K6 \| Cooling? ======================================================================================= DDR4 24/7 Memory Stability ## to be listed you must post at least a screenshot of CPU-Z RAM tab, ASRock Timing Configurator/MemTweakIt as well as at least one stable run of HCl 300% minimum Username \| RAM Model \| DDR4 Frequency & Timing \| vDIMM/ VCCSA/ VCCIO \| Motherboard 1) owikh84 \| G.Skill TridentZ RGB DDR4-4266C19 2x8GB \| DDR4-4500 CL19-19-19-39-2T \| 1.45v/1.375v/1.3375v \| ROG Maximus XI Gene 2) owikh84 \| G.Skill TridentZ RGB DDR4-4266C19 2x8GB \| DDR4-4600 CL19-24-24-43-2T \| 1.45v/1.425v/1.375v \| ROG Maximus XI Gene 3) owikh84 \| G.Skill TridentZ RGB DDR4-4266C19 2x8GB \| DDR4-4600 CL18-22-22-42-2T \| 1.50v/1.45v/1.375v \| ROG Maximus XI Gene 4) owikh84 \| G.Skill TridentZ RGB DDR4-4266C19 2x8GB \| DDR4-4700 CL19-22-22-42-2T \| 1.50v/1.55v/1.375v \| ROG Maximus XI Gene 5) owikh84 \| G.Skill TridentZ RGB DDR4-4266C19 4x8GB \| DDR4-4400 CL19-19-19-39-2T \| 1.475v/1.30v/1.30v \| ROG Maximus X Formula 6) owikh84 \| G.Skill TridentZ RGB DDR4-4266C19 2x8GB \| DDR4-4700 CL19-22-22-42-2T \| 1.50v/1.525v/1.400v \| MSI MPG Z390i Gaming Edge AC 7) owikh84 \| ADATA XPG Spectrix D80 DDR4-3600C17 2x8GB \| DDR4-4600 CL19-24-24-42-2T \| 1.50v/1.4625v/1.375v \| ROG Maximus XI Gene 8) owikh84 \| G.Skill TridentZ RGB DDR4-4266C19 2x8GB \| DDR4-4600 CL18-22-22-42-2T \| 1.425v/1.36v/1.39v \| ROG Maximus XI Gene 9) owikh84 \| G.Skill TridentZ RGB DDR4-4266C19 4x8GB \| DDR4-4266 CL19-19-19-39-2T \| 1.40v/1.25v/1.25v \| ROG Maximus XI Formula 10) owikh84 \| G.Skill TridentZ RGB DDR4-4266C19 4x8GB \| DDR4-4266 CL17-18-18-38-2T \| 1.45v/1.25v/1.25v \| ROG Maximus XI Formula 10) owikh84 \| G.Skill TridentZ RGB DDR4-4266C19 4x8GB \| DDR4-4400 CL18-22-22-42-2T \| 1.50v/1.40v/1.40v \| ROG Maximus XI Formula 11) cstkl1 \| G.Skill TridentZ RGB DDR4-3600C16 4x8GB \| DDR4-4133 CL17-17-17-37-2T \| 1.40v/1.28v/1.28v \| ROG Maximus XII Extreme 12) owikh84 \| G.Skill TridentZ RGB DDR4-4266C19 4x8GB \| DDR4-4133 CL17-17-17-37-2T \| 1.40v/1.35v/1.30v \| ROG Maximus XII Formula 13) cstkl1 \| G.Skill TridentZ RGB DDR4-3600C16 2x8GB \| DDR4-4400 17-18-18-37 \| 1.45v/1.28v/1.28v \| ROG Maximus XII Extreme 14) cstkl1 \| G.Skill Trident Royal RGB DDR4-4000C17 2x16GB \| DDR4-4400 18-18-18-38 \| 1.40v/1.25v/1.25v \| ROG Maximus XII Extreme 15) owikh84 \| G.Skill TridentZ RGB DDR4-4000C17 4x16GB \| DDR4-4266 CL16-17-17-36-2T \| 1.50v/1.25v/1.25v \| ROG Maximus XII Formula 16) owikh84 \| G.Skill TridentZ RGB DDR4-4000C17 4x16GB \| DDR4-4400 CL16-17-17-36-2T \| 1.55v/1.35v/1.35v \| ROG Maximus XII Formula 17) owikh84 \| G.Skill TridentZ RGB DDR4-4266C19 4x8GB \| DDR4-4266 CL17-17-17-37-1T \| 1.50v/1.35v/1.25v \| ROG Maximus XIII Extreme 18) owikh84 \| G.Skill TridentZ RGB DDR4-4266C19 4x8GB \| DDR4-4200 CL17-17-17-37-2T \| 1.50v/1.26v/1.25v \| ROG Maximus XIII Extreme 19) owikh84 \| G.Skill TridentZ RGB DDR4-4000C17 2x16GB \| DDR4-3866 CL14-15-15-34-2T \| 1.55v/1.50v/1.45v \| ROG Maximus XIII Extreme 20) owikh84 \| G.Skill TridentZ RGB DDR4-4000C17 2x16GB \| DDR4-4400 CL17-17-17-37-1T \| 1.50v/1.35v/1.42v \| ROG Maximus XIII Extreme 21) cstkl1 \| G.Skill Trident Royal RGB DDR4-4000C17 2x16GB \| DDR4-3866 14-15-15-28-2T \| 1.50v/1.37v (LLC3)/1.38v \| ROG Maximus XIII Apex 22) owikh84 \| G.Skill TridentZ RGB DDR4-4266C19 4x8GB \| DDR4-4133 CL17-17-17-37-2T \| 1.40v/1.38v/1.30v \| ROG Maximus XIII Extreme 23) cstkl1 \| G.Skill Ripjaws V DDR4-4800C17 2x8GB \| DDR4-3866 14-14-14-28-1T \| 1.475v/1.35v/1.35v \| ROG Maximus XIII Apex 24) cstkl1 \| G.Skill Ripjaws V DDR4-4800C17 2x8GB \| DDR4-5000 17-17-17-34-1T \| 1.575v/1.40v/1.35v \| ROG Maximus XIII Apex 25) cstkl1 \| G.Skill Ripjaws V DDR4-4800C17 2x8GB \| DDR4-3866 13-14-14-14-1T \| 1.600v/1.45v/1.40v \| ROG Maximus XIII Apex 26) owikh84 \| G.Skill TridentZ Royal Elite DDR4-3600C14 4x8GB \| DDR4-4133 CL17-17-17-37-2T \| 1.40v/1.25v/1.20v \| ROG Maximus XIII Extreme 27) owikh84 \| G.Skill TridentZ Royal Elite DDR4-3600C14 4x8GB \| DDR4-4133 CL16-16-16-36-2T \| 1.45v/1.35v/1.30v \| ROG Maximus XIII Extreme This post has been edited by owikh84: Oct 23 2021, 03:06 PM
Card PM	Report Top Like Quote Reply

cstkl1	Sep 5 2015, 12:56 AM Show posts by this member only \| Post #3
Look at all my stars!! Elite 6,799 posts Joined: Jan 2003	Bro put up raja asus stuff. Very useful. http://www.overclock.net/t/1568154/asus-no...-a-thread/0_100
Card PM	Report Top Like Quote Reply

goldfries	Sep 5 2015, 01:53 AM Show posts by this member only \| Post #4
40K Club Forum Admin 44,415 posts Joined: Jan 2003	FIRST!!!!! goldfries \| Intel Core i7-6700K \| 4.6Ghz @ 1.35v \| ASRock Z170 Extreme4 \| DeepCool Assassin II The unit I have could reach 4.8Ghz and stay on Windows 10 fine but it is not stable. Attached thumbnail(s)
Card PM	Report Top Like Quote Reply

TSowikh84	Sep 5 2015, 01:18 PM Show posts by this member only \| Post #5
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(cstkl1 @ Sep 5 2015, 12:56 AM) Bro put up raja asus stuff. Very useful. http://www.overclock.net/t/1568154/asus-no...-a-thread/0_100 Thanks bro, Raja's materials added. QUOTE(goldfries @ Sep 5 2015, 01:53 AM) FIRST!!!!! goldfries \| Intel Core i7-6700K \| 4.6Ghz @ 1.35v \| ASRock Z170 Extreme4 \| DeepCool Assassin II The unit I have could reach 4.8Ghz and stay on Windows 10 fine but it is not stable. wahh so fasting grabbing a 6700K!
Card PM	Report Top Like Quote Reply

ktek	Sep 9 2015, 12:52 PM Show posts by this member only \| Post #6
小喇叭 All Stars 13,187 posts Joined: Jul 2006	goldfries, incredible vcore QUOTE(owikh84 @ Sep 5 2015, 01:18 PM) Thanks bro, Raja's materials added. wahh so fasting grabbing a 6700K! im too far away to catch up sky lake reanyalcock liked this post
Card PM	Report Top Like Quote Reply

Quazacolt	Sep 9 2015, 07:32 PM Show posts by this member only \| Post #7
Riding couple Senior Member 5,366 posts Joined: Jan 2007 From: KL Malaysia	QUOTE(ktek @ Sep 9 2015, 12:52 PM) goldfries, incredible vcore im too far away to catch up sky lake i just caught up on haswell-e LGA2011-v3, but looks like i'm already getting outdated
Card PM	Report Top Like Quote Reply

TSowikh84	Sep 9 2015, 10:04 PM Show posts by this member only \| Post #8
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(ktek @ Sep 9 2015, 12:52 PM) goldfries, incredible vcore im too far away to catch up sky lake I can officially declare myself skylate because until now I still have no chance to get a hand on the i7-6700K yet. ASUS Malaysia has recently loaned me an i5-6600K for the Maximus VIII Ranger review, quite a lemon chip i must say LOL QUOTE This post has been edited by owikh84: Sep 9 2015, 10:05 PM
Card PM	Report Top Like Quote Reply

goldfries	Sep 9 2015, 10:34 PM Show posts by this member only \| Post #9
40K Club Forum Admin 44,415 posts Joined: Jan 2003	QUOTE(ktek @ Sep 9 2015, 12:52 PM) goldfries, incredible vcore im too far away to catch up sky lake That Vcore tipu wan la, I also donno why it didn't show up correctly. It's actually 1.35vcore. I tried to get it to run at 4.8Ghz but I can only reach Windows. Running benchmarks fail. 4.7Ghz no go too despite 1.4vcore.
Card PM	Report Top Like Quote Reply

goldfries	Sep 9 2015, 10:35 PM Show posts by this member only \| Post #10
40K Club Forum Admin 44,415 posts Joined: Jan 2003	QUOTE(owikh84 @ Sep 9 2015, 10:04 PM) I can officially declare myself skylate because until now I still have no chance to get a hand on the i7-6700K yet. ASUS Malaysia has recently loaned me an i5-6600K for the Maximus VIII Ranger review, quite a lemon chip i must say LOL Usually ES samples don't work that well. And 1.7v is insane, I don't dare to pump that high.
Card PM	Report Top Like Quote Reply

TSowikh84	Sep 12 2015, 03:30 PM Show posts by this member only \| Post #11
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(goldfries @ Sep 9 2015, 10:35 PM) Usually ES samples don't work that well. And 1.7v is insane, I don't dare to pump that high. Bantai excessive vcore for the sake of MHz fun hehe. Can't wait to get a retail i7 6700K... for RM1.5K!!!
Card PM	Report Top Like Quote Reply

goldfries	Sep 12 2015, 11:32 PM Show posts by this member only \| Post #12
40K Club Forum Admin 44,415 posts Joined: Jan 2003	I feel like just going for i5 6600K.
Card PM	Report Top Like Quote Reply

blizzzy	Sep 13 2015, 12:41 AM Show posts by this member only \| Post #13
Getting Started Junior Member 133 posts Joined: Nov 2006	guys so far only asus boards are good? How about MSI Z170A Gaming M5?
Card PM	Report Top Like Quote Reply

cstkl1	Sep 13 2015, 05:00 AM Show posts by this member only \| Post #14
Look at all my stars!! Elite 6,799 posts Joined: Jan 2003	QUOTE(blizzzy @ Sep 13 2015, 12:41 AM) guys so far only asus boards are good? How about MSI Z170A Gaming M5? dude. in haswell because IVR was inbuilt MSI/Asrock manage to getaway abit with low quality VRMs etc.. Asus Z97s... has always had one of the best on delivering consistent accurate voltages. So since skylake is back on mobo etc.. This should come back to play.
Card PM	Report Top Like Quote Reply

terence_nwb	Sep 13 2015, 04:41 PM Show posts by this member only \| Post #15
Look at all my stars!! Senior Member 7,016 posts Joined: Jul 2012 From: Kuala Lumpur	terence_nwb \| Intel Core i7 6700K \| 4.8Ghz @ 1.404v \| Asus MAXIMUS VIII GENE \| Corsair Hydro H100i
Card PM	Report Top Like Quote Reply

blizzzy	Sep 13 2015, 10:20 PM Show posts by this member only \| Post #16
Getting Started Junior Member 133 posts Joined: Nov 2006	QUOTE(cstkl1 @ Sep 13 2015, 05:00 AM) dude. in haswell because IVR was inbuilt MSI/Asrock manage to getaway abit with low quality VRMs etc.. Asus Z97s... has always had one of the best on delivering consistent accurate voltages. So since skylake is back on mobo etc.. This should come back to play. Understood. Which is the most recommended board? Asus Maximus VIII Hero? and which rams to go with it? What would be the downside if I buy 2 sticks of Kingston (Fury (8GB x 1Pc) for 16gb. Will I lose dual channel because I didn't get a set? This post has been edited by blizzzy: Sep 13 2015, 10:31 PM
Card PM	Report Top Like Quote Reply

goldfries	Sep 13 2015, 10:27 PM Show posts by this member only \| Post #17
40K Club Forum Admin 44,415 posts Joined: Jan 2003	QUOTE(terence_nwb @ Sep 13 2015, 04:41 PM) terence_nwb \| Intel Core i7 6700K \| 4.8Ghz @ 1.404v \| Asus MAXIMUS VIII GENE \| Corsair Hydro H100i Total stability?
Card PM	Report Top Like Quote Reply

terence_nwb	Sep 13 2015, 10:38 PM Show posts by this member only \| Post #18
Look at all my stars!! Senior Member 7,016 posts Joined: Jul 2012 From: Kuala Lumpur	QUOTE(goldfries @ Sep 13 2015, 10:27 PM) Total stability? Stable for nearly 2 days, so far so good
Card PM	Report Top Like Quote Reply

cstkl1	Sep 13 2015, 11:10 PM Show posts by this member only \| Post #19
Look at all my stars!! Elite 6,799 posts Joined: Jan 2003	QUOTE(blizzzy @ Sep 13 2015, 10:20 PM) Understood. Which is the most recommended board? Asus Maximus VIII Hero? and which rams to go with it? What would be the downside if I buy 2 sticks of Kingston (Fury (8GB x 1Pc) for 16gb. Will I lose dual channel because I didn't get a set? No idea. Seriously all the OC mobo's are not out yet. They usually will have magic options.
Card PM	Report Top Like Quote Reply

goldfries	Sep 13 2015, 11:27 PM Show posts by this member only \| Post #20
40K Club Forum Admin 44,415 posts Joined: Jan 2003	QUOTE(terence_nwb @ Sep 13 2015, 10:38 PM) Stable for nearly 2 days, so far so good No no, i mean as in with stress test. Even if not P95 also, what about other tests like say doing video rendering? I could get mine to 4.8Ghz at 1.4 too but it works fine only on Windows. Stress test come in the fella hiccup here and there.
Card PM	Report Top Like Quote Reply

terence_nwb	Sep 13 2015, 11:40 PM Show posts by this member only \| Post #21
Look at all my stars!! Senior Member 7,016 posts Joined: Jul 2012 From: Kuala Lumpur	QUOTE(goldfries @ Sep 13 2015, 11:27 PM) No no, i mean as in with stress test. Even if not P95 also, what about other tests like say doing video rendering? I could get mine to 4.8Ghz at 1.4 too but it works fine only on Windows. Stress test come in the fella hiccup here and there. Did a test this afternoon, tried to convert a 20GB (.mov) clip to mp4 format, all cores are maxed out at 4.8GHz, no hiccup and successfully finished in 2 hours which is slightly faster than i7 4790K (also 4.8GHz). Max temp is 74 C. Will run P95 later for more stability test.
Card PM	Report Top Like Quote Reply

stasio	Sep 14 2015, 11:09 PM Show posts by this member only \| Post #22
10k Club All Stars 18,503 posts Joined: Oct 2007 From: P.Jaya	QUOTE(goldfries @ Sep 13 2015, 11:27 PM) No no, i mean as in with stress test. Even if not P95 also, what about other tests like say doing video rendering? I could get mine to 4.8Ghz at 1.4 too but it works fine only on Windows. Stress test come in the fella hiccup here and there. Try Prime95 v.28.7 Build 1 ftp://mersenne.org/gimps/p95v287.win32.zip ftp://mersenne.org/gimps/p95v287.win64.zip
Card PM	Report Top Like Quote Reply

stasio	Sep 16 2015, 11:26 AM Show posts by this member only \| Post #23
10k Club All Stars 18,503 posts Joined: Oct 2007 From: P.Jaya	Z170 Skylake Overclocking Guide List http://forum.hwbot.org/showthread.php?t=145742
Card PM	Report Top Like Quote Reply

TSowikh84	Sep 19 2015, 08:39 PM Show posts by this member only \| Post #24
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	owikh84 \| Intel Core i5 6600K \| 4.5GHz @ 1.376v \| ASUS Maximus VIII Ranger \| Custom WC This post has been edited by owikh84: Sep 23 2015, 12:04 AM
Card PM	Report Top Like Quote Reply

emy_xvidia	Sep 22 2015, 05:02 PM Show posts by this member only \| Post #25
Look at all my stars!! Senior Member 2,735 posts Joined: Mar 2006 From: Malaysia - Swindon Town	emy_xvidia \| Intel Core i5 6600K \| 4.5GHz @ 1.376v \| ASUS Maximus VIII Ranger \| Corsair H110i GT http://valid.x86.fr/py2crp Note: Average temp 70, but not really satisfied with the temp due to the fact that I'm already using the H110i GT with push pull config. and it's kinda loud as well with the WC on performance mode. Should've gotten the Kraken... Should i upgrade the fans?
Card PM	Report Top Like Quote Reply

TSowikh84	Sep 22 2015, 11:55 PM Show posts by this member only \| Post #26
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(emy_xvidia @ Sep 22 2015, 05:02 PM) emy_xvidia \| Intel Core i5 6600K \| 4.5GHz @ 1.376v \| ASUS Maximus VIII Ranger \| Corsair H110i GT http://valid.x86.fr/py2crp Note: Average temp 70, but not really satisfied with the temp due to the fact that I'm already using the H110i GT with push pull config. and it's kinda loud as well with the WC on performance mode. Should've gotten the Kraken... Should i upgrade the fans? Performance of Kraken X61 is very identical to H110i. Also, fan doesn't make much difference. How about custom WC? My 6600K @ 1.375v peaked at 58C in average under custom WC powered by 2x 360 rads.
Card PM	Report Top Like Quote Reply

TSowikh84	Sep 23 2015, 12:03 AM Show posts by this member only \| Post #27
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	Received the GIGABYTE Z170X-Gaming G1 along with i7 6700K recently. So straightaway decided to do a suicide OC on my testbench. owikh84 \| i7 6700K \| 5.0GHz @ 1.536v \| GIGABYTE Z170X-Gaming G1 \| Custom WC Initial test of benchable OC is 4.9GHz/ 4.9GHz core/cache More to come...
Card PM	Report Top Like Quote Reply

TSowikh84	Sep 23 2015, 12:16 AM Show posts by this member only \| Post #28
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	RAM OCing with G.Skill RipjawsV DDR4-3000MHz C15 2x4GB DDR4-3400MHz 16-18-18-36-2T @ 1.35v easy, but still need a lil tweaking for better performance efficiency Heatspreader dismantled, revealing Samsung chips...
Card PM	Report Top Like Quote Reply

emy_xvidia	Sep 23 2015, 03:06 AM Show posts by this member only \| Post #29
Look at all my stars!! Senior Member 2,735 posts Joined: Mar 2006 From: Malaysia - Swindon Town	QUOTE(owikh84 @ Sep 22 2015, 11:55 PM) Performance of Kraken X61 is very identical to H110i. Also, fan doesn't make much difference. How about custom WC? My 6600K @ 1.375v peaked at 58C in average under custom WC powered by 2x 360 rads. wallao kenot go for custom WC ler later I eat Maggi for one month.. thinking to get the Noctua NF-A14 industrialPPC 3000rpm PWM fans to replace the crappy stock H110i GT fans. For the same setting of RPM, the Noctua's produce less noise, and if temp goes bonker can always set to max RPM! theoretically on paper that is. and damn, 1.5V Vcore for your i7......
Card PM	Report Top Like Quote Reply

TSowikh84	Sep 23 2015, 07:13 AM Show posts by this member only \| Post #30
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(emy_xvidia @ Sep 23 2015, 03:06 AM) wallao kenot go for custom WC ler later I eat Maggi for one month.. thinking to get the Noctua NF-A14 industrialPPC 3000rpm PWM fans to replace the crappy stock H110i GT fans. For the same setting of RPM, the Noctua's produce less noise, and if temp goes bonker can always set to max RPM! theoretically on paper that is. and damn, 1.5V Vcore for your i7...... Suicide OC for screencap only lol. It's not meant for long run lol.
Card PM	Report Top Like Quote Reply

alexei	Sep 25 2015, 02:17 PM Show posts by this member only \| Post #31
Biker Mice from Mars Senior Member 1,879 posts Joined: Jan 2003 From: Medan, ID	QUOTE(emy_xvidia @ Sep 23 2015, 03:06 AM) wallao kenot go for custom WC ler later I eat Maggi for one month.. thinking to get the Noctua NF-A14 industrialPPC 3000rpm PWM fans to replace the crappy stock H110i GT fans. For the same setting of RPM, the Noctua's produce less noise, and if temp goes bonker can always set to max RPM! theoretically on paper that is. and damn, 1.5V Vcore for your i7...... Add more fans... » Click to show Spoiler - click again to hide... « VUbpb23yTK8?t=643 This post has been edited by alexei: Sep 25 2015, 02:17 PM
Card PM	Report Top Like Quote Reply

goldfries	Sep 25 2015, 03:11 PM Show posts by this member only \| Post #32
40K Club Forum Admin 44,415 posts Joined: Jan 2003	What's the point of adding more fans when the radiator is still of the same size? It won't work any better.
Card PM	Report Top Like Quote Reply

SkillsScrapper54	Sep 26 2015, 07:32 AM Show posts by this member only \| Post #33
Getting Started Junior Member 82 posts Joined: Sep 2010 From: Carnegie Mellon Heinz Campus	Guys do you know if the guide pinned can be applied for ocing i7 6600k on Z170 HD3 DDR3? Just moved from i7 860 3.66 @ 1.152v after 7 years. Looking to add 1-2Ghz on Dark Rock Pro 3 but i am unsure if DDR3 will be a showstopper since voltage is higher at 1.5v
Card PM	Report Top Like Quote Reply

TSowikh84	Sep 27 2015, 08:27 PM Show posts by this member only \| Post #34
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(SkillsScrapper54 @ Sep 26 2015, 07:32 AM) Guys do you know if the guide pinned can be applied for ocing i7 6600k on Z170 HD3 DDR3? Just moved from i7 860 3.66 @ 1.152v after 7 years. Looking to add 1-2Ghz on Dark Rock Pro 3 but i am unsure if DDR3 will be a showstopper since voltage is higher at 1.5v I thought GIGABYTE Z170-HD3 only supports DDR4. Basically regardless of the brand the overclocking steps would be more or less the same but every CPU is unique, means each chip requires different CPU-related voltages, different strength of integrated memory controller (IMC) resulting in different memory overclock ability and ram-related voltages. i5 6600K has 3.5GHz base clock and peaks at 3.9GHz with Turbo, generally can be overclocked to 4.3-4.4GHz stable on air cooling (depending on chip of course and cooler).
Card PM	Report Top Like Quote Reply

SkillsScrapper54	Sep 28 2015, 12:33 AM Show posts by this member only \| Post #35
Getting Started Junior Member 82 posts Joined: Sep 2010 From: Carnegie Mellon Heinz Campus	QUOTE(owikh84 @ Sep 27 2015, 08:27 PM) I thought GIGABYTE Z170-HD3 only supports DDR4. Basically regardless of the brand the overclocking steps would be more or less the same but every CPU is unique, means each chip requires different CPU-related voltages, different strength of integrated memory controller (IMC) resulting in different memory overclock ability and ram-related voltages. i5 6600K has 3.5GHz base clock and peaks at 3.9GHz with Turbo, generally can be overclocked to 4.3-4.4GHz stable on air cooling (depending on chip of course and cooler). There is a DDR3 version for HD3 mobo. Using CL9 1600 hyperx savage 8gbx2. Managed to get i5 6600k running 4.3GHz @1.27 using 20% preset overclock profile (gigabyte performance upgrade) Reaching 62C on full load running small FFT on prime95 v28.5 after 1 hour without error.. No linpack or IBT to further testing. Arma 3 and watch dogs running fine so far. Will perform manual oc instead of using current preset to get better optimized system.
Card PM	Report Top Like Quote Reply

TSowikh84	Sep 28 2015, 06:41 AM Show posts by this member only \| Post #36
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(SkillsScrapper54 @ Sep 28 2015, 12:33 AM) There is a DDR3 version for HD3 mobo. Using CL9 1600 hyperx savage 8gbx2. Managed to get i5 6600k running 4.3GHz @1.27 using 20% preset overclock profile (gigabyte performance upgrade) Reaching 62C on full load running small FFT on prime95 v28.5 after 1 hour without error.. No linpack or IBT to further testing. Arma 3 and watch dogs running fine so far. Will perform manual oc instead of using current preset to get better optimized system. Not bad. Auto overclocking is a good starting point but manual overclocking is always the best of course. Skylake CPUs' TJmax (max temp.) is 100C so looks like your chip still have plenty of headroom to overclock higher.
Card PM	Report Top Like Quote Reply

horns	Sep 28 2015, 02:03 PM Show posts by this member only \| Post #37
\m/ Senior Member 3,038 posts Joined: Nov 2009	QUOTE(emy_xvidia @ Sep 23 2015, 03:06 AM) wallao kenot go for custom WC ler later I eat Maggi for one month.. thinking to get the Noctua NF-A14 industrialPPC 3000rpm PWM fans to replace the crappy stock H110i GT fans. For the same setting of RPM, the Noctua's produce less noise, and if temp goes bonker can always set to max RPM! theoretically on paper that is. and damn, 1.5V Vcore for your i7...... Noctua NF-A14 industrialPPC 3000rpm PWM fans are loud at max. you might not like it. 1500 pwm or maybe 2000 pwm is much quiet.
Card PM	Report Top Like Quote Reply

emy_xvidia	Sep 28 2015, 06:21 PM Show posts by this member only \| Post #38
Look at all my stars!! Senior Member 2,735 posts Joined: Mar 2006 From: Malaysia - Swindon Town	QUOTE(horns @ Sep 28 2015, 02:03 PM) Noctua NF-A14 industrialPPC 3000rpm PWM fans are loud at max. you might not like it. 1500 pwm or maybe 2000 pwm is much quiet. yea I've been reading also bout it. But I think that'll be manageable since I plan to connect the fans to Corsair Link. The stock Corsair fans aren't just good enough. They make this annoying rattling sound at low speed. Just one question though, for a push pull config, is it better to put the higher RPM fans to do the push job or vice versa?
Card PM	Report Top Like Quote Reply

horns	Sep 29 2015, 12:10 AM Show posts by this member only \| Post #39
\m/ Senior Member 3,038 posts Joined: Nov 2009	QUOTE(emy_xvidia @ Sep 28 2015, 06:21 PM) yea I've been reading also bout it. But I think that'll be manageable since I plan to connect the fans to Corsair Link. The stock Corsair fans aren't just good enough. They make this annoying rattling sound at low speed. Just one question though, for a push pull config, is it better to put the higher RPM fans to do the push job or vice versa? the idea of having larger sized fans is to get rid of loud fan noise issues. larger fans spin at lower rpm but provide sufficient air flow or static pressure, hence they are more quiet. i think we have derailed from this nice topic. just check out the water cooling section at lyn for better information.
Card PM	Report Top Like Quote Reply

TSowikh84	Oct 3 2015, 12:07 PM Show posts by this member only \| Post #40
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	i7 6700K @ 4.5GHz GIGABYTE Z170X-Gaming G1 G.Skill Ripjaws V 3000C15 @ 3466MHz 17-18-18-28-1T
Card PM	Report Top Like Quote Reply

stasio	Oct 3 2015, 06:52 PM Show posts by this member only \| Post #41
10k Club All Stars 18,503 posts Joined: Oct 2007 From: P.Jaya	Nice Owi.....try BIOS F5d with some memory improvements.... Later this month, I getting Z170X-SOC Force, which is not coming in Malaysia shops..... Edit: Hope Ideal Tech will have DDR4 TridentZ Series 2x4GB above 3200. This post has been edited by stasio: Oct 3 2015, 07:07 PM
Card PM	Report Top Like Quote Reply

TSowikh84	Oct 4 2015, 12:04 AM Show posts by this member only \| Post #42
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(stasio @ Oct 3 2015, 06:52 PM) Nice Owi.....try BIOS F5d with some memory improvements.... Later this month, I getting Z170X-SOC Force, which is not coming in Malaysia shops..... Edit: Hope Ideal Tech will have DDR4 TridentZ Series 2x4GB above 3200. Thanks for the new BIOS bro. Will try it out asap! http://www.newegg.com/Product/Product.aspx...N82E16820231920 This post has been edited by owikh84: Oct 4 2015, 12:04 AM Attached thumbnail(s)
Card PM	Report Top Like Quote Reply

TSowikh84	Oct 4 2015, 10:51 AM Show posts by this member only \| Post #43
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	i7 6700K @ 4.5GHz GIGABYTE Z170X-Gaming G1 G.Skill Ripjaws V 3000C15 @ 3600MHz 18-19-19-36-2T Need to fix that efficiency though. Yet I'm still at 1.35v and with the old F4h BIOS.
Card PM	Report Top Like Quote Reply

TSowikh84	Oct 4 2015, 01:53 PM Show posts by this member only \| Post #44
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	New F5d BIOS is awesome. 3600MHz boots easier than ever, efficiency is improved a lot here. i7 6700K @ 4.5GHz GIGABYTE Z170X-Gaming G1 G.Skill Ripjaws V 3000C15 @ 3600MHz 18-19-19-36-2T
Card PM	Report Top Like Quote Reply

alexei	Oct 7 2015, 10:44 PM Show posts by this member only \| IPv6 \| Post #45
Biker Mice from Mars Senior Member 1,879 posts Joined: Jan 2003 From: Medan, ID	QUOTE(goldfries @ Sep 25 2015, 03:11 PM) What's the point of adding more fans when the radiator is still of the same size? It won't work any better. The temp is negative... until you watch til the end, it's for laughs...
Card PM	Report Top Like Quote Reply

cstkl1	Oct 7 2015, 11:55 PM Show posts by this member only \| Post #46
Look at all my stars!! Elite 6,799 posts Joined: Jan 2003	Ok decided. Doing a 6700k Maximus VIII Extreme with EK waterblock 64gb Gskill/Corsair/Klevv 3200-3400mhz Ram 64gb yo lets push this sucker sourcing for some klevvs Gonna get skylake on notebook after macbook pro refresh for it. This post has been edited by cstkl1: Oct 7 2015, 11:56 PM
Card PM	Report Top Like Quote Reply

Quazacolt	Oct 8 2015, 12:24 AM Show posts by this member only \| Post #47
Riding couple Senior Member 5,366 posts Joined: Jan 2007 From: KL Malaysia	QUOTE(cstkl1 @ Oct 7 2015, 11:55 PM) 64gb Gskill/Corsair/Klevv 3200-3400mhz Ram 64gb yo lets push this sucker sourcing for some klevvs made me regret a bit on my Kingston predators lol those klevv look pretty sexy
Card PM	Report Top Like Quote Reply

TSowikh84	Oct 8 2015, 06:45 AM Show posts by this member only \| Post #48
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	Just arrived yesterday.... ASUS MAXIMUS VIII EXTREME This post has been edited by owikh84: Oct 8 2015, 06:47 AM
Card PM	Report Top Like Quote Reply

stasio	Oct 8 2015, 08:54 AM Show posts by this member only \| Post #49
10k Club All Stars 18,503 posts Joined: Oct 2007 From: P.Jaya	New BIOS: GA-Z170X-Gaming G1 - F5i
Card PM	Report Top Like Quote Reply

TSowikh84	Oct 9 2015, 11:26 PM Show posts by this member only \| Post #50
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	Benching MAXIMUS VIII EXTREME + Ripjaws V DDR4 3000C15... 6700K @ 5.0GHz: Max BCLK @ 410 MHz:
Card PM	Report Top Like Quote Reply

Killmeplsok	Oct 11 2015, 02:33 PM Show posts by this member only \| Post #51
Getting Started Junior Member 161 posts Joined: Apr 2010	All i can do here is envy...my 6700k refuse to go anywhere past 4.3, that thing runs windows fine at 4.8 but any stress test above 4.3 stopped in 3 minutes no matter what voltage i put.
Card PM	Report Top Like Quote Reply

TSowikh84	Oct 11 2015, 05:31 PM Show posts by this member only \| Post #52
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(Killmeplsok @ Oct 11 2015, 02:33 PM) All i can do here is envy...my 6700k refuse to go anywhere past 4.3, that thing runs windows fine at 4.8 but any stress test above 4.3 stopped in 3 minutes no matter what voltage i put. Mind to share your OC settings and what software you used for stressing? Most 6700K chips should be able to do at least 4.5GHz, max out at 4.7/4.8GHz before thermal throttling. This post has been edited by owikh84: Oct 11 2015, 05:34 PM
Card PM	Report Top Like Quote Reply

Killmeplsok	Oct 11 2015, 07:37 PM Show posts by this member only \| Post #53
Getting Started Junior Member 161 posts Joined: Apr 2010	I cant remember much, but for 4.5 ghz I have tried 1.32v to 1.46v with increment of 0.2v each time. Stress test using AIDA64 says I have a hardware failure each time after around 2 minutes, so I tried Prime95, which crashes my PC almost instantly each time, I finally went for a gentler Intel XTU, even trying to benchmark using XTU crashes my PC with a CLOCK_WATCHDOG_TIMEOUT error which usually indicates not enough voltage, but I figure that if this PC cant even go past 4.5 with 1.46 then it's not worth my time and electricity to OC.
Card PM	Report Top Like Quote Reply

TSowikh84	Oct 11 2015, 10:47 PM Show posts by this member only \| Post #54
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(Killmeplsok @ Oct 11 2015, 07:37 PM) I cant remember much, but for 4.5 ghz I have tried 1.32v to 1.46v with increment of 0.2v each time. Stress test using AIDA64 says I have a hardware failure each time after around 2 minutes, so I tried Prime95, which crashes my PC almost instantly each time, I finally went for a gentler Intel XTU, even trying to benchmark using XTU crashes my PC with a CLOCK_WATCHDOG_TIMEOUT error which usually indicates not enough voltage, but I figure that if this PC cant even go past 4.5 with 1.46 then it's not worth my time and electricity to OC. 1.46v is way too much for a 6700K OC @ 4.5GHz. Probably worst chip that I've ever heard of so far (sorry). It could be improper settings as well in the BIOS so you better check it out again. My BIOS settings for 6700K OC @ 4.5GHz look like this: http://www.ocdrift.com/review-gigabyte-z170x-gaming-g1/3/ Core: 100x45 Uncore: 100x45 vCore: 1.325v (1.320v at full load) LLC: Turbo Memory: XMP (3000MHz C15-15-15-35-2T) VRAM: 1.35v VCCSA: Auto (1.05v) VCCIO: Auto (0.95v) EIST: disabled C-state: disabled
Card PM	Report Top Like Quote Reply

Killmeplsok	Oct 12 2015, 01:47 PM Show posts by this member only \| IPv6 \| Post #55
Getting Started Junior Member 161 posts Joined: Apr 2010	QUOTE(owikh84 @ Oct 11 2015, 10:47 PM) 1.46v is way too much for a 6700K OC @ 4.5GHz. Probably worst chip that I've ever heard of so far (sorry). It could be improper settings as well in the BIOS so you better check it out again. My BIOS settings for 6700K OC @ 4.5GHz look like this: http://www.ocdrift.com/review-gigabyte-z170x-gaming-g1/3/ Core: 100x45 Uncore: 100x45 vCore: 1.325v (1.320v at full load) LLC: Turbo Memory: XMP (3000MHz C15-15-15-35-2T) VRAM: 1.35v VCCSA: Auto (1.05v) VCCIO: Auto (0.95v) EIST: disabled C-state: disabled Going to check if I missed something, maybe this weekends, when I'm not working, I might forgot something as the last time I OC, it was several years ago with a 2500k.
Card PM	Report Top Like Quote Reply

TSowikh84	Oct 16 2015, 11:35 PM Show posts by this member only \| Post #56
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	Amazing! ASUS MAXIMUS VIII EXTREME has more than 50 memory presets for the major IC vendors including Samsung, Hynix and Micron, so that you can have a start point for RAM tweaking. » Click to show Spoiler - click again to hide... «
Card PM	Report Top Like Quote Reply

Left4Dead2	Oct 20 2015, 06:12 PM Show posts by this member only \| Post #57
Regular Senior Member 1,103 posts Joined: Nov 2009	QUOTE(owikh84 @ Oct 8 2015, 06:45 AM) Just arrived yesterday.... ASUS MAXIMUS VIII EXTREME Jaw drop
Card PM	Report Top Like Quote Reply

lucidlts	Oct 22 2015, 10:54 PM Show posts by this member only \| Post #58
brain powder Senior Member 2,906 posts Joined: Oct 2010 From: hurrr durrrrr?	QUOTE(owikh84 @ Oct 16 2015, 11:35 PM) Amazing! ASUS MAXIMUS VIII EXTREME has more than 50 memory presets for the major IC vendors including Samsung, Hynix and Micron, so that you can have a start point for RAM tweaking. » Click to show Spoiler - click again to hide... « This thing is a bomb, look at that BCLK Though, I'm very looking forward for the VIII Impact.
Card PM	Report Top Like Quote Reply

stasio	Oct 23 2015, 12:57 PM Show posts by this member only \| Post #59
10k Club All Stars 18,503 posts Joined: Oct 2007 From: P.Jaya	Just arrived.....
Card PM	Report Top Like Quote Reply

TSowikh84	Oct 24 2015, 08:09 AM Show posts by this member only \| Post #60
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	ASRock Z170 OCF in da house...
Card PM	Report Top Like Quote Reply

TSowikh84	Oct 31 2015, 09:29 PM Show posts by this member only \| Post #61
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	Together with G.SKILL Ripjaws V DDR4, ASRock Z170 OCF is such a great overclocking board specially designed by world's best overclocker Nick Shih! DDR4 4000 MHz is easy on AIR and should be able go higher with further tweaking: Highest SPI 32m stable clock is 3866MHz 19-20-20-42-2T @ 1.55v on AIR: More to come... 6700K @ 5.0GHz This post has been edited by owikh84: Dec 10 2015, 10:47 PM
Card PM	Report Top Like Quote Reply

stasio	Nov 1 2015, 01:30 PM Show posts by this member only \| Post #62
10k Club All Stars 18,503 posts Joined: Oct 2007 From: P.Jaya	Nice Owi........ You have latest BIOS by Nick here: http://picx.xfastest.com/nickshih/asrock/Z17OCF161B.rar
Card PM	Report Top Like Quote Reply

junkieG	Nov 10 2015, 11:18 PM Show posts by this member only \| Post #63
DIGITAL ERA Senior Member 2,687 posts Joined: Jan 2003 From: Sue Bunk Jai Yaa!	here is mine WC H110 GT This post has been edited by junkieG: Nov 12 2015, 09:47 AM Attached thumbnail(s)
Card PM	Report Top Like Quote Reply

Magor	Nov 11 2015, 05:27 PM Show posts by this member only \| Post #64
New Member Junior Member 5 posts Joined: Nov 2015	Excellent computer configurations
Card PM	Report Top Like Quote Reply

keyo	Nov 24 2015, 12:22 AM Show posts by this member only \| Post #65
Casual Junior Member 345 posts Joined: Jun 2009	is it stable only test linx tq Attached thumbnail(s)
Card PM	Report Top Like Quote Reply

klmojuze	Nov 24 2015, 10:22 AM Show posts by this member only \| Post #66
Getting Started Junior Member 157 posts Joined: Oct 2015	Wow, no wonder G-Skill is so popular right now.
Card PM	Report Top Like Quote Reply

TSowikh84	Nov 24 2015, 10:52 PM Show posts by this member only \| Post #67
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(keyo @ Nov 24 2015, 12:22 AM) is it stable only test linx tq Nice try bro but what motherboard are you using? You should also try the latest version of LinX posted in the post #1: LinX 0.6.5 (11.3.0.004)
Card PM	Report Top Like Quote Reply

bulkhy	Nov 25 2015, 03:40 AM Show posts by this member only \| Post #68
Mr Senior Member 813 posts Joined: Jan 2003	join the fun Attached thumbnail(s)
Card PM	Report Top Like Quote Reply

keyo	Nov 25 2015, 08:17 AM Show posts by this member only \| Post #69
Casual Junior Member 345 posts Joined: Jun 2009	QUOTE(owikh84 @ Nov 24 2015, 10:52 PM) Nice try bro but what motherboard are you using? You should also try the latest version of LinX posted in the post #1: LinX 0.6.5 (11.3.0.004) Tq Asus z170m plus custom watercooled Ok I,ll try next time This post has been edited by keyo: Nov 25 2015, 08:21 AM
Card PM	Report Top Like Quote Reply

keyo	Nov 28 2015, 07:47 AM Show posts by this member only \| Post #70
Casual Junior Member 345 posts Joined: Jun 2009	1 This post has been edited by keyo: Nov 28 2015, 11:44 PM
Card PM	Report Top Like Quote Reply

lucidlts	Dec 8 2015, 01:30 AM Show posts by this member only \| Post #71
brain powder Senior Member 2,906 posts Joined: Oct 2010 From: hurrr durrrrr?	Kinda new here + newbie lol. The i5 6600K I've tried few months back then isn't doing any good on mem oc though.
Card PM	Report Top Like Quote Reply

TSowikh84	Dec 10 2015, 10:44 PM Show posts by this member only \| Post #72
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	ASUS Z170 Pro Gaming + Intel 6700K @ 5.0GHz
Card PM	Report Top Like Quote Reply

ALeUNe	Dec 14 2015, 11:11 AM Show posts by this member only \| Post #73
I'm the purebred with aristocratic pedigree VIP 9,692 posts Joined: Jan 2003 From: Mongrel Isle	QUOTE(owikh84 @ Dec 10 2015, 10:44 PM) ASUS Z170 Pro Gaming + Intel 6700K @ 5.0GHz 1.6v?
Card PM	Report Top Like Quote Reply

TSowikh84	Dec 16 2015, 07:06 AM Show posts by this member only \| Post #74
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(ALeUNe @ Dec 14 2015, 11:11 AM) 1.6v? yeah, this OEM chip is a dud. I also have a retail 6700K which also doesn't seem to perform better than this one RIP my luck
Card PM	Report Top Like Quote Reply

TSowikh84	Dec 26 2015, 12:00 AM Show posts by this member only \| Post #75
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	ASUS Z170i Pro Gaming mini-ITX Core i7 6700K @ 5.0GHz G.Skill Ripjaws V DDR4 3000C15 @3,866 MHz 19-20-20-36-2T @ 1.45v 4,000 MHz 19-25-25-42-840-2T @ 1.50V (Dual channel)
Card PM	Report Top Like Quote Reply

goldfries	Dec 26 2015, 03:41 AM Show posts by this member only \| Post #76
40K Club Forum Admin 44,415 posts Joined: Jan 2003	Did you register for Intel Protection Plan ah?
Card PM	Report Top Like Quote Reply

TSowikh84	Dec 26 2015, 11:09 AM Show posts by this member only \| Post #77
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(goldfries @ Dec 26 2015, 03:41 AM) Did you register for Intel Protection Plan ah? No need, because this is ES chip haha
Card PM	Report Top Like Quote Reply

TSowikh84	Dec 26 2015, 11:13 AM Show posts by this member only \| Post #78
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	Testing Memory preset in ASRock Z170 OCF (BIOS v1.90) G.Skill Ripjaws V 3000C15 @ 3733MHz 16-19-19-28-1T @ 1.5V
Card PM	Report Top Like Quote Reply

keyo	Feb 10 2016, 09:48 PM Show posts by this member only \| Post #79
Casual Junior Member 345 posts Joined: Jun 2009	Wta sifu If i increase my cache speed to 4500 do i need up any voltage. Already tested hyper pi 32 ok I5 6600k
Card PM	Report Top Like Quote Reply

TSowikh84	Feb 13 2016, 09:22 PM Show posts by this member only \| Post #80
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(keyo @ Feb 10 2016, 09:48 PM) Wta sifu If i increase my cache speed to 4500 do i need up any voltage. Already tested hyper pi 32 ok I5 6600k For Skylake, the uncore/cache voltage is now combined together with the vCore or in other word 1:1 ratio. No more cache/ring bus voltage like in the pass.
Card PM	Report Top Like Quote Reply

ScivanShimitar	Feb 27 2016, 12:14 AM Show posts by this member only \| Post #81
Getting Started Junior Member 186 posts Joined: Mar 2010	Fairly new to this overclocking scene, here's my result. Using GIGABYTE Z170XP-SLI This post has been edited by ScivanShimitar: Feb 27 2016, 12:15 AM
Card PM	Report Top Like Quote Reply

allsick	Mar 1 2016, 10:45 PM Show posts by this member only \| Post #82
Getting Started Junior Member 116 posts Joined: Dec 2006	1.728 Vcore or 1.308? Don't fry your chip mate.
Card PM	Report Top Like Quote Reply

Y.O.N	Mar 3 2016, 01:03 AM Show posts by this member only \| Post #83
Getting Started Junior Member 243 posts Joined: Aug 2011	Nice clocking here.. how about the benchmark?
Card PM	Report Top Like Quote Reply

leCat	Mar 7 2016, 11:53 AM Show posts by this member only \| Post #84
Getting Started Junior Member 86 posts Joined: May 2013	my 6700K runs near 90c on full load 4.5ghz with H220-X, on stock clock it runs around 85c I'm pretty sure i already mounted the cooler the right way runs at 30-35c on idle stock clock, near 40c on 4.5ghz idle EDIT : was using Prime95 and people say it'll hurt the cpu. did another test with cinebench, max temps 72c stock clock EDIT 2 : got a stable 4.6ghz @ 1.355v This post has been edited by leCat: Mar 7 2016, 03:26 PM
Card PM	Report Top Like Quote Reply

Skylinestar	Mar 17 2016, 10:42 AM Show posts by this member only \| Post #85
Mega Duck All Stars 10,472 posts Joined: Jan 2003 From: Sarawak	deleted. wrong post. This post has been edited by Skylinestar: Mar 18 2016, 12:05 PM
Card PM	Report Top Like Quote Reply

gengstapo	Apr 3 2016, 10:09 AM Show posts by this member only \| Post #86
Retired enthusiast All Stars 10,688 posts Joined: Jan 2005	Darn u guys really fast Does Skylake do REALLY good than Haswell? I mean is it really that wort the upgrade?
Card PM	Report Top Like Quote Reply

azcromex	Apr 3 2016, 06:58 PM Show posts by this member only \| Post #87
Getting Started Junior Member 81 posts Joined: Jan 2006	joining late to the club! 6700k + Z170 Pro Gaming This post has been edited by azcromex: Apr 3 2016, 07:00 PM
Card PM	Report Top Like Quote Reply

Skylinestar	Apr 4 2016, 10:52 PM Show posts by this member only \| Post #88
Mega Duck All Stars 10,472 posts Joined: Jan 2003 From: Sarawak	QUOTE(gengstapo @ Apr 3 2016, 10:09 AM) Darn u guys really fast Does Skylake do REALLY good than Haswell? I mean is it really that wort the upgrade? If you're using Haswell now, I advise you to hold your horses. Jump for the Kabylake next year will be more worth it. If you're using AMD APU/FX6### or Intel LGA775 stuff, you better jump now.
Card PM	Report Top Like Quote Reply

gengstapo	Apr 5 2016, 12:41 AM Show posts by this member only \| Post #89
Retired enthusiast All Stars 10,688 posts Joined: Jan 2005	QUOTE(Skylinestar @ Apr 4 2016, 10:52 PM) If you're using Haswell now, I advise you to hold your horses. Jump for the Kabylake next year will be more worth it. If you're using AMD APU/FX6### or Intel LGA775 stuff, you better jump now. Affirmative Btw, Im on Haswell currently..
Card PM	Report Top Like Quote Reply

latios507	Apr 8 2016, 01:38 AM Show posts by this member only \| Post #90
Getting Started Junior Member 123 posts Joined: Jan 2008 From: Putrajaya	I overclocked my 6700k to a modest 4.4ghz (coz I sayang my CPU haha, my first high end rig for years. haven't changed since the IP-35 MOBO LGA775 where I used Dual Core CPU). I'm using ASUS ROG Maximus Hero VIII Run RealBench (Asus) @ 1.20V for 2 hours without problem. But when I ran Prime95, 5 min into the test I get BSOD haha. Eventually managed to keep it stable @ 1.23V - So I achieved 4.4ghz @ 1.23V. I'm using ID Cooling FrostFlow 240L - Stock @ 33c and max load usually around 65c (thanks to the low voltage). No aircond in my room, only kipas. I have temptation to OC it further but it makes little to no differences in gaming performance, unless it's a CPU dependent game. Is my CPU good? This post has been edited by latios507: Apr 8 2016, 01:39 AM
Card PM	Report Top Like Quote Reply

gengstapo	Apr 8 2016, 08:10 AM Show posts by this member only \| Post #91
Retired enthusiast All Stars 10,688 posts Joined: Jan 2005	QUOTE(latios507 @ Apr 8 2016, 01:38 AM) I overclocked my 6700k to a modest 4.4ghz (coz I sayang my CPU haha, my first high end rig for years. haven't changed since the IP-35 MOBO LGA775 where I used Dual Core CPU). I'm using ASUS ROG Maximus Hero VIII Run RealBench (Asus) @ 1.20V for 2 hours without problem. But when I ran Prime95, 5 min into the test I get BSOD haha. Eventually managed to keep it stable @ 1.23V - So I achieved 4.4ghz @ 1.23V. I'm using ID Cooling FrostFlow 240L - Stock @ 33c and max load usually around 65c (thanks to the low voltage). No aircond in my room, only kipas. I have temptation to OC it further but it makes little to no differences in gaming performance, unless it's a CPU dependent game. Is my CPU good? Lol, default speed is 4Ghz with turbo 4.2 correct? It seems the Haswell overclock better than Skylake
Card PM	Report Top Like Quote Reply

latios507	Apr 9 2016, 07:31 PM Show posts by this member only \| Post #92
Getting Started Junior Member 123 posts Joined: Jan 2008 From: Putrajaya	QUOTE(gengstapo @ Apr 8 2016, 08:10 AM) Lol, default speed is 4Ghz with turbo 4.2 correct? It seems the Haswell overclock better than Skylake Yup. Could've push more but I see little to no gain performance. I mainly play games, rarely do graphics or video editing jobs.
Card PM	Report Top Like Quote Reply

luqmanz	Apr 18 2016, 05:39 PM Show posts by this member only \| Post #93
Trading Geek Senior Member 2,185 posts Joined: Oct 2005	Does anyone here OC the non-K version ? i3-6100 perhaps ?
Card PM	Report Top Like Quote Reply

gengstapo	Apr 18 2016, 11:37 PM Show posts by this member only \| Post #94
Retired enthusiast All Stars 10,688 posts Joined: Jan 2005	QUOTE(luqmanz @ Apr 18 2016, 05:39 PM) Does anyone here OC the non-K version ? i3-6100 perhaps ? Sold it, if u intend to do OC, grab the "K" version instead
Card PM	Report Top Like Quote Reply

luqmanz	Apr 19 2016, 12:31 AM Show posts by this member only \| Post #95
Trading Geek Senior Member 2,185 posts Joined: Oct 2005	QUOTE(gengstapo @ Apr 18 2016, 11:37 PM) Sold it, if u intend to do OC, grab the "K" version instead Hehe dont have a budget for K version yet.. Have to play around wirh my i3 for now.. Does anyone here ever tried oc'ing those valueram ddr4? Kingston maybe? How high did u manage to go?
Card PM	Report Top Like Quote Reply

Skylinestar	Apr 19 2016, 04:08 AM Show posts by this member only \| Post #96
Mega Duck All Stars 10,472 posts Joined: Jan 2003 From: Sarawak	QUOTE(luqmanz @ Apr 18 2016, 05:39 PM) Does anyone here OC the non-K version ? i3-6100 perhaps ? If you have the ASRock mobo, I'd say - Go For It !
Card PM	Report Top Like Quote Reply

gengstapo	Apr 19 2016, 09:03 AM Show posts by this member only \| Post #97
Retired enthusiast All Stars 10,688 posts Joined: Jan 2005	QUOTE(luqmanz @ Apr 19 2016, 12:31 AM) Hehe dont have a budget for K version yet.. Have to play around wirh my i3 for now.. Does anyone here ever tried oc'ing those valueram ddr4? Kingston maybe? How high did u manage to go? Sold & just top up a bit leh Try find cheap one frm Garage Sales My Corsair Vengeance just die, so currently I only run on Value Ram which default speed at 667 But, I manage to squeeze it to run at 800Mhz
Card PM	Report Top Like Quote Reply

luqmanz	Apr 19 2016, 11:41 AM Show posts by this member only \| Post #98
Trading Geek Senior Member 2,185 posts Joined: Oct 2005	QUOTE(gengstapo @ Apr 19 2016, 09:03 AM) Sold & just top up a bit leh Try find cheap one frm Garage Sales My Corsair Vengeance just die, so currently I only run on Value Ram which default speed at 667 But, I manage to squeeze it to run at 800Mhz Your RAM actually died ? You abused it too much ... LOL ...
Card PM	Report Top Like Quote Reply

gengstapo	Apr 19 2016, 12:12 PM Show posts by this member only \| Post #99
Retired enthusiast All Stars 10,688 posts Joined: Jan 2005	QUOTE(luqmanz @ Apr 19 2016, 11:41 AM) Your RAM actually died ? You abused it too much ... LOL ... Well, u see, its a waste to buy "K" processor if u dont abuse it Luckily RAM has lifetime warranty, so I will just RMA it later
Card PM	Report Top Like Quote Reply

luqmanz	Apr 21 2016, 07:50 AM Show posts by this member only \| Post #100
Trading Geek Senior Member 2,185 posts Joined: Oct 2005	I notice many people uses Vcore around 1.35V for 4.5-4.6Ghz OC .. I wonder if mine 1.48V is ok ? Saw in the Intel Spec sheet .. max Vcore is 1.52V ... Temperature is fine.. even under Prime95 load .. its 68-73 Celcius .. Btw in BIOS .. I use Override mode and set Vcore 1.375V (but in all sensor in it says 1.48V) .. any idea why ? This post has been edited by luqmanz: Apr 21 2016, 08:03 AM Attached thumbnail(s)
Card PM	Report Top Like Quote Reply

goldfries	Apr 21 2016, 11:27 PM Show posts by this member only \| Post #101
40K Club Forum Admin 44,415 posts Joined: Jan 2003	QUOTE(luqmanz @ Apr 18 2016, 05:39 PM) Does anyone here OC the non-K version ? i3-6100 perhaps ? You no read my article. http://www.goldfries.com/hardware-reviews/...-asrock-sky-oc/ I got it to 4.5Ghz, no vcore adjustment.
Card PM	Report Top Like Quote Reply

gengstapo	Apr 22 2016, 12:42 AM Show posts by this member only \| Post #102
Retired enthusiast All Stars 10,688 posts Joined: Jan 2005	QUOTE(goldfries @ Apr 21 2016, 11:27 PM) You no read my article. http://www.goldfries.com/hardware-reviews/...-asrock-sky-oc/ I got it to 4.5Ghz, no vcore adjustment. ASRock one of the best board manufacturer at time I really, really like their Z87 Fatal1ty series, fully build with premium caps
Card PM	Report Top Like Quote Reply

goldfries	Apr 22 2016, 01:15 AM Show posts by this member only \| Post #103
40K Club Forum Admin 44,415 posts Joined: Jan 2003	The SKY OC feature is removed in newer firmware BUT the function returns under the guise of HYPER BCLK Engine. It's amazing how a Core i3-6100 (on stock already faster than i5-6400) can be overclocked to 4.5Ghz or more. I could reach 4.6Ghz even but it wasn't stable so I had to back down to 4.5Ghz. Might be able to reach beyond 4.5Ghz if I were to boost voltage but my test was based on stock cooler, going vcore boost meant I'll likely go beyond the limit of the stock cooler.
Card PM	Report Top Like Quote Reply

Skylinestar	Apr 22 2016, 05:13 AM Show posts by this member only \| Post #104
Mega Duck All Stars 10,472 posts Joined: Jan 2003 From: Sarawak	QUOTE(luqmanz @ Apr 21 2016, 07:50 AM) I notice many people uses Vcore around 1.35V for 4.5-4.6Ghz OC .. I wonder if mine 1.48V is ok ? Saw in the Intel Spec sheet .. max Vcore is 1.52V ... Temperature is fine.. even under Prime95 load .. its 68-73 Celcius .. Btw in BIOS .. I use Override mode and set Vcore 1.375V (but in all sensor in it says 1.48V) .. any idea why ? What you see in CPU-Z is not 100% accurate. That's the reason why oc boards have voltage check points.
Card PM	Report Top Like Quote Reply

luqmanz	Apr 22 2016, 06:35 AM Show posts by this member only \| Post #105
Trading Geek Senior Member 2,185 posts Joined: Oct 2005	QUOTE(goldfries @ Apr 21 2016, 11:27 PM) You no read my article. http://www.goldfries.com/hardware-reviews/...-asrock-sky-oc/ I got it to 4.5Ghz, no vcore adjustment. Wow.. thank you ...
Card PM	Report Top Like Quote Reply

egoiste	Apr 22 2016, 09:30 AM Show posts by this member only \| Post #106
New Member Junior Member 44 posts Joined: May 2007	hi, i want to build a new mini itx pc. planning to get i5 6400 non K and do mild overclock. Any m-itx mobo you can suggest?
Card PM	Report Top Like Quote Reply

luqmanz	Apr 22 2016, 10:22 AM Show posts by this member only \| Post #107
Trading Geek Senior Member 2,185 posts Joined: Oct 2005	QUOTE(goldfries @ Apr 21 2016, 11:27 PM) You no read my article. http://www.goldfries.com/hardware-reviews/...-asrock-sky-oc/ I got it to 4.5Ghz, no vcore adjustment. Btw ... no Vcore adjustment means you just set it to Auto ?
Card PM	Report Top Like Quote Reply

keyo	Apr 22 2016, 12:18 PM Show posts by this member only \| Post #108
Casual Junior Member 345 posts Joined: Jun 2009	QUOTE(luqmanz @ Apr 22 2016, 06:35 AM) Wow.. thank you ... want to ask do u need to update bios or anything to oc i3 using msi z170
Card PM	Report Top Like Quote Reply

goldfries	Apr 22 2016, 03:48 PM Show posts by this member only \| Post #109
40K Club Forum Admin 44,415 posts Joined: Jan 2003	QUOTE(luqmanz @ Apr 22 2016, 10:22 AM) Btw ... no Vcore adjustment means you just set it to Auto ? Yes it's on AUTO.
Card PM	Report Top Like Quote Reply

luqmanz	Apr 22 2016, 03:55 PM Show posts by this member only \| Post #110
Trading Geek Senior Member 2,185 posts Joined: Oct 2005	QUOTE(egoiste @ Apr 22 2016, 09:30 AM) hi, i want to build a new mini itx pc. planning to get i5 6400 non K and do mild overclock. Any m-itx mobo you can suggest? Im not an expert or anything .. but have a look at MSI .. they have this DDR4 Boost feature which is pretty good ... It gives you plenty of options for DDR4 speeds ... not limited to 2133 2400 2666 3000 only ... Easier to tune the right timing for your RAM.. can get high speed and good latency .. It allowed me to OC my cheap Kingston Valueram 2133 up to 2928 (CAS 15, CR 1) with slight increase in Voltage (1.3). Actually can go up to 4000 Mhz, but not stable lah This post has been edited by luqmanz: Apr 22 2016, 03:59 PM Attached thumbnail(s)
Card PM	Report Top Like Quote Reply

luqmanz	Apr 22 2016, 03:57 PM Show posts by this member only \| Post #111
Trading Geek Senior Member 2,185 posts Joined: Oct 2005	QUOTE(keyo @ Apr 22 2016, 12:18 PM) want to ask do u need to update bios or anything to oc i3 using msi z170 Im using MSI z170m mortar (the cheapest Z170 around) ... the latest official bios (version A3) have that non-K OC feature ... This post has been edited by luqmanz: Apr 22 2016, 05:33 PM
Card PM	Report Top Like Quote Reply

keyo	Apr 30 2016, 10:54 PM Show posts by this member only \| Post #112
Casual Junior Member 345 posts Joined: Jun 2009	QUOTE(luqmanz @ Apr 22 2016, 03:55 PM) Im not an expert or anything .. but have a look at MSI .. they have this DDR4 Boost feature which is pretty good ... It gives you plenty of options for DDR4 speeds ... not limited to 2133 2400 2666 3000 only ... Easier to tune the right timing for your RAM.. can get high speed and good latency .. It allowed me to OC my cheap Kingston Valueram 2133 up to 2928 (CAS 15, CR 1) with slight increase in Voltage (1.3). Actually can go up to 4000 Mhz, but not stable lah What ic cip that kvr you oc
Card PM	Report Top Like Quote Reply

luqmanz	May 1 2016, 01:13 PM Show posts by this member only \| Post #113
Trading Geek Senior Member 2,185 posts Joined: Oct 2005	QUOTE(keyo @ Apr 30 2016, 10:54 PM) What ic cip that kvr you oc Its Valueram with Hynix chips... I think most in Malaysia is Hynix..check before u buy ...
Card PM	Report Top Like Quote Reply

keyo	May 1 2016, 08:18 PM Show posts by this member only \| Post #114
Casual Junior Member 345 posts Joined: Jun 2009	QUOTE(luqmanz @ May 1 2016, 01:13 PM) Its Valueram with Hynix chips... I think most in Malaysia is Hynix..check before u buy ... Me Micron d9tgg so sad
Card PM	Report Top Like Quote Reply

luqmanz	May 1 2016, 09:42 PM Show posts by this member only \| Post #115
Trading Geek Senior Member 2,185 posts Joined: Oct 2005	QUOTE(keyo @ May 1 2016, 08:18 PM) Me Micron d9tgg so sad No harm trying.. Look at my signatures for my ddr4 3100 OC RAM settings.. RAM is very hard to break .. Even if it break got lifetime warranty... LOL I think this is the best OC guide for gaming rig.. If u use your system for scientific processing..maybe not suitable.. http://www.ronwoods.us/2014/06/how-to-safe...s-test.html?m=1 This post has been edited by luqmanz: May 1 2016, 09:46 PM
Card PM	Report Top Like Quote Reply

gengstapo	May 15 2016, 12:36 PM Show posts by this member only \| Post #116
Retired enthusiast All Stars 10,688 posts Joined: Jan 2005	Nvmd, fixed This post has been edited by gengstapo: May 15 2016, 01:28 PM
Card PM	Report Top Like Quote Reply

keyo	May 28 2016, 07:38 AM Show posts by this member only \| Post #117
Casual Junior Member 345 posts Joined: Jun 2009	custom watercooling but still 80 when full load Attached thumbnail(s)
Card PM	Report Top Like Quote Reply

luqmanz	May 28 2016, 11:17 AM Show posts by this member only \| Post #118
Trading Geek Senior Member 2,185 posts Joined: Oct 2005	QUOTE(keyo @ May 28 2016, 07:38 AM) custom watercooling but still 80 when full load Max 80 celcius for overclocked cpu is ok lor... as long as the voltage isnt high... seems like your voltages is good
Card PM	Report Top Like Quote Reply

tyja	Jun 12 2016, 08:05 AM Show posts by this member only \| Post #119
-I Just Want To Share- Senior Member 913 posts Joined: Dec 2008 From: Nusa Indah, Johor Bahru	do i need to stress test when successful enter window after OC? if yes, how long do i need to stress test? mine is 6700k, AIO ID cooling 240, below is test result on xtu n realbench xtu (benchmark) 4.6g@1.325 = result pass temp 86c (temp result in xtu app itself) 4.7@1.375 = result pass temp 93c (temp result in xtu app itself) real bench (benchmark) 4.6g@1.325 = pass (temp hwdinfo 86c) 4.7@1.375 = pass (forgot) I have run stress test using realbench 4.6g@1.325 for 1 hour, and it pass (before I install GC). then i try 4 hours test (after GC install) and go sleep. next morning, my pc was restart. So i dont know whether my OC is good or not. i use my pc 24/7 run at 50% load on CPU and RAM (16gb corsair lpx 3000). is something wrong with my setup? another thing is, i'm consider to invest in custom water cooling, but i want to know, whether i can achieve below 80c when do benchmark or stress test? currently max temp around 86-88c on AIO cooling. please advise. thanks!
Card PM	Report Top Like Quote Reply

luqmanz	Jun 12 2016, 01:51 PM Show posts by this member only \| Post #120
Trading Geek Senior Member 2,185 posts Joined: Oct 2005	QUOTE(tyja @ Jun 12 2016, 08:05 AM) do i need to stress test when successful enter window after OC? if yes, how long do i need to stress test? mine is 6700k, AIO ID cooling 240, below is test result on xtu n realbench xtu (benchmark) 4.6g@1.325 = result pass temp 86c (temp result in xtu app itself) 4.7@1.375 = result pass temp 93c (temp result in xtu app itself) real bench (benchmark) 4.6g@1.325 = pass (temp hwdinfo 86c) 4.7@1.375 = pass (forgot) I have run stress test using realbench 4.6g@1.325 for 1 hour, and it pass (before I install GC). then i try 4 hours test (after GC install) and go sleep. next morning, my pc was restart. So i dont know whether my OC is good or not. i use my pc 24/7 run at 50% load on CPU and RAM (16gb corsair lpx 3000). is something wrong with my setup? another thing is, i'm consider to invest in custom water cooling, but i want to know, whether i can achieve below 80c when do benchmark or stress test? currently max temp around 86-88c on AIO cooling. please advise. thanks! What do you do with your PC ? Just gaming ? If just gaming... Run Realbench (Benchmark) 6 times . Then Cinebench CPU test.. 1x time. If the system survives these (not crashing and temperatures are ok) .. its good enough for gaming ..
Card PM	Report Top Like Quote Reply

adilz	Jun 15 2016, 02:41 PM Show posts by this member only \| Post #121
Getting Started Junior Member 267 posts Joined: Oct 2007 From: Kuala Lumpur, Malaysia	QUOTE(keyo @ May 28 2016, 07:38 AM) custom watercooling but still 80 when full load I read somewhere that HW Monitor may not be displaying the correct info if parameters in hwmonitor.ini is wrong. Try deleting hwmonitor.ini and reran. Or try some other apps like RealTemp
Card PM	Report Top Like Quote Reply

keyo	Jun 15 2016, 07:42 PM Show posts by this member only \| Post #122
Casual Junior Member 345 posts Joined: Jun 2009	occt temp tak sampai 80 Attached thumbnail(s)
Card PM	Report Top Like Quote Reply

marcussimmj	Sep 13 2016, 01:39 PM Show posts by this member only \| Post #123
Getting Started Junior Member 124 posts Joined: Mar 2015	Well my i5 6600K managed to OC to 4.5 GHz with 1.29 on the Vcore. I guess that is pretty decent?
Card PM	Report Top Like Quote Reply

emy_xvidia	Sep 27 2016, 08:20 PM Show posts by this member only \| Post #124
Look at all my stars!! Senior Member 2,735 posts Joined: Mar 2006 From: Malaysia - Swindon Town	emy_xvidia \| i7 6700K \| 4596MHz @1.31V \| Asus Maximus VIII Hero \| Corsair H110i GT http://valid.x86.fr/fe8htc Remarks: Low Vcore, P95 full load temp isn't what I am comfy with, radiator needs a change!
Card PM	Report Top Like Quote Reply

Vigilant	Oct 26 2016, 11:56 PM Show posts by this member only \| Post #125
Be ever vigilant, but never suspicious Senior Member 1,288 posts Joined: Apr 2009	Why is that? This post has been edited by Vigilant: Jan 5 2017, 03:54 AM
Card PM	Report Top Like Quote Reply

XiuKeong	Oct 31 2016, 01:26 PM Show posts by this member only \| Post #126
[OMG] Sweetie™ Senior Member 9,436 posts Joined: Oct 2006 From: Oz	Wanna check... I saw in forums that 3200mhz ram will cause boot failure when using stock 6700k unless I oc it...true ah?
Card PM	Report Top Like Quote Reply

TaintedSoul	Nov 22 2016, 10:24 AM Show posts by this member only \| Post #127
Getting Started Junior Member 174 posts Joined: Apr 2012	Is this thread still active? Planning to build an 6700k, Asus z170 pro gaming mobo, 16gb corsair lpx 3000 ram, corsair H100v2 rig. I will follow linus tech tips overclocking guide and those benchmark u guys suggust.
Card PM	Report Top Like Quote Reply

unequalteck	Jan 6 2017, 02:06 AM Show posts by this member only \| Post #128
Custom member title Senior Member 2,690 posts Joined: Dec 2008 From: Kota Kinabalu Current: Wangsa Maju	Oi mana kabylake????
Card PM	Report Top Like Quote Reply

TSowikh84	Jan 7 2017, 06:23 PM Show posts by this member only \| Post #129
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(unequalteck @ Jan 6 2017, 02:06 AM) Oi mana kabylake???? entahlah... sudah 3 hari belum nampak aksi 7700K lg
Card PM	Report Top Like Quote Reply

fatalynx05	Jan 8 2017, 07:26 PM Show posts by this member only \| Post #130
Fatalist Senior Member 667 posts Joined: Jan 2005 From: Johor Bahru	Hi newbie here...trying my luck after retired from oc 5 years hahaha i halt the test coz the temp r scary...funding for new cooler Fatalynx05 \| i7 7700K \| 4.6GHz @ 1.22v \| Asus z170 Pro Gaming \| CM hyper 212 » Click to show Spoiler - click again to hide... «
Card PM	Report Top Like Quote Reply

goldfries	Jan 8 2017, 08:58 PM Show posts by this member only \| Post #131
40K Club Forum Admin 44,415 posts Joined: Jan 2003
Card PM	Report Top Like Quote Reply

lolzcalvin	Jan 10 2017, 10:27 PM Show posts by this member only \| IPv6 \| Post #132
shibe in predicament Senior Member 1,586 posts Joined: Mar 2014 From: 75°26'11.6"S, 136°16'16.0"E	Is it compulsory to use prime95 and torture test an overclocked gpu for a day? I've seen people running prime95 for full 24 hours. I did blend test for around 6 hours with no issues for 4.4GHz @1.3v, now I'm wondering whether to take a notch up to 4.5GHz with 1.31v because even on 1.325v for 4.5GHz during prime95 test there was an error on a worker in one large FFT. This post has been edited by lolzcalvin: Jan 11 2017, 01:43 AM
Card PM	Report Top Like Quote Reply

goldfries	Jan 11 2017, 04:59 AM Show posts by this member only \| Post #133
40K Club Forum Admin 44,415 posts Joined: Jan 2003	Not compulsory, it depends on how picky you are. To some people, stability is a matter of Prime95 for 72 hours. To some, stability is to get through their day to day activity without any unwanted operation failure.
Card PM	Report Top Like Quote Reply

unequalteck	Jan 11 2017, 11:34 PM Show posts by this member only \| Post #134
Custom member title Senior Member 2,690 posts Joined: Dec 2008 From: Kota Kinabalu Current: Wangsa Maju	QUOTE(owikh84 @ Jan 7 2017, 06:23 PM) entahlah... sudah 3 hari belum nampak aksi 7700K lg Don't worry. I sudah up car. Bought it :3
Card PM	Report Top Like Quote Reply

keyo	Jan 15 2017, 07:19 PM Show posts by this member only \| Post #135
Casual Junior Member 345 posts Joined: Jun 2009	bios 1.33v custom water cooling Attached thumbnail(s)
Card PM	Report Top Like Quote Reply

TSowikh84	Jan 16 2017, 11:15 PM Show posts by this member only \| Post #136
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(owikh84 @ Sep 4 2015, 10:23 PM) ## to be listed you must post at least a screenshot of CPU-Z consisted of CPU & motherboard tabs. owikh84 \| i7 7700K \| 5.0 GHz \| ASRock Z170 OC Formula \| Custom WC Cinebench @ 1.248v: AIDA64 System Stability Test @ 1.264v:
Card PM	Report Top Like Quote Reply

keyo	Jan 23 2017, 09:27 AM Show posts by this member only \| Post #137
Casual Junior Member 345 posts Joined: Jun 2009	do we need to disable speedstep and c state tq
Card PM	Report Top Like Quote Reply

TSowikh84	Jan 23 2017, 08:15 PM Show posts by this member only \| Post #138
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(keyo @ Jan 23 2017, 09:27 AM) do we need to disable speedstep and c state tq Power saving features such as EIST and C-states should be disabled while you’re overclocking. Enabling these features while overclocking might cause some stability issues especially voltages.
Card PM	Report Top Like Quote Reply

qierdidi	Jan 24 2017, 02:04 PM Show posts by this member only \| Post #139
New Member Junior Member 10 posts Joined: Oct 2009 From: KEPONG	QUOTE(owikh84 @ Jan 16 2017, 11:15 PM) owikh84 \| i7 7700K \| 5.0 GHz \| ASRock Z170 OC Formula \| Custom WC Cinebench @ 1.248v: AIDA64 System Stability Test @ 1.264v: susprise your cpu core temp are good I saw in front two i7 7700k All core temp very high Even mine oc to 5.0ghz 1.3v same too high temp (80-90c stress test)
Card PM	Report Top Like Quote Reply

TSowikh84	Jan 24 2017, 08:41 PM Show posts by this member only \| Post #140
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(qierdidi @ Jan 24 2017, 02:04 PM) susprise your cpu core temp are good I saw in front two i7 7700k All core temp very high Even mine oc to 5.0ghz 1.3v same too high temp (80-90c stress test) Are you referring to my Cinebench temp bro? Cinebench is not so stressful actually hence the low temp. AIDA64 stability test gave me 80-90c @ 5.0GHz 1.264v
Card PM	Report Top Like Quote Reply

keyo	Jan 25 2017, 09:14 AM Show posts by this member only \| Post #141
Casual Junior Member 345 posts Joined: Jun 2009	QUOTE(owikh84 @ Jan 24 2017, 08:41 PM) Are you referring to my Cinebench temp bro? Cinebench is not so stressful actually hence the low temp. AIDA64 stability test gave me 80-90c @ 5.0GHz 1.264v If i find the same batch as yours or batch that same the hwbot froum talking is it i can overclock same as yours or them very low voltage
Card PM	Report Top Like Quote Reply

TSowikh84	Jan 25 2017, 10:46 AM Show posts by this member only \| Post #142
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(keyo @ Jan 25 2017, 09:14 AM) If i find the same batch as yours or batch that same the hwbot froum talking is it i can overclock same as yours or them very low voltage Nah, it's all draw of luck bro. Same batch doesn't mean they have similar OC capability. For instance, many said L639 batch was generally great while there are a few other people saying they had a lot of bad L639 chips.
Card PM	Report Top Like Quote Reply

keyo	Jan 27 2017, 09:45 PM Show posts by this member only \| Post #143
Casual Junior Member 345 posts Joined: Jun 2009	is it ok with this volt to run daily selamat tahun baru cina Attached thumbnail(s)
Card PM	Report Top Like Quote Reply

TSowikh84	Jan 28 2017, 11:57 AM Show posts by this member only \| Post #144
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(keyo @ Jan 27 2017, 09:45 PM) is it ok with this volt to run daily selamat tahun baru cina Each person might have different opinion/acceptance criteria when it comes to "safe" temperatures & voltages. Some might be worried about chip degradation when overclocking with excessive voltages for a long period of time. For me, keep the core temperatures lower than TJmax of 100 degrees Celsius and you should be fine. Well, nowadays most motherboards come with over-temperature protection feature so your CPU Is not going to be killed so easily. Happy Chinese New Year and enjoy overclocking...
Card PM	Report Top Like Quote Reply

TSowikh84	Feb 2 2017, 12:45 AM Show posts by this member only \| Post #145
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	Check this out, guys! The most comprehensive OC guide for Kaby Lake, written by Raja @ ASUS. The Kaby Lake overclocking guide This post has been edited by owikh84: Feb 2 2017, 12:46 AM
Card PM	Report Top Like Quote Reply

Spetre	Feb 11 2017, 06:27 PM Show posts by this member only \| IPv6 \| Post #146
Enthusiast Senior Member 890 posts Joined: Nov 2008	[attachmentid=8479557] delid or not ???
Card PM	Report Top Like Quote Reply

TSowikh84	Feb 12 2017, 12:22 AM Show posts by this member only \| Post #147
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(Spetre @ Feb 11 2017, 06:27 PM) [attachmentid=8479557] delid or not ??? Delid will reduce the core temps by 15-20C. Nice try but one minute Prime95 won't suffice. Pretty sure the core temps will shoot up drastically (at least +10C) at/after 20 minutes of priming. Need a few hours to confirm stability, 3-6 hours etc
Card PM	Report Top Like Quote Reply

Spetre	Feb 12 2017, 12:48 AM Show posts by this member only \| Post #148
Enthusiast Senior Member 890 posts Joined: Nov 2008	QUOTE(owikh84 @ Feb 12 2017, 12:22 AM) Delid will reduce the core temps by 15-20C. Nice try but one minute Prime95 won't suffice. Pretty sure the core temps will shoot up drastically (at least +10C) at/after 20 minutes of priming. Need a few hours to confirm stability, 3-6 hours etc Even with 1.248v still suffer with almost 80c full load in one minute
Card PM	Report Top Like Quote Reply

TSowikh84	Feb 12 2017, 09:13 AM Show posts by this member only \| Post #149
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(Spetre @ Feb 12 2017, 12:48 AM) Even with 1.248v still suffer with almost 80c full load in one minute Prime95 is very2 stressful bro.
Card PM	Report Top Like Quote Reply

keyo	Feb 12 2017, 11:44 AM Show posts by this member only \| Post #150
Casual Junior Member 345 posts Joined: Jun 2009	QUOTE(owikh84 @ Feb 12 2017, 09:13 AM) Prime95 is very2 stressful bro. which one do you choose small fft,large fft ,or custom sir owikh84
Card PM	Report Top Like Quote Reply

TSowikh84	Feb 12 2017, 01:02 PM Show posts by this member only \| Post #151
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(keyo @ Feb 12 2017, 11:44 AM) which one do you choose small fft,large fft ,or custom sir owikh84 Custom blend of course, min/max 1344 FFTs, with full memory capacity =========== Added in post #1: GIGABYTE Z270 (Kaby Lake) Overclocking Guide This post has been edited by owikh84: Feb 12 2017, 01:04 PM
Card PM	Report Top Like Quote Reply

keyo	Feb 14 2017, 07:08 AM Show posts by this member only \| Post #152
Casual Junior Member 345 posts Joined: Jun 2009	l639 VID 1.168v Attached thumbnail(s)
Card PM	Report Top Like Quote Reply

TSowikh84	Feb 14 2017, 08:33 PM Show posts by this member only \| Post #153
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(keyo @ Feb 14 2017, 07:08 AM) l639 VID 1.168v Same VID as my L644 chip
Card PM	Report Top Like Quote Reply

goldfries	Feb 14 2017, 11:48 PM Show posts by this member only \| Post #154
40K Club Forum Admin 44,415 posts Joined: Jan 2003	QUOTE(owikh84 @ Feb 12 2017, 01:02 PM) Custom blend of course, min/max 1344 FFTs, with full memory capacity Don't do 4K? As much as I like 1344, there are errors that can happen beyond 1344.
Card PM	Report Top Like Quote Reply

TSowikh84	Feb 15 2017, 06:44 AM Show posts by this member only \| Post #155
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(goldfries @ Feb 14 2017, 11:48 PM) Don't do 4K? As much as I like 1344, there are errors that can happen beyond 1344. 1344 FFT is like an acceleratedsystem stability study, so that you can test stability in a shorter time with Prime95. Say if you can passed the 1344 with 90%+ available RAM for 15 mins, then your system should be stable for 12 hours of 4k FFT. This post has been edited by owikh84: Feb 15 2017, 06:45 AM
Card PM	Report Top Like Quote Reply

keyo	Feb 21 2017, 09:22 PM Show posts by this member only \| Post #156
Casual Junior Member 345 posts Joined: Jun 2009	This post has been edited by keyo: Feb 21 2017, 09:23 PM Attached thumbnail(s)
Card PM	Report Top Like Quote Reply

TSowikh84	Feb 21 2017, 11:39 PM Show posts by this member only \| Post #157
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(keyo @ Feb 21 2017, 09:22 PM) Nice chip Here's mine... Somehow 5.2GHz @ 1.424v freezes in Cinebench R15 so I think better stop here. Got an offer for a 7700K binned at 5.2GHz @ 1.3v stable R15, $450 USD Hmm, I think I will just wait for Ryzen first
Card PM	Report Top Like Quote Reply

Spetre	Feb 21 2017, 11:55 PM Show posts by this member only \| IPv6 \| Post #158
Enthusiast Senior Member 890 posts Joined: Nov 2008	[attachmentid=8510699] i think the score with be same if i overclock to 5.1ghz compare with 7700k , haha
Card PM	Report Top Like Quote Reply

TSowikh84	Feb 22 2017, 12:17 AM Show posts by this member only \| Post #159
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(Spetre @ Feb 21 2017, 11:55 PM) [attachmentid=8510699] i think the score with be same if i overclock to 5.1ghz compare with 7700k , haha Exactly, bcos of the identical core performance between KBL and Skylake. But to get that 6700K overclocked to more than 4.8GHz is quite a challenging task LOL.
Card PM	Report Top Like Quote Reply

Spetre	Feb 22 2017, 01:12 AM Show posts by this member only \| IPv6 \| Post #160
Enthusiast Senior Member 890 posts Joined: Nov 2008	QUOTE(owikh84 @ Feb 22 2017, 12:17 AM) Exactly, bcos of the identical core performance between KBL and Skylake. But to get that 6700K overclocked to more than 4.8GHz is quite a challenging task LOL. need some silicon lottery
Card PM	Report Top Like Quote Reply

TSowikh84	Feb 22 2017, 06:42 AM Show posts by this member only \| Post #161
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(Spetre @ Feb 22 2017, 01:12 AM) need some silicon lottery Draw of luck. For record, only 56% of 7700K has ability to do 5.0GHz+. 6700K would be less and rare. Source: https://siliconlottery.com/
Card PM	Report Top Like Quote Reply

tcsee	Feb 22 2017, 09:49 AM Show posts by this member only \| Post #162
Getting Started Junior Member 88 posts Joined: Mar 2006 From: Penang Island	Hi all, glad that I found this thread. Just built myself a Core i7-7700K with Asus Z270E motherboard PC. I used Asus ROG forum Kaby Lake overclocking guide. I was doing this stress test at room temperature last night, ~29'c room temp. I can only achieve 4.7GHz @ 1.29v and stable with 16GB memory XMP to 3200 MHz. Stress test using RealBench v2.43. I started with: i) 1.3v and 4.9GHz it rebooted right away when I ran RealBench. Memory at default 2133MHz. ii) Then 1.3v and 4.8GHz it ran OK, if I memory XMP it to 3200MHz it blue screen during RealBench iii) Then 1.3v and 4.7GHz it ran OK, XMP memory OK, but quite hot when running RealBench, hit 87'C iv) Then down volt to 1.29V with similar setting, temperature ~80'c to 83'c full load. I will follow the guide here to try out other stress test software. Will post some photos this week if time permit. Some question to bro owikh84: 1. owikh84 you have really good overclock results at such a low Voltage. Congrats! And your temperature runs cool too. Can you share with us your cooling solution? I'm using 3 fans as front intake (2 fans from Corsair AIO H100i v2), and another 3 fans as exhaust for hot air (2 at top, 1 at rear). Using Corsair Carbide 400C case.
Card PM	Report Top Like Quote Reply

Spetre	Feb 22 2017, 01:08 PM Show posts by this member only \| Post #163
Enthusiast Senior Member 890 posts Joined: Nov 2008	QUOTE(tcsee @ Feb 22 2017, 09:49 AM) Hi all, glad that I found this thread. Just built myself a Core i7-7700K with Asus Z270E motherboard PC. I used Asus ROG forum Kaby Lake overclocking guide. I was doing this stress test at room temperature last night, ~29'c room temp. I can only achieve 4.7GHz @ 1.29v and stable with 16GB memory XMP to 3200 MHz. Stress test using RealBench v2.43. I started with: i) 1.3v and 4.9GHz it rebooted right away when I ran RealBench. Memory at default 2133MHz. ii) Then 1.3v and 4.8GHz it ran OK, if I memory XMP it to 3200MHz it blue screen during RealBench iii) Then 1.3v and 4.7GHz it ran OK, XMP memory OK, but quite hot when running RealBench, hit 87'C iv) Then down volt to 1.29V with similar setting, temperature ~80'c to 83'c full load. I will follow the guide here to try out other stress test software. Will post some photos this week if time permit. Some question to bro owikh84: 1. owikh84 you have really good overclock results at such a low Voltage. Congrats! And your temperature runs cool too. Can you share with us your cooling solution? I'm using 3 fans as front intake (2 fans from Corsair AIO H100i v2), and another 3 fans as exhaust for hot air (2 at top, 1 at rear). Using Corsair Carbide 400C case. For my experience, u need adjust vccio voltage and system agent voltage to stable the overclock ram , For the temperature, i have same Celsius when full load , no matter how low my cpu voltage is , i think its time to delid
Card PM	Report Top Like Quote Reply

Spetre	Feb 22 2017, 01:10 PM Show posts by this member only \| Post #164
Enthusiast Senior Member 890 posts Joined: Nov 2008	QUOTE(owikh84 @ Feb 22 2017, 06:42 AM) Draw of luck. For record, only 56% of 7700K has ability to do 5.0GHz+. 6700K would be less and rare. Source: https://siliconlottery.com/ Yes , u are right , i check the review and only 3% of 6700k able oc to 5.0ghz , im thinking if im the 3% , hehe
Card PM	Report Top Like Quote Reply

TSowikh84	Feb 22 2017, 09:17 PM Show posts by this member only \| Post #165
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(tcsee @ Feb 22 2017, 09:49 AM) Some question to bro owikh84: 1. owikh84 you have really good overclock results at such a low Voltage. Congrats! And your temperature runs cool too. Can you share with us your cooling solution? I'm using 3 fans as front intake (2 fans from Corsair AIO H100i v2), and another 3 fans as exhaust for hot air (2 at top, 1 at rear). Using Corsair Carbide 400C case. I am using a custom watercooling solution as follows: » Click to show Spoiler - click again to hide... « EK Supreme HF Plexi Nickel Bitspower Silver Shining 1/2" ID 3/4" OD Compression Fitting X10 Bitspower Silver Shining 45 Degree Rotary Adapter X8 Bitspower Silver Shining 90 Degree Rotary Adapter X1 Bitspower Silver Shining 90 Degree Dual Rotary Adapter X2 Bitspower G1/4 Silver Shining Extender X2 Bitspower G1/4 Silver Shining Stop Fitting X3 XSPC RX360 Triple Radiator X2 Swiftech MCP 655 Pump X1 EK D5 X-Top Black Acetal X1 EK Multioptions X2 250 Advanced X1 XSPC 1/2" ID 3/4" OD Tubing (White) Bitspower Silver Shining C47 Adapter X2 Bitspower Crystal Link Tube for 2-Slot X1 Scythe GT AP-15 1850rpm X12 ModDIY 1-to-9 Fan Splitter Adapter X2 Looks like this, except that the graphics card is now air-cooled This post has been edited by owikh84: Feb 22 2017, 09:17 PM
Card PM	Report Top Like Quote Reply

goldfries	Feb 25 2017, 01:04 AM Show posts by this member only \| Post #166
40K Club Forum Admin 44,415 posts Joined: Jan 2003	QUOTE(tcsee @ Feb 22 2017, 09:49 AM) Hi all, glad that I found this thread. Just built myself a Core i7-7700K with Asus Z270E motherboard PC. I used Asus ROG forum Kaby Lake overclocking guide. I started with: i) 1.3v and 4.9GHz it rebooted right away when I ran RealBench. Memory at default 2133MHz. ii) Then 1.3v and 4.8GHz it ran OK, if I memory XMP it to 3200MHz it blue screen during RealBench iii) Then 1.3v and 4.7GHz it ran OK, XMP memory OK, but quite hot when running RealBench, hit 87'C iv) Then down volt to 1.29V with similar setting, temperature ~80'c to 83'c full load. I think you have not-so-good chip. Here's mine - http://valid.x86.fr/ih396n I use Cooler Master Nepton 240M cooler, fan are 2x JetFlor running at max. Passes OCCT (no AVX) 1 hour Linpack test. Memory is XMP profile at 3200.
Card PM	Report Top Like Quote Reply

arffrhn	Feb 28 2017, 10:37 PM Show posts by this member only \| IPv6 \| Post #167
Getting Started Junior Member 118 posts Joined: Jul 2015	arffrhn \| i5 6600K \| 4.6GHz @ 1.32v \| Aorus Z270X Gaming 5 \| ID Cooling 240L Wanted to try pushing further but temps are kinda worrying. Even with 1.32V offset mode voltage, core temps (core 1only, other core floating about 77c max) went up to 82c at the highest. So...yea...any ideas on how to improve temps? Currently rad is on top set to push config. Thanks sifus. This post has been edited by arffrhn: Mar 1 2017, 10:20 AM
Card PM	Report Top Like Quote Reply

cattscratch	Mar 1 2017, 11:52 PM Show posts by this member only \| Post #168
New Member Junior Member 33 posts Joined: Aug 2012	Anyone experiencing wrong readings on HWmonitor and CPU-Z? I set my core voltage to 1.280 in BIOS on manual mode, 4300MHZ (100x43) But when I run stress test at 100% CPU load CPU-Z give 1.3+ to 1.38+ voltage used.
Card PM	Report Top Like Quote Reply

TSowikh84	Mar 2 2017, 07:12 AM Show posts by this member only \| Post #169
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(arffrhn @ Feb 28 2017, 10:37 PM) Wanted to try pushing further but temps are kinda worrying. Even with 1.32V offset mode voltage, core temps (core 1only, other core floating about 77c max) went up to 82c at the highest. So...yea...any ideas on how to improve temps? Currently rad is on top set to push config. Thanks sifus. Nice OC, in future please also include a screenshot of the CPU-Z's motherboard tab in order to get listed in the Post #. Sounds like you will need a better cooling. Here's my 6600K @ 4.5GHz @ 1.370v cooled by custom WC of course : QUOTE(cattscratch @ Mar 1 2017, 11:52 PM) Anyone experiencing wrong readings on HWmonitor and CPU-Z? I set my core voltage to 1.280 in BIOS on manual mode, 4300MHZ (100x43) But when I run stress test at 100% CPU load CPU-Z give 1.3+ to 1.38+ voltage used. It is normal to have those vCore reading in Windows different from the value set through the UEFI BIOS. It is different from one board vendor to another. vCore shown in OS-based software is real time and correct one, but the most accurate is of course using a calibrated digital multi-meter (DMM). The differences is also contributed by the level of CPU voltage Load-line Calibration (LLC) you're using. Different LLC level will give you higher vdroop (lower vCore at load) or vdrop (higher vCore when loading). For instance, My 6600K OC 4.5GHz BIOS set 1.35v, LLC 7, but inside Windows CPU-Z reads 1.360v (Idle) and 1.376v (Load). This post has been edited by owikh84: Mar 2 2017, 07:22 AM
Card PM	Report Top Like Quote Reply

arffrhn	Mar 2 2017, 09:23 PM Show posts by this member only \| Post #170
Getting Started Junior Member 118 posts Joined: Jul 2015	[quote=owikh84,Mar 2 2017, 07:12 AM] Nice OC, in future please also include a screenshot of the CPU-Z's motherboard tab in order to get listed in the Post #. Sounds like you will need a better cooling. Here's my 6600K @ 4.5GHz @ 1.370v cooled by custom WC of course : Cannot afford for custom loop. Btw, Here is the pic with mobo tab.
Card PM	Report Top Like Quote Reply

TSowikh84	Mar 2 2017, 10:48 PM Show posts by this member only \| Post #171
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(arffrhn @ Mar 2 2017, 09:23 PM) Cannot afford for custom loop. Btw, Here is the pic with mobo tab. Very nice bro, welcome to the Club This post has been edited by owikh84: Mar 2 2017, 10:49 PM
Card PM	Report Top Like Quote Reply

Spetre	Mar 2 2017, 11:25 PM Show posts by this member only \| IPv6 \| Post #172
Enthusiast Senior Member 890 posts Joined: Nov 2008	QUOTE(cattscratch @ Mar 1 2017, 11:52 PM) Anyone experiencing wrong readings on HWmonitor and CPU-Z? I set my core voltage to 1.280 in BIOS on manual mode, 4300MHZ (100x43) But when I run stress test at 100% CPU load CPU-Z give 1.3+ to 1.38+ voltage used. because the LLC settings u set to auto
Card PM	Report Top Like Quote Reply

cattscratch	Mar 3 2017, 03:36 PM Show posts by this member only \| Post #173
New Member Junior Member 33 posts Joined: Aug 2012	QUOTE(owikh84 @ Mar 2 2017, 07:12 AM) It is normal to have those vCore reading in Windows different from the value set through the UEFI BIOS. It is different from one board vendor to another. vCore shown in OS-based software is real time and correct one, but the most accurate is of course using a calibrated digital multi-meter (DMM). The differences is also contributed by the level of CPU voltage Load-line Calibration (LLC) you're using. Different LLC level will give you higher vdroop (lower vCore at load) or vdrop (higher vCore when loading). For instance, My 6600K OC 4.5GHz BIOS set 1.35v, LLC 7, but inside Windows CPU-Z reads 1.360v (Idle) and 1.376v (Load). QUOTE(Spetre @ Mar 2 2017, 11:25 PM) because the LLC settings u set to auto Thanks for the replies guys...I appreciate it. So if I want minimum deviation from the manual amount set of 1.280V What level LLC should i set? 1 or 7 ?
Card PM	Report Top Like Quote Reply

TSowikh84	Mar 3 2017, 06:37 PM Show posts by this member only \| Post #174
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(cattscratch @ Mar 3 2017, 03:36 PM) Thanks for the replies guys...I appreciate it. So if I want minimum deviation from the manual amount set of 1.280V What level LLC should i set? 1 or 7 ? Every brand has different LLC behaviour, idle and load voltages. I suggest you to try the LLC levels one by one.
Card PM	Report Top Like Quote Reply

angel-girl	Mar 13 2017, 11:12 AM Show posts by this member only \| Post #175
Look at all my stars!! Senior Member 3,403 posts Joined: Nov 2008	Hi guys, i overclocked my i7 6700k to 4.5ghz recently with 1.280v and with the h115i corsair. everything is fine with the stresstest using aida64,asus realbench and hwmonitor. but i have some questions for the cpu temp. in aida64 statistic, cpu temp 55c,CAM 60c,asus isuite3 58c, hwmonitor 71c and corsair link 71c as well(temp can go down to 58c and shoot up to 70c and drop again to 65c) ,all under full load.room temp 30c which one should i trust? after that i turn on msi afterburner to check in game cpu temp and i got around 60c (30-40% cpu load) with Rainbow 6 Siege. i've tried reapply the thermal paste and reseat the pump but no changes. is my temp normal? im a newbie in oc ,sifu sifu pls advice, tq This post has been edited by angel-girl: Mar 13 2017, 11:15 AM
Card PM	Report Top Like Quote Reply

TSowikh84	Mar 13 2017, 09:42 PM Show posts by this member only \| Post #176
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(angel-girl @ Mar 13 2017, 11:12 AM) Hi guys, i overclocked my i7 6700k to 4.5ghz recently with 1.280v and with the h115i corsair. everything is fine with the stresstest using aida64,asus realbench and hwmonitor. but i have some questions for the cpu temp. in aida64 statistic, cpu temp 55c,CAM 60c,asus isuite3 58c, hwmonitor 71c and corsair link 71c as well(temp can go down to 58c and shoot up to 70c and drop again to 65c) ,all under full load.room temp 30c which one should i trust? after that i turn on msi afterburner to check in game cpu temp and i got around 60c (30-40% cpu load) with Rainbow 6 Siege. i've tried reapply the thermal paste and reseat the pump but no changes. is my temp normal? im a newbie in oc ,sifu sifu pls advice, tq Use Realtemp or Coretemp to monitor core temps, not CPU package temp like certain software. Here's my 6700K running at 4.5GHz @ 1.312v, cooled by a custom watercooling kit comprising of dual 360 radiators:
Card PM	Report Top Like Quote Reply

cattscratch	Mar 14 2017, 02:46 AM Show posts by this member only \| Post #177
New Member Junior Member 33 posts Joined: Aug 2012	QUOTE(owikh84 @ Mar 3 2017, 06:37 PM) Every brand has different LLC behaviour, idle and load voltages. I suggest you to try the LLC levels one by one. I tried each LLC levels from 1-7, all gives similar results My rig is i7-6700K and Asus z170 Pro Gaming I set my bios to 1.280 VID at 4300MHZ Readings at HWMonitor and CPUID goes from 0.773v at idle to 1.380v at full load. Otherwise current readings usually at 1.320v... My readings never show 1.280v
Card PM	Report Top Like Quote Reply

cattscratch	Mar 14 2017, 03:55 AM Show posts by this member only \| Post #178
New Member Junior Member 33 posts Joined: Aug 2012	QUOTE(cattscratch @ Mar 14 2017, 02:46 AM) I tried each LLC levels from 1-7, all gives similar results My rig is i7-6700K and Asus z170 Pro Gaming I set my bios to 1.280 VID at 4300MHZ Readings at HWMonitor and CPUID goes from 0.773v at idle to 1.380v at full load. Otherwise current readings usually at 1.320v... My readings never show 1.280v After doing some research...I have found that you need to switch the adaptive mode and offset values from Auto -> min value
Card PM	Report Top Like Quote Reply

angel-girl	Mar 14 2017, 09:32 AM Show posts by this member only \| Post #179
Look at all my stars!! Senior Member 3,403 posts Joined: Nov 2008	QUOTE(owikh84 @ Mar 13 2017, 09:42 PM) Use Realtemp or Coretemp to monitor core temps, not CPU package temp like certain software. Here's my 6700K running at 4.5GHz @ 1.312v, cooled by a custom watercooling kit comprising of dual 360 radiators: thanks for your reply. so yours full load 70c. what about in game temp? also does your cpu temp fluctuating? like 50-64c and drop to 49c.
Card PM	Report Top Like Quote Reply

arffrhn	Mar 14 2017, 03:15 PM Show posts by this member only \| IPv6 \| Post #180
Getting Started Junior Member 118 posts Joined: Jul 2015	QUOTE(angel-girl @ Mar 14 2017, 09:32 AM) thanks for your reply. so yours full load 70c. what about in game temp? also does your cpu temp fluctuating? like 50-64c and drop to 49c. It is normal for temps to jumps around a few C. Usually game will run on lower temps but will still fluctuates a bit not like gpu temps. As voltage is the main cause for cpu temps rise, the logical reasoning imo is because voltage supplied to the core is like a pwm signal that is regulated by the choke. So depending on your mobo, higher end mobo has more phases and more stable volt supply. More stable volt maybe less temp fluctuates. Either way, 70C on full load is nothing to worry about bro.
Card PM	Report Top Like Quote Reply

TSowikh84	Mar 14 2017, 08:38 PM Show posts by this member only \| Post #181
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(angel-girl @ Mar 14 2017, 09:32 AM) thanks for your reply. so yours full load 70c. what about in game temp? also does your cpu temp fluctuating? like 50-64c and drop to 49c. CPU temp during gaming was hovering around 60-70c depending on the game titles. Temp fluctuates as the CPU load level goes up and down. Look at this example:
Card PM	Report Top Like Quote Reply

angel-girl	Mar 15 2017, 09:32 AM Show posts by this member only \| Post #182
Look at all my stars!! Senior Member 3,403 posts Joined: Nov 2008	alright got it, thanks guys!
Card PM	Report Top Like Quote Reply

acther	Apr 7 2017, 04:08 PM Show posts by this member only \| Post #183
Casual Junior Member 317 posts Joined: Jan 2009	Hmm let me do some oc also with my 7700k haha
Card PM	Report Top Like Quote Reply

TSowikh84	Apr 7 2017, 09:35 PM Show posts by this member only \| Post #184
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(acther @ Apr 7 2017, 04:08 PM) Hmm let me do some oc also with my 7700k haha What's your motherboard, RAM and cooling? Can't wait to see your OC results
Card PM	Report Top Like Quote Reply

TSowikh84	Apr 7 2017, 10:16 PM Show posts by this member only \| Post #185
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	Benching time... 7700K ROG Maximus IX APEX G.Skill TridentZ RGB DDR4-4266MHz 2x8GB » Click to show Spoiler - click again to hide... « » Click to show Spoiler - click again to hide... « Stock memory frequency - DDR4-4266MHz CL19-19-19-39-2T @ 1.40v » Click to show Spoiler - click again to hide... « Board and RAM are strong overclockers, managed to push the memory to DDR4-4300MHz without touching the stock voltage of 1.40v This post has been edited by owikh84: Apr 8 2017, 07:39 AM
Card PM	Report Top Like Quote Reply

acther	Apr 8 2017, 02:30 AM Show posts by this member only \| Post #186
Casual Junior Member 317 posts Joined: Jan 2009	QUOTE(owikh84 @ Apr 7 2017, 10:16 PM) Benching time... 7700K ROG Maximus IX APEX G.Skill TridentZ RGB DDR4-4266MHz 2x8GB » Click to show Spoiler - click again to hide... « http://www.ocdrift.com/wp-content/uploads/2017/04/007-e1491574372461.jpg » Click to show Spoiler - click again to hide... « Stock memory frequency - DDR4-4266MHz CL19-19-19-39-2T @ 1.40v » Click to show Spoiler - click again to hide... « Board and RAM are strong overclockers, managed to push the memory to DDR4-4300MHz without touching the stock voltage of 1.40v Exact same as u. Hahaha
Card PM	Report Top Like Quote Reply

acther	Apr 8 2017, 02:38 AM Show posts by this member only \| Post #187
Casual Junior Member 317 posts Joined: Jan 2009	Jus got the ram today also Just got time to play around
Card PM	Report Top Like Quote Reply

acther	Apr 8 2017, 02:42 AM Show posts by this member only \| Post #188
Casual Junior Member 317 posts Joined: Jan 2009	Retired so long already. Gimme some tips to oc
Card PM	Report Top Like Quote Reply

TSowikh84	Apr 8 2017, 07:47 AM Show posts by this member only \| IPv6 \| Post #189
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(acther @ Apr 8 2017, 02:38 AM) Jus got the ram today also Just got time to play around QUOTE(acther @ Apr 8 2017, 02:42 AM) Retired so long already. Gimme some tips to oc Lol, so you're the one who ordered the RAM from IdealTech? OCbility is huge on this Samsung B-die memory kit. The most important thing is you need to play a lot with VCCSA and VCCIO voltages. But first of all, have you managed to get the RAM run at its specified frequency as of XMP @ DDR4-4266 C19? This post has been edited by owikh84: Apr 8 2017, 10:40 AM
Card PM	Report Top Like Quote Reply

acther	Apr 8 2017, 12:47 PM Show posts by this member only \| Post #190
Casual Junior Member 317 posts Joined: Jan 2009	QUOTE(owikh84 @ Apr 8 2017, 07:47 AM) Lol, so you're the one who ordered the RAM from IdealTech? OCbility is huge on this Samsung B-die memory kit. The most important thing is you need to play a lot with VCCSA and VCCIO voltages. But first of all, have you managed to get the RAM run at its specified frequency as of XMP @ DDR4-4266 C19? haha yes idealtech i wanna run with adaptive voltage so don wanna change the bclk 4133 will do for me whats the best speed and timing u can get for 1t stable? under 1.4v dram voltage and what sa and vccio voltage? heheh
Card PM	Report Top Like Quote Reply

TSowikh84	Apr 8 2017, 01:11 PM Show posts by this member only \| Post #191
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(acther @ Apr 8 2017, 12:47 PM) haha yes idealtech i wanna run with adaptive voltage so don wanna change the bclk 4133 will do for me whats the best speed and timing u can get for 1t stable? under 1.4v dram voltage and what sa and vccio voltage? heheh Kaby Lake doesn't like 1T and requires voltage bump, addition training, and skill that's why I don't bother using it. 2T for now. Buying a 4266 kit but running at 4133 IMO kind of waste of money, you should just take the 4133 instead of this, just saying.
Card PM	Report Top Like Quote Reply

TSowikh84	Apr 8 2017, 01:26 PM Show posts by this member only \| Post #192
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	Today decided to make a nameplate for ROG Maximus IX APEX. Keep pushing it!
Card PM	Report Top Like Quote Reply

acther	Apr 8 2017, 01:28 PM Show posts by this member only \| Post #193
Casual Junior Member 317 posts Joined: Jan 2009	Haha because I'm very stable at 5.1 now don't wanna mess with the bclk
Card PM	Report Top Like Quote Reply

TSowikh84	Apr 8 2017, 01:35 PM Show posts by this member only \| Post #194
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(acther @ Apr 8 2017, 01:28 PM) Haha because I'm very stable at 5.1 now don't wanna mess with the bclk Pretty sure you can do that manually bro How much is your 7700K's load voltage @ 5.1? What's your chip's VID bro? (Read through UEFI with everything default and power saving features disabled)
Card PM	Report Top Like Quote Reply

acther	Apr 8 2017, 03:22 PM Show posts by this member only \| Post #195
Casual Junior Member 317 posts Joined: Jan 2009	Using llc 5 Vcore in bios 1.347 Readings in hwmonitor in 1.36 Temp max at 62-65 using aio Thinking whether should I go custom wc It's quite waste Better to throw another 1080ti in better for the cost of custom wc Vid I'm not sure Got little time for the comp Later midnight I'll find out
Card PM	Report Top Like Quote Reply

acther	Apr 8 2017, 03:23 PM Show posts by this member only \| Post #196
Casual Junior Member 317 posts Joined: Jan 2009	Btw I'm using avx offset 1 To get to 5.2 need a lot more vcore I guess the cpu hits the wall at 5.1
Card PM	Report Top Like Quote Reply

acther	Apr 8 2017, 03:25 PM Show posts by this member only \| Post #197
Casual Junior Member 317 posts Joined: Jan 2009	Find one day come out yc teach me I'm totally outdated Almost 7 years never play with desktop haha
Card PM	Report Top Like Quote Reply

acther	Apr 8 2017, 03:28 PM Show posts by this member only \| Post #198
Casual Junior Member 317 posts Joined: Jan 2009	QUOTE(owikh84 @ Apr 8 2017, 01:35 PM) Pretty sure you can do that manually bro How much is your 7700K's load voltage @ 5.1? What's your chip's VID bro? (Read through UEFI with everything default and power saving features disabled) Bro what's ur phone number haha Anything I don know can whatsapp u lol I only got 1-2 hours for comp everyday only Sad Way busy atm
Card PM	Report Top Like Quote Reply

TSowikh84	Apr 9 2017, 02:15 PM Show posts by this member only \| Post #199
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	Here's what I found after few days playing with the 4266 kit 1) with XMP profile loaded at 4266 19-19-19-39 @ 1.40v, the RAM gives a lot of 55 code at reboot. This could be due to the PCB with the LED causing unncessary interferences or the mobo (BIOS) is not fine-tuned to achieve such a high mem frequency 2) the RAM runs fine with perfect reboot at 4133 19-19-19-39 @ 1.35v 3 G.Skill RGB software is still in beta stage, so it has compatibility/conflict issues with ASUS Aura software in which both software can't be used at the same time. In my case, I just use ASUS's software to control both mobo and RAM
Card PM	Report Top Like Quote Reply

acther	Apr 9 2017, 02:55 PM Show posts by this member only \| Post #200
Casual Junior Member 317 posts Joined: Jan 2009	QUOTE(owikh84 @ Apr 9 2017, 02:15 PM) Here's what I found after few days playing with the 4266 kit 1) with XMP profile loaded at 4266 19-19-19-39 @ 1.40v, the RAM gives a lot of 55 code at reboot. This could be due to the PCB with the LED causing unncessary interferences or the mobo (BIOS) is not fine-tuned to achieve such a high mem frequency 2) the RAM runs fine with perfect reboot at 4133 19-19-19-39 @ 1.35v 3 G.Skill RGB software is still in beta stage, so it has compatibility/conflict issues with ASUS Aura software in which both software can't be used at the same time. In my case, I just use ASUS's software to control both mobo and RAM Im ok with it now 4133@1.37v hci 1000% using it for 24/7 got time only see how to get 1t and lower timings
Card PM	Report Top Like Quote Reply

acther	Apr 9 2017, 03:48 PM Show posts by this member only \| Post #201
Casual Junior Member 317 posts Joined: Jan 2009	QUOTE(owikh84 @ Apr 9 2017, 02:15 PM) Here's what I found after few days playing with the 4266 kit 1) with XMP profile loaded at 4266 19-19-19-39 @ 1.40v, the RAM gives a lot of 55 code at reboot. This could be due to the PCB with the LED causing unncessary interferences or the mobo (BIOS) is not fine-tuned to achieve such a high mem frequency 2) the RAM runs fine with perfect reboot at 4133 19-19-19-39 @ 1.35v 3 G.Skill RGB software is still in beta stage, so it has compatibility/conflict issues with ASUS Aura software in which both software can't be used at the same time. In my case, I just use ASUS's software to control both mobo and RAM Btw I feel the best is to run this kit at 3866@c16 Performance diff is very small but latency should be much better I'll try it out next weekend. But I got to say I love this board n ram Able to run such high CPU clock with so high speed ram with ease Running integrated graphic atm Maybe I might go higher after getting my gc and disable the 630graphic
Card PM	Report Top Like Quote Reply

TSowikh84	Apr 9 2017, 06:23 PM Show posts by this member only \| Post #202
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(acther @ Apr 9 2017, 03:48 PM) Btw I feel the best is to run this kit at 3866@c16 Performance diff is very small but latency should be much better I'll try it out next weekend. But I got to say I love this board n ram Able to run such high CPU clock with so high speed ram with ease Running integrated graphic atm Maybe I might go higher after getting my gc and disable the 630graphic Well I don't buy this kit just to see it will be downclocked Keep pushing This post has been edited by owikh84: Apr 9 2017, 08:02 PM
Card PM	Report Top Like Quote Reply

acther	Apr 9 2017, 08:48 PM Show posts by this member only \| Post #203
Casual Junior Member 317 posts Joined: Jan 2009	QUOTE(owikh84 @ Apr 9 2017, 06:23 PM) Well I don't buy this kit just to see it will be downclocked Keep pushing Am encountering same thing as u. Not 100% post with 4266 xmp
Card PM	Report Top Like Quote Reply

acther	Apr 9 2017, 08:52 PM Show posts by this member only \| Post #204
Casual Junior Member 317 posts Joined: Jan 2009	QUOTE(owikh84 @ Apr 9 2017, 06:23 PM) Well I don't buy this kit just to see it will be downclocked Keep pushing After done tuning with the ram settings, 4133 should be able to push more bandwidth n faster than 4266. Pls let me know if u find a way to get the 4266 to run stable
Card PM	Report Top Like Quote Reply

ah_khoo	Apr 14 2017, 01:35 AM Show posts by this member only \| Post #205
- No Action Talk Only - Elite 8,103 posts Joined: Jan 2003 From: Tanah Lot @ Dungun, Terengganu.	my 1st adventure on ddr4...
Card PM	Report Top Like Quote Reply

tcsee	Apr 14 2017, 02:56 PM Show posts by this member only \| Post #206
Getting Started Junior Member 88 posts Joined: Mar 2006 From: Penang Island	Hi, If you run some synthetic benchmark, like Realbench, what is the temperature? My Kaby Lake core i7-7700k, I can only OC'ed to 4.8GHz, Realbench temp reaching ~88'C max, if I clocked higher I'm really not comfortable with the temperature. But come thinking of it, our daily tasks (surfing, gaming) we don't push the core going 100% utilization like what RealBench does, maybe I should go for 5GHz? (without running RealBench to stress test)...as long as it didn't blue screen when I game, I should call it stable and good enough. Is this a good way to judge a system as stable, meaning running my own apps and games, without doing RealBench? QUOTE(acther @ Apr 8 2017, 03:22 PM) Using llc 5 Vcore in bios 1.347 Readings in hwmonitor in 1.36 Temp max at 62-65 using aio Thinking whether should I go custom wc It's quite waste Better to throw another 1080ti in better for the cost of custom wc Vid I'm not sure Got little time for the comp Later midnight I'll find out
Card PM	Report Top Like Quote Reply

acther	Apr 14 2017, 04:05 PM Show posts by this member only \| Post #207
Casual Junior Member 317 posts Joined: Jan 2009	QUOTE(tcsee @ Apr 14 2017, 02:56 PM) Hi, If you run some synthetic benchmark, like Realbench, what is the temperature? My Kaby Lake core i7-7700k, I can only OC'ed to 4.8GHz, Realbench temp reaching ~88'C max, if I clocked higher I'm really not comfortable with the temperature. But come thinking of it, our daily tasks (surfing, gaming) we don't push the core going 100% utilization like what RealBench does, maybe I should go for 5GHz? (without running RealBench to stress test)...as long as it didn't blue screen when I game, I should call it stable and good enough. Is this a good way to judge a system as stable, meaning running my own apps and games, without doing RealBench? My temps for realbench is 60c+ at 5ghz. CPU is delidded u can use 2 or 3 offset for avx to keep the temps down i guess avx is hardly used in games or software at the current point
Card PM	Report Top Like Quote Reply

acther	Apr 14 2017, 04:08 PM Show posts by this member only \| Post #208
Casual Junior Member 317 posts Joined: Jan 2009	QUOTE(tcsee @ Apr 14 2017, 02:56 PM) Hi, If you run some synthetic benchmark, like Realbench, what is the temperature? My Kaby Lake core i7-7700k, I can only OC'ed to 4.8GHz, Realbench temp reaching ~88'C max, if I clocked higher I'm really not comfortable with the temperature. But come thinking of it, our daily tasks (surfing, gaming) we don't push the core going 100% utilization like what RealBench does, maybe I should go for 5GHz? (without running RealBench to stress test)...as long as it didn't blue screen when I game, I should call it stable and good enough. Is this a good way to judge a system as stable, meaning running my own apps and games, without doing RealBench? If i were u i will push the CPU to the highest with max temp under 80c use p95 26.6 to test on the CPU stability. This version is without AVX Then use a 2-3 offset for the AVX Dont bother too much on the AVX haha BTW you better off asking those sifu s here im still new on this 7700k oc but what i experience is 7700k is very simple to oc its the memory part that is headache hahaha This post has been edited by acther: Apr 14 2017, 04:12 PM
Card PM	Report Top Like Quote Reply

TSowikh84	Apr 14 2017, 11:48 PM Show posts by this member only \| Post #209
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(ah_khoo @ Apr 14 2017, 01:35 AM) my 1st adventure on ddr4... First Pentium G4560 here! I used to own the same Vengeance LED 3200C16 kit but never really had the time to push it until I decided to let it go. The label indicated that it's using Samsung ICs, but no idea what's the specific type of die it used. QUOTE(tcsee @ Apr 14 2017, 02:56 PM) Hi, If you run some synthetic benchmark, like Realbench, what is the temperature? My Kaby Lake core i7-7700k, I can only OC'ed to 4.8GHz, Realbench temp reaching ~88'C max, if I clocked higher I'm really not comfortable with the temperature. But come thinking of it, our daily tasks (surfing, gaming) we don't push the core going 100% utilization like what RealBench does, maybe I should go for 5GHz? (without running RealBench to stress test)...as long as it didn't blue screen when I game, I should call it stable and good enough. Is this a good way to judge a system as stable, meaning running my own apps and games, without doing RealBench? Realbench 85C max here at 5.0GHz under custom watercooling: Well, OC stability is still a debatable topic since ages ago because of different experiences by different overclockers. You can choose to skip stability testing, gaming without instability issue and call it stable, but some other people might think achieving 100% stability is a mandatory because they need it for their work. I'd say it's up to you to decide what you need. RealBench uses AVX instructions thus generating a lot of heat. If you're not using AVX-based programs then there's no use of it. Gaming won't take any benefit of it. Like acther said, you can use the AVX offset to "control" the heat. For instance, 5.0GHz OC with AVX offset of 2 will reduce the frequency to 4.8GHz hence reducing the heat. For gaming you still get 5.0GHz with no speed reduction.
Card PM	Report Top Like Quote Reply

TSowikh84	Apr 15 2017, 12:03 AM Show posts by this member only \| Post #210
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(acther @ Apr 14 2017, 04:08 PM) If i were u i will push the CPU to the highest with max temp under 80c use p95 26.6 to test on the CPU stability. This version is without AVX Then use a 2-3 offset for the AVX Dont bother too much on the AVX haha BTW you better off asking those sifu s here im still new on this 7700k oc but what i experience is 7700k is very simple to oc its the memory part that is headache hahaha Regarding our 4266 RAM being unable to reboot at the rated frequency, yesterday I've actually contacted both G.Skill and ASUS HQ for advice. Based on their reply, they are suspecting that weak CPU IMC might be the culprit. Weak IMC means you will have to increase the VCCSA, VCCIO and/or VDIMM. Looks like our journey is still long way to go, probably need another CPU to test out or even worse, a proper (extreme) cooling to "open" the IMC.
Card PM	Report Top Like Quote Reply

acther	Apr 15 2017, 01:44 PM Show posts by this member only \| Post #211
Casual Junior Member 317 posts Joined: Jan 2009	QUOTE(owikh84 @ Apr 15 2017, 12:03 AM) Regarding our 4266 RAM being unable to reboot at the rated frequency, yesterday I've actually contacted both G.Skill and ASUS HQ for advice. Based on their reply, they are suspecting that weak CPU IMC might be the culprit. Weak IMC means you will have to increase the VCCSA, VCCIO and/or VDIMM. Looks like our journey is still long way to go, probably need another CPU to test out or even worse, a proper (extreme) cooling to "open" the IMC. I'm encountering some prob also here. I'm very stable on 4133 c18. I try to tighten up all the timings n lower to c17. Hci tends to fail at the 200% mark for 3 days trying to play around with the voltage n sub timing still no luck. Any idea?
Card PM	Report Top Like Quote Reply

TSowikh84	Apr 16 2017, 12:07 PM Show posts by this member only \| Post #212
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(acther @ Apr 15 2017, 01:44 PM) I'm encountering some prob also here. I'm very stable on 4133 c18. I try to tighten up all the timings n lower to c17. Hci tends to fail at the 200% mark for 3 days trying to play around with the voltage n sub timing still no luck. Any idea? It sounds like you've hit the CAS wall at such a high memory frequency. 4133C17 is so tight AF. I think 4133C18 should be good enough since you said it's stable. Suddenly 4266C19 because of multiple failed reboot code 55/49, my OS corrupted I've got a few 7700K coming to sort out whether it's really due to weak IMC of my current chip. This post has been edited by owikh84: Apr 16 2017, 12:35 PM
Card PM	Report Top Like Quote Reply

acther	Apr 16 2017, 04:37 PM Show posts by this member only \| Post #213
Casual Junior Member 317 posts Joined: Jan 2009	QUOTE(owikh84 @ Apr 16 2017, 12:07 PM) It sounds like you've hit the CAS wall at such a high memory frequency. 4133C17 is so tight AF. I think 4133C18 should be good enough since you said it's stable. Suddenly 4266C19 because of multiple failed reboot code 55/49, my OS corrupted I've got a few 7700K coming to sort out whether it's really due to weak IMC of my current chip. Are u sponsored? Can get so many CPU to try! Am trying to mess with rtl iol now to see if works
Card PM	Report Top Like Quote Reply

acther	Apr 16 2017, 04:43 PM Show posts by this member only \| Post #214
Casual Junior Member 317 posts Joined: Jan 2009	QUOTE(owikh84 @ Apr 16 2017, 12:07 PM) It sounds like you've hit the CAS wall at such a high memory frequency. 4133C17 is so tight AF. I think 4133C18 should be good enough since you said it's stable. Suddenly 4266C19 because of multiple failed reboot code 55/49, my OS corrupted I've got a few 7700K coming to sort out whether it's really due to weak IMC of my current chip. Gskill just announced 4333 kit also haha Get n try it out when available
Card PM	Report Top Like Quote Reply

TSowikh84	Apr 16 2017, 08:37 PM Show posts by this member only \| Post #215
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(acther @ Apr 16 2017, 04:37 PM) Are u sponsored? Can get so many CPU to try! Am trying to mess with rtl iol now to see if works QUOTE(acther @ Apr 16 2017, 04:43 PM) Gskill just announced 4333 kit also haha Get n try it out when available I also wish they are sponsored units lol. Yeah that 4333 is crazy, can do 4500 19-19-19 on air BTW, they also showcased 4500 16-16-16 during Computex 2016 http://www.ocdrift.com/computex-2016-g-ski...-carousel-30909 Not just that, G.Skill is currently binning for 4400 kit, coming soon. QUOTE Bonus: DDR4-4400MHz 16GB (8GBx2) As an extra bonus sneak-peek, the screenshot below shows DDR4-4400MHz being stress tested. The specifications are still under development, and would require some time to be ready for market production. http://www.ocdrift.com/g-skill-announces-d...-4500mhz-speed/ This post has been edited by owikh84: Apr 16 2017, 08:42 PM
Card PM	Report Top Like Quote Reply

acther	Apr 16 2017, 11:06 PM Show posts by this member only \| Post #216
Casual Junior Member 317 posts Joined: Jan 2009	QUOTE(owikh84 @ Apr 16 2017, 08:37 PM) I also wish they are sponsored units lol. Yeah that 4333 is crazy, can do 4500 19-19-19 on air BTW, they also showcased 4500 16-16-16 during Computex 2016 http://www.ocdrift.com/computex-2016-g-ski...-carousel-30909 Not just that, G.Skill is currently binning for 4400 kit, coming soon. http://www.ocdrift.com/g-skill-announces-d...-4500mhz-speed/ wow ! hahaha gonna order the 4500 when out woot!
Card PM	Report Top Like Quote Reply

TSowikh84	Apr 17 2017, 08:58 PM Show posts by this member only \| Post #217
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(acther @ Apr 16 2017, 11:06 PM) wow ! hahaha gonna order the 4500 when out woot! But... still need to figure out how to run this 4266 properly first
Card PM	Report Top Like Quote Reply

acther	Apr 18 2017, 02:21 AM Show posts by this member only \| Post #218
Casual Junior Member 317 posts Joined: Jan 2009	QUOTE(owikh84 @ Apr 17 2017, 08:58 PM) But... still need to figure out how to run this 4266 properly first gave up already hahah saw a lot of ppl able to run 4133@1T with low voltage i think we are having some weak imc im like only 20% able to successfuly boot with 4266 whats the best stable speed n timing u get on the ram? This post has been edited by acther: Apr 18 2017, 02:23 AM
Card PM	Report Top Like Quote Reply

goldfries	Apr 18 2017, 02:33 AM Show posts by this member only \| Post #219
40K Club Forum Admin 44,415 posts Joined: Jan 2003	QUOTE(acther @ Apr 16 2017, 04:37 PM) Are u sponsored? Can get so many CPU to try! Am trying to mess with rtl iol now to see if works Good luck on that. Intel has shifted operations to Singapore, their involvement with Malaysian media has significantly reduced. Even for past years I have to buy processors, I've been buying them since Haswell.
Card PM	Report Top Like Quote Reply

ah_khoo	Apr 18 2017, 03:50 PM Show posts by this member only \| Post #220
- No Action Talk Only - Elite 8,103 posts Joined: Jan 2003 From: Tanah Lot @ Dungun, Terengganu.	QUOTE(owikh84 @ Apr 14 2017, 11:48 PM) First Pentium G4560 here! I used to own the same Vengeance LED 3200C16 kit but never really had the time to push it until I decided to let it go. i think that's d last 1st & last entry for d chip bro, moving to Skylake i3 for some bclk oc fun (i know it's kinda late ). mine is ver 5.39, so not Ryzen ready hence it gotta go.
Card PM	Report Top Like Quote Reply

TSowikh84	Apr 18 2017, 07:42 PM Show posts by this member only \| Post #221
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(acther @ Apr 18 2017, 02:21 AM) gave up already hahah saw a lot of ppl able to run 4133@1T with low voltage i think we are having some weak imc im like only 20% able to successfuly boot with 4266 whats the best stable speed n timing u get on the ram? Kinda busy these few days, so max I tried so far is 4133 19-19-19-39-2T @ 1.35v lol. Super-stable and reboots flawlessly. Right now I'm having issue with the Apex, so have to stop there. Btw, here's reply from G.Skill HQ regarding the kit being unable to run at the rated 4266 speed. QUOTE First and foremost, I’d like to make clear that because your CPU hasn’t been tested to confirm the IMC’s capability of supporting 4266MHz, it’s likely the main reason why only XMP isn’t working. However, I can help you through steps to find out how high of a memory frequency your CPU can support. 1. To begin, please make sure that you go into BIOS and reset settings to optimal defaults. We need to make sure we start off from the most basic of settings, then apply setting changes to memory. It’d be good if you get into the habit of tweaking memory settings first, before making changes to the CPU, like the CPU frequency or CPU related voltages. 2. Go into Ai Tweaker tab, and enable XMP. Then go down to the DRAM Frequency, and adjust it down to DDR4-3600MHz and change the DRAM Voltage to 1.350V. Save and exit. Can your system boot successfully into Windows at this speed? a. If your system can’t boot at 3600MHz, please let me know. The CPU’s IMC is likely very weak. 3. If #2 was successful, go back into BIOS, change DRAM Frequency to DDR4-3866MHz. Can your system boot successfully into Windows at this speed? a. If DDR4-3866MHz was not successful, then you might want to check the CPU thermal paste to see if it’s dried. Or if your CPU cooling fan is screwed on too tightly or not evenly. Then try #2 again. 4. If #3 was successful, go back into BIOS, change DRAM Frequency to DDR4-4000MHz. Can your system boot successfully into Windows at this speed? a. If 4000MHz was not successful, then 3866MHz is likely your processor’s limit. In this case, make sure XMP is enabled, then change the following settings: i. DRAM Frequency = 3866MHz ii. DRAM Voltage = 1.35V iii. CL Timing = 18-19-19-39 iv. Command Rate = 2 5. If #4 was successful, go back into BIOS, change DRAM Frequency to DDR4-4133MHz and change the DRAM Voltage to 1.40V. Can your system boot successfully into Windows at this speed? a. If 4133MHz was not successful, then 4000MHz is likely the processor’s limit. In this case, make sure XMP is enabled, then change the following settings: i. DRAM Frequency = 4000MHz ii. DRAM Voltage = 1.35V iii. CL Timing = 18-19-19-39 iv. Command Rate = 2 6. If #5 was successful at 4133MHz, change DRAM Frequency to DDR4-4266MHz with DRAM Voltage of 1.40V. If you are still getting error 55 or 49, hit a white “Retry” button just below the Reset button on the motherboard, and see if this helps booting into the system under XMP settings. Kindly let me know how far you can go with the steps above. Please do note that XMP is enabled in all cases before manually changing BIOS memory settings.
Card PM	Report Top Like Quote Reply

acther	Apr 18 2017, 09:18 PM Show posts by this member only \| Post #222
Casual Junior Member 317 posts Joined: Jan 2009	QUOTE(owikh84 @ Apr 18 2017, 07:42 PM) Kinda busy these few days, so max I tried so far is 4133 19-19-19-39-2T @ 1.35v lol. Super-stable and reboots flawlessly. Right now I'm having issue with the Apex, so have to stop there. Btw, here's reply from G.Skill HQ regarding the kit being unable to run at the rated 4266 speed. The reply is all 废话 hahahhahahah
Card PM	Report Top Like Quote Reply

ah_khoo	Apr 19 2017, 11:28 PM Show posts by this member only \| Post #223
- No Action Talk Only - Elite 8,103 posts Joined: Jan 2003 From: Tanah Lot @ Dungun, Terengganu.	that's d highest i can manage... temp aside limit wise it is almost there already... ah_khoo \| i3 6300 \| 4.5GHz @ 1.39v \| GIGABYTE Z170X-UD3-CF \| Air (GeminII M4 LP) This post has been edited by ah_khoo: Apr 20 2017, 09:15 AM
Card PM	Report Top Like Quote Reply

TSowikh84	Apr 20 2017, 09:54 PM Show posts by this member only \| Post #224
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(ah_khoo @ Apr 19 2017, 11:28 PM) that's d highest i can manage... temp aside limit wise it is almost there already... ah_khoo \| i3 6300 \| 4.5GHz @ 1.39v \| GIGABYTE Z170X-UD3-CF \| Air (GeminII M4 LP) fuhh.. it's quite rare to see people playing with BCLK OC that high nowadays Vengeance LPX DDR4 spotted
Card PM	Report Top Like Quote Reply

ah_khoo	Apr 20 2017, 10:27 PM Show posts by this member only \| Post #225
- No Action Talk Only - Elite 8,103 posts Joined: Jan 2003 From: Tanah Lot @ Dungun, Terengganu.	novice level at best only bro... 3600MHz on ram is a no go, should i pump more vdimm (than exisiting 1.35v)? looseen timing to 17-19-19 didnt help. vccio & vsa already @ 1.2v. waitin for d delid kit to pop d chip for lower temp... This post has been edited by ah_khoo: Apr 20 2017, 10:28 PM
Card PM	Report Top Like Quote Reply

TSowikh84	Apr 21 2017, 07:02 PM Show posts by this member only \| Post #226
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(ah_khoo @ Apr 20 2017, 10:27 PM) novice level at best only bro... 3600MHz on ram is a no go, should i pump more vdimm (than exisiting 1.35v)? looseen timing to 17-19-19 didnt help. vccio & vsa already @ 1.2v. waitin for d delid kit to pop d chip for lower temp... I'd give that VCCSA a bump, say 1.35v. It's try and error to find the right VCCSA + VCCIO. Some CPU IMC really need that much to achieve stability at higher memory frequencies.
Card PM	Report Top Like Quote Reply

acther	Apr 24 2017, 03:43 AM Show posts by this member only \| Post #227
Casual Junior Member 317 posts Joined: Jan 2009	Finally got 4133c17 stable 1000% hci High sa and vccio voltage has made it unstable previously Lowered it down to 1.2 and 1.15 and everything passed with no errors
Card PM	Report Top Like Quote Reply

TSowikh84	Apr 24 2017, 08:25 AM Show posts by this member only \| IPv6 \| Post #228
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(acther @ Apr 24 2017, 03:43 AM) Finally got 4133c17 stable 1000% hci High sa and vccio voltage has made it unstable previously Lowered it down to 1.2 and 1.15 and everything passed with no errors Good job! Seems that your chip has a strong IMC. Any screenshot? This post has been edited by owikh84: Apr 24 2017, 10:15 AM
Card PM	Report Top Like Quote Reply

acther	Apr 24 2017, 05:16 PM Show posts by this member only \| Post #229
Casual Junior Member 317 posts Joined: Jan 2009	QUOTE(owikh84 @ Apr 24 2017, 08:25 AM) Good job! Seems that your chip has a strong IMC. Any screenshot? There u go the timings. Best i could do at 1.4v for vdimm 1.15v vccio 1.2 sa btw this is mode 1 mode 2 seems slower This post has been edited by acther: Apr 24 2017, 05:17 PM
Card PM	Report Top Like Quote Reply

TSowikh84	Apr 24 2017, 09:39 PM Show posts by this member only \| Post #230
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(acther @ Apr 24 2017, 05:16 PM) There u go the timings. Best i could do at 1.4v for vdimm 1.15v vccio 1.2 sa btw this is mode 1 mode 2 seems slower Saw a hwbot member managed to do it better with a 3600C15 kit... 4133 17-17-17-1T @ 1.375v Somehow he's not able to push the same RAM up to 4266 Source: http://forum.hwbot.org/showpost.php?p=484817&postcount=200
Card PM	Report Top Like Quote Reply

acther	Apr 25 2017, 02:16 AM Show posts by this member only \| Post #231
Casual Junior Member 317 posts Joined: Jan 2009	QUOTE(owikh84 @ Apr 24 2017, 09:39 PM) Saw a hwbot member managed to do it better with a 3600C15 kit... 4133 17-17-17-1T @ 1.375v Somehow he's not able to push the same RAM up to 4266 Source: http://forum.hwbot.org/showpost.php?p=484817&postcount=200 Ya saw that. I'm not able to even boot at 1T. This is the best I could do at 1.4v vdimm. Haven't try with higher voltage yet but I guess 1.4 should be ok to run 24/7. Have u notice one thing? Their temp run way lower than ours. Almost 100% cooler. My temps are 55-60 running hci. His temp is only 32 hahah This post has been edited by acther: Apr 25 2017, 02:19 AM
Card PM	Report Top Like Quote Reply

acther	Apr 25 2017, 03:59 AM Show posts by this member only \| Post #232
Casual Junior Member 317 posts Joined: Jan 2009	latency range from 37-<40ns
Card PM	Report Top Like Quote Reply

TSowikh84	Apr 26 2017, 06:59 AM Show posts by this member only \| Post #233
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	» Click to show Spoiler - click again to hide... « Benching 7700K with 2x ROG Strix GTX1080 Ti OC SLI. Games now run ~50% faster CPU: Intel Core i7-7700K @ 5.06GHz @ 1.328v Motherboard: ASUS ROG Maximus IX APEX RAM: G.SKill TridentZ RGB DDR4-4266MHz 2x8GB @ 4266MHz 19-19-19 @ 1.40v (XMP) GPU: 2x ROG Strix GTX1080 Ti OC SLI @ 1708MHz GPU core/11100MHz VRAM (OC Mode) PSU: Corsair AX1200i Cooling: Custom WC » Click to show Spoiler - click again to hide... « GPU temps (open-air): 50/52C Idle; 67/74C load (BF1 Ultra DX12) (OC Mode): Total system power consumption: 673.6W load (OC Mode): This post has been edited by owikh84: Apr 26 2017, 07:01 AM
Card PM	Report Top Like Quote Reply

TSowikh84	Apr 26 2017, 07:05 AM Show posts by this member only \| Post #234
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	Some OC fun with Corsair Vengeance RGB DDR4-3466 memory + ROG Apex + 7700K. » Click to show Spoiler - click again to hide... « RAM and board are strong, managed to get DDR4 pushed to 4133MHz @ 1.40v with minimal tweaking (timings are not optimized yet of course) DDR4 3600 MHz 16-18-18-36-2T @ 1.35v: » Click to show Spoiler - click again to hide... « DDR4 3866 MHz 17-18-18-36-2T @ 1.35v: » Click to show Spoiler - click again to hide... « DDR4 4000 MHz 18-19-19-39-2T @ 1.35v: » Click to show Spoiler - click again to hide... « DDR4 4133 MHz 19-19-19-39-2T @ 1.35v: » Click to show Spoiler - click again to hide... « DDR4 4133 MHz 18-19-19-39-2T @ 1.40v: » Click to show Spoiler - click again to hide... « More coming soon... stay tuned
Card PM	Report Top Like Quote Reply

acther	Apr 27 2017, 03:46 PM Show posts by this member only \| Post #235
Casual Junior Member 317 posts Joined: Jan 2009	QUOTE(owikh84 @ Apr 26 2017, 07:05 AM) Some OC fun with Corsair Vengeance RGB DDR4-3466 memory + ROG Apex + 7700K. » Click to show Spoiler - click again to hide... « RAM and board are strong, managed to get DDR4 pushed to 4133MHz @ 1.40v with minimal tweaking (timings are not optimized yet of course) DDR4 3600 MHz 16-18-18-36-2T @ 1.35v: » Click to show Spoiler - click again to hide... « DDR4 3866 MHz 17-18-18-36-2T @ 1.35v: » Click to show Spoiler - click again to hide... « DDR4 4000 MHz 18-19-19-39-2T @ 1.35v: » Click to show Spoiler - click again to hide... « DDR4 4133 MHz 19-19-19-39-2T @ 1.35v: » Click to show Spoiler - click again to hide... « DDR4 4133 MHz 18-19-19-39-2T @ 1.40v: » Click to show Spoiler - click again to hide... « More coming soon... stay tuned Haha 1080ti sli niceee
Card PM	Report Top Like Quote Reply

Left4Dead2	May 2 2017, 07:57 PM Show posts by this member only \| Post #236
Regular Senior Member 1,103 posts Joined: Nov 2009	QUOTE(owikh84 @ Apr 26 2017, 06:59 AM) » Click to show Spoiler - click again to hide... « Benching 7700K with 2x ROG Strix GTX1080 Ti OC SLI. Games now run ~50% faster CPU: Intel Core i7-7700K @ 5.06GHz @ 1.328v Motherboard: ASUS ROG Maximus IX APEX RAM: G.SKill TridentZ RGB DDR4-4266MHz 2x8GB @ 4266MHz 19-19-19 @ 1.40v (XMP) GPU: 2x ROG Strix GTX1080 Ti OC SLI @ 1708MHz GPU core/11100MHz VRAM (OC Mode) PSU: Corsair AX1200i Cooling: Custom WC » Click to show Spoiler - click again to hide... « GPU temps (open-air): 50/52C Idle; 67/74C load (BF1 Ultra DX12) (OC Mode): Total system power consumption: 673.6W load (OC Mode): Godlike rig and overclock you got there bro
Card PM	Report Top Like Quote Reply

Lurker	May 6 2017, 11:35 AM Show posts by this member only \| Post #237
L U R K I N G Elite 4,420 posts Joined: Jan 2003	bQ4LlBPX3TU Intel Advises Not to Overclock 7700K As Users Complain Over Temps
Card PM	Report Top Like Quote Reply

Minolta	May 7 2017, 02:27 AM Show posts by this member only \| Post #238
Look at all my stars!! Senior Member 2,292 posts Joined: Jan 2003	QUOTE(Lurker @ May 6 2017, 11:35 AM) bQ4LlBPX3TU Intel Advises Not to Overclock 7700K As Users Complain Over Temps Hmmm...this is sure gonna make a lot of intel enthusiasts very happy
Card PM	Report Top Like Quote Reply

starz92	May 23 2017, 02:15 PM Show posts by this member only \| Post #239
Regular Senior Member 1,679 posts Joined: Jan 2010 From: Penang	Sifu, Gonna get the following rig and start to OC by myself through the guides available online. Do I need to add anything to my build as I am going to place order preferably tonight. i7 7700k Asus Strix Z270G Thermaltake Riing 3.0 240 Liquid Cooling GTX1080 MSI Armor PSU 650W G 80 Full Modular M.2 SSD WD Blue 500GB 1TB WD Blue HDD 8GB RAM X 2 (Either Trident 3200 or 2600 normal one) I supposed I have some few hundreds to spare is there any need to further improve it? This post has been edited by starz92: May 23 2017, 02:21 PM
Card PM	Report Top Like Quote Reply

TSowikh84	May 24 2017, 07:17 AM Show posts by this member only \| Post #240
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(starz92 @ May 23 2017, 02:15 PM) Sifu, Gonna get the following rig and start to OC by myself through the guides available online. Do I need to add anything to my build as I am going to place order preferably tonight. i7 7700k Asus Strix Z270G Thermaltake Riing 3.0 240 Liquid Cooling GTX1080 MSI Armor PSU 650W G 80 Full Modular M.2 SSD WD Blue 500GB 1TB WD Blue HDD 8GB RAM X 2 (Either Trident 3200 or 2600 normal one) I supposed I have some few hundreds to spare is there any need to further improve it? That note that the Strix Z270G board doesn't offer a Debug LED that's supposed to be useful for troubleshooting error in the event of OC failure. Other than that should be fine.
Card PM	Report Top Like Quote Reply

starz92	May 24 2017, 09:26 AM Show posts by this member only \| Post #241
Regular Senior Member 1,679 posts Joined: Jan 2010 From: Penang	QUOTE(owikh84 @ May 24 2017, 07:17 AM) That note that the Strix Z270G board doesn't offer a Debug LED that's supposed to be useful for troubleshooting error in the event of OC failure. Other than that should be fine. Changing it to Z270E. Thanks anyway. This post has been edited by starz92: May 24 2017, 09:28 AM
Card PM	Report Top Like Quote Reply

frozenkid	Jun 1 2017, 10:56 AM Show posts by this member only \| Post #242
Getting Started Junior Member 270 posts Joined: Jun 2009	Hi Sifu's, I am planning to over clock my i5 7600k. I got up to 4.6 @ 1.3v stable using the auto overclock feature on my Asus Z270F mobo. Temps was around 60-70 running on my AIO Corsair H100i v2. Any tips or guide on doing the overclock manually? Im looking to get around 4.8 to 5.0. My biggest concern is what kind of temp I should look at and the max amount of power I should go to get those results. Thank you.
Card PM	Report Top Like Quote Reply

TSowikh84	Jun 1 2017, 08:36 PM Show posts by this member only \| Post #243
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(frozenkid @ Jun 1 2017, 10:56 AM) Hi Sifu's, I am planning to over clock my i5 7600k. I got up to 4.6 @ 1.3v stable using the auto overclock feature on my Asus Z270F mobo. Temps was around 60-70 running on my AIO Corsair H100i v2. Any tips or guide on doing the overclock manually? Im looking to get around 4.8 to 5.0. My biggest concern is what kind of temp I should look at and the max amount of power I should go to get those results. Thank you. Usually auto overclocking will set excessive voltage more than your CPU requires. For 5.0GHz, I'd recommend to try out the 5GHz overclocking preset available in the UEFI BIOS. Save and reboot. Your CPU Core Voltage is now on auto mode, you might want to reduce it to 1.25-1.3v depending on your chip and cooling limit. Run a stressful CPU-intensive benchmark such as X264 FHD Benchmark. If your cooling is not able to handle the heat (>100c), reduce the CPU speed to 4.9GHz or 4.8GHz while at the same time decrease the CPU Core Voltage until you obtain the lowest possible voltage that's stable at that CPU frequency. For more info, you might want to have a read on the OC tips and guides in the post #1 of this thread: The Kaby Lake Overclocking Guide by Raja@ASUS GIGABYTE Z270 (Kaby Lake) Overclocking Guide
Card PM	Report Top Like Quote Reply

frozenkid	Jun 2 2017, 09:52 AM Show posts by this member only \| Post #244
Getting Started Junior Member 270 posts Joined: Jun 2009	QUOTE(owikh84 @ Jun 1 2017, 08:36 PM) Usually auto overclocking will set excessive voltage more than your CPU requires. For 5.0GHz, I'd recommend to try out the 5GHz overclocking preset available in the UEFI BIOS. Save and reboot. Your CPU Core Voltage is now on auto mode, you might want to reduce it to 1.25-1.3v depending on your chip and cooling limit. Run a stressful CPU-intensive benchmark such as X264 FHD Benchmark. If your cooling is not able to handle the heat (>100c), reduce the CPU speed to 4.9GHz or 4.8GHz while at the same time decrease the CPU Core Voltage until you obtain the lowest possible voltage that's stable at that CPU frequency. For more info, you might want to have a read on the OC tips and guides in the post #1 of this thread: The Kaby Lake Overclocking Guide by Raja@ASUS GIGABYTE Z270 (Kaby Lake) Overclocking Guide Hi Bro, Thanks for the insight. I did try the pre-set for 5.0Ghz. The voltage was automatic as you said and it was set at 1.4v. I was able to boot and used Aida64 to do a simple stress test. Temps was hovering around 70+celcius. However after pass 5 min into the test It went to blue screen. I did not have time to trouble shoot so I reverted back to standard config. But my guess it blue screen because of not enough voltage. So concluded that my chip may not be able to push at 5.0 in low voltage. That's why I want to do a manual over clock. My question is, would it be blue screen even if the voltage are too high?
Card PM	Report Top Like Quote Reply

TSowikh84	Jun 2 2017, 09:37 PM Show posts by this member only \| Post #245
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(frozenkid @ Jun 2 2017, 09:52 AM) Hi Bro, Thanks for the insight. I did try the pre-set for 5.0Ghz. The voltage was automatic as you said and it was set at 1.4v. I was able to boot and used Aida64 to do a simple stress test. Temps was hovering around 70+celcius. However after pass 5 min into the test It went to blue screen. I did not have time to trouble shoot so I reverted back to standard config. But my guess it blue screen because of not enough voltage. So concluded that my chip may not be able to push at 5.0 in low voltage. That's why I want to do a manual over clock. My question is, would it be blue screen even if the voltage are too high? 1.4v is kinda high for 5.0GHz, but it depends on the chip. Some chips really love more voltage, not all 7600K can run 5.0GHz stable at low vCore. Source: https://siliconlottery.com/products/7600k50g In your case, it looks like your chip could be a lemon. But I hope it's not Boot into the UEFI BIOS to check your VID (stock voltage with everything set to defaults). Based on my experience, a good overclocking Kaby Lake CPU should have a low VID of not more than 1.2v. These chips, specifically the 7700K in my case, should be able to clock 5.0GHz at 1.3v or lower. Did you monitor the load vCore and what are the lowest and highest values? FYI, vCore will fluctuate depending on the load level and the Load-line Calibration (LLC) you're using. It could be that the lowest vCore is too low for your 5.0GHz OC at certain load time that it will trigger an insufficient voltage-related BSOD. Speaking of the BSOD, can you see what it says on the screen? It could give you some clues on what's actually happening. Could be other issues as well such as wrong BIOS settings (need to manually alter the loaded 5.0GHz OC profile), bad DDR4 memory etc...
Card PM	Report Top Like Quote Reply

starz92	Jun 3 2017, 09:16 AM Show posts by this member only \| Post #246
Regular Senior Member 1,679 posts Joined: Jan 2010 From: Penang	Guys, I am facing frequent BSOD in window 10 whenever I am trying to use the default preset at my MOBO to OC my rig a little. Most problem start when I launch a game. My rig as below : i7-7700k Asus Z270E Thermaltake Water Cooling 3.0 240L G.Skill Trident 3200 8GB X 2 I have very minimal OC knowledge so I choose to just use the preset at my MOBO. I tried the XMP Profile to enable my 3200Mhz RAM but I encounter BSOD during gaming. I also tried the 5gb OC preset and also encounter BSOD. Resetting to default setting seems to solve the problem.
Card PM	Report Top Like Quote Reply

TSowikh84	Jun 3 2017, 09:48 AM Show posts by this member only \| Post #247
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(starz92 @ Jun 3 2017, 09:16 AM) Guys, I am facing frequent BSOD in window 10 whenever I am trying to use the default preset at my MOBO to OC my rig a little. Most problem start when I launch a game. My rig as below : i7-7700k Asus Z270E Thermaltake Water Cooling 3.0 240L G.Skill Trident 3200 8GB X 2 I have very minimal OC knowledge so I choose to just use the preset at my MOBO. I tried the XMP Profile to enable my 3200Mhz but I encounter BSOD during gaming. I also tried the 5gb OC preset and also encounter BSOD. Resetting to default setting seems to solve the problem. Hi bro, By the way, what "default preset" did you use? What are your core/cache/RAM frequencies and core/RAM/VCCSA (System Agent)/VCCIO voltages? Getting BSOD with XMP @ 3200MHz is sometimes related to insufficient voltage issue. Try give the VCCSA and VCCIO a bump like 1.25-1.35v and 1.175-1.25v. It's chip dependent, every CPU has different strength of Integrated Memory Controller (IMC). Weak CPU IMC will require higher values to achieve stability and vice versa. As for "5.0GHz OC preset", how much is your core voltage (vCore)? It could be insufficient voltage, try increasing the CPU Core Voltage a bit. Again, it's also chip dependent. Every chip was born unique, hence they have different VID (stock voltage at default clocks). So to find the best voltage for 5.0GHz OC you will have to go with trial and error.
Card PM	Report Top Like Quote Reply

starz92	Jun 3 2017, 10:07 AM Show posts by this member only \| Post #248
Regular Senior Member 1,679 posts Joined: Jan 2010 From: Penang	QUOTE(owikh84 @ Jun 3 2017, 09:48 AM) Hi bro, By the way, what "default preset" did you use? What are your core/cache/RAM frequencies and core/RAM/VCCSA (System Agent)/VCCIO voltages? Getting BSOD with XMP @ 3200MHz is sometimes related to insufficient voltage issue. Try give the VCCSA and VCCIO a bump like 1.25-1.35v and 1.175-1.25v. It's chip dependent, every CPU has different strength of Integrated Memory Controller (IMC). Weak CPU IMC will require higher values to achieve stability and vice versa. As for "5.0GHz OC preset", how much is your core voltage (vCore)? It could be insufficient voltage, try increasing the CPU Core Voltage a bit. Again, it's also chip dependent. Every chip was born unique, hence they have different VID (stock voltage at default clocks). So to find the best voltage for 5.0GHz OC you will have to go with trial and error. Hey bro, tq for the reply. The XMP Profile I just click the XMP Profile 1 (the only choice available at my Bios). Not sure of the setting but will look into it when I am home. I realised that I am only able to choose either XMP or "5.0GHz OC preset" ? Will the 5.0GHz OC enable my RAM to run at 3200 Mhz?
Card PM	Report Top Like Quote Reply

TSowikh84	Jun 3 2017, 10:23 AM Show posts by this member only \| Post #249
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(starz92 @ Jun 3 2017, 10:07 AM) Hey bro, tq for the reply. The XMP Profile I just click the XMP Profile 1 (the only choice available at my Bios). Not sure of the setting but will look into it when I am home. I realised that I am only able to choose either XMP or "5.0GHz OC preset" ? Will the 5.0GHz OC enable my RAM to run at 3200 Mhz? You can choose to select either one or both of them together. Afaik, loading the 5.0 OC preset will not automatically activate the XMP profile, and vice versa. To use both, you will need to firstly select XMP profile and then load the 5.0GHz OC preset.
Card PM	Report Top Like Quote Reply

starz92	Jun 3 2017, 10:58 AM Show posts by this member only \| Post #250
Regular Senior Member 1,679 posts Joined: Jan 2010 From: Penang	QUOTE(owikh84 @ Jun 3 2017, 10:23 AM) You can choose to select either one or both of them together. Afaik, loading the 5.0 OC preset will not automatically activate the XMP profile, and vice versa. To use both, you will need to firstly select XMP profile and then load the 5.0GHz OC preset. will selecting 5.0Ghz OC preset after XMP profile reset the XMP Profile or both can work together?
Card PM	Report Top Like Quote Reply

TSowikh84	Jun 3 2017, 02:13 PM Show posts by this member only \| Post #251
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(starz92 @ Jun 3 2017, 10:58 AM) will selecting 5.0Ghz OC preset after XMP profile reset the XMP Profile or both can work together? As mentioned earlier, both can work together. But must in XMP and then 5.0GHz order. The 5.0GHz OC Preset will not overwrite RAM-related settings but only the CPU-related settings. You can try it in UEFI BIOS. This post has been edited by owikh84: Jun 3 2017, 02:17 PM
Card PM	Report Top Like Quote Reply

starz92	Jun 3 2017, 03:10 PM Show posts by this member only \| Post #252
Regular Senior Member 1,679 posts Joined: Jan 2010 From: Penang	QUOTE(owikh84 @ Jun 3 2017, 02:13 PM) As mentioned earlier, both can work together. But must in XMP and then 5.0GHz order. The 5.0GHz OC Preset will not overwrite RAM-related settings but only the CPU-related settings. You can try it in UEFI BIOS. Just now tried xmp then 5.0Ghz preset together with the voltage setting as shown in your screenshot but unable to in to window. Now I just used xmp with your voltage setting and can work smoothly already. Ltr will try on the 5.0Ghz preset again
Card PM	Report Top Like Quote Reply

TSowikh84	Jun 4 2017, 10:14 AM Show posts by this member only \| Post #253
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(starz92 @ Jun 3 2017, 03:10 PM) Just now tried xmp then 5.0Ghz preset together with the voltage setting as shown in your screenshot but unable to in to window. Now I just used xmp with your voltage setting and can work smoothly already. Ltr will try on the 5.0Ghz preset again Although the 5.0GHz OC preset will automatically set everything for you, some CPUs require further fine-tuning particularly the voltages. I think you need to play around with the Digi+VRM settings such as the CPU Load-line Calibration (LLC) and other VRM power:
Card PM	Report Top Like Quote Reply

frozenkid	Jun 6 2017, 09:25 AM Show posts by this member only \| Post #254
Getting Started Junior Member 270 posts Joined: Jun 2009	Hi Guys, Well here are my latest update over the weekend. I am pretty pleased with the results. I am stable at 4.8Ghz with 1.35volts after 4 hours of stress test on Aida64 and 3 hours on intel extreme stress test. I am however facing issues with ROG stress test tool. The error I keep getting is "Luxmark is unresponding". I read somewhere that it is bugged. The leading up to this results there are funny issues I faced. I did try the 5.0Ghz preset settings from asus but the voltage was set at 4.2volts which is too high for my taste. I tried bring the voltage down but anything below 4.2 would crash once I start Aida64. Even if I put 4.9Ghz at below 1.40v would crash. What I find ironic is that even it is a 0.1 difference but the voltage increment is substantial. Well as for temps @ 4.8Ghz I am hovering around 70-85 Degress on max load. It is below 80 degrees for most time during gaming. I have a question. I am now using manual on my cpu volt/cache @ 1.35v. I plan to change it to adaptive. My stock volt is below 1.2v. So from what ive learnt is that 1.35v - 1.2v = +0.15v to be placed in the adaptive field. Can someone advise me on this? thank you. Btw I will be uploading all my screen shots tonight. This post has been edited by frozenkid: Jun 6 2017, 09:27 AM
Card PM	Report Top Like Quote Reply

TSowikh84	Jun 7 2017, 09:42 PM Show posts by this member only \| Post #255
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(frozenkid @ Jun 6 2017, 09:25 AM) Hi Guys, Well here are my latest update over the weekend. I am pretty pleased with the results. I am stable at 4.8Ghz with 1.35volts after 4 hours of stress test on Aida64 and 3 hours on intel extreme stress test. I am however facing issues with ROG stress test tool. The error I keep getting is "Luxmark is unresponding". I read somewhere that it is bugged. The leading up to this results there are funny issues I faced. I did try the 5.0Ghz preset settings from asus but the voltage was set at 4.2volts which is too high for my taste. I tried bring the voltage down but anything below 4.2 would crash once I start Aida64. Even if I put 4.9Ghz at below 1.40v would crash. What I find ironic is that even it is a 0.1 difference but the voltage increment is substantial. Well as for temps @ 4.8Ghz I am hovering around 70-85 Degress on max load. It is below 80 degrees for most time during gaming. I have a question. I am now using manual on my cpu volt/cache @ 1.35v. I plan to change it to adaptive. My stock volt is below 1.2v. So from what ive learnt is that 1.35v - 1.2v = +0.15v to be placed in the adaptive field. Can someone advise me on this? thank you. Btw I will be uploading all my screen shots tonight. Yes, that's how the adaptive method works You can also enter a value of 1.35 in the Additional Turbo Mode CPU Core Voltage box. Source: https://rog.asus.com/articles/guides/the-ka...clocking-guide/
Card PM	Report Top Like Quote Reply

frozenkid	Jun 8 2017, 09:00 AM Show posts by this member only \| Post #256
Getting Started Junior Member 270 posts Joined: Jun 2009	QUOTE(owikh84 @ Jun 7 2017, 09:42 PM) Yes, that's how the adaptive method works You can also enter a value of 1.35 in the Additional Turbo Mode CPU Core Voltage box. Source: https://rog.asus.com/articles/guides/the-ka...clocking-guide/ Thanks a lot bro. Ill go check it out tonight. Cheers.
Card PM	Report Top Like Quote Reply

cattscratch	Jun 17 2017, 05:29 AM Show posts by this member only \| Post #257
New Member Junior Member 33 posts Joined: Aug 2012	Hi Sifus, My rig is i7-6700K and Asus z170 Pro Gaming I set my bios to 1.280 VID at 4300MHZ I ran all bench mark and stress test and it passed good. It is a mild overclock for my kind of rig...most would do 4500Mhz or even 5k with higher voltages. My question is...everytime I boot up my computer 1 in 5 boot ups...it will not boot up and on AUTO will reBOOT(like pressing the restart button) and then 2nd time will boot up fine. Only happens once every 5 times I switch on my computer, other 4 times is normal successful boot ups. Is this ok? Or do I have to increase my voltage a little more for a stable boot up process. Like 100% success rate error free boot up...
Card PM	Report Top Like Quote Reply

TSowikh84	Jun 17 2017, 07:02 PM Show posts by this member only \| Post #258
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(cattscratch @ Jun 17 2017, 05:29 AM) Hi Sifus, My rig is i7-6700K and Asus z170 Pro Gaming I set my bios to 1.280 VID at 4300MHZ I ran all bench mark and stress test and it passed good. It is a mild overclock for my kind of rig...most would do 4500Mhz or even 5k with higher voltages. My question is...everytime I boot up my computer 1 in 5 boot ups...it will not boot up and on AUTO will reBOOT(like pressing the restart button) and then 2nd time will boot up fine. Only happens once every 5 times I switch on my computer, other 4 times is normal successful boot ups. Is this ok? Or do I have to increase my voltage a little more for a stable boot up process. Like 100% success rate error free boot up... Hi, What benchmark and stress test did you run? If those were CPU-intensive benchmark tools such as XTU, Cinebench, Realbench, etc, then I believe CPU voltage shouldn't be an issue here. It could be a RAM-related issues such insufficient RAM/VCCSA/VCCIO voltages, wrong timing settings etc that your software didn't stress enough RAM. Did you also experience the same auto reboot issue at default CPU/RAM/etc settings?
Card PM	Report Top Like Quote Reply

cattscratch	Jun 17 2017, 09:10 PM Show posts by this member only \| Post #259
New Member Junior Member 33 posts Joined: Aug 2012	QUOTE(owikh84 @ Jun 17 2017, 07:02 PM) Hi, What benchmark and stress test did you run? If those were CPU-intensive benchmark tools such as XTU, Cinebench, Realbench, etc, then I believe CPU voltage shouldn't be an issue here. It could be a RAM-related issues such insufficient RAM/VCCSA/VCCIO voltages, wrong timing settings etc that your software didn't stress enough RAM. Did you also experience the same auto reboot issue at default CPU/RAM/etc settings? Hi owikh84, I did the Realbench like 5-6 times... You might be on to something here...it could be the RAM. I hear that there are problems with the Corsair LPX Vengeance series(mine 3000mhz 16gb) with my Asus z170 Pro Gaming boards. For the RAM overclock i just switched on XMP 2.0. without tweaking anything else...and i remember even before overclocking my CPU, there were some auto reboot instances. Out of the box, stock configuration 4000mhz + 2333mhz ram = there is no auto reboot 4000mhz + 3000mhz ram = sometimes auto reboot- 1/5 4300mhz + 3000mhz ram = sometimes auto reboot -1/5 Let me try tweaking my RAM configurations... Any tips ?
Card PM	Report Top Like Quote Reply

TSowikh84	Jun 17 2017, 09:30 PM Show posts by this member only \| Post #260
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(cattscratch @ Jun 17 2017, 09:10 PM) Hi owikh84, I did the Realbench like 5-6 times... You might be on to something here...it could be the RAM. I hear that there are problems with the Corsair LPX Vengeance series(mine 3000mhz 16gb) with my Asus z170 Pro Gaming boards. For the RAM overclock i just switched on XMP 2.0. without tweaking anything else...and i remember even before overclocking my CPU, there were some auto reboot instances. Out of the box, stock configuration 4000mhz + 2333mhz ram = there is no auto reboot 4000mhz + 3000mhz ram = sometimes auto reboot- 1/5 4300mhz + 3000mhz ram = sometimes auto reboot -1/5 Let me try tweaking my RAM configurations... Any tips ? Sounds like insufficient voltage issue, specifically the System Agent voltage (VCCSA). After applying XMP, try increasing it a bit like 1.25-1.35v (depending on strength of your CPU's integrated memory controller AKA IMC). Weak IMC means you will need to pump more VCCSA.
Card PM	Report Top Like Quote Reply

cattscratch	Jun 23 2017, 06:50 AM Show posts by this member only \| Post #261
New Member Junior Member 33 posts Joined: Aug 2012	QUOTE(owikh84 @ Jun 17 2017, 09:30 PM) Sounds like insufficient voltage issue, specifically the System Agent voltage (VCCSA). After applying XMP, try increasing it a bit like 1.25-1.35v (depending on strength of your CPU's integrated memory controller AKA IMC). Weak IMC means you will need to pump more VCCSA. I gonna try this... 1. Press F5 key while in BIOS to load optimized defaults 2. Press F10 key then OK to save and reboot 3. Choose XMP Ai Overclock Tuner setting while in BIOS 4. Move down to "DRAM Voltage" field then type 1.37 <ENTER> 5. Move to next field "CPU VCCIO Voltage" then type 1.20 <ENTER> 6. Move to next field "CPU System Agent Voltage" then type 1.20 <ENTER> 7. Press F10 key then OK to save and reboot Repeat steps 4, 5 and 6 above using just the (+) key to increase voltage one press at a time if you still have issues. Btw anyway to know if the RAM overclocking is stable ? because 4/5 times it will boot successfully, but 1/5 will fail.
Card PM	Report Top Like Quote Reply

TSowikh84	Jun 24 2017, 08:17 AM Show posts by this member only \| Post #262
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(cattscratch @ Jun 23 2017, 06:50 AM) Btw anyway to know if the RAM overclocking is stable ? because 4/5 times it will boot successfully, but 1/5 will fail. I use Hyper Pi 32m or Memtest-HCI: http://hcidesign.com/memtest/ For Hyper Pi, pretty much straightforward. Just run the 32m test with full core/thread For Memtest, use one instance for each CPU thread. At least 500% no error
Card PM	Report Top Like Quote Reply

acther	Aug 4 2017, 01:55 AM Show posts by this member only \| Post #263
Casual Junior Member 317 posts Joined: Jan 2009	Yo anyone here interested in a 4266mhz 8gbx2 trident z rgb kit? brand new set from rma just got it yesterday. im changing to x299 so not in use anymore interested can PM me. Letting go cheap This post has been edited by acther: Aug 4 2017, 01:55 AM
Card PM	Report Top Like Quote Reply

Skylinestar	Aug 10 2017, 01:11 AM Show posts by this member only \| Post #264
Mega Duck All Stars 10,472 posts Joined: Jan 2003 From: Sarawak	anyone here doing delidding service?
Card PM	Report Top Like Quote Reply

TSowikh84	Aug 11 2017, 08:45 PM Show posts by this member only \| Post #265
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(Skylinestar @ Aug 10 2017, 01:11 AM) anyone here doing delidding service? delidding service If you have the courage to do it by yourself, can consider buying this Delid kit Good luck!
Card PM	Report Top Like Quote Reply

ah_khoo	Aug 11 2017, 11:46 PM Show posts by this member only \| Post #266
- No Action Talk Only - Elite 8,103 posts Joined: Jan 2003 From: Tanah Lot @ Dungun, Terengganu.	actually i have a used rock it delid kit (relid kit included) & a brand new liquid ultra to let go, anyone keen? back to amd so it's collecting dust now.
Card PM	Report Top Like Quote Reply

TSowikh84	Aug 12 2017, 09:29 AM Show posts by this member only \| Post #267
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(ah_khoo @ Aug 11 2017, 11:46 PM) actually i have a used rock it delid kit (relid kit included) & a brand new liquid ultra to let go, anyone keen? back to amd so it's collecting dust now. Wow didn't know that you have a delid tool bro! Actually I also have one Rockit as well, haven't used it yet. I think I will not delid my 7700K, resell and buy 8700K instead bwahhaha
Card PM	Report Top Like Quote Reply

azilazwa	Sep 13 2017, 09:30 AM Show posts by this member only \| Post #268
Enthusiast Senior Member 838 posts Joined: May 2008 From: Setiu, Terengganu	Anyone still active ocing skylake? Needed some help here. I just setup 6700k with Asrock 170M Pro4. But it seems that i cant oc it to 4.5ghz. I have set the multiplier to 45 in bios, voltage at 1.35v. But in windows, it still said my proc is at 4.0ghz. Or am i doing it wrong? This is my first time ocing skylake. Set multiplier at 45. Other setting untouched. Manually set voltage to 1.35v. Other setting untouched And, what whats bothering me is the temp. In bios the temp already reach 64c. But, in windows i check with HWMonitor and Speccy, the temp is around 38c during idle. Booted in windows This post has been edited by azilazwa: Sep 13 2017, 09:33 AM
Card PM	Report Top Like Quote Reply

goldfries	Sep 13 2017, 11:59 AM Show posts by this member only \| Post #269
40K Club Forum Admin 44,415 posts Joined: Jan 2003	Do a CPU LOAD test and see whether CPU-Z shows 4.5Ghz.
Card PM	Report Top Like Quote Reply

azilazwa	Sep 13 2017, 03:10 PM Show posts by this member only \| Post #270
Enthusiast Senior Member 838 posts Joined: May 2008 From: Setiu, Terengganu	QUOTE(goldfries @ Sep 13 2017, 11:59 AM) Do a CPU LOAD test and see whether CPU-Z shows 4.5Ghz. Thanks for the reply. I run stress test on cpuz. Within 5 minutes of testing, it crashed. Wonder is it bcoz of the temp? I'm using custom loop with 360mm rad. GPU temp seems quite cool. Probably i didnt tighten the wb enough? Or the temp is not accurate? Oh btw, the proc is running at 4.5ghz rite? Coz confuse with one showing the correct speed @_@ This post has been edited by azilazwa: Sep 13 2017, 03:11 PM
Card PM	Report Top Like Quote Reply

TSowikh84	Sep 13 2017, 10:33 PM Show posts by this member only \| Post #271
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(azilazwa @ Sep 13 2017, 03:10 PM) Thanks for the reply. I run stress test on cpuz. Within 5 minutes of testing, it crashed. Wonder is it bcoz of the temp? I'm using custom loop with 360mm rad. GPU temp seems quite cool. Probably i didnt tighten the wb enough? Or the temp is not accurate? Oh btw, the proc is running at 4.5ghz rite? Coz confuse with one showing the correct speed @_@ To be able to see your CPU operating at the desired frequency (4.5GHz in your case), change your power plan to "High Performance": Use CPU-Z to to check your CPU frequency. Use Core Temp to monitor your CPU core temperatures. Alternatively, HWInfo64 can be used to monitor both CPU speed and temperatures etc. Download links available in the top post of this thread. System crashing has many possibilities, check the BSOD message. It could be due to overheat, wrong BIOS settings or insufficient voltages (vCore, vDIMM, VCCIO, VCCSA etc). Most probably is insufficient vCore that feeds voltage to the CPU. I saw your're using Load-line Calibration (LLC) level 4, which could cause too much vDroop (load vCore is too low). Perhaps you should try the lower level to reduce vDroop, best would be level 1 (minimum vDroop). If LLC level 1 still crashing, then you should increase your vCore, notch by notch until your system is fully stable. This post has been edited by owikh84: Sep 13 2017, 10:33 PM
Card PM	Report Top Like Quote Reply

azilazwa	Sep 14 2017, 12:01 AM Show posts by this member only \| Post #272
Enthusiast Senior Member 838 posts Joined: May 2008 From: Setiu, Terengganu	QUOTE(owikh84 @ Sep 13 2017, 10:33 PM) To be able to see your CPU operating at the desired frequency (4.5GHz in your case), change your power plan to "High Performance": Use CPU-Z to to check your CPU frequency. Use Core Temp to monitor your CPU core temperatures. Alternatively, HWInfo64 can be used to monitor both CPU speed and temperatures etc. Download links available in the top post of this thread. System crashing has many possibilities, check the BSOD message. It could be due to overheat, wrong BIOS settings or insufficient voltages (vCore, vDIMM, VCCIO, VCCSA etc). Most probably is insufficient vCore that feeds voltage to the CPU. I saw your're using Load-line Calibration (LLC) level 4, which could cause too much vDroop (load vCore is too low). Perhaps you should try the lower level to reduce vDroop, best would be level 1 (minimum vDroop). If LLC level 1 still crashing, then you should increase your vCore, notch by notch until your system is fully stable. Ahhh, now i can see the clock speed at 4.5ghz after changing the power plan. Thanks for the tip. I also manage to stress the cpu (using cpuz only) for about 10 minutes with temp around 71-73c. Didnt proceed to with other test as i'm a bit worried bcoz my psu is only bronze rated (evga 500w). Will do a proper test when i managed to upgrade the psu.
Card PM	Report Top Like Quote Reply

TSowikh84	Sep 14 2017, 12:24 AM Show posts by this member only \| Post #273
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(azilazwa @ Sep 14 2017, 12:01 AM) Ahhh, now i can see the clock speed at 4.5ghz after changing the power plan. Thanks for the tip. I also manage to stress the cpu (using cpuz only) for about 10 minutes with temp around 71-73c. Didnt proceed to with other test as i'm a bit worried bcoz my psu is only bronze rated (evga 500w). Will do a proper test when i managed to upgrade the psu. Easy right? Haha you're welcome bro Btw, CPU-Z is not a CPU stressing tool, not even a good software for benchmark. Run Prime95, LinX, OCCT (these 3 very stressful and too hot), AIDA64 Stability Test (less stressful), XTU, Realbench, etc.
Card PM	Report Top Like Quote Reply

azilazwa	Sep 14 2017, 11:03 AM Show posts by this member only \| Post #274
Enthusiast Senior Member 838 posts Joined: May 2008 From: Setiu, Terengganu	QUOTE(owikh84 @ Sep 14 2017, 12:24 AM) Easy right? Haha you're welcome bro Btw, CPU-Z is not a CPU stressing tool, not even a good software for benchmark. Run Prime95, LinX, OCCT (these 3 very stressful and too hot), AIDA64 Stability Test (less stressful), XTU, Realbench, etc. Quite easy playing with multiplier only. But, havent found sweet spot yet. A little update. So, i changed my psu to Leadex 650w silver and running Prime95 at stock clock just to test whats the temp at full load @ stock clock. Quite shocking as the temp already reach 80C during 15 minutes of blend test Is that normal for stock clock to reach that high temp? i'm using custom loop (360mm magicool rad with tt riing fan).
Card PM	Report Top Like Quote Reply

TSowikh84	Sep 14 2017, 09:15 PM Show posts by this member only \| Post #275
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(azilazwa @ Sep 14 2017, 11:03 AM) Quite easy playing with multiplier only. But, havent found sweet spot yet. A little update. So, i changed my psu to Leadex 650w silver and running Prime95 at stock clock just to test whats the temp at full load @ stock clock. Quite shocking as the temp already reach 80C during 15 minutes of blend test Is that normal for stock clock to reach that high temp? i'm using custom loop (360mm magicool rad with tt riing fan). Unfortunately I have have any good temperature data to compare with yours, but my last 6700K at stock clock (4.2GHz) registered around 55-65C at full load in AIDA64 under a custom loop powered by a pair of 360mm radiators. It's hard to tell unless we have identical systems to compare with each other. Recent gen Intel CPUs, including the 6700K have thermal issue due the ineffective Intel thermal paste used and excessive gap between inside the chip, which cause inefficient thermal dissipation between the chip die and the integrated heatspreader (IHS). Anyway Prime95 is an unrealistic punishment of a CPU, generating a lot of heat compared to daily usage. So it's quite normal to see insane temperature during the stress test. Perhaps you should try reducing the vCore to shave off few degrees?
Card PM	Report Top Like Quote Reply

emy_xvidia	Oct 6 2017, 03:55 AM Show posts by this member only \| Post #276
Look at all my stars!! Senior Member 2,735 posts Joined: Mar 2006 From: Malaysia - Swindon Town	QUOTE(ah_khoo @ Aug 11 2017, 11:46 PM) actually i have a used rock it delid kit (relid kit included) & a brand new liquid ultra to let go, anyone keen? back to amd so it's collecting dust now. PM the price if you’re interested to sell. Plan to delid my 6700K also.
Card PM	Report Top Like Quote Reply

ChannelChan	Oct 12 2017, 03:34 PM Show posts by this member only \| Post #277
Getting Started Junior Member 198 posts Joined: Feb 2016	hi, is 7700k worth to delid ? currently running 4.6 @ 1.230V. stability test using aida64 at 65-70c whats the advantage to delid and go till 5.0? tq all This post has been edited by ChannelChan: Oct 12 2017, 03:35 PM
Card PM	Report Top Like Quote Reply

TSowikh84	Oct 12 2017, 08:55 PM Show posts by this member only \| Post #278
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(ChannelChan @ Oct 12 2017, 03:34 PM) hi, is 7700k worth to delid ? currently running 4.6 @ 1.230V. stability test using aida64 at 65-70c whats the advantage to delid and go till 5.0? tq all Yes it's worth. 7700k is a hot chip right out of the box, due to the poor TIM and excessive gap between the IHS and chip's die. At a mild OC like 4.6GHz you won't see much of the heat output, but when you go higher then only you will notice the hotness reaching 100C. Delidding will give significant lower temperatures by around 20C off, which is a huge figure. My chip runs at 5.0GHz @ 1.275v and the temp during gaming is 80C while stress testing can reach as high as 90C. Hotter temp means my cooling fans will spin faster, resulting in the increase of noise level. By delidding my CPU, my chip should be able to run at ~70C with a lower fan speed and much quieter. Why OC till 5.0GHz? Because you can get extra performance and remove possibility of any CPU bottleneck.
Card PM	Report Top Like Quote Reply

ChannelChan	Oct 12 2017, 09:13 PM Show posts by this member only \| Post #279
Getting Started Junior Member 198 posts Joined: Feb 2016	QUOTE(owikh84 @ Oct 12 2017, 08:55 PM) Yes it's worth. 7700k is a hot chip right out of the box, due to the poor TIM and excessive gap between the IHS and chip's die. At a mild OC like 4.6GHz you won't see much of the heat output, but when you go higher then only you will notice the hotness reaching 100C. Delidding will give significant lower temperatures by around 20C off, which is a huge figure. My chip runs at 5.0GHz @ 1.275v and the temp during gaming is 80C while stress testing can reach as high as 90C. Hotter temp means my cooling fans will spin faster, resulting in the increase of noise level. By delidding my CPU, my chip should be able to run at ~70C with a lower fan speed and much quieter. Why OC till 5.0GHz? Because you can get extra performance and remove possibility of any CPU bottleneck. yes fan noise is damn irritating , like driving a Turbo Jet!! will consider delid it . bye bye warranty
Card PM	Report Top Like Quote Reply

TSowikh84	Oct 12 2017, 09:25 PM Show posts by this member only \| Post #280
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(ChannelChan @ Oct 12 2017, 09:13 PM) yes fan noise is damn irritating , like driving a Turbo Jet!! will consider delid it . bye bye warranty Yes, that's the only disadvantage of CPU delid
Card PM	Report Top Like Quote Reply

ChannelChan	Oct 12 2017, 09:48 PM Show posts by this member only \| Post #281
Getting Started Junior Member 198 posts Joined: Feb 2016	QUOTE(owikh84 @ Oct 12 2017, 09:25 PM) Yes, that's the only disadvantage of CPU delid but then, cpu damn lasting right wont suddenly GG right..
Card PM	Report Top Like Quote Reply

TSowikh84	Oct 12 2017, 09:53 PM Show posts by this member only \| Post #282
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(ChannelChan @ Oct 12 2017, 09:48 PM) but then, cpu damn lasting right wont suddenly GG right.. I own a lot of chips, so far zero RMA case
Card PM	Report Top Like Quote Reply

ALeUNe	Oct 17 2017, 12:23 AM Show posts by this member only \| Post #283
I'm the purebred with aristocratic pedigree VIP 9,692 posts Joined: Jan 2003 From: Mongrel Isle	Pertamax for Coffee Lake. Corsair AIO 280MM with 70% speed of 1250rpm fan. This post has been edited by ALeUNe: Oct 17 2017, 12:28 AM Attached thumbnail(s)
Card PM	Report Top Like Quote Reply

Ebony & Ivory	Oct 17 2017, 01:13 AM Show posts by this member only \| Post #284
Enthusiast Senior Member 959 posts Joined: Jan 2016	QUOTE(ALeUNe @ Oct 17 2017, 12:23 AM) Pertamax for Coffee Lake. Corsair AIO 280MM with 70% speed of 1250rpm fan. Temperature almost 100 This post has been edited by Ebony & Ivory: Oct 17 2017, 01:14 AM
Card PM	Report Top Like Quote Reply

ALeUNe	Oct 17 2017, 01:28 AM Show posts by this member only \| Post #285
I'm the purebred with aristocratic pedigree VIP 9,692 posts Joined: Jan 2003 From: Mongrel Isle	QUOTE(Ebony & Ivory @ Oct 17 2017, 01:13 AM) Temperature almost 100 Yes. It's normal for Intel chips when you push hard on the 14nm processors. 2 reasons. It's running on 70% of 1250 rpm fans. I didn't apply new thermal paste. I took out my AIO from Skylake i7, I saw some residue paste there, I just fixed it on Coffee Lake. I was lazy to apply new thermal paste because it was 3am in the morning when I installed the new processor and mobo. I'm waiting for new grizzly thermal paste and delid kit. Then only I'll apply new thermal paste. P/S 4.8GHz @ 1.3v is the sweetest spot. With low rpm fan setup and old thermal paste, temperature doesn't go beyond 65c in games. This post has been edited by ALeUNe: Oct 17 2017, 01:33 AM
Card PM	Report Top Like Quote Reply

TSowikh84	Oct 17 2017, 06:57 AM Show posts by this member only \| Post #286
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(ALeUNe @ Oct 17 2017, 01:28 AM) Yes. It's normal for Intel chips when you push hard on the 14nm processors. 2 reasons. It's running on 70% of 1250 rpm fans. I didn't apply new thermal paste. I took out my AIO from Skylake i7, I saw some residue paste there, I just fixed it on Coffee Lake. I was lazy to apply new thermal paste because it was 3am in the morning when I installed the new processor and mobo. I'm waiting for new grizzly thermal paste and delid kit. Then only I'll apply new thermal paste. P/S 4.8GHz @ 1.3v is the sweetest spot. With low rpm fan setup and old thermal paste, temperature doesn't go beyond 65c in games. Congrats on your purchase, welcome to Coffee Lake club. Is that your best vCore or can it go lower? Did you notice any vdroop (load voltage drops too much from BIOS set)? What's your vCore set in the UEFI BIOS, CPU-Z idle and load? P/S: I'm also waiting for my 8700K from Active Lancing
Card PM	Report Top Like Quote Reply

ALeUNe	Oct 17 2017, 08:56 AM Show posts by this member only \| Post #287
I'm the purebred with aristocratic pedigree VIP 9,692 posts Joined: Jan 2003 From: Mongrel Isle	QUOTE(owikh84 @ Oct 17 2017, 06:57 AM) Congrats on your purchase, welcome to Coffee Lake club. Is that your best vCore or can it go lower? Did you notice any vdroop (load voltage drops too much from BIOS set)? What's your vCore set in the UEFI BIOS, CPU-Z idle and load? P/S: I'm also waiting for my 8700K from Active Lancing Yes, I think this is the best vcore. There is an error in OCCT when I lower than 1.3v @ 4.8GHz. I set 1.3v in bios. The core voltage reading on CPU-Z is 1.288v under load. I got my 8700K from Active Lansing last Wednesday.
Card PM	Report Top Like Quote Reply

keyo	Oct 17 2017, 11:42 PM Show posts by this member only \| Post #288
Casual Junior Member 345 posts Joined: Jun 2009	pelik prime 95 temp rendah This post has been edited by keyo: Oct 17 2017, 11:47 PM Attached thumbnail(s)
Card PM	Report Top Like Quote Reply

TSowikh84	Oct 18 2017, 11:06 AM Show posts by this member only \| Post #289
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(keyo @ Oct 17 2017, 11:42 PM) pelik prime 95 temp rendah What Prime95 version are you using? v26.6 and below have no AVX/FMA3 instruction v27.9 has less stressful AVX, no FMA3 v28.5 and newer has stressful AVX+FMA3 Edit: I can see FMA3 in your SS so should be one of the latest versions. Your CPU core temps look great. This post has been edited by owikh84: Oct 18 2017, 11:09 AM
Card PM	Report Top Like Quote Reply

TSowikh84	Oct 18 2017, 11:52 AM Show posts by this member only \| Post #290
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	OC Guide for GIGABYTE Z370 board, top post updated. [JOOMAG] GIGABYTE Z370 OC Guide This post has been edited by owikh84: Oct 18 2017, 11:57 AM
Card PM	Report Top Like Quote Reply

keyo	Oct 18 2017, 12:48 PM Show posts by this member only \| Post #291
Casual Junior Member 345 posts Joined: Jun 2009	QUOTE(owikh84 @ Oct 18 2017, 11:06 AM) What Prime95 version are you using? v26.6 and below have no AVX/FMA3 instruction v27.9 has less stressful AVX, no FMA3 v28.5 and newer has stressful AVX+FMA3 Edit: I can see FMA3 in your SS so should be one of the latest versions. Your CPU core temps look great. im using same prime95 at 7700k a few second temp rise to 100c
Card PM	Report Top Like Quote Reply

TSowikh84	Oct 18 2017, 07:21 PM Show posts by this member only \| Post #292
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	Officially jump on the bandwagon... ROG Maximus X Apex and TUF Z370-Pro Gaming are here. Let's start with the Apex First thing to do is of course to overclock the i5-8600K CPU to 5.0GHz (BIOS set 1.425v, LLC5) and run Cinebench R15: CPU score: 1221 cb (7700K @ 5.0GHz: 1087 cb) Currently, I am also testing the LLC in Realbench 2.44 (AVX) to see the vdroop/vdrop. This is just part of the results: LLC works fine for me, vdroop = -0.016v, despite ROG Strix Z370-F users are complaining about 0.08-0.09v vdroop. Also note the core temps, idle @ 57.3C, load @ 85.3C, which are in my opinion a bit on the high side. Cooling is custom loop lowered by a pair of 360mm radiators in push-pull fan configuration.
Card PM	Report Top Like Quote Reply

keyo	Oct 19 2017, 08:34 PM Show posts by this member only \| Post #293
Casual Junior Member 345 posts Joined: Jun 2009	custom watercooling ambient temp 30+ rumah tak ada ac bios votage 1.39v This post has been edited by keyo: Oct 19 2017, 10:31 PM Attached thumbnail(s)
Card PM	Report Top Like Quote Reply

TSowikh84	Oct 19 2017, 10:59 PM Show posts by this member only \| Post #294
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(keyo @ Oct 19 2017, 08:34 PM) custom watercooling ambient temp 30+ rumah tak ada ac bios votage 1.39v Still under 100C , not bad for a 8C/16T CPU actually. Reducing the uncore/cache speed could shave the temps off a bit if you're not planing to delid the chip.
Card PM	Report Top Like Quote Reply

keyo	Oct 20 2017, 08:03 PM Show posts by this member only \| Post #295
Casual Junior Member 345 posts Joined: Jun 2009	Is it this need to adjust Attached thumbnail(s)
Card PM	Report Top Like Quote Reply

keyo	Oct 20 2017, 08:12 PM Show posts by this member only \| Post #296
Casual Junior Member 345 posts Joined: Jun 2009	llc 7 bios voltage 1.36v Attached thumbnail(s)
Card PM	Report Top Like Quote Reply

TSowikh84	Oct 20 2017, 08:53 PM Show posts by this member only \| Post #297
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(keyo @ Oct 20 2017, 08:03 PM) Is it this need to adjust Extracted from KBL OC guide but should also apply to CFL as well. QUOTE CPU Standby Voltage: Leave at Auto for all normal overclocking. Adjustment of this rail is only required for extreme overclocking with sub-zero cooling. https://edgeup.asus.com/2017/kaby-lake-overclocking-guide/5/ This post has been edited by owikh84: Oct 20 2017, 08:54 PM
Card PM	Report Top Like Quote Reply

keyo	Oct 22 2017, 11:27 PM Show posts by this member only \| Post #298
Casual Junior Member 345 posts Joined: Jun 2009	QUOTE(owikh84 @ Oct 18 2017, 07:21 PM) Officially jump on the bandwagon... ROG Maximus X Apex and TUF Z370-Pro Gaming are here. Let's start with the Apex First thing to do is of course to overclock the i5-8600K CPU to 5.0GHz (BIOS set 1.425v, LLC5) and run Cinebench R15: CPU score: 1221 cb (7700K @ 5.0GHz: 1087 cb) Currently, I am also testing the LLC in Realbench 2.44 (AVX) to see the vdroop/vdrop. This is just part of the results: LLC works fine for me, vdroop = -0.016v, despite ROG Strix Z370-F users are complaining about 0.08-0.09v vdroop. Also note the core temps, idle @ 57.3C, load @ 85.3C, which are in my opinion a bit on the high side. Cooling is custom loop lowered by a pair of 360mm radiators in push-pull fan configuration. is it tuf gaming pro have same issue vdroop like tuf gaming plus
Card PM	Report Top Like Quote Reply

TSowikh84	Oct 22 2017, 11:42 PM Show posts by this member only \| Post #299
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(keyo @ Oct 22 2017, 11:27 PM) is it tuf gaming pro have same issue vdroop like tuf gaming plus No idea as I have not tested the TUF board yet. All of the ROG Strix models except for Strix-H have recently received a BIOS update to fix the LLC issue. Seems like LLC issue on the TUF series and Strix-H will not be fixed by ASUS. https://rog.asus.com/forum/showthread.php?9...-UEFI-0419-0426
Card PM	Report Top Like Quote Reply

TSowikh84	Oct 23 2017, 11:10 PM Show posts by this member only \| Post #300
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	Did I just hit the silicon lottery for my retail 8700K? Batch L729B568 with VID 1.088v. 5.0GHz primed stable for 3 hours @ 1.280v at full load (BIOS set 1.30V, LLC5). core temp 79C max (76.5C average, ambient @ 30C non-AC room). CPU: Intel Core i7-8700K (8C/16T) (no delid) Mobo: ROG Maximus X Apex (BIOS 0601) RAM: G.Skill TridentZ RGB DDR4-3200 C16 2X8GB GC: ROG Strix GTX 1080 Ti OC SLI SSD: Samsung 960 EVO 500GB PSU: Corsair AX1200i Cooling: Custom WC Should I delid the chip?
Card PM	Report Top Like Quote Reply

syirbiznatch	Oct 24 2017, 11:06 AM Show posts by this member only \| Post #301
On my way Senior Member 549 posts Joined: Jan 2009	QUOTE(owikh84 @ Oct 23 2017, 11:10 PM) Did I just hit the silicon lottery for my retail 8700K? Batch L729B568 with VID 1.088v. 5.0GHz primed stable for 3 hours @ 1.280v at full load (BIOS set 1.30V, LLC5). core temp 79C max (76.5C average, ambient @ 30C non-AC room). CPU: Intel Core i7-8700K (8C/16T) (no delid) Mobo: ROG Maximus X Apex (BIOS 0601) RAM: G.Skill TridentZ RGB DDR4-3200 C16 2X8GB GC: ROG Strix GTX 1080 Ti OC SLI SSD: Samsung 960 EVO 500GB PSU: Corsair AX1200i Cooling: Custom WC Should I delid the chip? Fuh.. just looking at it made me
Card PM	Report Top Like Quote Reply

keyo	Oct 25 2017, 04:19 PM Show posts by this member only \| Post #302
Casual Junior Member 345 posts Joined: Jun 2009	Is it xtreme 4 batter then tuf tq
Card PM	Report Top Like Quote Reply

keyo	Oct 25 2017, 04:21 PM Show posts by this member only \| Post #303
Casual Junior Member 345 posts Joined: Jun 2009	Is it xtreme 4 batter then tuf tq This post has been edited by keyo: Oct 25 2017, 04:22 PM Attached thumbnail(s)
Card PM	Report Top Like Quote Reply

TSowikh84	Oct 25 2017, 11:17 PM Show posts by this member only \| Post #304
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(keyo @ Oct 25 2017, 04:21 PM) Is it xtreme 4 batter then tuf tq Extreme4 (RM 800) has better VRM quality than the TUF-Pro/Plus, for smoother power delivery to the CPU. Extreme4 does not have LLC issue with the latest BIOS update while there's no solution for the TUF. However, both don't have debug LED for error troubleshooting. If you have more budget, can consider the Fatal1ty Gaming K6 (RM900+) with a debug LED, onboard power/reset buttons, dual Intel LAN ports with teaming support. Add RM 100 you can get the Taichi (RM 1000+) with dual Intel LAN + Wi-Fi, 3x M.2 slots.
Card PM	Report Top Like Quote Reply

TSowikh84	Oct 26 2017, 12:14 AM Show posts by this member only \| Post #305
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	Some Cinebench R15 benchmarks with my undelidded 8700K... 5.0GHz @ 1.216v 5.1GHz @ 1.264v 5.2GHz @ 1.344v Of course, Prime95 29.3 would demand higher voltage hence hotter.
Card PM	Report Top Like Quote Reply

keyo	Oct 28 2017, 10:49 PM Show posts by this member only \| Post #306
Casual Junior Member 345 posts Joined: Jun 2009	asrock gaming k6 tq for info bro kevin Attached thumbnail(s)
Card PM	Report Top Like Quote Reply

Skylinestar	Oct 29 2017, 11:35 AM Show posts by this member only \| Post #307
Mega Duck All Stars 10,472 posts Joined: Jan 2003 From: Sarawak	My first noob attempt at BCLK oc on Skylake. Prime95 v29.3, OCCT, AIDA64 stress test stable. (My last oc was on C2D E8400 ) This post has been edited by Skylinestar: Oct 29 2017, 11:36 AM
Card PM	Report Top Like Quote Reply

TSowikh84	Oct 30 2017, 04:59 PM Show posts by this member only \| Post #308
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(keyo @ Oct 28 2017, 10:49 PM) asrock gaming k6 tq for info bro kevin Nice bro, what is your VID showed in the UEFI screen with everything set to default? I believe 1.296v is your idle vCore. What is your BIOS set vCore, load vCore, and LLC used?
Card PM	Report Top Like Quote Reply

keyo	Oct 30 2017, 05:41 PM Show posts by this member only \| Post #309
Casual Junior Member 345 posts Joined: Jun 2009	QUOTE(owikh84 @ Oct 30 2017, 04:59 PM) Nice bro, what is your VID showed in the UEFI screen with everything set to default? I believe 1.296v is your idle vCore. What is your BIOS set vCore, load vCore, and LLC used? at this board its show 1.12v. i think TUF show false vid at bios i set 1.3v cpuz show 1.296v llc level 1(with this setting i can play battlefield 1 not crash) i try 5ghz until 1.36 v the temp goes until 100c then i stop prime lower then that 1.36v prime not run sad This post has been edited by keyo: Oct 30 2017, 05:41 PM
Card PM	Report Top Like Quote Reply

TSowikh84	Oct 30 2017, 06:39 PM Show posts by this member only \| Post #310
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(keyo @ Oct 30 2017, 05:41 PM) at this board its show 1.12v. i think TUF show false vid at bios i set 1.3v cpuz show 1.296v llc level 1(with this setting i can play battlefield 1 not crash) i try 5ghz until 1.36 v the temp goes until 100c then i stop prime lower then that 1.36v prime not run sad If you don't do video encoding, you can use Prime95 v26.6 (no AVX2/FMA3 instructions). It's less stressful than the v29.3, hence requiring less vCore to stabilize. My v26.6 with the 8700K OCed to 5.0GHz @ 1.248v load (BIOS set 1.280v, LLC5):
Card PM	Report Top Like Quote Reply

TSowikh84	Oct 30 2017, 08:48 PM Show posts by this member only \| Post #311
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(Skylinestar @ Oct 29 2017, 11:35 AM) My first noob attempt at BCLK oc on Skylake. Prime95 v29.3, OCCT, AIDA64 stress test stable. (My last oc was on C2D E8400 ) Great to see BCLK OC is still allowed in the latest BIOS version. I really thought that SKY OC function has already been removed from v2.10 but I was wrong, it is still there.
Card PM	Report Top Like Quote Reply

kaicherc	Oct 31 2017, 01:21 AM Show posts by this member only \| Post #312
New Member Junior Member 38 posts Joined: Apr 2013	still rookie in oc just delid my 7700k with aoros gaming 5 4.8ghz 1.285 max temp 80? , can anyone here guide me ?
Card PM	Report Top Like Quote Reply

TSowikh84	Oct 31 2017, 08:00 AM Show posts by this member only \| Post #313
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(kaicherc @ Oct 31 2017, 01:21 AM) still rookie in oc just delid my 7700k with aoros gaming 5 4.8ghz 1.285 max temp 80? , can anyone here guide me ? Hi, welcome to OC club. To begin, what is your cooling setup? What thermal paste did you reapply after delidding? Regular TIM should shave off like 10-15C while liquid metal paste another 10C reduction.
Card PM	Report Top Like Quote Reply

TSowikh84	Nov 1 2017, 08:29 PM Show posts by this member only \| Post #314
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	Benching retail ROG Maximus X Hero... It appears to be a great board as well, requiring the same amount vCore as the Apex
Card PM	Report Top Like Quote Reply

keyo	Nov 2 2017, 12:33 AM Show posts by this member only \| Post #315
Casual Junior Member 345 posts Joined: Jun 2009	i3 8350k highest 4.9 bios 1.41v 5ghz tested until 1.45v crash when using 8700k mr ram can oc to 3400 wiht this ican go 3200 only This post has been edited by keyo: Nov 2 2017, 12:34 AM Attached thumbnail(s)
Card PM	Report Top Like Quote Reply

TSowikh84	Nov 2 2017, 07:56 AM Show posts by this member only \| Post #316
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(keyo @ Nov 2 2017, 12:33 AM) i3 8350k highest 4.9 bios 1.41v 5ghz tested until 1.45v crash when using 8700k mr ram can oc to 3400 wiht this ican go 3200 only Like I told you earlier bro. It is expected that not all 8350K is able to OC to 5.0GHz at a reasonable voltage, most of them can't. As far as I know, RAM OC of this quad CPU is also worse than 8700K. Must be lowly binned by Intel. For OC, 8700K & 8600K are still the best choice.
Card PM	Report Top Like Quote Reply

keyo	Nov 4 2017, 01:02 AM Show posts by this member only \| Post #317
Casual Junior Member 345 posts Joined: Jun 2009	batch l730c305 vid 1.12v custom wc prime 95 1344 25min test bios 1.36v still have vrm drop This post has been edited by keyo: Nov 4 2017, 08:20 AM Attached thumbnail(s)
Card PM	Report Top Like Quote Reply

TSowikh84	Nov 4 2017, 10:35 AM Show posts by this member only \| Post #318
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(keyo @ Nov 4 2017, 01:02 AM) batch l730c305 vid 1.12v custom wc prime 95 1344 25min test bios 1.36v still have vrm drop Did you mean vdroop? Load voltage drops too much? For Prime95, I noticed that I'd need to increase the vCore a bit to get it stable at higher RAM frequency. Which means your current vCore might not be sufficient if you don't stress the RAM at the same time. Hence, I'd recommend to also stress the IMC preferably at 95%+ RAM usage.
Card PM	Report Top Like Quote Reply

keyo	Nov 4 2017, 01:30 PM Show posts by this member only \| Post #319
Casual Junior Member 345 posts Joined: Jun 2009	QUOTE(owikh84 @ Nov 4 2017, 10:35 AM) Did you mean vdroop? Load voltage drops too much? For Prime95, I noticed that I'd need to increase the vCore a bit to get it stable at higher RAM frequency. Which means your current vCore might not be sufficient if you don't stress the RAM at the same time. Hence, I'd recommend to also stress the IMC preferably at 95%+ RAM usage. bios set 1.35,1.36 its show 1.344 at cpuz
Card PM	Report Top Like Quote Reply

TSowikh84	Nov 4 2017, 11:42 PM Show posts by this member only \| Post #320
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(keyo @ Nov 4 2017, 01:30 PM) bios set 1.35,1.36 its show 1.344 at cpuz Looks super fine for me, nothing to worry about. Bad vdroops are 0.06-0.09v etc.
Card PM	Report Top Like Quote Reply

keyo	Nov 5 2017, 08:26 AM Show posts by this member only \| IPv6 \| Post #321
Casual Junior Member 345 posts Joined: Jun 2009	Is it ok if i use below 1.45v daily use i3 8350k temp below 90
Card PM	Report Top Like Quote Reply

TSowikh84	Nov 5 2017, 09:20 AM Show posts by this member only \| Post #322
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(keyo @ Nov 5 2017, 08:26 AM) Is it ok if i use below 1.45v daily use i3 8350k temp below 90 There's no safe voltage when it comes to OC but I'd recommend to stay below 1.5V under air/water and under 100C. Intel recommended max vCore is 1.52v: Source: https://www.intel.com/content/www/us/en/pro...heet-vol-1.html This post has been edited by owikh84: Nov 5 2017, 09:33 AM
Card PM	Report Top Like Quote Reply

crumpetss	Nov 7 2017, 09:00 PM Show posts by this member only \| Post #323
dummie Senior Member 523 posts Joined: Aug 2017 From: some place	managed 4.6ghz on my 8700k without touching the voltage, did i win the lottery? undelided @ ~78c
Card PM	Report Top Like Quote Reply

keyo	Nov 8 2017, 07:51 PM Show posts by this member only \| Post #324
Casual Junior Member 345 posts Joined: Jun 2009	QUOTE(crumpetss @ Nov 7 2017, 09:00 PM) managed 4.6ghz on my 8700k without touching the voltage, did i win the lottery? undelided @ ~78c can you show cpuz
Card PM	Report Top Like Quote Reply

crumpetss	Nov 10 2017, 11:03 PM Show posts by this member only \| Post #325
dummie Senior Member 523 posts Joined: Aug 2017 From: some place	QUOTE(keyo @ Nov 8 2017, 07:51 PM) can you show cpuz Attached thumbnail(s)
Card PM	Report Top Like Quote Reply

azcromex	Nov 16 2017, 01:25 PM Show posts by this member only \| Post #326
Getting Started Junior Member 81 posts Joined: Jan 2006	QUOTE(owikh84 @ Oct 18 2017, 11:52 AM) OC Guide for GIGABYTE Z370 board, top post updated. [JOOMAG] GIGABYTE Z370 OC Guide noob overclocker here. i followed these steps on an Aorus Ultra Gaming + 8700k but it went into boot loop on windows logo with the circly things
Card PM	Report Top Like Quote Reply

keyo	Nov 18 2017, 06:09 PM Show posts by this member only \| Post #327
Casual Junior Member 345 posts Joined: Jun 2009	QUOTE(azcromex @ Nov 16 2017, 01:25 PM) noob overclocker here. i followed these steps on an Aorus Ultra Gaming + 8700k but it went into boot loop on windows logo with the circly things Pump voltage not all proc same vid (stock voltage ) Apa yg aku tahu lah kalau salah tolong betulkan This post has been edited by keyo: Nov 18 2017, 06:12 PM
Card PM	Report Top Like Quote Reply

crumpetss	Nov 20 2017, 02:02 PM Show posts by this member only \| Post #328
dummie Senior Member 523 posts Joined: Aug 2017 From: some place	QUOTE(azcromex @ Nov 16 2017, 01:25 PM) noob overclocker here. i followed these steps on an Aorus Ultra Gaming + 8700k but it went into boot loop on windows logo with the circly things restart your pc, when booting try to boot into bios, revert those changes
Card PM	Report Top Like Quote Reply

BroD	Nov 21 2017, 01:39 AM Show posts by this member only \| Post #329
New Member Newbie 15 posts Joined: Nov 2017	Can 5.2GHz vcore go lower? This post has been edited by BroD: Nov 21 2017, 01:49 AM
Card PM	Report Top Like Quote Reply

TSowikh84	Nov 21 2017, 07:07 AM Show posts by this member only \| Post #330
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(BroD @ Nov 21 2017, 01:39 AM) Can 5.2GHz vcore go lower? Hi bro, Assuming that you've tried lower voltage, I'm afraid there's no other way to get any lower vCore. Plus, your mobo is the Hero so should be among the best Z370 boards in terms of power delivery, voltage control etc. Every CPU comes with its unique VID (stock voltage), so it may vary from one chip to another.
Card PM	Report Top Like Quote Reply

BroD	Nov 22 2017, 02:04 AM Show posts by this member only \| Post #331
New Member Newbie 15 posts Joined: Nov 2017	QUOTE(owikh84 @ Nov 21 2017, 07:07 AM) Hi bro, Assuming that you've tried lower voltage, I'm afraid there's no other way to get any lower vCore. Plus, your mobo is the Hero so should be among the best Z370 boards in terms of power delivery, voltage control etc. Every CPU comes with its unique VID (stock voltage), so it may vary from one chip to another. Maybe you can tell me how to OC properly? Sometimes I see just a single setting can decide how low the vcore can go or how stable the system is. You are using Maximus X Apex & Maximus X Hero, I would be thankful if you can share your BIOS settings. This post has been edited by BroD: Nov 22 2017, 02:07 AM
Card PM	Report Top Like Quote Reply

TSowikh84	Nov 22 2017, 07:10 AM Show posts by this member only \| Post #332
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(BroD @ Nov 22 2017, 02:04 AM) Maybe you can tell me how to OC properly? Sometimes I see just a single setting can decide how low the vcore can go or how stable the system is. You are using Maximus X Apex & Maximus X Hero, I would be thankful if you can share your BIOS settings. Wait, tonight I will share my stable 5GHz OC BIOS settings. Now I am testing an entry-level board. Will come back to you, so stay tuned.
Card PM	Report Top Like Quote Reply

TSowikh84	Nov 22 2017, 07:23 PM Show posts by this member only \| Post #333
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(BroD @ Nov 22 2017, 02:04 AM) Maybe you can tell me how to OC properly? Sometimes I see just a single setting can decide how low the vcore can go or how stable the system is. You are using Maximus X Apex & Maximus X Hero, I would be thankful if you can share your BIOS settings. Here's my 5GHz OC settings for the following setup: M10H_setting.txt ( 72.86k ) Number of downloads: 35 Summarizing up those important settings: » Click to show Spoiler - click again to hide... « Ai Overclock Tuner [XMP] XMP [XMP DDR4-3200 16-18-18-38-1.35V] BCLK Frequency [100.0000] ASUS MultiCore Enhancement [Auto] AVX Instruction Core Ratio Negative Offset [set 0 if you're doing video encoding, otherwise 2] CPU Core Ratio [Sync All Cores] 1-Core Ratio Limit [50] 2-Core Ratio Limit [50] 3-Core Ratio Limit [50] 4-Core Ratio Limit [50] 5-Core Ratio Limit [50] 6-Core Ratio Limit [50] DRAM Odd Ratio Mode [Enabled] DRAM Frequency [DDR4-3200MHz] Min. CPU Cache Ratio [45] Max CPU Cache Ratio [45] CPU Core/Cache Voltage [Manual Mode] - CPU Core Voltage Override [1.300, depends on your CPU's VID aka stock voltage] DRAM Voltage [1.3500] CPU VCCIO Voltage [1.12500] CPU System Agent Voltage [1.12500, depends on your CPU's IMC strength] CPU C-states [Disabled] CPU Load-line Calibration [Level 5] CPU Current Capability [140%] CPU VRM Switching Frequency [Auto] VRM Spread Spectrum [Disabled] Active Frequency Mode [Disabled] CPU Power Duty Control [Extreme] CPU Power Phase Control [Extreme] DRAM Current Capability [100%] My PC specs: CPU: Intel Core i7-8700K MB: ASUS ROG Maximus X HERO (BIOS 0505) RAM: G.Skill TridentZ RGB DDR4-3200 CL16 2x8GB Cooling: Custom WC This post has been edited by owikh84: Nov 22 2017, 07:24 PM
Card PM	Report Top Like Quote Reply

BroD	Nov 23 2017, 12:31 AM Show posts by this member only \| Post #334
New Member Newbie 15 posts Joined: Nov 2017	QUOTE(owikh84 @ Nov 22 2017, 07:23 PM) Here's my 5GHz OC settings for the following setup: M10H_setting.txt ( 72.86k ) Number of downloads: 35 Summarizing up those important settings: » Click to show Spoiler - click again to hide... « Ai Overclock Tuner [XMP] XMP [XMP DDR4-3200 16-18-18-38-1.35V] BCLK Frequency [100.0000] ASUS MultiCore Enhancement [Auto] AVX Instruction Core Ratio Negative Offset [set 0 if you're doing video encoding, otherwise 2] CPU Core Ratio [Sync All Cores] 1-Core Ratio Limit [50] 2-Core Ratio Limit [50] 3-Core Ratio Limit [50] 4-Core Ratio Limit [50] 5-Core Ratio Limit [50] 6-Core Ratio Limit [50] DRAM Odd Ratio Mode [Enabled] DRAM Frequency [DDR4-3200MHz] Min. CPU Cache Ratio [45] Max CPU Cache Ratio [45] CPU Core/Cache Voltage [Manual Mode] - CPU Core Voltage Override [1.300, depends on your CPU's VID aka stock voltage] DRAM Voltage [1.3500] CPU VCCIO Voltage [1.12500] CPU System Agent Voltage [1.12500, depends on your CPU's IMC strength] CPU C-states [Disabled] CPU Load-line Calibration [Level 5] CPU Current Capability [140%] CPU VRM Switching Frequency [Auto] VRM Spread Spectrum [Disabled] Active Frequency Mode [Disabled] CPU Power Duty Control [Extreme] CPU Power Phase Control [Extreme] DRAM Current Capability [100%] My PC specs: CPU: Intel Core i7-8700K MB: ASUS ROG Maximus X HERO (BIOS 0505) RAM: G.Skill TridentZ RGB DDR4-3200 CL16 2x8GB Cooling: Custom WC Wow..thank you so much. That's a long list lol. Why are you still using BIOS 0505 instead of the latest BIOS 0802? Is it better?
Card PM	Report Top Like Quote Reply

TSowikh84	Nov 23 2017, 06:52 AM Show posts by this member only \| Post #335
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(BroD @ Nov 23 2017, 12:31 AM) Wow..thank you so much. That's a long list lol. Why are you still using BIOS 0505 instead of the latest BIOS 0802? Is it better? These are the settings that I used last month with the older 0505 BIOS before testing other motherboards. Now testing the 0802, should be better or worse
Card PM	Report Top Like Quote Reply

TSowikh84	Nov 23 2017, 10:20 PM Show posts by this member only \| Post #336
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	Here are my stable i7-8700K @ 5.0GHz/4.5GHz OC results on two Z370 boards with Prime95 v29.3 running for 3 hours. ROG Maximus X HERO: 1.280v (Same as APEX) TUF Z370-Pro Gaming: 1.328v You can see that the TUF required 0.048v more voltage than the HERO.
Card PM	Report Top Like Quote Reply

BroD	Nov 23 2017, 10:36 PM Show posts by this member only \| Post #337
New Member Newbie 15 posts Joined: Nov 2017	QUOTE(owikh84 @ Nov 23 2017, 10:20 PM) Here are my stable i7-8700K @ 5.0GHz/4.5GHz OC results on two Z370 boards with Prime95 v29.3 running for 3 hours. ROG Maximus X HERO: 1.280v (Same as APEX) TUF Z370-Pro Gaming: 1.328v You can see that the TUF required 0.048v more voltage than the HERO. Hi bro...so, what do you think about bios 0802? Are you running the same cpu on both prime and hero? Were you using small fft test for both? By the way, the latest version of prime95 is 29.4.5 Edit: cpu package power on mine is almost 200w running prime95..is it normal? This post has been edited by BroD: Nov 23 2017, 10:39 PM
Card PM	Report Top Like Quote Reply

TSowikh84	Nov 24 2017, 12:26 AM Show posts by this member only \| Post #338
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(BroD @ Nov 23 2017, 10:36 PM) Hi bro...so, what do you think about bios 0802? Are you running the same cpu on both prime and hero? Were you using small fft test for both? By the way, the latest version of prime95 is 29.4.5 Edit: cpu package power on mine is almost 200w running prime95..is it normal? I just tested the new 0802 BIOS, so need more time to really comment about it. But initial testing found that it is better than the old 0505 BIOS, especially in terms of RAM OC. New BIOS allows me to POST easy, run stably at DDR4-4200. Need to test more on this though. With the 0505 BIOS, I had issue getting my B-die kit to POST at DDR4-4133+. To answer your other questions: Yes, exactly the same 8700K CPU was used on both TUF and HERO. For Prime95, I always used Custom Blend 1344K min/max 14500MB RAM to stress both CPU+IMC/RAM altogether. Prime95 is very stressful that your CPU power package could hit as much as 180-200W when highly overclocked/overvolted.
Card PM	Report Top Like Quote Reply

TSowikh84	Nov 25 2017, 10:05 AM Show posts by this member only \| Post #339
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	DDR4-4200 CL18 @ 1.35v passed HCl ~500%... (excuse me for the loose timing, need to go higher then only optimize it) now testing CL17 @ 1.40v
Card PM	Report Top Like Quote Reply

crumpetss	Nov 25 2017, 11:53 AM Show posts by this member only \| Post #340
dummie Senior Member 523 posts Joined: Aug 2017 From: some place	QUOTE(owikh84 @ Nov 25 2017, 10:05 AM) DDR4-4200 CL18 @ 1.35v passed HCl ~500%... (excuse me for the loose timing, need to go higher then only optimize it) now testing CL17 @ 1.40v bro congrats on 4200mhz! also, isnt 1.40v too much for ram?
Card PM	Report Top Like Quote Reply

TSowikh84	Nov 25 2017, 09:22 PM Show posts by this member only \| Post #341
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(crumpetss @ Nov 25 2017, 11:53 AM) bro congrats on 4200mhz! also, isnt 1.40v too much for ram? 1.40v should be fine, not gonna harm the RAM or the CPU at all. Ehh, my RAM kit is rated at 1.40v. Moreover, there are some 1.50/1.45v-rated DDR4 memory modules in the market: 1.50v: http://www.ocdrift.com/g-skill-announces-n...t-z-memory-kit/ 1.45v: http://www.ocdrift.com/g-skill-releases-ul...4-4266mhz-kits/ Btw, I managed to run quick HCL test on DDR4-4200 CL17. Should have no problem for 24/7 stability. This post has been edited by owikh84: Nov 25 2017, 09:45 PM
Card PM	Report Top Like Quote Reply

BroD	Nov 25 2017, 09:59 PM Show posts by this member only \| Post #342
New Member Newbie 15 posts Joined: Nov 2017	QUOTE(owikh84 @ Nov 25 2017, 09:22 PM) 1.40v should be fine, not gonna harm the RAM or the CPU at all. Ehh, my RAM kit is rated at 1.40v. Moreover, there are some 1.50/1.45v-rated DDR4 memory modules in the market: 1.50v: http://www.ocdrift.com/g-skill-announces-n...t-z-memory-kit/ 1.45v: http://www.ocdrift.com/g-skill-releases-ul...4-4266mhz-kits/ Btw, I managed to run quick HCL test on DDR4-4200 CL17. Should have no problem for 24/7 stability. Wow...4200MHZ... I dont know how to oc RAM at all...I see you are using memtestpro..if Im using basic version of memtest, how to make it run like memtestpro? I have been using your bios settings and it is stable but I also want to save power when not using my computer. So I try adaptive voltage mode but I dont know a thing about it. Question, if my OC is stable at manual mode @1.25v, how to set it to stay at 1.25v +0.01v @adaptive mode and stay stable when I run stress test and also decreasing vcore automatically when not using my computer?
Card PM	Report Top Like Quote Reply

TSowikh84	Nov 25 2017, 10:40 PM Show posts by this member only \| Post #343
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(BroD @ Nov 25 2017, 09:59 PM) Wow...4200MHZ... I dont know how to oc RAM at all...I see you are using memtestpro..if Im using basic version of memtest, how to make it run like memtestpro? I have been using your bios settings and it is stable but I also want to save power when not using my computer. So I try adaptive voltage mode but I dont know a thing about it. Question, if my OC is stable at manual mode @1.25v, how to set it to stay at 1.25v +0.01v @adaptive mode and stay stable when I run stress test and also decreasing vcore automatically when not using my computer? Everything comes at a price bro. For 4000+, you will need to get RAM kit that is based on Samsung's B-die ICs, those DDR4-3600+ rating kits. Don't use Memtest86, as it is not relevant anymore for today's application and won't tell you anything conclusive at all. I am using a paid HCI Memtest that is used by most RAM manufactures in the market. Adaptive mode seems broken on the HERO, that's why manual voltage mode is still my favourite method. To use Adaptive mode, you just need to enter the full load voltage that you desired in the Additional Turbo Mode CPU Core Voltage box. In your case, just insert 1.25v into the box. The target full-load voltage is shown in the Total Adaptive Mode CPU Core Voltage.
Card PM	Report Top Like Quote Reply

BroD	Nov 25 2017, 10:52 PM Show posts by this member only \| Post #344
New Member Newbie 15 posts Joined: Nov 2017	QUOTE(owikh84 @ Nov 25 2017, 10:40 PM) Everything comes at a price bro. For 4000+, you will need to get RAM kit that is based on Samsung's B-die ICs, those DDR4-3600+ rating kits. Don't use Memtest86, as it is not relevant anymore for today's application and won't tell you anything conclusive at all. I am using a paid HCI Memtest that is used by most RAM manufactures in the market. Adaptive mode seems broken on the HERO, that's why manual voltage mode is still my favourite method. To use Adaptive mode, you just need to enter the full load voltage that you desired in the Additional Turbo Mode CPU Core Voltage box. In your case, just insert 1.25v into the box. The target full-load voltage is shown in the Total Adaptive Mode CPU Core Voltage. I did that and the voltage was shooting up to 1.35v when running stress test.
Card PM	Report Top Like Quote Reply

TSowikh84	Nov 26 2017, 12:01 AM Show posts by this member only \| Post #345
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(BroD @ Nov 25 2017, 10:52 PM) I did that and the voltage was shooting up to 1.35v when running stress test. Same here, I think it's broken (not working).
Card PM	Report Top Like Quote Reply

bulkhy	Nov 26 2017, 08:45 AM Show posts by this member only \| Post #346
Mr Senior Member 813 posts Joined: Jan 2003	any overclockers here has delidded your CPU ???
Card PM	Report Top Like Quote Reply

TSowikh84	Nov 26 2017, 09:13 AM Show posts by this member only \| Post #347
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(bulkhy @ Nov 26 2017, 08:45 AM) any overclockers here has delidded your CPU ??? Me not yet Btw guys, 4 sticks of 8GB B-die memories running at DDR4-4266 CL17 @ 1.45v.
Card PM	Report Top Like Quote Reply

crumpetss	Nov 26 2017, 11:26 PM Show posts by this member only \| Post #348
dummie Senior Member 523 posts Joined: Aug 2017 From: some place	QUOTE(owikh84 @ Nov 26 2017, 09:13 AM) Me not yet Btw guys, 4 sticks of 8GB B-die memories running at DDR4-4266 CL17 @ 1.45v. how??? 8700k undelid 5ghz? no cooling problems meh
Card PM	Report Top Like Quote Reply

crumpetss	Nov 26 2017, 11:26 PM Show posts by this member only \| Post #349
dummie Senior Member 523 posts Joined: Aug 2017 From: some place	QUOTE(owikh84 @ Nov 26 2017, 09:13 AM) Me not yet Btw guys, 4 sticks of 8GB B-die memories running at DDR4-4266 CL17 @ 1.45v. how??? 8700k undelid 5ghz? no cooling problems meh
Card PM	Report Top Like Quote Reply

bulkhy	Nov 27 2017, 03:00 AM Show posts by this member only \| Post #350
Mr Senior Member 813 posts Joined: Jan 2003	your running at 100c load? man i nd to buy the tool for delidding ramz OC will see any difference between 3200mhz and 4000mhz?
Card PM	Report Top Like Quote Reply

TSowikh84	Nov 27 2017, 07:01 AM Show posts by this member only \| Post #351
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(crumpetss @ Nov 26 2017, 11:26 PM) how??? 8700k undelid 5ghz? no cooling problems meh QUOTE(bulkhy @ Nov 27 2017, 03:00 AM) your running at 100c load? man i nd to buy the tool for delidding ramz OC will see any difference between 3200mhz and 4000mhz? Check few posts back, I did a few 3-hour Prime95 v29.3 (with AVX/FMA3) runs with CPU temps lower than 80c without delidding. My 8700K is a really rare chip with a very low stock VID. DDR4-3200 vs 4000+, I'd say very little to no difference but anything lower than DDR4-3200 will bottleneck the system. Source: TPU This post has been edited by owikh84: Nov 27 2017, 07:55 AM
Card PM	Report Top Like Quote Reply

TSowikh84	Nov 30 2017, 07:08 AM Show posts by this member only \| Post #352
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	CL17/18 is not easy to stabilize, so going back to XMP at DDR4-4266 CL19 @ 1.40v 4x8GB ROG Maximus X HERO 8700K Coffee Lake TridentZ RGB 4266C19 4x8GB Attached thumbnail(s)
Card PM	Report Top Like Quote Reply

x-1o8-x	Nov 30 2017, 10:18 PM Show posts by this member only \| Post #353
Prosekaist Senior Member 1,250 posts Joined: Jun 2009 From: the land before time	hi guys, those of you using Asus board to OC your 8700k, what LLC level are you guys using? things have changed alot since I last OC'ed like 7-8 years ago and I'm learning back OC for these new processors. whats the typical voltage to expect for pushing 5ghz? thanks in advance guys.
Card PM	Report Top Like Quote Reply

TSowikh84	Nov 30 2017, 10:59 PM Show posts by this member only \| Post #354
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(x-1o8-x @ Nov 30 2017, 10:18 PM) hi guys, those of you using Asus board to OC your 8700k, what LLC level are you guys using? things have changed alot since I last OC'ed like 7-8 years ago and I'm learning back OC for these new processors. whats the typical voltage to expect for pushing 5ghz? thanks in advance guys. Each motherboard's power design is different. ASUS and other brands have LLC level 1 as the lowest and up to 8 for the highest. ASRock has it backwards where level 1 is highest and level 5 is the lowest. On my ROG boards, I chose level 5 because I find it gives the lowest vdroop. Check few pages back for my 5GHz CPU OC. LLC5 used, BIOS set 1.30v, load vCore 1.280v Prime95 AVX 0 offset stable. Typical voltage is around 1.2-1.4v depending on your VID and board of course. Check out 8700K OC database from Germany: https://www.hardwareluxx.de/community/f139/...ad-1178256.html
Card PM	Report Top Like Quote Reply

x-1o8-x	Dec 1 2017, 01:52 AM Show posts by this member only \| Post #355
Prosekaist Senior Member 1,250 posts Joined: Jun 2009 From: the land before time	QUOTE(owikh84 @ Nov 30 2017, 10:59 PM) Each motherboard's power design is different. ASUS and other brands have LLC level 1 as the lowest and up to 8 for the highest. ASRock has it backwards where level 1 is highest and level 5 is the lowest. On my ROG boards, I chose level 5 because I find it gives the lowest vdroop. Check few pages back for my 5GHz CPU OC. LLC5 used, BIOS set 1.30v, load vCore 1.280v Prime95 AVX 0 offset stable. Typical voltage is around 1.2-1.4v depending on your VID and board of course. Check out 8700K OC database from Germany: https://www.hardwareluxx.de/community/f139/...ad-1178256.html thanks dude, i'll give it a try, i've tried level 2-3 previously @ 1.3vcore but still failing p95 as soon as test starts.
Card PM	Report Top Like Quote Reply

TSowikh84	Dec 1 2017, 06:48 AM Show posts by this member only \| Post #356
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(x-1o8-x @ Dec 1 2017, 01:52 AM) thanks dude, i'll give it a try, i've tried level 2-3 previously @ 1.3vcore but still failing p95 as soon as test starts. Better check your chip's vid first before pumping any voltage. For record, my 8700K comes with 1.088v vid.
Card PM	Report Top Like Quote Reply

TSowikh84	Dec 1 2017, 06:52 AM Show posts by this member only \| Post #357
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	5 hours+ of HCl 500% 😁 DDR4-4266 CL18 @ 1.40v 4x8G i7-8700K ROG Maximus X HERO TridentZ RGB DDR4-4266C19 4x8GB
Card PM	Report Top Like Quote Reply

x-1o8-x	Dec 1 2017, 01:43 PM Show posts by this member only \| Post #358
Prosekaist Senior Member 1,250 posts Joined: Jun 2009 From: the land before time	QUOTE(owikh84 @ Dec 1 2017, 06:48 AM) Better check your chip's vid first before pumping any voltage. For record, my 8700K comes with 1.088v vid. do you mean the cpu voltage when it's @ 3.7ghz like the one in the BIOS or when you boot up to windows and it's at 4.7ghz due to the asus MCE? for BIOS, mine's showing 1.040v while in windows when the CPU gets stressed to 4.7ghz it shows 1.332-1.337 Everything was set to Auto on BIOS btw for the situation above,
Card PM	Report Top Like Quote Reply

TSowikh84	Dec 1 2017, 05:00 PM Show posts by this member only \| Post #359
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(x-1o8-x @ Dec 1 2017, 01:43 PM) do you mean the cpu voltage when it's @ 3.7ghz like the one in the BIOS or when you boot up to windows and it's at 4.7ghz due to the asus MCE? for BIOS, mine's showing 1.040v while in windows when the CPU gets stressed to 4.7ghz it shows 1.332-1.337 Everything was set to Auto on BIOS btw for the situation above, VID can be observed when your BIOS setting is set to default. Hence, in your case your VID is 1.040v which is quite low even lower than my 8700K chip. Hmm not sure why you need so much vcore but it's likely that the Strix mobo has a weak VRM power.
Card PM	Report Top Like Quote Reply

x-1o8-x	Dec 1 2017, 05:50 PM Show posts by this member only \| Post #360
Prosekaist Senior Member 1,250 posts Joined: Jun 2009 From: the land before time	QUOTE(owikh84 @ Dec 1 2017, 05:00 PM) VID can be observed when your BIOS setting is set to default. Hence, in your case your VID is 1.040v which is quite low even lower than my 8700K chip. Hmm not sure why you need so much vcore but it's likely that the Strix mobo has a weak VRM power. I've tried pushing it @ 4.7ghz with 1.32v vcore and LLC lv5 and was able to run prime95 without having any errors, but after a minute or so my speed gets throttled even though my temps are not above 80c. I get the feeling the VRM is overheating thus throttling is occuring due to that. do you touch any other VRM settings besides the LLC?
Card PM	Report Top Like Quote Reply

TSowikh84	Dec 1 2017, 09:44 PM Show posts by this member only \| Post #361
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(x-1o8-x @ Dec 1 2017, 05:50 PM) I've tried pushing it @ 4.7ghz with 1.32v vcore and LLC lv5 and was able to run prime95 without having any errors, but after a minute or so my speed gets throttled even though my temps are not above 80c. I get the feeling the VRM is overheating thus throttling is occuring due to that. do you touch any other VRM settings besides the LLC? CPU Load-line Calibration [Level 5] CPU Current Capability [140%] CPU VRM Switching Frequency [Auto] VRM Spread Spectrum [Disabled] Active Frequency Mode [Disabled] CPU Power Duty Control [Extreme] CPU Power Phase Control [Extreme] DRAM Current Capability [100%]
Card PM	Report Top Like Quote Reply

BroD	Dec 1 2017, 11:05 PM Show posts by this member only \| Post #362
New Member Newbie 15 posts Joined: Nov 2017	I killed one of my RAM stick (SK Hynix M-Die) after I hammered it with 2 hours of Prime95 v29.4.5 @max RAM usage, 1344K fft (All passed though) after being OC'ed to a modest 3466MHz with default timings and voltage (16-18-18-38,2T @1.35v). My Maximus X Hero showed Q Code 55 and 6E, now using only one stick. (Bad stick doesn't work with all 4 slots, good stick works with all 4 slots, tested 1 by 1) Question; 1. Is there a possibility that my CPU memory controller is damaged too? 2. Could Prime95 kills a memory or is the stick already a bad stick to begin with? 3. What is the possibility that it could kill the motherboard or the CPU too? 4. Is memory OC'ing a bad thing? I didn't even touch the voltage, timings, VCCIO etc. This post has been edited by BroD: Dec 1 2017, 11:08 PM
Card PM	Report Top Like Quote Reply

TSowikh84	Dec 1 2017, 11:59 PM Show posts by this member only \| Post #363
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(BroD @ Dec 1 2017, 11:05 PM) I killed one of my RAM stick (SK Hynix M-Die) after I hammered it with 2 hours of Prime95 v29.4.5 @max RAM usage, 1344K fft (All passed though) after being OC'ed to a modest 3466MHz with default timings and voltage (16-18-18-38,2T @1.35v). My Maximus X Hero showed Q Code 55 and 6E, now using only one stick. (Bad stick doesn't work with all 4 slots, good stick works with all 4 slots, tested 1 by 1) Question; 1. Is there a possibility that my CPU memory controller is damaged too? 2. Could Prime95 kills a memory or is the stick already a bad stick to begin with? 3. What is the possibility that it could kill the motherboard or the CPU too? 4. Is memory OC'ing a bad thing? I didn't even touch the voltage, timings, VCCIO etc. The bolded part sounds like a defective RAM module. It should have a lifetime warranty, so send it for RMA. 1) Most likely not, you're not pumping extremely high VCCSA like 1.4v+ etc. 2) Prime95 will not kill your RAM, unless you pump extremely high RAM voltage like 2.0v+ etc for long term without a proper cooling. The dead RAM module could be an already weak stick that suffered from ESD etc. 3) Prime95 will not kill your motherboard and CPU because the board itself has OC protection etc to prevent it from getting fried. When your CPU reaches 100C high, thermal throttling kicks in and your OC will be reduced at lower frequency to reduce the temperature. But chip degradation over time is undeniable, so best is to keep it as cool as possible. 4) Answered in number 2.
Card PM	Report Top Like Quote Reply

BroD	Dec 2 2017, 12:12 AM Show posts by this member only \| Post #364
New Member Newbie 15 posts Joined: Nov 2017	QUOTE(owikh84 @ Dec 1 2017, 11:59 PM) The bolded part sounds like a defective RAM module. It should have a lifetime warranty, so send it for RMA. 1) Most likely not, you're not pumping extremely high VCCSA like 1.4v+ etc. 2) Prime95 will not kill your RAM, unless you pump extremely high RAM voltage like 2.0v+ etc for long term without a proper cooling. The dead RAM module could be an already weak stick that suffered from ESD etc. 3) Prime95 will not kill your motherboard and CPU because the board itself has OC protection etc to prevent it from getting fried. When your CPU reaches 100C high, thermal throttling kicks in and your OC will be reduced at lower frequency to reduce the temperature. But chip degradation over time is undeniable, so best is to keep it as cool as possible. 4) Answered in number 2. Thank you for the clarification. Now I don't have to worry about my CPU and motherboard. Yes, it's flying back to Taiwan soon lol Attached thumbnail(s)
Card PM	Report Top Like Quote Reply

x-1o8-x	Dec 2 2017, 01:11 AM Show posts by this member only \| Post #365
Prosekaist Senior Member 1,250 posts Joined: Jun 2009 From: the land before time	QUOTE(owikh84 @ Dec 1 2017, 09:44 PM) CPU Load-line Calibration [Level 5] CPU Current Capability [140%] CPU VRM Switching Frequency [Auto] VRM Spread Spectrum [Disabled] Active Frequency Mode [Disabled] CPU Power Duty Control [Extreme] CPU Power Phase Control [Extreme] DRAM Current Capability [100%] Thanks for the input, I've tried it and I'm still failing prime95 though I could definitely boot to windows without worrying of crashing halfway now. considering I'm only on a Noctua NH-D15S and I've not delidded my CPU, I guess this is the limit for now
Card PM	Report Top Like Quote Reply

TSowikh84	Dec 2 2017, 10:15 AM Show posts by this member only \| Post #366
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(BroD @ Dec 2 2017, 12:12 AM) Thank you for the clarification. Now I don't have to worry about my CPU and motherboard. Yes, it's flying back to Taiwan soon lol Wow, that was fast! I think I saw your post about this in a FB group. How much is the shipping cost? Last time I used poslaju around RM100, DHL around RM200. Return trip is free of charge. QUOTE(x-1o8-x @ Dec 2 2017, 01:11 AM) Thanks for the input, I've tried it and I'm still failing prime95 though I could definitely boot to windows without worrying of crashing halfway now. considering I'm only on a Noctua NH-D15S and I've not delidded my CPU, I guess this is the limit for now hmm I guess you will need a better mobo to confirm as I saw your VID is quite low so couldn't be your chip is worse than mine. Btw, if you're not doing video encoding stuffs you can use Prime95 v26.6 that doesn't have AVX/FMA3 instruction. It is less stressful but enough for your daily work. It also requires less voltage, so you should get lower CPU temperatures. The legendary Noctua NH-D15S is a great air cooler that it performs even better than some AIO coolers in the market. I also have the NH-D15S and the vanilla D15, maybe be will give it a try when I am free.
Card PM	Report Top Like Quote Reply

x-1o8-x	Dec 2 2017, 12:37 PM Show posts by this member only \| Post #367
Prosekaist Senior Member 1,250 posts Joined: Jun 2009 From: the land before time	QUOTE(owikh84 @ Dec 2 2017, 10:15 AM) hmm I guess you will need a better mobo to confirm as I saw your VID is quite low so couldn't be your chip is worse than mine. Btw, if you're not doing video encoding stuffs you can use Prime95 v26.6 that doesn't have AVX/FMA3 instruction. It is less stressful but enough for your daily work. It also requires less voltage, so you should get lower CPU temperatures. The legendary Noctua NH-D15S is a great air cooler that it performs even better than some AIO coolers in the market. I also have the NH-D15S and the vanilla D15, maybe be will give it a try when I am free. heh the default settings is also more than enough for what im doing which is just gaming, i've stopped video encoding for the time being. just thought i'd try to push this processor as far as I can while passing the prime95 stress test. i'll try playing around with it again tonight to see if i can push it to 5.2ghz cpu-z validation able thanks bro for the settings you gave, it really gave me more idea on what settings i could fiddle around to get more juice
Card PM	Report Top Like Quote Reply

TSowikh84	Dec 2 2017, 03:05 PM Show posts by this member only \| Post #368
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(x-1o8-x @ Dec 2 2017, 12:37 PM) heh the default settings is also more than enough for what im doing which is just gaming, i've stopped video encoding for the time being. just thought i'd try to push this processor as far as I can while passing the prime95 stress test. i'll try playing around with it again tonight to see if i can push it to 5.2ghz cpu-z validation able thanks bro for the settings you gave, it really gave me more idea on what settings i could fiddle around to get more juice I see... My pleasure bro iBenQ. All da best man.
Card PM	Report Top Like Quote Reply

TSowikh84	Dec 2 2017, 04:19 PM Show posts by this member only \| Post #369
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	DDR4-4266 CL17-19-19 with 4 x 8GB... en route to CL17-18-18 <= doable but not sure can achieve full stability or not 🤔 Core i7-8700K ROG Maximus X HERO G.Skill TridentZ RGB DDR4-4266 CL19 4x8GB
Card PM	Report Top Like Quote Reply

x-1o8-x	Dec 2 2017, 07:16 PM Show posts by this member only \| Post #370
Prosekaist Senior Member 1,250 posts Joined: Jun 2009 From: the land before time	QUOTE(owikh84 @ Dec 2 2017, 03:05 PM) I see... My pleasure bro iBenQ. All da best man. haha so long never use that nickname already
Card PM	Report Top Like Quote Reply

cstkl1	Dec 2 2017, 09:38 PM Show posts by this member only \| Post #371
Look at all my stars!! Elite 6,799 posts Joined: Jan 2003	QUOTE(x-1o8-x @ Dec 1 2017, 01:43 PM) do you mean the cpu voltage when it's @ 3.7ghz like the one in the BIOS or when you boot up to windows and it's at 4.7ghz due to the asus MCE? for BIOS, mine's showing 1.040v while in windows when the CPU gets stressed to 4.7ghz it shows 1.332-1.337 Everything was set to Auto on BIOS btw for the situation above, QUOTE(x-1o8-x @ Dec 2 2017, 01:11 AM) Thanks for the input, I've tried it and I'm still failing prime95 though I could definitely boot to windows without worrying of crashing halfway now. considering I'm only on a Noctua NH-D15S and I've not delidded my CPU, I guess this is the limit for now hmm ok thats just the luck of the draw dude but generally most 8700k are at this voltage for 5ghz.. so ure not at the bad end.. Bad ones need 1.4-1.45v from that 4.7ghz vid on auto.. with asus MCE.. thats ure 5ghz approximately... with AVX offset 2 so u can try 5ghz at 1.32-34 with avx offset 2 load line 5/6 owikh84 cpu will do it at 1.2-1.216v.... with MCE enable 4.7ghz.. on default. with strix based on owi testing on TUF... expect increase of voltage around 0.03-0.04v.. ( might not be the case with offset -2)
Card PM	Report Top Like Quote Reply

x-1o8-x	Dec 3 2017, 12:19 AM Show posts by this member only \| Post #372
Prosekaist Senior Member 1,250 posts Joined: Jun 2009 From: the land before time	QUOTE(cstkl1 @ Dec 2 2017, 09:38 PM) hmm ok thats just the luck of the draw dude but generally most 8700k are at this voltage for 5ghz.. so ure not at the bad end.. Bad ones need 1.4-1.45v from that 4.7ghz vid on auto.. with asus MCE.. thats ure 5ghz approximately... with AVX offset 2 so u can try 5ghz at 1.32-34 with avx offset 2 load line 5/6 owikh84 cpu will do it at 1.2-1.216v.... with MCE enable 4.7ghz.. on default. with strix based on owi testing on TUF... expect increase of voltage around 0.03-0.04v.. ( might not be the case with offset -2) I tried the settings you suggested above and was able to boot 5ghz @ 1.32v, managed to pull a 5.2ghz @ 1.36v with AVX offset 2 but my windows kinda bugged out with chrome not properly loading and I can't even shut down the PC properly due to the OS not being responsive. will fickle around to try to get it cinebench stable for now
Card PM	Report Top Like Quote Reply

cstkl1	Dec 3 2017, 06:13 AM Show posts by this member only \| Post #373
Look at all my stars!! Elite 6,799 posts Joined: Jan 2003	QUOTE(x-1o8-x @ Dec 3 2017, 12:19 AM) I tried the settings you suggested above and was able to boot 5ghz @ 1.32v, managed to pull a 5.2ghz @ 1.36v with AVX offset 2 but my windows kinda bugged out with chrome not properly loading and I can't even shut down the PC properly due to the OS not being responsive. will fickle around to try to get it cinebench stable for now after 5ghz u need to relax ure ram and theres a need to adjust vccio etc.. i would redo a hci every multiplier above 5 before attempting any cpu stress benchmarks
Card PM	Report Top Like Quote Reply

x-1o8-x	Dec 4 2017, 01:38 AM Show posts by this member only \| Post #374
Prosekaist Senior Member 1,250 posts Joined: Jun 2009 From: the land before time	QUOTE(cstkl1 @ Dec 3 2017, 06:13 AM) after 5ghz u need to relax ure ram and theres a need to adjust vccio etc.. i would redo a hci every multiplier above 5 before attempting any cpu stress benchmarks I've set my RAM to auto during the OC as I don't want it to cause some instability issues, but at 5.2ghz it's pretty much fragile af
Card PM	Report Top Like Quote Reply

cstkl1	Dec 4 2017, 10:06 AM Show posts by this member only \| Post #375
Look at all my stars!! Elite 6,799 posts Joined: Jan 2003	QUOTE(x-1o8-x @ Dec 4 2017, 01:38 AM) I've set my RAM to auto during the OC as I don't want it to cause some instability issues, but at 5.2ghz it's pretty much fragile af auto wont do. asus default on z370 is actually tight. here is the kicker. on p95 i find alot of bsod errors 5.1ghz above are ram/imc related even on fft12. 5.1ghz relaxing rtl/iol passes fft12. also passes hci. but then i get some pcie issues ( tested on long stream) games tested is deus Ex and now my new fav is fc4 with all gameworks enable. did some tweaks in tweakers paradise and upped dmi/cpu standby voltage. m 5.2ghz again another imc related issue. tweaked some third timings, 5.3ghz was hci/priming with rams at 4200c18@1.3v.. thsts when i killed one of the cpu cores. lol. pll bandwidth helps but becareful n dont use 6-8 as whats written on the description. default intel spec is 1.2v but asus runs it at 0=0.6v hope this insight helps. i just backed down to 5ghz@1.2v offset 2 and called it a day. need months to validate above 5ghz since its causing other issues via dmi. same issues i had with my 7820x when i oced 4.7gh fod ram 4kc17@1.3v. rb/p95/hci doesnt catch other issues as much as actual long session gaming.
Card PM	Report Top Like Quote Reply

keyo	Dec 5 2017, 02:51 PM Show posts by this member only \| IPv6 \| Post #376
Casual Junior Member 345 posts Joined: Jun 2009	QUOTE(owikh84 @ Oct 18 2017, 07:21 PM) Officially jump on the bandwagon... ROG Maximus X Apex and TUF Z370-Pro Gaming are here. Let's start with the Apex First thing to do is of course to overclock the i5-8600K CPU to 5.0GHz (BIOS set 1.425v, LLC5) and run Cinebench R15: CPU score: 1221 cb (7700K @ 5.0GHz: 1087 cb) Currently, I am also testing the LLC in Realbench 2.44 (AVX) to see the vdroop/vdrop. This is just part of the results: LLC works fine for me, vdroop = -0.016v, despite ROG Strix Z370-F users are complaining about 0.08-0.09v vdroop. Also note the core temps, idle @ 57.3C, load @ 85.3C, which are in my opinion a bit on the high side. Cooling is custom loop lowered by a pair of 360mm radiators in push-pull fan configuration. Is it retail unit,
Card PM	Report Top Like Quote Reply

x-1o8-x	Dec 5 2017, 03:54 PM Show posts by this member only \| Post #377
Prosekaist Senior Member 1,250 posts Joined: Jun 2009 From: the land before time	QUOTE(cstkl1 @ Dec 4 2017, 10:06 AM) auto wont do. asus default on z370 is actually tight. here is the kicker. on p95 i find alot of bsod errors 5.1ghz above are ram/imc related even on fft12. 5.1ghz relaxing rtl/iol passes fft12. also passes hci. but then i get some pcie issues ( tested on long stream) games tested is deus Ex and now my new fav is fc4 with all gameworks enable. did some tweaks in tweakers paradise and upped dmi/cpu standby voltage. m 5.2ghz again another imc related issue. tweaked some third timings, 5.3ghz was hci/priming with rams at 4200c18@1.3v.. thsts when i killed one of the cpu cores. lol. pll bandwidth helps but becareful n dont use 6-8 as whats written on the description. default intel spec is 1.2v but asus runs it at 0=0.6v hope this insight helps. i just backed down to 5ghz@1.2v offset 2 and called it a day. need months to validate above 5ghz since its causing other issues via dmi. same issues i had with my 7820x when i oced 4.7gh fod ram 4kc17@1.3v. rb/p95/hci doesnt catch other issues as much as actual long session gaming. noted bro, thanks for the insight
Card PM	Report Top Like Quote Reply

TSowikh84	Dec 5 2017, 05:15 PM Show posts by this member only \| Post #378
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(keyo @ Dec 5 2017, 02:51 PM) Is it retail unit, 8600K - ES sample 8700K - retail ROG Maximus X HERO - retail ROG Maximus X APEX - review sample TUF Z370-Pro Gaming - review sample This post has been edited by owikh84: Dec 5 2017, 05:19 PM
Card PM	Report Top Like Quote Reply

keyo	Dec 6 2017, 12:26 AM Show posts by this member only \| Post #379
Casual Junior Member 345 posts Joined: Jun 2009	another lemon tree Attached thumbnail(s)
Card PM	Report Top Like Quote Reply

TSowikh84	Dec 6 2017, 06:48 AM Show posts by this member only \| Post #380
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(keyo @ Dec 6 2017, 12:26 AM) another lemon tree arghh not again! btw, good deals during last Black Friday.
Card PM	Report Top Like Quote Reply

x-1o8-x	Dec 10 2017, 09:19 PM Show posts by this member only \| Post #381
Prosekaist Senior Member 1,250 posts Joined: Jun 2009 From: the land before time	tried adjusting the vcore to offset mode with -0.08v, and for some reason i'm p95 stable @ 4.7ghz with vcore reading around 1.184v-1.216v but when doing it manually i get error'ed on p95
Card PM	Report Top Like Quote Reply

keyo	Dec 16 2017, 09:47 PM Show posts by this member only \| Post #382
Casual Junior Member 345 posts Joined: Jun 2009	why when i test prime 95 29.3 its drop to 4.6ghz if prime 95 26.6 its ok 5ghz avx i put auto tq
Card PM	Report Top Like Quote Reply

TSowikh84	Dec 16 2017, 10:32 PM Show posts by this member only \| Post #383
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(keyo @ Dec 16 2017, 09:47 PM) why when i test prime 95 29.3 its drop to 4.6ghz if prime 95 26.6 its ok 5ghz avx i put auto tq hmm... couldn't be that ASRock set -4 as the AVX offset by default. Inside Windows, you can check it through software like XTU or probably ASRock's own utility. Inside UEFI, you can manually set it to 0 in case you want to disable this function.
Card PM	Report Top Like Quote Reply

keyo	Dec 16 2017, 10:52 PM Show posts by this member only \| Post #384
Casual Junior Member 345 posts Joined: Jun 2009	QUOTE(owikh84 @ Dec 16 2017, 10:32 PM) hmm... couldn't be that ASRock set -4 as the AVX offset by default. Inside Windows, you can check it through software like XTU or probably ASRock's own utility. Inside UEFI, you can manually set it to 0 in case you want to disable this function. If uefi avx setting i put 0 its became auto Now i avx 1 Multiple 51 when prime its become 50 This post has been edited by keyo: Dec 16 2017, 10:53 PM
Card PM	Report Top Like Quote Reply

keyo	Dec 16 2017, 11:17 PM Show posts by this member only \| Post #385
Casual Junior Member 345 posts Joined: Jun 2009	vid 1.104v bios 1.38v avx 1 multiply 51 This post has been edited by keyo: Dec 17 2017, 01:01 AM Attached thumbnail(s)
Card PM	Report Top Like Quote Reply

TSowikh84	Dec 17 2017, 12:50 AM Show posts by this member only \| Post #386
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(keyo @ Dec 16 2017, 10:52 PM) If uefi avx setting i put 0 its became auto Now i avx 1 Multiple 51 when prime its become 50 No zero offset option is odd. Auto being -4 offset is more weird It sounds like the AVX offset is not working properly, for me it's a big bug LOL. Too bad I don't have any ASRock Z370 board with me, maybe you should contact ASRock for clarification haha.
Card PM	Report Top Like Quote Reply

hafiez	Dec 17 2017, 09:51 PM Show posts by this member only \| IPv6 \| Post #387
Look at all my stars!! Senior Member 2,980 posts Joined: Jan 2007 From: Mount Chiliad	one noob Q guys.... I'm on 8700k, Z370 gaming k6, crucial ballistix sport ddr4 ram. for cooling, I'm using D15s. I just play around with the OC tune settings which came with the mobo. I've selected the highest to 5GHz. with the preset, the mobo set the cpu V to 1.4, and I play around by bringing it down to 1.2v. at first I received BSOD, return to BIOS and change the value slowly upward, until I get 1.248v with no BSOD. for ram, I didn't change any values. but it runs on 2400MHz. for temperature, when stress test it hovers around 80c - 93c. if I use CPU-z "stress cpu" button, it plays around 80c on load. on normal usage, idle on 33c-37c and 65c on load. am I doing anything wrong or I'm exposing the chip to danger? This post has been edited by hafiez: Dec 17 2017, 09:53 PM
Card PM	Report Top Like Quote Reply

TSowikh84	Dec 17 2017, 11:09 PM Show posts by this member only \| Post #388
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(hafiez @ Dec 17 2017, 09:51 PM) one noob Q guys.... I'm on 8700k, Z370 gaming k6, crucial ballistix sport ddr4 ram. for cooling, I'm using D15s. I just play around with the OC tune settings which came with the mobo. I've selected the highest to 5GHz. with the preset, the mobo set the cpu V to 1.4, and I play around by bringing it down to 1.2v. at first I received BSOD, return to BIOS and change the value slowly upward, until I get 1.248v with no BSOD. for ram, I didn't change any values. but it runs on 2400MHz. for temperature, when stress test it hovers around 80c - 93c. if I use CPU-z "stress cpu" button, it plays around 80c on load. on normal usage, idle on 33c-37c and 65c on load. am I doing anything wrong or I'm exposing the chip to danger? CPU-Z is not a suitable software to test stability of your OC, neither a good software for benchmarking purpose. For CPU overclocking, the most standard people would go is Prime95, but take note that it is way too much stressful that your cooling can actually handle the heat. For me, a couple of hours (3 hours minimum) of Realbench or AIDA64 are more representative of real-world applications. Between these two, Realbench is better since it stresses both CPU and GPU at the same time. Anything lower than 100c would be safe. Moreover you're using an air cooler, which is less worrying than custom watercooling with PETG tubing etc. Your normal usage at 65c max looks fine though, just need to retest with a proper stress tool as I mentioned earlier to confirm stability.
Card PM	Report Top Like Quote Reply

x-1o8-x	Dec 17 2017, 11:42 PM Show posts by this member only \| Post #389
Prosekaist Senior Member 1,250 posts Joined: Jun 2009 From: the land before time	QUOTE(owikh84 @ Dec 17 2017, 11:09 PM) CPU-Z is not a suitable software to test stability of your OC, neither a good software for benchmarking purpose. For CPU overclocking, the most standard people would go is Prime95, but take note that it is way too much stressful that your cooling can actually handle the heat. For me, a couple of hours (3 hours minimum) of Realbench or AIDA64 are more representative of real-world applications. Between these two, Realbench is better since it stresses both CPU and GPU at the same time. Anything lower than 100c would be safe. Moreover you're using an air cooler, which is less worrying than custom watercooling with PETG tubing etc. Your normal usage at 65c max looks fine though, just need to retest with a proper stress tool as I mentioned earlier to confirm stability. hi owikh, between prime95 v26.6 vs latest ones, which one would you rather base your overclock settings on? the temp differences between these 2 versions are quite far apart and not to mention via voltage offset mode one is underload at 1.18v with vdroop and another is at 1.2v with vdroop so i figured i could go lower voltage with the prime95 v26.6 stress test but i'd fail the v29.4 stress test if i were to use the same offset
Card PM	Report Top Like Quote Reply

keyo	Dec 18 2017, 12:18 AM Show posts by this member only \| Post #390
Casual Junior Member 345 posts Joined: Jun 2009	QUOTE(x-1o8-x @ Dec 17 2017, 11:42 PM) hi owikh, between prime95 v26.6 vs latest ones, which one would you rather base your overclock settings on? the temp differences between these 2 versions are quite far apart and not to mention via voltage offset mode one is underload at 1.18v with vdroop and another is at 1.2v with vdroop so i figured i could go lower voltage with the prime95 v26.6 stress test but i'd fail the v29.4 stress test if i were to use the same offset 29.4 have avx ft3 more stressful need more voltage Mine 26.6 need 1.33v 29.3 need 1.38v For gaming enough with 26.6 if video editing or else nedd 29.3 This post has been edited by keyo: Dec 18 2017, 12:20 AM
Card PM	Report Top Like Quote Reply

TSowikh84	Dec 18 2017, 06:50 AM Show posts by this member only \| Post #391
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(x-1o8-x @ Dec 17 2017, 11:42 PM) hi owikh, between prime95 v26.6 vs latest ones, which one would you rather base your overclock settings on? the temp differences between these 2 versions are quite far apart and not to mention via voltage offset mode one is underload at 1.18v with vdroop and another is at 1.2v with vdroop so i figured i could go lower voltage with the prime95 v26.6 stress test but i'd fail the v29.4 stress test if i were to use the same offset Previously, I said go for the none AVX-based Prime95 v26.6 if you're not doing video encoding stuffs but it seems like I was wrong. Nowadays more and more software including games are using AVX instructions. It is suspected that NVIDIA driver also has AVX instructions in it. Hence, Prime95 v29.4 is definitely a better choice if you don't want to see the CPU speed fluctuating due to AVX offset.
Card PM	Report Top Like Quote Reply

hafiez	Dec 18 2017, 09:06 PM Show posts by this member only \| Post #392
Look at all my stars!! Senior Member 2,980 posts Joined: Jan 2007 From: Mount Chiliad	QUOTE(owikh84 @ Dec 17 2017, 11:09 PM) CPU-Z is not a suitable software to test stability of your OC, neither a good software for benchmarking purpose. For CPU overclocking, the most standard people would go is Prime95, but take note that it is way too much stressful that your cooling can actually handle the heat. For me, a couple of hours (3 hours minimum) of Realbench or AIDA64 are more representative of real-world applications. Between these two, Realbench is better since it stresses both CPU and GPU at the same time. Anything lower than 100c would be safe. Moreover you're using an air cooler, which is less worrying than custom watercooling with PETG tubing etc. Your normal usage at 65c max looks fine though, just need to retest with a proper stress tool as I mentioned earlier to confirm stability. do u delid ur proc? Btw, for the cpu V, why need until 1.3/1.35v ?
Card PM	Report Top Like Quote Reply

TSowikh84	Dec 18 2017, 09:50 PM Show posts by this member only \| Post #393
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(hafiez @ Dec 18 2017, 09:06 PM) do u delid ur proc? Btw, for the cpu V, why need until 1.3/1.35v ? No delid, my chip is doing 5GHz @ 1.28v under custom wc with max temps never go above 90c. Every chip was born unique, meaning each CPU comes with its own stock voltage (VID). If you're lucky enough you will find a good chip, while some others might get bad chips with high VID. It's all about draw of luck, silicon lottery.
Card PM	Report Top Like Quote Reply

x-1o8-x	Dec 18 2017, 10:30 PM Show posts by this member only \| Post #394
Prosekaist Senior Member 1,250 posts Joined: Jun 2009 From: the land before time	QUOTE(owikh84 @ Dec 18 2017, 06:50 AM) Previously, I said go for the none AVX-based Prime95 v26.6 if you're not doing video encoding stuffs but it seems like I was wrong. Nowadays more and more software including games are using AVX instructions. It is suspected that NVIDIA driver also has AVX instructions in it. Hence, Prime95 v29.4 is definitely a better choice if you don't want to see the CPU speed fluctuating due to AVX offset. thanks bro for the input, guess i'll leave it at 0.08v voltage offset for now
Card PM	Report Top Like Quote Reply

hafiez	Dec 19 2017, 09:52 AM Show posts by this member only \| Post #395
Look at all my stars!! Senior Member 2,980 posts Joined: Jan 2007 From: Mount Chiliad	QUOTE(owikh84 @ Dec 18 2017, 09:50 PM) No delid, my chip is doing 5GHz @ 1.28v under custom wc with max temps never go above 90c. Every chip was born unique, meaning each CPU comes with its own stock voltage (VID). If you're lucky enough you will find a good chip, while some others might get bad chips with high VID. It's all about draw of luck, silicon lottery. when I open the intel overclocking utility, the max frequency only show 4.99GHz, never went to 5GHz. in youtube video, I see people getting 5.01GHz, what I'm doing wrong? the youtuber using the same bios and settings as me. he didn't change any values. and, RAM only run on its specification? the memory I use stated 2400MHz, when I try change it to the higher number like 3000MHz, it wont boot. so, when back to bios and change it back to the default values. QUOTE(x-1o8-x @ Dec 18 2017, 10:30 PM) thanks bro for the input, guess i'll leave it at 0.08v voltage offset for now hi, how you install/use your thermal paste with NHD15s ? pea style or spread style? This post has been edited by hafiez: Dec 19 2017, 09:55 AM
Card PM	Report Top Like Quote Reply

x-1o8-x	Dec 19 2017, 10:49 AM Show posts by this member only \| Post #396
Prosekaist Senior Member 1,250 posts Joined: Jun 2009 From: the land before time	QUOTE(hafiez @ Dec 19 2017, 09:52 AM) when I open the intel overclocking utility, the max frequency only show 4.99GHz, never went to 5GHz. in youtube video, I see people getting 5.01GHz, what I'm doing wrong? the youtuber using the same bios and settings as me. he didn't change any values. and, RAM only run on its specification? the memory I use stated 2400MHz, when I try change it to the higher number like 3000MHz, it wont boot. so, when back to bios and change it back to the default values. hi, how you install/use your thermal paste with NHD15s ? pea style or spread style? i used pea style. however based on my previous experience it doesnt really matter which style you use as long got enough the 4.99ghz fluctuating to 5.01ghz is quite common I guess btw, that's just how core clock speed fluctuates. RAMs usually run at their stated specs, so maybe in your case it's 2400MHz @ 1.2v, making it go 3000MHz is basically overclocking.
Card PM	Report Top Like Quote Reply

TSowikh84	Dec 19 2017, 11:02 AM Show posts by this member only \| Post #397
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	How about the CPU frequency showed in CPU-Z? I would disable BCLK spread spectrum in UEFI to prevent/minimize the BCLK fluctuations
Card PM	Report Top Like Quote Reply

hafiez	Dec 19 2017, 01:05 PM Show posts by this member only \| Post #398
Look at all my stars!! Senior Member 2,980 posts Joined: Jan 2007 From: Mount Chiliad	QUOTE(x-1o8-x @ Dec 19 2017, 10:49 AM) i used pea style. however based on my previous experience it doesnt really matter which style you use as long got enough the 4.99ghz fluctuating to 5.01ghz is quite common I guess btw, that's just how core clock speed fluctuates. RAMs usually run at their stated specs, so maybe in your case it's 2400MHz @ 1.2v, making it go 3000MHz is basically overclocking. I see, thanks bro. yes, the ram spec is 2.4ghz @ 1.2v. QUOTE(owikh84 @ Dec 19 2017, 11:02 AM) How about the CPU frequency showed in CPU-Z? I would disable BCLK spread spectrum in UEFI to prevent/minimize the BCLK fluctuations ok already turn off the BCLK Spread Spectrum. the difference is, I can get 5g or 4995mhz most of the time in cpu-z, it shows 5000.0 MHz 50x100mhz sometimes 5001,5002. in AIDA it shows 5.00Ghz only in intel extreme utility it barely go above 4995mhz. maybe it just a rounding problem, nothing serious. edit: what is your proc cache value? 43 or 48, is it ok? This post has been edited by hafiez: Dec 19 2017, 01:08 PM
Card PM	Report Top Like Quote Reply

TSowikh84	Dec 19 2017, 01:37 PM Show posts by this member only \| Post #399
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(hafiez @ Dec 19 2017, 01:05 PM) I see, thanks bro. yes, the ram spec is 2.4ghz @ 1.2v. ok already turn off the BCLK Spread Spectrum. the difference is, I can get 5g or 4995mhz most of the time in cpu-z, it shows 5000.0 MHz 50x100mhz sometimes 5001,5002. in AIDA it shows 5.00Ghz only in intel extreme utility it barely go above 4995mhz. maybe it just a rounding problem, nothing serious. edit: what is your proc cache value? 43 or 48, is it ok? Should be fine as CPU-Z is showing 5.0GHz. Just ignore that value in XTU, sometimes I will see 4.99GHz as well. The benchmark score is more important, but expect to get lower score with slower RAM speed like DDR-2400. My cache is slightly overclocked to 4.5GHz from 4.4GHz.
Card PM	Report Top Like Quote Reply

scyter	Dec 19 2017, 08:33 PM Show posts by this member only \| Post #400
Getting Started Junior Member 97 posts Joined: Apr 2008	Hey guys, new here in overclock. Just got one question. Does cpu OC 4.5ghz i7 6700k can downclock to stock clock 4.17ghz on its own? Already check that in bios and stated the multiplier is 42.
Card PM	Report Top Like Quote Reply

scyter	Dec 19 2017, 08:33 PM Show posts by this member only \| Post #401
Getting Started Junior Member 97 posts Joined: Apr 2008	Hey guys, new here in overclock. Just got one question. Does cpu OC 4.5ghz i7 6700k can downclock to stock clock 4.17ghz on its own? Already check that in bios and stated the multiplier is 42.
Card PM	Report Top Like Quote Reply

TSowikh84	Dec 19 2017, 09:36 PM Show posts by this member only \| Post #402
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(scyter @ Dec 19 2017, 08:33 PM) Hey guys, new here in overclock. Just got one question. Does cpu OC 4.5ghz i7 6700k can downclock to stock clock 4.17ghz on its own? Already check that in bios and stated the multiplier is 42. Is it thermal throttling? What are your temps idle and under load at 4.5GHz?
Card PM	Report Top Like Quote Reply

arslow	Dec 25 2017, 06:19 PM Show posts by this member only \| Post #403
Look at all my stars!! Senior Member 3,544 posts Joined: Sep 2008	@owikh84 will you be getting the Maximus X Formula as it seems available in MY already? Wonder if it will be able to give you the same clocks with lower voltages Wanted to get Maximus X Code bus seems like wont be available in MY
Card PM	Report Top Like Quote Reply

TSowikh84	Dec 25 2017, 09:14 PM Show posts by this member only \| Post #404
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(arslow @ Dec 25 2017, 06:19 PM) @owikh84 will you be getting the Maximus X Formula as it seems available in MY already? Wonder if it will be able to give you the same clocks with lower voltages Wanted to get Maximus X Code bus seems like wont be available in MY Hi bro, due to time constraints I've rejected ASUS MY's offer for reviewing the Formula few weeks ago, perhaps later when I become available again. All of the ROG series mobos have 10-phase power delivery design, so they should be able to give you the same CPU OC and voltage.
Card PM	Report Top Like Quote Reply

arslow	Dec 26 2017, 01:27 PM Show posts by this member only \| Post #405
Look at all my stars!! Senior Member 3,544 posts Joined: Sep 2008	QUOTE(owikh84 @ Dec 25 2017, 09:14 PM) Hi bro, due to time constraints I've rejected ASUS MY's offer for reviewing the Formula few weeks ago, perhaps later when I become available again. All of the ROG series mobos have 10-phase power delivery design, so they should be able to give you the same CPU OC and voltage. Oh i see...kinda interested to get it review tho haha Actually i also wanted the nice looking armor on code, without going all put for a formula I gotta feeling if i go for formula i will want custom water cooling also later One thing will lead to another lol
Card PM	Report Top Like Quote Reply

reconvision	Dec 27 2017, 12:50 PM Show posts by this member only \| IPv6 \| Post #406
New Member Junior Member 40 posts Joined: Dec 2013	Hi guys. I'm new to overclocking. I have overclock my i7 8700k with noctua nh d15 dual fan setup. I'm able to get stable at 4.8ghz at 1.26v in prime95 for 2 hrs. But the temperature is just spiking crazily from 70 to 85. Even in cpu intense game like battlefield 1 & assassin creed origin, temp are also fluctuating from 68 to 84. Is this even normal? Do i really need Aio to run at that kind of voltage?
Card PM	Report Top Like Quote Reply

TSowikh84	Dec 27 2017, 03:49 PM Show posts by this member only \| Post #407
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(arslow @ Dec 26 2017, 01:27 PM) Oh i see...kinda interested to get it review tho haha Actually i also wanted the nice looking armor on code, without going all put for a formula I gotta feeling if i go for formula i will want custom water cooling also later One thing will lead to another lol Not sure why ASUS MY doesn't bring in the Code this time. It's a good board for those who want to have the appearance of the Formula but don't plan to go for custom loop and don't want to pay extra for the EK hybrid VRM heatsink/wb. QUOTE(reconvision @ Dec 27 2017, 12:50 PM) Hi guys. I'm new to overclocking. I have overclock my i7 8700k with noctua nh d15 dual fan setup. I'm able to get stable at 4.8ghz at 1.26v in prime95 for 2 hrs. But the temperature is just spiking crazily from 70 to 85. Even in cpu intense game like battlefield 1 & assassin creed origin, temp are also fluctuating from 68 to 84. Is this even normal? Do i really need Aio to run at that kind of voltage? Hi bro, welcome to the OC club. Your temps look normal at such CPU frequency, vCore and cooling. D15 is the best air cooler that money can buy and it outperforms most AIO coolers. During my testing, with push pull fan configuration it performs on par with Cooler Master"s Nepton 240m AIO. Some higher-end AIO coolers especially those 360mm will win by 1-5 degrees Celsius. Wait for Corsair H150i 360mm AIO cooler to be released on Dec 31. I read Vortez's leaked review (before it went down) they claimed that it beats the NZXT X62 by 14 degrees C. But be prepared to pay around RM 1k for the price lol.
Card PM	Report Top Like Quote Reply

reconvision	Dec 27 2017, 04:01 PM Show posts by this member only \| IPv6 \| Post #408
New Member Junior Member 40 posts Joined: Dec 2013	QUOTE(owikh84 @ Dec 27 2017, 03:49 PM) Not sure why ASUS MY doesn't bring in the Code this time. It's a good board for those who want to have the appearance of the Formula but don't plan to go for custom loop and don't want to pay extra for the EK hybrid VRM heatsink/wb. Hi bro, welcome to the OC club. Your temps look normal at such CPU frequency, vCore and cooling. D15 is the best air cooler that money can buy and it outperforms most AIO coolers. During my testing, with push pull fan configuration it performs on par with Cooler Master"s Nepton 240m AIO. Some higher-end AIO coolers especially those 360mm will win by 1-5 degrees Celsius. Wait for Corsair H150i 360mm AIO cooler to be released on Dec 31. I read Vortez's leaked review (before it went down) they claimed that it beats the NZXT X62 by 14 degrees C. But be prepared to pay around RM 1k for the price lol. Thx bro! Ok at least i know the temp i get is within the normal temp at such vcore. Coz some ppl claim to be running 5ghz on air 24/7 make me have high hope of reaching there but it seems with our hot weather , i do not wan to run my cpu at low 90 Celsius everyday xD. Now i should decide either to finally venture into aio or delid.
Card PM	Report Top Like Quote Reply

TSowikh84	Dec 27 2017, 05:07 PM Show posts by this member only \| Post #409
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(reconvision @ Dec 27 2017, 04:01 PM) Thx bro! Ok at least i know the temp i get is within the normal temp at such vcore. Coz some ppl claim to be running 5ghz on air 24/7 make me have high hope of reaching there but it seems with our hot weather , i do not wan to run my cpu at low 90 Celsius everyday xD. Now i should decide either to finally venture into aio or delid. The vCore is depending on the CPU, quality of motherboard (MOSFETs, BIOS, etc), cooling (the lower the temperature, the lower the voltage required). Good thing about air cooling compared to regular AIO is that the air from fans will blow onto the VRM heatsink, reducing the VRM temp. Some AIO coolers such as Cryorig A series are specially designed to have an additional fan to help chilling the VRM. Of course, delid is the best way to go if you're aiming for higher OC at lower temp, if you don't mind losing the warranty.
Card PM	Report Top Like Quote Reply

x-1o8-x	Dec 28 2017, 05:58 PM Show posts by this member only \| Post #410
Prosekaist Senior Member 1,250 posts Joined: Jun 2009 From: the land before time	QUOTE(reconvision @ Dec 27 2017, 12:50 PM) Hi guys. I'm new to overclocking. I have overclock my i7 8700k with noctua nh d15 dual fan setup. I'm able to get stable at 4.8ghz at 1.26v in prime95 for 2 hrs. But the temperature is just spiking crazily from 70 to 85. Even in cpu intense game like battlefield 1 & assassin creed origin, temp are also fluctuating from 68 to 84. Is this even normal? Do i really need Aio to run at that kind of voltage? that is pretty low TBH, im getting 90c with a D15S and also dual fan setup, are you using the latest prime95?
Card PM	Report Top Like Quote Reply

reconvision	Dec 29 2017, 10:22 PM Show posts by this member only \| Post #411
New Member Junior Member 40 posts Joined: Dec 2013	QUOTE(x-1o8-x @ Dec 28 2017, 05:58 PM) that is pretty low TBH, im getting 90c with a D15S and also dual fan setup, are you using the latest prime95? I use prime95 v26.6. What I heard is the new version of prime95 have avx instruction. So I avoid using the new version since most games dont use avx instruction. what overclock setting are you using now?? This post has been edited by reconvision: Dec 29 2017, 10:23 PM
Card PM	Report Top Like Quote Reply

x800	Dec 30 2017, 08:12 AM Show posts by this member only \| Post #412
Stalking LYN since 2002 Junior Member 442 posts Joined: Jan 2003 From: Segamat--Nilai	avx instructions can generate quite a bit more heat. I believe that's why your temp is a lower than the other guy. try one run with prime95 ver that supports avx and see, that'll show a sort of worst case scenario for the temps This post has been edited by x800: Dec 30 2017, 08:14 AM
Card PM	Report Top Like Quote Reply

reconvision	Dec 30 2017, 09:33 AM Show posts by this member only \| IPv6 \| Post #413
New Member Junior Member 40 posts Joined: Dec 2013	QUOTE(x800 @ Dec 30 2017, 08:12 AM) avx instructions can generate quite a bit more heat. I believe that's why your temp is a lower than the other guy. try one run with prime95 ver that supports avx and see, that'll show a sort of worst case scenario for the temps Yeap. Thats when u need avx offset for the rescue. Btw anyone experiencing avx bug whereby even idle at desktop trigger the avx offset ? This post has been edited by reconvision: Dec 30 2017, 09:34 AM
Card PM	Report Top Like Quote Reply

x-1o8-x	Dec 30 2017, 10:39 AM Show posts by this member only \| Post #414
Prosekaist Senior Member 1,250 posts Joined: Jun 2009 From: the land before time	QUOTE(reconvision @ Dec 29 2017, 10:22 PM) I use prime95 v26.6. What I heard is the new version of prime95 have avx instruction. So I avoid using the new version since most games dont use avx instruction. what overclock setting are you using now?? I only have offset of -0.08v to the core voltage @ 4.7ghz and everything else is auto. but yea I'm using the latest prime95 which has avx instruction so my temps are like 90c on core3/4, 1.200v under load.
Card PM	Report Top Like Quote Reply

reconvision	Dec 30 2017, 01:58 PM Show posts by this member only \| IPv6 \| Post #415
New Member Junior Member 40 posts Joined: Dec 2013	QUOTE(x-1o8-x @ Dec 30 2017, 10:39 AM) I only have offset of -0.08v to the core voltage @ 4.7ghz and everything else is auto. but yea I'm using the latest prime95 which has avx instruction so my temps are like 90c on core3/4, 1.200v under load. Ya. Today i found quite a lot of ppl with d15 are reporting almost the same temp underload at 75-80 in game with no avx instructions. So i can said that our temp is normal and the other way around is to delid it which will bring our 8700k to 60c underload. Tempting to do it but i still dont want to void the warranty yet . The tim from intel is just garbage.
Card PM	Report Top Like Quote Reply

keyo	Dec 30 2017, 06:08 PM Show posts by this member only \| Post #416
Casual Junior Member 345 posts Joined: Jun 2009	QUOTE(reconvision @ Dec 30 2017, 01:58 PM) Ya. Today i found quite a lot of ppl with d15 are reporting almost the same temp underload at 75-80 in game with no avx instructions. So i can said that our temp is normal and the other way around is to delid it which will bring our 8700k to 60c underload. Tempting to do it but i still dont want to void the warranty yet . The tim from intel is just garbage. if me its ok if under 85 mine also below 90 when gaming This post has been edited by keyo: Dec 30 2017, 06:08 PM
Card PM	Report Top Like Quote Reply

x-1o8-x	Dec 31 2017, 01:09 AM Show posts by this member only \| Post #417
Prosekaist Senior Member 1,250 posts Joined: Jun 2009 From: the land before time	QUOTE(keyo @ Dec 30 2017, 06:08 PM) if me its ok if under 85 mine also below 90 when gaming under gaming i barely get 70c tbh cause not all cores are being under 100% load. for regular 100% load my temps are at 75c or so, though as @x800 pointed out the temps with FPU & cache stress would be the worst case scenario temps so I'd like to improve my thermals based on that
Card PM	Report Top Like Quote Reply

SUSXnet	Dec 31 2017, 08:50 AM Show posts by this member only \| Post #418
Regular Senior Member 1,862 posts Joined: May 2013	Am very new to OC and have been following guides on YouTube. While I think I may have done as much as I can with the GPU OC using After Burner and Kombuster am still unsure on the CPU OC and stress test. Some guide would be most appreciated. My Rig that was just built: Gigabyte Z370 Aorus Gaming 7 Intel i7 8700k GTX 1070 Aorus Noctua U14S
Card PM	Report Top Like Quote Reply

TSowikh84	Dec 31 2017, 12:21 PM Show posts by this member only \| Post #419
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(reconvision @ Dec 30 2017, 09:33 AM) Yeap. Thats when u need avx offset for the rescue. Btw anyone experiencing avx bug whereby even idle at desktop trigger the avx offset ? AVX offset has been a debatable issue since Kaby Lake. Some said it's a bug while others saying otherwise. It could be that you have certain OS software running in the background that's using AVX instructions, triggering the AVX offset thingy. Here's the list of AVX-based software: https://forums.anandtech.com/threads/what-c...d-avx2.2498660/ Some games might be using AVX instructions, or NVIDIA driver itself is implementing it: http://www.overclock.net/t/1641867/avx-offset-bug This doesn't happen with Skylake-X though or he needs more games to test: http://www.overclock.net/t/1643198/coffee-...ks-while-gaming One guy said this bug is triggered when C-states are enabled in the UEFI: http://forum.gigabyte.us/thread/2704/psa-avx-offset-bug-real I personally don't use AVX offset because I want my OC to be all out for worst case scenarios. QUOTE(Xnet @ Dec 31 2017, 08:50 AM) Am very new to OC and have been following guides on YouTube. While I think I may have done as much as I can with the GPU OC using After Burner and Kombuster am still unsure on the CPU OC and stress test. Some guide would be most appreciated. My Rig that was just built: Gigabyte Z370 Aorus Gaming 7 Intel i7 8700k GTX 1070 Aorus Noctua U14S Check out the OC guide in the top post of this thread for GIGABYTE's Z370 GAMING 7. It will guide you OCing your 8700K to 5GHz. But I don't think you can comfortably run 5GHz OC with your current air cooling, unless you hit silicon lottery with a really low VID (stock voltage with everything defaults) and delid. So it really depends on good is your CPU which varies from one chip to another. Get a bigger and better cooler like the NH-D15/S or 240mm+ AIO. It is advisable to check your VID through the UEFI first before proceeding for OC. Check your CPU core temps with your CPU running at stock clocks with Realbench v2.56, then only proceed for 4.7GHz on all cores and so on. For record, my 8700K has 1.088v VID and it's capable to do 5.0GHz running under a high-end custom loop at 1.280v on Prime95 v29.3 custom blend 1344K.
Card PM	Report Top Like Quote Reply

reconvision	Dec 31 2017, 12:34 PM Show posts by this member only \| Post #420
New Member Junior Member 40 posts Joined: Dec 2013	QUOTE(owikh84 @ Dec 31 2017, 12:21 PM) AVX offset has been a debatable issue since Kaby Lake. Some said it's a bug while others saying otherwise. It could be that you have certain OS software running in the background that's using AVX instructions, triggering the AVX offset thingy. Here's the list of AVX-based software: https://forums.anandtech.com/threads/what-c...d-avx2.2498660/ Some games might be using AVX instructions, or NVIDIA driver itself is implementing it: http://www.overclock.net/t/1641867/avx-offset-bug This doesn't happen with Skylake-X though or he needs more games to test: http://www.overclock.net/t/1643198/coffee-...ks-while-gaming One guy said this bug is triggered when C-states are enabled in the UEFI: http://forum.gigabyte.us/thread/2704/psa-avx-offset-bug-real I personally don't use AVX offset because I want my OC to be all out for worst case scenarios. Check out the OC guide in the top post of this thread for GIGABYTE's Z370 GAMING 7. It will guide you OCing your 8700K to 5GHz. But I don't think you can comfortably run 5GHz OC with your current air cooling, unless you hit silicon lottery with a really low VID (stock voltage with everything defaults) and delid. So it really depends on good is your CPU which varies from one chip to another. Get a bigger and better cooler like the NH-D15/S or 240mm+ AIO. It is advisable to check your VID through the UEFI first before proceeding for OC. Check your CPU core temps with your CPU running at stock clocks with Realbench v2.56, then only proceed for 4.7GHz on all cores and so on. For record, my 8700K has 1.088v VID and it's capable to do 5.0GHz running under a high-end custom loop at 1.280v on Prime95 v29.3 custom blend 1344K. wow! thanks for showing me the link as well. Appreciate your work Yes I solve it by setting avx offset to zero now. so i can have 4.8ghz all day .
Card PM	Report Top Like Quote Reply

SUSXnet	Dec 31 2017, 12:40 PM Show posts by this member only \| Post #421
Regular Senior Member 1,862 posts Joined: May 2013	QUOTE(owikh84 @ Dec 31 2017, 12:21 PM) AVX offset has been a debatable issue since Kaby Lake. Some said it's a bug while others saying otherwise. It could be that you have certain OS software running in the background that's using AVX instructions, triggering the AVX offset thingy. Here's the list of AVX-based software: https://forums.anandtech.com/threads/what-c...d-avx2.2498660/ Some games might be using AVX instructions, or NVIDIA driver itself is implementing it: http://www.overclock.net/t/1641867/avx-offset-bug This doesn't happen with Skylake-X though or he needs more games to test: http://www.overclock.net/t/1643198/coffee-...ks-while-gaming One guy said this bug is triggered when C-states are enabled in the UEFI: http://forum.gigabyte.us/thread/2704/psa-avx-offset-bug-real I personally don't use AVX offset because I want my OC to be all out for worst case scenarios. Check out the OC guide in the top post of this thread for GIGABYTE's Z370 GAMING 7. It will guide you OCing your 8700K to 5GHz. But I don't think you can comfortably run 5GHz OC with your current air cooling, unless you hit silicon lottery with a really low VID (stock voltage with everything defaults) and delid. So it really depends on good is your CPU which varies from one chip to another. Get a bigger and better cooler like the NH-D15/S or 240mm+ AIO. It is advisable to check your VID through the UEFI first before proceeding for OC. Check your CPU core temps with your CPU running at stock clocks with Realbench v2.56, then only proceed for 4.7GHz on all cores and so on. For record, my 8700K has 1.088v VID and it's capable to do 5.0GHz running under a high-end custom loop at 1.280v on Prime95 v29.3 custom blend 1344K. I managed to get 5.0 using some guide from internet. I have attached a pix - your comments highly appreciated.
Card PM	Report Top Like Quote Reply

TSowikh84	Dec 31 2017, 12:48 PM Show posts by this member only \| Post #422
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(Xnet @ Dec 31 2017, 12:40 PM) I managed to get 5.0 using some guide from internet. I have attached a pix - your comments highly appreciated. 5.0GHz @ 1.344v seems like an average 8700K, so I think it's not going to run comfortably under air cooling/low end AIO etc. What's your load temp in your daily applications/games and Cinebench R15?
Card PM	Report Top Like Quote Reply

SUSXnet	Dec 31 2017, 01:03 PM Show posts by this member only \| Post #423
Regular Senior Member 1,862 posts Joined: May 2013	QUOTE(owikh84 @ Dec 31 2017, 12:48 PM) 5.0GHz @ 1.344v seems like an average 8700K, so I think it's not going to run comfortably under air cooling/low end AIO etc. What's your load temp in your daily applications/games and Cinebench R15? Do I bring it down lower to say 4.8Ghz? BTW I am new to Windows having been on Mac all these while And being new I dont even know much about the temp etc but I have attached another screenshot after running cinebench
Card PM	Report Top Like Quote Reply

TSowikh84	Dec 31 2017, 01:13 PM Show posts by this member only \| Post #424
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	Alright guys, currently I am testing my 5.0GHz OC on the Hero X with the an air cooler in the form of Noctua NH-D15S (2x NF-A15 fans). To my surprise, for some reason I need to pump more voltage as compared to my custom loop. Noctua NH-D15S: 1.328v, avg core temps: 39C Idle, 86C load Custom loop: 1.280v, avg core temps: 37C Idle, 72C load Yes that's right, 0.48v difference! At first I couldn't believe it so I re-tested using back my custom loop again I can confirm that there's no chip degradation in which I am still able to obtain stability at 1.280v under custom loop same like before, I don't know why LOL.
Card PM	Report Top Like Quote Reply

TSowikh84	Dec 31 2017, 01:25 PM Show posts by this member only \| Post #425
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(Xnet @ Dec 31 2017, 01:03 PM) Do I bring it down lower to say 4.8Ghz? BTW I am new to Windows having been on Mac all these while And being new I dont even know much about the temp etc but I have attached another screenshot after running cinebench Cinebench R15 is a medium-load non-AVX based application that doesn't stress out your CPU that much but it is a good indication for your minimum cooling limit. From your temps, I can see that you will have very high chance of hitting 100C mark in high-load software including gaming, resulting in speed throttling or worse, BSOD. Either reduce your vCore (if possible), down your OC to 4.8-4.9GHz or upgrade your cooler.
Card PM	Report Top Like Quote Reply

reconvision	Dec 31 2017, 02:17 PM Show posts by this member only \| Post #426
New Member Junior Member 40 posts Joined: Dec 2013	QUOTE(owikh84 @ Dec 31 2017, 01:13 PM) Alright guys, currently I am testing my 5.0GHz OC on the Hero X with the an air cooler in the form of Noctua NH-D15S (2x NF-A15 fans). To my surprise, for some reason I need to pump more voltage as compared to my custom loop. Noctua NH-D15S: 1.328v, avg core temps: 39C Idle, 86C load Custom loop: 1.280v, avg core temps: 37C Idle, 72C load Yes that's right, 0.48v difference! At first I couldn't believe it so I re-tested using back my custom loop again I can confirm that there's no chip degradation in which I am still able to obtain stability at 1.280v under custom loop same like before, I don't know why LOL. interesting. So i might be able to get some voltage down when i pair my cpu with that new corsair 360mm AIO cooler xD.
Card PM	Report Top Like Quote Reply

TSowikh84	Dec 31 2017, 02:26 PM Show posts by this member only \| Post #427
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(reconvision @ Dec 31 2017, 02:17 PM) interesting. So i might be able to get some voltage down when i pair my cpu with that new corsair 360mm AIO cooler xD. I understand that the lower temps, the lower the voltage required but seriously did not expect as much as 48mV.. .Funny LOL. Guess something is not right when the temps go above 80C, don't know... btw, Corsair H150i Pro RGB 360mm AIO cooler appeared in a recent LTT video. Seems like the launch is not today, but most likely to be released during CES 2018 that will be held in Las Vegas between 7-12/1/2018. YKlfVe4qxyk
Card PM	Report Top Like Quote Reply

reconvision	Dec 31 2017, 03:01 PM Show posts by this member only \| Post #428
New Member Junior Member 40 posts Joined: Dec 2013	QUOTE(owikh84 @ Dec 31 2017, 02:26 PM) I understand that the lower temps, the lower the voltage required but seriously did not expect as much as 48mV.. .Funny LOL. Guess something is not right when the temps go above 80C, don't know... btw, Corsair H150i Pro RGB 360mm AIO cooler appeared in a recent LTT video. Seems like the launch is not today, but most likely to be released during CES 2018 that will be held in Las Vegas between 7-12/1/2018. YKlfVe4qxyk looking forward to it. hopefully it will arrive at our shore soon.
Card PM	Report Top Like Quote Reply

TSowikh84	Dec 31 2017, 03:16 PM Show posts by this member only \| Post #429
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(reconvision @ Dec 31 2017, 03:01 PM) looking forward to it. hopefully it will arrive at our shore soon. Same here. I'm curious because that review claimed that this 360mm AIO beats the NZXT X62 280mm by 13C, which is a huge figure.
Card PM	Report Top Like Quote Reply

x-1o8-x	Jan 1 2018, 01:23 AM Show posts by this member only \| Post #430
Prosekaist Senior Member 1,250 posts Joined: Jun 2009 From: the land before time	QUOTE(owikh84 @ Dec 31 2017, 01:13 PM) Alright guys, currently I am testing my 5.0GHz OC on the Hero X with the an air cooler in the form of Noctua NH-D15S (2x NF-A15 fans). To my surprise, for some reason I need to pump more voltage as compared to my custom loop. Noctua NH-D15S: 1.328v, avg core temps: 39C Idle, 86C load Custom loop: 1.280v, avg core temps: 37C Idle, 72C load Yes that's right, 0.48v difference! At first I couldn't believe it so I re-tested using back my custom loop again I can confirm that there's no chip degradation in which I am still able to obtain stability at 1.280v under custom loop same like before, I don't know why LOL. that's quite a huge difference and prolly explains why I also had to pump the voltage that high. for the 72c custom loop, how long did you keep the rig under load?
Card PM	Report Top Like Quote Reply

TSowikh84	Jan 1 2018, 05:36 AM Show posts by this member only \| Post #431
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(x-1o8-x @ Jan 1 2018, 01:23 AM) that's quite a huge difference and prolly explains why I also had to pump the voltage that high. for the 72c custom loop, how long did you keep the rig under load? That was a 3-hour run... check back few pages for the ss This post has been edited by owikh84: Jan 1 2018, 05:42 AM
Card PM	Report Top Like Quote Reply

TSowikh84	Jan 1 2018, 02:07 PM Show posts by this member only \| Post #432
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	So this is the result after 2.5 hours priming with the NH-D15S... maximum temp hit 91C
Card PM	Report Top Like Quote Reply

SUSXnet	Jan 1 2018, 02:47 PM Show posts by this member only \| Post #433
Regular Senior Member 1,862 posts Joined: May 2013	QUOTE(owikh84 @ Jan 1 2018, 02:07 PM) So this is the result after 2.5 hours priming with the NH-D15S... maximum temp hit 91C On my NH-U14s its in the high 90s but passed the bench. I think I will add another fan for the noctua and test again
Card PM	Report Top Like Quote Reply

reconvision	Jan 1 2018, 04:20 PM Show posts by this member only \| Post #434
New Member Junior Member 40 posts Joined: Dec 2013	Just went to chevk my bios setting again. Found out my vccio (auto) at 1.336v and voltage agent (auto) at 1.152v . Are these value too high??? My dram voltage it set to 1.35 default.
Card PM	Report Top Like Quote Reply

TSowikh84	Jan 1 2018, 06:29 PM Show posts by this member only \| Post #435
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(reconvision @ Jan 1 2018, 04:20 PM) Just went to chevk my bios setting again. Found out my vccio (auto) at 1.336v and voltage agent (auto) at 1.152v . Are these value too high??? My dram voltage it set to 1.35 default. Those values are almost similar to ASUS's boards running at auto setting. At DDR4-3200, I have mine defaults at 1.3v and 1.125v respectively but I decided to reduce the VCCIO to down 1.125v and I can still run it stably. As a result, my CPU temp can be reduced a bit.
Card PM	Report Top Like Quote Reply

TSowikh84	Jan 1 2018, 06:35 PM Show posts by this member only \| Post #436
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	Seems like my MasterLiquid Pro 280 AIO cannot handle the heat, reaching 96C max and failed at 41 mins. It could be that this AIO is a problematic review unit, so I guess I would need to pick another AIO cooler to the test.
Card PM	Report Top Like Quote Reply

reconvision	Jan 1 2018, 07:11 PM Show posts by this member only \| IPv6 \| Post #437
New Member Junior Member 40 posts Joined: Dec 2013	QUOTE(owikh84 @ Jan 1 2018, 06:29 PM) Those values are almost similar to ASUS's boards running at auto setting. At DDR4-3200, I have mine defaults at 1.3v and 1.125v respectively but I decided to reduce the VCCIO to down 1.125v and I can still run it stably. As a result, my CPU temp can be reduced a bit. Which software are u using to test the ram stability? I have just tune both vccio and vccsa to 1.2v. I am now running prime95 blend test for 2 hrs. Kinda weird, when i click start blend, prime95 stop working msg pop out. but when i try to test again, it is running an hr without any crash. Not sure if the ram is stable or no. Edit: After 2 hrs of prime95 blend test, no error or warning or crash. So i guess is stable. This post has been edited by reconvision: Jan 1 2018, 08:30 PM
Card PM	Report Top Like Quote Reply

SUSXnet	Jan 1 2018, 07:47 PM Show posts by this member only \| Post #438
Regular Senior Member 1,862 posts Joined: May 2013	Mine is DDR4 3466Mhz what can I do to tweak it?
Card PM	Report Top Like Quote Reply

TSowikh84	Jan 1 2018, 10:13 PM Show posts by this member only \| Post #439
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(reconvision @ Jan 1 2018, 07:11 PM) Which software are u using to test the ram stability? I have just tune both vccio and vccsa to 1.2v. I am now running prime95 blend test for 2 hrs. Kinda weird, when i click start blend, prime95 stop working msg pop out. but when i try to test again, it is running an hr without any crash. Not sure if the ram is stable or no. Edit: After 2 hrs of prime95 blend test, no error or warning or crash. So i guess is stable. Two options: 1) Prime95 custom blend 1344K 95%+ RAM usage * number of threads = 12 for 8700K 2) HCl MemTest Pro (paid version) for RAM
Card PM	Report Top Like Quote Reply

TSowikh84	Jan 1 2018, 10:25 PM Show posts by this member only \| Post #440
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(Xnet @ Jan 1 2018, 07:47 PM) Mine is DDR4 3466Mhz what can I do to tweak it? What's your RAM model specifically? Activating XMP profile will automatically set your RAM speed/timings to the rating and voltage to 1.35v, VCCSA and VCCIO will be determined by your BIOS which might be excessive than your settings actually required. You can try reducing or increasing them depending on the strength of your integrated memory controller (IMC) that's built inside your CPU IMC strength may vary from one chip to another so you will need to figure it out yourself by trial and error. Obviously, weak IMC will require you to pump more VCCSA and/or VCCIO and vice versa.
Card PM	Report Top Like Quote Reply

SUSXnet	Jan 1 2018, 11:35 PM Show posts by this member only \| Post #441
Regular Senior Member 1,862 posts Joined: May 2013	QUOTE(owikh84 @ Jan 1 2018, 10:25 PM) What's your RAM model specifically? Activating XMP profile will automatically set your RAM speed/timings to the rating and voltage to 1.35v, VCCSA and VCCIO will be determined by your BIOS which might be excessive than your settings actually required. You can try reducing or increasing them depending on the strength of your integrated memory controller (IMC) that's built inside your CPU IMC strength may vary from one chip to another so you will need to figure it out yourself by trial and error. Obviously, weak IMC will require you to pump more VCCSA and/or VCCIO and vice versa. I am using the Corsair Vengeance CMR16GX4M2C3466C16
Card PM	Report Top Like Quote Reply

TSowikh84	Jan 2 2018, 12:01 AM Show posts by this member only \| Post #442
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(Xnet @ Jan 1 2018, 11:35 PM) I am using the Corsair Vengeance CMR16GX4M2C3466C16 That's a B-die RAM kit, awesome for OC with Coffee Lake. But since you're still new, I'd suggest letting it run at XMP profile with default VCCSA and VCCIO. No tweaks is necessary.
Card PM	Report Top Like Quote Reply

TSowikh84	Jan 2 2018, 06:50 AM Show posts by this member only \| Post #443
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	Re-run Prime95 under custom loop just to make sure that my chip is not degraded. This time I monitored the VRM temp through temp sensor cable plugged on the T_sensor header on the board. FYI, the Hero X doesn't come with a built-in VRM temp sensor out of the board that's why I used the temp sensor cable that came with my Extreme IX. The VRM temp idles at 43C while registering 66C at full load, looks fine. As a comparison, VRM temps under... Noctua NH-D15S: 42C idle, 59C load CM MasterLiquid Pro 280: 42 idle. 69C load From here you can see that the air generated by the fans mounted on the air cooler did help in chilling the VRM area. This post has been edited by owikh84: Jan 2 2018, 07:01 AM
Card PM	Report Top Like Quote Reply

reconvision	Jan 2 2018, 09:12 AM Show posts by this member only \| IPv6 \| Post #444
New Member Junior Member 40 posts Joined: Dec 2013	Not sure what really happen. I choose to run the prime95 custom and set everything according to your pic u share with 14000mb with 15min tome to run fft. Once i click start, a few worker stop immediately while others in self test mode. My cpu is not stress too coz the temp is at idle temp. Leave it for 2 hrs still not done. I try to stop the test but it wont let me do it. So i try to end task in task manager, an error pop out . I try again amd finally it close. Then i check my ram usage is now staying at 5.4gb. Really need help... Im very confuse now. One thing i notice is those worker who stop immediately are showing swap error something. ( Btw i shutdown my pc as i hv to go work) This post has been edited by reconvision: Jan 2 2018, 09:15 AM
Card PM	Report Top Like Quote Reply

TSowikh84	Jan 2 2018, 09:27 AM Show posts by this member only \| Post #445
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(reconvision @ Jan 2 2018, 09:12 AM) Not sure what really happen. I choose to run the prime95 custom and set everything according to your pic u share with 14000mb with 15min tome to run fft. Once i click start, a few worker stop immediately while others in self test mode. My cpu is not stress too coz the temp is at idle temp. Leave it for 2 hrs still not done. I try to stop the test but it wont let me do it. So i try to end task in task manager, an error pop out . I try again amd finally it close. Then i check my ram usage is now staying at 5.4gb. Really need help... Im very confuse now. One thing i notice is those worker who stop immediately are showing swap error something. ( Btw i shutdown my pc as i hv to go work) Errors pop up means your OC is not stable. Most likely is due to imsufficient voltage etc. Try launching Prime95 under Administrator mode to fix the RAM usage issue.
Card PM	Report Top Like Quote Reply

reconvision	Jan 2 2018, 09:34 AM Show posts by this member only \| IPv6 \| Post #446
New Member Junior Member 40 posts Joined: Dec 2013	QUOTE(owikh84 @ Jan 2 2018, 09:27 AM) Errors pop up means your OC is not stable. Most likely is due to imsufficient voltage etc. Try launching Prime95 under Administrator mode to fix the RAM usage issue. Im still noob in prime 95. What can i do in prime95 administrator mode to fix the ram usage? Edit : This is the error (Cannot initialize FFT code, errcode=1005 Unable to allocate memory. One possible cause is the operating system's swap area is too small) This post has been edited by reconvision: Jan 2 2018, 09:41 AM
Card PM	Report Top Like Quote Reply

TSowikh84	Jan 2 2018, 11:06 AM Show posts by this member only \| Post #447
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(reconvision @ Jan 2 2018, 09:34 AM) Im still noob in prime 95. What can i do in prime95 administrator mode to fix the ram usage? Edit : This is the error (Cannot initialize FFT code, errcode=1005 Unable to allocate memory. One possible cause is the operating system's swap area is too small) Right click on the Prime95 icon on your desktop , run as Administrator. The error pops up because you're attempting to stress a lot of RAM more than the available capacity. Don't simply enter 14000 MB in the Prime95. Check your avaiable memory through the Windows Task Manager then only assign the capacity to stress.
Card PM	Report Top Like Quote Reply

reconvision	Jan 2 2018, 11:23 AM Show posts by this member only \| IPv6 \| Post #448
New Member Junior Member 40 posts Joined: Dec 2013	QUOTE(owikh84 @ Jan 2 2018, 11:06 AM) Right click on the Prime95 icon on your desktop , run as Administrator. The error pops up because you're attempting to stress a lot of RAM more than the available capacity. Don't simply enter 14000 MB in the Prime95. Check your avaiable memory through the Windows Task Manager then only assign the capacity to stress. I mean by fixing the ram usage , do u mean i just run as administrator and stop the test that is runing in background? I have 16gb (2 x8gb) so i thought it should be fine for 14000mb since i have nothing open at that time only core temp and hwinfo.
Card PM	Report Top Like Quote Reply

TSowikh84	Jan 2 2018, 12:19 PM Show posts by this member only \| Post #449
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(reconvision @ Jan 2 2018, 11:23 AM) I mean by fixing the ram usage , do u mean i just run as administrator and stop the test that is runing in background? I have 16gb (2 x8gb) so i thought it should be fine for 14000mb since i have nothing open at that time only core temp and hwinfo. Not sure if it's just me but there's a bug in the Prime95 that won't stress full RAM unless I run it in admin mode.
Card PM	Report Top Like Quote Reply

reconvision	Jan 2 2018, 12:36 PM Show posts by this member only \| IPv6 \| Post #450
New Member Junior Member 40 posts Joined: Dec 2013	QUOTE(owikh84 @ Jan 2 2018, 12:19 PM) Not sure if it's just me but there's a bug in the Prime95 that won't stress full RAM unless I run it in admin mode. Oh lol. I think you misunderstood. Usually my ram usage in idle will be 1.3gb but yesterday after i use task manager to end task the prime95 (since it wont allow me to stop it) n close the prime95. I found out my ram usage now idle at 5.4gb. so im worry did i do something wrong to the prime95 test that it mess up my ram usage? Edit: in the task manager , the memory show memory composition with 2.5gb compress. Is this the result of setting too much ram in prime95 causes window to activate memory compression? This post has been edited by reconvision: Jan 2 2018, 12:51 PM
Card PM	Report Top Like Quote Reply

TSowikh84	Jan 2 2018, 05:16 PM Show posts by this member only \| Post #451
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(reconvision @ Jan 2 2018, 12:36 PM) Oh lol. I think you misunderstood. Usually my ram usage in idle will be 1.3gb but yesterday after i use task manager to end task the prime95 (since it wont allow me to stop it) n close the prime95. I found out my ram usage now idle at 5.4gb. so im worry did i do something wrong to the prime95 test that it mess up my ram usage? Edit: in the task manager , the memory show memory composition with 2.5gb compress. Is this the result of setting too much ram in prime95 causes window to activate memory compression? Seems like something else is running in the background and using quite an amount of your RAM. Usually Prime95 won't cause that. When I click stop my RAM usage will go down to a very low percentage. Rebooting Windows will fix this or not?
Card PM	Report Top Like Quote Reply

reconvision	Jan 2 2018, 08:10 PM Show posts by this member only \| Post #452
New Member Junior Member 40 posts Joined: Dec 2013	Reboot seem to get back to default of 1.9 ram in used. Now I realise is my mistake for putting 14000mb as the size coz now i check the available ram is 13.8GB. Those stupid skype apps and window defender is eating up the ram to 1.9gb ram. Also forgot about the window cached that taking out 2.1gb no wonder my prime95 crash instantly... In the task manager, I saw available ram is 13.6gb whereas inside the open resource monitor i saw free ram is 12gb. which one should I follow for prime95? This post has been edited by reconvision: Jan 2 2018, 08:29 PM
Card PM	Report Top Like Quote Reply

TSowikh84	Jan 2 2018, 09:27 PM Show posts by this member only \| Post #453
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(reconvision @ Jan 2 2018, 08:10 PM) Reboot seem to get back to default of 1.9 ram in used. Now I realise is my mistake for putting 14000mb as the size coz now i check the available ram is 13.8GB. Those stupid skype apps and window defender is eating up the ram to 1.9gb ram. Also forgot about the window cached that taking out 2.1gb no wonder my prime95 crash instantly... In the task manager, I saw available ram is 13.6gb whereas inside the open resource monitor i saw free ram is 12gb. which one should I follow for prime95? I think better use the free RAM of 12GB as showed in the Open Resource Monitor screen, keep the balance for the rest of the system. I'm thinking that if you set it too high the OS will start using pagefile and memory won't be tested properly.
Card PM	Report Top Like Quote Reply

reconvision	Jan 2 2018, 10:31 PM Show posts by this member only \| Post #454
New Member Junior Member 40 posts Joined: Dec 2013	Ok. Starting my prime test again now with 10000mb. Why after i press start already have a few workers stop working and show 0-minutes 0 error 0 warning? Is that normal? I can see my cpu is doing work becoz the temp raise to 60-70c.
Card PM	Report Top Like Quote Reply

TSowikh84	Jan 2 2018, 10:35 PM Show posts by this member only \| Post #455
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(reconvision @ Jan 2 2018, 10:31 PM) Ok. Starting my prime test again now with 10000mb. Why after i press start already have a few workers stop working and show 0-minutes 0 error 0 warning? Is that normal? I can see my cpu is doing work becoz the temp raise to 60-70c. Post the SS here with P95 screen, task manager etc. Stressing 10000MB looks kinda small for a 16GB RAM. Should take 95%+. This post has been edited by owikh84: Jan 2 2018, 10:38 PM
Card PM	Report Top Like Quote Reply

reconvision	Jan 2 2018, 10:49 PM Show posts by this member only \| Post #456
New Member Junior Member 40 posts Joined: Dec 2013	QUOTE(owikh84 @ Jan 2 2018, 10:35 PM) Post the SS here with P95 screen, task manager etc. Stressing 10000MB looks kinda small for a 16GB RAM. Should take 95%+. Found out the problem. All along im using prime95 32bit =.=. Now running with 64bit prime. All workers is running now. I check the free ram before i start the test and it only have 11000mb so i set 10000mb.
Card PM	Report Top Like Quote Reply

TSowikh84	Jan 2 2018, 10:52 PM Show posts by this member only \| Post #457
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(reconvision @ Jan 2 2018, 10:49 PM) Found out the problem. All along im using prime95 32bit =.=. Now running with 64bit prime. All workers is running now. I check the free ram before i start the test and it only have 11000mb so i set 10000mb.
Card PM	Report Top Like Quote Reply

reconvision	Jan 2 2018, 11:00 PM Show posts by this member only \| Post #458
New Member Junior Member 40 posts Joined: Dec 2013	QUOTE(owikh84 @ Jan 2 2018, 10:52 PM) Sorry for the trouble >.<. thanks for the help. Now i will pray to the overclock god for smooth test.
Card PM	Report Top Like Quote Reply

reconvision	Jan 9 2018, 09:01 AM Show posts by this member only \| IPv6 \| Post #459
New Member Junior Member 40 posts Joined: Dec 2013	Bro Owikh84, the corsair h150i pro review is out. (http://www.guru3d.com/articles-pages/corsair-h150i-pro-review,1.html). It seems like it is only slightly better than d15 . I guess delid would contribute more temp reduction.
Card PM	Report Top Like Quote Reply

TSowikh84	Jan 9 2018, 10:26 AM Show posts by this member only \| Post #460
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(reconvision @ Jan 9 2018, 09:01 AM) Bro Owikh84, the corsair h150i pro review is out. (http://www.guru3d.com/articles-pages/corsair-h150i-pro-review,1.html). It seems like it is only slightly better than d15 . I guess delid would contribute more temp reduction. Seems like the thermal results vary from one review to another so I think we will need to read more reviews to compare. Different review sites used different CPUs and software to stress the coolers. Mainstream Intel CPUs from Ivy Bridge till the newest Coffee Lake themselves have inefficient stock thermal paste and excessive gap underneath the IHS so these factors also need to be taken into the account. The thermal results won't be as accurate as the ones tested on the enthusiast-class CPUs (ie. 3930K etc) with soldered thermal interface. Furthermore, bigger chips like the 3930K have larger contact surface than the smaller CPUs. G3D: performs similarly compared to Kraken X62 (based on 4790K) Vortez: beats Kraken X62 by 13C (based on 3930K) OC3D: outperforms Kraken X62 by 14.5C (7700K @ 5.0GHz) This post has been edited by owikh84: Jan 9 2018, 12:57 PM
Card PM	Report Top Like Quote Reply

reconvision	Jan 9 2018, 11:50 AM Show posts by this member only \| IPv6 \| Post #461
New Member Junior Member 40 posts Joined: Dec 2013	QUOTE(owikh84 @ Jan 9 2018, 10:26 AM) Seems like the thermal results very from one review to another so I think we will need to read more reviews to compare. Different review sites used different CPUs and software to stress the coolers. Mainstream Intel CPUs from Ivy Bridge till the newest Coffee Lake themselves have inefficient stock thermal paste and excessive gap underneath the IHS so these factors also need to be taken into the account. The thermal results won't be as accurate as the ones tested on the enthusiast-class CPUs (ie. 3930K etc) with soldered thermal interface. Furthermore, bigger chips like the 3930K have larger contact surface than the smaller CPUs. G3D: performs similarly compared to Kraken X62 (based on 4790K) Vortez: beats Kraken X62 by 13C (based on 3930K) OC3D: outperforms Kraken X62 by 14.5C (7700K @ 5.0GHz) Totally agree with you. I think the most resemble one to i7 8700k will be the i7 7700k oc to 5ghz from OCD. The result is astounding.
Card PM	Report Top Like Quote Reply

wongtheboy92	Jan 12 2018, 05:07 PM Show posts by this member only \| IPv6 \| Post #462
Enthusiast Senior Member 809 posts Joined: Dec 2008	QUOTE(owikh84 @ Jan 9 2018, 10:26 AM) Seems like the thermal results vary from one review to another so I think we will need to read more reviews to compare. Different review sites used different CPUs and software to stress the coolers. Mainstream Intel CPUs from Ivy Bridge till the newest Coffee Lake themselves have inefficient stock thermal paste and excessive gap underneath the IHS so these factors also need to be taken into the account. The thermal results won't be as accurate as the ones tested on the enthusiast-class CPUs (ie. 3930K etc) with soldered thermal interface. Furthermore, bigger chips like the 3930K have larger contact surface than the smaller CPUs. G3D: performs similarly compared to Kraken X62 (based on 4790K) Vortez: beats Kraken X62 by 13C (based on 3930K) OC3D: outperforms Kraken X62 by 14.5C (7700K @ 5.0GHz) After all these years, you are still an enthusiastic overclocker who always do a lot of tests and reviews. Really thank you for surviving the "cpu overclocking" thread. And your 8700k bench scores are great, low Vcore @5.0 GHZ!
Card PM	Report Top Like Quote Reply

TSowikh84	Jan 12 2018, 10:05 PM Show posts by this member only \| Post #463
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(wongtheboy92 @ Jan 12 2018, 05:07 PM) After all these years, you are still an enthusiastic overclocker who always do a lot of tests and reviews. Really thank you for surviving the "cpu overclocking" thread. And your 8700k bench scores are great, low Vcore @5.0 GHZ! Thanks for your kind words... ehh without support from you guys this thread will be dead. Regarding the low vcore 5GHz OC, I think I am just lucky to have found a nice chip. No need to resell and buy another chip just to bin for better one like the old days.
Card PM	Report Top Like Quote Reply

wongtheboy92	Jan 12 2018, 10:41 PM Show posts by this member only \| Post #464
Enthusiast Senior Member 809 posts Joined: Dec 2008	QUOTE(owikh84 @ Jan 12 2018, 10:05 PM) Thanks for your kind words... ehh without support from you guys this thread will be dead. Regarding the low vcore 5GHz OC, I think I am just lucky to have found a nice chip. No need to resell and buy another chip just to bin for better one like the old days. Did you still buy a lot of chip for lottery back in 4th, 6th gen? Back in our ivy bridge, a lot of people did that! Could it be due to good cooling and you able to lower the vcore to run at around 6x C during bench?
Card PM	Report Top Like Quote Reply

TSowikh84	Jan 12 2018, 11:21 PM Show posts by this member only \| Post #465
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(wongtheboy92 @ Jan 12 2018, 10:41 PM) Did you still buy a lot of chip for lottery back in 4th, 6th gen? Back in our ivy bridge, a lot of people did that! Could it be due to good cooling and you able to lower the vcore to run at around 6x C during bench? Yes, rechecking my paypal account found that I really wasted a lot of money just to buy from forumers who were willing to let go their good chips. My aim has been 5GHz at low vcore until now lol. Below is the list: 2600K 5.7GHz - $700 USD from XS forumer 3770K 6.75GHz - $600 USD from XS forumer 3770K IMC 2800+ - $450 USD from XS forumer 3770K IMC 2933+ - $480 USD from XS forumer 4770K x2 new - both were bad chips, didn't want to spend money to buy again 6700K x1 new - bad chip, lazy to bin 7700K x4 new - only one of them doing 5GHz @ 1.28v+ 8700K x1 new - first chip strikes silicon lottery Good cooling is one thing, but most importantly is of course draw of luck in finding a decent chip with low stock voltage (VID). This post has been edited by owikh84: Jan 12 2018, 11:24 PM
Card PM	Report Top Like Quote Reply

TSowikh84	Jan 20 2018, 08:45 AM Show posts by this member only \| Post #466
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	So, I went ahead and delidded my 8700K. It was super easy with the Rockit 88 delid tool, coupled with Coolaborator's Liquid Pro applied between the CPU Die-IHS and Kryonaut for IHS-waterblock. I managed to get a 12C drop in the load temperatures at 5GHz @ 1.280v. Because lower temps means less electrical leakage, I think I can still tune the vCore down a bit and go for higher OC like 5.1-5.2GHz. This post has been edited by owikh84: Jan 20 2018, 08:47 AM
Card PM	Report Top Like Quote Reply

TSowikh84	Jan 22 2018, 10:51 PM Show posts by this member only \| Post #467
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	Delidded 8700K OC @ 5.1GHz requires exponential vCore bump, 1.344v from 1.280v (5.0GHz). Average load core temps registered at 67.5 degrees Celsius, when stressed with Prime95 v29.4 AVX for 3 hours. 5.2GHz @ 1.408v 5.3GHz @ 1.472v This post has been edited by owikh84: Jan 25 2018, 03:47 PM
Card PM	Report Top Like Quote Reply

ahteo9292	Jan 25 2018, 01:55 AM Show posts by this member only \| Post #468
New Member Junior Member 12 posts Joined: Sep 2012	Hi guys, i am new to OC. i am using 8600k with gigabyte aorus 5 and deepcool ex 240 aio. I manage to get 4.5ghz around temperature 78 degree celcius when full load with prime95 without tweaking anything in the bios other than multiplier itself. Any suggestion from here for daily usage? Thanks
Card PM	Report Top Like Quote Reply

TSowikh84	Jan 25 2018, 06:53 AM Show posts by this member only \| Post #469
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(ahteo9292 @ Jan 25 2018, 01:55 AM) Hi guys, i am new to OC. i am using 8600k with gigabyte aorus 5 and deepcool ex 240 aio. I manage to get 4.5ghz around temperature 78 degree celcius when full load with prime95 without tweaking anything in the bios other than multiplier itself. Any suggestion from here for daily usage? Thanks Hi bro, welcome to OC club. With the auto BIOS settings, you let your motherboard to decide your voltages etc. Depending on your board, auto CPU voltage (vCore) might be way set way too high than your CPU actually required. For 4.5GHz, try manually setting the vCore at 1.1-1.2v (chip dependent). For 5.0GHz OC guide, read this (shared in post #1 of this thread).
Card PM	Report Top Like Quote Reply

ahteo9292	Jan 25 2018, 08:27 AM Show posts by this member only \| Post #470
New Member Junior Member 12 posts Joined: Sep 2012	QUOTE(owikh84 @ Jan 25 2018, 06:53 AM) Hi bro, welcome to OC club. With the auto BIOS settings, you let your motherboard to decide your voltages etc. Depending on your board, auto CPU voltage (vCore) might be way set way too high than your CPU actually required. For 4.5GHz, try manually setting the vCore at 1.1-1.2v (chip dependent). For 5.0GHz OC guide, read this (shared in post #1 of this thread). hi, i trying to change the setting in my bios but it seemed that it dont let me to change anything about cpu clock ratio those. Any solution to this problem?
Card PM	Report Top Like Quote Reply

TSowikh84	Jan 25 2018, 11:38 AM Show posts by this member only \| Post #471
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(ahteo9292 @ Jan 25 2018, 08:27 AM) hi, i trying to change the setting in my bios but it seemed that it dont let me to change anything about cpu clock ratio those. Any solution to this problem? First of all, it is advisable to update the BIOS to to the latest version. For your board, F5f: https://www.gigabyte.com/Motherboard/Z370-A...v-10#support-dl Secondly, you have to go inside BIOS and set manual settings such as CPU core ratio/multiplier, core voltage, Load-line Calibration LLC, disable those power saving features such as C1E etc. This post has been edited by owikh84: Jan 25 2018, 11:38 AM
Card PM	Report Top Like Quote Reply

TSowikh84	Jan 25 2018, 09:53 PM Show posts by this member only \| Post #472
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	G.Skill TridentZ RGB @ DDR4-4400 CL19 32GB @ 1.50v SPI 32m stable But when it comes to Memtest HCl, I only managed to settle at 19-21-21-39-2T @ 1.50v. Tighter RAM timings will only give errors after a few minutes. This post has been edited by owikh84: Jan 27 2018, 04:49 PM
Card PM	Report Top Like Quote Reply

acther	Feb 10 2018, 02:45 AM Show posts by this member only \| Post #473
Casual Junior Member 317 posts Joined: Jan 2009	anyone interested in buying a highend rig? wanting to sell around 30k++
Card PM	Report Top Like Quote Reply

TSowikh84	Feb 10 2018, 10:21 AM Show posts by this member only \| Post #474
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(acther @ Feb 10 2018, 02:45 AM) anyone interested in buying a highend rig? wanting to sell around 30k++ High end rig for sale! It would be better if you could list down the parts included as well as some pictures showing the setup etc. I also noticed you have a WTS thread separately, perhaps you can put up more details there.
Card PM	Report Top Like Quote Reply

x-1o8-x	Feb 10 2018, 12:54 PM Show posts by this member only \| Post #475
Prosekaist Senior Member 1,250 posts Joined: Jun 2009 From: the land before time	QUOTE(owikh84 @ Feb 10 2018, 10:21 AM) High end rig for sale! It would be better if you could list down the parts included as well as some pictures showing the setup etc. I also noticed you have a WTS thread separately, perhaps you can put up more details there. yup list down the parts pls, wanna drool abit
Card PM	Report Top Like Quote Reply

acther	Feb 10 2018, 05:06 PM Show posts by this member only \| IPv6 \| Post #476
Casual Junior Member 317 posts Joined: Jan 2009	QUOTE(owikh84 @ Feb 10 2018, 10:21 AM) High end rig for sale! It would be better if you could list down the parts included as well as some pictures showing the setup etc. I also noticed you have a WTS thread separately, perhaps you can put up more details there. No let wait for someone really interested n ok with the price only pm me haha most of the time is waste of time list everything
Card PM	Report Top Like Quote Reply

keyo	Feb 15 2018, 05:25 PM Show posts by this member only \| Post #477
Casual Junior Member 345 posts Joined: Jun 2009	Anyone here using single 240 radiator oc 8700k can i know what the temp tq want to change to itx
Card PM	Report Top Like Quote Reply

k!nex	Mar 10 2018, 06:43 PM Show posts by this member only \| IPv6 \| Post #478
Restless stars Senior Member 3,388 posts Joined: Mar 2007 From: KL	Want to ask . If im planning to build an OC rig with a i5 8600k aiming 5ghz. I have shortlisted 2 mobo in mind. Gigabyte Z370 Aorus Gaming 5 and Asus Strix Z370-F . I am aware Asus mobo had some vdroop issues in the past and seems like solved with a bios update. Assuming both mobo is same price, which one to pick?
Card PM	Report Top Like Quote Reply

TSowikh84	Mar 10 2018, 07:28 PM Show posts by this member only \| Post #479
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(k!nex @ Mar 10 2018, 06:43 PM) Want to ask . If im planning to build an OC rig with a i5 8600k aiming 5ghz. I have shortlisted 2 mobo in mind. Gigabyte Z370 Aorus Gaming 5 and Asus Strix Z370-F . I am aware Asus mobo had some vdroop issues in the past and seems like solved with a bios update. Assuming both mobo is same price, which one to pick? Both ROG Strix Z370-F (RM875) and AORUS Z370 Gaming 5 (RM932) have almost identical VRM configurations (8 power phases), good looking RGB illumination, but the Strix doesn't have Debug LED for error troubleshooting and lacks one M.2 sockets compared to the Gaming 5 (triple M.2 PCIe 3.0 x4). Or if you don't mind an inferior RGB, take a look at the ASRock Fatal1ty Z370 Gaming K6 (RM830) that has a stronger VRM (12 power phases) and comes with Debug LED.
Card PM	Report Top Like Quote Reply

TSowikh84	Mar 11 2018, 03:53 PM Show posts by this member only \| Post #480
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(keyo @ Feb 15 2018, 05:25 PM) Anyone here using single 240 radiator oc 8700k can i know what the temp tq want to change to itx CM Nepton 240M AIO with 2x stock fans Delidded 8700K OC @ 5.0GHz @ 1.296v Idle 38C, load 73C. Load temp for a non-delid chip should be about 11C hotter than the above result, so 83C.
Card PM	Report Top Like Quote Reply

k!nex	Mar 11 2018, 08:06 PM Show posts by this member only \| IPv6 \| Post #481
Restless stars Senior Member 3,388 posts Joined: Mar 2007 From: KL	QUOTE(owikh84 @ Mar 10 2018, 07:28 PM) Both ROG Strix Z370-F (RM875) and AORUS Z370 Gaming 5 (RM932) have almost identical VRM configurations (8 power phases), good looking RGB illumination, but the Strix doesn't have Debug LED for error troubleshooting and lacks one M.2 sockets compared to the Gaming 5 (triple M.2 PCIe 3.0 x4). Or if you don't mind an inferior RGB, take a look at the ASRock Fatal1ty Z370 Gaming K6 (RM830) that has a stronger VRM (12 power phases) and comes with Debug LED. I couldnt find the asus board at your price. I only manage to get it at RM950. Or should i step up to Gigabyte Aorus Z370 gaming 7 ? Seriously difficult to pick. No. Im not taking Asrock. I had a bad experience with warranty claims previously.
Card PM	Report Top Like Quote Reply

TSowikh84	Mar 11 2018, 11:05 PM Show posts by this member only \| Post #482
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(k!nex @ Mar 11 2018, 08:06 PM) I couldnt find the asus board at your price. I only manage to get it at RM950. Or should i step up to Gigabyte Aorus Z370 gaming 7 ? Seriously difficult to pick. No. Im not taking Asrock. I had a bad experience with warranty claims previously. Z370-F at Lelong » Click to show Spoiler - click again to hide... « Gaming 7 is good, same tier as the ROG Apex. Previously it had VRM overheat issue but I heard it has been fixed in the new batch. ASRock has two authorized distributors in Malaysia, SunCycle is good, AMT is bad.
Card PM	Report Top Like Quote Reply

goldfries	Mar 12 2018, 07:06 AM Show posts by this member only \| Post #483
40K Club Forum Admin 44,415 posts Joined: Jan 2003	QUOTE(owikh84 @ Mar 10 2018, 07:28 PM) Or if you don't mind an inferior RGB, take a look at the ASRock Fatal1ty Z370 Gaming K6 (RM830) that has a stronger VRM (12 power phases) and comes with Debug LED. This board rocks. I like it very much, affordable and comes with the Debug LED + ON / RESET button.
Card PM	Report Top Like Quote Reply

TSowikh84	Mar 16 2018, 08:01 AM Show posts by this member only \| Post #484
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	Good deals for those who are looking for CPU+MB bundle
Card PM	Report Top Like Quote Reply

koopa	Mar 23 2018, 02:15 PM Show posts by this member only \| Post #485
On my way Senior Member 594 posts Joined: Mar 2005 From: Bowser Koopa Castle	koopa \| Intel Core i7 8700K \| 5.0Ghz \| Asus MAXIMUS X Hero \| NZXT Kraken AIO
Card PM	Report Top Like Quote Reply

TSowikh84	Mar 23 2018, 04:43 PM Show posts by this member only \| Post #486
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(koopa @ Mar 23 2018, 02:15 PM) koopa \| Intel Core i7 8700K \| 5.0Ghz \| Asus MAXIMUS X Hero \| NZXT Kraken AIO Welcome to the 5.0GHz OC club What's the exact model of your NZXT AIO cooler? How do your CPU temperatures look like?
Card PM	Report Top Like Quote Reply

koopa	Mar 23 2018, 11:36 PM Show posts by this member only \| Post #487
On my way Senior Member 594 posts Joined: Mar 2005 From: Bowser Koopa Castle	QUOTE(owikh84 @ Mar 23 2018, 04:43 PM) Welcome to the 5.0GHz OC club What's the exact model of your NZXT AIO cooler? How do your CPU temperatures look like? Kraken X52. Temperature is awesome. I actually do mining with the CPU too so it's on full load. I get around 63C. Sometimes it peaked at 76C I think. GPU I throttle at 80C.
Card PM	Report Top Like Quote Reply

hafiez	Apr 19 2018, 10:42 AM Show posts by this member only \| Post #488
Look at all my stars!! Senior Member 2,980 posts Joined: Jan 2007 From: Mount Chiliad	last week I update to latest bios for my mobo I didn't realize it wiped my 5GHz (8700k) settings (my bad I didn't save it). I only realize it when I see my pc didn't run at 5GHz on load. so I just play around again and include all values that I remembered. I'm not a extreme overclocker where by I can remember everything (learning from utube only... ) after I key in everything and let my pc run. do some stress test, I found out my cpu speed wont go down to stock when on idle. what did I went wrong yea? my cpu now stays at 5GHz all the time. but the temp around 40-45c on idle. on load it will go up to ~57c. speed remain.
Card PM	Report Top Like Quote Reply

TSowikh84	Apr 19 2018, 10:57 AM Show posts by this member only \| Post #489
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(hafiez @ Apr 19 2018, 10:42 AM) last week I update to latest bios for my mobo I didn't realize it wiped my 5GHz (8700k) settings (my bad I didn't save it). I only realize it when I see my pc didn't run at 5GHz on load. so I just play around again and include all values that I remembered. I'm not a extreme overclocker where by I can remember everything (learning from utube only... ) after I key in everything and let my pc run. do some stress test, I found out my cpu speed wont go down to stock when on idle. what did I went wrong yea? my cpu now stays at 5GHz all the time. but the temp around 40-45c on idle. on load it will go up to ~57c. speed remain. Your CPU is running at 5GHz constantly even on idle because power saving features have been disabled in the OS and BIOS settings. In OS, go to Power Options, select Power Saver power plan. In BIOS, go to CPU Configurations, look for power management settings, enable Enhanced Intel Speedstep Technology (EIST) and C1E. This post has been edited by owikh84: Apr 19 2018, 10:57 AM
Card PM	Report Top Like Quote Reply

hafiez	Apr 19 2018, 11:08 AM Show posts by this member only \| Post #490
Look at all my stars!! Senior Member 2,980 posts Joined: Jan 2007 From: Mount Chiliad	QUOTE(owikh84 @ Apr 19 2018, 10:57 AM) Your CPU is running at 5GHz constantly even on idle because power saving features have been disabled in the OS and BIOS settings. In OS, go to Power Options, select Power Saver power plan. In BIOS, go to CPU Configurations, look for power management settings, enable Enhanced Intel Speedstep Technology (EIST) and C1E. all are enable. this is what makes me wonder though... and, is it normal for the temp to go up to 100c when doing Small FFTs test? I stop the test. on Blend test, the temp seems normal for me. edit: OK, now I understand what u mean by OS Power Plan. I change from High Performance to Balanced now. Previously I changed to HP from Bal. the speed now are at stock or lower on idle. This post has been edited by hafiez: Apr 19 2018, 11:21 AM
Card PM	Report Top Like Quote Reply

TSowikh84	Apr 19 2018, 11:49 AM Show posts by this member only \| Post #491
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(hafiez @ Apr 19 2018, 11:08 AM) all are enable. this is what makes me wonder though... and, is it normal for the temp to go up to 100c when doing Small FFTs test? I stop the test. on Blend test, the temp seems normal for me. edit: OK, now I understand what u mean by OS Power Plan. I change from High Performance to Balanced now. Previously I changed to HP from Bal. the speed now are at stock or lower on idle. It's normal that Small FFTs being hotter than Blend test. Small FFTs demand less memory than the Blend test, so the CPU spends more time processing data and less time waiting for data. I think this can be explained here: https://superuser.com/questions/981466/in-p...0-for-al/981477 In most situations you will find Small FFT can easily pass the test but fails almost quickly in Blend. I'd use custom Blend 1344K min/1344K max FFT with 90%+ RAM capacity stressed. This post has been edited by owikh84: Apr 19 2018, 11:50 AM
Card PM	Report Top Like Quote Reply

hafiez	Apr 19 2018, 12:12 PM Show posts by this member only \| Post #492
Look at all my stars!! Senior Member 2,980 posts Joined: Jan 2007 From: Mount Chiliad	QUOTE(owikh84 @ Apr 19 2018, 11:49 AM) It's normal that Small FFTs being hotter than Blend test. Small FFTs demand less memory than the Blend test, so the CPU spends more time processing data and less time waiting for data. I think this can be explained here: https://superuser.com/questions/981466/in-p...0-for-al/981477 In most situations you will find Small FFT can easily pass the test but fails almost quickly in Blend. I'd use custom Blend 1344K min/1344K max FFT with 90%+ RAM capacity stressed. ok, prior to ur reply i did some googling and the results said about the AVX which are enabled in newer version of PRIME. Version 26.x seems no AVX, so that the temp tested using this version will produce lower temp reading. Im on v29 btw. Regarding the test, on the current settings i manage to get stable on Blend with 1.25v. But when on Small FTTs, immediate BSOD.. I increase the v to 1.27, run small FTTs, no BSOD after several minutes BUT the temp went high 😅... Whats ur advice regarding the test. Im just normal user with gaming, surfing net n doing some minor work on PC.
Card PM	Report Top Like Quote Reply

TSowikh84	Apr 19 2018, 12:28 PM Show posts by this member only \| Post #493
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(hafiez @ Apr 19 2018, 12:12 PM) ok, prior to ur reply i did some googling and the results said about the AVX which are enabled in newer version of PRIME. Version 26.x seems no AVX, so that the temp tested using this version will produce lower temp reading. Im on v29 btw. Regarding the test, on the current settings i manage to get stable on Blend with 1.25v. But when on Small FTTs, immediate BSOD.. I increase the v to 1.27, run small FTTs, no BSOD after several minutes BUT the temp went high 😅... Whats ur advice regarding the test. Im just normal user with gaming, surfing net n doing some minor work on PC. I believe you did not run Blend correctly like I suggested earlier, which is 1344K/1344K FFT (min/max) and with 90%+ RAM tortured. Small FFT won't stress the IMC like the Blend does.
Card PM	Report Top Like Quote Reply

hafiez	Apr 19 2018, 12:48 PM Show posts by this member only \| Post #494
Look at all my stars!! Senior Member 2,980 posts Joined: Jan 2007 From: Mount Chiliad	QUOTE(owikh84 @ Apr 19 2018, 12:28 PM) I believe you did not run Blend correctly like I suggested earlier, which is 1344K/1344K FFT (min/max) and with 90%+ RAM tortured. Small FFT won't stress the IMC like the Blend does. ok, I'm running the custom test now. suggested time to test, 3 hours plus OR 10 minutes?
Card PM	Report Top Like Quote Reply

TSowikh84	Apr 19 2018, 12:49 PM Show posts by this member only \| Post #495
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(hafiez @ Apr 19 2018, 12:48 PM) ok, I'm running the custom test now. suggested time to test, 3 hours plus OR 10 minutes? At least 3 hours, up to 8 hours. 10 minutes is seriously too short to find errors.
Card PM	Report Top Like Quote Reply

hafiez	Apr 19 2018, 06:00 PM Show posts by this member only \| Post #496
Look at all my stars!! Senior Member 2,980 posts Joined: Jan 2007 From: Mount Chiliad	QUOTE(owikh84 @ Apr 19 2018, 12:49 PM) At least 3 hours, up to 8 hours. 10 minutes is seriously too short to find errors. alright I've done my observation for several hours I re-do all my settings and I start from 0 previously I'm using 5GHz preset by asrock but I edit few things; max core ratio 50 cpu cache ratio 43 BCLK freq 100 AVX ratio offset Auto Core voltage 1.25-1.30 (fixed) Load Line Calibration Level 1 ------------------ then I cleared everything but only edit these ^^ 6 settings, instead of using preset+self edit -------- when running Prime95 - Custom 1344 Min/Max 90% RAM ; on 1.25v, BSOD on 1.27v, System Freeze on 1.28v, I get worker stopped windows only 7/12 cores working on 1.285v, only 11/12 workers working after 1 minute on 1.29v, only 11/12 workers working after several minutes on 1.30v, all workers working fine on 10 minutes test <-- this I need to test overnight because I do short test to see the workers failing or not upon increasing the V. ++ in CPU-z it shows 1.296v-1.312v during stress test and during idle. This post has been edited by hafiez: Apr 19 2018, 06:02 PM
Card PM	Report Top Like Quote Reply

bulibulizaimon	Apr 20 2018, 04:03 PM Show posts by this member only \| Post #497
PSN : bulibulizaimon Senior Member 4,667 posts Joined: Jan 2005 From: UniVeRSiTy Of MaLaYa	bulibulizaimon \| Intel Core i7 7700K \| 5.2 GHz \| Asus Strix Z270E \| NZXT Kraken X52 push pull
Card PM	Report Top Like Quote Reply

TSowikh84	Apr 21 2018, 12:50 AM Show posts by this member only \| Post #498
i7 Clan Elite 8,711 posts Joined: Nov 2007 From: Butterworth, PG / Machang, Kelantan	QUOTE(bulibulizaimon @ Apr 20 2018, 04:03 PM) bulibulizaimon \| Intel Core i7 7700K \| 5.2 GHz \| Asus Strix Z270E \| NZXT Kraken X52 push pull Whoa... 5.2GHz @ 1.24v! I think you hit the silicon lottery. Congrats bro! List added
Card PM	Report Top Like Quote Reply

hafiez	Apr 21 2018, 06:04 PM Show posts by this member only \| Post #499
Look at all my stars!! Senior Member 2,980 posts Joined: Jan 2007 From: Mount Chiliad	owikh84, let say only one worker failed or stopped during the prime test, what should I do? increase RAM voltage? I read, some said increase the ram voltage problem is, my ram is 2400MHz and 1.2v I'm using crucial ballistix sport lt 8gb and single --edit right now I'm running at 1.3v 5GHz on normal usage. This post has been edited by hafiez: Apr 21 2018, 06:05 PM
Card PM	Report Top Like Quote Reply

keyo	Apr 21 2018, 09:24 PM Show posts by this member only \| Post #500
Casual Junior Member 345 posts Joined: Jun 2009	QUOTE(hafiez @ Apr 21 2018, 06:04 PM) owikh84, let say only one worker failed or stopped during the prime test, what should I do? increase RAM voltage? I read, some said increase the ram voltage problem is, my ram is 2400MHz and 1.2v I'm using crucial ballistix sport lt 8gb and single --edit right now I'm running at 1.3v 5GHz on normal usage. increase cpu voltage
Card PM	Report Top Like Quote Reply

« Next Oldest · Overclockers United · Next Newest »

3 Pages 1 2 3 >Top

Add Reply Options

Change to:

0.4752sec

0.39

6 queries

GZIP Disabled
Time is now: 29th November 2025 - 10:36 AM

All Rights Reserved © 2002- 2025 Vijandren Ramadass (~unite against racism~)

Removal Request

Powered by Invision Power Board © 2025 IPS, Inc.
