> Skylake/Kaby Lake/Coffee Lake OverClocking V1, Show off your OC here

views

TS owikh84
post Mar 17 2019, 08:30 AM

i7 Clan
Group Icon
Overclocker's United
Group: Elite
Posts: 8,441

Joined: Nov 2007
From: Butterworth, PG / Machang, Kelantan



QUOTE(Silverfire @ Mar 17 2019, 02:56 AM)
Just achieved Rank 33 for 3DMark FSE biggrin.gif

https://www.3dmark.com/fs/18743832
*
9980XE + RTX TITAN awesomeness...
What a nice setup you got there...
Congrats!
TS owikh84
post Mar 17 2019, 10:41 AM

i7 Clan
Group Icon
Overclocker's United
Group: Elite
Posts: 8,441

Joined: Nov 2007
From: Butterworth, PG / Machang, Kelantan



It's good to see that this little ITX board can still handle 9900K @ 5.0GHz very well.

The 6-phase VRM is able to hold up to 200W CPU power package as seen in Prime95 v26.6 Small FFTs (non-AVX):
user posted image

VRM temp is 61.5C max, measured through IR thermometer (might not be accurate though):
user posted image

Realbench v2.56 (AVX):
user posted image

Cinebench R20:
user posted image

XTU: no throttling during the benchmark
user posted image

user posted image

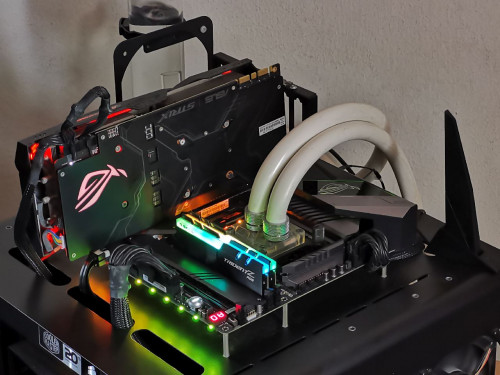

* Setup pic, I actually put one 120mm fan blowing towards the VRM area just in case. biggrin.gif

Next up would be RAM OC.
Look at the RAM OC profiles available in the UEFI, should be useful as a good starting point for RAM OC:
user posted image

This post has been edited by owikh84: Mar 19 2019, 06:49 AM
Diademz
post Mar 21 2019, 09:04 AM

Folding@Malaysia needs you!
Group Icon
Group: VIP
Posts: 1,194

Joined: Jan 2003

QUOTE(owikh84 @ Mar 17 2019, 10:41 AM)
It's good to see that this little ITX board can still handle 9900K @ 5.0GHz very well.

The 6-phase VRM is able to hold up to 200W CPU power package as seen in Prime95 v26.6 Small FFTs (non-AVX):
Wa not bad! VRM temp also quite respectable <80c (with a fan as you said kekeke).

TS owikh84
post Mar 21 2019, 09:49 PM

i7 Clan
Group Icon
Overclocker's United
Group: Elite
Posts: 8,441

Joined: Nov 2007
From: Butterworth, PG / Machang, Kelantan



owikh84 | G.Skill TridentZ RGB DDR4-4266C19 2x8GB | DDR4-4700 CL19-22-22-42-2T | 1.50v/1.525v/1.400v | MSI MPG Z390i Gaming Edge AC
user posted image
TS owikh84
post Mar 24 2019, 10:07 AM

i7 Clan
Group Icon
Overclocker's United
Group: Elite
Posts: 8,441

Joined: Nov 2007
From: Butterworth, PG / Machang, Kelantan



[TH] 9900KF May Overclock Better Than 9900K
QUOTE
Surprisingly, according to the mere five samples I received, the -9900KF appears to overclock better with extreme cooling than the 200 Core i9-9900K’s I’ve binned.

TS owikh84
post Apr 16 2019, 09:28 PM

i7 Clan
Group Icon
Overclocker's United
Group: Elite
Posts: 8,441

Joined: Nov 2007
From: Butterworth, PG / Machang, Kelantan





Cheap DDR4-4000+ is coming.
DDR4-4000 is no longer can only be achieved by Samsung, but SK-Hynix is now able to overclock that high.

4-layer boards support Hynix up to DDR4-4266
Eight-layer GODLIKE DDR4-4400
2-DIMM ITX DDR4-4600
TS owikh84
post Apr 17 2019, 06:49 AM

i7 Clan
Group Icon
Overclocker's United
Group: Elite
Posts: 8,441

Joined: Nov 2007
From: Butterworth, PG / Machang, Kelantan



Last night got time to play with ADATA Spectrix D80 DDR4-3600 sticks.
user posted image

DDR4-4500 CL19-19-19-39-2T @ 1.475v => HCl 100%
user posted image

Today I will try tighten up the subs or go straight for DDR4-4600 if possible.

DDR4-4600 CL19-24-24-42-2T @ 1.5v => HCl 120%+
user posted image

HCl 400%+ finally biggrin.gif

owikh84 | ADATA XPG Spectrix D80 DDR4-3600C17 2x8GB | DDR4-4600 CL19-24-24-42-2T | 1.50v/1.4625v/1.375v | ROG Maximus XI Gene
user posted image

This post has been edited by owikh84: Apr 20 2019, 01:27 AM
wongtheboy92
post Apr 21 2019, 11:26 AM

On my way
****
Group: Senior Member
Posts: 615

Joined: Dec 2008


QUOTE(owikh84 @ Apr 17 2019, 06:49 AM)
Last night got time to play with ADATA Spectrix D80 DDR4-3600 sticks.
user posted image

DDR4-4500 CL19-19-19-39-2T @ 1.475v => HCl 100%
user posted image

Today I will try tighten up the subs or go straight for DDR4-4600 if possible.

DDR4-4600 CL19-24-24-42-2T @ 1.5v => HCl 120%+
user posted image

HCl 400%+ finally  biggrin.gif

owikh84 | ADATA XPG Spectrix D80 DDR4-3600C17 2x8GB | DDR4-4600 CL19-24-24-42-2T | 1.50v/1.4625v/1.375v | ROG Maximus XI Gene
user posted image
*
That's some dope memory overclocking. Can the MPG Z390i achieve the same results using the same RAM?
TS owikh84
post Apr 21 2019, 11:59 AM

i7 Clan
Group Icon
Overclocker's United
Group: Elite
Posts: 8,441

Joined: Nov 2007
From: Butterworth, PG / Machang, Kelantan



QUOTE(wongtheboy92 @ Apr 21 2019, 11:26 AM)
That's some dope memory overclocking. Can the MPG Z390i achieve the same results using the same RAM?
*
I have yet to test these RAM modules on the MSI, perhaps later when I'm free to swap mobos again. 🙂
