Maxis MAXIS FIBRE with MR3220, VOIP not working
|
|
 Jan 27 2015, 11:28 PM, updated 11y ago
Show posts by this member only | Post
#1
|

Senior Member
4,490 posts Joined: Oct 2013
|
Broadband provider

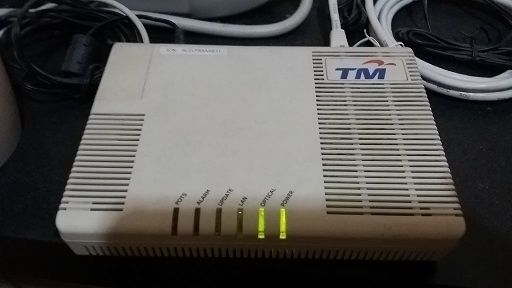

ISP/package: MAXIS FIBRE Location: SG BULOH Have you called your ISP's helpline?: NO Personal equipment Modem: TM-HG8240W Router: TP-Link TL-MR3220 Firewall used: NO Problem details First occurence of problem: VOIP not working Problem frequency: N/A Problem description: VOIP not working PROBLEM SOLVED... This post has been edited by sitescope: Jan 28 2015, 11:56 PM |
|
|
|
|
|
Jan 28 2015, 09:54 AM
Show posts by this member only | Post
#2
|
Senior Member
1,425 posts Joined: Jan 2003 From: Pearl 14000 + Kayangan 01000
|
The custom router does not support VOIP, and I would suggest you to configure it like in this guide: https://forum.lowyat.net/topic/2384890
This post has been edited by Quanta: Jan 28 2015, 09:55 AM |
|
|
Jan 28 2015, 10:59 AM
Show posts by this member only | Post
#3
|
|
Senior Member
4,490 posts Joined: Oct 2013
|
QUOTE(Quanta @ Jan 28 2015, 09:54 AM) The custom router does not support VOIP, and I would suggest you to configure it like in this guide: https://forum.lowyat.net/topic/2384890 Actually my VOIP is working after I chg VLAN ID 822 for Port 1 to tagged but suddenly my internet lak down... Suspect I didn't disable WAN & WIFI setting in TG784N. Will try it again tonight. Also would like to follow above guide but I dunno few things on my HG8240W :- a) IP b) Username c) Password Above guide using old model (HG655a) and ping to 192.168.1.1 isn't reply (after I chg my nbook IP to 192.168.1.250) |
|
|
Jan 28 2015, 11:18 AM
Show posts by this member only | Post
#4
|
|
Senior Member
1,425 posts Joined: Jan 2003 From: Pearl 14000 + Kayangan 01000
|
QUOTE(sitescope @ Jan 28 2015, 10:59 AM) Actually my VOIP is working after I chg VLAN ID 822 for Port 1 to tagged but suddenly my internet lak down... Based on https://forum.lowyat.net/topic/2384890/+520, the BTU is not being touched, he did the following..., u can ping him Suspect I didn't disable WAN & WIFI setting in TG784N. Will try it again tonight. Also would like to follow above guide but I dunno few things on my HG8240W :- a) IP b) Username c) Password Above guide using old model (HG655a) and ping to 192.168.1.1 isn't reply (after I chg my nbook IP to 192.168.1.250) QUOTE Subscribe Maxis FTTH, installed and activated in June. I did not have much problem with Thomson router, however was unsatisfied with the WIFI speed which is 65Mbps which is slow for streaming movie from pc to media player. After reading through post and decided to change to TP-Link TL-1043ND (i think there is not much stock out there, quite difficult to find one with price less then RM150). Followed post by Sayboon, flashed back to openWRT, and setup the router according to KLSeet guide. It was easy, just remember that vlan ids for Maxis is this: 621 - wifi (i tagged it on LAN port 1, unifi is 500) 822 - voip (i tagged it on LAN port 2) 823 - IPTV (i tagged it on LAN port 3, unifi is 600) other than that, the just follow klseet write up. Thomson router was connected to LAN1, and wifi was disable. It was used for VoIP, just same setup as jssc in page 9 here: http://forum.lowyat.net/topic/2384890/+200. Everything was right on the spot during the setup, except the wifi speed was still at 65Mbps blush.gif . This was tricky parts. Browsed and read many sites, finally found simple solution that need to run some script to turn off autoscan. you have to download PuTTY and type in telnet/ssh: uci set wireless.radio0.noscan=1 uci commit reboot (I am n00b in linux & network, i just try) All good for now thumbup.gif Hope this will help anyone who want to switch to custom router. Both TL-1043ND and openWRT give a lot flexibility and freedom to me too. |
|
|
Jan 28 2015, 02:20 PM
Show posts by this member only | Post
#5
|
|
Senior Member
4,490 posts Joined: Oct 2013
|
QUOTE(Quanta @ Jan 28 2015, 11:18 AM) Based on https://forum.lowyat.net/topic/2384890/+520, the BTU is not being touched, he did the following..., u can ping him Yup correct... tonight will try disable WAN & WIFI in thomson... |
|
|
Jan 28 2015, 11:48 PM
Show posts by this member only | Post
#6
|
|
Senior Member
4,490 posts Joined: Oct 2013
|

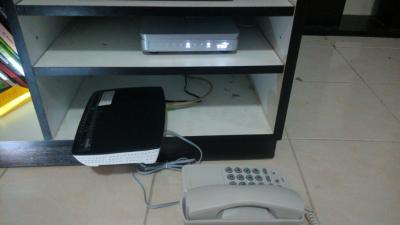

Successfully configured my MR3220 to works with H8240w & TG784n v3

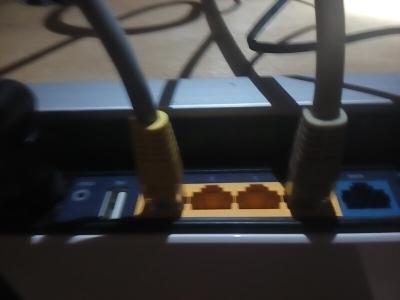

H8240w (LAN2) -> MR3220 (LAN1) TG784n (WAN) -> MR3220 (LAN4) » Click to show Spoiler - click again to hide... « PHONE1 & 2 at TG784n are up/green » Click to show Spoiler - click again to hide... « Full Setup » Click to show Spoiler - click again to hide... « This is the correct VLAN tagging in MR3220... » Click to show Spoiler - click again to hide... « In summary - Configure VLAN 1,621 & 822 - Assign WAN to VLAN621 - Assign LAN to VLAN1 - Assign VOIP to VLAN822 - Disable PPOE & WIFI in TG784n » Click to show Spoiler - click again to hide... « This post has been edited by sitescope: Jan 29 2015, 12:00 AM |
|
|
|
|
|
Feb 27 2015, 10:36 AM
Show posts by this member only | Post
#7
|
|
Senior Member
699 posts Joined: May 2006
|
QUOTE(sitescope @ Jan 28 2015, 11:48 PM) Successfully configured my MR3220 to works with H8240w & TG784n v3 Besides disabling PPOE and WIFI in TG784n, do we need to change any other configurations within the Maxis router?H8240w (LAN2) -> MR3220 (LAN1) TG784n (WAN) -> MR3220 (LAN4) » Click to show Spoiler - click again to hide... « PHONE1 & 2 at TG784n are up/green » Click to show Spoiler - click again to hide... « Full Setup » Click to show Spoiler - click again to hide... « This is the correct VLAN tagging in MR3220... » Click to show Spoiler - click again to hide... « In summary - Configure VLAN 1,621 & 822 - Assign WAN to VLAN621 - Assign LAN to VLAN1 - Assign VOIP to VLAN822 - Disable PPOE & WIFI in TG784n » Click to show Spoiler - click again to hide... « |
|
|
Feb 27 2015, 10:40 AM
Show posts by this member only | Post
#8
|
|
Senior Member
4,490 posts Joined: Oct 2013
|
QUOTE(nitehawk @ Feb 27 2015, 10:36 AM) Besides disabling PPOE and WIFI in TG784n, do we need to change any other configurations within the Maxis router? Nope... |
|
|
Mar 2 2015, 09:20 PM
Show posts by this member only | Post
#9
|

VIP
2,615 posts Joined: Jan 2003 From: Kuala Lumpur
|
How do I disable the PPOE in TG784n?
|
|
|
Mar 2 2015, 09:47 PM
|
|
Senior Member
4,490 posts Joined: Oct 2013
|
QUOTE(wind01 @ Mar 2 2015, 09:20 PM) How do I disable the PPOE in TG784n? Forgot aldy but u can search around in the settings...There's disable button in ppoe settings... |
|
|
Mar 28 2015, 10:13 AM
|
|
Junior Member
88 posts Joined: Jan 2003
|
Will this work with this modem? I got this modem when I was on Unifi, but now I'm subscribed to Maxis.
 I'm using Asus RT-N14UHP Edit: I have tried it. And it works! This post has been edited by wideawake: Mar 30 2015, 11:27 PM |
|
|
Aug 10 2015, 08:57 PM
|
Junior Member
144 posts Joined: Jan 2003
|
looking for this. will try out with my MR-3220
|
|
|
Nov 2 2015, 11:16 PM
|
|
Junior Member
162 posts Joined: Dec 2013 From: Kuala Lumpur
|
Maxis will be having Maxis Home Fibre promotion from 2nd November 2015 until 31st December 2015. This promotion is only available for 10Mbps, 20Mbps and 30Mbps package. Kindly note that the Free 1 month Subscription will only be reflected in 2nd bill.
|
