Any plans for this weekend? We will participate Pacifica Appliances at Home exhibition in PWTC from 24 - 27 Sep.
Please do not miss the chance grab our special promo here...

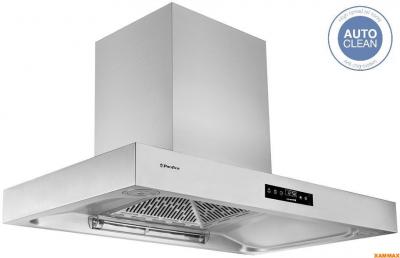

Auto Clean with high suction power hood


Powerful flame for Asian Cooking

Sorry if this question has been asked before.

My Hesstar Built In Glass Hob has finally died on me and I was looking for a replacement.

However, I noticed that built in dimensions of new hobs has significantly reduced that I cannot find a replacement for mine.

If anyone has any idea, will be appreciated.

My HOB measurement:

Unit Dimensions: 860(W)mm X 500(D)mm

Inner Dimensions: 760(W)mm X 420(D)mm

Hi, according to your cut out dimensions, here is a model Pacifica Hob which suitable for our asian cooking. If you have no any plan for this weekend, please drob by to our home exhibition at PWTC to see the actual model.

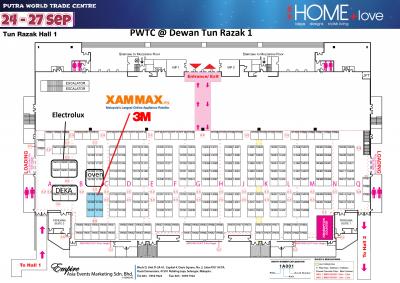

Booth Location: PWTC @ Dewan Tun Razak 1 Hall 1


Oven Live Cooking Demo

Booked Cornell cook & hob. Any feedback for this brand?

Went to PWTC last weekend. Very surprised to note that exhibitors outnumbered the visitors! I was wondering whether due to economy downturn or the haze?

Hi, I will reno my kitchen some day in next month. How many plug points and switch required for hood, hob, oven and microwave? All to be individual or can be on 1 plug point and connect all onto it? will it overload and cause short circuit?

My idea is like this, should it be:-
1. For hood & hob: since the hob have it ignite and the hob have motor and light: 1 switch and shared 1 plug point.

2. For microwave: 1 switch & 1 plug point for its own. since it has high Watt.

3. For oven: 1 switch & 1 plug point for its own. since it has high watt.

Kindly advice the best or whats normally contractor did? and did I estimated to many which will cost a bomb?

Tq.

and @zheilwane,can you PM me Fotile & Rubine hood, hob, oven & microwave package. thanks.

hi guys n gurls,

need seek for some advise.

i got a stainless steel sink which i believe the contractor accidentally drop some rusted steel on the sink which now the sink have the rusted stain... how can i clean/remove the stain?

hi guys,

will it be too far if my extension duct is about 10 ft distance ?

Hi Ozak where do you get the in-duct fan?Thank you

Brought from Amazon.

You can check with airgard locally.

ok thanks , no wonder I have no clue when I start searching it from local store

Hi guys,

I have my kitchen setup as the drawing

it is about 4 ft straight then 90 degree bend and 9 ft straight to end.

My current hood is low end model, electrolux EFC9533X that dual purpose ducting or recirculation mode with 1000m3 horse power only.

It is really weak~

Any idea should I get the in line duct booster fan or exhaust fan (with filter) like kdk?

really appreciate lots

Any feedback on leben hood and hob?

KDK is not enough to ensure air quality. You already invested in the hood. Seems like a waste if you don't allow it to do its job properly. 1000m3/hr extraction rate is pretty good but air extraction depends on a number of other factors.

Maximum length before you loose efficiency is 5m, minus 1m for every 90 degree bend. Your run adds up to 13 ft, which is almost 4m, including the single bend. Perfect. But that's only one part of the equation.

Calculate the CFM of your hood against the extraction rate required for your kitchen size.

- Volume of kitchen (length x width x height) eg. 4m x 3m x 2.5m = 30m3

- 10 changes of air per hour eg. 10 x 30m3 = 300m3 (note: the highest number I've seen recommended is 12 changes of air per hour and the lowest was 8 changes/hour).

P.s. Check the diameter of the ducting. It must be properly sized. Also, if you use flexible or ribbed ducting, this can contribute to noise as well. Another important thing is to note the BTU output of your stove if you use gas. And factor that into your considerations.

This post has been edited by OneMoreDay: Oct 10 2015, 12:24 AM

1) Hood 13amp normal plug with looping no problem, hob usually battery operated

2) Microwave low watt, 13amp sufficient. also can loop but do not loop with oven or high watt consumption

3) yes high watt, 15amp recommended.

10Ft is not too far, i have customers who installed FOTILE JQG 9009, EH10BQ or CTS 9004 upto 15ft also no problem but the hose provided is only 10ft by standard (could extend upto 12ft sometimes)

Need rubine hood parts for that light tube...any idea what's the price and where to get it? Do u sell it, zheilwane? I accidentally broke it


Attached thumbnail(s)

normally for hood, do u guys use power point to connect or using connector?

Thanks Zheilwane for the advise above.

Can u pm me best price for rubine i90sv hood, rubine hob verosa and rubine 8functions oven. Forgot the model number.

Will u open on this Wednesday? Will look for u if open.

Thanks.

You can purchase from their service center 03-62869000 seems like oil cup to me
