bro what's the total cost for WC ?

for current wc setup it is RM 1080, bought from Apes

here some teaser of my new stuff lots of work more to do.

Good luck modding bro..

Thanks bro. since u good in photography , did u have any suggestion on how i can make my final photoshoot great?

You're wellcome.
1st, i will take photo of the details. Like those hardwared close-up.
2nd, i will do some varieties of different angle shots such as from the top,left right, front & rear.
3rd, to make sure background is either plain black or white without any image in the frame.
4th, proper lighting. Could it be from camera flash,ambient light,or even artificial light from LED or torch.
5th always play with creativity.
lastly, photoshop

Alright, noted! thanks for the advice i have been thinking to take photoshoot on the rooftop, to get the natural daylight first and then for the background.

That's not really recommended as so many harsh lights
Prefer you make it indoor.

this one need send to photo studio

Nope. not really. I've always shoot it in my house. Product shoot. Just use a plain cloth (white or black) or any large calendar.

Ouh i thought daylight is better, ok then.

Hahah better i sent myself to studio, can become model

u go outdoor shoot ok what since kaed got so many gooding places and 'backdrops'.

later i try if not segan la haha,

Currently have nothing to do as im busy,
still waiting for my Ram to arrive.
and later i will post some picture of my new wc hardware. stay tuned

At first i only intended to find a 90 degree fitting, but end up buying extra wc hardware.
here are all the new item.

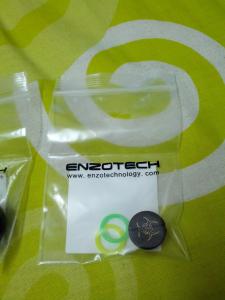

enzotech stopper


enzotech t block, for drain port.

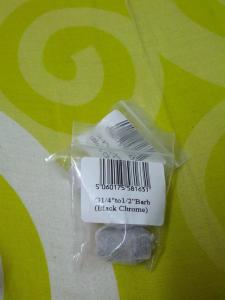

xspc black chrome barb

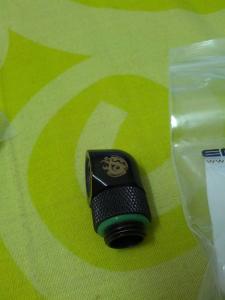

used bitspower 90deg. fitting

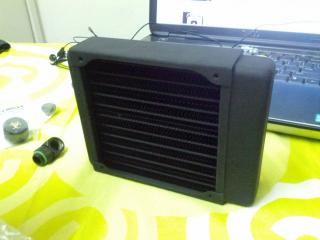

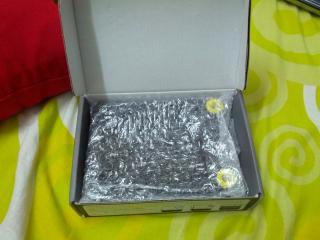

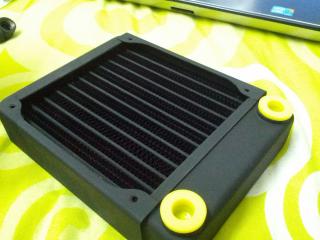

lastly new radiator for the front panel. xspc ex120


later goin to paint the rad into white, setup new loop,

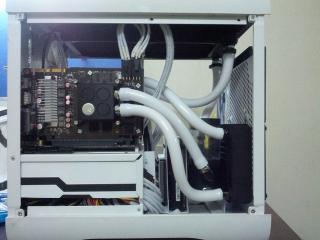

So today i tried to route the new loop and here the result.

Ive put all the fittings into place.

Here the T-block.

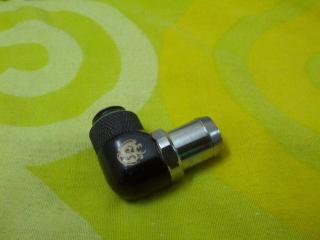

The 90 degree fitting


So now im draining out my current loop.

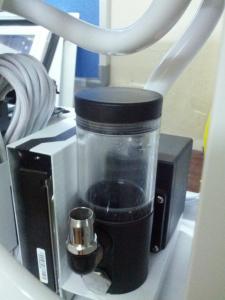

Fixed the fittings on the pump.


So now i need suggestion WHERE SHOULD I PLACE THE T-block?

the 1st tube from above, is from the cpu to the ex 120 rad.
the 2nd, which in the middle is from the gpu block to the pump.
lastly the 3rd tube is from the ex 120 rad to the gpu block,



So, where do u think i should place the T-block? in the middle of 2nd tube or 3rd tube?


This post has been edited by ichuck: Mar 1 2013, 12:07 AM

Which one is better?

and which tube i should place the t block for drain port.

iiummmmmm

hahah tolong la comment on the loop jugak,

the lowest point of your loop is the ideal location
