Bole je xde copyright pun hahaha.

yup... naah...dont know bout u, but i did it, coz that's where i know the temps of my cpu in full load besides stability test for my oc.

nice build i envy your skill if i ever try to do anything like this the cut would be terrible
btw how is the fan configuration? are all those intake? arent you worried about dusts?

nice build bro,
where u get the modder mesh huh ?

first of all thanks ,

and one most important thing i learn when modding is that, u need to be patient so the product u produce would be great.
i did spend the whole of my semester break modding, but still till now it does not completely done.

yup front and top is intake and, one exhaust at the back. i do afraid of the dust. i might put a layer of filter later to atleast reduce the dust.
i dont have the chance to turn on the pc yet for now, later i see how it goes if its does collect lots of dust then i will change the top to be exhaust.

Actually thanks to ur alu plate if not i cant do this mod haha:)
the modder mesh is AC ryan. bought from limhongwoon. u can also ask pristine to buy for u, because he take order from performance pcs

This post has been edited by ichuck: Feb 15 2013, 05:29 PM

14. So now some final mod for the case.

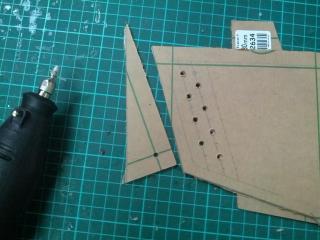

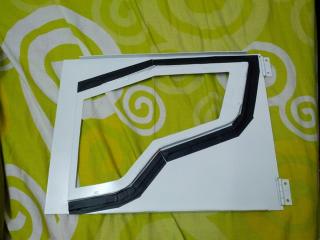

first i cut the acrylic window. just using the acrylic cutter. lazy to use dremel because so noisy -.-

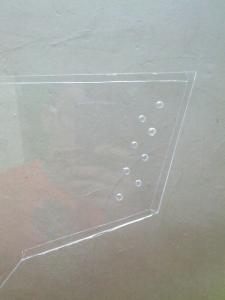

Then i made some hole for the gpu ventilation, i hope it does function and helps.

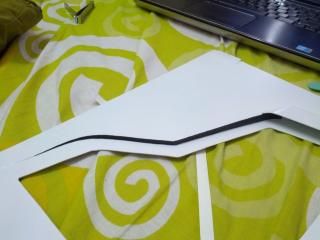

Now im gonna make the sticker for the side panel.

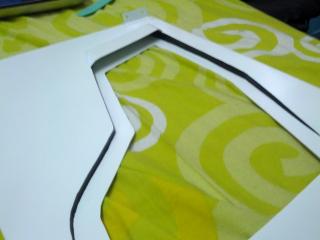

N then the inside sticker to cover the ugly part from the inside.


Here some sticker to cover the un even part of the hinges,

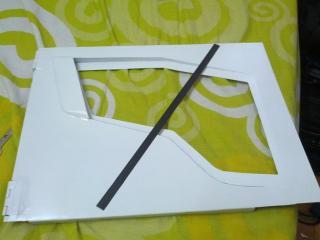

To attached the acrylic window i use this clear acrylic tape, it is very strong n its transparent.


Now the panel is ready.

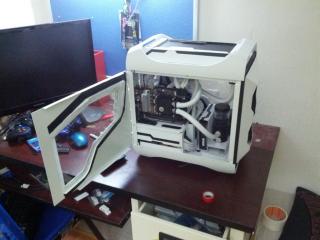

Some photos with sidepanel on.


This post has been edited by ichuck: Feb 19 2013, 10:33 AM

now here some problem i have, n need some opinion or advice anytg u can help me with.

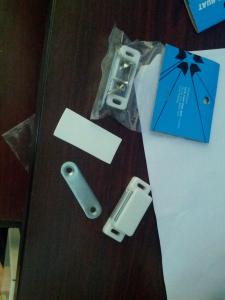

at first im thinking of using the magnet to hold the the side panel so that it is shut close.

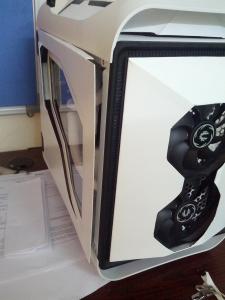

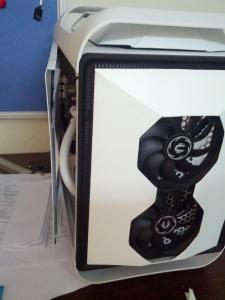

here the problem is. the tube is obstructing from the sidepanel to be close.


this as far as i can push it in.


so any suggestion on how i can really shut it close?
im thinking of push to open latch maybe.

the lastttttt part which is the ram, have been order. hope can finish my build soon.

This post has been edited by ichuck: Feb 19 2013, 10:48 AM

maybe you can use angle fitting at your pump in order to tidy up the tube routing

Yeah im thinking like that too, but that would be my last choice, because i dont want to drain the loop n fill it back.
hope tht there is another solution

Bro. How much price acrylic per sq feet?

at the place i bought it, they sell according to standard paper size, a4, a3 like that. The one i use thickness 2.6mm size A3 about rm15

u cut acrylic using dremel ke bro?

Xlah bro, i use acrylic cutter only, because im in college using dremel going to be noisy hahaha.

since the tube from the gpu outlet into the pump is causing the problem, myb just setback the pump a little bit to the side. that way, the tube would be push further inside. still got space for the pump ontop of the HDD bay i think

i tried that i does help, but i need to offset the pump far to the right and it looks weird. so ive made decision to get a 90 degree fitting. maybe with some extra wc parts too

bro..i think better 45 degree adapter for the inlet of the res is better. or can have 45 degree outlet from ur card and another 45 degree to the res, then it'll make ur tube straight and looks better.

This post has been edited by qwe13: Feb 21 2013, 04:25 PM

ok thanks for the suggestion, never think of that before haha

Awesome Build ! Salute

Thanks bro

As i thought i was "this" close to finish. but not..

stay tuned for more new updates.
