Fr Sh@rty 5 ... Juz PM him abt OEM ABL me got fr him lo.

DIY install of OEM ABL is very simple and wld augur well as yr very FIRST sure successful DIY project! Only 3 basic simple steps.

If done by shop, yu shld not b charged more than a nominal charge nia. An experienced guy shld take 10 mins MAX to install!
NB. If near Meru, Klang (Klang Parade), yu can go install @Sh@rty 5's shop itself!

Warranty shld NOT be void cos NO wires need 2b cut!

---

Added on September 24, 2011, 8:09 amBtw Good Morning, Everyone!!
Hv a great wkend...

This post has been edited by zeone: Sep 24 2011, 08:17 AM

Good move & decision...

ps. Me & my other half truly enjoying this new-found convenience each & every time we take the Saga out!

Pls PM Sh@rty 5 for more info.
Frankly very easy DIY nia.

NB. Pls note that me am NOT salesperson/agent/dealer.
Me only juz sharing my good luck/happiness in finding this useful & easy2install device.

---

Added on September 24, 2011, 11:59 amFor info of those keen on DIY install of OEM ABL unit, here are extracts of my post fr V14:

(NB. For info of those who wanna be in the know, the Car Alarm Sys box is on LHS of boot (ie mounted together with the Reverse Sensor), juz b4 the Left Rear Lamp housing.)

INSTALLATION NOTES:

1. Remove large plug from Car Alarm unit.
2. Plug in replacement (built-in) plug from new Auto Brake Lock module.
3. Insert Car Alarm plug into Auto Brake Lock module socket.
4. Tap provided (labelled) cable from Auto Brake Lock module into power signal cable (Green) which is connected to Rear Brake Lamp.
5. Done!!

For all Bros info : This unit adds the following functions to stock car alarm system :
1. Hazard Lights flash for a short time when any door is opened;
2. Locks ALL doors with Ignition ON when brake pedal is pressed;
3. UNlocks ALL doors when Ignition is switched OFF.
4. UNlocks ALL doors by pressing Alarm Reset Button. (nxt to Hazard Warning Lights button)
5. A "bonus" feature ... Pls discover it yrself, ok?

DIY-ing brings a sp kind of satisfying feeling & sense of personal accomplishment which $$$ kenot buy...

Enjoy...

This post has been edited by zeone: Sep 24 2011, 12:03 PM

Yup, the one & the same!!
At last contact, he still had stock...
So Good Luck, Bro!

---

Added on September 24, 2011, 3:46 pm Yu'll discover it one fine day!! I realised it happened w/o even knowing it was there!

Juz like the Reset Button to UNlock...not stated on box, rite?

---

Added on September 24, 2011, 3:48 pm

This post has been edited by zeone: Sep 24 2011, 03:48 PM

Normally we wind down window 2get ticket wan...

Mayb try again...?

Cld yr "pushed in" wire hv lost good contact with terminal (wire still stuck there in socket but no contact) due2 "bumps"/vibrations as car was driven?

Cld yu pls chk it out? TQ.

NB. Electrical contacts must b good 4constant current flow.

---

Added on September 24, 2011, 10:00 pmSorry...I posted long reply re yr prob BUT it disappeared when I tried to edit...
Nvr mind... Shorter answer now...

Like Bro Sh@rty 5 said... MUST open door after press Reset button to UNlock...or else press brake pedal kenot lock again wan.

I tested juz now after read yr query. Works. If no door was opened & closed after press Reset button to UNlock, then press brake pedal kenot lock again.

Pls read my other post (actually later post but now appeared earlier)

---

Added on September 24, 2011, 10:05 pmNope, Bro. Works fine when car stationary.

This post has been edited by zeone: Sep 24 2011, 10:05 PM

Nope, Bro. So far not hear of module using Reset button to LOCK as well as unlock.

Ori Alarm Reset function shld still b working as most other ori functions still work.
Sorry but kenot test now cos jiran2 will b very unhappy if I do...agreed?

ps. Tks a meg, Bro Sh@rty 5, for dropping in here & responding 2our Bros' queries!!

---

Added on September 24, 2011, 10:15 pmThis is where ABS & EBD of FLX wld come in handy!! Wish me can afford to upgrade lo... A dream nia!

This post has been edited by zeone: Sep 24 2011, 10:15 PM

Really dunno, Bro... In theory, pressing brake pedal in such situation shld not lock doors.
Warning? Feel me need 2try it out see how... mayb 2moro?
Then will update here. Ok?

This post has been edited by zeone: Sep 24 2011, 10:59 PM

Welcome!!

Yu need 2send car 4service @Proton SCs during Warranty period or else wld void warranty!

Using Fully Syn for 5k Km service interval is wat most wld call "overkill"...
Mayb as commented, use when interval is 10k Km? However, need 2change oil filter & top up oil @5k Km.

As alwaz, choice, decision & pocket are yours...or the owner's?

Example? Pls read a few pages earlier. Yu can also see a couple of pics of OEM ABL installed earlier in this thread. Pic of box in V14.

Pls PM Sh@rty 5 for more info...refer to me. Ok?

---

Added on September 25, 2011, 7:21 amAfter warranty period, yu're FREE 2do anything to yr ride!! Merdeka!!

ps. Seems some SCs allow certain brands of oil 2b brought in by owners 4use. Pls make enquiries @yr SC & others. (mine dun allow! )

---

Added on September 25, 2011, 7:31 amAnd, of course...GOOD SUNDAY MORNING 2Everyone!!
Hv a great day!! Enjoy yr Saga!!

---

Added on September 25, 2011, 7:49 amWonder if Bros kno abt Proton AMP Parts Online purchase website?
It's here : http://online.protonpartscentre.com/

BAD point : NOT functioning yet!! Haha!!

---

Added on September 25, 2011, 8:22 amJuz tested above scenario this morning...

Yup, pressing brake pedal @that time will NOT lock doors.
Warning? Hazard Warning lights (Dbl signal lights) flash for some time (probably 30 secs? Din time it lo.) if any door is UNlocked/Opened at any time.

Hope above helps?


This post has been edited by zeone: Sep 25 2011, 08:22 AM

Nxt DIY in the making...

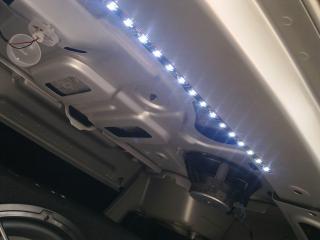

Item ordered. Now waiting for Bro Sh@rty 5 to send . Pls see pic below - that's it! :

Yup! Bro Sh@rty oledi made all the connections + lamp "plug(?)". All me got 2do is 2plug it in, cut the stripe to correct length & stick it on!

And then there was LIGHT!!

This post has been edited by zeone: Sep 25 2011, 10:39 AM

Belated pics of my own DIYed OEM ABL module :


Nice?

This post has been edited by zeone: Sep 25 2011, 10:52 AM

Addition to my DIY "arsenal" of tools...T-piece handle c/w slim 16mm magnetic spark plug socket wrench...
From lelong.com @RM35 + RM5(del charge).
Juz in case nia...

Orig plan was as replacement boot light...as in example below...


However, mayb got other options...as per yr suggestion??
Mayb other Bros here got locations for easy DIY-ing?

This post has been edited by zeone: Sep 25 2011, 11:14 AM

Ya lo...paiseh nia...
Maybe nxt DIY...?

Btw for the info of those keen on DIY-ing OEM ABL, here is my prepared snapped pic of the module & instructions on pic...

Step 1.
a. Locate Car Alarm unit on LHS of boot space near to LHS Rear Lamp cluster/housing.
b. Remove white plug (only one!) from Car Alarm unit. Plug looks exactly like the one connected to new OEM ABL module.
Step 2 to 4 : Pls refer to attached pic :


Step 5 : Tidying up...Use dbl-sided tape to attach ABL unit to metal bracket of Car Alarm. Use cable ties to keep/hold cables neatly. Up 2yu wan...

Note : To identify the correct Power Line cable to Rear Brake Lamp socket, pls confirm using either a Multimeter or a simple 12V bulb ie earth the body of the lamp to car body and connect the other lamp terminal to the cable yu're testing. The correct cable wld light up the test lamp.

Easiest to use a car cabin room lamp cos it has 2 ends...1 end to car body, the other to the cable in socket.
If not wrong, the cable is GREEN in colour.

Happy DIY-ing!!

This post has been edited by zeone: Sep 25 2011, 12:34 PM

Suggestion?
Better to remove ori b4 put on yr better one! Saves a lot of headaches/heartache in future...

---

Added on September 25, 2011, 12:13 pmDat's a nice one!
Stripe me ordered WHITE one (yrs white or blue?)...if blue, mayb KIV for nxt stripe?

This post has been edited by zeone: Sep 25 2011, 12:14 PM

Sorry, Bro eric...looked kinda cool bluish 2me! Mayb my eyes playing tricks?
