Picture of nice cable management.., - Post ur pics. No cacings pls
|
zzzz52
|
 Aug 23 2006, 12:55 PM
|
|
QUOTE(ksl279 @ Aug 22 2006, 02:30 PM) bro, two colour u mean black and orange ? the black colour sleeves is 24pin power socket for mobo, will it better if i sleeved all into one colour only ?  what i think is the PSU is giving me the prob, cos this PSU have a additional power bay (in black colour) which make the whole thing look more complicated. Maybe i'm going to change anoter PSU ba...  For me it doesn't matter what color is it. Just that you have to tie it together and arrange it so that each wire don cross each other. |
|
|
|
|
|
zzzz52
|
Aug 23 2006, 12:58 PM
|
|
|
QUOTE(r4ydc24 @ Aug 22 2006, 01:20 PM) ahahah, as eBola mentiond, as long as there are no "rubbing" activities on the carpet, no static will be created... anyway, dat carpet serves lotsa things... - dust trapper.. i prefer the dust to be trapped there rather than on other components..  - aestatic value.. i can cover the silverish base of the casing with the chop "QC OK!!" - sound dampener.. so i wish...  nway ksl279, watercooled rig is indeed 1 hell of a challenge for wire management department. /me havent had any xp wif any watercooled rig b4... but yours, datz a TT casing ryt? this was wat i managed to do previously. 1 more function for the carpet.........hide all the cables below it. nice case you have there. |
|
|
|
|
|
r4ydc24
|
Aug 23 2006, 02:50 PM
|
|
|
n0o0o0o0o0~ now uncle ianho gonna kno my secret shaolin kungfu. lol yah, lotsa wires creeping under dat carpet... wahahahahah  |
|
|
|
|
|
epul
|
Aug 24 2006, 04:46 PM
|
|
|
QUOTE(amyhs99 @ Aug 5 2006, 12:22 PM) most of the cd-rom have 4 hooks on the tray to hook the cd when its position vertically... try see urs...    sry for thw low quality pics Bro is it will make the cd/dvd disc spin unbalance due to gravity pulling. i've try once making my dvdrw vertical, but then the sound very loud during spining so i stop to used my dvdrw vertical. afraid will damage the disc due to unbalance spinningg |
|
|
|
|
|
fantagero
|
Sep 3 2006, 01:25 AM
|
|
|
QUOTE(epul @ Aug 24 2006, 04:46 PM) Bro is it will make the cd/dvd disc spin unbalance due to gravity pulling. i've try once making my dvdrw vertical, but then the sound very loud during spining so i stop to used my dvdrw vertical. afraid will damage the disc due to unbalance spinningg i dont think nutyn much affect la.. huhuuh coz many acer desktop got vertical cdrom.. huuhh just put the cd propely.. u'll be fine  |
|
|
|
|
|
Cloudx
|
Sep 4 2006, 12:38 AM
|
|
|
Guys after looking at so much neat cable management and most of it are done using erm.. branded case Im wondering anybody able to manage their cable using chapalang case? Im having trouble how to hid my cable cuz my RM20 case hv huge hole juz beside the mobo tray which really is fussy since i can hid the cables behind it. Pic will explain all. Will put it in the morning  |
|
|
|
|
|
r4ydc24
|
Sep 4 2006, 02:25 PM
|
|
|
well, to me, it was neva about the case... itz how u manage to spank all dat tentacles... /me drilled a hole on my casing.. cavvy lyk his bro, centurion, is not well-known for itz cable management friendly.. but once u get a workaround on it, well, then the magic show starts....
pls do post ya casing's pix... we'll try to figure out sumthing..
|
|
|
|
|
|
Cloudx
|
Sep 5 2006, 12:30 AM
|
|
|
QUOTE(r4ydc24 @ Sep 4 2006, 02:25 PM) well, to me, it was neva about the case... itz how u manage to spank all dat tentacles... /me drilled a hole on my casing.. cavvy lyk his bro, centurion, is not well-known for itz cable management friendly.. but once u get a workaround on it, well, then the magic show starts.... pls do post ya casing's pix... we'll try to figure out sumthing.. As promise here's the pic of my cheapo case. During usual dust cleaning job Dun laugh at it ya.. im not that good in cable management.. and ignore the double-side tape at the cdrom slot » Click to show Spoiler - click again to hide... « |
|
|
|
|
|
mADmAN
|
Sep 5 2006, 02:09 AM
|
|
|
@Cloudx take pix of ur whole case with everything (except side panel) in tact. that way its easier to see how to help u out... and i see that ur HDD bay goes all the way to the case floor... u can actually use it to hide ur cables by cable tying them on the other side of the bay to hide the xs wires nicely... my old beige chapalang case's doesnt have a hdd bay that goes all the way down...even harder to manage but i used the empty cdrom slots  anyway....heres pix of my new case with cable management done    the back part of the case... usually on most ofther cases ull see all the wires snaking all over the place.. but thankfully mine aint that bad   more detailed pix of the case can be seen HEREmADmAN This post has been edited by mADmAN: Jan 22 2007, 10:38 AM |
|
|
|
|
|
Cloudx
|
Sep 5 2006, 07:22 PM
|
|
|
QUOTE(mADmAN @ Sep 5 2006, 02:09 AM) @Cloudx take pix of ur whole case with everything (except side panel) in tact. that way its easier to see how to help u out... and i see that ur HDD bay goes all the way to the case floor... u can actually use it to hide ur cables by cable tying them on the other side of the bay to hide the xs wires nicely... my old beige chapalang case's doesnt have a hdd bay that goes all the way down...even harder to manage but i used the empty cdrom slots I post my whole case herepls giv comments ya  |
|
|
|
|
|
sidewinderz
|
Sep 10 2006, 11:40 AM
|
|
|
|
|
|
|
|
|
lolhalol
|
Sep 12 2006, 04:52 PM
|
|
|
before tidying » Click to show Spoiler - click again to hide... « after tidiyng » Click to show Spoiler - click again to hide... « coments are welcome This post has been edited by lolhalol: Sep 12 2006, 05:33 PM |
|
|
|
|
|
dualshock
|
Sep 14 2006, 10:18 PM
|
|
|
|
|
|
|
|
|
Doom
|
Sep 14 2006, 10:24 PM
|
|
|
To: lolhalol
Maybe you can use a better materials such as zip tie to hold your CCFL wires rather than using tapes men....
others are alright .... but feel like u have a bit more wires than usual....maybe u dont need so many UV CCFL ... especialy those that short ... it is not so bright after all..
nice job anyway !!
This post has been edited by Doom: Sep 14 2006, 10:25 PM
|
|
|
|
|
|
Doom
|
Sep 14 2006, 10:29 PM
|
|
|
QUOTE(dualshock @ Sep 14 2006, 10:18 PM) Could you snapshot from other angle such as your drive bay.... it is hard to comment base on one side only... overall you have so many wires that is kind of visible ... |
|
|
|
|
|
sidewinderz
|
Sep 14 2006, 11:42 PM
|
|
|
wohoo...i can see my old case there...  wow..upgraded to dual core already...where is your 478?? |
|
|
|
|
|
Doom
|
Sep 15 2006, 12:45 AM
|
|
|

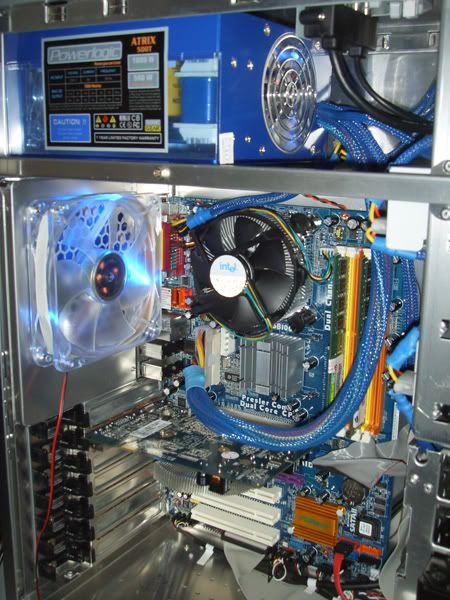

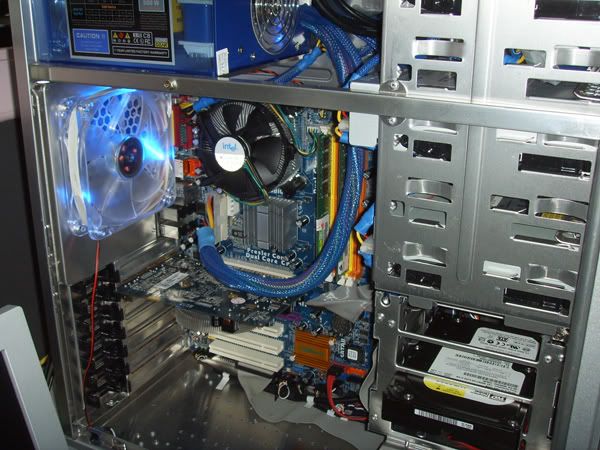

TO: DualShock I think you could improve by having the sata cable have bettter routing instead of looping it ... unless u are doing UV decoration...maybe u could cable tie together and route from the same direction. for your CPN9500 cooler, the cable could be fold and tie with zip tie... or you could have it sleeved which will be troublesome.... and a bit tricky..depend on skill .. as for the top area around PSU to drive bay ... you could try to get some colored acrylic board and cover it so your PSU cables are not visible.. lastly is the casing fan cable....if possible use extension and try to route to behind of the mobo and back to your molex connector.... can try out custom made extension ..very cheap but need a bit of soldering skill.. sorry cant help you with that coz i am working of the techqniue as well... with those fixed it should be nice ... will be looking forward to your modification men . |
|
|
|
|
|
dualshock
|
Sep 15 2006, 01:13 AM
|
|
|

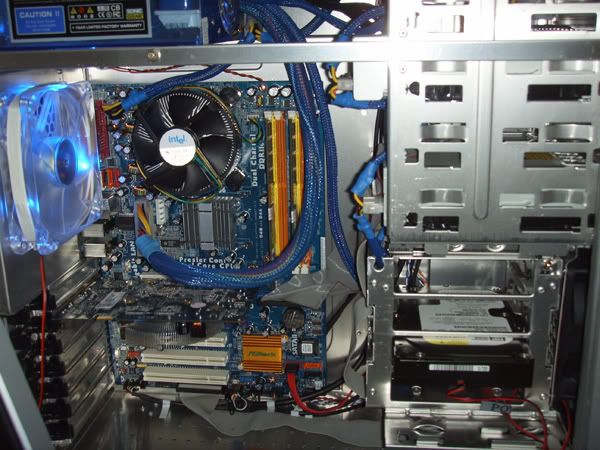

sidewinderz, hey...reminds you of the good ol' days huh...been loving this baby since day 1...and my 478, transferred to another pc already...used by my mrs. doom, thanks for all the advice. in the mean time while waiting for your advice, i've rerouted the sata cables, no longer sticking out like onion rings. the cable for the cpu cooler i've also tied it. i'm not good in sleeving so, i guess tying is my best option. as for top area, when my side cover is on, it can block the psu cables quite well, if not all. i'll see what i can do with that in the future. as for the last advice, i'm planning to 'borrow' the technique from r4ydc24, by using carpet to cover the bottom...ehehehee...hope you don't mind...
This post has been edited by dualshock: Sep 15 2006, 01:22 AM |
|
|
|
|
