Silon knows where i get the pictures because his spec like Silon said.

here is mine.
not done yet
not all the cables are sleeved yet and gotta neaten the cables up more.




This post has been edited by DaRkSyThE: Jul 6 2006, 09:59 PM

Is this case really good for cable management ?

I feel that it is kind of cramp becoz the placement of the PSU at the bottom...

those wires are just obvious regardless where u try to hide it ....

well compare my cable management to the other floating around the web!
its by far one of the neatest. but u are absolutely correct, its very hard for it to be hidden.
especially with my new PSU, gosh the cables are thick

Acutally the origin of your problem is the numbers of HDD drive and the optical drive you own....

unless u have lessen drive else it is hard to achieve nice cable management...

here's mine

fish, er, no, i better call u ikan... aahahha. got ya black sleeved wires ready already?

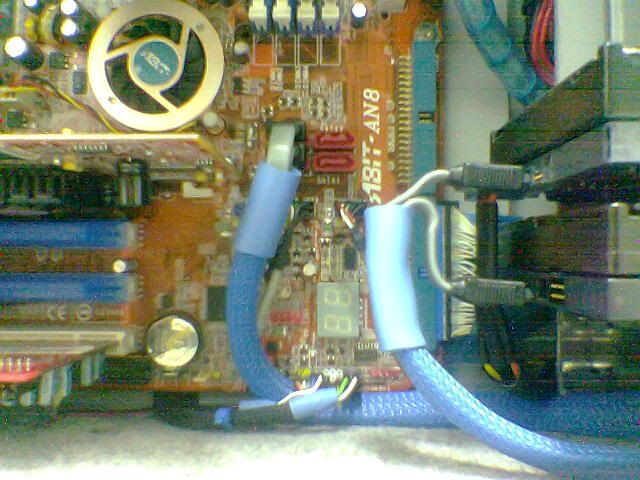

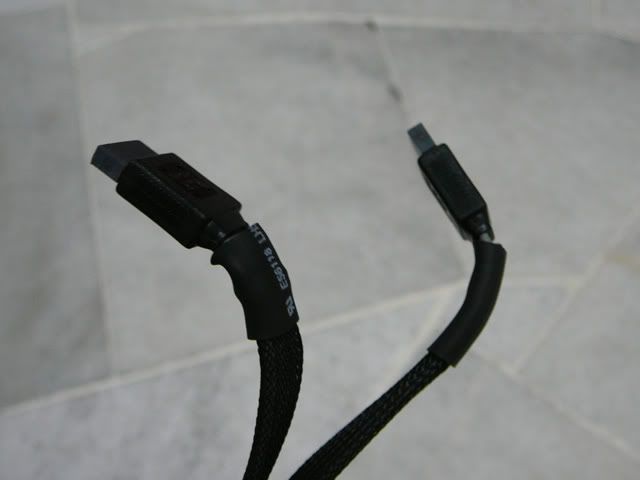

i chopped off my previous blue sleeve and get em some nice sleeve n heatshrink on already.


Tadaaaaa!

zx12; i dont like that anaconda of yours [ATX power cable], you must it away

i think what you can do is you can use cable ties or whatever to tie it to the holes beneath the CDROM area., on your mobo's side. i suppose you dont need cable ties, but i like to use them because you can force the big and subborn ATX cables into place




r4ydc24: the black ones look uber cool, but what the hell are you doing? hurry up and snap pics of them in your casing lerr

guys...i got a question here...i simply cut off the ccfl lamp to give it extra length, but it wont light up, is this because the wire to much resistant? - can be like that aaa?i assumed like that because, when i use -ve at stock wire, +ve at long wire, they light up like usual... wat just happen?

well Silon, I'm happy wif dat SATA cable,but i dun c much space for me to manipulate the cable other than stucking it under the HDDs.. hence, the pic.


howeva, bought sum stuff from uglyvamp's BBS 5 last weekend, thus, juz wait for a better setup coming by... wheee~

thanx for the advice.. i tried shoving it thru the other side.. but then i couldn't close the side panel

anyway.. i'm gonna get some ccfl soon.. will see what i can do with it then...

no need to shove thu the other side... just make it stick to tur mobo tray ont he mobo side nicely should be ok oso....

use cable ties to tie them down to the holes in ur drive bay

wow



DO NOT SPAM!

This post has been edited by ianho: Jul 30 2006, 04:04 PM

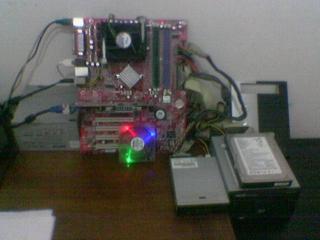

My standart spec :



Attached thumbnail(s)

Mine!
Before:


After:

are those just normal ccfl?.. or uv?.. coz i'm thinking of adding uv, bu need to find out more about it before i do nything..

Just normal CCFL..


This post has been edited by Redhu: Aug 1 2006, 12:59 PM

b4 using uv tubes, juz make sure u got all those UV reactive components in ya rig loh.. datz all wat u need... huhuhu.

i want to know that is there any problem if the harddisk place like what u do in the picture(vertical)
one more question if i do the same to cd room is it ok for it to function or not
without take care the problem of puting the cd into the cd room

how to load a cd when the drive is vertical? does it affect performance?
