here is sort of V3 laa ... old thread here .. http://forum.lowyat.net/topic/1313514

This post has been edited by QiW: Apr 5 2012, 05:47 PM

Should have some opening ceremony. I.e. pilot please post your collection's photo ...... kekekkekekek

like that aaahh ..
wait laa .. tonite i try to take some pics of my planes and heli .. hahahaha

good good ... want to see ur pylon racer ....

Eh dont say like that leh, still into this hobby hehe! Playing with mgcloudfly now and wanted to do aerial videoshot, this plane is for 5 years old, damn relaxing!

Anw qiw, what stuff you bought! Pic pls!! Anw... Muss the old thread la...damn alot of information for newbies from my unofficial sifu QIW. Hehehe

Dadoo whats ur progress now? Invert already?

Hehehehehe, preparing to invert
I am ah pek and very slow. Have some inverted flight training in sim but not progressing much. Plan to master in sim then only do that with real heli, I think crashing heli from inverted flight very hurt one, both to pilot and the heli .......

i not sifoo laa ... please laa
i just trying to pass on what i know only

no pylon racer laa ... just small little foam/plastic little thing very similar to pylon style
just that it cannot go that fast ... the wings are fluttering ... cannot take so much force when i whack the throttle ... it is SMALL ... even 2200mah 3S go in oso ngam ngam only ... rx and esc put outside the plane

currently only got mustang .. zero .. speedy fast glider .. funjet .. cloudsfly .. little pylon .. others all WIP or in box .. hehehehe
ooopps ... forgot i got 450PRO and 4G6S oso ... huahahahahaa

Then you should shoot a photo of Happy Family now ....

Hehehe, I was planned to add more family member next year but now has to cancel my plan due to a personal reason. I will not stop flying but I will reduce the time on rc, will be much much more slower and the slowest ah pek ......

qiw do u know anything abt FPV ?

thought of buying one good one... go pro is bapak mahal!

woot new thread finally, opened by someone who i think is qualified lol^^

great

its better to have a HELI avatar for this thread so that i could find it easier. just a opinion anyway^^



i want to ask about the battery buzzer
should i stop playing when the red LEDs come out or when the red LEDs come out and start buzzling?

---

Added on November 18, 2010, 10:43 pmhope to see some videosssss and photossssss from you guys too^^

This post has been edited by ccfook2123: Nov 18 2010, 10:43 PM

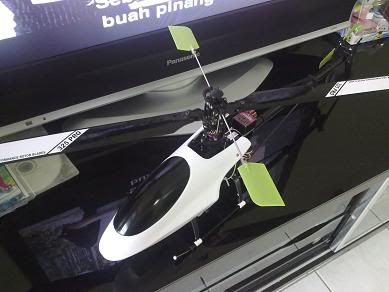

these are the 2 helis that i currently have remaining ...



this one of my EX PLANES ... sold off liau

---

Added on November 19, 2010, 1:34 pmthis one ... damm fast ... overpowered to over 200kmh .. hehehehe
somebody destroyed this plane liau ... not me la of coz




this one my 1st CCPM heli ... oso the heli i really learned on .. oso SOLD OFF liau



This post has been edited by QiW: Nov 19 2010, 01:34 PM

DO NOT BUY THIS HELI !!!!
things will come flying off by itself even if u dont crash it .. hahahahahaa
i traded it off with someone else coz NOBODY wants to BUY ...

this is a video of the heli i asked u guys not to buy ..
the gyro u see hovering in this video is about the same price as the KIT alone
this is in AUG 2009 ... i started flying in JUNE 2009




this is the 4G3 in bedroom ... damm bloody bad hovering .. hahahahahaaa
sensitive little bugger

---

Added on November 19, 2010, 2:23 pmi have that in WIP

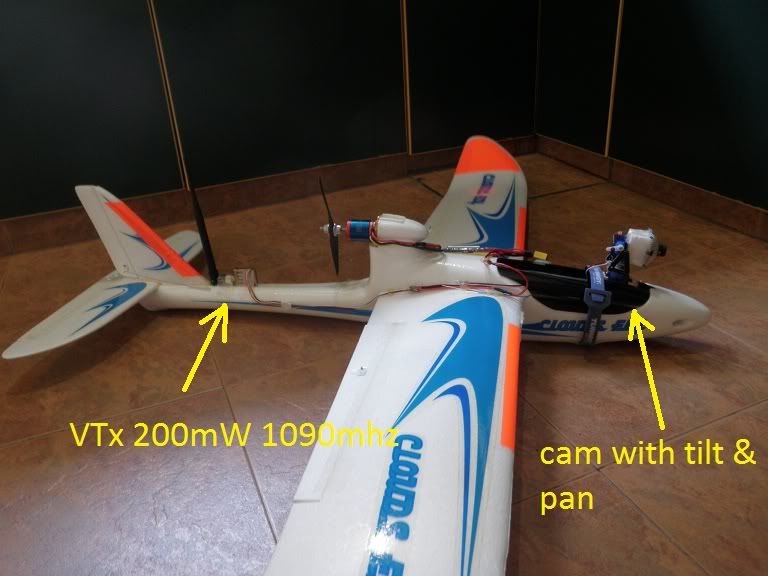

200mW 900mhz system .. but frequency will be set to around 1080mhz to avoid interference with our GSM 012/019 systems
currently working on the pan/tilt on plane ... after that will install antenna and stuff
already got CHEAP goggles ... watchable but of coz not HD quality laa .. hahahahaa
this is the reason i bought the CLOUDSFLY glider ... long flight time and stable handsfree ... hehehehe

---

Added on November 19, 2010, 2:26 pmjust fly when u have the time laa ... i oso losing the "keen ness" on this hobby
i spoke to LHS owner yesterday ... he said if u hardcore too much too fast then have to give it a break otherwise the fire will die ... hahahahhaaa

i fly approximately 4-5 times a week ... maybe thats why laaa

---

Added on November 19, 2010, 2:43 pmsorry ah .. i very bad flyer ... no recent videos ... only got vids of my early days hover hover ... hahahahahaaa

This post has been edited by QiW: Nov 19 2010, 02:43 PM

I will second the words from the LHS owner ..... I will feel tire fast if I am too hardcore in it.

Why did you tie the landing skid of your 4G6S?

Hehehehehe, nice photo from you lah

This post has been edited by daddoo: Nov 19 2010, 03:40 PM

the fpv... how much altogether>

A reference here, http://www.flying-hobby.com/shop/fpv-super...tem-p-7451.html

USD 899? wtf.. i rather go perth man.

well ... u can start here http://www.hobbyking.com/hobbyking/store/u...idProduct=12175
all u have to add is CAMERA which u can get locally or import as well laaa
nobody said FPV was cheap .. but it does not have to be super expensive if u just want starter set with limitations laa

well, video streaming is already expensive at the first place. Somehow this is a hobby grade video streaming then for sure it will not be cheap ...

But i think u can afford that ...

This post has been edited by daddoo: Nov 20 2010, 11:47 PM

899 is too expensive unless im maxis owner la hahaha

After upgraded the stronger nose gear now my propeller tip is about an inch plus plus only above the ground. It was about 2 inches before mod so hopefully it will be OK later on.

QiW,

Im planning on getting this

http://202.157.173.69/?q=node/18447

Do you think its ok for aerial video? for My cloudfly? Will it be too heavy?

the weight is no problem for your cloudsfly laaa
why pay so much when u an get this for much much much lesser .. http://www.hobbyking.com/hobbyking/store/u...idproduct=10973
the only thing u need to change is a higher class microSD coz the one that comes with the cam not fast enuff writing and will cause jitter

any prop more than 1 inch is very OK laaa ... no problems
if u crash head 1st then 10inch off the ground oso cannot help u .. hahahaha

But its out of stock, know anywhr else to buy? Also how about the video quality?

video quality is very good ... i have that thing but i did not change the microSD so the capture is abit jittery .. all u have to do is change the microSD so that it can record faster
format is AVI RAW ... very big file 640x480pixels
but of coz no stereo sound la ... MONO only ... hahahaha
dunno where else to buy laa ... it is oso known as MD80 on other brands .. google and see the comments ... quite good comments for the price

I would love my 4G6 till die ....... so much fun to fly this little heli in a small park .... will wait till V120D02 price drop kow kow then will retire my lovely 4G6.

Walau, walkera released their 500 size heli already ... Flybarless too
http://www.walkera.com/en1/particular.jsp?pn=V500D01

But weird, 500 size heli using 315mm blade?????

u look at the main rotor diameter laaa ... 970mm laaa ... 500 size already
but dunno why they call their main blades 315mm laaa .. i tot those china fellas very good at counting one .. huahahahahahaa
yaa ... the 4g6 damm kow nice to fly laa .. super good learner too

Not just that loh, the battery also using 11.1v 1200maH ONLY!!!

If that motor really so efficient to use so little power for a 500 size heli, I would not consider and buy straight already .......

maybe they did not mention flight time is only 2 mins ?? hahahahaa
i think they have a lot of typos in that page laa

Anyhow the build quality looks good from the photo, just hope that it will be selling cheaper .... then later on when I can spend more time again I can have an extra option since the Rx is for 2801Pro Tx ......

---

Added on November 23, 2010, 1:23 pm

Qiw, have you tried to invert your 4G6S?

This post has been edited by daddoo: Nov 23 2010, 01:23 PM

not yet invert my 4g6s ... have to find suitable mood and place .. hehehehe
dont wanna crash that thing yet
but i think it will be soon .........

My previous and current collection.. Most of plane already out of commission.


Attached thumbnail(s)

more


Attached thumbnail(s)

Hehehehe, I have mood and place for me to invert my 4G6 but not ready to do so. A bit worry my tail will lari once inverted.

waa ... mr zhnme ... alot of DIY stuff
good ahh ... can learn alot thru DIY
i oso DIY alot of mounts coz overpowered ... but never scratch build planes b4 laa

AIYA, WORRY THIS WORRY THAT HOW TO LEARN LA
JUST INVERT LA

HAHA

Hehehehhe, conservative people always like that one ..... or kiasu

kiasu = people who cannot lose

you love your heli, thats why u worry if you crash it


my belt cp always had hard landing because of the belt too loose
i tighten it up again and again, but it still loose, and i couldnt find where to buy that part with 4 screw holes to tighten the tailboom part... what is the part name?

i crashed it because of this again, mange to hard landing but all the part remain no broken a few times before this crash. but that day i flew it too high, dont know if the shaft is bent, but the gear is worn down d

feel disappointed with this heli, no money to repair.. but going to repair it anyhow

by the way i got esky BIG LAMA green color for sale
anyone interested please let me know
rm350 price firm
brand new

No, I don't really love my heli but I just love my money ....... huahahhahahahah

the belt loose because the tail boom loosen up and slip into the tail boom block?

If that's the case there might be a super cheap solution. Some of them they will sand the boom's end to lock tight in the block but I found it not so effective and makes it more slippery. What I did last time was to put some transparent tape at the boom's end, the thickness you find out yourself but I only tape 1 piece around the tail boom.
Now I think you can lock the tail boom back to the block without the belt first. Then try to pull your tail boom out gently, if it works for you then you may put your belt back.
It is very hard to show you how I did but I think you will know once you started this mod.



*** Test properly and handle carefully so that you don't break anything ***



Hehehehe, I don't have this issue with me so probably I think it is not the heli's problem ..... maybe you should try to ask the previous owner if he knows anything about this

This post has been edited by daddoo: Nov 24 2010, 09:07 PM

Told ya never buy belt cp, if u bought
trex OR IT CLONES, i bet u already figure of 8 by now! Or maybe flip and rolls.

Forgot to mention the amount of money u saved as u crash less.

But.......belt cp, errrr

Save ur money by change ur hobby or DUMP UR BELT CP first and save money for trex or clones.

Dont repair la, u will crash again without learning anything.

yalorr .. crashing and repairing more than flying is NOT GOOD at all
u need a heli that is consistent and flies well so that u will not crash it so easily

btw .. mr shock
if u wanna FPV
i see u asking the kwai lohs and the told u to dump your 2.4 radio .. hahahaha
u can still do 2.4 laaa .. just dont use 1.2-.13 coz of harmonics intereference
900 or 5.8 is ok ... preferably 900 coz u can set it to around 1G to not interfere with GSM phones
but u will have to learn to make those DIY good antennas and patch properly
i am now installing the pan and tilt into plane ... hopefully next couple of weeks can test test coz this weekend got new plane (another ZERO but different make) to maiden .. hehehehe

daddoo do you have to change your gear frequently?

haha, i just found the tail boom not slip into
but my tail too loose^^
the worker at the shop didnt tight it properly, and i too believe on them...... which is not so good lah
not heli problem really




im fine with that la, im lucky that i bought belt cp v2 la, learned so many stuff
if i bought trex, may be no chances for me to learn all this la

plus+ + +
belt cp v2 is very hard to control compared to trex la, i can play belt cpv2, means i confirm can play trex la
hahaha
i mean hovering lah k.......hahaha



This post has been edited by ccfook2123: Nov 25 2010, 01:34 AM

to each their own laaa .. BCP or TREX or BEAM or TITAN
as long as u learn something ..
i tot u are doing your own repairing ?? u send to shop to repair ??
very hard to learn the technical aspects if u always send to shop to learn .. and u will have trouble tuning your heli coz u dunno what the shop ppl do to your heli

Main gear? No .... unless I crashed and stripped it ........
You should learn to repair on your own now ... it's cheaper and more effective way to go.

Just stay at the spot where you feel comfortable that I would say. Perodua kancil is economical so you can't ask too much from it. Everyone also know that BMW's car is more comfortable but different people has different need.

by repairing on your own ..
u learn how to set up your heli properly and to your preference
and oso how to diagnose and troubleshoot problems ..
and u can save on part when u learn how to modify or use compatible or better quality part ...

Yeap and I usually order parts from Hong Kong, some of them is more cheaper even though you include the postage. Better service still ........

hahaha. ya lor nvm la your money.

anyway, damn man the guys is rcgroup ask me to dump my 2.4ghz.

wait, some people said i can go with 1.3ghz 800mw with my 2.4ghz?

which one would u reccomend, anyway i found this:

http://www.bevrc.com/bev-58g-200mw-pulg-an...r-fpv-p-18.html

what do you think????

or shd i get this:

i can only see the BEVRC link ... is there another link that u supposedly put ah ??
the BEVRC setup looks good .. abit pricey but still good and lots of good comments

ok ... here is the quick shortcut to FPV and frequencies PROs and CONs
i have done alot of reading the pass 2 months on FPV and radios and antennas etc etc

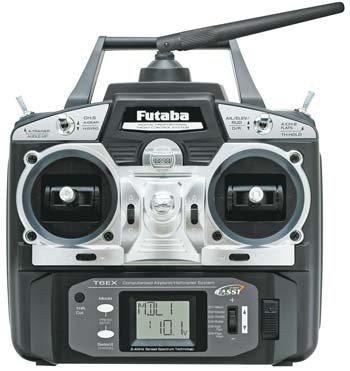

assuming u are keeping your JR with dsmJ
-higher frequencies can be easily blocked by obstacles like trees etc
imagine u are at a CLUB .. u dont hear the high frequencies coming out ... u just hear the low frequencies (BASS) mostly ... u get the rough idea laa
that is why the RCG fellas all telling u to throw away your 2.4 if u wanna FPV
-there is this thing call harmonics (like guitar chords) ... the frequencies tend to have this 1/2 wave and quarter wave thing which is quite pronounced ... enuff to kacau your other frequencies
so imagine 2.4ghz .. half wave is around 1.2ghz .. dont use 1.2ghz lorr .. 1.3ghz should be ok no probs
-if range is a problem then 1st consider modifying/upgrading your receiver antenna b4 increasing your transmitting power
there are quite a few threads by IBCRAZY in RCG on how to DIY your own antennas ... try with those stock whip ones 1st ... is not satisfied then can experiment
-antennas are directional ... the higher the dB the more directional it becomes (unless u just UP the POWER without changing any antennas la)
the OMNI (the whip antennas) have the best all round wave propagation but lacks the range unless u UP the POWER ... so alot of ppl tend to mod to the inverted V and/or upgrade receiver side to patch or other antennas

what i would advise u to do is ... get the BEVRC set
but go with 1.3 instead of 5.8 laa ... eventually u will wanna zoom down and do low passes and maybe cut thru trees etc etc (i know your taste la)
so a 1.3 setup will be more suitable for u ... hahahaha
on the viewing side ... get some cheap goggles 1st (i am doing this) for around usd150 delivered
or u can use any monitor with composite/RCA input
i noticed the BEVC set does not come with camera ... u will need one too
try to get wide angle lenses cams

if u have managed to read this far and understand what i am talking about ... then u are ready to commit ... hehehehe

the kwai lohs in RCG abit RICH in their talks coz USD is ez for them ... we have to pay 3 times more than what they pay ... so theings are not expensive for them

---

Added on November 25, 2010, 4:12 pmgood reading for basic FPV knowledge
http://www.rcexplorer.se/page14/FPV/FPV.html

This post has been edited by QiW: Nov 25 2010, 04:12 PM

Not really understand the terms, but i get the idea.

But wait, i cant only cant cut through places with many buildings and obstacle right with 5.8Ghz?

What if its in a big field? 5.8Ghz suitable?

---

Added on November 25, 2010, 5:58 pmWhich camera do you think give a good picture, but not gopro lah, frekaing ex.

This post has been edited by sLapshock: Nov 25 2010, 05:58 PM

The distance of wave propogation is not only decide by frequency, it will be decide by its amplitude as well, for example if the volume is loud enough you can hear both high and low frequencies but of course this time the low one will be stronger.
So the conclusion is if your 5.8GHz system is very high power (which consume more energy, more battery), it will do the job as well.

i see. anyway here is the full review of this, maybe QiW or yourself can advise me according to the review given.

should i get it?

http://fpv-community.com/testblog/2010/bevrc-5g8-200mw-fpv/

ok ... 1st of all
this one IMHO only laaaaa
get something CHEAP .. that BEVRC oso not bad .. not too expensive
then u will need a monitor or goggles ... this one u will have to decide your budget .. i am using CHEAP GOGGLES .. less than USD150 delivered to my doorstep
my system is the HK 200mW 900mhz .. it comes with camera as well so i just make do with this ..
basically i have everything i need for BASIC FPV

total cost .. USD200 only
this one is to see whether i will like or go any further into FPV

the amplitude/power of the Vtx is a factor for range .. but the heat and size of the higher power Vtx have to be considered
i have read in RCG the heat of high powered Vtx alone killed the Vtx

my plan is to mount the full system onto my CLOUDSFLY ... then somebody else will be viewing the goggles while i fly the plane normally
i will check with him how good the reception range etc
then i know how far i can go and whether or not to do some DIY upgrades

apparently with proper setup .. a 900mhz 200mW system can go 1-2km easily ... this is what i read at RCG laaa ... but thats with patch antennas etc etc

where did you get your camera, reccomend me good one.

i also dont want to invest so much.

this guy is using the HK FPV set ... it includes camera .. see the quality for yourself http://www.rcgroups.com/forums/showthread....=1292740&page=9
but his is a much higher powered one la .. 800mW ... mine is 200mW
picture quality look good .. mine oso looks quite good in my cheap goggles .. hahahaha

I see. Guess im just settle with bevrc plug and play, which camera shd i get frm the web?

camera i dunno la .. that one i did not do much reading but most say those security CCTV ones very good
what will u be using to view ?? goggles or big screen ??

hahaha, this is what i want to tell u la, my money what, u dont have to sakit hati always ask me throw away my heli lah or change new one lah, not the heli mistake pun... its always technical problem

i should have join other forum and tell eveyone this lah

damn man, the guy in lyn forum ask me to dump my belt cp v2

---

Added on November 26, 2010, 1:41 pmhi, i totally agreed with u
especially the troubleshooting part

i want to repair them by my own, but the tools really expensive, so i rather send it to repair if too many parts broken
i dont mind buying the tools 1 by 1 if i not broken too many parts at once, as the tools can be too expensive if buying all together


i send it to assistant if too many parts broken, i only repair myself if i have the tools, the service charge and setting is rm15 here, i think its reasonable if i change a few parts at a time

also i will not 3D with this heli, maximum also sport flight with idle up mode, so i think should be less crash la........

i repaired 3 times after 2 months of playing?
not really a lot i think since i just jump from 4 channel with no simulator and belt cp is quite hard to control compared to other heli

This post has been edited by ccfook2123: Nov 26 2010, 01:45 PM

Actually you don't need a lot of tools to dismantle the parts of BCP.
I use only 2 allen key sizes, 1 hex socket screw driver (to take out feathering shaft nuts), 1 cross head screw driver, plier and ball link plier. With this I can separate all the parts into single pieces.
Except the ball link plier is slightly expensive, the rest are very cheap to look for from hardware shop. If I remember correctly, these tools cost me less than a hundred.

Hehehehehe, I know you will not throw away your bcp and so do I. But if you really want to do so, let me know. Don't throw away, I am more than willing to pay for the postage and ship your rubbish to me

This post has been edited by daddoo: Nov 26 2010, 02:39 PM

mostly the tools u will need is the 1.5mm hex/allen key
pliers oso i hardly use ... and maybe 2mm hex key
ball links u will need coz 450 size ball links are very very tight and improper tool to remove them may damage those ball link

this is all in reference to my TREX laa ... dunno about BCP but i think most of the tools needed to work is about the same

also need pitch gauge

haha, will buy those tools when i got extra pocket money

now just play 4 channels first

bought 2 new batteries, now charging lol

---

Added on November 26, 2010, 4:38 pmwoot, just right after i posted this, both the batteries fully charged

This post has been edited by ccfook2123: Nov 26 2010, 04:38 PM

try to look for this from hobby king, you will save $$$$
the only drawback is shipping time ....

how do i pay to them?

you can make payment through paypal which is I am using now.

to apply a paypal account for online purchase it is FOC but you need to have a credit card or debit card.

Good luck man, cant wait to see your video maneovering the belt cp, actually you only need to prove me wrong, then i will malu

But dont know if you able to achieve that level or not while im still alive, coz i always fight fire, very risky..hehehehehe

Ccfook dont be offended la

---

Added on November 27, 2010, 12:09 amIm using direct debit card from hobbyking, it took 3 days to arrive to spore. Anw...if i were u i will look under hk helicopters, and the cheap spareparts.

This post has been edited by sLapshock: Nov 27 2010, 12:09 AM

what you want to see?
3D with my lama v3?

Be yourself ....... you are not living because of others.
I am sure you know that kancil cannot compare to BMW ..... so don't bother lah ...... different taste!!

---

Added on November 27, 2010, 10:56 amYalor, I feel so pity with you ... sigh ...

This post has been edited by daddoo: Nov 27 2010, 10:56 AM

im telling him this lol
thats why i said is him want to see my lama v3 to do 3D?
lolz
its like his controller, not the best, but dont have to throw away, still can use, no?


hehe, i first time booking from from mymegastation, very fast response by SMS, and very fast packing my items, but their spare parts is very less compared to other lol
hehe, dont mind la, as long as i get cheap spareparts

This post has been edited by ccfook2123: Nov 27 2010, 01:02 PM

I dont want to see ur lama v3 3d. I want to see yourself invert!! Hahah.

My 2.4 is out of the context liao, my controller still able to do a good job. Those ppl asked me to dump my 2.4ghz bcoz they are talking about...going MILES with FPV. Which i dont need that. Also everyone knows 2.4 radio are way better than Mhz which what they are using, they are jealous with that fact an the only way to diss 2.4 is applying it in fpv context, coz thats the only thing 2.4 radio

---

Added on November 27, 2010, 4:53 pm2.4ghz have a lot of use, im playing my gliders, my hk450 and trex250 with it. It has a lot of featurea, and the dsmj range is very good.

If i apply this as why u shd throw ur belt cp is bcoz, belt cp still can use, but only for hovering and CRASHING. ha ha ha!

At least kancil sparepart cheaper, beltcp is like kancil with bmw spareparts. Bad combi.

This post has been edited by sLapshock: Nov 27 2010, 04:53 PM

Yeap, a lot of mega's price are consider lower than other LHS ..... so if I want it fast usually I will order from them also .....

But you should CONSIDER to take a look at hobby king first ...... Don't worry, hehehehhe I won't force you that you must order from there, you have your reason and freedom. Because some of the products from there also not really good one ..... I've heard foreigner complains about the heli ......

dont force2, later he angry. worst offended.

anyway, foreigner are like singaporean also, EVERYTHING also wanna complaint, and some malaysian, buy cheap PROTON but expect BMW quality, tsk tsk tsk.

anyway, hobbying parts i think quite good, i always ordered from them.

"Different taste" as I said ....... hehehehehhehe you can complain and so do others mah

If you complaint that ambulance should not use its siren during emergency, is that different taste?

Wow, the gyro cannot kacau too much ..... I put in a piece of small sponge only, just now the tail will move by the gyro itself ..... hehehheheh fortunately my orientation improved a lot .... else kena crash again .....

---

Added on November 28, 2010, 11:48 amAiyo, removed the sponge but still the same .... what did I do???

The tail will lost authority when I am doing a slow turn to nose left, usually I will lower the throttle stick a bit in order not to let the heli goes higher. Suspecting the tail pitch not enough because I changed it the other day, or else I think my turnigy DS480 koyak already.

Also, when I am hovering tail in then if I whack the throttle suddenly my tail also lost and nose left automatically again, this time it will move about 90 degree and goes to side in hovering .... wahahhahahahah



This post has been edited by daddoo: Nov 28 2010, 11:48 AM

increase your headspeed sommo 1st laaa using the radio ..
dont use sponge ... always use good quality double sided tape ... futaba and align got sell ... 3M oso very good
that nose left when u pump = pitch or speed not enuff or both

I did reduce the throttle curve previously a bit loh, hence reduced the headspeed also ....
hehehehe, I have that align gyro mount with a metal plate and 2 double sided tape with my BCP now.

The sponge I put it inside the gyro and I think that might help to reduce vibration of the PCB.

I think your suggestion is aligned to my findings because for normal hovering there is no authority lost, it only happens when I am flying and turning. OKOK, thanks for the input ........

normal flying and turning does not change headspeed much unless u FF at very fast speeds laaa
maybe your gyro gain too low ...
if increasing your gain causes wag ... vibs then have to check for vibs
the higher your headspeed the more prone to vibs it becomes and your gyro becomes a factor

---

Added on November 29, 2010, 8:28 amwhose dsx7 is this ??
http://malaysia-rc.com/index.php?topic=17655.0
selling yours or frens one mr shock ??
changing to FM as suggested by RCG guys for FPV ah ?? hahahahaa

---

Added on November 29, 2010, 8:29 amps ... dont put TOLONG KAWAN JUAL as reason coz it will get deleted
just say need $$$ or something

This post has been edited by QiW: Nov 29 2010, 08:29 AM

I thought FM is prone to interference?

Hehehehe, don't take too much cintan mee oh .........

---

Added on November 29, 2010, 9:31 amI remember that day when I tried to center the tail blade's pitch I have reduced the pitch that will counter the main blade's torque, maybe that's the reason now my heli have lesser pitch when doing turn and not enough power to nose right .... will check again .....

This post has been edited by daddoo: Nov 29 2010, 09:31 AM

my lama is still flying, but then the flying time is now shorter because the motors heat up very fast
i got roughly 4-5 minutes of flying time only, after that it just flying very low

since many of you will have experience with this heli

so i want to ask, the engine got A and B? or a and b are the same, u just need swap something when install to make it spin the other side?
i havent buy the motor, so i want to ask how to install it?
is it plug and play? and easy to install or not? and how to take out the engine

hehehe, thanks thanks thanks for help

is that a brushed motor?
Sometimes it could be your aging battery or other electronics .....

yea, ori brushed motor

yea could be 4 in 1 but not battery

but i think motor is cheaper to tried it out compared to 4 in 1 lol
lolz

to change direction of brushed motor just reverse the polarity ... + to - and - to + ... thats all
most of the time when facing not enuff power issue its the batt or the motor ..

Yeap, just another question to ask you. You said your motor is hot then what about your battery after flight? Hotter than usual as well?

very hard to gauge HOT
fireman have different threshold of HOT .. my threshold oso prolly different from yours ... hehehehe
but if HOT enuff that u cannot put your finger on it for more than 2 secs than its too how already laa

for the + and -, is it plug and play or i need some tools?

i got not only 1 battery to tried out, so, i can confirm it is not the battery issue

battery? just slight warm after flight

no need to tools to change polarity ... just reverse the connection of the 2 wires going from ESC/4n1 to the motor

oic, thank you very much

and, how to take out the original motors that stick on that frame?
just pull it out?

normally motor have SCREWS that fasten them onto the FRAME
remove those screws and your motor should come off easily

To share :
Trex Pro 450 doing auto.


This post has been edited by zhnme523: Nov 30 2010, 04:10 PM

macam kenal pilot ni .... hahahahahaaa
good auto ... i no balls to try laaa

boss, how to take out 1 way bearing from the gear?><

qiw, hows ur fpv doing?

Aiyo why my epoxy so slow to harden one ....
Just mixed my A/B evenly and now waited an hour already, still look like a bit watery ..... is that because I put too thick on the plastic?

I am using this and anyone?
http://www.hobbyking.com/hobbyking/store/u...idProduct=12584

my FPV stuff already installed onto plane
will test as soon as my schedule allows
1080mhz (1.08Ghz) video with 2.4ghz futaba fasst .. hahahahahaaa
its only 200mW stock standard .. so range and quality will be quite limited without additional mods

that epoxy looks good .. normally it sets within the specified time but not fully laa .. i just leave my 15mins epoxy alone for 2-3 hours ... 20mins i leave overnite

i dont have BCP ... but i heard quite hard to take out
the TREX one oso i have never changed but got accidentally take out when changing main gear .. very tight but can be pushed out using screwdriver gently

if fully set would it able to hold strongly ar?
brittle or not one?

it is more than strong enuff for your plane laaa
brittleness will depends on how proportionate u mix it

I was not used that to fix my plane yet.
I am attempting to fix the plastic part of my 4G6.
One of the bevel gear has a crack in the hole so I am using epoxy to bond the crack, doable ar?

err ... i have never tried glue-ing plastics
i think the bevel gear is made from acetal ... this type of plastic do not stick well with anything

Hmmmm, still failed to bind it very well. Gave up to use epoxy, go back to the old method by using super glue, more efficient and stronger

Where do you get your fpv stuff?

got all my FPV stuff from OHS ... my tx and rx and cam is the HK 200mW 900mhz set .. CHEAP
goggles from other websites ...

Finally Walkera updated their information about their 500 size heli.
It will be fitted with 450mm blade and 6S 3000maH battery.

900 mhz legL in msia?? Yeahhh thinking of getting the same set too
