AMD® Socket AM2&AM3 Overclocking V23, It has come!Bulldozer heat is around us.
|
|
 Sep 29 2010, 06:01 PM
|

Senior Member
3,569 posts Joined: Apr 2007
|
QUOTE(ah_khoo @ Sep 29 2010, 12:21 PM) i've seen 24xx posted in xs bro, but ofcoz can't compare w those experts, so i believe 2200 still doable w/ lax timing coupled w/ a chip w/ great imc. Wooo that's really extreme on XS...    |
|
|
|
|
|
Sep 29 2010, 06:46 PM
|
Junior Member
421 posts Joined: Jan 2010 From: Klang,selangor
|
QUOTE(ah_khoo @ Sep 29 2010, 05:47 PM) that's what i noticed too, most top up @ 16xx cas 7 (7-7-7), but could be d case i didn't try 7-8-7/7-9-7 thou... so wat i can do? |
|
|
Sep 29 2010, 07:39 PM
|
Senior Member
2,458 posts Joined: Apr 2008 From: M A N C A V E
|
QUOTE(alan kc @ Sep 29 2010, 07:46 PM) so wat i can do? Dude...try to play with drive strength~ but you have to study it first before play...  |
|
|
Sep 29 2010, 08:01 PM
|
|
Junior Member
421 posts Joined: Jan 2010 From: Klang,selangor
|
haha..i also dun knw how to play d..haha
|
|
|
Sep 29 2010, 09:02 PM
|
|
Senior Member
2,458 posts Joined: Apr 2008 From: M A N C A V E
|

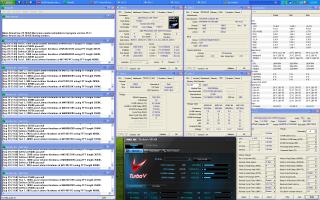

Here some msi Kombustor benchmarking result together with Unlock 4th core stock speed + CL7 latencies + 2800Ghz NB frequency...
 Direct3D 10 :
Direct3D 9 :
OpenGL 3 :
OpenGL 2 :
This post has been edited by verdict: Sep 29 2010, 09:30 PM |
|
|
Sep 29 2010, 10:04 PM
|

Elite
8,103 posts Joined: Jan 2003 From: Tanah Lot @ Dungun, Terengganu.
|
great efforts there sis...
 nothing to do, so my fren tried lowest vcore for stock clock. abit disappointed to be honest as i'm expectin < 1v...
|
|
|
|
|
|
Sep 29 2010, 10:08 PM
|
|
Senior Member
2,458 posts Joined: Apr 2008 From: M A N C A V E
|
Consider ok sir...with that s3x core running on 1.0+
 why dont you try 3Ghz on those 1.0+V...  |
|
|
Sep 29 2010, 10:14 PM
|
Junior Member
434 posts Joined: Jul 2010 From: ^Newbie^
|
QUOTE(ah_khoo @ Sep 29 2010, 12:21 PM) i've seen 24xx posted in xs bro, but ofcoz can't compare w those experts, so i believe 2200 still doable w/ lax timing coupled w/ a chip w/ great imc. Its challenging and time consume to achieve 2200 even with lax timing provided you have a good chip. it was a typo after all...   |
|
|
Sep 30 2010, 09:19 AM
|
|
Elite
8,103 posts Joined: Jan 2003 From: Tanah Lot @ Dungun, Terengganu.
|
QUOTE(verdict @ Sep 29 2010, 10:08 PM) Consider ok sir...with that s3x core running on 1.0+ will do that if i got d time sis, i'm still tryin to push eco to run 2k @ 7-9-7 prime stable, so far no luck... why dont you try 3Ghz on those 1.0+V... QUOTE(louislkw @ Sep 29 2010, 10:14 PM) Its challenging and time consume to achieve 2200 even with lax timing provided you have a good chip. hence d fun sir, we tend to appreciate things which harder to achieve, rite?  |
|
|
Sep 30 2010, 09:40 AM
|
Senior Member
1,149 posts Joined: May 2007 From: Johor Bahru
|
@ah_khoo
ur eco is very nice 1.. iths the 1333mhz version right ? can oc dat high.. nyam2 |
|
|
Sep 30 2010, 09:47 AM
|
|
Elite
8,103 posts Joined: Jan 2003 From: Tanah Lot @ Dungun, Terengganu.
|
QUOTE(sarahlah @ Sep 30 2010, 09:40 AM) @ah_khoo it's just a poor man toy bro, yup, it's 1333 @ stock. tryin to do a gskill flare but to no avail. well, i guess we get what we paid for, mebe i think too much by askin something near to impossible. ur eco is very nice 1.. iths the 1333mhz version right ? can oc dat high.. nyam2 This post has been edited by ah_khoo: Sep 30 2010, 09:56 AM |
|
|
Sep 30 2010, 10:25 AM
|
|
Junior Member
434 posts Joined: Jul 2010 From: ^Newbie^
|
QUOTE(ah_khoo @ Sep 30 2010, 09:19 AM) will do that if i got d time sis, i'm still tryin to push eco to run 2k @ 7-9-7 prime stable, so far no luck... Yes but there is a limitation on AIR for the mileage. hence d fun sir, we tend to appreciate things which harder to achieve, rite? |
|
|
Sep 30 2010, 10:39 AM
|
|
Elite
8,103 posts Joined: Jan 2003 From: Tanah Lot @ Dungun, Terengganu.
|
QUOTE(louislkw @ Sep 30 2010, 10:25 AM) Yes but there is a limitation on AIR for the mileage. dun tell me ur thinkin of wc'ing d ram sir... 2.2k should be doable on top grade psc sticks @ cas 9 w/ trcd loosened to 10/11, i guess lah... 1st, i dun have top of d range psc sticks, 2nd, i dun have thuban.... |
|
|
|
|
|
Sep 30 2010, 10:48 AM
|
|
Junior Member
421 posts Joined: Jan 2010 From: Klang,selangor
|
yesterday try my trident d,wit 1598mhz using 7-7-7-24,not so stable but can use,if i use 7-8-7 more worst...and also 7-9-7...wat problem of that???
|
|
|
Sep 30 2010, 10:53 AM
|
Senior Member
8,524 posts Joined: Jan 2003 From: The Jungle Of Pahang
|
QUOTE(alan kc @ Sep 30 2010, 10:48 AM) yesterday try my trident d,wit 1598mhz using 7-7-7-24,not so stable but can use,if i use 7-8-7 more worst...and also 7-9-7...wat problem of that??? Whats ur vdimm on that? |
|
|
Sep 30 2010, 10:58 AM
|
|
Junior Member
421 posts Joined: Jan 2010 From: Klang,selangor
|
1.65-1.68
|
|
|
Sep 30 2010, 11:02 AM
|
|
Elite
8,103 posts Joined: Jan 2003 From: Tanah Lot @ Dungun, Terengganu.
|
QUOTE(alan kc @ Sep 30 2010, 10:48 AM) yesterday try my trident d,wit 1598mhz using 7-7-7-24,not so stable but can use,if i use 7-8-7 more worst...and also 7-9-7...wat problem of that??? u need helps from bro cloudwan, he has d closest hw like yas, thou ur on ch3 while he's usin ch4, but d ram is pretty much similar in a way.  u can try d settin below CODE AI Overclocker Tuner [Manual] CPU Ratio [??] Turbo [Disable] CPU Bus Frequency [200] PCIE [100] DRAM Frequency [1600] CPU NB [2700] HT Link Speed [2400] -DRAM Timing [7 (tCL)-7(tRCD)-7(tRP), d rest auto] Extreme OV [Disable] CPU & NB Voltage Mode [Manual] CPU Voltage [Depends on ya cpu clock] CPU/NB Voltage [~1.275] DRAM Voltage [1.65v or below] CPU Loadline Calibration [Enable] CPU/NB Loadline Calibration [Disable] CPU Spread Spectrum [Disable] PCIE Spread Spectrum [Disable] *courtesy of sir Louislkw This post has been edited by ah_khoo: Sep 30 2010, 11:03 AM |
|
|
Sep 30 2010, 11:15 AM
|
|
Junior Member
421 posts Joined: Jan 2010 From: Klang,selangor
|
d sitting almost same..i using cpu bus 305x13.5...then i enable d extreme ov..
|
|
|
Sep 30 2010, 11:44 AM
|
|
Senior Member
1,149 posts Joined: May 2007 From: Johor Bahru
|
nice guide there ah_khoo & louislwk
can make it as referenceif anyone want cheap item, visit GS.. got few items to sell This post has been edited by sarahlah: Sep 30 2010, 11:46 AM |
|
|
Sep 30 2010, 11:57 AM
|
|
Junior Member
434 posts Joined: Jul 2010 From: ^Newbie^
|
QUOTE(ah_khoo @ Sep 30 2010, 10:39 AM) dun tell me ur thinkin of wc'ing d ram sir... lol dun tell you 2.2k should be doable on top grade psc sticks @ cas 9 w/ trcd loosened to 10/11, i guess lah... 1st, i dun have top of d range psc sticks, 2nd, i dun have thuban....  .. max out at 2160mhz on air..QUOTE(alan kc @ Sep 30 2010, 10:48 AM) yesterday try my trident d,wit 1598mhz using 7-7-7-24,not so stable but can use,if i use 7-8-7 more worst...and also 7-9-7...wat problem of that??? Did you try on different ram slot?  |
|
