meaning if our mobo is phenom x3,x4 supported board, we use it to OC athlonx2 v can dunid consider the HTlink value lor..
as it can support to max 2000 HTlink; where OC x2 normally will not go untill 2000HTlink;
except v increase HTT till 400, thn at the auto setting is default x5 for HTlink= 2000MHz (400x5)

nvr thk about this b4,, aft this gona try it out...

This post has been edited by cdlim87: Nov 9 2008, 07:23 PM

there r still few setting that im not sure what its for

● CPU Configuration: Configure 1-7

anyone can explain to me thanks

its hard for u man, as no people own it, maybe u shud doing research by joing other forum that might be helpful

yeah i i have ask around n waiting for replys also

hehehe ronaldjoe used the same as mine but his bz outstation
bro ah_khoo also use 790gx hehehheee bro can explain to me?

This post has been edited by sepulgilo: Nov 9 2008, 08:55 PM

i dun have any idea, coz i dont know how it look like.. searching for the manual and capture of the bios oso not so complete.. unless u capture the tab that u want.. maybe i can figure what it is

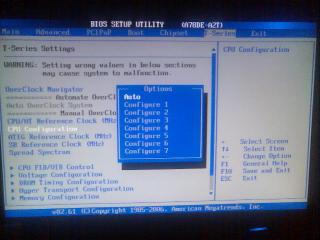

here it is bro




like now im clock @ 3000mhz and ask by a person who help me this morning to set configure 4

but when i ask him whats this for no reply

hehehee i just got reply from rebelshavenforum: It has seven different sets of internal settings/timings which can yield better stability at very high HTT(FSB). Above 400Mhz it has a huge impact on even being able to POST. Other then that, we have no info on it...

but the thing is how do we know the config we use is match with our oc if no macth then windows wont boot?


before i forgot just for sharing this are the setting that i was told to follow:

Here is the BIOS settings to achieve high HTT/FSB operation. Anything not mentioned didn't need to be changed from default.

Configuration:
● CPU: AMD x2
● Memory: Good Quality DDR2 800/1066 on DIMM1, DIMM2
● AMD Cool N Quiet: Disable
● Internal Graphics Mode: UMA
● CPU FSB/HT Reference Clock: 300 (to start)
● CPU Configuration: Configure 4
● Core FID: 9x or maximum
● DRAM Frequency: 200MHz
DRAM Timing Configuration:
● CAS Latency(CL): 6 CLK
● Command Rate: 2T
● TRCD: 6 CLKl TRP: 6 CLK
● tRTP: 3-5 CLK
● TRAS: 18 CLK
● TRC: 25 CLK
● tWR: 6 CLK
● TRRD: 5 CLK
● tWTR: 3 CLK
Voltage Configuration:
● CPU + 0.25V
● DDR + 0.3V

others than this are to be left default (auto)

This post has been edited by sepulgilo: Nov 9 2008, 10:23 PM

I think its Auto-Overclocking Features which is much more optimized?

Bro Ah Khoo asked me to put the first option

I hv a question. Currently stuck at 3.1ghz. If i chnge to 790gx mobo can i get a better clock?

Save the money.

-pWs-

how 2 overclock amd phenom x4 9550????

my mobo: MSI dka790gx platinum......

anybody who can help me ........just new boy in ovrclocking.....

New Phenom user born.Hi there,i suggest you go learn some guides on Overclocking Phenom.

This post has been edited by AMDAthlon: Nov 10 2008, 11:19 AM

Lower HTT n NB multi, NB > HTT
Increase v core/ v dimm
Increase HTT clock slowly
Hitting 2.8Ghz shouldn't be a big problem.

where is bro ah_khoo again hehehehhee
bro can u explain to me the configure1-7?

dun so fast teach increase Vcore&Vdimm.........
ltr new OCer fried phenom macam fried rice..

i suggest u to clear cmos, and run non overclock state
try one by one, figure out urself, or......



DB show me the board at mini-OC, after take a look and heard some word from him, then i dunt want to buy,

This post has been edited by xixo_12: Nov 10 2008, 07:14 PM

wuhoo.. wats wrong with it huh..??

I think maybe ram divider prob lo.....
SOme mobo have prob with that..

I cant go anything more than 26Trc for ram OC...
Is that the case?

This post has been edited by ronaldjoe: Nov 10 2008, 10:59 PM

i no think is TRC ........some mobo and some ram hv problem with ram divider 533, 667 ,1066 ...all is depends on wat is using and wat is selects
