 Corsair XMS2 Overclocking Database, Share your experience in OCing XMS2 !!!

views

cstkl1
post Feb 10 2008, 01:23 AM

Look at all my stars!!
Group Icon
Elite
6,799 posts

Joined: Jan 2003
QUOTE(Thrust @ Feb 6 2008, 01:00 PM)
After adding another 2GB kit of XMS2DHXC4, I have got errors running memtest86 on test#3. I can't set the timing to 4-4-4-12 like I used to when I am running on 2 modules only. With 4 modules, I'll have errors on test#3. Need to loosen the RAM timing back to C5 in order to solves the problem. RAM voltage set @ 2.00V

It seems that running 4 RAM modules is not really recommended. It will reduce OC rate and increases memory errors. sad.gif
*
increase your tRFC.. to 52..
or more.. on 4 sticks.. try it..
it works..
Punish
post Feb 10 2008, 09:09 PM

Look at all my stars!!
*******
Senior Member
2,023 posts

Joined: Jan 2003
From: Muddy Estuary
i donno what kinda XMS2 i got.... its with the black heat speader with yellow and pink XMS2 wording......guest its the mainstream version...

so far i go 1024Mhz 55512 2.1v.....sadly this ram just cannot reach 1066Mhz nomatter how much vdimm i pump nor losse the timing...

if i low abit the clock to 950Mhz i can do 5558 with 2.1v 5548 with 2.2v

GTG

This post has been edited by Punish: Feb 10 2008, 09:09 PM
cstkl1
post Feb 10 2008, 09:31 PM

Look at all my stars!!
Group Icon
Elite
6,799 posts

Joined: Jan 2003
QUOTE(Punish @ Feb 10 2008, 09:09 PM)
i donno what kinda XMS2 i got.... its with the black heat speader with yellow and pink XMS2 wording......guest its the mainstream version...

so far i go 1024Mhz 55512 2.1v.....sadly this ram just cannot reach 1066Mhz nomatter how much vdimm i pump nor losse the timing...

if i low abit the clock to 950Mhz i can do 5558 with 2.1v 5548 with 2.2v

GTG
*
relax the strength and trd.
Punish
post Feb 10 2008, 11:02 PM

Look at all my stars!!
*******
Senior Member
2,023 posts

Joined: Jan 2003
From: Muddy Estuary
anyone can tell me my XMS2 Mainstream using what kinda chip...izzit promos to...? if its promos no wonder la my friend teamelite got almost the same overclocking potantial...

and what the MAX safe vdimm for my XMS2..?

GTG
TSgeneral_odin
post Feb 12 2008, 01:44 AM

no work, no money
*****
Senior Member
904 posts

Joined: Nov 2006
From: Selangor & Malacca, Malaysia
well you have to try and fine tune it, like try and error...
thats call tweaking, but i think it should go up to 2.2 without any prob...
rite?

Added on February 12, 2008, 1:45 amplease post your screen shot and follow the rules posted on the 1st page to submit your OC score

This post has been edited by general_odin: Feb 12 2008, 01:45 AM
alive88
post Feb 12 2008, 01:47 AM

Pata Pata Pon! Pon Pon Pata Pon!!
******
Senior Member
1,406 posts

Joined: Jun 2007
2.2 is gud coz u got heatspreader..more than that u need to have proper active cooling..allngap ram cooler is gud

b4 ive use xms 2,never try for high speed,but manage to get 4-4-4-12-18 at 2.2vdimm ddr900
TSgeneral_odin
post Feb 12 2008, 10:07 AM

no work, no money
*****
Senior Member
904 posts

Joined: Nov 2006
From: Selangor & Malacca, Malaysia
hello guys, POST YOUR XMS2 OVERCLOCK RESULTS HERE !!!!
alive88
post Feb 12 2008, 11:56 AM

Pata Pata Pon! Pon Pon Pata Pon!!
******
Senior Member
1,406 posts

Joined: Jun 2007

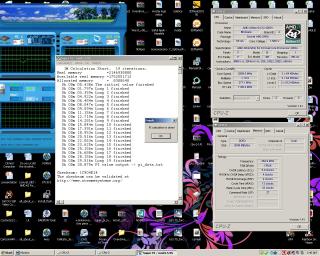

this is a ss from my old system.the highets i can get with 2.1vdim..actual vdimm is 2.07 after 0.3voltdrop.


Attached thumbnail(s)
Attached Image
TSgeneral_odin
post Feb 12 2008, 01:29 PM

no work, no money
*****
Senior Member
904 posts

Joined: Nov 2006
From: Selangor & Malacca, Malaysia
please mention your RAM's full name la....
i need to compile the data
Hoodlums
post Feb 12 2008, 04:26 PM

On my way
****
Senior Member
598 posts

Joined: Sep 2004
Anybody hit 1200Mhz with this RAM? hmm.gif
jumpman23
post Feb 12 2008, 04:30 PM

Getting Started
**
Junior Member
214 posts

Joined: Nov 2004
From: Dubai, UAE
why everytime i oc above 800mhz i get bluescreen..
oh yeah im using xms2 DHX 44412..
TSgeneral_odin
post Feb 12 2008, 04:33 PM

no work, no money
*****
Senior Member
904 posts

Joined: Nov 2006
From: Selangor & Malacca, Malaysia
let the screenies and results do the talking...
POST your benchmarking dude...
and follow the rules...
sHawTY
post Feb 12 2008, 05:17 PM

Frequent Reporter
********
All Stars
14,909 posts

Joined: Jul 2005
QUOTE(Hoodlums @ Feb 12 2008, 04:26 PM)
Anybody hit 1200Mhz with this RAM? hmm.gif
On Corsair XMS?
Dream on. laugh.gif

Except if you're the type whose freakin' lucky where you got one of these:
Corsair XMS DDR2 800 PC2-6400 C5 Rev. 1.4
Corsair XMS DDR2 800 PC2-6400 C5 Rev. 1.6
Corsair XMS DDR2 800 PC2-6400 C5 Rev. 1.7
Corsair XMS DDR2 800 PC2-6400 C5 Rev. 1.8
Corsair XMS DDR2 800 PC2-6400 C3 Rev. 1.1
Corsair XMS DDR2 667 PC2-5400 C4 Rev 2.8
Corsair XMS DDR2 667 PC2-5400 C4 Rev 2.8

Don't dream of going 1200MHz with the other revisions. laugh.gif

This post has been edited by sHawTY: Feb 12 2008, 05:18 PM
sHawTY
post Feb 12 2008, 05:20 PM

Frequent Reporter
********
All Stars
14,909 posts

Joined: Jul 2005
QUOTE(cstkl1 @ Feb 12 2008, 05:19 PM)
hahaha.. by somebody who doesnt clock .
its possible ppl just lower reduce strengths.. increase straps and lower trd..
What's the use of going super speed when you're on super low strengths, high straps and low trd?

It's the same as you don't overclock.
I remember someone mentioned about getting the highest clock but low latencies on 1:1 ratio.
Now, whose that guy huh? hmm.gif

This post has been edited by sHawTY: Feb 12 2008, 05:24 PM
TSgeneral_odin
post Feb 12 2008, 05:24 PM

no work, no money
*****
Senior Member
904 posts

Joined: Nov 2006
From: Selangor & Malacca, Malaysia
how about my Corsair XMS2 Twin 2x 2048-6400C5DHX ???
how far could i go without pumping the Vdimm ???
DaRkSyThE
post Feb 12 2008, 05:47 PM

Look at all my stars!!
Group Icon
VIP
4,809 posts

Joined: Jan 2005
thread cleaned
next person that starts something here again will be banned
alive88
post Feb 12 2008, 05:58 PM

Pata Pata Pon! Pon Pon Pata Pon!!
******
Senior Member
1,406 posts

Joined: Jun 2007
ops..sorry general odin..my ram is corsair xms 2 pc6400 2x1gb
cstkl1
post Feb 12 2008, 06:53 PM

Look at all my stars!!
Group Icon
Elite
6,799 posts

Joined: Jan 2003
QUOTE(general_odin @ Feb 12 2008, 05:24 PM)
how about my Corsair XMS2 Twin 2x 2048-6400C5DHX ???
how far could i go without pumping the Vdimm ???
*
those are 2.1v rated right
should to 1:1 500fsb 1000mhz cl5 or loose CL4 .... 4-5-4-12 or 4-5-4-15..

Added on February 12, 2008, 6:57 pm
QUOTE(sHawTY @ Feb 12 2008, 05:20 PM)
» Click to show Spoiler - click again to hide... «

keep on yapping away..

This post has been edited by cstkl1: Feb 12 2008, 06:57 PM
TSgeneral_odin
post Feb 12 2008, 08:48 PM

no work, no money
*****
Senior Member
904 posts

Joined: Nov 2006
From: Selangor & Malacca, Malaysia
oh i see.... thanks for the info
Hoodlums
post Feb 12 2008, 10:28 PM

On my way
****
Senior Member
598 posts

Joined: Sep 2004
Thanx sHawTY for nice info thumbup.gif
So for normal Corsair XMS2, average stable OC range about 1000Mhz - 1100Mhz? hmm.gif
