Hi empy,

I have a problem buying panasonic cap from Farnell, they are stupid to sell something at multiple of 5 (meaning cant buy 6, must be 5, 10, 15).



Can I know the stock main cap 25V2200uF KLE cap is taking in what voltage ? is it taking in at 17V or 15V ? Can I use 16V3300 cap ?
__________________

for some reasons, after checking I manage to find Panasonic FC at loose items.

So I am waiting for the Panasonic to arrive tomorow. : )

here is my item selection.

to those who want to mod, it is rock and roll.

http://my.farnell.com/jsp/home/homepage.jsp [just key in the part no]

Part Num. Quantity . Availability Line Price Description Mfr Part # Mfr Name
========= ========== ============ ========== ======================================== ============= ================
1219461 9 In Stock 12.69 CAPACITOR, RADIAL, 330UF, 16V; Applicati EEUFM1C331 PANASONIC
9692959 5 In Stock 4.00 CAPACITOR, 47UF, 50V; Application:High T ECA1HHG470 PANASONIC
1264871 2 In Stock 10.16 CAPACITOR, 22PF, 500V; Capacitance:22pF; CD15ED220DO3F CORNELL DUBILIER
1219466 8 In Stock 6.72 CAPACITOR, RADIAL, 100UF, 25V; Applicati EEUFM1E101 PANASONIC
9692070 5 In Stock 16.70 CAPACITOR, 1200UF, 16V; Application:Low EEUFC1C122 PANASONIC
3036467 4 In Stock 52.52 CAPACITOR, 3300UF 35V; Capacitance:3300µ EEUFC1V332. PANASONIC
1311569 2 In Stock 5.16 Silver Mica Capacitor; Capacitance:22pF; CD15ED220JO3F CORNELL DUBILIER

detail of mod, refer here.

http://www.head-fi.org/forums/f6/frankenze...85/#post4843415

http://www.head-fi.org/forums/f6/zero-mod-...69/#post4843227

This post has been edited by ccschua: Oct 30 2008, 11:16 PM

Farnell is superfast. order yesterday, today arrive all the way from singapore. They even send in 1 item (worth 10 rm ) all the way from USA without additional costs.

See that little double heart. that is the silver mica. I am going back to putting cap where people snip it.



This post has been edited by ccschua: Oct 31 2008, 07:52 PM

Hi little,

I have a project to mod the USB-spdif converter, which I rightly see in your sig.

Can I know what clock u see for the PCM2702E? Is it a separate power source or u use the souce from USB ?

Do u mod the on board cap / XO ?

Do u know where to get XO with 10ppm, cheap and good.

I have a difficulty to remove the capacitor. My first experiment is to replace the 10uF Nichicon muse in the USB->spdif converter to 100uF Panasonic FC.

Tried very hard to remove the cap but it just dont come out, though I had suck out the solder. At the end, the cap is broken.

For those beginners trying to DIY the solder job, here is the great guide. Never know tower can stop the wiggling and a magnifier not for old man but a open copper track ...


http://www.head-fi.org/forums/f6/frankenze...tml#post4931453

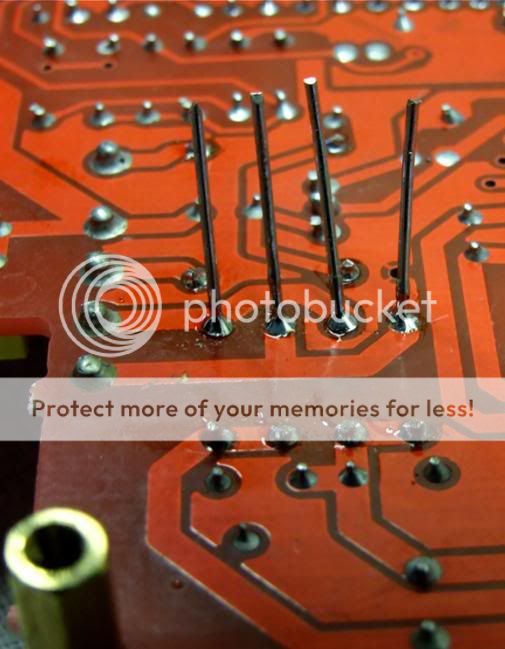

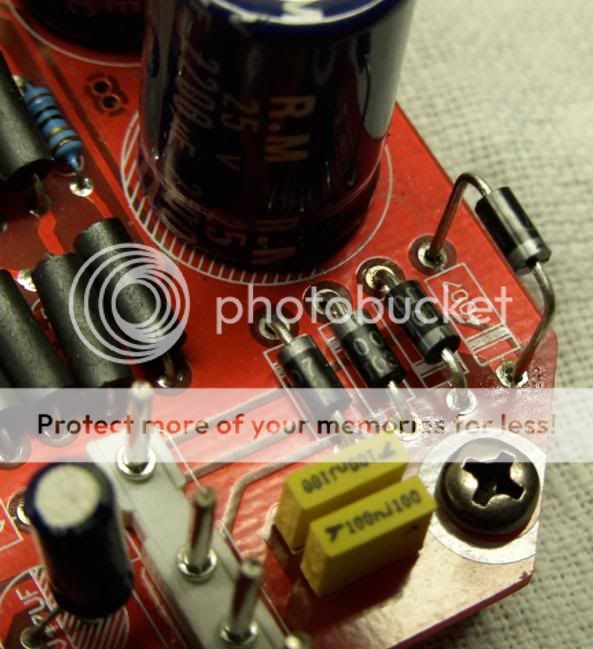

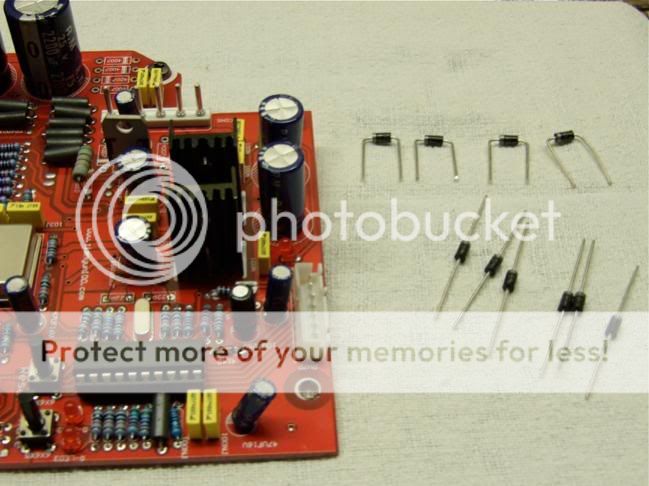

isnt it fun to see some photos.

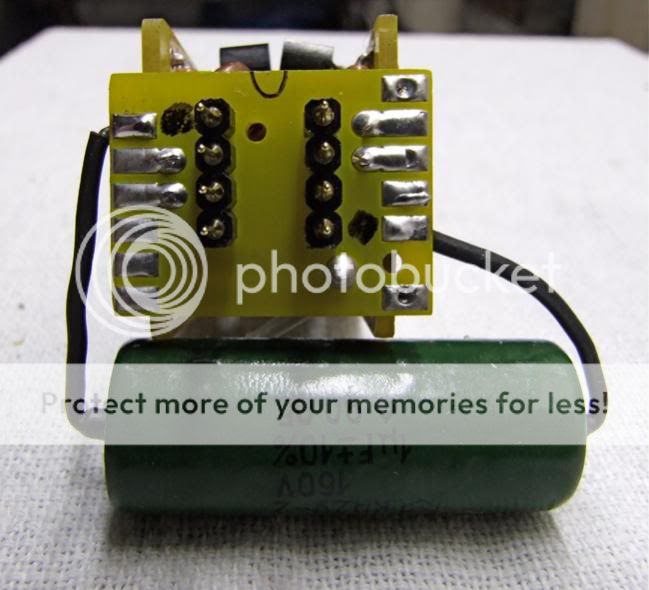

he really take pain to insulate the leads !!! also the green sausage dont have polarity right.













This post has been edited by ccschua: Nov 1 2008, 07:39 AM

I think it is better I use solder wick, in order not to spoil the pad.

I was having a tough time trying to replace the caps. But in the end, it is fun.

I was extra careful, in fact, after each step, i bring it to the amp and test, remove, and back and forth.

well , this is only phase 1 mod.

I almost give up, lucky got abel help.

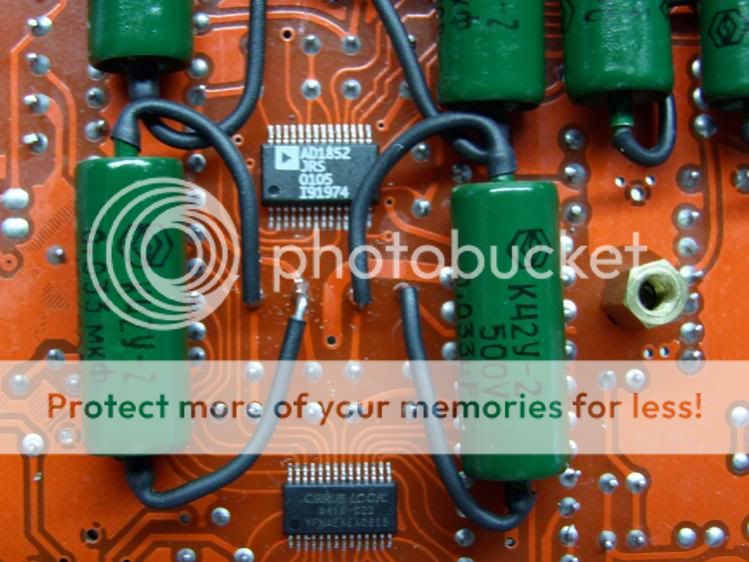

I am more interested into this mod, putting a lot of green sausage underneath the PCB for the power supply bypass.

http://cgi.ebay.com/K42Y-2-0-033uF-500V-PI...id=p3286.c0.m14

---

Added on November 6, 2008, 12:17 amHi Empy,

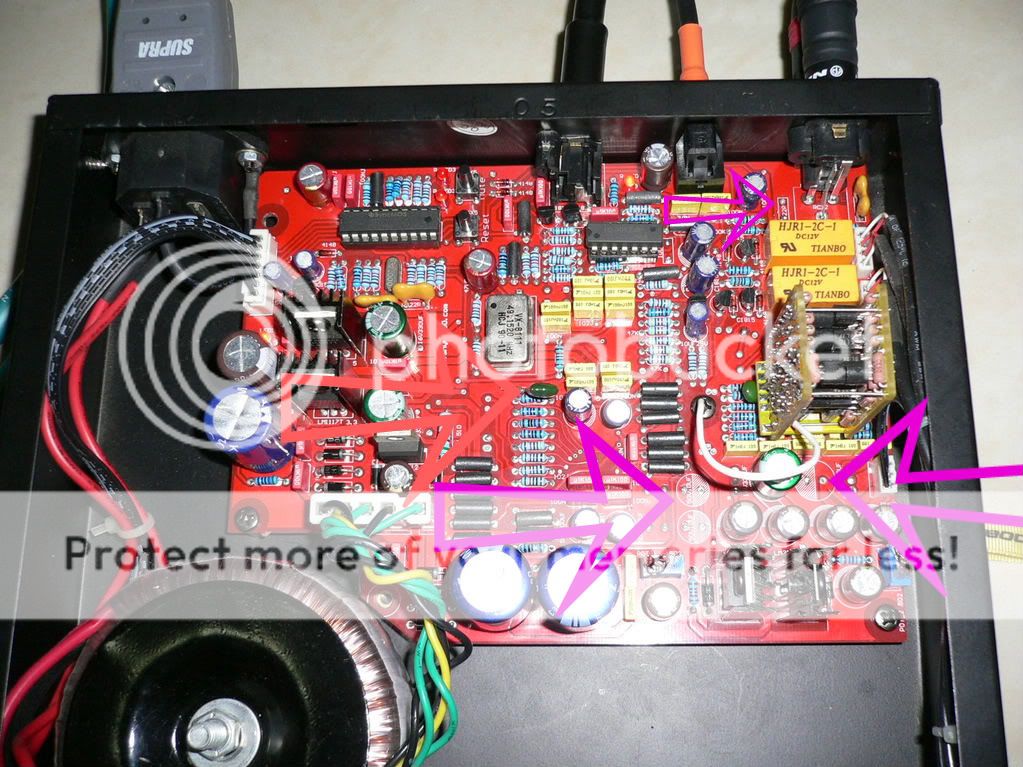

I would hope u can explain about the pink arrow (missing components or underneath ?) and red arrow (replace resisor with cap ? why )

what is the purpose replace tantalum at the OPA cap ?



tks.

This post has been edited by ccschua: Nov 6 2008, 09:33 PM

OK, I am done. I had a singapore guy bought 10 from me, and 10 for u.

rgds

Does it sound like Jesus is coming ! Welcome to the green Sausages.

Some really get crazy about that .

The final moment has come for the ZERO mod. Just for simple mod on the past few post, I felt the changes in SQ is very stunning.

I just learned putting higher voltage such as 63V has the effect of more capacitance than the 25V.

Now my Panasonic FC begins to reveal its true color. When I first put in (without the green PIO bypass yet), I was like so so ah. then I just wait curiously for it to unfold. after nearly 5 days, I begin to hear the warm of it and the transparency. The punch and the body begins to throw in.

I am just waiting for the PIO to arrive and I hope to be Penchuum, give me the last green sausage.

Yes. ZERO rocks.

This post has been edited by ccschua: Nov 8 2008, 08:27 PM

Today spend some time further mod the ZERO, call it phase 2.

Replace the 330uF at the 15V supply to opamp. 2 x elna silmic 2
2. 2 x pana FC beside the opamp,
3. 1 oscon at the optical input area
4. 1 x 47uf pana fc at the clock area
5. replace the 2 tiny 22pf with Silver mica (5%)

phew. during the mod no light on, same as Abel case.

Check back all the cap mod. found jumper lead lifted off. Total jumper 6 nos. wow, really tough, but really sweet now.

I took about 1 hour to trouble the 2 problem. Tracing the circuit to where it come from. U need a very bright light, and use the backlight to trace. The problem with open circuit is solved if u can handle the multimeter.

Now I am waiting for final phase : -
1. 8 x green sausage
2. 10 x ultra fast diode UF4007

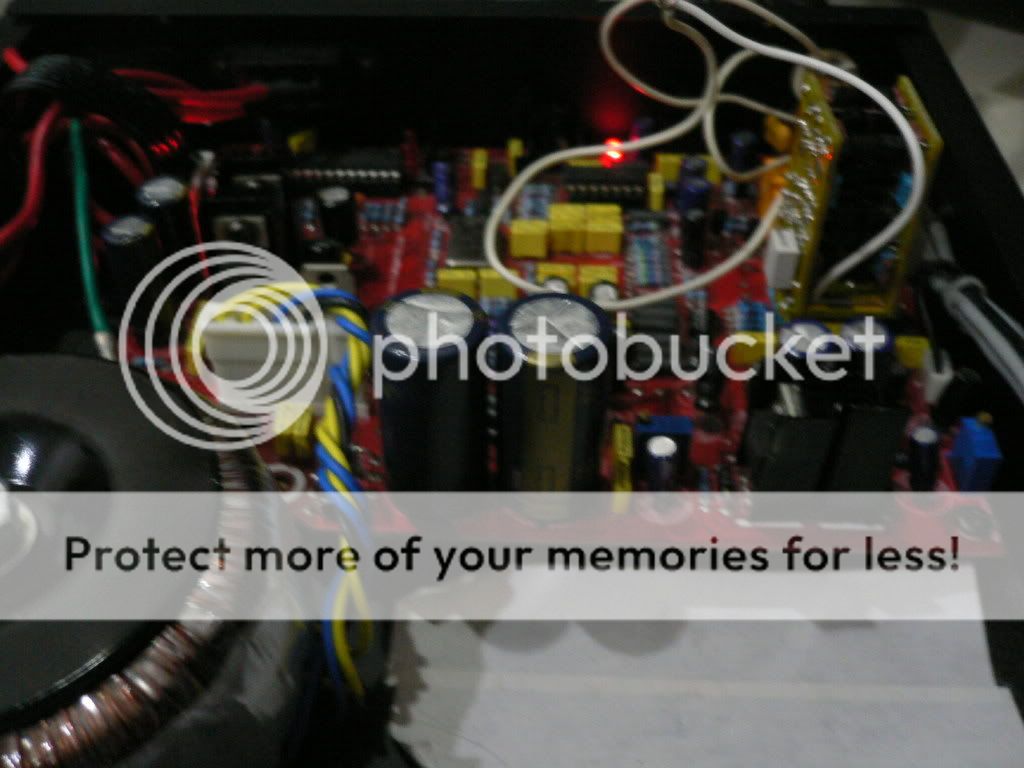

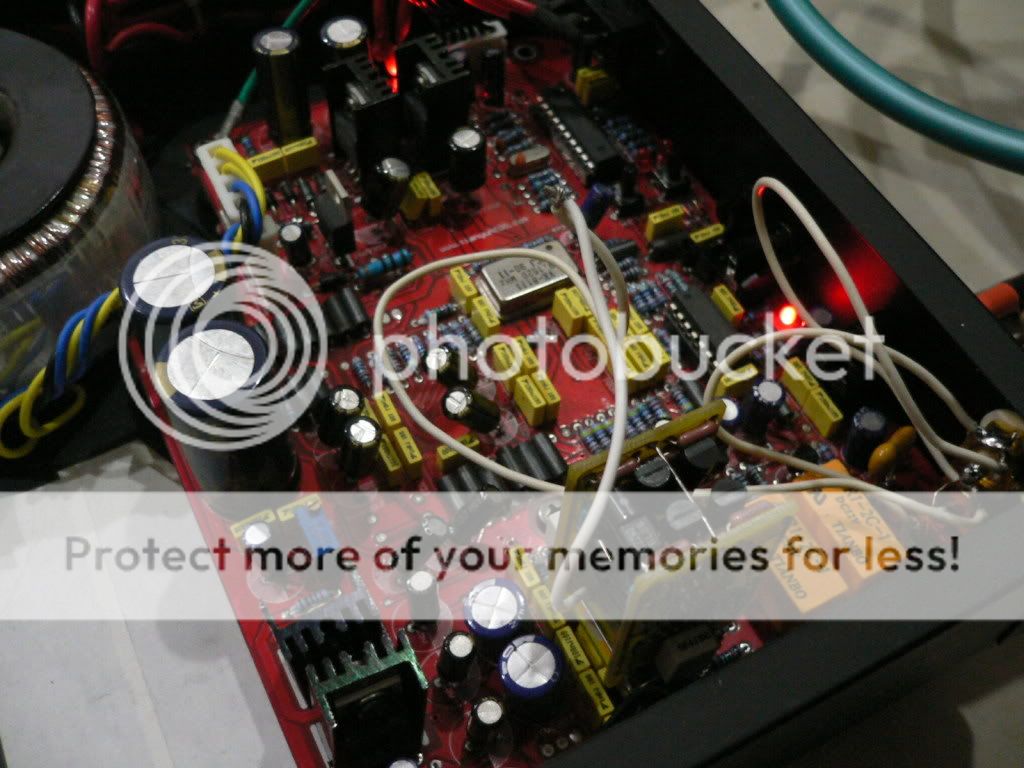

here is the result. [oh my. the sound is really killing me softly. Madmen, can we have ur unit for a AB man]



This post has been edited by ccschua: Nov 9 2008, 04:39 PM

Sounds good. I hope the sound will be better after 250 hours.

Does anyone know the difference between UF4001 and UF4007. What is the forward voltage and reverse recovery time ? which is better ?

Dont forget to bring the unit for review too.

The mod here is easy to follow provided u read up the thread in head-fi. if still complecated, then u may post here what u are not sure off.

the simple mod on zero really results in good sound output. I am waiting for another 100 hours to get the sound stabilized.

Still see a lot of blue cap. good to see the revival. ready for FrankenZero.

Oh my god. Here comes the Franken ZERO ....

Can see the DAC power supply is nichicon Muse. Known for power supply clean and fast.

when u want to slot in Blackgate std.

Green sausage is impresive. it is another step of improvement even on first impression.

Hi rav,

those cap can fit inside no problem. Just that the bypass cap are too many, about 12 of them and to put all at the same place is difficult, so I install outside. Still can put the headphone amp and it is no problem on that.

However I suggest to do the Franken mod, u need to go through the phase 1 first.
