PROJECT B- Renovation of Toilet Areas
Topic: Countertop

With all of the plumbing routes ready, we move on to construction of bathroom countertop. Similarly, we build the formwork first, cut and place segments of rebar lengthwise within the form to give the concrete added structural integrity. Pour the concrete mixture, level it and let it dry.

Complete your installation with any finishing of countertop you preferred. Basin are also installed in place.

This post has been edited by My Maison: Aug 16 2021, 12:52 AM

PROJECT B: Renovation of Toilet Areas

Topic: Waterproofing and Setting of Tiles











This post has been edited by My Maison: Aug 18 2021, 01:36 AM

PROJECT B: Renovation of Toilet Areas

Topic: Waterproofing and Setting of Tiles

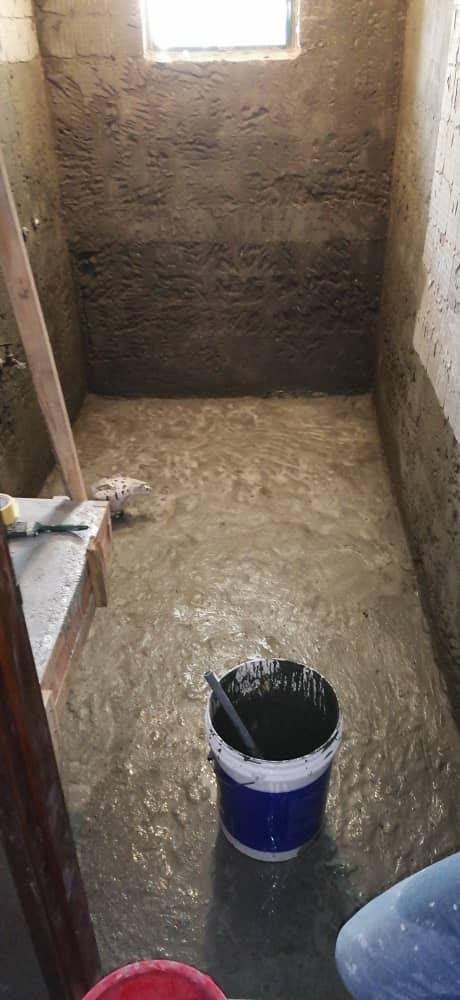

We apply waterproofing agent on the surface for the first step. It helps to prevent leaking of water if there is any gaps or cracks in the concrete. Ensure the surface is always clean before work so that the final outcome is levelled.
For your information, we use laser as an indication and guideline while laying tiles and apply thin set of mortar as binding agent during installation.

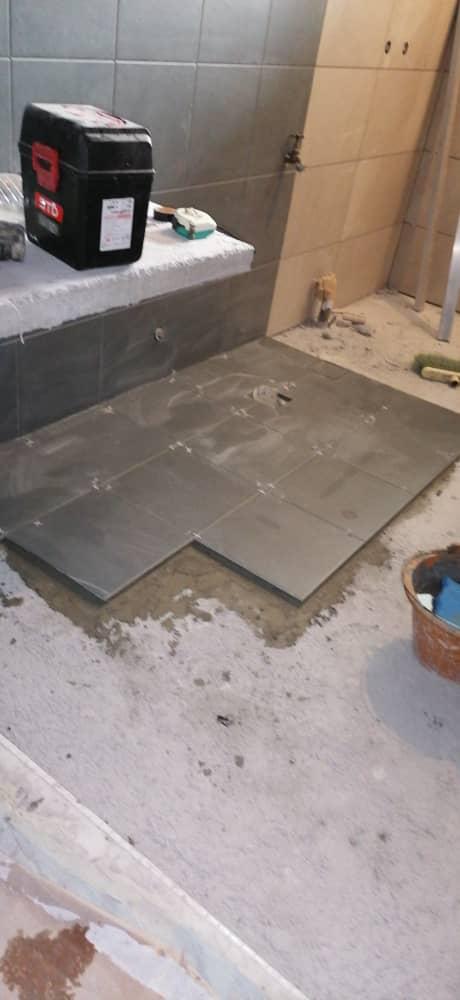

In today's topic, we emphasize on the initial setting of first tile, this helps to minimise wastage of tile, save cost and ensure aesthetic in the toilet tile layout. We will share more steps in future. Stay tuned.

Single story build reno to double story? What is the cost?

This is a very subjective question. It actually depends on your budget and the scale of works you are consider with. Approach the contractor/designer, share your thoughts and review them after having a site visit together with your reliable contractor/ designer. You may find your answer then ! 😬

This post has been edited by My Maison: Aug 21 2021, 11:44 PM

PROJECT B- Renovation of Toilet Areas

Topic: Continuous of Tiling Works

PROJECT B- Renovation of Toilet Areas

Topic: Continuous of Tiling Works

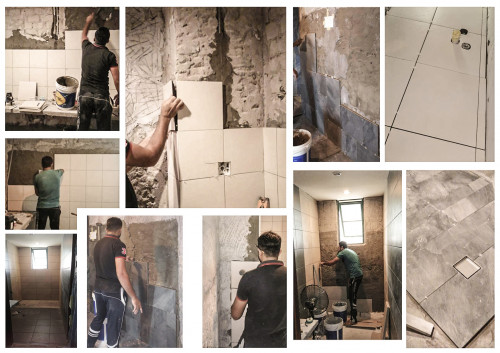

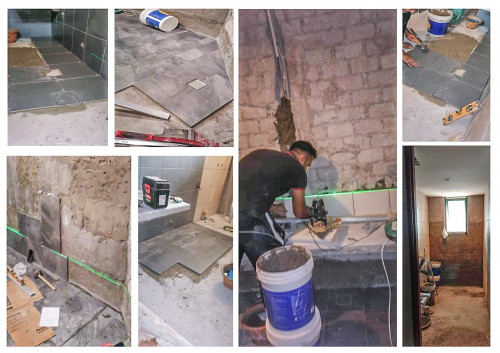

After setting up the first reference point of tiling in the toilet, we then install the remaining tiles along the straight lines by applying thin set of mortar using trowel. We press the tile in place while twisting it slightly to secure it into
position and ensure each bottom of the tiles are in contact with the mortar. While laying tiles, we place tile spacers in between each of them to get even and consistent spacing and joints.

We do cut any tiles to size for the end rows next to the walls or either the floor trap location. Good workmanship is required here.

Are you contractor /designer ?

Yes. We do provide renovation works for those who are interested. We have a team to serve for the demand. Do check your pm if you want to know more.

PROJECT B- Renovation of Toilet Areas

Topic: Tile Spacing, Grouting Works, Installation of Fixtures












This post has been edited by My Maison: Aug 24 2021, 11:24 PM

PROJECT B: Renovation of Toilet Areas

Topic: Tile Spacing, Grouting Works, Installation of Fixtures

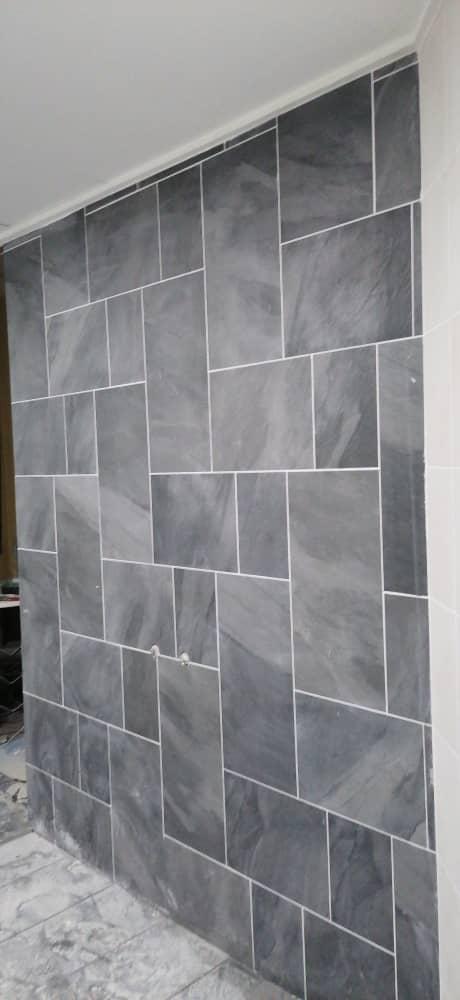

As mentioned above, you can realise that we actually put a lot of effort while dealing with the tile works around the socket outlets and the water outlets location.

After installing the all of the tiles, we allow it to cure overnight. Fill the tile joints with grout. It helps to seal the lines between the tiles and withstand most stains, expansion and contraction over a period of time. The grout can come in variation and can be a decoration purpose as well. We then wipe off the residue with a damp sponge. Wait for the grout to cure and your are nearly done!

After all tiling works done, install the bathroom fixture and shower screen in place. We will post more out complete works in our next posts!

Is it a modern practice to cover or block stairs from living room view in a double storey house? normally houses now can see stairs in living room.

This post has been edited by deathTh3Cannon: Aug 26 2021, 01:13 PM

I guess it depends on the users preference. It actually depends on the theme you set for the design. Explore different possibilities and suit the way with your living lifestyle.

PROJECT B: Renovation of Toilet Areas

Topic: Completion of Works and Review













This post has been edited by My Maison: Aug 26 2021, 11:31 PM

PROJECT B: Renovation of Toilet Areas

Topic: Completion of Works and Review

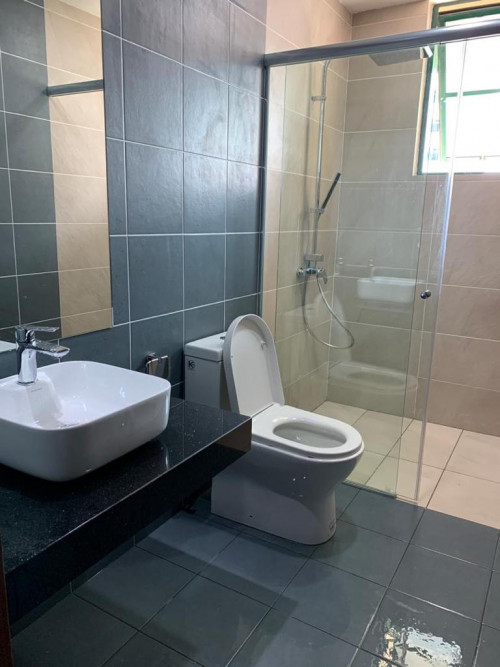

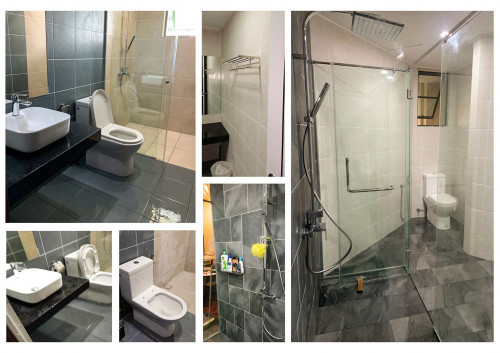

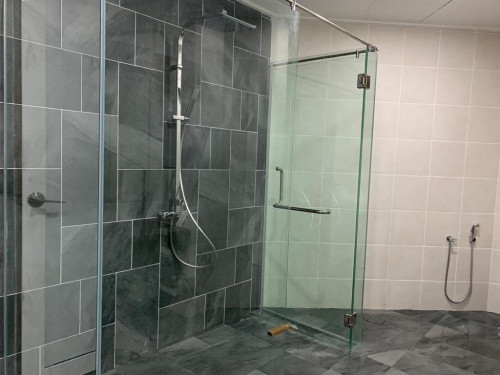

Proceeding with the final works, lighting fixtures are on set and everything are ready to use.
Sometimes there can be some tips while designing your toilet. Niche wall is one of it. You may consider it to reduce destruction on your wall such as screwing racks on your wall.
tay tuned for our next sharing! I hope you are satisfied and enjoy with the outcome. They are all our valuable works and efforts!

PROJECT C: Erection of Bungalow in Kota Kemuning

Topic: Site Preparation











This post has been edited by My Maison: Sep 10 2021, 08:42 PM

PROJECT C: Erection of Bungalow in Kota Kemuning

Topic: Site Preparation

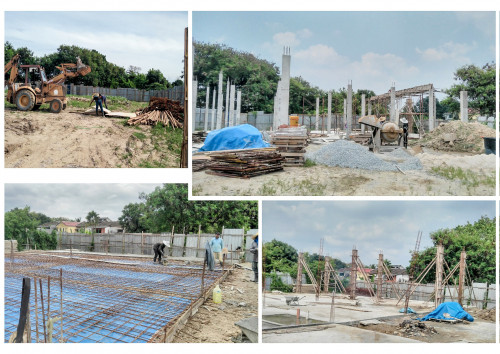

In today's sharing, we will be talking about our previous project done, a residential bungalow erected from none till completion.

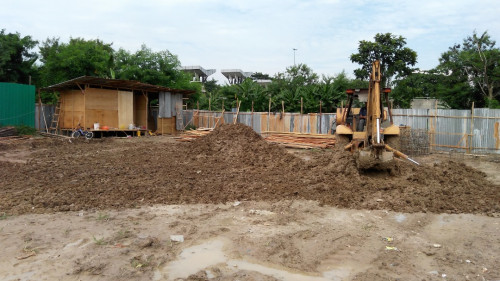

After getting approval from the authorities, we start the entire work from preparing hoarding along the boundary, with the intention of safety and prevention of intruder. Next, setting up the site by performing site clearance while preparing the soil condition with the mechanical shovel. Ensuring that the building ground is free of plant as the topsoil usually has little bearing strength only.

Referring to the working drawings, contractor and workers marked up the structure points, as the setting up of the entire building. We will then start constructing foundation and so on.

PROJECT: Erection of Bungalow in Kota Kemuning

Topic: Erection of supporting elements, Application of dpm and antitermite










This post has been edited by My Maison: Sep 12 2021, 05:42 PM

PROJECT: Erection of Bungalow in Kota Kemuning

Topic: Erection of supporting elements, Application of dpm and antitermite

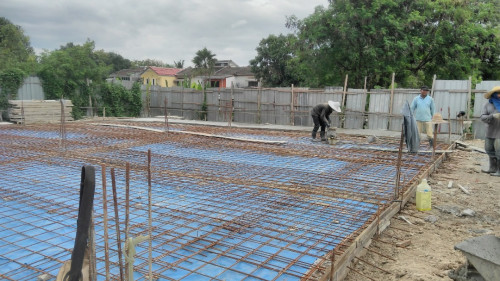

You could refer to our previous posts regarding to the construction process of erecting the columns. With the preparation of one-time used formwork, sufficient rebars and materials, construction of rc columns and ground floor slabs are crucial and required proper care and inspection from time to time. In details word, we always include certified waterproof membrane together with sufficient anti-termite protection towards the bungalow. Layering of proper soil conditions together with those details added up, it helps to reduce problems that might arise in future.

Hi what is your opinion if i plan extend ground and 2nd floor.until toilet. Should i need piling or do footer is enough? It's about 3-4 feet. I do not have intentions to entend until max as i have plan for my backyard.
