ohh he use RB5009 New version like this RB5009UPr+S+IN right ????

non-PoE also works

upcoming unifi 2gbps

RB5009 but sad 1x 2.5GBPS Ethernet Port but other Ethernet Port all are 1GBPS

when release new upcoming model like RB5009 with All 2.5GBPS Ethernet Port

all 2.5Gb port would increase the price of RB5009
like that I rather save more money and buy CCR2004

This post has been edited by Anime4000: Mar 27 2023, 11:30 AM

CCR2004 all are SFP

yah they will increase the price RB5009 but not yet all 2.5Gb Port

Anything above 1Gbps, you are better off using SFP modules instead of direct RJ-45 ports.

to achieve cheaper solution for all 2.5G, it's better off use 2.5G Switch,
what I thinking: ONU to RB5009 2.5G to Switch via SFP 10G for high speed LAN

I agree!

---

future proof, upgrade LAN to support 10G, even high end AX 4x4 support 4Gbps, for PC, use add-in SFP+ Card that has been flashed to support universal SFP device

Anyone got spare that they can sell? ONU Stick please PM

I have, my modded firmware to work with Unifi/TIME/Allo, but price wont be same as you buy at AliExpress

hi

i saw TM new launched 2GBPS

i looking Recommend ODI Stick i don't want cheaper i can buy expensive noting problem we can future proof 2.5Gb mode

do need Serial number to TM to make clone ODI Stick serial ????

must get 2.5Gb mode like that

what brand and model ODI Stick where purchase

i don't want crap quality

all these info are available at first post and my GitHub Repo.

what I know TM still using GPON on 2Gbps plan, this mean TM maxing out shared fiber, as test last year, kind hard to get 2Gbps even 1Gbps upload on shared GPON fiber,

Unless TM deploy new fiber dedicated to you alone (some kind Direct Fiber), then whole GPON speed 2.4/1.2Gbps all yours

If TM start using XGPON or 50PON, ODI stick become useless

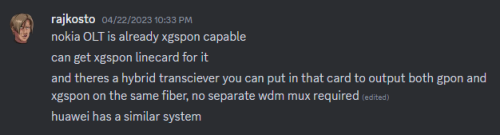

For some area under Nokia OLT, upgrading to 10G or 50G just swap Line Card and co-exist with GPON, cheaper upgrade

most recommended and universal device that you can use is ODI DFP-34X-2C2 @ AliExpress (choose XPON)

i read 1st page

its Recommend ODI DFP-34X-2C2 ????

for tested 2.5Gb Mode ???? right

i know TM Shared Fibre max hard hit down 2G/1G upload

yes, make sure using compatible SFP+ host to get 2.5Gb

.

This post has been edited by tng55: Apr 26 2023, 01:12 PM

ok ODI DFP-34X-2C2 @ AliExpress (choose XPON)

i must select XPON purchase right

you mean setting mikrotik set SFP+ right

yes like that.

thanks so much i will purchase i don't care about waiting 27days++ take 1 month++

no problem not urgent

hi
i already read https://forum.lowyat.net/index.php?showtopi...ost&p=107135022

daam nice i hope more info later update

also testing Alcatel Lucent PON Stick (Intel SoC)

but did testing for ODI DFP-34X-2C2

can cloned D-LINK OMCI Info for ODI DFP-34X-2C2 ???

you friend area OLT is ALCL. they use Nokia OLT right

i think my area is huawei OLT because my btu is huawei

i checked my area all they use btu many few place i saw BTU Always Huawei

i plan to get 2GBPS

i waiting more update then i can purchase GPON Stick

To be honest, this stick are much batter compared with ODI, for example, having working i2c_info where SFP display Laser Power, temps and SN at router properties


Sadly, user who using LAN 2 ONU for internet (TM-Maxis, TM-DiGi, TM-Celcom, TM-Viewqwest) will not work!
Once OMCI kick-in, parameter UniNode take place asking ONU to disable eth0 and enable eth1 which is not exist.

i don't use other telco don't care
i stay i using UNIFI Only that LAN 1 only i wont swtich other ISP

ohhh this stick are much batter then ODI

ok send me Link i need purchase and model Recommed then ODI

you mean ODI for having working i2c_info where SFP display Laser Power, temps and SN at router properties
Correct ???

i have confuse which best

Using GPON SFP Stick (Realtek RTL9601D), cloned D-LINK OMCI Info, custom firmware

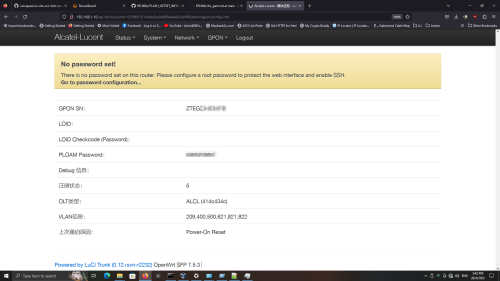

tested Alcatel Lucent GPON SFP Stick with ZTE OMCI Info

Take note that Alcatel Lucent or Huawei MA5671 (Intel SoC) are not support 4-port Emulation,

do you think Intel Intel SoC is Best ????

you can compare many GPON STICK Testing

which Batter like Winer and Stable


This post has been edited by tng55: Apr 27 2023, 03:13 PM
