Home Networking Ditch ONU, use GPON SFP on Business Grade Router, 2.5G ONU for Unifi & Maxis, NO NEED VLAN
|
|
 Oct 14 2024, 09:01 PM
Show posts by this member only | IPv6 | Post
#1461
|

Senior Member
2,399 posts Joined: Jul 2009 From: /dev/null
|
QUOTE(go626201 @ Oct 14 2024, 08:34 PM) Waiting for the release and will definitely get one from you. sure thing, if this new architecture, it might take time to learn the code base and blobs, see if inject MIB is possible,  if not, TIME and Maxis or ISP use 100% Huawei/Nokia can't use 😔 |
|
|
|
|
|
Oct 14 2024, 11:05 PM
|
Senior Member
1,440 posts Joined: Sep 2021
|
QUOTE(Anime4000 @ Oct 13 2024, 10:53 PM) like I said, the box is use same hardware as PON Stick, ohhh understandso, effectively like PON Stick with HiSGMII Ethernet Converter you would see this on the ONU Box:  so, ONU Box = PON Stick + HiSGMII Ethernet Converter performance wise, should be same I also looking for alternative to this RTL based, perhaps looking at EcoNet SoC So PON Stick same hardware right ONU BOX wont make overheat compare small PON Stick sometime overheat depend because ONU BOX air flow can't be overheat like huawei BTU i will buy you later because i am waiting tm offer 2GBPS once i get 2GBPS then i will deal you i hope you making POTS coming soon right i am not urgent hehehe due waiting offering 2GBPS mine 500Mbps RM119 so cheap This post has been edited by tng55: Oct 15 2024, 11:59 AM |
|
|
Oct 14 2024, 11:14 PM
Show posts by this member only | IPv6 | Post
#1463
|
|
Senior Member
2,399 posts Joined: Jul 2009 From: /dev/null
|
QUOTE(tng55 @ Oct 14 2024, 11:05 PM) ohhh understand so lucky get RM119 for 500Mbps xDSo PON Stick same hardware right ONU BOX wont make overheat compare small PON Stick sometime overheat depend because ONU BOX air floor can't be overheat like huawei BTU i will buy you later because i am waiting tm offer 2GBPS once i get 2GBPS then i will deal you i hope you making POTS coming soon right i am not urgent hehehe due waiting offering 2GBPS mine 500Mbps RM119 so cheap yea, same hardware, just make it bigger, act like plugin to Converter and air flow. 2.5G ONU with POTS is my plan indeed, just need to make sure the firmware flexible enough, if not, compatibility will severely limited because TM won't white listed 😅 if anyone who have close to higher up TM, I would like to meet and register the device into the system. huhuhu. |
|
|
Oct 15 2024, 12:02 PM
|
|
Senior Member
1,440 posts Joined: Sep 2021
|
QUOTE(Anime4000 @ Oct 14 2024, 11:14 PM) so lucky get RM119 for 500Mbps xD yah RM119 was 6 month bill free my still have contract 13 month left next year contract endedyea, same hardware, just make it bigger, act like plugin to Converter and air flow. 2.5G ONU with POTS is my plan indeed, just need to make sure the firmware flexible enough, if not, compatibility will severely limited because TM won't white listed 😅 if anyone who have close to higher up TM, I would like to meet and register the device into the system. huhuhu. i will catch 2GBPS coming soon if POTS unable to make have you try for linksys https://www.google.com/search?sca_esv=e10bc...0&bih=609&dpr=1 any update |
|
|
Oct 16 2024, 12:53 PM
Show posts by this member only | IPv6 | Post
#1465
|
|||||||||||||||
|
Senior Member
2,399 posts Joined: Jul 2009 From: /dev/null
|

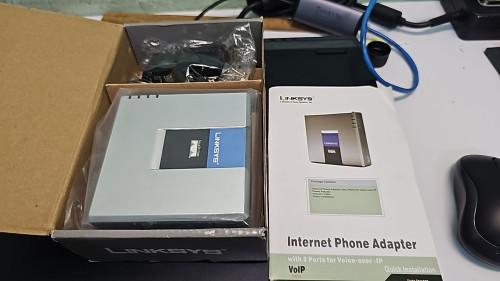

QUOTE(tng55 @ Oct 15 2024, 12:02 PM) yah RM119 was 6 month bill free my still have contract 13 month left next year contract ended I bought it, PAP2T, wait for arrivei will catch 2GBPS coming soon if POTS unable to make have you try for linksys https://www.google.com/search?sca_esv=e10bc...0&bih=609&dpr=1 any update also, 2.5G ONU with POTS, apparently can't beat Realtek in term of faking OMCI Info to OLT but EcoNet SoC has better spec, firmware seem not flexible like Realtek/Intel
Yes, PON Stick & ONT Bridge use same CPU like PSOne game console what ever it is, need to try first This post has been edited by Anime4000: Oct 16 2024, 12:54 PM |
|||||||||||||||
|
|
Oct 16 2024, 02:06 PM
Show posts by this member only | IPv6 | Post
#1466
|
|
Senior Member
2,399 posts Joined: Jul 2009 From: /dev/null
|
Update:
Software Engineer said to me the EcoNet SDK doesn't allow OMCI modification, no flexibility like Realtek, Intel & MaxLiner I get the sample one first if can be reverse engineering in hardway Or I need ask TM to white list it if they willing to (high probability condition: no) This post has been edited by Anime4000: Oct 16 2024, 02:07 PM |
|
|
|
|
|
Oct 16 2024, 09:55 PM
|
|||||||||||||||
|
Senior Member
1,440 posts Joined: Sep 2021
|
QUOTE(Anime4000 @ Oct 16 2024, 12:53 PM) I bought it, PAP2T, wait for arrive hmmalso, 2.5G ONU with POTS, apparently can't beat Realtek in term of faking OMCI Info to OLT but EcoNet SoC has better spec, firmware seem not flexible like Realtek/Intel
Yes, PON Stick & ONT Bridge use same CPU like PSOne game console what ever it is, need to try first old btu tm huawei what they use SoC ??? realtek ?? or what |
|||||||||||||||
|
|
Oct 16 2024, 09:59 PM
|
|
Senior Member
2,399 posts Joined: Jul 2009 From: /dev/null
|
QUOTE(tng55 @ Oct 16 2024, 09:55 PM) hmm Old Huawei using own Huawei Processor called: HiSilicon SoCold btu tm huawei what they use SoC ??? realtek ?? or what Old Nokia ONT do using EcoNet others, don't know, I don't have it and not explored yet |
|
|
Oct 17 2024, 12:53 AM
|
|
Senior Member
1,440 posts Joined: Sep 2021
|
QUOTE(Anime4000 @ Oct 16 2024, 09:59 PM) Old Huawei using own Huawei Processor called: HiSilicon SoC daam powerful EcoNet for CPU ARM 2-core 750MHz + RAM 256MB DDR3 (external) seen stable then Realtek Old Nokia ONT do using EcoNet others, don't know, I don't have it and not explored yet how about HiSilicon SoC CPU + RAM ??? can get details here table |
|
|
Oct 17 2024, 12:45 PM
Show posts by this member only | IPv6 | Post
#1470
|
|
Senior Member
2,399 posts Joined: Jul 2009 From: /dev/null
|
QUOTE(tng55 @ Oct 17 2024, 12:53 AM) daam powerful EcoNet for CPU ARM 2-core 750MHz + RAM 256MB DDR3 (external) seen stable then Realtek I did post some Reverse Engineering on HG8240H5 that Unifi have:how about HiSilicon SoC CPU + RAM ??? can get details here table https://github.com/Anime4000/Hacking_Huawei_HG8240H5_ONT CODE Linux version 3.10.53-HULK2 (ci@SZXRTOSCI10000) (gcc version 4.7.1 (SDK V100R005 C00SPC030B050) ) #1 SMP Fri Apr 13 19:54:43 CST 2018 CPU: ARMv7 Processor [414fc091] revision 1 (ARMv7), cr=18c53c7d CPU: PIPT / VIPT nonaliasing data cache, VIPT aliasing instruction cache Machine: Hisilicon A9, model: HISI-CA9 That EcoNet SDK are not flexible as Realtek, I need find a way even this will take 1 to 3 years |
|
|
Oct 18 2024, 03:57 PM
Show posts by this member only | IPv6 | Post
#1471
|
|
Senior Member
2,399 posts Joined: Jul 2009 From: /dev/null
|
tng55 touch n go 55th

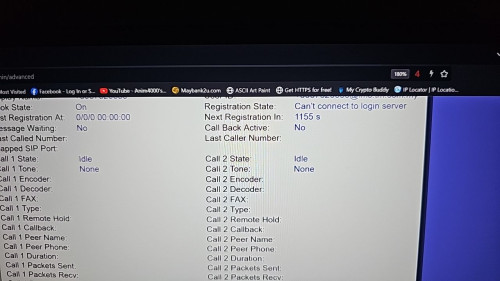

I have tried Linksys PAP2T, I not know much about SIP stuff, still get Error 500 Internal Server Error   |
|
|
Oct 18 2024, 05:09 PM
|
|
Senior Member
1,207 posts Joined: Aug 2018
|
Anime4000, can try:
DHCP Option 120: Enable Primary Outbound Server: 10.225.15.220 Secondary Outbound Server: 10.225.17.220 Audio Codec Type 4: G.722 This post has been edited by kwss: Oct 18 2024, 05:09 PM |
|
|
Oct 19 2024, 12:35 PM
|
|
Senior Member
1,440 posts Joined: Sep 2021
|
QUOTE(Anime4000 @ Oct 18 2024, 03:57 PM) tng55 touch n go 55th daam failed I have tried Linksys PAP2T, I not know much about SIP stuff, still get Error 500 Internal Server Error  sorry bro we trouble it  you have own was Yealink why still not test for unifi ??? i know you already tested Yealink for maxis |
|
|
|
|
|
Oct 19 2024, 05:47 PM
Show posts by this member only | IPv6 | Post
#1474
|
|
Senior Member
2,399 posts Joined: Jul 2009 From: /dev/null
|
QUOTE(tng55 @ Oct 19 2024, 12:35 PM) daam failed next month I try yealink sorry bro we trouble it you have own was Yealink why still not test for unifi ??? i know you already tested Yealink for maxis hasmidzul_jojo, tng55, and 1 other liked this post
|
|
|
Oct 22 2024, 03:38 PM
|
Senior Member
846 posts Joined: Apr 2005 From: Subang Jaya
|
Hi for the ONU bridge box do we still need to input the ONU id and pw? My current 1gb dlink gpon 2.0.2 onu device got the frequent speed drop (bridge mode) issue and the device don’t have the loid id and pw. Even with 2.5g port connect to the be95 my max speed still around 930mb . I am kinda new to this please guide me thanks
|
|
|
Oct 23 2024, 12:50 PM
Show posts by this member only | IPv6 | Post
#1476
|
Junior Member
98 posts Joined: Sep 2019 From: Kuching
|
QUOTE(stevenlys @ Oct 22 2024, 03:38 PM) Hi for the ONU bridge box do we still need to input the ONU id and pw? My current 1gb dlink gpon 2.0.2 onu device got the frequent speed drop (bridge mode) issue and the device don’t have the loid id and pw. Even with 2.5g port connect to the be95 my max speed still around 930mb . I am kinda new to this please guide me thanks you only need the PLOAM password and the SN of the UONR, LOID ID no need stevenlys liked this post
|
|
|
Oct 23 2024, 03:35 PM
|
|
Junior Member
20 posts Joined: Dec 2005
|
QUOTE(stevenlys @ Oct 22 2024, 03:38 PM) Hi for the ONU bridge box do we still need to input the ONU id and pw? My current 1gb dlink gpon 2.0.2 onu device got the frequent speed drop (bridge mode) issue and the device don’t have the loid id and pw. Even with 2.5g port connect to the be95 my max speed still around 930mb . I am kinda new to this please guide me thanks In the official unifi thread, someone link to v2.0.3 of the onr fw.I already installed it and running for 5 days now in bridge mode no longer encounter speed drop to 300mbps stevenlys liked this post
|
|
|
Oct 24 2024, 03:10 PM
Show posts by this member only | IPv6 | Post
#1478
|
|
Senior Member
2,399 posts Joined: Jul 2009 From: /dev/null
|
Soon GE800 can support GPON Stick
 screenshot from my client EEPROM Since SFF-8472 didn't have official 1310/1550nm at 2500BASE-X, using Linux Kernel Fix:   tldr, no official support 1310/1550nm 2500 Base-X, thus modifying EEPROM as per Linux Kernel defined: CODE /* If we haven't discovered any modes that this module supports, try  * the bitrate to determine supported modes. Some BiDi modules (eg,  * 1310nm/1550nm) are not 1000BASE-BX compliant due to the differing  * wavelengths, so do not set any transceiver bits.  *  * Do the same for modules supporting 2500BASE-X. Note that some  * modules use 2500Mbaud rather than 3100 or 3200Mbaud for  * 2500BASE-X, so we allow some slack here.  */ if (linkmode_empty(modes) && br_nom) {  if (br_min <= 1300 && br_max >= 1200) {  phylink_set(modes, 1000baseX_Full);  __set_bit(PHY_INTERFACE_MODE_1000BASEX, interfaces);  }  if (br_min <= 3200 && br_max >= 2500) {  phylink_set(modes, 2500baseX_Full);  __set_bit(PHY_INTERFACE_MODE_2500BASEX, interfaces);  } } This post has been edited by Anime4000: Oct 24 2024, 06:31 PM |
|
|
Oct 27 2024, 03:40 AM
Show posts by this member only | IPv6 | Post
#1479
|
|
Senior Member
2,399 posts Joined: Jul 2009 From: /dev/null
|
QUOTE(mus6677 @ Oct 23 2024, 03:35 PM) In the official unifi thread, someone link to v2.0.3 of the onr fw. sad to hear, router you use has exploit:I already installed it and running for 5 days now in bridge mode no longer encounter speed drop to 300mbps  If D-Link didn't care about security as TM pay cheap cheap, only way to save it by dumb down D-Link ONR to D-Link ONT Bridge, remove all cloud app, isp remote management, wifi, etc... well, ISP equipment never been secure in first place... |
|
|
Oct 28 2024, 07:44 AM
|
|
Junior Member
19 posts Joined: Mar 2010
|
QUOTE(ah_chak @ Jul 23 2024, 12:54 AM) Hi, i'm using pfsense 2.7.2 + 10GTek BCM57810S with anime's pon stick since Dec 2023, no issue at all.. if you would like to revisit linux router, can PM me.. hi what hardware are you using to install that nic in? |
