the reason that I have the reservoir just above pump coz if I put it at top of the HDD cage then where should I put the rom ? and I don't want to mount it horizontally coz it would be hard to fill up the liquid ...

another issue is I don't want to drill any hole at the rom cage ... I try to get it done without altered too much...

why you want to mount the rad like that?
wouldn't that be easier if invert the current position ?

Alternatively... dump the res lor.. use a t-line instead. Like that problem solved

@LittleLinnet

Coz the radiator barb doesn't aligned with the casing's pass through holes ..

5 mm of different for each side, else I won't want to mount it up side down considering the pump have to work harder to pump the water ...

@sniper on the roof
hmmm, good suggestion but by doing that I won't be able to monitor the water level ....

Who say t-line cannot see water level? Leave it longer lar.

Anyway, I think that you mount your rad like that is even worse than mounting it inverted as you have that big long curve upwards from rad-into-case and down again into pump.

About the lining problem...if you use some sort of spacer between the fan mounting hole and that of the rad.. then 5mm difference is nothing lor.

hmm ... spacer, Will try it out when got time .... too damn tired after trying to build this rig ...both hands are sored ....

anyway any suggestion of spacer that I could use ? ?

my rad hole uses M3 size...

finally doom rig is in ah lian again hehe........ btw is it a A16 ??

sorry not that familiar with LL's line up.....

well basically spacer u can use 1 or 2 size up without problem, just make sure the mounting screw is sufficiently long and had enough thread at the end to hold things up

btw noon on WC, what is a T line ??

here is a pic showing what T-line is
a method to refill the water cooling loop without using reservoir

There's a very simple soluton. Just mount the rear 120x38mm fan on the outside instead of inside. Then mount the radiator on the fan. That gives u a nice solid mount and a 38mm gap to the case. The lower part of the radiator u use a 120x25mm fan so there's a gap between case n fan for air to go in.

This post has been edited by ianho: Nov 4 2007, 10:37 AM


Attached thumbnail(s)

The problem with this setup would be the side panel could not close fully ..

Although this is what I did yesterday night .... hahaha ..

Would be searching for a 5cm hex bolt to mount the fan internally and still have the gap outside ..

the miss alignment of the rad vertically is by 8mm .. so it has to be mounted slightly away from the case .. to have the tube bent outwards to pass through the holes ...

anyway redo the tubes and rad mount ..

Ahhh. So much nicer now. After seeing ur pic with the mobo stand offs oni i understand about ur side panel cant close. It's hitting the rad on the chrome part right? Brilliant solution with the mobo stand offs.

This post has been edited by ianho: Nov 4 2007, 09:59 PM

hahaha actually it still can't closed properly but at least I could attach it on..

will be sourcing for better hexagon bolt with 5 cm of length ...so that I could bolt through the fan and reach out to the rad .....

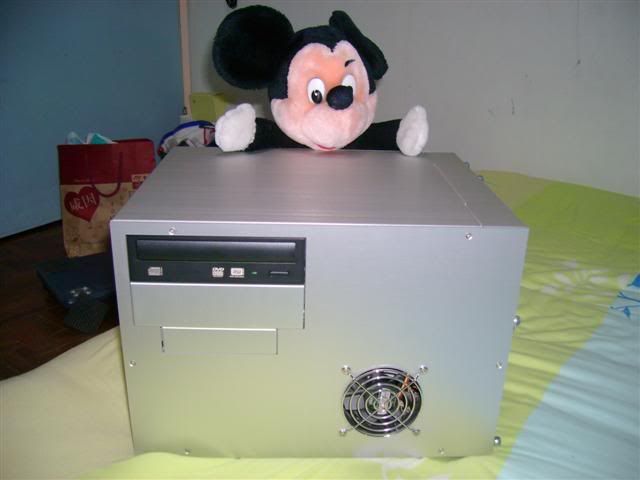

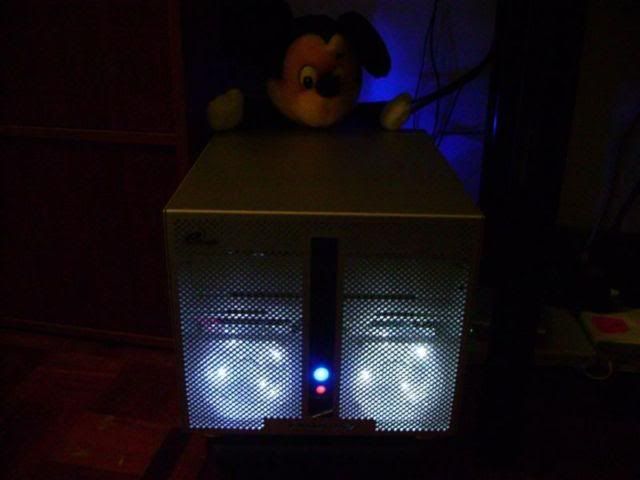

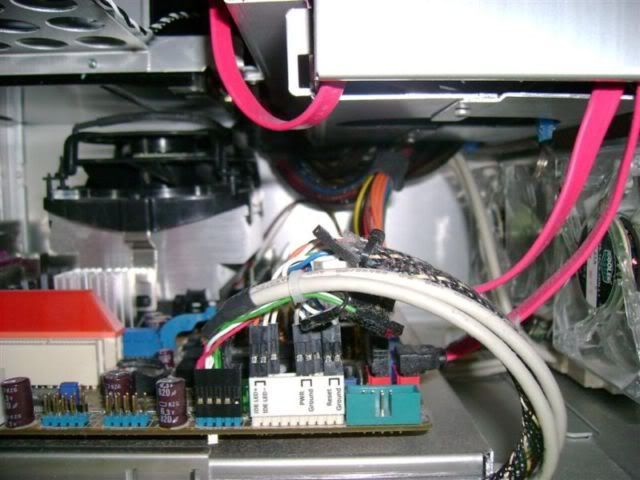

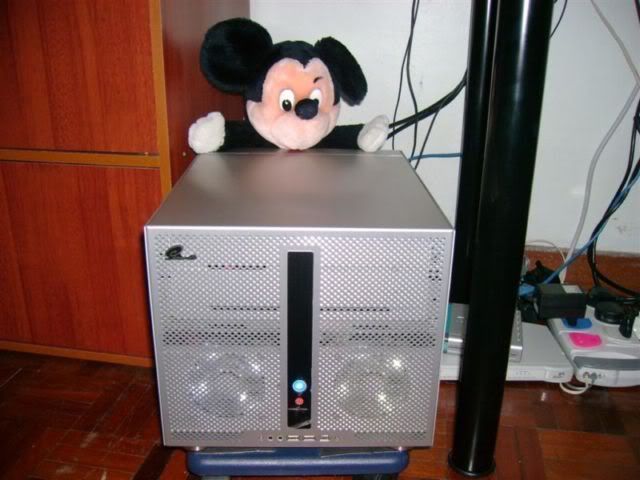

My cute LianLi V300. Have a look.. hehehe














Main System:
ASSUS M2A-VM HDMI| SamSumg 250GB Sata/8mb
AcePower 480W with Two Cooling Fans
AMD Athlon AM2 X2 4400| Mushkin DDR2 800X2
LianLi V300| Altec Lansing MX5021|
Razer Mantis Speed| Razer Krait


This post has been edited by yumiex: Nov 5 2007, 01:36 AM

what with the mickey mouse........... hehe........ btw nice to see v300 in action.......it has been awhile,

btw LittleLinnet , thx for the pic.......

****deleted****




This post has been edited by pokok86: Nov 5 2007, 11:53 PM

Took delivery of this casing last week , finally had some time to test and set up the water cooling


The Handsome guy there is Jason


Front


Some accessories I got


See Thru side panel


diferent tops


Other Accessories

Its still a mess now n its almost 4 in the morning..Yawwwwwwwwn, will post more updates prob in a seperate post

Thx to Irangan for taking the pix n Eddie frm ATE for bringing this in for me.

This post has been edited by cablesguy: Nov 6 2007, 03:32 AM

wow nice case bro..haha look like server can put more dvdrw..make "ahem" movie

Holy moly! That's a whole lot of stuff u bought there. Triple loop WC coming kar?

wah how many k u bought ?? so many things...........

nice casing........hehe must cost a bomb........

tripple rad, i think he can go quad rad also haha

walo bro, how much u pay just for the casing?

ready stock or need to order?

how long it took for the order to arrive?
