You may ask in this thread

https://forum.lowyat.net/topic/4209269

Nowhere near 24/7 n cant even survive hp32m. 3200 @ 16 17 17 1t is p95 stable. Its more or less hynix afr standarx, with, well, better compatibility with ryzen for being samsung. This is d 1st kit work at manual setting without much issue, even d 3466 rgb gave me some hiccups n have problem with 1t on this k7 board. If d timingcan be tightened up more its definitely a keeper...

This post has been edited by ah_khoo: Sep 25 2017, 01:45 PM

GTX 1080 Ti SLI 4K gaming performance

Ryzen 7 1700 vs Core i7-7700K vs Core i9-7900X



RAM used: DDR4-3200 16-18-18-38-2T (Ryzen: 1T)

Ashes bench particularly very lagging behind.. able to re-test Ashes using DX11 instead?

Anyone with C6H or C6E can tell me where to find AMD Cool’n’Quiet feature in the UEFI BIOS? On MSI mobos its labeled exactly as "AMD Cool’n’Quiet".

This is the nice test! Only you have the equipment to do it.

Any other benchies?

I see only BF1 that Ryzen has a lead.

is it only mahal board can oc ryzen to 4.0 above?

For some reason I think SLI is not working in AotSE @ DX12.
Maybe it's the same thing that we'll see in DX11, later I test once I am free.
Now kinda busy testing with Bitspower monoblock, 3466/3600 RAM stability, feedback to ROG R&D team etc.


AMD CBS > ZEN Common Options > Global C-States Control (= AMD Cool'n'Quiet)


Yeah, only in BF1 that the Ryzen is beating Intel.
These are the only gaming benchmarks that I managed to run against the other competing platforms.
The rests will be shared in my review.


Not necessary, but usually those high-end boards have higher quality of VRM (eg. Infeneon's International Rectifier IRXXXM) to deliver smoother power to the CPU for more stable OC.

From what I see those "X" SKU Ryzen CPUs generally overclock higher, require lower voltages, stronger IMC (for better RAM OC) etc.

You can see some B350 boards can also do 4GHz+ OC:
https://docs.google.com/spreadsheets/d/1Dbt...it#gid=87938175

This post has been edited by owikh84: Sep 29 2017, 08:29 PM

There are some affordable B350 motherboard that can do decent 4ghz OCs on Ryzens.

AMD CBS > ZEN Common Options > Global C-States Control (= AMD Cool'n'Quiet)

Bro under Global C-States Control there's a few c-states there right? Which are the ones I have to take note of?

For r3/r5 (4c8t) some affordable b350 boards still can take it albeit with limited no. Of phase of pwm (usually 4 phase for cpu is d highest for b350 unless ur talkin bout highest end of b350), provided ya chip is capable of reachin that magical no. In my oponion r5 (6c12t) n r7 are too much for b350 if ur gonna run it 4ghz for 24/7. Not healthy for d vrm to take this kinda load in long term.

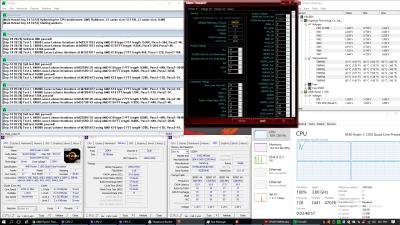

My highest attempt on b350 tomahawk with an r3:

https://forum.lowyat.net/index.php?act=Atta...post&id=9086360

This post has been edited by ah_khoo: Sep 29 2017, 12:44 PM

Not really, there are 3 options to choose from: Enabled/Disabled/Auto

Ahhhh! Okay got it, thanks! They should've just maintain the name that everyone knows

Your CPU and RAM overclocks resetted eh?

Yupe, just dismantled the monoblock and reset.
BTW bro, Ashes on DX11 doesn't support SLI and FPS eventually decreased:

GTX 1080 Ti SLI (DX12) @ PCIe x8/x8: 55 FPS
GTX 1080 Ti SLI (DX11) @ PCIe x8/x8: 46 FPS

GTX 1080 Ti (DX12) @ PCIe x16: 57 FPS
GTX 1080 Ti (DX11) @ PCIe x16: 45 FPS

Eh..looking at that, seems like SLI on DX12 didn't really give it any benefit as well?

GTX 1080 Ti SLI (DX12) @ PCIe x8/x8: 55 FPS
GTX 1080 Ti (DX12) @ PCIe x16: 57 FPS

Oh yeah LOL.. I must be very tired didn't notice this earlier haha.
Yupe, totally no benefit at all with SLI on Ryzen in this game.

Thats why the scores so lagging behind, it seems SLI not working with the Ryzen.. Holy crap wonder if this is documented known issue by the dev.

It could be NVIDIA's driver issue.
Like what I experienced on X299 with SLI being broken (GPU usage drops to 60-70%) with earlier NV driver.
Driver v385.41 fixed that issue and my game FPS is now back up normal (except for Far Cry Primal).

bidding farewell to d C die sticks... in case any upcomin Ryzen rig owner is keen...



This post has been edited by ah_khoo: Sep 30 2017, 12:33 AM

Nice kit that deserves a beautiful outfit.
Buy heatspreaders for it and keep it!

This post has been edited by owikh84: Sep 30 2017, 05:11 PM
