AMD Ryzen/ Threadripper OverClocking V1, Show off your OC results here!
|
|
 Sep 9 2017, 08:18 AM
Return to original view | Post
#1
|

Senior Member
588 posts Joined: Jan 2003 From: Penang | Puchong | Malacca
|
Just got my Ryzen 7 1700, C6H and Vengeance RGB 3466 (CMR16GX4M2C3466C16) on the 5th of Sept.
Have yet to tinker with overclocking the 1700, but got around to getting the RAM to run at rated speed and timings. Kit is Samsung B-die. All manually keyed-in inclusive of some sub-timings. Question to the sifus here, should I run at 3466 CL16 or dial it down to 3200 CL14 (tested working as well). Does the infinity fabric have a cap/ceiling? Read somewhere that it caps at 1600, which would suggest getting RAM to run above 3200 contributes nothing to the fabric? |
|
|
|
|
|
Sep 9 2017, 07:23 PM
Return to original view | Post
#2
|
|
Senior Member
588 posts Joined: Jan 2003 From: Penang | Puchong | Malacca
|
QUOTE(ah_khoo @ Sep 9 2017, 06:03 PM) Just use aida to test efficiency, d combination gives highest efficiency wins. Roger that. Will do a comparison and come back with results.  For CPU OC, better to do in UEFI bios or use Ryzen Master from within Windows? |
|
|
Sep 9 2017, 08:25 PM
Return to original view | Post
#3
|
|
Senior Member
588 posts Joined: Jan 2003 From: Penang | Puchong | Malacca
|
QUOTE(owikh84 @ Sep 9 2017, 08:07 PM) Ryzen Master is a useful tool to test your desired overclocked CPU frequency and find the best voltages for it, without repeatedly rebooting the PC. Noted will give it a try.. in your screenshot the cpu vcore voltage shows 0.27500 so using Asus TurboV we have to use offset mode only?Once you've found the suitable voltages for your OC and confirmed its stability, go into the UEFI and insert the settings permanently. btw, I am using ASUS's TurboV Core v1.01.15 instead of Ryzen Master. Download link: http://www.mediafire.com/file/bt551y72d718...C6HOCAK0302.zip Source: http://forum.hwbot.org/showthread.php?t=167530 [attachmentid=9121361] |
|
|
Sep 9 2017, 09:36 PM
Return to original view | Post
#4
|
|
Senior Member
588 posts Joined: Jan 2003 From: Penang | Puchong | Malacca
|
QUOTE(owikh84 @ Sep 9 2017, 09:24 PM) Can use manual vCore as well but for some reason with the current launch BIOS, the C6E has issue overclocking the Ryzen 7 1700 above 3.7GHz or vCore higher than 1.3V. CPU multiplier will stuck at 15.5x in the OS, inside UEFI it shows the correct OC though. My current workaround is to use offset vCore, then only multi above x37 will work in Windows. You would think if they've released a fix for C6H, considering how much similarities C6H and C6E are, they wouldn't need to reinvent the wheel to release a fixed bios for C6E as well within reasonable time frame.It's a known issue for many other Ryzen mobos from other vendors as well, some including the C6H already received a fix BIOS to overcome this bug. ASUS BIOS engineers are so slow this time that it has been two months the C6E still hasn't get any BIOS update yet since launch. [attachmentid=9121394] Related: https://rog.asus.com/forum/showthread.php Aside from cpu multiplier and vcore voltage (whether static/manual or offset) any other settings I need to look at? Initially I'm only looking to get a stable 3.85 or 3.9ghz oc. Less likely to be lucky again like I did with my previous 3770k (4.6ghz 1.195vcore daily use). |
|
|
Sep 11 2017, 11:23 PM
Return to original view | Post
#5
|
|
Senior Member
588 posts Joined: Jan 2003 From: Penang | Puchong | Malacca
|

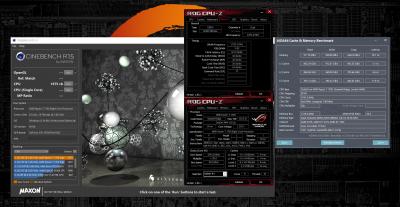

raydenex | Ryzen 7 1700 | 3.8 GHz @ 1.30 | Crosshair VI Hero | Stock Wraith Cooler
 Still too lazy to switch to my CM Nepton 240m.. Only changed multiplier to 38.00 and set vcore to manual 1.3000, didn't touch anything else. 74c during Cinebench run. Tried 39.00 and 38.50 without changing vcore, no juice. Attached thumbnail(s)
|
|
|
Sep 22 2017, 01:57 PM
Return to original view | Post
#6
|
|
Senior Member
588 posts Joined: Jan 2003 From: Penang | Puchong | Malacca
|
QUOTE(ultimatumheavenus @ Sep 22 2017, 01:43 PM) https://rog.asus.com/forum/showthread.php?9...osshair-VI-HERO First of all.. you following a guide made for Crosshair VI Hero motherboard whereas your own board is Strix B350. In most cases should still be fine tho, just that it would have been a little bit more wise to search for OC guides done on Strix B350..Whereas everything worked correctly b4, after follow that allegedly stable oc profile now cannot post. Is my mobo bricked ??ðŸ˜ðŸ˜ "USE THIS PROFILE AT YOUR OWN RISK, VERIFIED STABLE WITH P95, CPU BURNER AND MANY OTHER BENCHMARKING PROGRAMS- CURRENTLY A WATERCOOLED SYSTEM. WAS STABLE WITH GOOD AFTERMARKET AIR COOLER" Did you heed his warning? What cooler did you use? And finally, there are only TWO replies to that thread without any confirmation from anybody else if it worked for them. Can't say I see anything really alarming on his recommended settings, except for a shitload of things left on Auto. I prefer to manual set CPU core voltage (vcore). Wait for the experts to chime in on this. » Click to show Spoiler - click again to hide... « This post has been edited by raydenex: Sep 22 2017, 02:00 PM |
|
|
|
|
|
Sep 23 2017, 01:10 AM
Return to original view | Post
#7
|
|
Senior Member
588 posts Joined: Jan 2003 From: Penang | Puchong | Malacca
|
Apparently the cold boot issue on C6H has a fix also but they will only include it in the next BIOS version that will house AGESA 1007. Clearly not the recent BIOS 1602. C6E also has cold boot occurence?
|
|
|
Sep 23 2017, 01:21 PM
Return to original view | Post
#8
|
|
Senior Member
588 posts Joined: Jan 2003 From: Penang | Puchong | Malacca
|
Nice!
I got another kit of CMR16GX4M2C3466C16 and C6H does not appear to like 4 DRAM slots populated :/ 2666 CL 15 was highest I got it. |
|
|
Sep 24 2017, 03:21 PM
Return to original view | Post
#9
|
|
Senior Member
588 posts Joined: Jan 2003 From: Penang | Puchong | Malacca
|
holy crap.. its quite substantial once below 3200.. would your tests return you the same result if non-SLI 1080ti ?
|
|
|
Sep 25 2017, 12:00 AM
Return to original view | Post
#10
|
|
Senior Member
588 posts Joined: Jan 2003 From: Penang | Puchong | Malacca
|
QUOTE(ah_khoo @ Sep 24 2017, 11:03 PM) some oem sticks found in carousell... not bad, 2400rated samsung C-die doing 3333c16 like a champ haha [attachmentid=9168026] |
|
|
Sep 25 2017, 01:45 PM
Return to original view | Post
#11
|
|
Senior Member
588 posts Joined: Jan 2003 From: Penang | Puchong | Malacca
|
QUOTE(memoriany @ Sep 25 2017, 01:30 PM) anyone can help with a gaming desktop build? budget around 2.9k to 3k with gst.. prefer ryzen 5 You may ask in this thread  https://forum.lowyat.net/topic/4209269 |
|
|
Sep 27 2017, 04:03 PM
Return to original view | Post
#12
|
|
Senior Member
588 posts Joined: Jan 2003 From: Penang | Puchong | Malacca
|
Ashes bench particularly very lagging behind.. able to re-test Ashes using DX11 instead?
|
|
|
Sep 29 2017, 04:51 AM
Return to original view | Post
#13
|
|
Senior Member
588 posts Joined: Jan 2003 From: Penang | Puchong | Malacca
|
Anyone with C6H or C6E can tell me where to find AMD Cool’n’Quiet feature in the UEFI BIOS? On MSI mobos its labeled exactly as "AMD Cool’n’Quiet".
|
|
|
|
|
|
Sep 29 2017, 11:58 AM
Return to original view | Post
#14
|
|
Senior Member
588 posts Joined: Jan 2003 From: Penang | Puchong | Malacca
|
QUOTE(keyo @ Sep 29 2017, 08:34 AM) is it only mahal board can oc ryzen to 4.0 above? There are some affordable B350 motherboard that can do decent 4ghz OCs on Ryzens. |
|
|
Sep 29 2017, 11:59 AM
Return to original view | Post
#15
|
|
Senior Member
588 posts Joined: Jan 2003 From: Penang | Puchong | Malacca
|
AMD CBS > ZEN Common Options > Global C-States Control (= AMD Cool'n'Quiet)
Bro under Global C-States Control there's a few c-states there right? Which are the ones I have to take note of? |
|
|
Sep 29 2017, 07:17 PM
Return to original view | Post
#16
|
|
Senior Member
588 posts Joined: Jan 2003 From: Penang | Puchong | Malacca
|
QUOTE(owikh84 @ Sep 29 2017, 02:06 PM) Not really, there are 3 options to choose from: Enabled/Disabled/Auto Ahhhh! Okay got it, thanks! They should've just maintain the name that everyone knows [attachmentid=9186360]  Your CPU and RAM overclocks resetted eh? |
|
|
Sep 29 2017, 08:49 PM
Return to original view | Post
#17
|
|
Senior Member
588 posts Joined: Jan 2003 From: Penang | Puchong | Malacca
|
QUOTE(owikh84 @ Sep 29 2017, 08:33 PM) Yupe, just dismantled the monoblock and reset. Eh..looking at that, seems like SLI on DX12 didn't really give it any benefit as well? BTW bro, Ashes on DX11 doesn't support SLI and FPS eventually decreased: GTX 1080 Ti SLI (DX12) @ PCIe x8/x8: 55 FPS GTX 1080 Ti SLI (DX11) @ PCIe x8/x8: 46 FPS GTX 1080 Ti (DX12) @ PCIe x16: 57 FPS GTX 1080 Ti (DX11) @ PCIe x16: 45 FPS GTX 1080 Ti SLI (DX12) @ PCIe x8/x8: 55 FPS GTX 1080 Ti (DX12) @ PCIe x16: 57 FPS |
|
|
Sep 29 2017, 09:46 PM
Return to original view | Post
#18
|
|
Senior Member
588 posts Joined: Jan 2003 From: Penang | Puchong | Malacca
|
QUOTE(owikh84 @ Sep 29 2017, 09:16 PM) Oh yeah LOL.. I must be very tired didn't notice this earlier haha. Thats why the scores so lagging behind, it seems SLI not working with the Ryzen.. Holy crap wonder if this is documented known issue by the dev.Yupe, totally no benefit at all with SLI on Ryzen in this game.  |
|
|
Sep 30 2017, 02:37 PM
Return to original view | Post
#19
|
|
Senior Member
588 posts Joined: Jan 2003 From: Penang | Puchong | Malacca
|
Kevin will kasi feed 1.9v one shot
  |
|
|
Oct 2 2017, 03:28 PM
Return to original view | Post
#20
|
|
Senior Member
588 posts Joined: Jan 2003 From: Penang | Puchong | Malacca
|
Check out this new video from Mindblank and his benchmarks;
http://www.youtube.com/watch?v=S6yp7Pi39Z8 This post has been edited by raydenex: Oct 2 2017, 03:29 PM |
|
