is it possible to install netflix app and watch via hypptv box?

Anyone got Orbi Router and able to use the Tv box provided by unifi? I tried setting vlan rules in the router page for iptv VLAN ID : 600 and priority : 5 but the tvbox ain't working.

Any help would be appreciated

now still can connect unifi tv box to router via wifi? using ac68u merlin firmware

Out of curiosity, I setup a spare D-Link DIR-850L as VLAN 600 AP, connected to router's Port 4, unplugged network cable from the STB, and connect the STB's Wifi to the D-Link. It works, but some channels were sometimes lagging, some other channels were lagging alot, and changing channels took longer time.

The D-Link were inside store room below stairs, and the STB is in living room. Wifi strength at the STB around -55 dbm, so Wifi strength actually quite decent. Maybe a stronger AP works better. Maybe someone can lend me a spare C1200 I can try?

Wired setup still better. My typical setup is a single CAT 5E cable from store room to living room, carrying both Internet & HyppTV signal to STB / living room AP, via VLAN trunk.

This post has been edited by taqu: Dec 23 2019, 08:30 AM

Does the Orbi have IGMP version setting? If yes, select version 3.

I had the same problem with a Mikrotik AP. Mine was solved by turning on multicast-helper. For Mikrotik anyway, multicast will transmit at the slowest rate of the AP so I was getting pixelation, lags and other stuff associated with a slow transmit rate. multicast-helper on the Mikrotik changes the multicast MAC address to the MAC address of the device enabling the AP to transmit at higher rates.

If the DLink doesn't have such a feature, try setting the AP to N only.

Yes it does, I think "Enable IPV4 Multicast", and setup to N only. But still lags on some channels. Maybe TP-Link C1200 with better Wifi performance will fare better. Maybe I need to try out on my C1200 too

This post has been edited by taqu: Dec 23 2019, 02:01 PM

I've figured it out
For Netis DL4480V

1. Click WLAN at the main horizontal green bar. Choose Basic Setting for 2.4GHz. In the "Mode" line, click "Multiple AP".
2. Enable AP1. Type a custom SSID. Apply changes.
3. Choose Security under 2.4GHz. Dropdown list, click on your custom new SSID. I chose WPA2 + PSK. Apply changes.
4. Now go to Setup at the main horizontal green bar. Choose Ethernet WAN. Click on Edit for the INTERNET Service Type.
5. Scroll down to Port Mapping. Disable Guest_1. This is your new SSID. Apply changes.
6. Now click on Edit for the IPTV Service Type. Scroll down to Port Mapping. Enable Guest_1. Apply changes.
7. Connect your Set Top Box to your new SSID.
8. ???
9. Profit!

This post has been edited by chron3z: May 21 2020, 02:38 AM

Hows ur iptv thri wifi?
Any lagging or stutters on sd or hd channels?

not stable if the signal dropped have to restart the box

stable 98% of the time
i placed my STB downstairs plugged to main tv
unifi router upstairs

Hi Dear Sifu here,

Need some help on my Hypptv Setup:

I am planning to Setup my HyppTV this way but i am not sure it work or not or how can i make it better, need some suggestion please.

My plan is from 1st Floor TM Alcatel Modem --> Asus RT86u Wireless Router --> Aztech Power Line In --> Ground Floor Aztech Power Line Out --> TP Link LS1005G 5 Port Switch --> One LAN Port connect to HyppTV and One LAN port connect to Tanix 6 Android TV Box.

From my Asus Router, can i plug in LAN Port 4 which is for HyppTV and then into Aztech PowerLine to go down to Ground Floor TP Link Switch before connecting HyppTV Set Top Box and my Tanix 6 Android Box, will Asus LAN Port 4 got a bandwidth Cap?

Currently I use Asus RT86u LAN Port 1 into Aztech Powerline and i can get 120Mps from Ground Floor Aztech Powerline out, was thinking this bandwidth is enough to share through a TP Link switch for both HyppTV and the Tanix 6 Android Box.

Dear Sifu here, can you share your experience will my plan work or is there any better way or any suggestion i can make it work out easier?

Thanks before hand

Both Asus LAN1 (internet) and Asus LAN4 (HyppTV) connecting to the same pair of HomePlugs won't work.

The internet and the HyppTV needs to be separated.

Either physically, 2 cables or 2 pairs of Homeplugs or virtually, using VLANs.


Something like this. The red line can be 2 cables or 2 pairs of Homeplugs if not using VLANs. If using VLANs, it can be one cable or one pair of Homeplugs. Red line can also be wifi. With VLANs, you'll need equipment which can do VLANs.

Appreciate the sharing and explanation Soon Wai, if i were ti use VLAN setup, how should i do it? I am currently using Asus RT-86U running Merlin 384.12 Firmware, which i think support VLAN setup right? Where can i configure the setting and how should i setup the Vlan so that i can go as my plan by running 1 Power Line Adapter can carry both Internet and HyppTV connection to the TP Link switch downstairs and split up the connection one to HyppTv and the Internet to the Tanix 6 Android Box.

I am really new to Vlan setup, please help me out, thank you before hand Sifu

You need 2 VLAN-capable switches at both sides of your Powerline, 1 to trunk both VLAN after router, another before your TV box/STB. TP-Link TL-SG105E & SG108E is what I use at my home.

Not sure you can trunk directly from your Asus, even with Merlin.

Hi, can I just use power line homeplug and connect my hyppe TV box?
Will it works?

Yes. you can do that. I have try with TPlink home plug. However, still lagging. And now both can't pair if too far away.

HI Guys, I'm change my unifi router.
Old router is TGG212M (come with Unifi). Im able to setup the wifi connection for hyppTv.
New router is D-Link DIR1360. This router can't setting the VLAN 600 through Wifi. VLAN600 is on LAN 4.

I'm use TGG212M as access point to transit the iptv signal through wifi.

Mean DIR1360 LAN 4 connect to TGG212M LAN 4.
and do the bridging in TGG212M and create a SSID. Im able to connect hypptv to TGG212M however, the signal is not good.
If anyone does it before. Please share some setting.

Hi,

Can anyone help me..

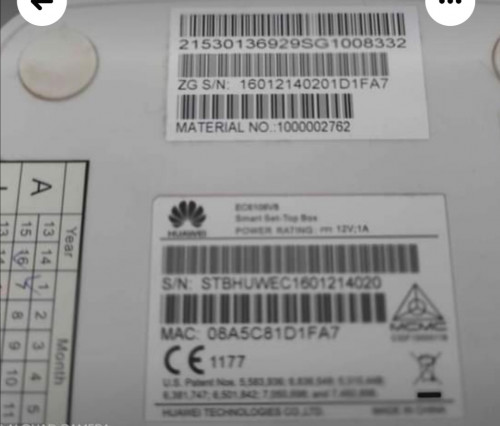

I have been watching unifitv on my phone since I was not provided with unifi set top box by TM. I was a streamyx user and got converted to unifi for free 2 years ago. I was thinking of buying a used hypptv box(as per the attached pix) online and wondering if I can use my id and password to log in to the unifitv via the hypptv box. Will there be any issue?

https://pictr.com/images/2021/01/25/7cM0AZ.md.jpg

https://pictr.com/images/2021/01/25/7cM5qJ.md.jpg

let us know what is ur subscribe package

chk at ur unifi portal
