 Folding Bicycles v4 - Not only Folding Bikes, Folding bicycle discussion

views

etigge
post Jun 29 2015, 12:36 PM

Getting Started
**
Junior Member
295 posts

Joined: Oct 2009


QUOTE(PaulKong @ Jun 29 2015, 10:42 AM)
That means if I'm changing the wheelset, I need to change the gear cassette, shifter and fd too? Wow, that's total upgrade already 😅😅😅
*
No, you can keep the FD on hold first. You need to get the shifters which comes in a pair, both L + R. So , you just use the right hand side first and keep the L for later upgrade for the FD. I suggest going for 9 speed first. So, Accera RD , 9 speed cassette, Accera 9 speed shifters, a set of cable and housing, 9 speed chain and the wheelset off course. That's about RM400 and add another RM350 for the wheelset, it's RM750.
etigge
post Jun 29 2015, 06:23 PM

Getting Started
**
Junior Member
295 posts

Joined: Oct 2009


QUOTE(PaulKong @ Jun 29 2015, 06:18 PM)
I've visited kimbell jaya just now. Finding out more on the wheelset and gear component and shifter. Just learned that my bike are unable to fit in a 451 wheelset.
Anyway, I think I'll put it on hold first. Bike is still new and I think better get use to the bike and learn more before I plunge into the upgrade.
*
Can be done. Maybe they never did it before. You need to change the V-brakes to C-brakes (road bike brakes). Also needs some slight mods regarding the brake mountings. Either that or get the V-brake extensions which ironically Jimmy has stock. doh.gif
etigge
post Jul 1 2015, 10:34 AM

Getting Started
**
Junior Member
295 posts

Joined: Oct 2009


QUOTE(PaulKong @ Jul 1 2015, 12:50 AM)
I like to find out how's the original wheelset, gear cassette (8 speed), rd, and the shifter for dahon speed P8?
Does it ride/shift any better than original dahon vybe D7 (dahon route).
Is it worth to buy 2nd hand all the parts to upgrade?
Hope all sifu able to enlightened me. Thank you
*
For folding bikes, most if not all try to minimize their selling price by cutting cost on the OEM components. Needless to say, most are already made in China. As for your question, YES, it does make a difference but quite minimal. The hubs and of your Route is the basic cone bearings and uses hubs with freewheel on the cogs. These kind tends to wobble a bit and at times gear shifting are not crisp. That's why they can only go to 7 speed and there are 8 speed cogs, that's the maximum I have seen. Because the tolerance level of the 8,9,10 and now 11 speed are so minimal, these old freewheel at the cogs system can't be used. That's why the cassette type was invented. SO, in other words, the cassette type hubs performs way better than the old system in terms of gear shifting. Your basic rims are single walled, they are light but not strong and after a few hard knocks , the alignments goes out of line and it wobbles. The Speed P8 uses double walled rims, hence, they are better and as they keep their shaped better, they rolls better.

Riders are lucky now as the after market components are getting cheaper and easier to get. 3 years ago, you need to order online just to get some parts and those days, to change a wheelset will set you thousands. The price was higher than the bike itself! rclxub.gif

I know, it's hard to justify changing to better components so, just consider carefully your interest in the activity. Will you use it a lot? If not, stay with the present and if you want to mod, go all out ( at least till the major improvements), don't just change a few minor items and this doesn't affect the riding comfort at all. One thing I do notice is, if you don't upgrade, the money seems to flow in other direction and you still spend it and if you did, the major improvements will be there year after year. thumbup.gif
etigge
post Jul 3 2015, 03:07 AM

Getting Started
**
Junior Member
295 posts

Joined: Oct 2009


QUOTE(fcuk90 @ Jul 3 2015, 12:34 AM)
2k rmb fnhon 9speed with sora parts.

Worth to ship back?
*
Depends on which model. Sora groupset is not expensive. Furthermore, the most expensive component of the road bike group set is the brifters (shifter and brake levers) and most probably the said Sora don't use one. You can easily get a Dahon Route or a Dahon Boardwalk and change to 9 speed with the same amount of money used to ship one in. In fact some components could be better and another few hundred can get 18 speed already. How much is the shipping charges anyway?

Once I wanted to order the Dahon Cheetah (same as Dash) frame and they quoted RM400 just to ship in. rclxub.gif
etigge
post Jul 3 2015, 11:33 AM

Getting Started
**
Junior Member
295 posts

Joined: Oct 2009


QUOTE(PaulKong @ Jul 3 2015, 11:03 AM)
Hi all,

Just a noob question. Why dahon route brake lever are opposite side? I mean right lever are supposed to brake front brakes, right? Mine is on the left....
*
You can change sides if you so wish. Some wants it the other way some wants it as what the shifters are. Right shifters shifts the back gears and so does the brakes and same goes with the left shifters for front gears and also the brakes. Once you get used to it, make sure you stick to the same side because in my case, I use the rear brakes more. Rear brakes to slow down and front brakes to stop. Before stopping you have to slow down. Too much front brakes or only front brakes will bring your tail up and your head down onto the tarmac! rclxub.gif Also when you brake front and it skids........... nothing you can do to correct it and you will fall and if rear wheels skids, you can still control.

As a guide , usually the right is for the rear brakes. icon_rolleyes.gif
etigge
post Jul 5 2015, 12:26 PM

Getting Started
**
Junior Member
295 posts

Joined: Oct 2009


QUOTE(Jay Chua CC @ Jul 5 2015, 10:31 AM)
guys, is it normal for the tyre pressure to drop from 85 psi to 60+ psi within a week? Just left there no usage in betweeen.
*
There are 2 types of inner tubes and one of them are made of butyl rubber and the other .............well, normal lah. Butyl rubber is synthetic but it non air permeable or lesser. So this inner can last longer but also it's more expensive. Then at times, I see those bicycle shops sells normal price regardless whether it's butyl or not. As a guide, buy inner tubes that are in a box and branded. tongue.gif Usually ranging from RM12 to RM18 per piece. I also noted that presta heads seems to last longer after filling.

This post has been edited by etigge: Jul 5 2015, 12:27 PM
etigge
post Jul 5 2015, 04:06 PM

Getting Started
**
Junior Member
295 posts

Joined: Oct 2009


QUOTE(PaulKong @ Jul 5 2015, 03:05 PM)
Etigge,
I've look through your post and you mentioned you have dahon dash D18. Can I know how different is it compare to dahon vybe or speed?
I've look through the Web and it seems to be bigger frame bike but with 20" and it says it goes faster.
Can you do a review on it. Thanks
*
The Dahon Dash P18 is actually a foldable mini velo, mini velo means 'mini racing bike'. From the description you know it means a faster bike than the usual foldies. The Dahon Dash is quite peculiar when it was sold here because they were shodded with a broader tires than most mini velos. But most of the users usually changed to thinner tires to minimize rolling resistance and to maximize speed. Another advantage of the Dash is the conventional triangle frame which is stronger than the dolphin design or the one toptube design. So the strength of the frame gives a better ride.

In this case, the main criteria for the Dash is the speed and stability of a folding bike. The fold although cannot fold more compactly than the usual folding bike is also quite useful for carrying in the car boot. It's mainly for those who desire conventional frame geometry and speed but with the convenience of folding. If compactness is ultimate, then the Dash is not suitable. There is a few Dahon Dash users who can actually tail usual road bikers in Kesas. Actually they want to 'kacau' them. More accurately they use another version of Dash (non folding type) tongue.gif

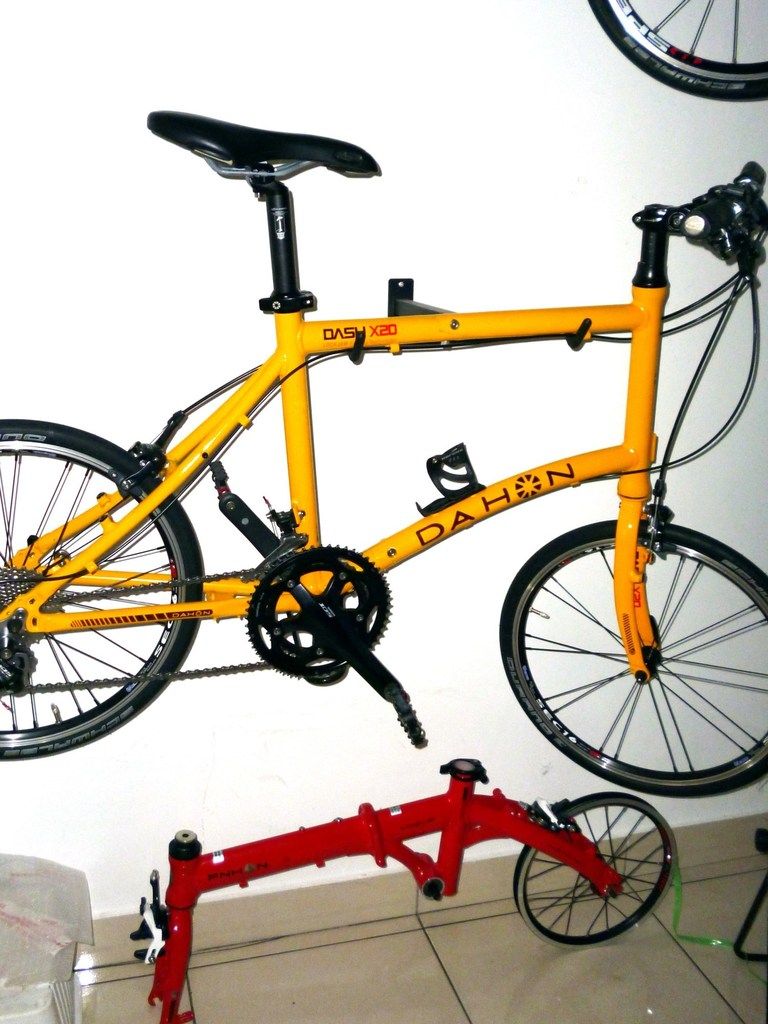

Mine was actually a 2013 Dahon Dash P18 (the white with blue stripes). Originally 'Made in Taiwan' version. I was trying to sell it when I wanted to buy a mountain bike but I modded it to 20 speed and users won't pay 3K to 4K for a used bike. So I went further and modded it to Dahon Dash X20. But nowadays it is just hanging on the wall, hahahaa tongue.gif Seldom use. Here's the picture of mine.

user posted image
etigge
post Jul 5 2015, 11:37 PM

Getting Started
**
Junior Member
295 posts

Joined: Oct 2009


QUOTE(PaulKong @ Jul 5 2015, 11:04 PM)
Etigge, your Dahon dash really caught my attention, really one of the kind. I don't think you would let go of you bike for anything less than a new bike price, would you? Hahaha.
Anyway, I read that there's two size for the frame which is M for height 5'2" to 5'5" and size L for 5'6" to 6'2". Is it correct?
The new dash seems to come with disc brake already. I wonder how good is it.
*
I am using the 'L' size although the 'M' suits me better. Anyway , it's still OK. The latest Dash that are coming has reverted to V-brakes again. Many dis-approved of the disc brakes. Anyway, for 406 or 451 front wheels, it's better to have hubs that are 73mm width to strengthen the spokes angle and this cannot be acheived with disc brakes as with disc brakes the minimum width has to be 100mm. That off course can be aountered with more spokes.

"new bike price?" tongue.gif The Dahon Dash X20 cost S$2200 when it was sold but has been discontinued already. Even that uses 406 rims but the new Dash 2015 is 451 already. New price for Malaysian Dash is 2.8K already.
etigge
post Jul 6 2015, 09:36 AM

Getting Started
**
Junior Member
295 posts

Joined: Oct 2009


QUOTE(SSY22 @ Jul 6 2015, 01:39 AM)
Hi, i new in folding bike. I need a bike for work and also travel. Comfortable to ride in long time, easy to fold and carry.

My budget is around 1.5k-2k. I've read a lot of posts and Sir etigge is quite knowledgable here.

I'm eyeing on Tern/Dahon. Need advice.

I think my budget falls on Dahon Speed D8, Dahon Boardwalk D7, MU D8, VITESSE D8, Tern Link B7, Link D8. Mind to tell the differences?

Thanks !
*
Basically all that you mentioned falls under the same category. Boardwalk, Speed are chromoly steel, an alloy of a few metals which makes the frame lighter with smaller and thinner tubes. Also the shock absorbing properties of the alloy makes riding comfortable. Drawback is it needs proper care. It doesn't rust easily but it will if not taken care. The rest are aluminium which is harsher when riding as it is very rigid. Some designs are bulky due to the thickness and bigger size needed for strength.

The Boardwalk is already D8 locally unless you see the Akibo ( The japanese local market Boardwalk which is maroon colour). The MU, Tern Links are dolphin design, the most copied designs for folding bikes. The Speed is a classic workhorse. Actually very nice to ride long distance. Dahon even made a model tourer with the frame. I think whichever model you choose is quality assured. Except that , just like I mentioned again and again, the higher price does not justify the performance as it is basically just the same as the other Dahons. Also there are many Dahon patented technology that Terns are not allowed to use, like Dahons folding handle post, Dahons folding hinges.

Folded size is almost the same but the Terns folds slightly bulkier. I think you should go for either the Dahon Speed or the Dahon MU. It's just a matter of which frame metal. Why don't you visit Kimbell Jaya in Bdr. Hussein Onn adn ask Jimmy to put both bikes on a trainer and ride and see. Maybe you can ride around beside the shop if there are no cars parked there. That's the sure way of choosing which you liked as you have shortlisted most of the same catergory. icon_rolleyes.gif
etigge
post Jul 6 2015, 08:04 PM

Getting Started
**
Junior Member
295 posts

Joined: Oct 2009


QUOTE(SSY22 @ Jul 6 2015, 12:01 PM)
Thanks you. It is really helpful.

How to differentiate the frame materials?

Dalloy Sonus Tubeset = Hi-Ten Steel?

What do you think about Dahon Vitesse D8?
*
Regardless of which frame materials you choose, our riding doesn't demand the or rather we won't notice the speciality of it. That's because we will never, as recreational riders ever max out the use. So, I don't see any worries over which materials choosen. Dalloy is just some fancy mancy name for butted aluminum. Yes maybe, some different properties which we can't dispute as Dr.Hon WAS an aerospace engineer before. But it is still butted aluminium where the ends are thicker for stronger welding. Other bike manufacturers also uses butted tubes and many others also hydroformed them into special shapes for extra rigidity. Sonus tubing is supposed to be oversized tubes for stronger frame but anything oversize will have increase in strength , doesn't it? tongue.gif Hi-Ten steel in Dahon terms maybe means their 4130 chromoly. Other types of chromoly are Reynolds 530 which is more popular and also Raleigh have their 501 tubing which is also chrome-moly. Like I mentioned before, we won't max out the capability of the bikes so I prefer to choose the aesthetical properties of the mentioned bikes.

But as a consideration, I will explain why I sold the Vigor in favour of keeping my Speed . The Dahon Speed rides very quiet and not so bumpy over gravel roads. Then I got the Dahon Vigor when it was launched! I like the design but upon riding, I find it too light because the usage of the said Dalloy aluminum. Because of this, the bike rides harsher and also the rear jumps higher over bumps making riding really uncomfortable. To be fair, I changed the original Schwalbe Big Apple for Schwalbe Marathon Supreme and even with smaller width tires, the ride is better than the Vigor. Also because of the strength of Dalloy, the tubes are thinner in nature and this creates a 'clack, clack clack' sound when the bike flexes. It's similar to carbon fibre bikes. Too irritating for my preference. I like my bike to be super silenced. Only the rear hubs which I usually add grease to mute it out also, is heard. icon_rolleyes.gif

As for Vitesse or also known as Formula in US, I can't comment. Never tried it before. I never like the extra bracing on the top tube welded to the seat tube. tongue.gif

This post has been edited by etigge: Jul 6 2015, 08:07 PM
etigge
post Jul 6 2015, 08:10 PM

Getting Started
**
Junior Member
295 posts

Joined: Oct 2009


QUOTE(dieoledi @ Jul 6 2015, 02:18 PM)
Hi all,

do anyone know where can i get 1 of this ring?
*
Are those for lights? Why don't you just use regular O-rings of the same size. Can be found on most hardware shops. Only don't have an elongated part to pull that's all. icon_rolleyes.gif
etigge
post Jul 6 2015, 11:11 PM

Getting Started
**
Junior Member
295 posts

Joined: Oct 2009


QUOTE(PaulKong @ Jul 6 2015, 09:45 PM)
Just called jimmy of kimbell jaya... Dahon Dash year 2015 are not out yet.. Lots of booking.... Price will depend on the currency exchange.
*
If taking currency exchange into account, then the selling price will be over 3K, my guess. Before this the estimated price was RM2899 already. From what I heard, the container has already landed on our shores months ago but there's some misunderstanding on the description on invoice.
etigge
post Jul 7 2015, 12:27 AM

Getting Started
**
Junior Member
295 posts

Joined: Oct 2009


QUOTE(dieoledi @ Jul 7 2015, 12:11 AM)
the part is the most important thing, because after ride i normally take out the light, if don't have the pull part is a bit trouble. Thanks for the advice.
*
Garmin GPS holders are also fixed onto handlebars the same way and their rubbers are also without the handle section and it works just fine. No problems. They are stretchable anyway, I don't think it is hard to take off or put on.
etigge
post Jul 7 2015, 09:58 AM

Getting Started
**
Junior Member
295 posts

Joined: Oct 2009


QUOTE(PaulKong @ Jul 7 2015, 09:00 AM)
Hi...
This dahon have rear suspension but I can't find it in dahon website. Anyone knows this model?
*
This is a China made unit, at least that's my guess. Only brought in by GS Bikes in Kota Kemuning. Careful of Gary though, he's not very honest. Dealt with him once and he sold me a faulty product which he did not want to replace. Also a fellow rider bought a Dorcus mini velo from him and he didn't do the final inspection and the left side crank came off when she did the first ride. Most of these importers ordered their products from Taobao.

Here's the link. Only Renmibi 1600. How much is he selling?

http://item.taobao.com/item.htm?spm=a230r....bucket=8#detail
etigge
post Jul 8 2015, 09:21 AM

Getting Started
**
Junior Member
295 posts

Joined: Oct 2009


QUOTE(frankie chin @ Jul 7 2015, 11:36 PM)
Sifu Etigge....i do get d clack clack sound on my mu d8 but not my vybe c7a....but does tern bikes do hv such issue?
N also feels  quite bumpy( but not sure if its due to i pump to much air anot) when going tru those uneven roads.....but as i seldom ride my bike so its ok w me la....
*
There are a few reasons or it can be a few of the reasons mentioned below.

01. Loose seat post clamp 02. Loose saddle mounting 03. Cranks not tightened enough 04. There's a kink in the chain ( but this can be isolated easily) 05. Plainly like I described, it's the Dalloy. Thinner aluminum which flexes.

For reason no.5, you can do much about it. As for tire pressure wise, check the range on the tire sidewalls. Usually about 20% to 25% less than the maximum stated should be fine. But it also depends on your weight though. If your weight is average , 50 to 75 kilos, then the mentioned pressure is OK. If you are overweight , like I am, I usually go maximum. tongue.gif
etigge
post Jul 9 2015, 06:48 PM

Getting Started
**
Junior Member
295 posts

Joined: Oct 2009


QUOTE(zeliustitan @ Jul 9 2015, 03:02 PM)
[attachmentid=4572815]
touring and camping  whistling.gif  whistling.gif  whistling.gif
*
Wah! this guy even carry an electric fan for bike camping! rclxub.gif
etigge
post Jul 12 2015, 02:17 PM

Getting Started
**
Junior Member
295 posts

Joined: Oct 2009


QUOTE(mkaz @ Jul 12 2015, 01:21 PM)
where can i get dahon bikes other than in usjcycles ??
*
tongue.gif tongue.gif You mentioned the worst commented bike shop ! Actually Dahon has many dealers. GW Cycle in Kota Kemuning, My Bike Shop in Bandar Utama (although this shop prefers to sell Terns) , Tat Seng in Taman Anggerik, Cheras, TBFS in Sungei Way, Joo Ngan Son in Uptown, Samy near Batu Caves and many many more. But please do check with Kimbell Jaya in Bdr Tun Hussein Onn as the last place to visit. Then you can compare if Kimbell Jaya is the cheapest.

Did you actually check with other bike shops? rclxub.gif
etigge
post Jul 14 2015, 09:46 AM

Getting Started
**
Junior Member
295 posts

Joined: Oct 2009


QUOTE(lawliet88 @ Jul 13 2015, 11:18 PM)
hi guys. total newbie here  thumbup.gif
can recommend me fold bike for purpose of ride to work and casual cycling lol. am checking dahon and tern catalog now.
im @ 183+cm n skinny weight  sweat.gif

btw any bike shops to recommend within cheras area? I found Tak Seng & Swee Fong company from the link at #2 post. Rodalink branch seem abit far

thanks  notworthy.gif
*
Tat seng is the most exspensive bike shop in Klang Valley. MBS also kalah! rclxub.gif You are so near to Kimbell Jaya. It's near the Cheras Saga Highway. 10th mile just before the second toll. Junction to Bdr Mahkota and Bdr Tun Hussein Onn. Take the right turn to Cheras Perdana after just opposite the Petron petrol Station (along the row of shops lah, not directly opposite)
etigge
post Jul 14 2015, 03:54 PM

Getting Started
**
Junior Member
295 posts

Joined: Oct 2009


QUOTE(edmundcwh @ Jul 14 2015, 02:26 PM)
Hi all, I wanted to ask is there any significant pedaling effort for a folding bike with 22" wheel compared to 20"?

I'm currently riding a 20" bike with single chainring but my gf leg not so powderful la when going uphill. So was considering whether to change a bike with 2x chainring or with larger wheel for her. Changing gf of cos is also out of the question  laugh.gif

We are riding entry level bikes so I'm not considering to upgrade her bike parts.
*
If the rims were shodded with the same tires, I say the difference is minimal. for 22inch or 451 , the tire choice is limited to thinner tires only, the widest is 1.3 inch. the wider the tires, the more resistance, meaning it needs more effort to pedal, especially uphill. But on the other side of the coin, smaller diameter makes pedaling easier. So, there are pros and cons. So this means it is actually easier to pedal a 20 inch foldie than a 22 inch unit. Why don't you change the existing tires with smaller width tires, like the Kenda Kontender. It will ease the pedaling but it will be bumpy as narrower tires needs more air pressure and will be hard on your bump.

Changing to bigger rims makes pedaling harder, Adding another chainring will definitely help. This will add more lower gears, thus making pedaling much easier BUT it will be slower. Riding uphill needs practice and you need to build your stamina over time. You did not mention what kind of bike nor what size the front chain ring is. It will be easier to suggest if you did. Check the number of teeths your chainring have, if it has 53 or 52, you can change to 48 teeth unit and this might help.

Summary tongue.gif

smaller diameter rims easier to pedal than bigger
narrower tire width easier to pedal but harsh ride because high pressure
the more gears you have, gets more choice on ratios, more lower gears means each gear drop, gets easier and easier to pedal but slower speed.

This post has been edited by etigge: Jul 14 2015, 03:55 PM
etigge
post Jul 14 2015, 07:15 PM

Getting Started
**
Junior Member
295 posts

Joined: Oct 2009


QUOTE(edmundcwh @ Jul 14 2015, 05:29 PM)
The wheels are (20"x1 3/8) is 451 right? The chainring is 52T with 7 speed cog. I'm fine with the setup but my gf kaki lembik a bit so was considering on her bicycle.

I have thought of upgrading her bike to 2x chainring, but with the additional new chainring+FD+shifter it may already cost a few hundred $ so might as well to consider a new bicycle. It is a basic folding bike and cost about RM400+ a bike. The reason we bought it, is in case she might lose interest in cycling but seems like she haven't faded yet so i guess is good news la. For almost a year of cycling, we have packed our foldies in car and went cycling at different states but we try to choose places with less hilly area.

I thought that bigger wheels = better efficiency to cycle since a stroke of pedal will turn the wheel further compared to smaller wheel. That is why i was curious about the difference in wheel diameter. If smaller wheel is easier to cycle, a 16" will be more suitable? Will she look like a hamster pedaling uphill? On flat road with current bike she can maintain around 15+kph comfortably and I observed that she was usually using the 5th gear (3rd ring from the smallest cog) at this speed.

That is why i was curious about the difference in wheel diameter and which one is the better alternative to consider for choosing a new bike for her.  biggrin.gif
*
Many are quite wrong about smaller wheeled bikes. Every size is compensated by gearings in limited situations. A 20 inch folding bike can be ridden 18/20kmh cruising easily( for us I mean). A Brompton is a 16 inch bike and so are many more. It all comes to gearings. As I mentioned earlier,the smaller the wheel,the easier to pedal but not necessary faster, just pedaling effort s lighter. I think it is not worthy to add another RM400 to add another chainring but consolation though is the better added components can be transferred to the new bike if you changed bike later. I doubt she can be pedaling like hamster when going uphill,that means she is strong. Furthermore, one can go higher gear if pedaling is too light.

Bigger wheels does not equal to better efficiency. You need energy to turn them. Every inch the tires grips the terrain, there will be friction. That's why road bikes uses the narrowest tires for less resistance and the bigger diameter for more distance per turn of the crank. But this needs energy just like a smaller wheels. If you see mountain bikes, their cranks goes to 44 teeth only as opposed to road bike's 53 teeth ,because mountain bike tires are wide and resistance is high. Off course in a race, speed is required but you also need to be able to finish the race. To tackle over rough terrains, you need many low gears and that's why mtb have the widest range.

15km/h is not that hard actually. I think just change to 1.5 inch tires or 1.3 tires like Kojak and if that still dn't help, change to 48 teeth cranks. That will make pedaling much easier but you will have to be slower to accompany her.
