on the way short form.

Not sure, from the original post it is something name go187 keyboard, available in korea only i think.

Sorry, pictures not good.

No ah, this one not mine haha. I just help to assemble, others might have extra to let go .
GHpad after gb price increased a little, 150rmb for pcb iinm. Acrylic case still 70rmb i think.

LightSaver v2

TKL Acrylic Case, with transparent yellow plate & layer.

Quickfire TK is non standard layout for the bottom row, due to 6.5x spacebar; which is very hard to source, except from maxkeyboard. But the keycaps from them are still same or lower quality with laser printing or surface coating iinm.
TK layout is actually very nice if ppl use numpad alot.
LightSaver allow user to customize to their preferred layout that is possible on the pcb, with standard layout and easier to source for keycaps replacement.

This post has been edited by hmwgbworld: Apr 27 2014, 05:55 PM

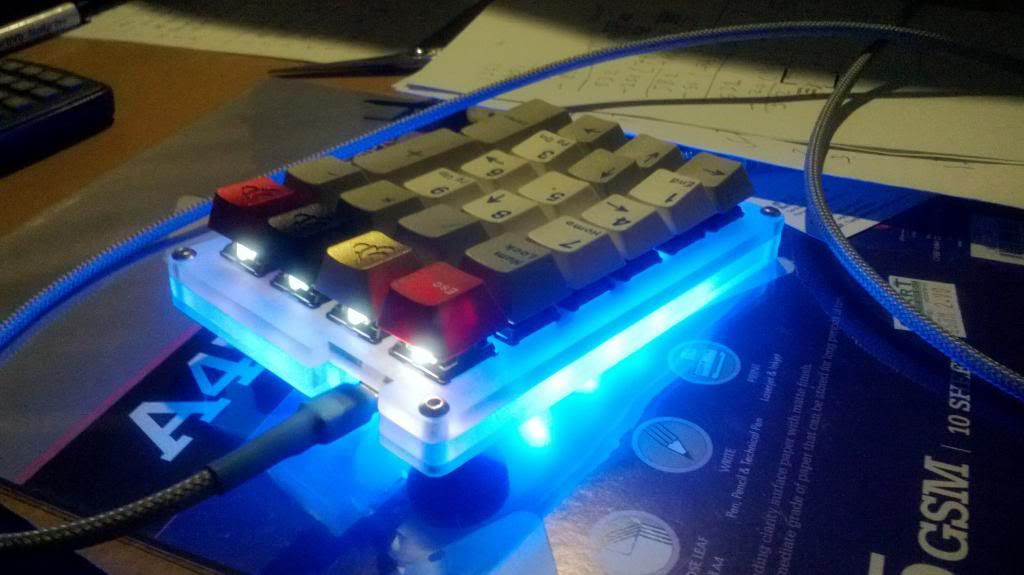

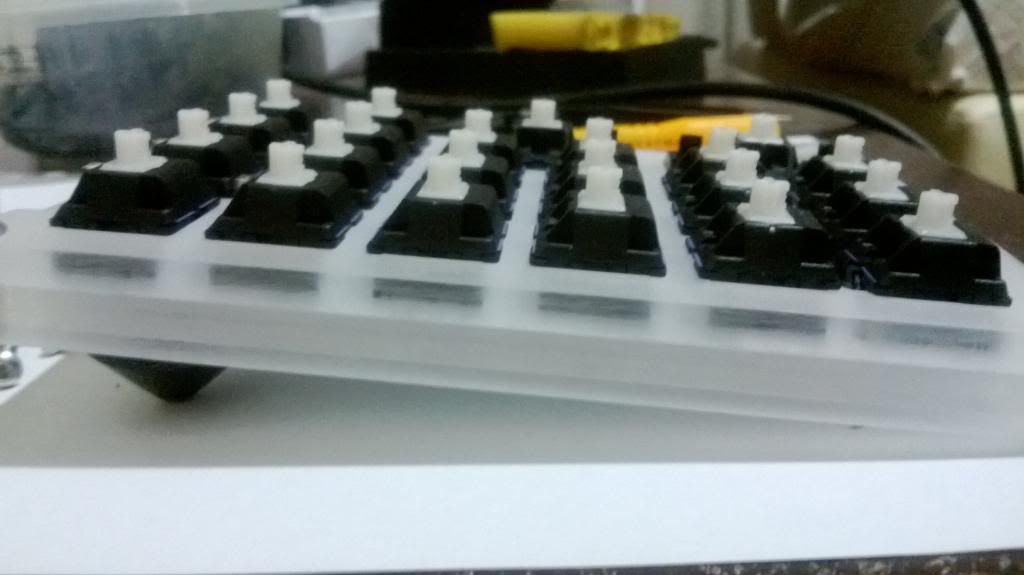

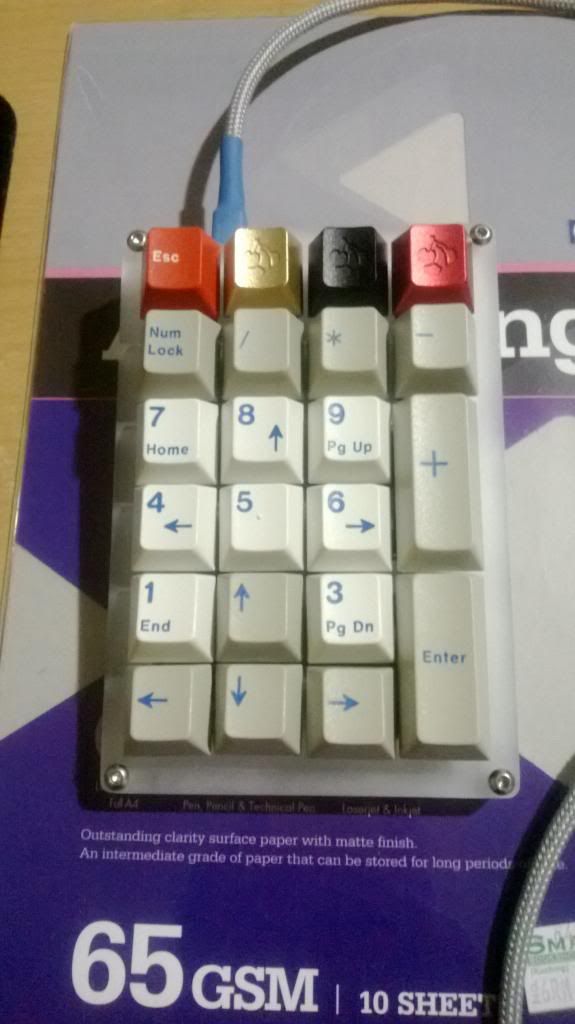

GHpad Acrylic Case Mod

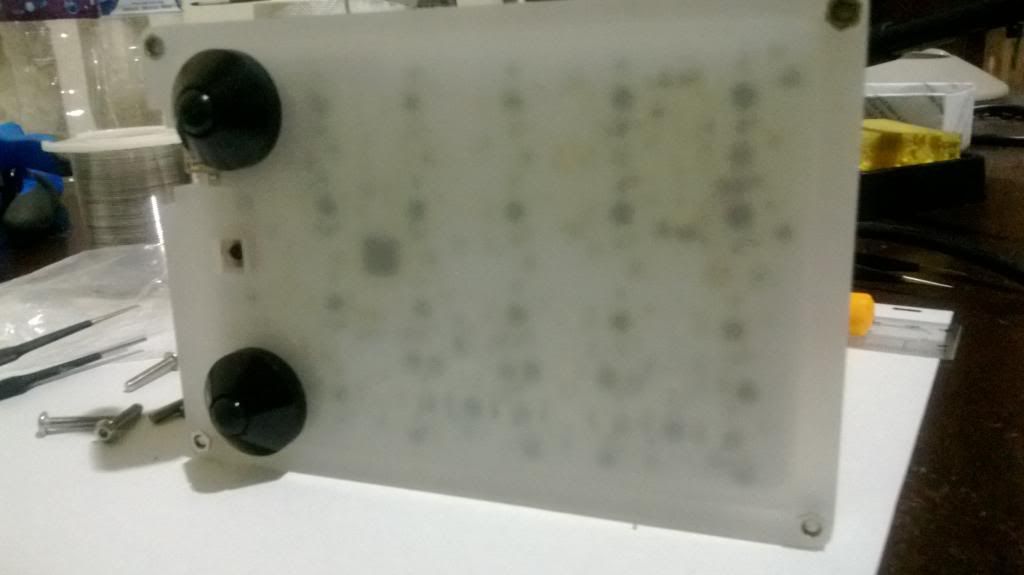

Yup, sandpaper. Manually sand them with bare hands, took quite some time.
Use rough and soft ones, Limited choice in Kuching, so i only manage to get 80, 180 and 360 grit.
i straight use the 80grit after seeing the slow progress of 180grit.
For the best effect, i think is 80, then 180, finishing with 360/400.
If wanna get ultra silky smooth, maybe use ultra fine grit, 1000 or 1200 i think.

Never deal with Swiss Studio anymore, the keysets group buy since last year october/november till now havent done.
They are taking lot of orders yet not capable to progress production because lack of workers and keep giving reasons.

Yes, I do remember I saw a comment that a person pre-order custom logo for spacebar took 3 months to receive.

Yes.

GON has it, gonskeyboardworks.com

poker = mx switch
fc660c = topre switch
type feels different.

It is abs, will shine for sure after long term usage.
Time to make it shines is depending on users.

77 PCB:


Possible layout:


Casing 3 layers: top and bottom 3mm alu, middle is acrylic 12mm.


2 options of alu plate: wkl+wk or 1800 layout.


PCB is 180 or 200rmb
Casing is 230 or 250rmb
Plate is 100rmb

Controllers, smd components (diode+resistor) are all pre-soldered. Just plug in mx switch and leds will do.
Supports full leds, with breathing mode and brightness control.
Keymapping customizable.

Probably will have instructions for this keymapping after gb production.
But i think it is the same method as GHpad one.

Yup

1.2mm is tend to have softer landing when u bottom out the key.
while 1.6mm most of the time is harder and doesn't give bounce effect for pcb mount with plate-less.
