nice bro...ur effort would also elevate this forum a step higher

This post has been edited by qwe13: Mar 16 2013, 10:53 AM

I sleeved using MDPC sleeving & I find it way better than colortrail sleeving in quality wise. Colortrail is quite good too & most importantly cheap but MDPC is much easier to sleeve but too expensive lol. I almost used up all my sata sleevings already for the internal I/O cables such as usb cables, etc. Need to get more for the sata cables. I am a little OCD on stuff like these, I know you dont really need to sleeve it but thats just how I roll. Maybe I am a perfectionist?



ModMyToys pcb installed!



This post has been edited by infernoaswen: Dec 31 2013, 01:44 AM

So yesterday I was sleeving the switch 810 front I/O cables & I used up most of the sata sleeving which was meant only for the sata cable. Sadly its enough to sleeve 1 sata cable only so now I got to order more.



I am using MDPC sleeving btw and the quality is top notch. Applied a little super glue to the sleeving & cable so that it will not come out no matter how hard I pull it. I had bad experience with previous sleeving I did on 24pin cables so this time I will be adding super glue to give that stronger hold.



Time to start filling up the loop.



I plan to go for blood red colour to match the ROG theme.



This post has been edited by infernoaswen: Dec 31 2013, 01:45 AM

Just experimenting with how much dye I need.





I only added 1 drop red & 1 drop blue but the liquid turned straight away to dark purple. This means the red ratio must be more than blue.



Sadly I was too confident & added lots of red & 1-3 drops of blue straight away into the loop. It straight away turned to purple. Now I got to drain the whole liquid & flush it with distilled water & get the ratio right. Learned my lesson lol, then I mixed the dye in a seprate 1.5 bottle first & started filling the loop from the bottle.



I got the colour that I need, the ratio I used was around 20drops of red & half a drop of blue. I drop the blue into a small glass of distilled water & slowly fill the water into the 20drops of red water. Used around half a glass so approximately only half a drop of blue is required. Upper part red looks fantastic but the luminous panel kinda make the red looks yellow/orange at the bottom part.



This post has been edited by infernoaswen: Dec 31 2013, 01:49 AM

I sense bitspower d5 mod kit coming. Lol

Not so sure yet, hoping to hide the pump so there wont be any purpose for that kit, will see how it goes with progress

****************************************************************************************************************

Special request for devilish_yin :









This post has been edited by infernoaswen: Dec 31 2013, 01:49 AM

My noob paint skills:


This post has been edited by infernoaswen: Dec 31 2013, 01:50 AM

start work start work!

nice thanks

Ignore the cable mess, I am playing around with leds. Apperantly the 3mm & 5mm leds I bought was wrong, they are not giving constant light. The led is have the "pulse effect" blinks & dims, blinks & dims etc. This may be nice for some people but I dont really like it so I got to find the correct ones now haha.





So do you like my reservoir? I hope the tiny bubble stays hahaha it gives a really nice effect to it, but unfortunately there are few scratches on the res. Oh well, people are not going to stare at it too long anyways right?







This post has been edited by infernoaswen: Dec 31 2013, 01:50 AM

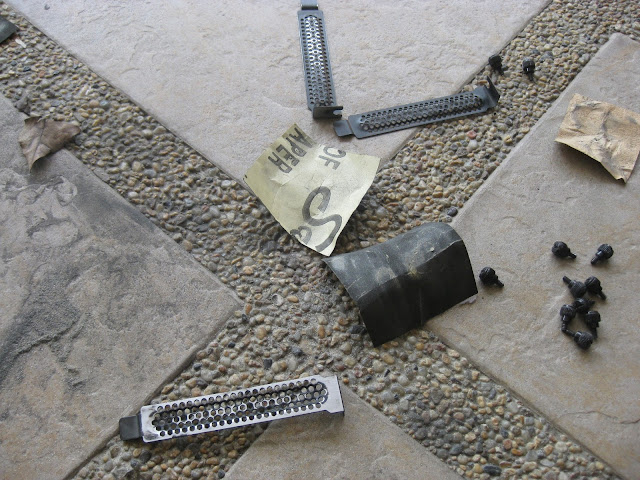

I did some red touch up today, just to highlight more red colour in my build since its pretty dark atm. Sanding the pci bracket is a pain in the ass I tell you, wished I had some paint stripper lol.





Here is the optical bay cover. Its a temporary cover I think. I haven't decide yet should I make a big ass ROG logo at here or just mount ssd over here. Oh & yeah, I painted some screws hehe, looks nice isn't it...



Initially I was thinking to make a luminous panel to display the ROG logo in white + red like how kier did with his build, but then I am thinking if I were to get SSD then where should I mount it. You know you gotta "show off" if you are using SSD right. So I am still deciding. Sorry for this blurry picture, lazy to adjust the camera ISO haha



Also kustom pcs is out of lamptron CW611. Noooooo!! Gotta wait for them to restock D:<

This post has been edited by infernoaswen: Dec 31 2013, 01:51 AM

edited

This post has been edited by infernoaswen: Dec 31 2013, 01:52 AM

where u get those rgb hue bro?.....

cyntrixtech

Wow bro, looking at ur worklog makes me can't wait to build my wc rig. But unlike urs, mine is more to beginner. Glad to see ur worklog as it helps me in building my wc rig.

lol mine also beginner...first time watercooling my rig also but I went all crazy, been spending money like there is no tomorrow... right now insufficient funds after ordering few corsair sp120 fans, waiting for next month hahaha, then only can add gpu waterblock & some extra fittings...

glad my worklog can help you out...there are few great worklogs around this forum too..try checking them out

bro go find other crimper this crimper not human/moder use one lo..
see how it damage ur pin? sumore the pin not even bite ur awg cable

yup, will be getting my tools maybe this week. I thought maybe can use my dad tools and save cost but I was wrong...china tools can throw in the dustbin

Will see if the new tool can crimp properly or not otherwise will be getting some 18awg pins. Also will be getting my acrylic panels this week. Then I can start playing around with leds

that crimping tool is trash. you need to invest on a better crimp tool. crimping 16awg contactor to 18awg wire is do-able, i do it all the time. just need to make a few adjustment. need lots of patience, trial and error. good luck.

but not all china tools brand not good,
u get what u pay
anyway bro if u wan to buy a crimping tool i suggest this
