 PROTON SAGA BLM, FL, FLX CLUB V36, I can carry 56 liulian. No belip me ah?

views

coolkwc
post Dec 13 2012, 09:24 PM

Fall in love with audio again.
*******
Senior Member
3,112 posts

Joined: Jul 2006
QUOTE(GP mad man @ Dec 13 2012, 09:18 PM)
erm,...
when press down clutch pedal shift gear got single "tak" sound, only this few days appear...
any idea? hmm.gif
*
Same here sleep.gif

The joint is dried, maybe apply WD can fix.
coolkwc
post Dec 13 2012, 09:26 PM

Fall in love with audio again.
*******
Senior Member
3,112 posts

Joined: Jul 2006
QUOTE(wanfauzan @ Dec 13 2012, 09:25 PM)
tak sound in our gaga is normal i think.  tongue.gif

mine sometimes got tak sound from the gearstick when i cranked the engine.  hmm.gif
sound exactly like when i pressed brake pedal while at P.
*
We are talking about tak sound from MANUAL CLUTCH. sleep.gif
coolkwc
post Dec 13 2012, 09:58 PM

Fall in love with audio again.
*******
Senior Member
3,112 posts

Joined: Jul 2006
QUOTE(dares @ Dec 13 2012, 09:55 PM)
FLX CVT also use clutch ok  vmad.gif  vmad.gif , you see us no up ah  whistling.gif
*

We are talking about tak sound from MANUAL CLUTCH PEDAL. sleep.gif
coolkwc
post Dec 14 2012, 12:30 PM

Fall in love with audio again.
*******
Senior Member
3,112 posts

Joined: Jul 2006
QUOTE(dares @ Dec 14 2012, 12:20 PM)

*
Seriously i dun belip they can close the boot. whistling.gif
coolkwc
post Dec 14 2012, 06:08 PM

Fall in love with audio again.
*******
Senior Member
3,112 posts

Joined: Jul 2006
QUOTE(davidke20 @ Dec 14 2012, 05:46 PM)
» Click to show Spoiler - click again to hide... «

*
With side mount LED better, make use of the reflector.

This post has been edited by coolkwc: Dec 14 2012, 06:09 PM
coolkwc
post Dec 14 2012, 06:45 PM

Fall in love with audio again.
*******
Senior Member
3,112 posts

Joined: Jul 2006
QUOTE(davidke20 @ Dec 14 2012, 06:20 PM)
Your side, leave 8:30pm lar. My side 8pm ady clear.
Dun hab wor. That's all I have ordered. Next time lar. Besides, now giving it away for phree!!! And only Gabby can user doh.gif
*
Bro, U order from DHGate ah? I searched there before, alot of choices...
coolkwc
post Dec 14 2012, 07:10 PM

Fall in love with audio again.
*******
Senior Member
3,112 posts

Joined: Jul 2006
QUOTE(davidke20 @ Dec 14 2012, 06:57 PM)
Chappalang TT

Date: Flyday 14th December 2012
Time: 8:30pm onwards
Avenue: Al Ashad Maju Restoran Sri Petaling
Table topic: spork lin, tayar, voltage penstabil, wayar lantai, ekzos bunyi bising, penapis daraudara. Any shit also can. Just cum & trash talk will do.

KLIK SPOILER TO VIEW MAP
» Click to show Spoiler - click again to hide... «

Google Map

Attendee:
1) davidke20 (Gabby Stella)
2) muctabucta (Gabby)
3) dares (Pork Pizza Oto)
4) kenjilew (Spoon civigGaGa)
5) C2KBAS2005 (Iswaga VR4)
6) Ckdenion (persogen2 R3)
7) Nickzkuso (projectosona)
8) V12kompressor (CRB or GaGa supercas)
9) rapers (GaGa or Kebisa or BiBa)
10) Fubar20 (persoga circus)
11) Mahihi (hawaiian GaGa)
12) Zulkjagazahabalatamanatibai (GaGa GT500)
13) daMieNyuZry (FatLadyGaGa Spork Lin Balu)
14) valence (Pork Pizza MoTo)
15)
16)
17)
18)
19)
20)

Please add your name in by yourself.

Gabby owner(*cum driver) for tonight TT FREE T25 22SMD x 2 pieces whistling.gif
user posted image


Added on December 14, 2012, 7:05 pm

I know a lot of choices lar, I didn't know its less reflective mar. sad.gif
*
nola, i'm not argue ur choice, just ask whether u order from there or not only...
coolkwc
post Dec 18 2012, 08:52 AM

Fall in love with audio again.
*******
Senior Member
3,112 posts

Joined: Jul 2006
QUOTE(ckdenion @ Dec 18 2012, 08:41 AM)
hmm.gif i thought tat is normal...perhaps i really need to try it out myself to c d difference of it
*
Dun worry bro, this is our Campro characteristic, is normal. yawn.gif whistling.gif
coolkwc
post Dec 19 2012, 08:10 AM

Fall in love with audio again.
*******
Senior Member
3,112 posts

Joined: Jul 2006
QUOTE(V12Kompressor @ Dec 19 2012, 02:07 AM)
No more sluggish acceleration after a specific high speed. Could be placebo.. But remove thing oso can placebo effect kah. laugh.gif
*
How is the effect by sticking all those small/big D on ur car door last week?
coolkwc
post Dec 19 2012, 08:43 AM

Fall in love with audio again.
*******
Senior Member
3,112 posts

Joined: Jul 2006
Proton's rule - salesman must drive proton car lo..
coolkwc
post Dec 19 2012, 06:16 PM

Fall in love with audio again.
*******
Senior Member
3,112 posts

Joined: Jul 2006

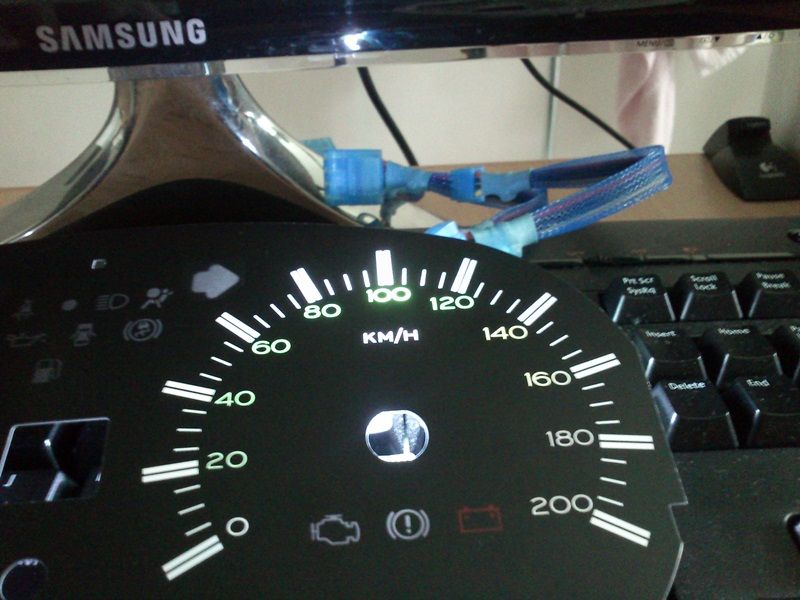

Today decided to omit amber odometer LCD and change to warm white.

» Click to show Spoiler - click again to hide... «


27SMD LED brake lamp on action.

» Click to show Spoiler - click again to hide... «


Anyway, my car 'check engine' light ON now, nothing happen, temp normal, pickup normal, what happen huh? Heard alot of this case for manual BLM before, i suspect maybe O2 sensor is kong. icon_question.gif
coolkwc
post Dec 19 2012, 06:40 PM

Fall in love with audio again.
*******
Senior Member
3,112 posts

Joined: Jul 2006
QUOTE(Sh@rty 5 @ Dec 19 2012, 06:21 PM)
biggrin.gif your meter looking real good thumbup.gif

whats the size of the meter bulb? tongue.gif
*
3.4mmx3mm, AKA 3430 SMD white LED. Background just use sticker will do. So whatever colour u like. biggrin.gif

» Click to show Spoiler - click again to hide... «



Added on December 19, 2012, 6:44 pm
QUOTE(zeone @ Dec 19 2012, 06:27 PM)
Hi Bro... notworthy.gif
Wow! Yr odo & panel meter LEDs really really nice la!! rclxms.gif
Positive results of yr training & skill in electronics!! thumbup.gif notworthy.gif

Re brake lamps, thot it's 1 dual filament bulb?
Appears 2b 2separate bulbs in yr pics ie 1 for rear lights & 1 for braking? hmm.gif


Added on December 19, 2012, 6:29 pmOr izzit reflection?
*
Is single bulb, reflection only.

This post has been edited by coolkwc: Dec 19 2012, 06:44 PM
coolkwc
post Dec 19 2012, 07:46 PM

Fall in love with audio again.
*******
Senior Member
3,112 posts

Joined: Jul 2006
QUOTE(DaBestOne @ Dec 19 2012, 07:11 PM)
Bro,,your LED brake lamp is pretty nice..how much did u spent to modify it ?
*
user posted image

I just change filamen bulb to LED bulb, 3 pieces RM32.


Added on December 19, 2012, 7:48 pm
QUOTE(r3apers @ Dec 19 2012, 07:19 PM)
Bro, wat sticker is tht? Those correction sticker?
*
Yup. nod.gif need to stick few layers so that the color is more vivid. If u can find those transparent colour paper is better.


This post has been edited by coolkwc: Dec 19 2012, 07:48 PM
coolkwc
post Dec 19 2012, 08:02 PM

Fall in love with audio again.
*******
Senior Member
3,112 posts

Joined: Jul 2006
QUOTE(davidke20 @ Dec 19 2012, 07:54 PM)
drool.gif bulk bulk

btw, did you check whether the "dual function" is function properly? When brake that time go different mou? Mine waste gas, brake no function sad.gif
*
Yup, 2 pieces are dual terminals, means got dual function. Another one is single terminal for 3rd brake lamp. All are 27LED.

Later i post video here.

This post has been edited by coolkwc: Dec 19 2012, 08:03 PM
coolkwc
post Dec 19 2012, 08:45 PM

Fall in love with audio again.
*******
Senior Member
3,112 posts

Joined: Jul 2006
QUOTE(davidke20 @ Dec 19 2012, 07:54 PM)
drool.gif bulk bulk

btw, did you check whether the "dual function" is function properly? When brake that time go different mou? Mine waste gas, brake no function sad.gif
*

coolkwc
post Dec 19 2012, 09:00 PM

Fall in love with audio again.
*******
Senior Member
3,112 posts

Joined: Jul 2006
QUOTE(wanfauzan @ Dec 19 2012, 08:46 PM)
the warm white LCD does look cool? care to share how to do that?  smile.gif
*
Have to dismantle the meter until PCB level and change LED by soldering. How to dismantle is too hard to described by word. You need to have electronic skill on that.

user posted image

Circled in red is LED for meter panel (which i adi change to cool white), circled in blue is the LED for LCD, change all 3 of it (sorry not capture fully) to the desired colour will do.

This post has been edited by coolkwc: Dec 19 2012, 09:00 PM
coolkwc
post Dec 20 2012, 05:59 PM

Fall in love with audio again.
*******
Senior Member
3,112 posts

Joined: Jul 2006
Engine Check Indicator still on after one day din start and unplug battery for few minutes. sleep.gif

Foreman said the culprit should be the sensor @ extractor, need few hundreds if change.

» Click to show Spoiler - click again to hide... «

coolkwc
post Dec 20 2012, 07:07 PM

Fall in love with audio again.
*******
Senior Member
3,112 posts

Joined: Jul 2006
Bad news David.

Our 3rd brake lamp got circuit detector circuit by ECU. Thats why my car engine indicator light ON. doh.gif

When we turn our key to ignition, they will provide 12V (battery level) to check the 3rd brake lamp. When we plug in filamen bulb, the bulb resistance @ cold is around 1-2ohm, which virtually equal to short circuit and bring the checking voltage to 0V, so the ECU is detect close loop. When i plug in LED, i notice the LED got light up slightly even i dun press brake. I check with meter, it only able to drop to 7V with LED plug in, so thats the culprit.
coolkwc
post Dec 20 2012, 07:52 PM

Fall in love with audio again.
*******
Senior Member
3,112 posts

Joined: Jul 2006
QUOTE(dares @ Dec 20 2012, 07:31 PM)
Why ECU wanna check the third brake lamp  shocking.gif will it alert you if the bulb is burnt?
*
Yes, definitely, is safety feature built-in...when i unplug the 3rd brake lamp, which is equal to bulb burnt and filament broken, the engine light will turn ON. Our car have built in brake lamp detector, which is pain for us who want to change bulb to LED. doh.gif

This post has been edited by coolkwc: Dec 20 2012, 07:53 PM
coolkwc
post Dec 20 2012, 08:41 PM

Fall in love with audio again.
*******
Senior Member
3,112 posts

Joined: Jul 2006
QUOTE(wanfauzan @ Dec 20 2012, 08:25 PM)
just checked the user manual. nothing mentioned about brake lamp problem if engine check indicator lights up. why proton don't put this in the manual? btw, does this also apply on 3rd brake lamp? I have been seeing some proton car with non-functional 3rd brake lamp. Or are they just ignore the check engine indicator?  hmm.gif
*
What i said is only for 3rd brake lamp, no detection for both tail brake lamp.

Yup, Proton din state this fking feature on manual, thats why i scratch my head dun know what happen and din realize at all. After think carefully, the engine indicator only light up after i installed LED yesterday. mad.gif
