Item Downstream Upstream Unit
SNR Margin 31 24 dB
Line Attenuation 17 7 dB
Data Rate 1024 512 kbps

I'm using the 512kbps package.....why is it showing 1024kbps? does that mean I can unlock the speed?

This is my snr margin it is good or terrible? i'm using 1mbps

This post has been edited by jianwei87: Nov 16 2009, 11:38 AM


Attached thumbnail(s)

This is normal.

For 512 package, u either being capped at 512, 1024, 1536 or sometimes 2048 or maybe higher to ensure u get the possible maximum speed.

I have a strange problem. Just signed up for streamyx and activated my account. When first turn-on modem and pppoe login, margin shows

ds 31dB
us 26dB

But when I want to browse or doing ping, i get time out error and my margin status now shows

ds 31dB
us -24dB

my line attenuation are quite good at ds 8-11 and us 1-2.

Any idea? Have not call tm tech support yet but will be calling by tonight if not able to resolve.

here's mine
SNR Margin
DS 12dB
US 7dB

Line Attenuation
DS 52dB
US 25dB

Data Rate

DS 2048kbps
US 160kbps

Is this good..........?

this is good i guess for 384kbps connection

it's quite terrible, usually ppl can get around 15-25 like that

My question is, how do we actually improve it ? is it related to our ethernet cable ?

---

Added on December 3, 2009, 5:32 pmya it's good =) upgrade package la =D

This post has been edited by CuteDay: Dec 3 2009, 05:32 PM

ADSL Status

ADSL status shows the ADSL physical layer status.

ADSL Firmware Version: 6.00.01.00 - 6.00.01.00 - 6.00.04.00 Annex A - 01.07.2b - 0.54
ADSL Software Version: V3.02B01T01.EU-A.20071212
Line State Connected
Modulation ADSL_G.dmt
Annex Mode Annex A
Max Tx Power -38 dBm/Hz

Item Downstream Upstream Unit
SNR Margin 18 18 dB
Line Attenuation 50 26 dB
Data Rate 1536 512 kbps




is this good? I`m having problem wif my gaming now ...

Hello...

To the newbies guys, you really need to read the 1st post.
I keep seeing ppl asking is this is good or not, when if you just look at the 1st post, you will know some of u have EXCELLENT results!! SNR > 20 is good Attenuation < 40 is good.

You guys are actually lucky, I'm at the point where I have to question, will a 1 meter phone cable reduction will help much or not?

My SNR 12, Line Attenuation is 58.5

So far so good, it's still ok no DC, but will a 1 meter reduction of phone line cable matters much? Every bit helps I know, shorter it is, better... But just wonder if it's worth the effort or not.


Also, for u guys whose modem and desktop is far away from the phone wall socket. Use a longer network cable instead of a longer phone line. Stick ur modem next to the phone socket, run a Cat 5 to your pc.
Cat5 signal wont deteriorate..

This post has been edited by eltaria: Dec 8 2009, 10:17 AM

I have low snr margin and high line attentuation

If i called up TMNet
What should I say or complain?
They know the term of SNR margin and line attentuation?

called up a lot of time... they know the word but dunnoe the effect..

the answer always given by them.. got dc ? i say no... can online... no? can log in to msn ? test your ping ? ok ..

there your line is normal.. i straight wtf..

i just onli send them an email bout my line attenuation @ 59 ...

i wan to see what they will reply.. or will they reply at the first place ?

So Even I called up, they won't bother to fix my problem?

Sigh...Been facing frequent disconnection and slow connection =(

Keep on trying.

Guys , i just upgraded my streamyx from 512 package to 1Mbps and i only managed to get ( average = 0.8 , Max = 0.92 ) Mbps from the speedtest.net
before i upgrade my streamyx , i only get 0.52 mbps max

i was wondering whether the data rate could be the root cause of it , if yes is there a way to get this increase

the data rate in my modem was 1024 before upgrade and after upgrade , no difference.
please check the screenie for the data rate that i'm talking about.


Attached thumbnail(s)

good luck calling streamyx....

Below is my Streamyx ADSL Line details. However I experience intermittent high ping loss problem even to www.tm.net.my. This makes me unable to surf the net smoothly and sometimes i get errors from doing speedtest at speedtest.net.

All sifus please take a look at my line details below and see whether it is my copper line problem or Streamyx's problem.

DSL Parameters and Status
Vendor ID: 0039
Revision Number: E.37.5.49
Serial Number: 123456789abcdx
Local Tx Power: 0.1 dB
Remote Tx Power: 10.5 dB
Local Line Atten.: 5.0 dB
Remote Line Atten.: 2.5 dB
Local SNR Margin: 34.5 dB
Remote SNR Margin: 25.5 dB
Self Test: Passed
DSL Standard: ADSL2+
Profile: Main
Tx Line Rate: 506 Kbps
Rx Line Rate: 2047 Kbps
Max Attainable Line Rate(Down Stream): 21620 Kbps
SRA Parameters
Auto SRA: Disable
SRA CRC Error Rate: 1800
SRA FEC Error Rate: 60
SRA Up Shift Obs. Period: 3600 Secs
SRA Down Shift Obs. Period: 600 Secs
Power Management Mode: L2, L3 Both Allowed

^your line is good
try running pingplotter

This is my ping plotter trace result to www.tm.net.my

Target Name: www.tm.net.my
IP: 202.71.97.48
Date/Time: 20/12/2009 9:15:08 PM to 20/12/2009 9:17:23 PM

1 1 ms 1 ms 1 ms 1 ms 2 ms 1 ms 1 ms 1 ms 1 ms 1 ms unknown [192.168.2.1]
2 N/A N/A 603 ms * * 202 ms * * 223 ms * [219.93.218.177]
3 187 ms 217 ms 180 ms 223 ms * 213 ms * * 176 ms * [219.93.219.173]
4 228 ms * 201 ms 212 ms 212 ms 251 ms 542 ms 244 ms 175 ms 198 ms [10.55.32.78]
5 219 ms 193 ms 226 ms 195 ms 189 ms 221 ms 539 ms 237 ms 162 ms 237 ms [202.71.96.13]
6 * 222 ms * 178 ms 225 ms 193 ms 530 ms 232 ms 247 ms 236 ms [202.71.96.28]
7 * * * * * * * * * * [-]
8 * * * * * * * * * * [-]
9 * 193 ms 232 ms 221 ms 231 ms 196 ms * 245 ms 265 ms 247 ms [202.71.97.48]

Ping statistics for www.tm.net.my
Packets: Sent = 10, Received = 8, Lost = 2 (20.0%)
Round Trip Times: Minimum = 193ms, Maximum = 265ms, Average = 228ms



When my internet line is good, the ping replies average at 35ms. The lagness usually happens from 6pm until 1am everyday. Thanks for your help!

This post has been edited by Maestrol: Dec 20 2009, 09:23 PM

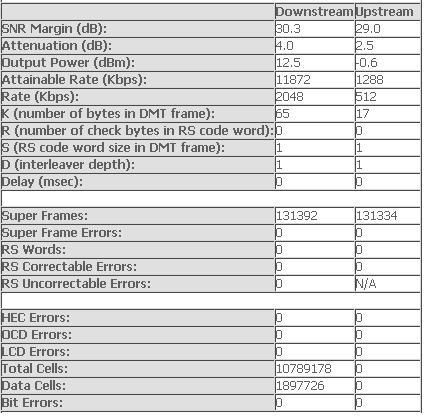

how bout this guys.. any comment.
