Enterprise Networking Mikrotik Routers (RouterBoard & RouterOS), User and owner discussion group
|
Gaara92
|
 Nov 8 2021, 09:47 PM
|
|
QUOTE(loonsave @ Nov 7 2021, 09:13 PM) I can't agree more on that. Being look at the log to find out why my PPPoE disconnected, and visualize the data usage in monitoring tool make me feel good. ================================ Can I power up a HP ProCurve 1810G-8 Switch (J9449A) with PoE-Out from hEX S? hEX S come with a default 24V power adapter, and support Passive PoE up to 57V on port 5, while the HP switch support 802.3af PoE in on Port 1. Do the default 24V power adapter sufficient, or I need to get a higher voltage power adapter? That one is passthrough PoE (iirc), basically if you put PoE in using 802.3af/at, it will came out with the same wattage. I don't know if the device can channel using passive or PoE+, you can try it first. |
|
|
|
|
|
Gaara92
|
Nov 11 2021, 06:34 PM
|
|
|
QUOTE(soonwai @ Nov 7 2021, 12:38 PM) Getting RB5009 soon. Later I check how to configure IPv6 or why it doesn’t work. I also follow the guides previously posted. I found other people having problem with the DHCPv6-PD and it is currently not fixed yet, but other came with solution. I have not try it yet.
|
|
|
|
|
|
Gaara92
|
Nov 16 2021, 07:45 AM
|
|
|
QUOTE(cwtien @ Nov 15 2021, 04:48 PM) I know they misunderstood me (I was chatting via lazada chat app). I explained a few times but the other side didn't get it.... I'll probably email to their official site or something. I already asked them. They have not ordered it yet. |
|
|
|
|
|
Gaara92
|
Nov 16 2021, 07:37 PM
|
|
|
QUOTE(cwtien @ Nov 16 2021, 04:46 PM) I managed to order 1 set from Shopee, shop name is mikrotik.my (from China). I buzzed their shop and they said they have stock, then only listed them in Shopee. It was better than ordering from Australia, New Zealand, or Europe (all the other places that has stock)  OMG can share the link? I cannot find any rackmount in the shop. |
|
|
|
|
|
Gaara92
|
Nov 20 2021, 06:00 PM
|
|
|
QUOTE(cwtien @ Nov 20 2021, 04:31 PM) I found another one in Shopee -> https://shopee.com.my/Microtik-RB5009-rackm...14-5e20f4cffeddI hate it when they don't list it in their website  . OMG this one is more cheaper than China one. But I already bought it from China. |
|
|
|
|
|
Gaara92
|
Nov 26 2021, 09:03 PM
|
|
|
QUOTE(rezzorix @ Nov 26 2021, 01:56 PM) I see.. well then I hope that gets fixed soon... When adding a DHCP Client in IPv6 I get an IP-address but somehow not able to get it to my other clients... <a href='https://pictr.com/images/2021/11/26/B4D57v.md.png' target='_blank'>https://pictr.com/images/2021/11/26/B4D57v.md.png </a> Hi you need to assign an address to your LAN interface so the ND can send the RA to your clients. |
|
|
|
|
|
Gaara92
|
Nov 29 2021, 09:41 PM
|
|
|
QUOTE(rezzorix @ Nov 29 2021, 09:12 PM) Thanks for the response. I actually have IPv6 address lists for each interface .../64...  Guess I need some time over one of the next weekends to figure this all out.  share your ipv6 config or screenshot here. |
|
|
|
|
|
Gaara92
|
Dec 9 2021, 11:18 PM
|
|
|
QUOTE(syahpian @ Dec 8 2021, 07:12 PM) mind to share your setting? |
|
|
|
|
|
Gaara92
|
Dec 10 2021, 12:09 AM
|
|
|
QUOTE(syahpian @ Dec 9 2021, 11:32 PM) my ipv6 setting » Click to show Spoiler - click again to hide... « CODE /ipv6 address
add from-pool=IPv6 interface=bridge
/ipv6 dhcp-client
add interface=UniFi pool-name=IPv6 rapid-commit=no request=prefix \
  use-peer-dns=no
/ipv6 firewall address-list
add address=::/128 comment="defconf: unspecified address" list=bad_ipv6
add address=::1/128 comment="defconf: lo" list=bad_ipv6
add address=fec0::/10 comment="defconf: site-local" list=bad_ipv6
add address=::ffff:0.0.0.0/96 comment="defconf: ipv4-mapped" list=bad_ipv6
add address=::/96 comment="defconf: ipv4 compat" list=bad_ipv6
add address=100::/64 comment="defconf: discard only " list=bad_ipv6
add address=2001:db8::/32 comment="defconf: documentation" list=bad_ipv6
add address=2001:10::/28 comment="defconf: ORCHID" list=bad_ipv6
add address=3ffe::/16 comment="defconf: 6bone" list=bad_ipv6
add address=::224.0.0.0/100 comment="defconf: other" list=bad_ipv6
add address=::127.0.0.0/104 comment="defconf: other" list=bad_ipv6
add address=::/104 comment="defconf: other" list=bad_ipv6
add address=::255.0.0.0/104 comment="defconf: other" list=bad_ipv6
/ipv6 firewall filter
add action=accept chain=input comment=\
  "defconf: accept established,related,untracked" connection-state=\
  established,related,untracked
add action=drop chain=input comment="defconf: drop invalid" connection-state=\
  invalid disabled=yes
add action=accept chain=input comment="defconf: accept ICMPv6" protocol=\
  icmpv6
add action=accept chain=input comment="defconf: accept UDP traceroute" port=\
  33434-33534 protocol=udp
add action=accept chain=input comment=\
  "defconf: accept DHCPv6-Client prefix delegation." dst-port=546 protocol=\
  udp src-address=fe80::/10
add action=accept chain=input comment="defconf: accept IKE" dst-port=500,4500 \
  protocol=udp
add action=accept chain=input comment="defconf: accept ipsec AH" protocol=\
  ipsec-ah
add action=accept chain=input comment="defconf: accept ipsec ESP" protocol=\
  ipsec-esp
add action=accept chain=input comment=\
  "defconf: accept all that matches ipsec policy" ipsec-policy=in,ipsec
add action=drop chain=input comment=\
  "defconf: drop everything else not coming from LAN" disabled=yes \
  in-interface-list=!LAN
add action=accept chain=forward comment=\
  "defconf: accept established,related,untracked" connection-state=\
  established,related,untracked
add action=drop chain=forward comment="defconf: drop invalid" \
  connection-state=invalid disabled=yes
add action=drop chain=forward comment=\
  "defconf: drop packets with bad src ipv6" disabled=yes src-address-list=\
  bad_ipv6
add action=drop chain=forward comment=\
  "defconf: drop packets with bad dst ipv6" disabled=yes dst-address-list=\
  bad_ipv6
add action=drop chain=forward comment="defconf: rfc4890 drop hop-limit=1" \
  disabled=yes hop-limit=equal:1 protocol=icmpv6
add action=accept chain=forward comment="defconf: accept ICMPv6" protocol=\
  icmpv6
add action=accept chain=forward comment="defconf: accept HIP" protocol=139
add action=accept chain=forward comment="defconf: accept IKE" dst-port=\
  500,4500 protocol=udp
add action=accept chain=forward comment="defconf: accept ipsec AH" protocol=\
  ipsec-ah
add action=accept chain=forward comment="defconf: accept ipsec ESP" protocol=\
  ipsec-esp
add action=accept chain=forward comment=\
  "defconf: accept all that matches ipsec policy" ipsec-policy=in,ipsec
add action=drop chain=forward comment=\
  "defconf: drop everything else not coming from LAN" disabled=yes \
  in-interface-list=!LAN
/ipv6 nd
set [ find default=yes ] advertise-dns=no
/ipv6 nd prefix default
set preferred-lifetime=1h valid-lifetime=2h  your pppoe profile using default profile? |
|
|
|
|
|
Gaara92
|
Dec 10 2021, 12:13 AM
|
|
|
QUOTE(syahpian @ Dec 10 2021, 12:11 AM) yup, using default profile oh wait i am misunderstanding here. The problem only resist in model RB5009, other model is working fine. My mistake. |
|
|
|
|
|
Gaara92
|
Dec 10 2021, 09:34 PM
|
|
|
QUOTE(cwtien @ Dec 10 2021, 02:58 PM) Doh! And there I thought I could finally get ipv6 working on RB5009 . Nevermind, IPv6 is only 'good-to-have', not a 'must-have'. Don't worry, there are already people submitted the support ticket regarding this issue. The dev already take note on this matter and will be fix in the next stable release. QUOTE(syahpian @ Dec 10 2021, 07:43 PM) btw, i want to upgrade my old rb2011, is hex good enough for 800Mbps without enabling fasttack?  this rb2011 cannot get full speed without enabling fasttrack, maybe because hardware too old already get a hap ac2 or hap ac3 based on @soonwai experience. Why do you need to turn off fastrack? Are you doing mangle rules ? |
|
|
|
|
|
Gaara92
|
Dec 14 2021, 09:51 AM
|
|
|
QUOTE(sepulse @ Dec 14 2021, 08:48 AM) hi guys im kinda new to mikrotik and i got something i wanna figure out. im using ccr1009-7g-1c-1s+ and on unifi 300Mbps, so the situation is: i have another 100Mbps x 3 in my office and i plan to load balance it with mikrotik. so my question is how do i do that? Router to Mikrotik? or direct from TM BTU to Mikrotik? You can direct from BTU and dial the PPPoE from your mikrotik. After that you can configure mangle rules to load balance. There are several ways to do load balancing in mikrotik. |
|
|
|
|
|
Gaara92
|
Dec 15 2021, 06:27 PM
|
|
|
QUOTE(rezzorix @ Dec 14 2021, 02:44 PM) Thanks for offering your support. With 7.1 I actually managed to get a /64 prefix. So my RB5009 is getting a prefix, auto-creating a pool. Then assigning one address from the pool to the bridge works BUT assigning another address gives an error: "address pool error: Pool ipv6poolname exhausted - no more addresses left! (14)"I have tried all address options (with/without EUI64, Advertise, No DAD) but still same error. Is the reason the following problem that still persists on RB5009? : The prefix unifi gives you only can do for one network only, un less it is /56 prefix or you know how to divide those /64 using manual, as other /64 will use mac address for the address. Btw how come you can make the DHCPv6-PD works in RB5009? Are you using unifi? |
|
|
|
|
|
Gaara92
|
Dec 17 2021, 07:22 PM
|
|
|
QUOTE(rezzorix @ Dec 15 2021, 07:46 PM) I am using Time Internet. I get a /64 ipv6 prefix from them, but then can as described, can only assign 1x ipv6:  Assigning this to the (main-)bridge it doesnt do anything... cant get out into the web with ipv6... I think you put it wrong. Try to put 1::/64 instead. Dont copy the whole address as it already take from the pool option below. |
|
|
|
|
|
Gaara92
|
Dec 18 2021, 08:10 PM
|
|
|

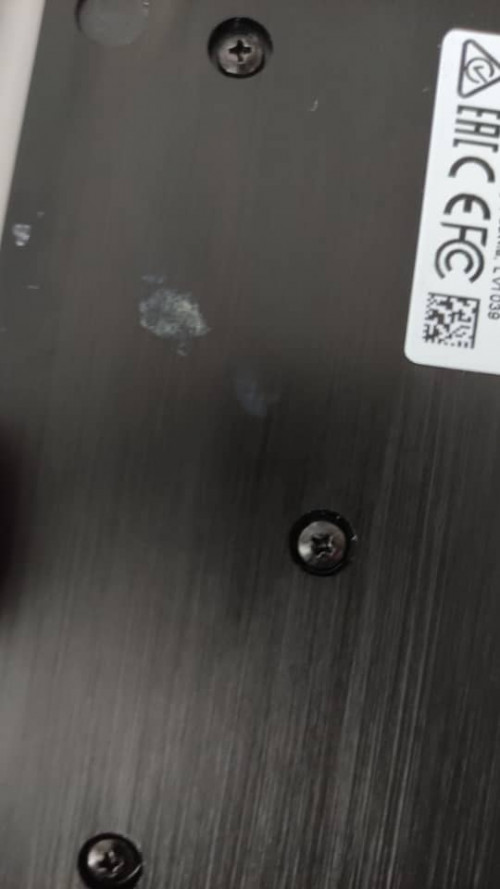

QUOTE(PeacefulDiscord @ Dec 16 2021, 10:59 AM) Bought an RB5009 to upgrade my new home lab. Excited to try it out. Any recommendations for a noob like me to get started with RouterOS using TIME Broadband? Also, a recommendation for Synchroweb Technology. The first unit they gave me had a strange rough mark on the bottom metal plate (see photo) and after discussing with the sales rep, they sent Lalamove to pick it up and replace with another unit. Definitely can recommend   How much did you buy from synchroweb? |
|
|
|
|
|
Gaara92
|
Dec 18 2021, 09:59 PM
|
|
|
QUOTE(PeacefulDiscord @ Dec 18 2021, 09:43 PM) RM1000. This includes the rackmount kit Nice deal. Mine got for RM900 for the RB5009 and RM60 for the rackmount kit. I am a returned customer so yeah they got discount for that  |
|
|
|
|
|
Gaara92
|
Dec 22 2021, 09:52 AM
|
|
|
QUOTE(rezzorix @ Dec 20 2021, 10:45 PM) I am using Time Broadband and would like to get rid of the fibre modem and instead use a SFP Module in my Mikrotik Router. I heard that it is possible but have to get Time Broadband Support to update the MAC address in their system... Anyone here has already done this and who can share a how-to? Actually you can. Refer to this thread https://forum.lowyat.net/topic/4925452 |
|
|
|
|
|
Gaara92
|
Dec 29 2021, 10:35 PM
|
|
|
QUOTE(hasmidzul_jojo @ Dec 29 2021, 08:49 AM) Testing my newly configured routeros  Yours not RB5009 right? The problem only exist in RB5009 running v7, other models not affected. |
|
|
|
|
|
Gaara92
|
Dec 29 2021, 10:56 PM
|
|
|
QUOTE(soonwai @ Dec 29 2021, 10:41 PM) Screenshot is D52G-5HacD2HnD, should be hAP AC2. I once pushed normis in mikrotik support forum, he seems tensed enough handling bugs and issues reported in the forum regarding v7 haha |
|
|
|
|
|
Gaara92
|
Jan 3 2022, 06:31 PM
|
|
|
QUOTE(Chongky @ Jan 3 2022, 10:23 AM) Hello, Anyone using hap ac3 ? I have some issue for the wifi with iphone 13 pro. There is no internet connection with iphone 13 pro. The wifi is working fine with my laptop with windows 10 os. [attachmentid=11068426] Anyone facing this issue before ? Can you access the webfig using ip address on safari? |
|
|
|
|
